HP Kayak
PC Workstation
Service Handbook
PC Workstations and
Accessories
4th Edition
June 2000
Ka_sh_1.bk Page 1 Thursday, June 15, 2000 7:27 PM

Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-1
4
4
HP Kayak XU (up to 333 MHz) &
HP Kayak XW Series A2, U2, W2
Models and Accessories
Product
Number
Processors Hard
Drive
Video
Controller
Std.
RAM
Multi-
media
LAN OS
Kayak XU PC Workstation
HP Kayak XU 6/266 MHz (CPL: 9/97 )
D4691N Single
Pentium II
with 512 KB
of L2 cache
memory
2.1 GB,
7.2k rpm,
SCSI
Matrox
Millenium II
AGP, 4 MB
on board,
upgradeablet
o 16 MB
32 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
D4692N 4.5 GB,
7.2k rpm,
SCSI
64 MB
SDRAM
ECC
HP Kayak XU 6/300 MHz (CPL: 9/97 )
D4693N Single
Pentium II
with 512 KB
of L2 cache
memory
2 x
4.5 GB,
10k rpm,
SCSI with
HP
FastRAID
Matrox
Millenium II
AGP, 4 MB
on board,
upgradeablet
o 16 MB
64 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
D4694N Dual
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB
10k rpm,
SCSI
D4695N Single
Pentium II
with 512 KB
of L2 cache
memory
D4701N 4.5 GB,
10k rpm,
SCSI with
HP
FastRAID
D4702N 9.1 GB,
10k rpm,
SCSI
128 MB
SDRAM
ECC
Ka_sh_1.bk Page 1 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-2 HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2
Mini-Tower
PC Workstations
4
HP Kayak XU 6/333 MHz (CPL: 3/98 )
D4705N Single
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB,
10k rpm,
SCSI with
HP
FastRAID
Matrox
Millenium II
AGP, 4 MB
on board,
upgradeablet
o 16 MB
64 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
Product
Number
Processors Hard
Drive
Video
Controller
Std.
RAM
Multi-
media
LAN OS
Kayak XW Series A2
HP Kayak XW 6/333 MHz Series A2 (CPL: 04/98 )
D6475N Single
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB,
10k rpm,
SCSI
OpenGL 3D
hardware
accelerator
(Elsa Gloria
Synergy)
64 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
Product
Number
Processors Hard
Drive
Video
Controller
Std.
RAM
Multi-
media
LAN OS
Kayak XW Series U2
HP Kayak XW 6/xxx 266 MHz Series U2 (CPL: 10/97 )
D5505N Single
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB,
10k rpm,
SCSI
OpenGL 3D
hardware
accelerator
(Accel
Graphics,
AccelEclipse
II)
128 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
Product
Number
Processors Hard
Drive
Video
Controller
Std.
RAM
Multi-
media
LAN OS
Ka_sh_1.bk Page 2 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-3
4
NOTE: All models are supplied with a 1.44 MB (D2035B)
Flexible Disk Drive, two integrated SCSI controllers
(one Ultra Wide 16-bit SCSI and one Ultra Narrow 8-bit
SCSI), and an integrated IDE controller.
HP Kayak XW 6/xxx 300 MHz Series U2 (CPL: 10/97 )
D5507N Single
Pentium II
with 512 KB
of L2 cache
memory
9.1 GB,
10k rpm,
SCSI with
HP
FastRAID
OpenGL 3D
hardware
accelerator
(Accel
Graphics,
AccelEclipse
II)
128 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
D5509N Dual
Pentium II
with 512 KB
of L2 cache
memory
2 x
4.5 GB,
10k rpm,
SCSI with
HP
FastRAID
Kayak XW Series W2
HP Kayak XW 6/300 MHz Series W2 (CPL: 10/97 )
D5510N Single
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB,
10k rpm,
SCSI
OpenGL 3D
hardware
accelerator
(HP
VISUALIZE
fx4)
128 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
D5514N Dual
Pentium II
with 512 KB
of L2 cache
memory
2 x
4.5 GB,
10k rpm,
SCSI with
HP
FastRAID
HP Kayak XW 6/333 MHz Series W2 (CPL: 10/97 )
D6485N Single
Pentium II
with 512 KB
of L2 cache
memory
4.5 GB,
10k rpm,
SCSI
OpenGL 3D
hardware
accelerator
(HP
VISUALIZE
fx4)
128 MB
SDRAM
ECC
24✕IDE
CD-ROM.
Audio chip
(AD1816) is
integrated
on the
system
board.
10BT/
100TX
NT
4.0
WS
Product
Number
Processors Hard
Drive
Video
Controller
Std.
RAM
Multi-
media
LAN OS
Ka_sh_1.bk Page 3 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-4 HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2
Mini-Tower
PC Workstations
4
Supported Accessories
Memory Upgrades
32 MB ECC SDRAM upgrade kit D5365A
64 MB ECC SDRAM upgrade kit D5366A
128 MB ECC SDRAM upgrade kit D5367A
Video Memory
4 MB memory upgrade for Matrox Millenium II AGP video controller—
HP Kayak XU PC Workstation only
D5487A
Hardware texture accelerator with 16 MB SDRAM dedicated texture
memory—HP Kayak XW PC Workstation Series W2 only
D5511A
Dual Processor Kits1
Pentium II 266 MHz containing 512 KB internal L2 cache D5483A
Pentium II 300 MHz containing 512 KB internal L2 cache D5484A
Pentium II 333 MHz containing 512 KB internal L2 cache D6526A
Input Devices
HP mouse C3751B
HP scrolling mouse C4736A
Video Displays
All current HP Displays (see the HP Kayak Accessory Service Handbook)
Mass Storage—Hard disk drives
4.5 GB UW-SCSI hard disk 7.2k rpm D5368A/B
4.5 GB UW-SCSI hard disk 10k rpm D5481A
9.1 GB UW-SCSI hard disk 7.2k rpm (1.6-inch high)2D5369A
9.1 GB UW-SCSI hard disk 10k rpm (1-inch high) D6520A
Removable Mass Storage
Flexible disk 3.5-inch 1.44 MB (1-inch high) D2035B
IDE 24✕CD-ROM drive D4383A/B
3.5-inch device rail kit (pack of 5) D3566A
5.25-inch device rail kit (pack of 5) 5063-7961
IDE 24✕CD-ROM drive (pack of 10) D6506A
HP SureStore CD-RW drive—HP Kayak XW Series A2 only D4353A
100 MB internal Iomega ZIP drive—HP Kayak XW Series A2 only D4390A
Ka_sh_1.bk Page 4 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-5
4
Miscellaneous
HP FastRAID Accessory Kit D5480A
User’s Guide Manual Kit—
HP Kayak XU PC Workstation Series (up to 333 MHz) D4700A
HP Kayak XW PC Workstation Series A2, U2, W2 D5518A
Multimedia
HP Kayak XW Series A2 only
Multimedia Sound accessory kit (24✕max-speed IDE CD-ROM drive and
16-bit PnP audio board)
D5182A/B
HP Audio kit (16-bit PnP audio board, pack of 10) D5183A
1. Dual Processor Kits include: processor, voltage regulator module and heatsink.
2. Only one 1.6-inch hard disk drive is supported in both the Kayak XU and XW PC
Workstation (on the lower internal shelf).
Ka_sh_1.bk Page 5 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-6 HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2
Mini-Tower
PC Workstations
4
System Board, BIOS and Memory
Internal speaker
AUX
CD
Audio Front Panel
Microphone
Multimedia Front Panel Connector
(Headphone Out and Volume Control)
16-bit SCSI
Processor 1
Processor 2
AGP Slot
PCI Slots
RAIDport
IDE Connector
8-bit SCSI
Fan
Status Panel
Power
Fan
Switches
FDD
External
Battery
VRM 1 VRM 2
External Start
Memory Modules
ISA Slots
Fan
(airflow guide)
Video Board
LAN Board
UP
Ka_sh_1.bk Page 6 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-7
4
System Board Switches
Setup and BIOS History
For the latest BIOS, the flasher utility program, and the BIOS history refer to the
HP World Wide Web site. The BIOS is in the form HB1xxxyy.FUL, where xxx is
the version number and yy is the language number.
Switch Function Default
1-5 — Processor frequency, see following table —
6UP
1
1. UP=OFF, DOWN=ON (refer to the diagram on page 6 of this chapter for switch
positioning).
Retain configuration in EEPROM, normal position UP
DOWN Clears EEPROM
7 UP Enables User and Administrator passwords UP
DOWN Clears User and Administrator passwords
8UP Disables power on using keyboard DOWN
DOWN Enables keyboard power on
9UP Fan speed controlled by internal temperature
sensors. UP
DOWN Fan speed set at maximum.
10 UP Normal operation UP
DOWN Recovery boot active (force BIOS flashing)2
2. Refer to “Recovery Boot Active Procedure” in Appendix B for the detailed recovery
procedure.
Switch Processor
Frequency1
1. PL Bus Frequency is 66 MHz
PCI Bus Frequency is 33 MHz
ISA Bus Frequency is 8.25 MHz
12345
UP2
2. UP=OFF, DOWN=ON (refer to the diagram on page 6 of
this chapter for switch positioning).
UP DOWN DOWN DOWN 233 MHz
UP UP DOWN UP UP 266 MHz
UP DOWN UP DOWN UP 300 MHz
UP DOWN UP UP DOWN 333 MHz
http://www.hp.com/go/kayaksupport
Ka_sh_1.bk Page 7 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-8 HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2
Mini-Tower
PC Workstations
4
Installing a Dual Processor / Replacing a processor
HP Kayak XU and XW 6/xxx PC Workstations are supplied with dual processor
slots and either one or two processors installed. Single processor models can be
upgraded to dual processor systems by installing the second processor
accessory in the vacant slot.
The second processor must be a Pentium II processor of the same speed and
level-2 cache memory capacity as the first. It is installed by gently sliding the
processor into the vacant processor connector slot until the two plastic clips at
the sides engage to lock the processor into place.
Every processor that is installed, or replaced, must be accompanied by the
voltage regulator module (VRM) that was supplied with it. Each VRM is specific
to the processor with which it was supplied, and should only be used with that
processor.
After installation of a second processor, the operating system must be
reinstalled.
Cache Memory
512 KB of level-two cache memory is integrated in the Pentium II processor
package.
Plastic clips
Heat-sink
Bracket pillars
Ka_sh_1.bk Page 8 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-9
4
Main Memory
The PC Workstation has four DIMM slots on the system board for installing
main memory; slots A, B, C and D.
Models are supplied with 32, 64 or 128 MB of main memory. If additional
memory is required, up to 512 MB may be installed. Memory upgrades are
available in single 32 MB, 64 MB or 128 MB ECC SDRAM modules. A serial
EEPROM on the DIMM contains data on the memory speed. This information is
read at each power on, and access time settings are set accordingly.
Millennium II Video Memory (HP Kayak XU)
There is 4 MB of video memory already supplied on the graphics controller
board. Memory may be upgraded to a maximum of 16 MB by installing a
memory module of 4 MB, 8 MB or 12 MB onto the board. No switch or jumper
settings need to be changed (all jumpers should be left in the positions in which
they were set by the manufacturer).
AccelEclipse Video Memory (HP Kayak XW Series U2)
There is a total of 32 MB of memory, already supplied on the graphics controller
board. There are no upgrades possible, and no switch or jumper settings to be
changed (all jumpers should be left in the positions in which they were set by
the manufacturer).
In case of failure, the whole video board has to be replaced. The replacement
video board is supplied with 32 MB of memory.
PCI bus connector
Daughter board
Daughter board
Cooling fan
Display connector
Ka_sh_1.bk Page 9 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-10 HP Kayak XU (up to 333 MHz) & HP Kayak
XW Series A2, U2, W2
Mini-Tower
PC Workstations
4
VISUALIZE Fx4 Video Memory (HP Kayak XW Series W2)
The texture mapping board is available as an accessory for the HP VISUALIZE
fx4 OpenGL interface board.
1Remove the HP VISUALIZE fx4 board from the HP Kayak XW.
2Remove the four screws from the blank board, then remove the board.
3Remove the terminator from the HP VISUALIZE fx4 board.
The terminator, or ridge
line connector, has part
number A4554-40001.
Ka_sh_1.bk Page 10 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-11
4
4Very carefully install the texture mapping board on the HP VISUALIZE fx4
board.
5Replace the four screws in the texture mapping board.
6Replace the HP VISUALIZE fx4 board in the HP Kayak XW.
NOTE: To support this texture module an up to date OpenGL
driver is required.
Ka_sh_1.bk Page 11 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-12 HP Kayak XU (up to 333 MHz) & HP Kayak
XW Series A2, U2, W2
Mini-Tower
PC Workstations
4

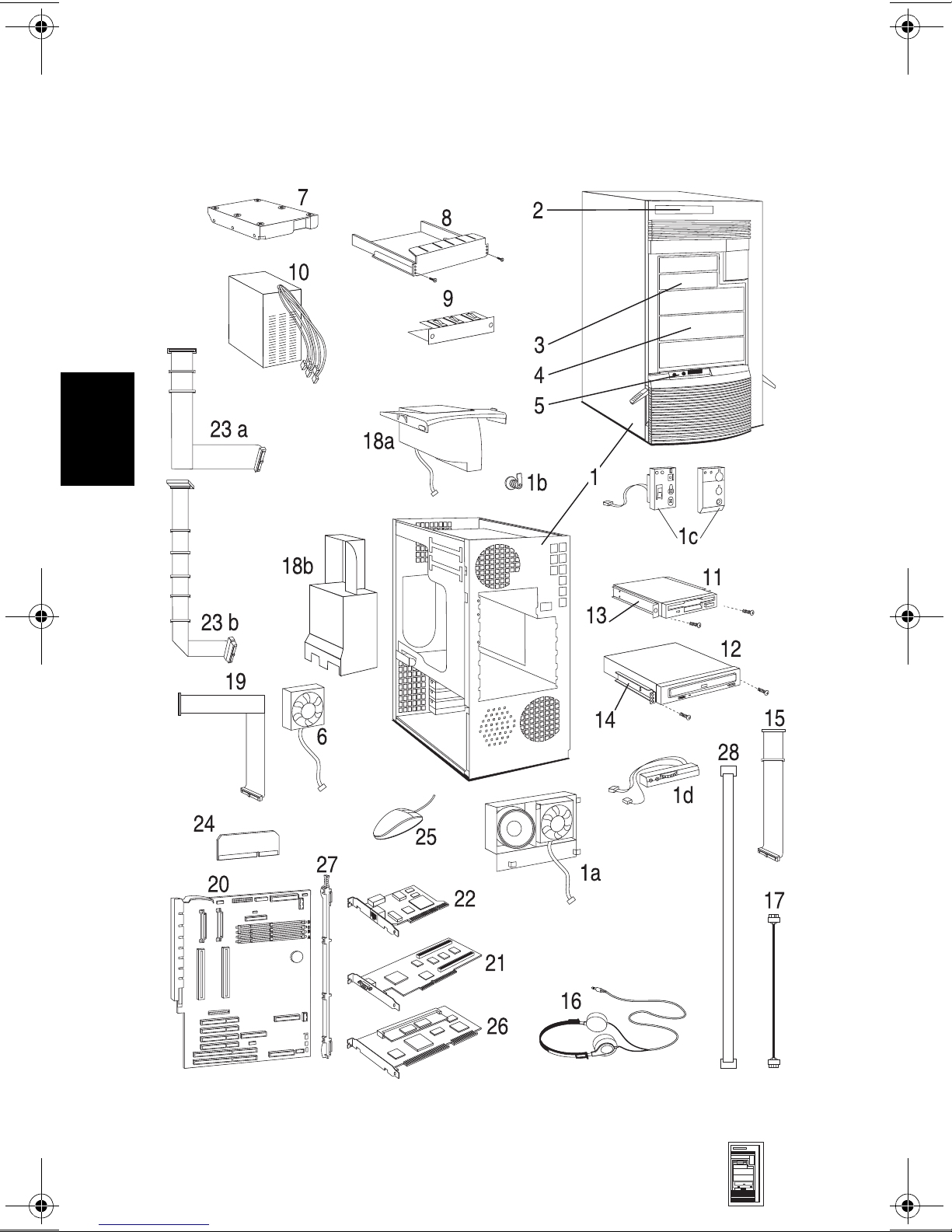

Part Numbers
Ka_sh_1.bk Page 12 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-13
4
Parts List
Item Description Repl.
Part Number
Exchange
Part Number
1 Box assembly:
a I/O Guide + Fan + Speaker assembly
b Cover lock assembly
c Status panel kit
d Multimedia control panel
e Bumper foot
5064-1860
5063-3351
5062-5590
5064-3353
5064-1832
5042-2479
—
—
—
—
—
—
2 Logo HP Kayak XU PC Workstation
Logo HP Kayak XW
5042-2428
5042-1862
—
—
3 Filler panel 3.5-inch 5042-1405 —
4 Filler panel 5.25-inch 5042-1178 —
5 Multimedia bezel 5042-2452 —
6 Upper Front Fan 5064-3352 —
7UW-SCSI Hard disk drive (standard)1:
2.1 GB, 7.2k rpm
4.5 GB, 7.2k rpm
4.5 GB, 10k rpm
9.1 GB, 7.2k rpm
9.1 GB, 10k rpm
D5140-63001
D5141-63001
D4625-63001
D4629-63001
D4627-63001
D5140-69001
D5141-69001
D4625-69001
D4629-69001
D4627-69001
8 5.25-inch tray 5002-1946 —
9 3.5-inch tray Part of Box Assembly
10 Power supply unit 0950-3212 —
11 Flexible disk drive D2035-60152 —
12 CD-ROM drive (standard):
24✕IDE D4383-63001 D4383-69001
13 Rail kit (3.5-inch) D3566A —
14 Rail kit (5.25-inch) 5063-7961 —
15 Internal ATA33 IDE cable2(for CD-ROM) 5183-2708 —
16 Headset 5064-2673 —
17 CD-ROM to audio cable 5182-1857 —
18 Airflow guides:
a) Rear fan + Airflow guide assembly
b) Processor Retainer Airflow guide
5064-3316
5042-2427
—
—
19 Flexible disk cable 5183-0746 —
20 System board See system board parts list
Ka_sh_1.bk Page 13 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-14 HP Kayak XU (up to 333 MHz) & HP Kayak
XW Series A2, U2, W2
Mini-Tower
PC Workstations
4
21 Graphics board:
Millennium II AGP (4 MB)
4 MB Memory upgrade kit
Elsa Gloria Synergy —
XW Series A2 (not shown)
Accel Graphics AccelEclipse —
XW Series U2 (shown on page 4-9)
HP VISUALIZE fx4 —
XW Series W2 (shown on page 4-10)
Texture mapping board with 16 MB
SDRAM dedicated texture memory
Loopback connector/ridge line
connector3
5064-1873
D5487-63001
5064-3366
5064-3362
064-3301
5064-3323
A4554-40001
D4690-69501
—
D6475-69501
D5505-69501
D5510-69501
D5511-69501
22 HP 10/100 BT PCI -LAN board 5064-1897 D3999-69001
23 SCSI cables (including SCSI terminator)
a) 8-bit SCSI
b) 16-bit SCSI
5183-0747
5183-2765
—
—
24 Processor terminator 5064-2680 —
25 3-button mouse C4728-60101 —
26 FastRAID (Adaptec ARO) card with
SIMM 16 MB memory
5064-1874 D4580-69001
27 CPU guide 5042-0569 —
28 Internal LAN cable 5183-0758 —
Not
Shown
Keyboards
Enhanced keyboard
Windows 95 keyboard - Japan
Windows 95 keyboard - Korea
C4734-601xx4
C4729-60224
C4730-60121
—
—
—
I/O blank panel 45935-00004 —
1. For optional disk drive information, refer to the Accessory Service Handbook.
2. This is a specific IDE cable with the master connector on one end and the slave connector
in the middle of the IDE cable.
3. Refer to the diagram on page 4-10.
4. Where “xx” is the code for your national keyboard, refer to the Accessory Service
Handbook.
Parts List
Item Description Repl.
Part Number
Exchange
Part Number
Ka_sh_1.bk Page 14 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
Mini-Tower
PC Workstations
HP Kayak XU (up to 333 MHz) & HP Kayak XW
Series A2, U2, W2 4-15
4
System Board Parts List
Description Repl.
Part Number
Exchange
Part Number
System board: D4690-63001 D4690-69001
Processors1:
1. Heat-sink is integrated in the Pentium II processor package.
Intel Pentium II 266 MHz, 512 KB cache 5064-2652 —
Intel Pentium II 300 MHz, 512 KB cache 5064-3330 —
Intel Pentium II 333 MHz, 512 KB cache 5064-3697 D6526-69001
Voltage regulator module (VRM) 0950-3310 —
Main memory modules:
1 ✕32 MB main memory ECC SDRAM
1 ✕64 MB main memory ECC SDRAM
1 ✕128 MB main memory ECC SDRAM
D5365-63001
D5366-63001
D5367-63001
D5365-69001
D5366-69001
D5367-69001
Manuals and Documentation
User’s Guide:
HP Kayak XU PC Workstation
HP Kayak XW PC Workstation Series A2, U2, W2
D4700-90001 and
electronic file
D5518-90001 and
electronic file
Familiarization Guide:
HP Kayak XU PC Workstation
HP Kayak XW PC Workstation Series A2, U2, W2
D4700-90901—
electronic file
D5518-9000—
electronic file
Technical Reference Manual electronic file only
Software
Kayak XU and XW Drivers and documentation CD-ROM 5011-5261
Ka_sh_1.bk Page 15 Thursday, June 15, 2000 7:27 PM

HP Kayak XU (up to 333 MHz) & HP Kayak XW Series A2, U2, W2
4-16 HP Kayak XU (up to 333 MHz) & HP Kayak
XW Series A2, U2, W2
Mini-Tower
PC Workstations
4
Notes: _____________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
Ka_sh_1.bk Page 16 Thursday, June 15, 2000 7:27 PM

Beep, POST, and Error Codes A-1
A
A
Beep, POST, and Error Codes
Beep Codes
If an error occurs during the POST, which prevents the PC Workstation from
starting, and before the display device has been initialized, a series of beep
codes are issued. Beep codes indicate that a fatal error has occurred and can be
reported one after another if there is more than one detected error. In this case,
the first detected error is the most important.
These codes are useful for identifying the error when the system is unable to
display the error message.
Ka_sh_1.bk Page 1 Thursday, June 15, 2000 7:27 PM

A-2 Beep, POST, and Error Codes
A
Beep Codes for the HP Kayak XU800
Number
of
Beeps
Description Action to Take...
1 The memory refresh
circuitry is faulty.
Check that:
• Memory is installed correctly.
• Correct memory modules are being used.
If the error still occurs, replace the memory.
2 Parity error in the base
memory (the first 64 KB
block) of memory.
3 Memory error.
4 Clock error. • Check that the system board is correctly
cabled (power cables, processor and
terminator).
If the error still occurs, replace the system
board.
5 Processor test error. Check that:
• Processor is correctly installed.
• Termination card installed in processor
slot 2 in a single processor system.
If the error still occurs, replace:
1Processor.
2 system board.
6 Input/Output (I/O) error. • Keyboard is connected.
• PCI card is installed correctly.
• Termination card installed in processor
slot 2 in a single processor system.
7 The processor on the
system board generated
an error.
• There is an installed processor(s).
• Processor(s) is correctly installed in the
processor slot(s).
• Two installed processors have the same
cache size (256 k).
• Termination card is installed in processor
slot 2 in a single processor system.
• VRM is installed in the VRM socket in a
dual processor system.
If the error still occurs, replace the system
board.
8 The system video card is
either missing or faulty.
This is not a fatal error. Check that the video
card is correctly installed and cabled. If
missing, install the video card. If the error
still occurs, replace it with a known working
video card.
Ka_sh_1.bk Page 2 Thursday, June 15, 2000 7:27 PM

Beep, POST, and Error Codes A-3
A
9 The BIOS Checksum
value does not match the
value encoded in the
BIOS.
Perform the following actions in this order:
1PressF2 to enter the Setup program,
then F9 to load the default BIOS settings.
2 Clear the CMOS.
3 Flash the BIOS.
If the error still occurs, replace the system
board.
10 The CMOS RAM has
failed.
Perform the following actions in this order:
1PressF2 to enter the Setup program,
then F9 to load the default BIOS settings.
2 Clear the CMOS.
3 Flash the BIOS.
If the error still occurs, replace the system
board.
11 The cache memory test
failed.
Replace the processor(s).
Number
of
Beeps
Description Action to Take...
Ka_sh_1.bk Page 3 Thursday, June 15, 2000 7:27 PM
