Features of the HP Pavilion home PC .... 1
Opening the Computer ......................... 2
Before You Begin .............................................. 3
Removing the Front Cover.................................. 4
Removing the Side Panels .................................. 4
Removing the Fan Duct ...................................... 6
Adding Memory................................... 6
DIMMs ............................................................ 7
DDR DIMMs ..................................................... 7
RIMMs............................................................. 8
Installing a Memory Module .............................. 9
Removing a Memory Module ........................... 11
Installing Add-In Cards....................... 12
What Is Plug and Play? ................................... 14
If the New Card or Device Isn’t Working ........... 14
Adding and Removing Drives............. 15
Adding a New Drive ...................................... 15
Installing a Second Hard Drive......................... 16
Removing the Preinstalled Hard Drive ............... 18
Replacing the Diskette Drive............................. 20
Replacing the Optical Drive ............................. 21
Replacing the Battery......................... 23
Closing the Computer......................... 25
Regulatory and Safety Information .... 27
ENERGY STAR Compliance ............................. 30
Operating Specifications ................................. 44
Index ................................................ 45
Contents

upgrading and servicing the pc
1
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 1 of 50 Printed: 04/25/01 09:02 AM
English
Features of the
HP Pavilion home PC

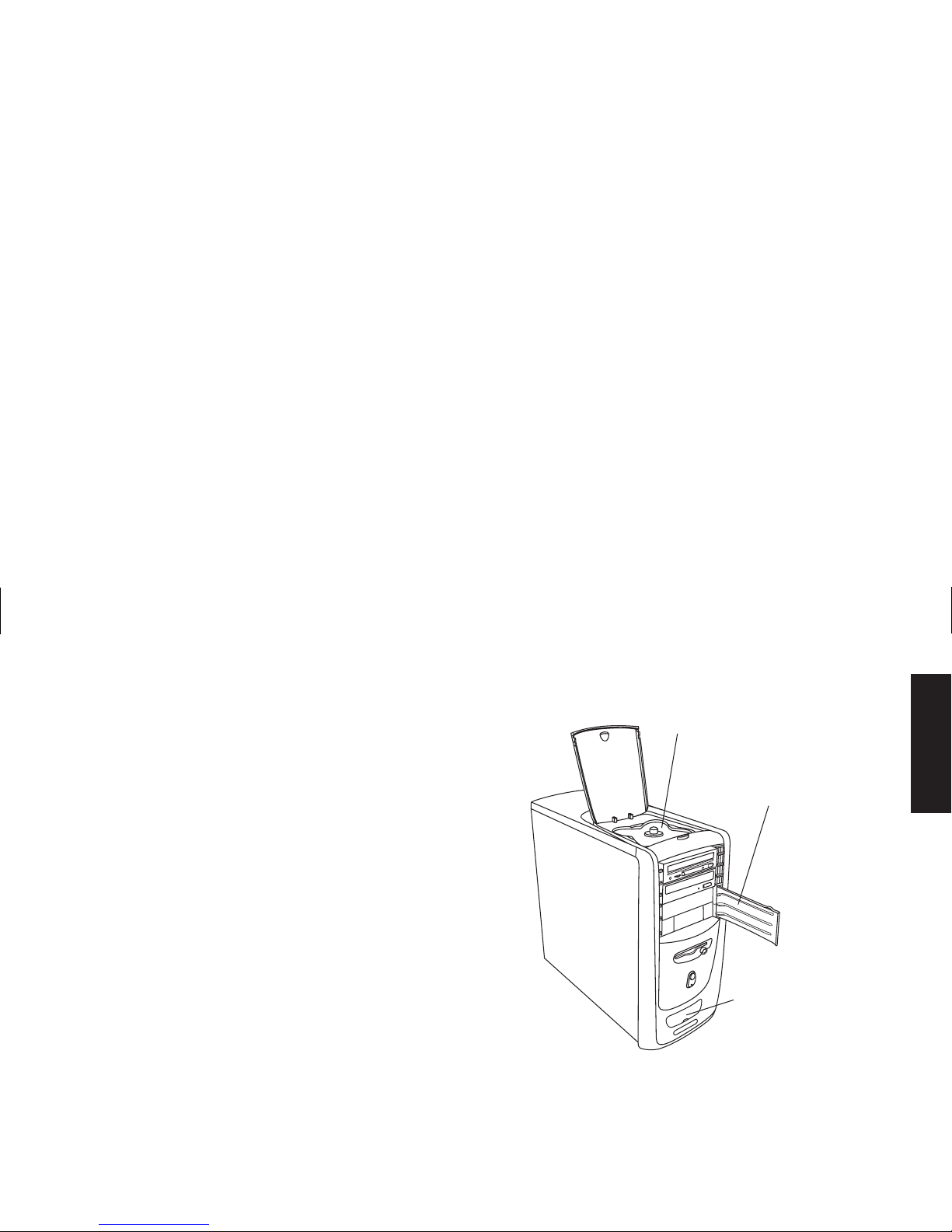

On the top of the chassis is a CD holder (A).
Store the CDs that came with the HP Pavilion
inside this compartment, so you can quickly
locate them if you ever need to reinstall any
of the system applications.
The door located below the two disc drives
covers two additional drive bays (B). You can
install additional drives (such as a Zip or tape
drive) in these bays (see “Adding and Removing
Drives”on page 15).
To connect components, such as a digital
camera, to the front of the PC, flip up the port
cover (C) and plug the cables into the
corresponding connectors.
B
C
A
Note:
The power supply is pre-set for the country in which
you purchased the HP Pavilion. If you move to
another location, please make sure you check the
voltage requirements in the country you reside
before turning on the PC.

2
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 2 of 50 Printed: 04/25/01 09:02 AM
Opening the Computer
Warning:
The HP Pavilion is heavy; be
sure to use ergonomically correct lifting
procedures when moving the computer.
Avertissement :
L’ordinateur
HP Pavilion est lourd ; suivez des
procédures ergonomiques lorsque vous le
déplacez.
Warning:
Electrostatic discharge (ESD)
can damage disk drives, add-in cards,
and other components. If an ESD station is
not available, wear a wrist strap attache
d
to a metal part of the computer. Place
cards on a conductive foam pad or inside
the conductive wrapper they came in; do
not place the cards on top of the wrapper.
Avertissement :
Des décharges
électrostatiques peuvent endommager les
unités de disque, cartes d’extension et
autres composants. Si vous ne disposez
pas d’une station de protection contre les
décharges électrostatiques, portez un
bracelet antistatique relié à une partie
métallique de l’ordinateur. Placez les
cartes sur un tapis en mousse conducteur
ou dans leur emballage, mais ne les
posez jamais sur leur emballage.
Warning:
Do not operate the system
with the cover removed. Always replace
the cover before turning on the system.
Avertissement :
N’utilisez pas le
système lorsque son capot est ouvert.
Remettez toujours le capot en place avant
de mettre le système sous tension.

upgrading and servicing the pc
3
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 3 of 50 Printed: 04/25/01 09:02 AM
English
Before You Begin
Read the following items before attempting to
upgrade or service the computer:
3These procedures assume familiarity with the
general terminology associated with personal
computers and with the safety practices and
regulatory compliance required for using and
modifying electronic equipment.
3Set up an equipment log to record the system
model and serial numbers, all installed
options, and other information about the
system. If you need this information, it will be
easier to consult the log than to open up and
examine the system.
3HP recommends that you use an antistatic wrist
strap and a conductive foam pad when
working on the system.
3Disconnect the system from any
telecommunications links, networks,
or modems, and then disconnect the system
power source before performing any of the
procedures described in this guide. Failure to
do so before you open the system or do any
procedures can result in personal injury or
equipment damage.
Note:
Disconnect the modem/phone cable before
disconnecting the power cord from the system.

4
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 4 of 50 Printed: 04/25/01 09:02 AM
Removing the Front Cover
You need to remove the front cover to add and
remove drives.
1Open the door on the CD holder (on the top of
the chassis).
A
2In the hole on top of the chassis (A), insert a
pointed object (such as a paper clip or pen).
The drive cover pops open.
3Pull the cover up and out to remove.
Warning:
Please read the “ Additional
Safety Information”
located at the end of
this document before installing and
connecting your system to the electrical
power system.
Avertissement :
Prière de lire les
consignes additionnelles de sécuritéàla
fin de ce document avant d’installer et
d’alimenter votre système informatique.
Removing the Side Panels
You must remove the right side panel to add
memory, insert add-in cards, or change the
battery.
You must remove both side panels to add or
remove drives.
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).

upgrading and servicing the pc
5
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 5 of 50 Printed: 04/25/01 09:02 AM
English
4Loosen the two thumbscrews on the right side
panel, and if removing both side panels,
loosen the two flat screws on the left side
panel. The first time you loosen the
thumbscrews you may need a flathead
screwdriver. (Thumbscrews do not detach;
they’ll stay on the panel loosely until you
tighten them again.) Use a flathead
screwdriver to remove the two screws on the
left side panel.
5Stand behind the computer, and place one
hand on top of the chassis.
6Grasp the handle of the right side panel (A) or
press the side of the left panel with your other
hand and pull the panel toward you until it
stops.
7Facing the side panel to be removed, pull the
top of the panel out toward you.
8Lift the panel up and out. Set the panel aside.
A

6
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 6 of 50 Printed: 04/25/01 09:02 AM
Removing the Fan Duct
To access some components on the motherboard,
you may need to remove the fan duct.
1Gently lay the computer on its side.
2To disengage the fan duct (B), lift up the two
tabs (C), and push them inside the chassis.
B
C
3Lift the fan duct up, and remove it from the
chassis.
Adding Memory
The motherboard contains sockets for either
DIMMs (dual in-line memory modules), DDR
DIMMs (double data rate dual in-line memory
modules), or RIMMs (Rambus in-line memory
modules), depending on which HP Pavilion
model you have. To determine which type of
memory module your HP Pavilion uses, go to the
HP At Home Web site listed in the
Warranty and
License Information
, and look at the online
HP Pavilion technical specifications.
The motherboard contains 168-pin DIMM
sockets, 184-pin DDR DIMM sockets, or 184-pin
RIMM sockets. The exact number of sockets
depends on which model you have.

upgrading and servicing the pc
7
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 92 Page: 7 of 50 Printed: 04/26/01 01:36 PM
English

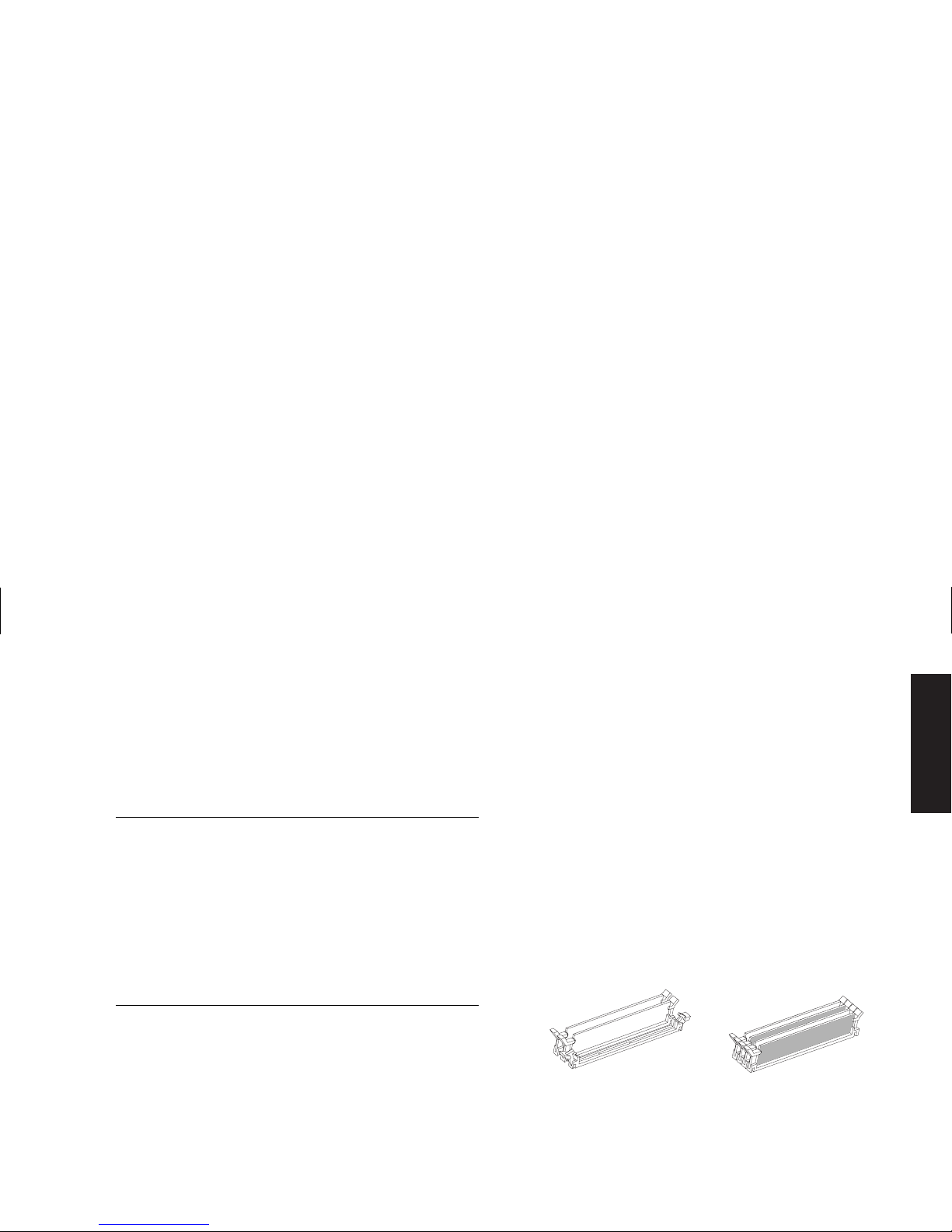

DIMM
RIMM
DDR DIMM
Warning:
Using the wrong type of
memory module could damage the
system.
Avertissement :
L’utilisation d’un type
inappropriéde module de mémoire peut
endommager votre système.
DIMMs
DIMMs must be 168-pin unbuffered SDRAM
(synchronous dynamic random access memory),
compliant with the Intel®
PC SDRAM Unbuffered
DIMM Specification
. The HP Pavilion ships with
one or more memory modules, but you can
replace the existing memory module(s) with
higher-capacity ones. You can install 64 MB,
128 MB, or 256 MB memory modules in the
system.
DDR DIMMs
DDR DIMMs must be 184-pin unbuffered DDR
SDRAM (double data rate synchronous dynamic
random access memory). The HP Pavilion ships
with one or more memory modules, but you can
replace the existing memory module(s) with
higher-capacity ones. You can install 64 MB,
128 MB, or 256 MB memory modules in the
computer.

8
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 8 of 50 Printed: 04/25/01 09:02 AM
RIMMs
RIMMs must be 184-pin RDRAM (Rambus
dynamic random access memory), non-ECC
(non-error correction checking), compliant with
the Rambus/Intel specification.
The motherboard has four RIMM sockets that are
for a dual-channel configuration. The following
requirements must be met:
3The HP Pavilion uses PC600 or PC800 RDRAM
modules. Rambus signaling level technology
permits 600 and 800 MHz transfer rates.
3All four RIMM sockets must be filled. If you do
not populate a socket with a RIMM, the empty
socket must be filled with a C-RIMM (continuity
RIMM). Two C-RIMMs are included on the
motherboard.
Note:
A C-RIMM does not contain any memory —it is
only a placeholder card used to close the
memory circuit. C-RIMMs are necessary to
avoid breaking the signal lines, which are a
serial connection in a Rambus interface; this
ensures the electrical integrity.
3RIMMs work in identical pairs, so they must be
from the same vendor, and have the same
speed, and memory size density within each
channel (see the memory table).
3When C-RIMMs are used to fill empty sockets,
they must be placed in the RIMM A2 and
RIMM B2 sockets. The RIMMs must be inserted in
the RIMM A1 and RIMM B1 sockets.

upgrading and servicing the pc
9
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 9 of 50 Printed: 04/25/01 09:02 AM
English
The following table illustrates the initial
combinations of RIMMs you can use, and the
insertion sequence.
Channel 1 Channel 2
Total
Memory RIMM A1
socket RIMM A2 socket RIMM B1
socket
RIMM B2
socket
128 MB 64 MB
RIMM
C-RIMM 64 MB
RIMM
C-RIMM
256 MB 64 MB
RIMM
64 MB
RIMM
64 MB
RIMM
64 MB
RIMM
256 MB 128 MB
RIMM
C-RIMM 128 MB
RIMM
C-RIMM
384 MB 128 MB
RIMM
64 MB
RIMM
128 MB
RIMM
64 MB
RIMM
512 MB 128 MB
RIMM
128 MB
RIMM
128 MB
RIMM
128 MB
RIMM
512 MB 256 MB
RIMM
C-RIMM 256 MB
RIMM
C-RIMM
Installing a Memory Module
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).
4Remove the side panel and the fan duct (see
“Removing the Side Panels”on page 4 and
“Removing the Fan Duct”on page 6).
5Locate the memory sockets on the
motherboard.
DIMM and RIMM
DDR DIMM
Note:
If all of the memory sockets are filled, you need
to remove one of the memory modules (see
“Removing a Memory Module”on page 11).

10
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 10 of 50 Printed: 04/25/01 09:02 AM
6Move any cabling out of the way, if necessary.
7Push down on the two retaining clips on the
ends of the memory socket.
8Holding the new memory module by its edges
only, remove it from the antistatic packaging.
(Avoid touching the memory chips or the gold
contacts on the module.) The memory module
has one or two small notches on the lower
edge that fit into raised bumps in the memory
socket.

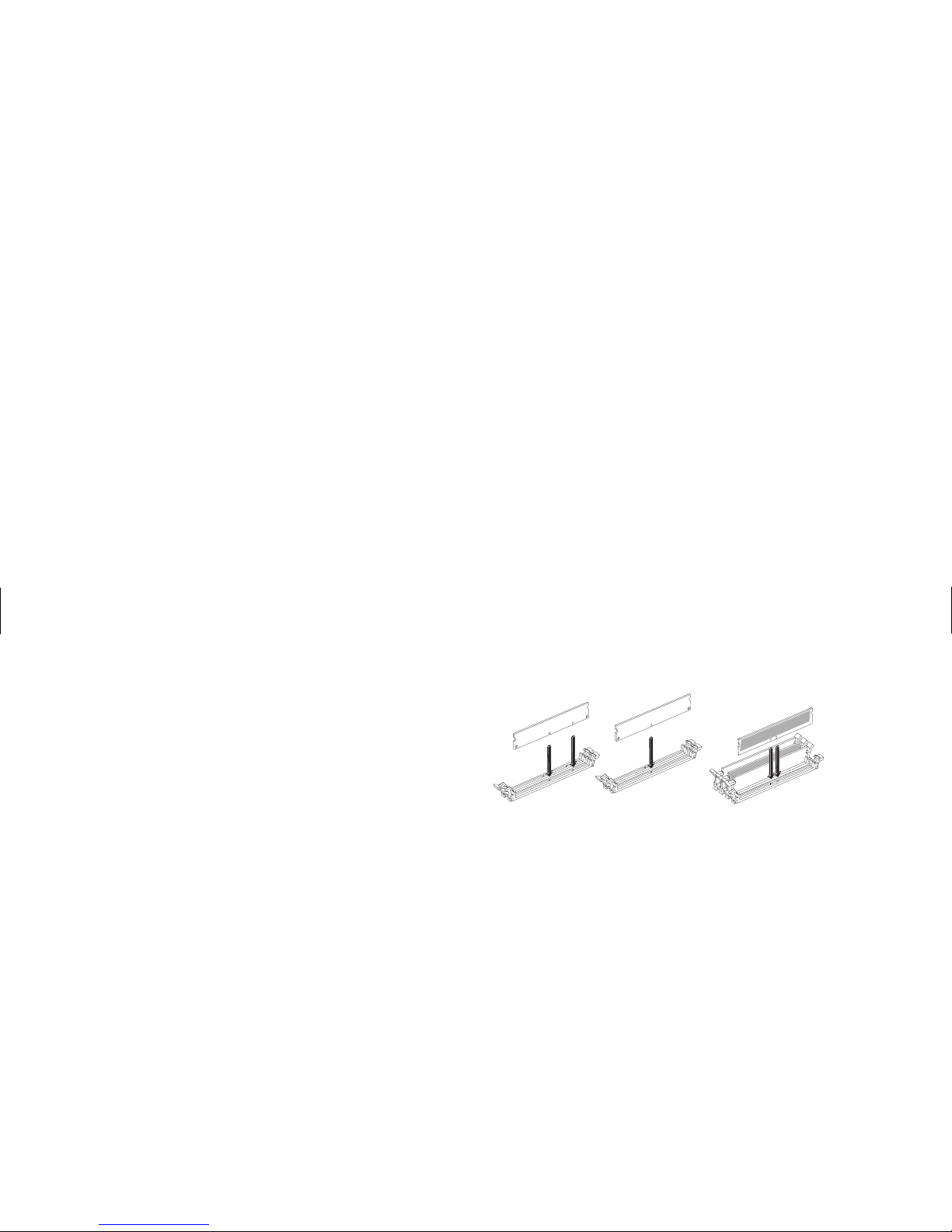

9Hold the memory module in alignment with the
socket, aligning the notches with the bumps.
DIMM RIMM
DDR DIMM
10 Push straight down on top of the memory
module until it is fully seated in the socket. The
retaining clips on the ends of the socket
automatically lock it into position when the
memory module is fully seated.
To reassemble the computer:
1If you moved any cabling, restore the cable
connections and routing.
2Replace the fan duct and the side panel (see
“Closing the Computer”on page 25).
3Reconnect the power cord and all other
cables.
4Reconnect the modem/phone cable.
5Turn on the computer and all peripherals.

upgrading and servicing the pc
11
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 92 Page: 11 of 50 Printed: 04/26/01 01:36 PM
English
Removing a Memory Module
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).
4Remove the side panel and the fan duct (see
“Removing the Side Panels”on page 4 and
“Removing the Fan Duct”on page 6).
5Locate the memory sockets on the
motherboard.
6Move any cabling out of the way, if necessary.
7Push down on the two retaining clips on the
ends of the socket until the memory module
pops out of the socket.
DIMM and RIMM
DDR DIMM
Warning:
Do not pull the memory
module out of the socket. Use the
retaining clips to eject the module.
Avertissement :
Ne tirez pas
directement sur le module de mémoire.
Servez-vous des clips pour l’éjecter.
8Holding the memory module by its edges only,
lift it away from the socket. Store it in its
antistatic packaging.
To install a new memory module in this socket,
see “Installing a Memory Module”on page 9.

12
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 12 of 50 Printed: 04/25/01 09:02 AM
Installing Add-In Cards
At some point, you may add a PCI or AGP card to
the computer to accommodate a new component,
such as a scanner, or to upgrade an existing card.
Warning:
Do not overload the system
by installing add-in cards that draw
excessive current. The system is designed
to provide 2 amps (average) of +5 V
power for each board/card in the
computer. The total +5 V current draw in
a fully loaded system (one with all add-in
card slots filled) must not exceed the total
number of slots multiplied by 2 amps.
Avertissement :
Ne surchargez pas
l’ordinateur en installant des cartes
d’extension qui consomment beaucoup de
courant. L’ordinateur est conçu pour
fournir un courant de 2 ampères (en
moyenne), +5 volts, àchaque carte
installée sur l’ordinateur. La
consommation totale de courant de +5 V
sur un ordinateur entièrement chargé
(dont tous les logements de cartes sont
occupés) ne doit pas excéder le nombre
total de supports multipliépar 2 ampères.
To add or replace an add-in card:
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).

upgrading and servicing the pc
13
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 92 Page: 13 of 50 Printed: 04/26/01 01:36 PM
English
4Remove the side panel (see “Removing the
Side Panels”on page 4).
5Gently lay the computer on its side.
6To flip open the add-in card bracket, loosen
the two thumbscrews.
7Pull down one of the levers. The bracket
flips open.
8If you’re adding a new card to a previously
unused slot, remove the expansion slot cover.
Warning:
Be careful of the sharp edges
on the expansion slot cover.
Avertissement :
Soyez prudent, car les
bords du couvercle du logement
d’extension sont tranchants.
If you’re replacing a card, first disconnect any
external and/or internal cables attached to the
card. Hold the metal bracket and the far top
corner of the card. Carefully remove the card
by pulling the card straight out of the
expansion slot.

14
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 14 of 50 Printed: 04/25/01 09:02 AM
9Insert the new card into the slot and push
straight down. (For full-length cards, slide the
card into the vertical slot as well.) Make sure
the card is properly seated.
10 Push the lever up to close the add-in card
bracket.
11 Tighten the two thumbscrews on the back of
the bracket.
To reassemble the computer:
1Replace the side panel (see “Closing the
Computer”on page 25).
2Reconnect the power cord and all other
cables.
3Reconnect the modem/phone cable.
4Turn on the computer and all peripherals.
5Install any software drivers supplied by the
card manufacturer.
What Is Plug and Play?
“Plug and Play”describes the ability to add and
remove add-in cards, memory, and peripherals
without any special procedures such as resetting
jumpers and testing for system conflicts. The
system BIOS (basic input/output system) finds
these components and adds them to the system.
You do not have to run the BIOS setup program.
If the New Card or Device Isn’t
Working
Read through the card manufacturer’s installation
instructions, and recheck all connections,
including those to the card, power supply,
keyboard, and monitor. If the problem still exists,
run the BIOS setup program and load the default
settings, and then save and exit.

upgrading and servicing the pc
15
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 15 of 50 Printed: 04/25/01 09:02 AM
English
Adding and Removing
Drives
The HP Pavilion has seven drive bays to
accommodate a variety of devices, such as
CD-ROM, DVD, CD-Writer, Zip, tape, diskette,
and hard drives. The specific devices installed on
your system vary according to which model you
purchased.
Note that the motherboard IDE can support four
devices. To use additional bays, you need to
purchase an add-in card.
Adding a New Drive
The HP Pavilion has empty 3.5-inch and/or
5.25-inch drive bays in which you can install
additional IDE devices (such as a Zip or a tape
drive).
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).
4Remove the front cover (see “Removing the
Front Cover”on page 4).
5Remove the bay insert by pulling the right side
of the insert (B) toward you.
B

16
hp pavilion home pc
Filename: ma1rwob.doc Title: HP-Print2k.dot
Template: HP-Print2K.dot Author: WASSER Studios. Last Saved By: WASSER, Inc.
Revision #: 88 Page: 16 of 50 Printed: 04/25/01 09:02 AM
6Remove both of the side panels (see
“Removing the Side Panels”on page 4).
Note:
Make sure the jumper on the new drive is in the
CS (Cable Select) position.
7Slide the new drive through the opening in the
front of the computer, until the screw holes
align.
8Install the screws on the drive tray.
9Attach the power cable to the back
of the drive.
Note:
If you are having trouble connecting the cables,
you can remove the fan duct (see “Removing the
Fan Duct”on page 6).
10 Attach the IDE ribbon cable to the back of
the drive and to the motherboard.
11 Attach any other cables provided with the
drive.
To reassemble the computer:
1Replace the side panels (see “Closing the
Computer”on page 25).
2Replace the front cover.
3Reconnect the power cord and all other
cables.
4Reconnect the modem/phone cable.
5Turn on the computer and all peripherals.
6Install any software drivers supplied by the
drive manufacturer.
Installing a Second Hard Drive
The HP Pavilion can accommodate a second
3.5-inch hard drive.
1Turn off the computer and all peripherals.
2Disconnect the modem/phone cable.
3Disconnect the power cord and all other
attached cables (such as the keyboard, mouse,
and monitor).
