HP ProOne 480 G3 Installation instructions

EL-MF877-00 Page 1
Template Revision B
PSG instructions for this template are available at EL-MF877-01
Product End-of-Life Disassembly Instructions
Product Category: Personal Computers
Marketing Name / Model
[List multiple models if applicable.]
HP ProOne 480 G3 Non-Touch All-in-One Business PC
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Notes
Quantity
of items
included
in product
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
With a surface greater than 10 sq cm
1
Batteries
All types including standard alkaline and lithium coin
or button style batteries
1
Mercury-containing components
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
0
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Includes background illuminated displays with gas
discharge lamps
1
Cathode Ray Tubes (CRT)
0
Capacitors / condensers (Containing PCB/PCT)
0
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
9
External electrical cables and cords
Power cord
1
Gas Discharge Lamps
0
Plastics containing Brominated Flame Retardants
weighing > 25 grams (not including PCBs or PCAs
already listed as a separate item above)
0
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
0
Components and waste containing asbestos
0
Components, parts and materials containing
0

EL-MF877-00 Page 2
Template Revision B
PSG instructions for this template are available at EL-MF877-01
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
0
2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description
Tool Size (if
applicable)
Electric screwdriver (Torx)
T15, Torx
Electric screwdriver (Cross)
#0, Cross
Plastic stick
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Follow steps described in Disassembly instruction (file attached)
2. If parts can be removed without using a tool, remove it first
3. Use correct screwdriver and torque value before unlock the screw.
4.
5.
6.
7.
8.
9.
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

MANUFACTURING PROCESS INSTRUCTIONS
MECHANICAL ASSEMBLY
MODEL : Pyxis400
1.00
Station Version Station Version Station Version Station Version Station Version Station Version
11.00 91.00 17 1.00 25 1.00 33 1.00
2 1.00 10 1.00 18 1.00 26 1.00
3 1.00 11 1.00 19 1.00 27 1.00
4 1.00 12 1.00 20 1.00 28 1.00
5 1.00 13 1.00 21 1.00 29 1.00
6 1.00 14 1.00 22 1.00 30 1.00
7 1.00 15 1.00 23 1.00 31 1.00
8 1.00 16 1.00 24 1.00 32 1.00
Station
Ver.
ALL 1.**
2017/5/23
Date
Content
Date:
Porter Zan
First version
2017/5/23
A.Current station version list:
B.Version Modify list:
Sub-assembly name:
Pyxis400 DISASS'Y SOP
Document No.:
Pyxis400 DISASS'Y SOP
Page:
Design
Revision:
Written by:
Ethan Lai
1 of 1
Auditor ：Xin-Xin Chen Tabulator：
Ethan Lai

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Remove Stand & pull open Rear Cover
1. Take out Stand and put into the material box
(Fig. 1).
Follow the steps as Fig. 1, push the latch
upward, then pull up the hinge.
2. Pull open Rear Cover (Fig. 2, 3).
Follow the steps as Fig. 2 & 3, use the stick
to pull open the region of gap for lever force
to unfix Rear Cover.
Glove Requirements: Half-fingered gloves
Fig. 1
Fig. 2
1(1/1)
2017/5/23
1.00
Plastic stick 1
Fig. 3
Step1: Push the
latch upward
Step2: Pull up the hinge
1
Plastic stick
Force direction

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out Rear Cover
1. Take out Rear Cover (Fig. 1, 2, 3).
Follow the steps as Fig. illustrated.
Have one hand to hold the system, and the
other hand to pull the edge of Rear Cover for
release
2. Put Rear Cover into the material box.
Glove Requirements: Half-fingered gloves
Fig. 1
2(1/1)
2017/5/23
1.00
Fig. 3
Pull up the two
sides of Rear Cover,
then take out.
Press downward Pull upward
Press downward
Pull upward
Fig. 2

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
3(1/1)
2017/5/23
1.00
Glove Requirements: Full-fingered gloves
Electric Screwdriver (S-6000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Take out M/B shielding
Fig. 1
1. Unscrew (Torx Pin-Head ×4) all joints to take
out M/B shielding (Fig. 1).
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
The screw holes are marked in red circles.

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
4(1/1)
2017/5/23
1.00
Glove Requirements: Full-fingered gloves
Electric Screwdriver (S-6000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Take out Thermal Module
Fig. 1
1. Unscrew (Torx Pin-Head ×5) all joints to take
out Thermal Module (Fig. 1).
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Put Thermal Module into the material box.

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out HDD and ODD
5(1/1)
2017/5/23
1.00
Glove Requirements: Half-finger gloves
1. Take out HDD (Fig. 1).
Pull open the HDD bracket softly to the right,
and push upward HDD to disconnect, then
put it into the material box.
2. Take out ODD (Fig. 2).
Press the latch and push ODD to the left
simultaneously to disconnect, then put ODD
into the material box.
Fig. 1
Fig. 2
Latch
Push

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
6(1/1)
2017/5/23
1.00
Glove Requirements: Half-fingered gloves
Electric Screwdriver (S-3000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Take out I/O board
Fig. 2
1. Unscrew (Torx Pin-Head ×2) all joints to take
out I/O board and disconnect I/O cable (Fig.
1, 2).
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
Put I/O board and two screws into the
material box.
2. Be careful not to make the pin heads of the
I/O connector are crooked (Fig. 3).
Pull out the I/O cable vertically from the top
of the I/O connector.

Fig. 1
Fig. 3

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out DDR and CPU
1
7(1/1)
2017/5/23
1.00
Ion fan 1
CPU DISASS’Y fixture 1
Glove Requirements: Half-finger gloves
1. Take out DDR and put it into the material box
(Fig. 1).
Expand the springs on the both sides of the
DDR socket.
2. Take out CPU illustrated as Fig. 2, then put it
into the tray.
Don’t touch the pin heads of CPU.
Open the bracket by pulling off the link and
take out CPU.
Fig. 1
DDR
2. Open the bracket
by pulling off the link
1. Press the link and
push it to the right
Press the fixture, then
take out CPU vertically
CPU DISASS’Y steps:
Diagonally
consistent
Fig. 2

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out Vesa Mount
8(1/1)
2017/5/23
1.00
1. Unscrew (×5) all joints of Vesa Mount
illustrated as Fig. 1.
Torsion: 6.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
Put the screws into the material box.
2. Follow the angle of the red line to take out
Vesa Mount (Fig. 2).
Glove Requirements: Half-finger gloves
Fig. 2
Fig. 1
图一
2
1
4
5
3
Electric Screwdriver (S-6000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.

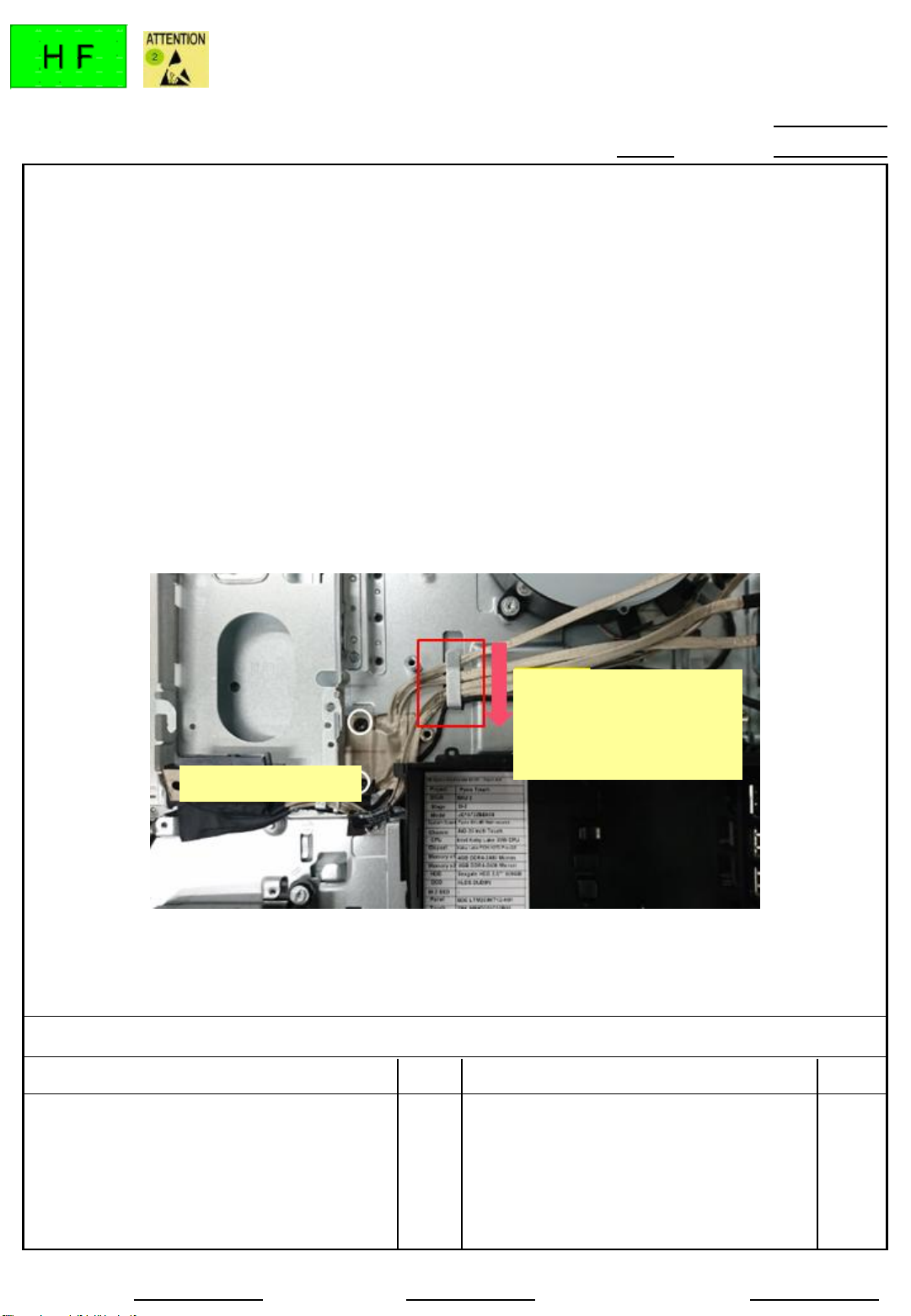

Disconnect cables
9(1/1)
2017/5/23
1.00
1. Disconnect cables from the connectors of
M/B side, including Sate Power cable, ODD
cable and HDD cable (Fig. 1).
Pull out cables vertically from the top of
connectors.
Glove Requirements: Half-finger gloves
Fig. 1
Plastic stick 1
HDD cable
ODD cable
Sate Power

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out screws and cables
10(1/1)
2017/5/23
1.00
1. Follow the locations of cables from top to
bottom illustrated as Fig. 1 to take out
cables.
2. Unscrew the screws (Torx Pin-Head ×2)
illustrated as Fig. 1.
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Take out screws
Follow the locations
of cables from top to
bottom to take out
cables

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out Top Vent
11(1/1)
2017/5/23
1.00
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
1
2
4
3 5
1. Unscrew (Torx Pin-Head ×5) all joints of Top
Vent (Fig. 1).
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Follow the direction of the red arrow to take
out Top Vent (Fig. 1).
Take out Top Vent moderately to prevent
damaging it.

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out FAN & disconnect LVDS cable
12(1/1)
2017/5/23
1.00
1. Unscrew (×3) all joints of FAN (Fig. 1).
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Disconnect FAN cable and LVDS cable, then
take out FAN (Fig. 1).
Pull out FAN cable from the hook carefully.
Glove Requirements: Half-finger gloves
Fig. 1
Hook
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out Wireless LAN
13(1/1)
2017/5/23
1.00
1. Tear off the acetate tape (Fig. 1).
2. First disconnect WLAN antennas, then
unscrew (Cross ×1) one screw to take out
WLAN card (Fig. 2, 3).
Torsion: 2.5 ±0.5 kgf.cm
Take the screwdriver vertically to the screw
holes.
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-3000MS) 1
Bits Type: #0,Cross,φ=5mm,L=60mm 1
Acetate tape
White antenna Black antenna
Screw
Fig. 2
Fig. 3

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Pull out Backlight cable
14(1/1)
2017/5/23
1.00
1. Pull out Backlight cable from the hooks, then
pull out it vertically from the top of connector
on M/B (Fig. 1, 2).
Be careful not to make the pin heads of the
connector are crooked.
Tear off the acetate tape (Fig. 2).
Glove Requirements: Half-finger gloves
Fig. 1
Fig. 2
Hook
Tear off the
acetate tape

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Disconnect CCD cable & touch cable
15(1/1)
2017/5/23
1.00
1. Disconnect CCD cable and touch cable from
the connectors of M/B side, then pull out
them from the hooks (Fig. 1).
Pull out the cables vertically from the top of
connectors on M/B.
Pull out the cables moderately to prevent
damaging.
Glove Requirements: Half-finger gloves
Fig. 1

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out SIDE BAND-R & unscrewing
16(1/1)
2017/5/23
1.00
1. Unscrew (×4) all joints illustrated as Fig. 1.
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Take out SIDE BAND-R (Fig. 2).
Follow the direction of the red arrow to take
out SIDE BAND-R carefully.
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
SIDE BAND-R
Screw
1
2
3
4
Fig. 2

Standard Operation Procedure
Tabulator：Issue Department：
Xin-Xin Chen NPSU-PPE
Auditor ：
Ethan Lai
Steps：
Document No. : Pyxis400 DISASS’Y SOP Station :
Operation Name : Ver. : Date :
Note: If finding anything uncommon, notice foreman or assistant at once.
Fixture list (Specification) Qty. Fixture list (Specification) Qty.
Take out SIDE BAND-L & unscrewing
17(1/1)
2017/5/23
1.00
1. Unscrew (×2) all joints illustrated as Fig. 1.
Torsion: 4.0 ±1.0 kgf.cm
Take the screwdriver vertically to the screw
holes.
2. Push out SIDE BAND-L horizontally, then put
it into the material box (Fig. 2).
Glove Requirements: Half-finger gloves
Fig. 1
Electric Screwdriver (S-4000MS) 1
Bits Type: T15,φ=5mm,L=60mm 1
Fig. 2
1
2
SIDE BAND-L
Push out horizontally
