HP Vectra E-Vectra Manual

HP Corporate PCs
HP e-Vectra
www.hp.com/go/vectrasupport
PC Service Handbook
Chapter
evec.book Page 1 Friday, March 31, 2000 4:15 PM

Notice
Information contained in this document is subject to change without notice.
H
HH
He
ee
ew
ww
wl
llle ee
et
tt
tt
tt
t-
--
-P
PP
Pa
aa
ac
cc
ck
kk
ka
aa
ar
rr
rd
dd
d m
mm
ma
aa
ak
kk
ke
ee
es
ss
s n
nn
no
oo
o w
ww
wa
aa
arr
rrrr
rra
aa
an
nn
nt
tt
ty
yy
y o
oo
of
ff
f a
aa
an
nn
ny
yy
y k
kk
ki
iiin nn
nd
dd
d w
ww
wi
iiit tt
th
hh
h r
rr
reg
egeg
ega
aa
ar
rr
rd
dd
d t
tt
to
oo
o t
tt
th
hh
hi
iiis ss
s m
mm
ma
aa
at
tt
te
ee
er
rr
ri
iiia aa
al
lll, ,,
,
i
iiin nn
nc
cc
cl
lllu uu
ud
dd
di
iiin nn
ng
gg
g,
,,
, b
bb
bu
uu
ut
tt
t n
nn
no
oo
ot
tt
t li
lili
lim
mm
mi
iiit tt
te
ee
ed
dd
d t
tt
to
oo
o,
,,
, t
tt
th
hh
he
ee
e i
iiim mm
mp
pp
pli
lili
lie
ee
ed
dd
d w
ww
wa
aa
ar
rr
rr
rr
ra
aa
an
nn
nt
tt
ti
iiie ee
es
ss
s o
oo
of
ff
f m
mm
me
ee
er
rr
rc
cc
ch
hh
ha
aa
an
nn
nt
tt
ta
aa
ab
bb
bi
iiil llli iiit tt
ty
yy
y a
aa
and
ndnd
nd
f
ff
fi
iiit tt
tn
nn
ne
ee
ess
ssss
ss f
ff
fo
oo
or
rr
r a
aa
a p
pp
pa
aa
ar
rr
rt
tt
ti
iiic cc
cu
uu
ul
llla aa
ar
rr
r p
pp
pu
uu
ur
rr
rp
pp
po
oo
os
ss
se
ee
e.
... Hewlett-Packard shall not be liable for errors
contained herein or for incidental or consequential damages in connection with
the furnishing, performance, or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated into another language without the prior written
consent of Hewlett-Packard Company.
Intel, Celeron, and Pentium are either registered trademarks or trademarks of Intel.
Microsoft, MS, MS-DOS, Windows and Windows NT are either registered trademarks or
trademarks of Microsoft Corp. in the United States and/or other countries.
Contents
This chapter provides:
❒Product model numbers
❒Supported Accessories
❒System Board, BIOS, and memory information
❒Part numbers
Replacement and Exchange Parts
The difference between a replacement and an exchange part is that when using
an exchange part you should return the replaced part to HP.
Replacement and exchange parts listed in this manual are subject to change.
However, updated part numbers are automatically cross-referenced to the old
number. This means that you will receive the correct part using the numbers
listed in this manual (even if the part’s actual number has been updated).
Ordering Parts
Contact your local HP Customer Care Center to get parts. Diagnostic is required
prior to any shipments. For HP Customer Care Centers
www.hp.com/go/vectrasupport and select ASSISTANCE
evec.book Page 2 Friday, March 31, 2000 4:15 PM

HP e-Vectra 2-1
2
2
HP e-Vectra
Models and Accessories
Note
All models have:
❒Direct AGP video controller integrated in Intel chipset
❒Integrated Crystal CS4299 Audio Codec ‘97 2.1 compatible stereo audio codec
❒Integrated 3Com 3C905C-TX network controller.
Product
Number
Hard Drive Std. RAM Multimedia OS1
1. Operating system preloaded on these models, as indicated in the table.
HP e-Vectra
Models with Intel Pentium III Processor,
133 MHz System Bus Speed, and 256 KB Level 2 Cache Memory
HP e-Vectra 600/133-256 (CPL: 04/2000 )
D9478A 8.4 GB IDE 128 MB
SDRAM
24 ✕Max Slim IDE
CD-ROM
W98
D9898A/T Win 2000
HP e-Vectra 667/133-256 (CPL: 04/2000 )
D9899A/T 8.4 GB IDE 256 MB
SDRAM
24 ✕Max Slim IDE
CD-ROM
Win 2000
HP e-Vectra
Models with Intel Celeron Processor,
66 MHz System Bus Speed, and 128 KB Level 2 Cache Memory
HP e-Vectra 500/66-128 (CPL: 04/2000 )
D9477A 8.4 GB IDE 64 MB
SDRAM
24 ✕Max Slim IDE
CD-ROM
W98
D9896A/T no
HP e-Vectra 533/66-128 (CPL: 04/2000 )
D9897A/T 8.4 GB IDE 128 MB
SDRAM
24 ✕Max Slim IDE
CD-ROM
W98
evec.book Page 1 Friday, March 31, 2000 4:15 PM

HP e-Vectra
2-2 HP e-Vectra
2
Supported Accessories
Documentation
HP Information CD-ROM
To order your HP Information CD-ROM from HP’s Web:
1Gotowww.hp.com/go/vectrasupport, then select Manuals
2 Select your product, then select HP Information CD-ROM
5011-8109
Input Devices
HP Standard Keyboard C4735A
HP Multimedia Keyboard C4742A
HP 2-button Mouse C3751B
HP Scrolling Mouse C4736A
HP Cordless Scrolling Mouse C4740A
Monitors
All current HP Monitors (see the HP Monitors Service Handbook)
Mass Storage
HP USB Floppy Drive D9510A
Multimedia
HP Amplified Speakers - by Labtec 10WRMS D4545A
HP Amplified Speakers - by Labtec 4WRMS D6861A
HP Standard Headset D8387A
Data Communications and LAN Adapter Boards
HP 56K V90 USB External Modem D8384B
Security
HP Master Pass Key System Kit D6655B
HP Spare Master Pass Key D6658B
HP ProtectTools Smart Card Reader Kit D8436B
Kensington Lock F1645A
I/O Interfaces
HP USB Hub Accessory Kit D6840A
Others
Monitor Stand F1453A
evec.book Page 2 Friday, March 31, 2000 4:15 PM

HP e-Vectra
e-PCs HP e-Vectra 2-3
2

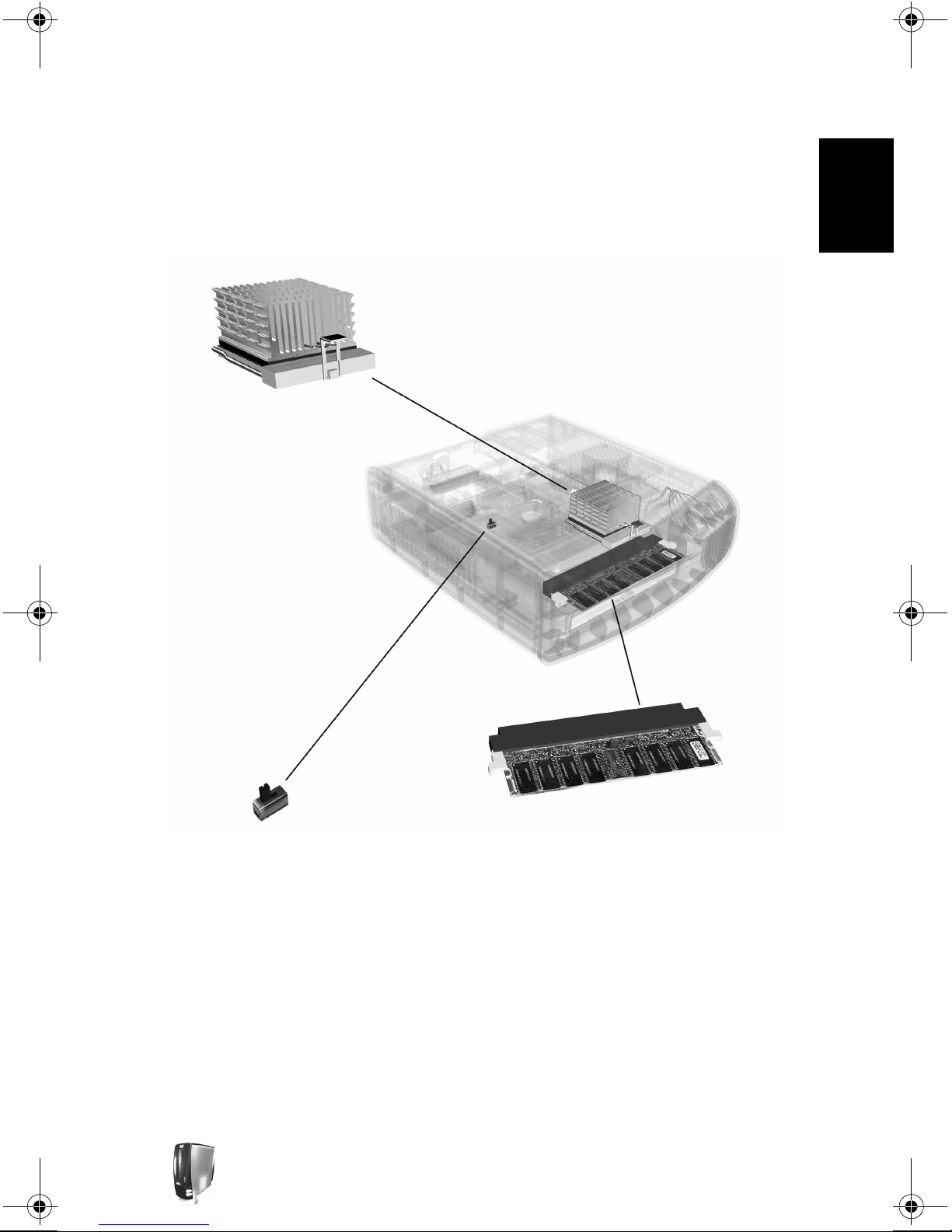

System Board, BIOS, and Memory
System Board Switch:
See the table on the next page.
Processor: Intel Pentium III
or Intel Celeron PPGA
package with Zero Insertion
Force (ZIF) socket.
SW1 Main Memory:
One DIMM socket which supports up
to a maximum of 256 MB.
Install one 64 MB, 128 MB or 256 MB
SDRAM module.
evec.book Page 3 Friday, March 31, 2000 4:15 PM

HP e-Vectra
2-4 HP e-Vectra
2
System Board Switches
SW1
BIOS History
For the latest BIOS, the flasher utility program, and the BIOS history refer to the
HP World Wide Web site.
Switch Function Default
On Clears CMOS (to reload the Setup program defaults) and
passwords Off
Off Normal operation
http://www.hp.com/go/vectrasupport/
evec.book Page 4 Friday, March 31, 2000 4:15 PM

HP e-Vectra
e-PCs HP e-Vectra 2-5
2

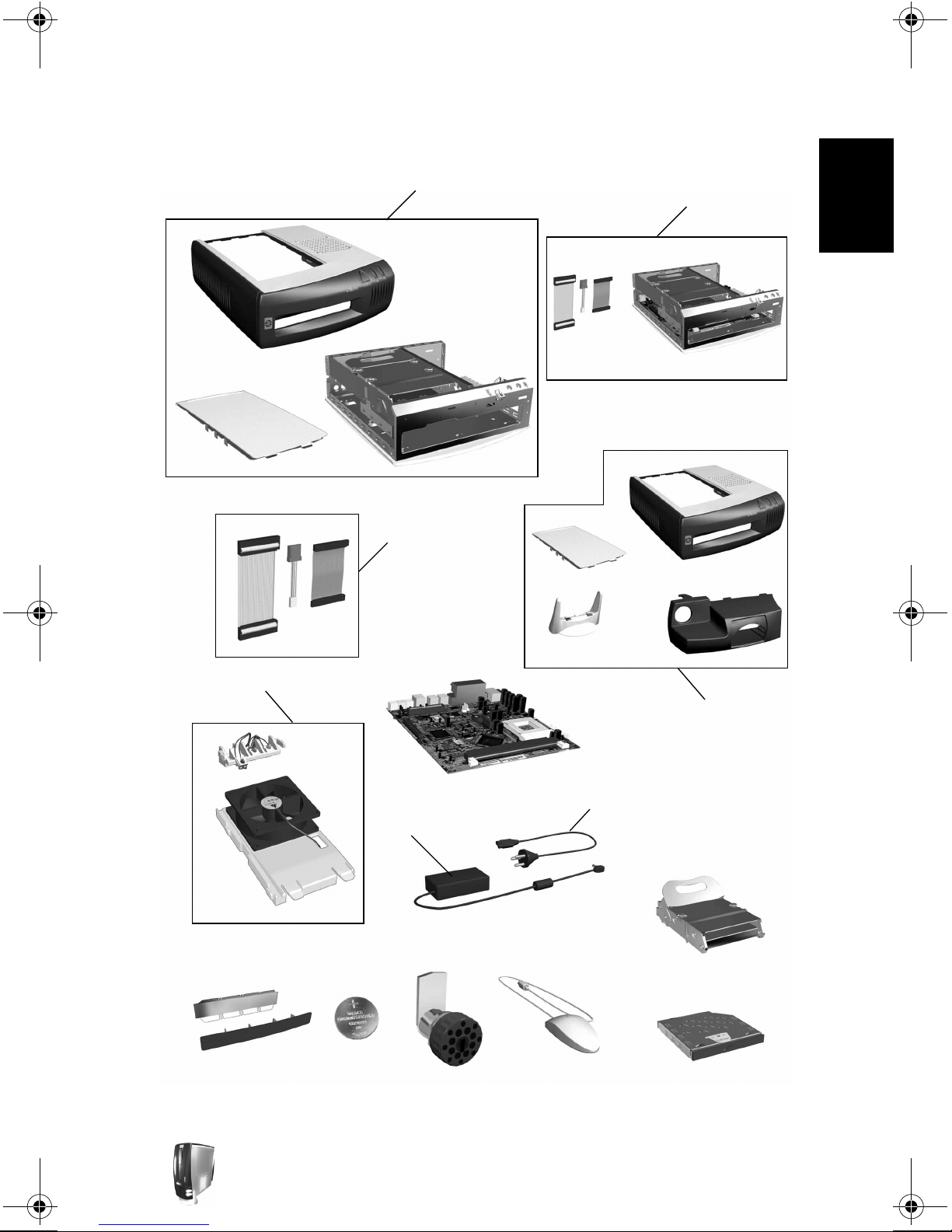

Part Numbers
1
a1b
3
2
4
5
6
7
8
9
10
11
12
13
evec.book Page 5 Friday, March 31, 2000 4:15 PM

HP e-Vectra
2-6 HP e-Vectra
2
“Return to HP” Repair Parts List for HP e-Vectra
Item Description Repl.
Part Number
Exchange
Part Number
1a Box assembly: includes cover assembly,
chassis assembly, HDD tray assembly, HDD
compartment cover, LED holder assembly)
5065-2512 —
2 Cable kit: includes HDD data cable, HDD
power cable and CD-ROM (data+power)
cable
5065-2513 —
3 Plastic parts kit: includes cover, HDD
compartment cover, stand foot, rubber feet
(not shown), port control system, blank
serial number label (not shown) and flyer
(not shown)
5065-2560 —
4 Status panel, fan and airflow guide 5065-2511 —
5 CD-ROM blank bezel and RFI shield (used
on models without CD-ROM drive)
5065-2561 —
6 Power supply 0950-37961
1. Replace both the power supply and the power cord.
—
7Power cord 8120-xxxx1,2
2. Where “xxxx” is the code for your national power cord. See the localization matrix below.
—
8 IDE hard disk drive3(includes HDD tray)
8.4 GB
15 GB
3. For optional disk drive information, see the Accessory Service Handbook.
—
—
D9618-69001
D9616-69001
924✕Max IDE slim CD-ROM drive + tray
assembly
6✕ Max IDE slim DVD-ROM drive + tray
assembly
D9912-63001
D9913-63001
—
—
10 Enhanced mouse with scroll/zoom wheel C4736-60101 —
Standard keyboard C4739-601xx4
4. Where “xx” is the code for your national keyboard. See the localization matrix below.
—
11 HP lock 5064-2645 —
12 Battery type CR2032 1420-0356 —
13 System board —D9497-69001
not
shown
Sealing tape tbd —
evec.book Page 6 Friday, March 31, 2000 4:15 PM

HP e-Vectra
e-PCs HP e-Vectra 2-7
2
“On-site” Repair Parts List for HP e-Vectra
Item Description Repl.
Part Number
Exchange
Part Number
1b Box assembly: includes system board,
cable kit, chassis assembly, HDD insulator,
stiffener, CD-ROM drive support, stand off
fix, stand off, RFI shields, lock, left panel
assembly, rear bezel connector label, LED
holder assembly
—D9619-69001
2 Cable kit: includes HDD data cable, HDD
power cable and CD-ROM (data+power)
cable
5065-2513 —
3 Plastic parts kit: includes cover, HDD
compartment cover, stand foot, rubber feet
(not shown), port control system, blank
serial number label (not shown) and flyer
(not shown)
5065-2560 —
4 Status panel, fan and airflow guide 5065-2511 —
5 CD-ROM blank bezel and RFI shield (used
on models without CD-ROM drive)
5065-2561 —
6 Power supply 0950-37961
1. Replace both the power supply and the power cord.
—
7Power cord 8120-xxxx1,2
2. Where “xxxx” is the code for your national power cord. See the localization matrix below.
—
8 IDE hard disk drive3(includes HDD tray)
8.4 GB
15 GB
3. For optional disk drive information, see the Accessory Service Handbook.
—
—
D9618-69001
D9616-69001
924✕Max IDE slim CD-ROM drive + tray
assembly
6✕ Max IDE slim DVD-ROM drive + tray
assembly
D9912-63001
D9913-63001
—
—
10 Enhanced mouse with scroll/zoom wheel C4736-60101 —
Standard keyboard C4739-601xx4
4. Where “xx” is the code for your national keyboard. See the localization matrix below.
—
11 HP lock 5064-2645 —
12 Battery type CR2032 1420-0356 —
evec.book Page 7 Friday, March 31, 2000 4:15 PM

HP e-Vectra
2-8 HP e-Vectra
2
Localization Matrix for HP e-Vectra
Localization Country Keyboard Power Cord
#AB4 Singapore C4739-60101 8120-8699
#ABA USA 8120-6313
#ABC Canada C4739-60102
#ABD Germany C4739-60103 8120-6314
#ABF France C4739-60105
#ABG Australia - New Zealand C4739-60101 8120-6312
#ABJ Japan C4739-60124 8120-6316
#ABU United Kingdom C4739-60113 8120-8699
System Board Parts List for HP e-Vectra
Description Repl.
Part Number
Exchange
Part Number
Processors (PPGA package):
Intel Celeron 500/66 128KB L2 cache 5065-0477 —
Heatsink and clip for Intel Celeron 500 5184-3838 —
Intel Celeron 533/66 128KB L2 cache D8748-63001 —
Intel Celeron 566/66 128KB L2 cache D9903-63001 —
Intel Pentium III 600EB/133 256KB L2 cache — D9918-69001
Intel Pentium III 667B/133 256KB L2 cache — D9905-69001
Intel Pentium III 733B/133 256KB L2 cache — D9906-69001
Heatsink and clip for Celeron 533, 566 and
Pentium III processors
5184-3837 —
Main memory modules:
1 ✕64-MB non-ECC SDRAM D6502-63001 —
1 ✕128-MB non-ECC SDRAM D6503-63001 —
1 ✕256-MB non-ECC SDRAM D9525-63001 —
Software Recovery CD-ROMs
HP Image Creation & Recovery CD-ROM for Windows 2000/NT 5011-2558-xx1
1. Where “xx” is the code for your language: EN=English, FR=French, GR=German,
JP=Japanese.
HP Image Creation & Recovery CD-ROM for Windows 98 5011-2559-xx1
evec.book Page 8 Friday, March 31, 2000 4:15 PM

HP e-Vectra
e-PCs HP e-Vectra 2-9
2
Notes:
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
Manuals and Documentation for HP e-Vectra
HP Information CD-ROM15011-8109
User’s Guide no number2
Troubleshooting and Upgrade Guide no number2
Technical Reference Manual no number2
1. The HP Information CD-ROM contains complete information for the HPe- Vectra.
To order your HP Information CD-ROM from HP’s Web:
1 Go to www.hp.com/go/vectrasupport, then select Manuals
2 Select your product, then select HP Information CD-ROM
2. Electronic file available on HP’s Web site.
evec.book Page 9 Friday, March 31, 2000 4:15 PM

HP e-Vectra
2-10 HP e-Vectra
2
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
evec.book Page 10 Friday, March 31, 2000 4:15 PM
