HP Vectra VEi 8 Product manual

Technical Reference Manual
Product Description - Vectra VEi 8
This technical reference and BIOS document for Vectra VEi 8 PCs contains
summary information only. More detailed information on system hardware is
available in the Technical Reference Manual - Vectra Technology.
HP Vectra VEi 8 PCs

Contents
Francais iii
1 System Overview
System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
VEi 8 Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Physical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 System Features
System Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Architectural View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting Bus Frequency Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hard Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Floppy Disk Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CD-ROM and DVD Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Playing DVD Video Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
8MB Matrox Millennium G200 AGP 2X Graphics Chip. . . . . . . . . . . 23
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Video Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Supported Resolutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

iv Francais
Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
HP 10/100 3Com 3C905B-TX Network Interface Card (D7504A and D7505A)
26
HP 10/100 Intel PRO/100+ Management Adapter (D7506A and D7507A) . .
26
Accessory Boards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3 BIOS Overview
Award BIOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the HP Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Advanced Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Power Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Copying your Setup Configuration to Other VEi 8 PCs. . . . . . . . . . 34
Power Saving and Ergonometry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Soft Power Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
BIOS Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
System Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
HP I/O Port Map (I/O Addresses Used by the System). . . . . . . . . . . . . . 37
DMA Channel Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Interrupt Controllers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

vFrancais
PCI Interrupt Request Lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
4 Drivers and Software
Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
BIOS Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

vi Francais

7
VEi 8 Bibliography
❒HP Vectra VEi 7 & VEi 8 User’s Guide manual (D8110-90001)
HP Vectra VEi 7 & VEi 8 Troubleshooting and Upgrade Guide
manual (D8110-UPG-ABA)
www.hp.com/go/vectrasupport
❒Technical Reference Manual -Vectra Technology
www.hp.com/go/vectrasupport
❒Technical Reference Manual - Product Line Overview
www.hp.com/go/vectrasupport
❒HP Vectra PC Service Handbook - 14th edition (to be published).
❒HP Support Assistant CD-ROM (by subscription).
Data sheets can be obtained at:
❒Matrox Millennium G200 AGP (graphics controller)
www.matrox.com/mga/products/millennium_g200/home.htm
❒Intel Chipsets. 440ZX AGPSet (82443ZX) and
PIIX4E PCI/ISA Bridge Chip (82371EB)
www.intel.com/design/chipsets/datashts
❒Pentium II & Pentium III Processors
www.intel.com/design/pentiumII/datashts
www.intel.com/design/pentiumIII/datashts
❒Product Data Sheets
www.hp.com/vectra

8

1
System Overview
This chapter introduces the internal and external features, and lists
the specifications of Vectra VEi 8 PCs.

1 SystemOverview
System Overview
10
System Overview

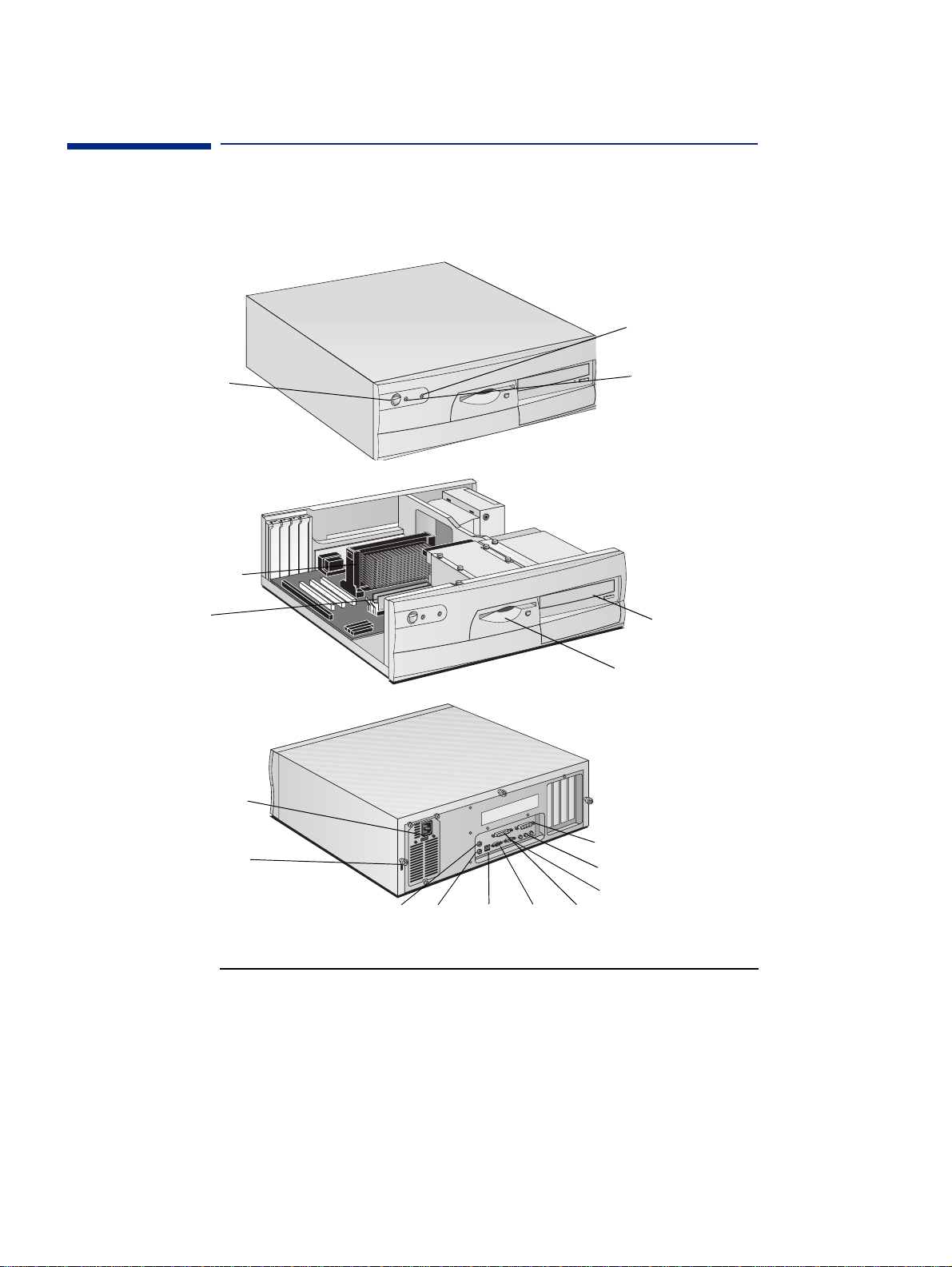

VEi 8 Package
Hard Disk
Activity Light
Power on
Status Light
(orange in
sleep mode)
Front view
PowerOn/Off
Button
Processor
Main memory CD-ROM drive
Floppy disk drive
Frontviewwiththe
cover off
Slot for Kensington®
security cable
Two USB Serial Monitor Mouse Keyboard Parallel
Rear view
Voltage selectionSwitch
Audio jacks
MIDI/joystick

11
1 System Overview
Specifications
Specifications
Physical Characteristics
Electrical Specifications
Any attempt to draw too much current (such as a short circuit across
edge-connector pins, or an accessory board that is not suitable for
these PCs), will cause the overload protection in the power supply to
be triggered, and the PC could fail to boot. To get out of the power
supply protection mode, remove the power cord, wait for 10 seconds,
then replace the cord.
Characteristic Description
Weight
(excluding display and keyboard) 8.7 kg (19 pounds)
Dimensions Width: 41.8 cm (16.5 inches)
Height: 14.0 cm (5.5 inches)
Depth: 37.5cm (14.8 inches)
Footprint 0.157 m2 (1.68 ft2)
HP Windows 95 Keyboard 18.3 (W) by 7 inches (D) by 1.3 inches (H), when flat, or
18.3 (W) by 7 inches (D)by 2 inches (H),when standing
(46.4 cm x 17.8 cm x 3.3 cm [5.1 cm])
Typical Power Consumption/Availability for ISA Accessory Slots
+5 V 4.5A limit per slot (limited by system board)
+12 V 1.5A limit per slot (limited by system board)
-12 V 0.3A total power limit (limited by power supply)
Typical Power Consumption/Availability for PCI Accessory Slots
+5 V 4.5A maximum per slot
+12 V 0.5A maximum per slot
-12 V 0.1A maximum per slot

1 SystemOverview
Specifications
12
The power supply delivers 720mA at the V standby level. This extra
current is required by the 100TX hardware layer so it can perform a
remote power-on when a magic frame is received. An older power
supply should not be used for a repair.
NOTE When the PC isturned off withthe power button on the front panel,the
power consumption falls below 5 Watts, but is not zero. The special
on/offmethod usedby this PC extends the lifetimeof the powersupply.
To reach zero power consumption in “off” mode, either unplug the PC
from the power outlet or use a power block with a switch. If the PC is
turned off, the time settings are maintained by the battery indefinitely
(until the battery runs out of power).
Environmental Specifications
Operating temperature and humidity ranges may vary depending upon
the mass storage devices installed. High humidity levels can cause
improper operation of disk drives. Low humidity levels can aggravate
static electricity problems and cause excessive wear of the disk
surface.
Environmental Specifications (System Processing Unit, with Hard Disk)
Operating Temperature +5°C to +35°C (+ 41°F to 95° F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity 15% to 80% (relative)
Storage Humidity 8% to 85% (relative), non-condensingat 40°C (104°F)
Acoustic noise emission: (as defined ISO 7779)
Typical sound level (LwA) ≤39 db (operating)
Operating Altitude 10000 ft (3100m) max
Storage Altitude 15000ft (4600m) max

2
System Features
This chapter describes technology in the PC such as the system board,
processor, mass storage devices, graphics controllers, audio
controllers, network features and accessory boards.

2 System Features
System Board Layout
14
System Board Layout








Memory Slots
Matrox
Graphics
Chip
Processor Slot
Battery Socket
Intel 440 ZX
Host Chip
Intel
PIIX4e
1 X ISA slot
SDRAM
Secondary IDE
Floppy connector
Primary IDE
3 X PCI slots
USB
SDRAM
SDRAM
SDRAM
Clear CMOS
Jumper
Power
Clear Password
Jumper
Audio
Audio/joystick
Parallel/serial &
monitor
Status panel connector
Wake-On LAN
# 1
# 3 # 2
Keyboard/mouse

15
2 System Features
System Board Layout
PCI Mapping Table
Device PCI Device Slot#
0 440ZX
4Multimedia
7 PIIX4E
15 J1 1
16 J4 2
18 J8 3

2 System Features
Architectural View
16
Architectural View
Slot 1
Processor
B2443 ZX
Host Bridge Main Memory
PCI/ISA Bridge (PIIX4E)
82371EB
ISA Bus
Video BIOS
PCI Slots
ISA Slot
100
MHz
SystemMGMT(SMBUS)
2 IDE Ports
Ultra DMA/33
2 USB Ports
Host Bus
2X AGP Bus
Display 3.3V EDO &SDRAM
Support
Primary PCI Bus
PCI Bus #0
Graphics
Local
Memory
Video
- DVD
- Camera
- VCR
MGAG200
AGP
Graphics
- VMI
- Video Capture
Ultra DMA
Controller
PCI Bus
Interface
Interrupt
Controller
SM Bus
Controller
ISA Bus
Interface
Audio

17
2 System Features
Main Memory
Main Memory
There are two 168-pin DIMM slots on the system board for installing
main memory; DIMM slots 1 and 2. All HP Vectra VEi 8 PC models are
supplied with one memory module (either 32 MB or 64 MB non-ECC
SDRAM) in one of the two slots, leaving the remaining slot free for
memory upgrades. Only HP memory modules are supported.
The slots can be filled in any order. Memory upgrades are available in
single 100 MHz modules of 32 MB, 64 MB, 128 MB or 256 MB modules.
Note that although the 256 MB modules provided by HP as an
accessory are ECC, the ECC feature is not used by this PC.
Replacement of thesupplied memory moduleis necessary toobtain the
512 MB maximum memory.
Processor
The PC is equipped with a single Intel Pentium II (350 or 400 MHz) or
Pentium III processor (450 or 500 MHz). The Single Edge Contact
Cartridge (SECC) packaging includes a dedicated 512K level 2 cache
and heat sink. The processor connects to the system board through a
Slot 1 (SC242) socket.
The Pentium III has the same basic core architecture as the Pentium II
but has an additional 70 multimedia-oriented instructions, bringing
enhanced performance to floating point intensive operations such as
3D and video. To fully exploit this technology, applications have to be
optimized for the Pentium III.
To find out more about Pentium II and Pentium III processors, refer to
the Technical Reference Manual - Vectra Technology.
Setting Bus Frequency Manually
There is a 14.318 MHz crystal oscillator on the system board. This
frequency is multiplied to 100 MHz by a phase locked loop. This is
further scaled by an internal clock multiplier within the processor.

2 System Features
Processor
18

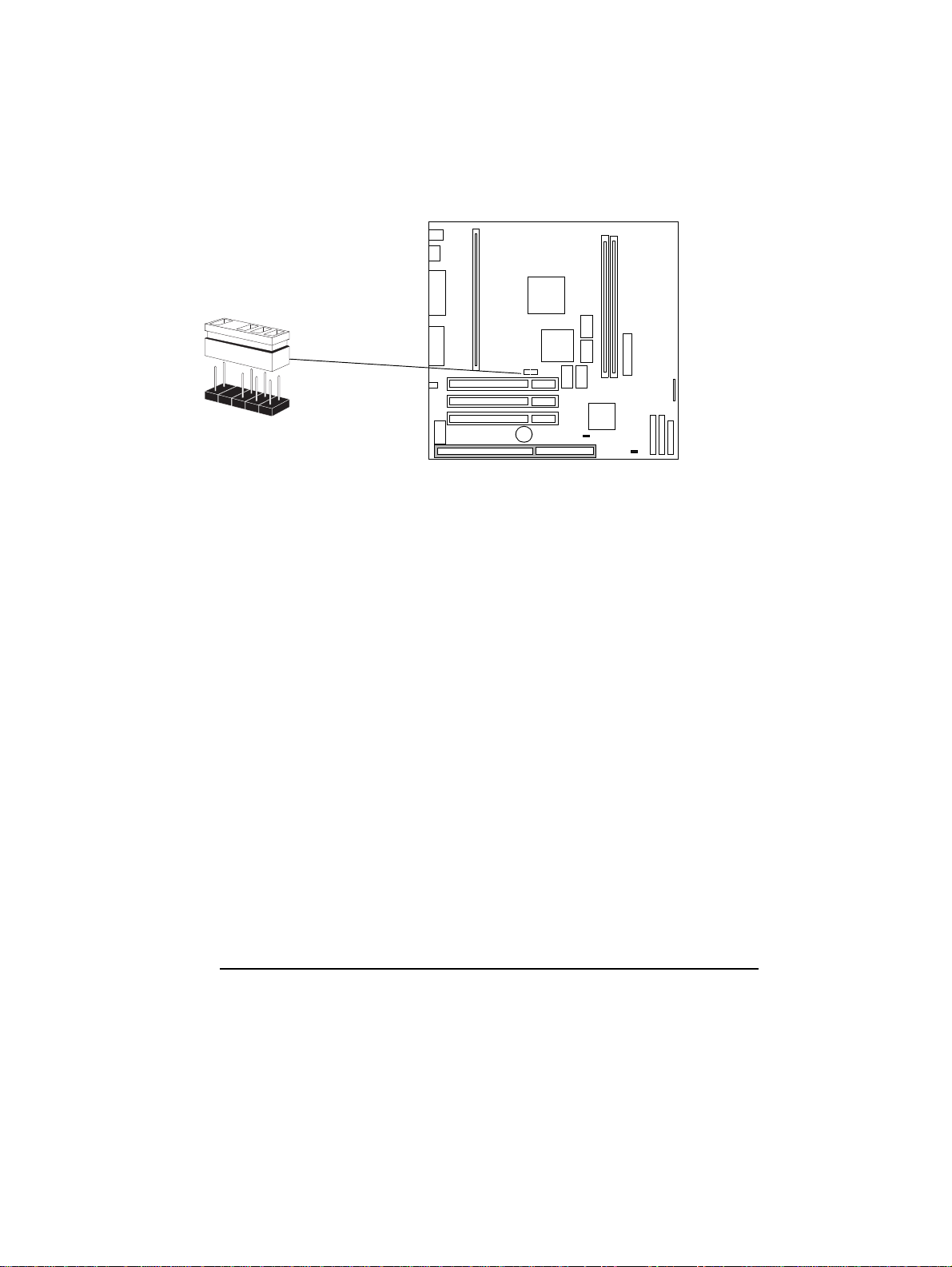

Frequency Jumpers Some VEi 8 models have a jumper block on the mother board to set
processor frequency. You only need to install a new jumper on the
jumper block if a new processor is supplied with one.
If the Processor
Frequency is Set
Wrongly
The computer may execute erratically, if at all, or may overheat, if it is
configured tooperate at a higher processorspeed than the processor is
capable of supporting. This can cause damage to the computer.
Setting the jumpers to operate at a slower speed than the processor is
capable of supporting, can still cause erratic behavior in some cases,
and would reduce the instruction throughput in others.
Processor Frequency jumper (only required
for some processors). To install the
jumper, simply place it over the jumper
block. It can only go on one way.











19
2 System Features
Mass Storage Devices
Mass Storage Devices
Hard Disk Drives
A 3.5-inch hard disk drive is supplied on an internal shelf in some
models. These hard drives can be provided with the PC. To see which
other hard disk drives can be purchased as accessories for the VEi 8,
refer to www.hp.com/go/vectraaccessories.
To find out about Ultra-ATA DMA/33 hard disk drive technology, refer
to the Technical Reference Manual - Vectra Technology.
Floppy Disk Drives
All models are supplied with a 3.5-inch floppy disk drive.
4.3 GB
Ultra-ATA 33 8.4 GB Ultra-ATA 33
Average seek write time (typical) 11.0 ms 11.0 ms
Average seek read time (typical) 9.5 ms 9.5 ms
Revolutions per minute (RPM) 5400 5400
Average Latency 5.6 ms 5.6 ms
Maximum external transfer rate 16.6/33 MB/s 16.6/33 MBs

2 System Features
Mass Storage Devices
20
CD-ROM and DVD Drives
Some models are equipped with a 32✕Max IDE CD-ROM drive. If it
does not come with the PC, it can be purchased as an accessory. This
CD-ROM drive can play standard CD-ROM discs, conforming to optical
and mechanical standards as specified in the Red, Yellow, Green and
Orange Books.The DVD Drive below can be purchasedas an accessory.
Refer to www.hp.com/go/vectraaccessories.
To find out about CD-ROM and DVD drive technology, refer to the
Technical Reference Manual - Vectra Technology.
Features of the CD-
ROM Drive
(D4384A)
•CD-ROM Mode-1 data disc.
•CD-ROM Mode-2 data disc.
•Photo-CD Multisession.
•CD Audio disc.
•Mixed mode CD-ROM disc (data and audio).
•CD-ROM XA, CD-I, CD-Extra, CD-R, CD-RW.
If a disk is still in the drive after power failure or drive failure, the disk
can be reclaimed by inserting a stout wire, such as the end of a
straightened paper-clip, into the small hole at the bottom of the door.
Description
HP product number D4384A
Disc Diameter 120 mm
Storage Capacity 650 Mbytes (Mode-1)
742 Mbytes (Mode-2)
Read Mode Full CAV114X to 32X
1. CAV = Constant Angular Velocity
Burst Transfer Rate PIO mode 4 - 16.6 Mbytes/s maximum
Single Word DMA Mode 2 - 8.3 Mbytes/s maximum
Multi Word DMA Mode 2 - 16.6 Mbytes/s maximum.
Access Time (typical) Average Stroke (1 / 3) 100 ms
Full stroke 140 ms
Buffer Memory Size 128 kbytes
Rotational speed Approx. 7,300 rpm maximum
