1 Getting started
This printed Quick Start Guide provides the information
you need to get started using the essential features of
your camera. For detailed information about camera
features, see the electronic User Guide (see Accessing
the electronic User Guide on page 4).
Quick Start Guide Electronic User Guide
This printed guide will help
you to:
• Start using your
camera quickly
• Install the
HP Photosmart
Software
• Become familiar with
your camera's basic
features
The electronic User Guide
includes:
• Descriptions of all the
camera features
• Battery information,
including:
• Extending battery
life
• A description of the
power indicator
icons
• Troubleshooting
• Getting assistance
from HP
• Camera specifications
Accessing the electronic User
Guide
The electronic User Guide is on the HP Photosmart
Software CD.
4 HP Photosmart R930 series Digital Camera
English

To view the User Guide:
1. Insert the HP Photosmart Software CD into the CD
drive of your computer.
2. Click View User Guide on the main page of the
installation screen.
The electronic User Guide is also copied to your computer
when you install the HP Photosmart Software. To view the
User Guide after it has been installed on your computer:
•On Windows: Open the HP Solution Center and
click help.
•On Macintosh: Open the HP Device Manager and
select Camera User Guide from the Information and
Settings pop-up menu.
Getting assistance
• For tips and tools to help you use your camera more
effectively, visit www.hp.com. From here, click on
Learn About: Digital Photography (English Only).
• For product support including firmware, software, and
driver updates, visit www.hp.com/support.
• For help with the HP Photosmart Software, see the
software's online help.
Getting started 5
English

Camera top, side, and back
3 5
1 2
4
6
7
8
9
10
11

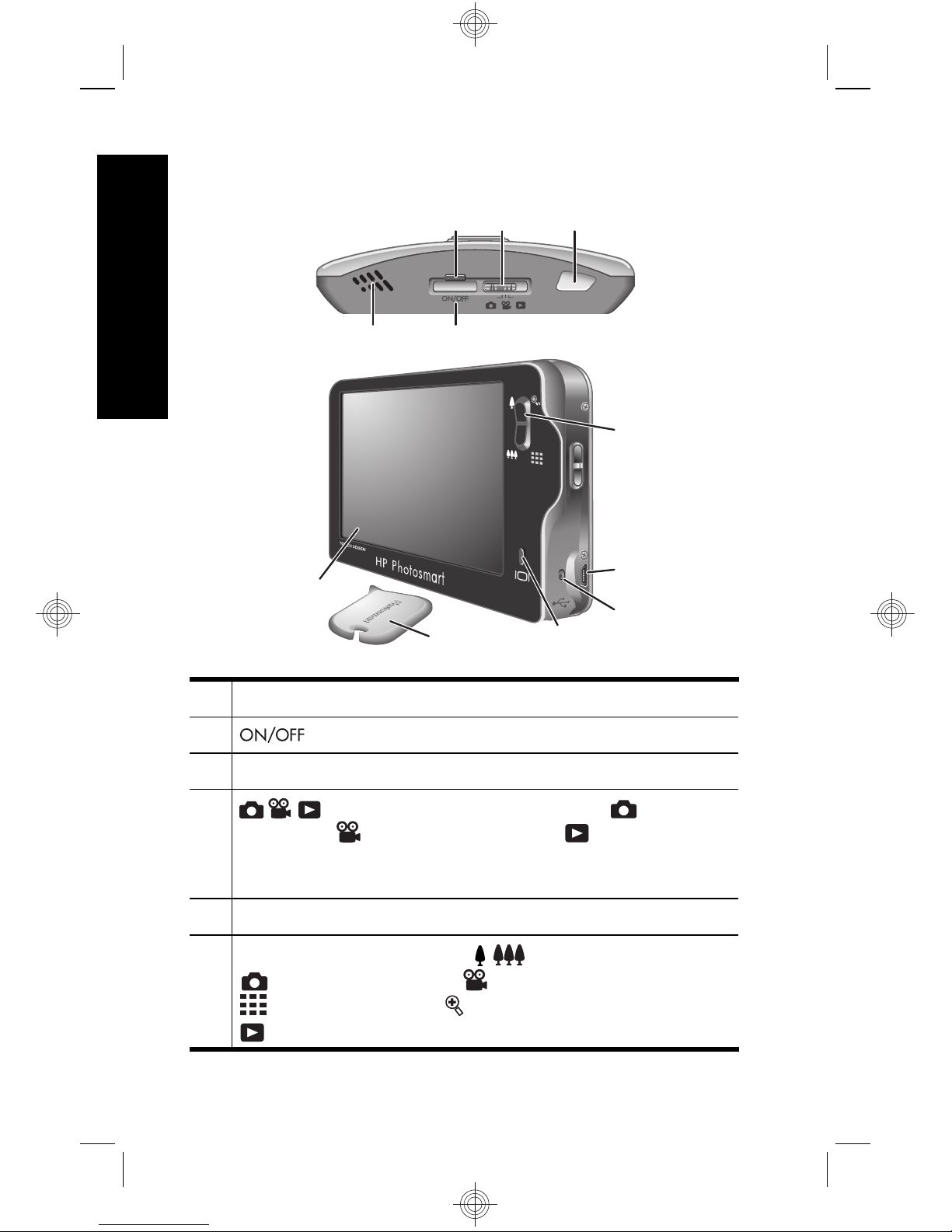

1Speaker.
2button.
3Power light.
4selector—Switches between Picture
Capture, Video Record, and Playback
(see Picture Capture, Video Record, and Playback
on page 20).
5Shutter button.
6Zoom lever—Accesses / Zoom while in
Picture Capture or Video Record; accesses
Thumbnails and Magnify while in
Playback.
6 HP Photosmart R930 series Digital Camera
English

7USB connector.
8Battery Charging light.
9 Overlay button—Turns Touch Screen Image
Display overlays on and off (see Using the Touch
Screen interface on page 13).
10 Stylus (see Using the Touch Screen interface on
page 13).
11 Touch Screen Image Display—Frames images
when in Picture Capture or Video Record,
reviews images when in Playback, and provides
a Touch Screen interface for camera operations
(see Using the Touch Screen interface on
page 13).
Camera front and bottom
1 32
5 4
1Flash.
2Self-Timer/Focus Assist light.
3Microphone.
4Battery/Memory Card door.
Getting started 7
English

5Tripod mount.
8 HP Photosmart R930 series Digital Camera
English

2 Setting up your camera
Install the battery
1. Open the Battery/Memory Card door by
sliding the door latch as indicated on the
Battery/Memory Card door.
2. Insert the battery in the larger slot,
pushing the battery in until the latch
catches.
3. Close the Battery/Memory Card door.
NOTE: Fully charge the battery before using it the
first time. Turn off the camera before removing the
battery.
To remove the battery, move the battery latch as shown
until the battery springs free.
Charge the battery
You can charge the battery in the camera, using the USB
cable and power adapter.
NOTE: Your camera uses a rechargeable
HP Photosmart R07 Lithium Ion battery (L1812A/
L1812B). Do not charge any other battery in the
camera or optional quick recharger.
Setting up your camera 9
English

1. Plug the small end of the USB cable into the camera,
and the large end into the power adapter, as shown.
2. Plug the power adapter into an electrical outlet.
The camera’s blinking Battery Charging light indicates
that the battery is charging. The battery is fully charged
when the light stays on solid (approximately 2-3 hours).
Turn on the camera
To turn on the camera, press the button.
Choose the language

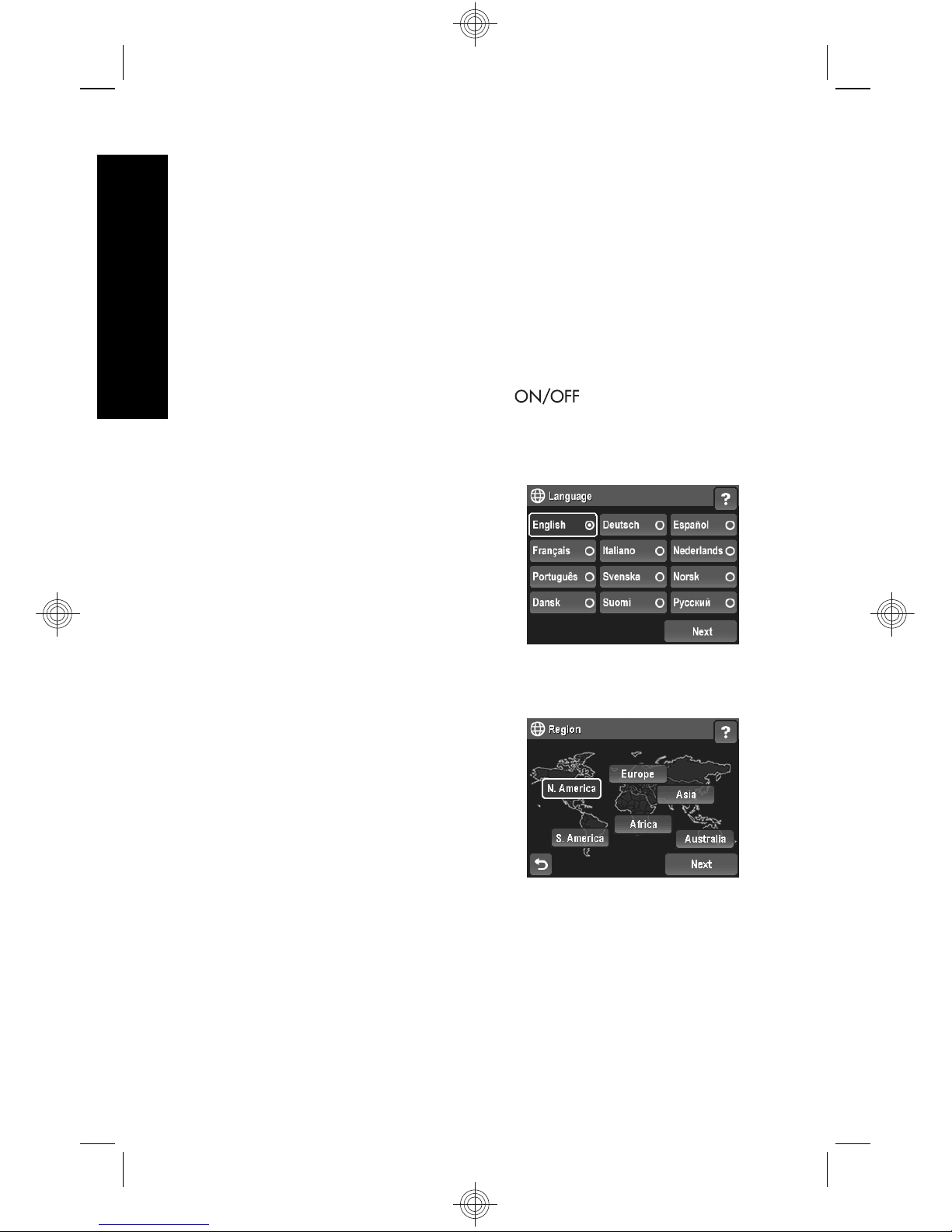

1. Using your finger or the
stylus, touch the language
that you want.
2. Touch Next to confirm your
choice and display the
Region screen.
Set the region
Along with the language setting,
the region setting determines the
default date format.
1. Touch the region you want.
2. Touch Next to confirm your
choice and display the Date &
Time screen.
Set the date and time
Accurately setting the date and time will help you locate
images once you have uploaded them to your computer,
10 HP Photosmart R930 series Digital Camera
English

and will ensure that images are accurately marked if you
use the date and time imprint feature.

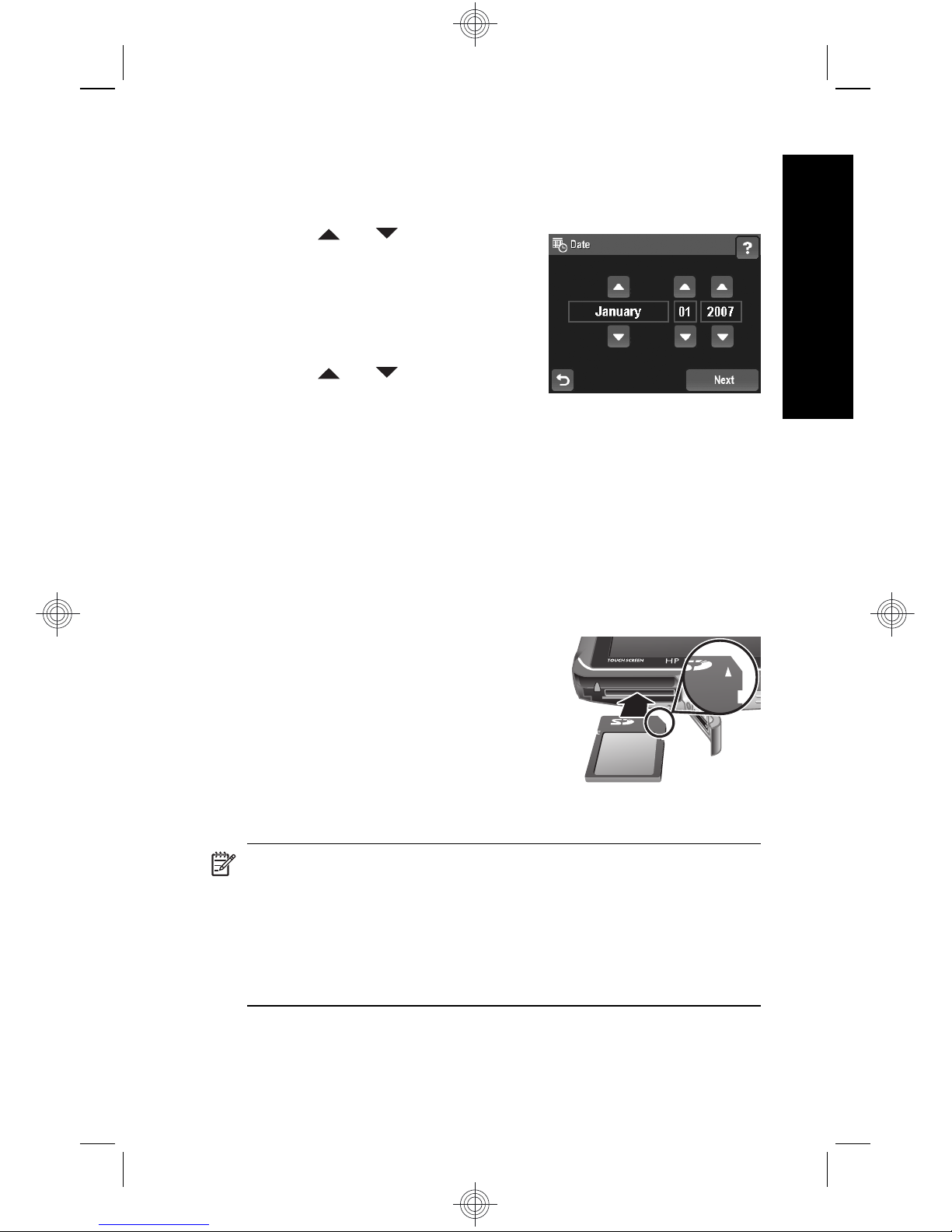

1. Touch or to adjust the
month, date, and year.
2. Touch Next to confirm your
settings and display the
Time screen.
3. Touch or to adjust the
time.
4. When all settings are correct, touch Done.
Install and format an optional
memory card
This camera supports standard, high speed, and high
capacity Secure Digital (SD and SDHC) memory cards,
32MB to 8GB.
1. Turn off the camera and open
the Battery/Memory Card door.
2. Insert the optional memory card
in the smaller slot as shown.
Make sure the memory card
snaps into place.
3. Close the Battery/Memory Card
door and turn on the camera.
NOTE: When you turn on your camera with a
memory card installed, the camera indicates the
number of images you can store on the memory card
at the current Image Quality setting. This camera
supports storing a maximum of 1999 images on a
memory card.
Setting up your camera 11
English

Always format new memory cards before first use.
Formatting removes all images from the memory card, so
make sure to transfer existing images before formatting.
1. With the camera turned on, slide to .
2. Touch to display the Delete menu.
3. Touch to display Format Card, then touch Format
Card.
4. Touch Yes to format the card.
Once you install a memory card, all new images and video
clips are stored on the card, rather than in internal
memory.
To use internal memory and view images stored there,
turn the camera off, then remove the memory card.
Install the software
The HP Photosmart Software provides features for
transferring images and video clips to your computer, as
well as features for modifying stored images (remove red
eyes, rotate, crop, resize, and more).
To install the HP Photosmart Software, your computer
must meet the system requirements as stated on the
camera packaging. To learn aboutWindows Vista support
for your camera, see www.hp.com/go/windowsvista
(English only).
If you have trouble installing or using the HP Photosmart
Software, see the Hewlett-Packard Technical Support
website for more information: www.hp.com/support.
Windows
1. Close all programs and temporarily disable any virus
protection software.
12 HP Photosmart R930 series Digital Camera
English

2. Insert the HP Photosmart Software CD into the CD
drive and follow the on-screen instructions. If the
installation window does not appear, click Start,
click Run, type D:\Setup.exe, where Dis the letter of
your CD drive, then click OK.
3. When the software has finished installing, re-enable
virus protection software.
Macintosh
1. Insert the HP Photosmart Software CD into the CD
drive.
2. Double-click the CD icon on the computer desktop.
3. Double-click the installer icon, then follow the on-
screen instructions.
Once installation is complete and you have restarted your
computer, System Preferences automatically opens to
the HP Photosmart Camera settings. You may change
settings so the HP Photosmart Software starts
automatically when you connect your camera to your
Macintosh (for more information, click the help button on
the HP Photosmart Camera settings dialog).
Using the Touch Screen interface
This camera features a Touch
Screen interface that allows you
to access camera menus and
many camera features.
To use the Touch Screen:
• Touch a rounded-corner
touch button (as shown) or
menu item on the Touch Screen. For example,
touching exits the current screen or menu.
Setting up your camera 13
English

• Whenever you are framing an image or video clip, you
can turn off the Touch Screen overlay to view the
display more clearly. Press to turn off the touch
buttons. Press again to turn on the touch buttons.
NOTE: Overlay items on the Touch Screen vary
based on the task you are performing.
To reduce smudging and minimize the risk of scratching
the Touch Screen, use the stylus that came with your
camera. For additional tips and information about the
Touch Screen, see the electronic User Guide.
14 HP Photosmart R930 series Digital Camera
English

3 Taking pictures and
recording video clips
Slide to either to take pictures or to to
record video clips.
Take a picture
You can take a picture when you are in
Picture Capture.
1. Slide to .
2. Frame the subject in the Image
Display.
3. Press the Shutter button halfway down to measure
and lock the focus and exposure. The focus brackets
in the Image Display turn solid green when focus is
locked.
4. Press the Shutter button all the way down to take the
picture.
After you have taken a picture, the camera displays it
briefly in the Image Display.
Record a video clip
You can record a video when you are
in Video Record.
1. Slide to .
2. Frame the subject in the Image
Display.
3. Press the Shutter button halfway down to measure
focus and exposure. The focus brackets in the Image
Display turn solid green when focus is locked.
Taking pictures and recording video clips 15
English

4. Press the Shutter button all the way down and
release to begin recording video.
5. To stop recording video, press and release the
Shutter button again.
After you have recorded a video clip, the camera displays
it briefly in the Image Display.
16 HP Photosmart R930 series Digital Camera
English

4 Reviewing and deleting
images and video clips
Review images and video clips
You can review images and video clips in Playback.
1. Slide to .
2. Touch or to scroll through your images and video
clips. To play a video clip, touch in the center of
the displayed video frame.
Delete an image
You can delete individual images during Playback:
1. Slide to .
2. Touch or to select an image or video clip.
3. Touch to display the Delete menu.
4. Touch This Image.
Reviewing and deleting images and video clips 17
English

5 Transferring and printing
images
Transfer images
Use this procedure to transfer images and video clips to
your computer.
NOTE: Transferring a large number of high-
resolution images from a memory card to your
computer may take up to two hours.

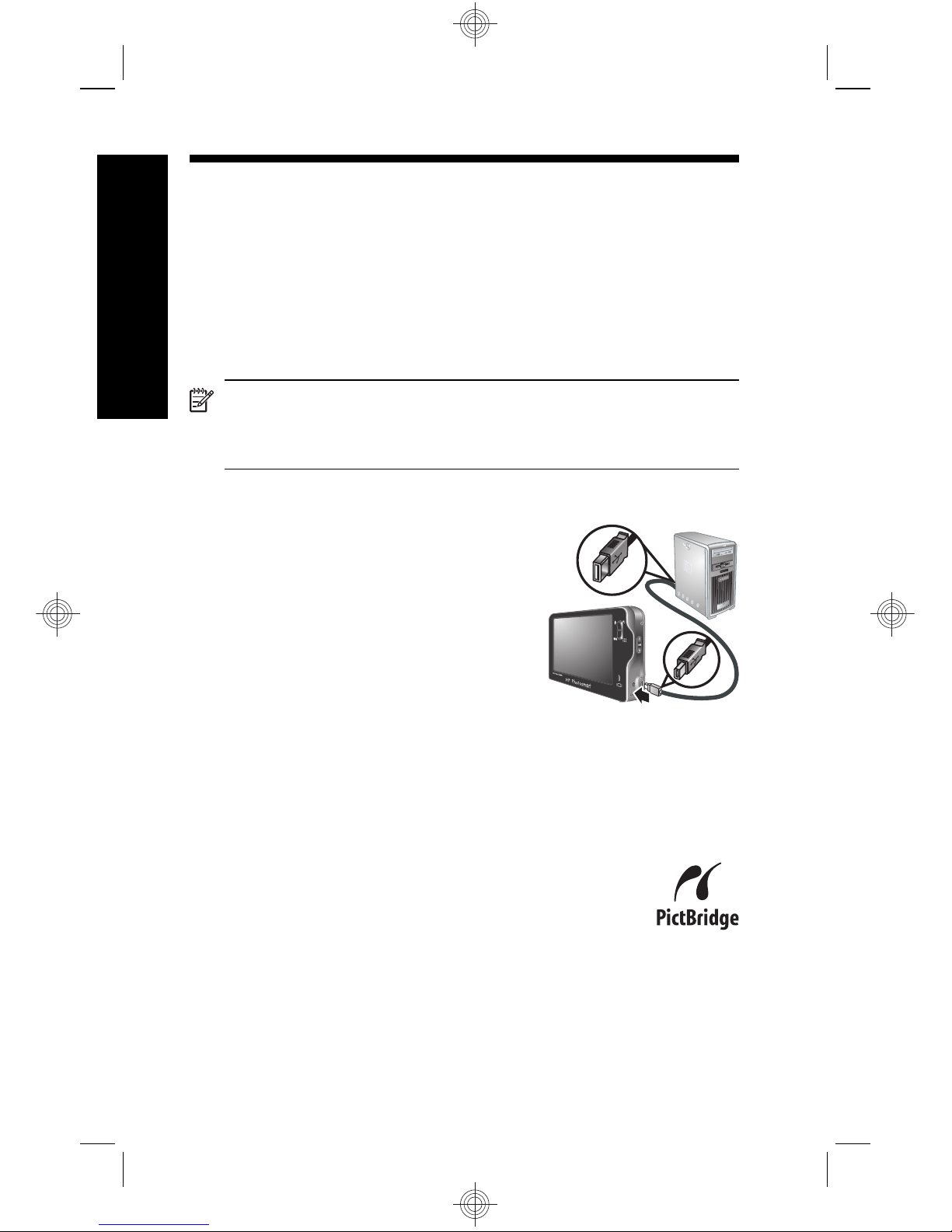

1. Turn off the camera.
2. Connect the camera and
computer using the USB cable
that came with your camera.
3. Turn on the camera. When the
Image Display indicates that the
camera is connected to the
computer, follow the
instructions on the computer
screen to transfer the images. If you have installed the
HP Photosmart Software and need more information,
see the Help feature in the HP Photosmart Software.
Print images from the camera
You can connect the camera to any PictBridge-
certified printer to print images.
1. Check that the printer is turned on, there is
paper in the printer, and there are no printer
error messages.
18 HP Photosmart R930 series Digital Camera
English

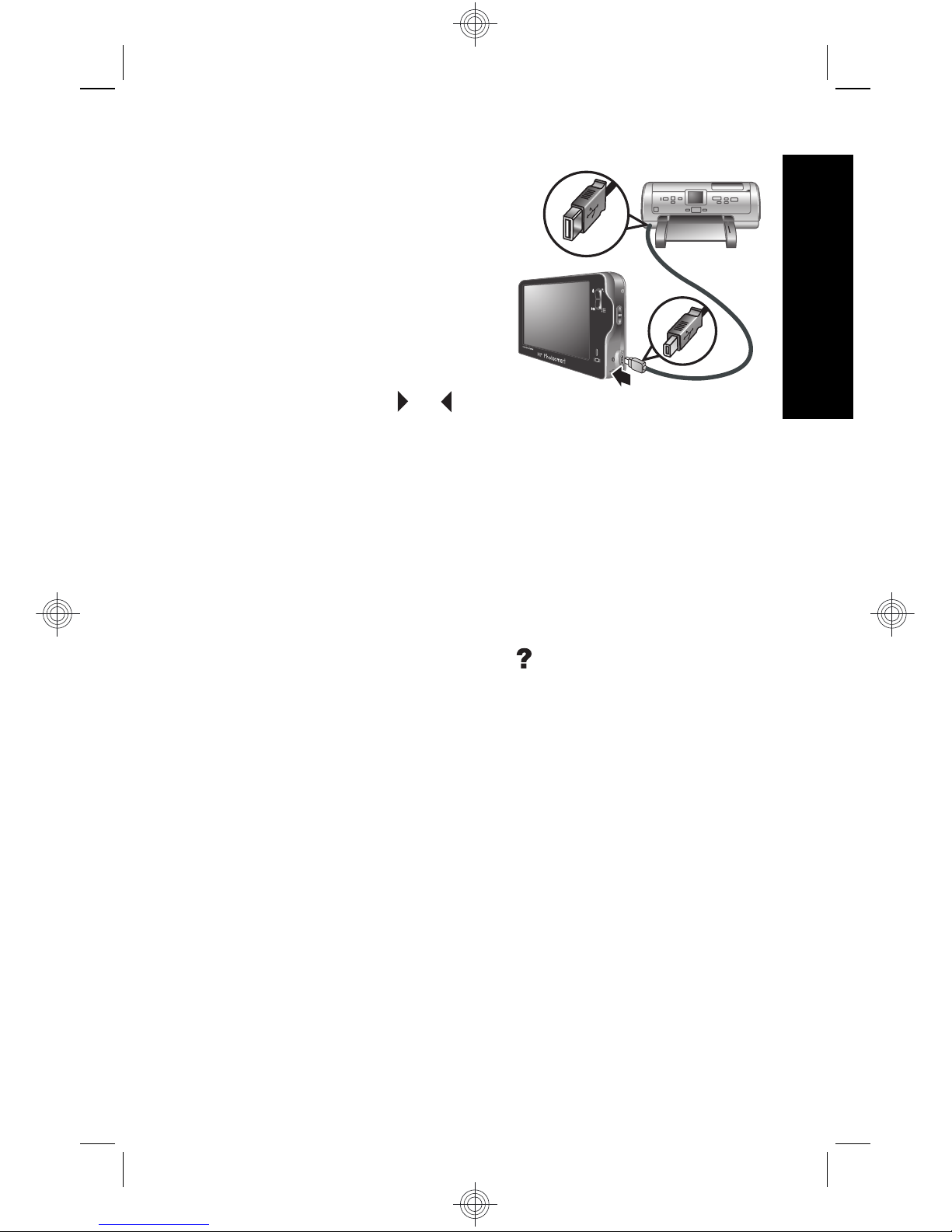

2. Turn off the camera, then
connect the camera and
printer using the USB
cable that came with your
camera.
3. Turn on the camera.
4. When the camera is
connected to the printer,
the Image Display shows
an image. Use or to
select the image you want to print.
5. Touch Print.
6. Printing... displays on the selected image in the
Image Display to indicate that the image is being
printed.
7. After the printer has printed the image, disconnect the
camera from the printer.
To learn about other printing options, see either the
electronic User Guide or touch on your camera Image
Display.
Transferring and printing images 19
English

6 Camera quick reference
Use this chapter as a quick reference to camera features.
To learn more about these camera features, refer to the
electronic User Guide or on-camera Help.
Picture Capture, Video Record, and Playback
•Picture Capture allows you to frame pictures in
the Image Display and take pictures. To activate
Picture Capture, slide to .
•Video Record allows you to frame videos in the
Image Display and record videos. To activate
Video Record, slide to .
•Playback allows you review and delete images
and video clips. To activate Playback, slide
to .
Camera Menus
Menus allow you to adjust camera settings, work with
images, and access camera help.
• Within a menu, select an item by touching it. If you see
, this indicates additional menu options. Touch
to see the additional items.
• To save changes and exit the menu, touch the button
in the bottom right corner of the Touch Screen (for
example, Save).
• To access camera help, touch .
• To cancel or exit a menu, touch at any time.
Picture Capture Menu—Allows you to adjust camera
settings that affect the characteristics of future images you
capture with your camera. To access this menu, slide
20 HP Photosmart R930 series Digital Camera
English
