HP OmniBook 5500 PC User manual

1
HP OmniBook
Getting Started

2
Notice
This manual and any examples contained herein are provided “as is”and are
subject to change without notice. Hewlett-Packard Company makes no warranty of
any kind with regard to this manual, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. Hewlett-Packard
Co. shall not be liable for any errors or for incidental or consequential damages in
connection with the furnishing, performance, or use of this manual or the examples
herein.
Consumer transactions in Australia and the United Kingdom: The above disclaimers
and limitations shall not apply to Consumer transactions in Australia and the United
Kingdom and shall not affect the statutory rights of Consumers.
© Copyright Hewlett-Packard Company 1995–1996. All rights reserved.
Reproduction, adaptation, or translation of this manual is prohibited without prior
written permission of Hewlett-Packard Company, except as allowed under the
copyright laws.
The programs that control this product are copyrighted and all rights are reserved.
Reproduction, adaptation, or translation of those programs without prior written
permission of Hewlett-Packard Co. is also prohibited.
Portions of the programs that control this product may also be copyrighted by
Microsoft Corporation, Adaptec, Inc., SystemSoft Corp. See the individual programs
for additional copyright notices.
Microsoft, MS, and MS-DOS are registered trademarks and Windows is a trademark
of Microsoft Corporation (U.S. patent numbers 4955066 and 4974159). SystemSoft is
a registered trademark and CardWizard, CardView, CardSoft, and CardID are
trademarks of SystemSoft Corporation.
For warranty information, see the Support and Service booklet.
Hewlett-Packard Company
Mobile Computing Division
1000 N.E. Circle Blvd.
Corvallis, OR 97330, U.S.A.

3
HP Software Product License Agreement
The HP Software Product License Agreement and Product Limited Warranty shall
govern all Software which is provided to you, the Customer, as part of the HP
computer product. The HP Software Product License Agreement and Product
Limited Warranty shall supersede any non-HP software license or non-HP warranty
terms which may be found in any documentation or other materials contained in
the computer product packaging.
Carefully read this License Agreement before proceeding to operate this
equipment. Rights in the software are offered only on the condition that the
Customer agrees to all terms and conditions of the License Agreement.
Proceeding to operate the equipment indicates your acceptance of these
terms and conditions. If you do not agree to the License Agreement, you must
now either remove the software from your hard disk drive and destroy the
master diskettes, or return the complete computer and software for a full
refund.
Software License Agreement
In return for payment of the applicable fee, Hewlett-Packard grants the Customer a
license in the software, subject to the following:
1. Use.Customer may use the software on any one computer. Customer may not
network the software or otherwise use it on more than one computer. Customer
may not reverse assemble or decompile the software unless authorized by law.
2. Copies and Adaptations. Customer may make copies or adaptations of the
software (a) for archival purposes or (b) when copying or adaptation is an
essential step in the use of the software with a computer so long as the copies
and adaptations are used in no other manner.
3. Ownership. Customer agrees that he/she does not have any title or ownership
of the software, other than ownership of the physical media. Customer
acknowledges and agrees that the software is copyrighted and protected under
the copyright laws. Customer acknowledges and agrees that the software may
have been developed by a third party software supplier named in the copyright
notices included with the software, who shall be authorized to hold the
Customer responsible for any copyright infringement or violation of this
Agreement.
4. Transfer of Rights in Software. Customer may transfer rights in the software
to a third party only as part of the transfer of all rights and only if Customer
obtains the prior agreement of the third party to be bound by the terms of this
License Agreement. Upon such a transfer, Customer agrees that his/her rights in
the software are terminated and that he/she will either destroy his/her copies
and adaptations or deliver them to the third party.

4
5. Sublicensing and Distribution. Customer may not lease, sublicense the
software or distribute copies or adaptations of the software to the public in
physical media or by telecommunication without the prior written consent of
Hewlett-Packard.
6. Termination. Hewlett-Packard may terminate this software license for failure
to comply with any of these terms provided Hewlett-Packard has requested
Customer to cure the failure and Customer has failed to do so within thirty (30)
days of such notice.
7. Updates and Upgrades. Customer agrees that the software does not include
updates and upgrades which may be available from Hewlett-Packard under a
separate support agreement.
8. Export Clause. Customer agrees not to export or re-export the software or any
copy or adaptation in violation of the U.S. Export Administration regulations or
other applicable regulation.
9. U.S. Government Restricted Rights. Use, duplication, or disclosure by the
U.S. Government is subject to restrictions as set forth in subparagraph (c)(1)(ii)
of the Rights in Technical Data and Computer Software clause in DFARS
252.227-7013. Hewlett-Packard Company, 3000 Hanover Street, Palo Alto, CA
94304 U.S.A. Rights for non-DOD U.S. Government Departments and Agencies
are as set forth in FAR 52.227-19(c)(1,2).
Edition History
Edition 1 ............................................. July 1996
Edition 2 ........................................ November 1996
This manual is printed on recycled paper.

5
Contents
1 Starting Out with Your OmniBook ......................... 7
Setting Up the OmniBook ................................ 9
To set up the OmniBook ............................... 10
To adjust the display .................................. 13

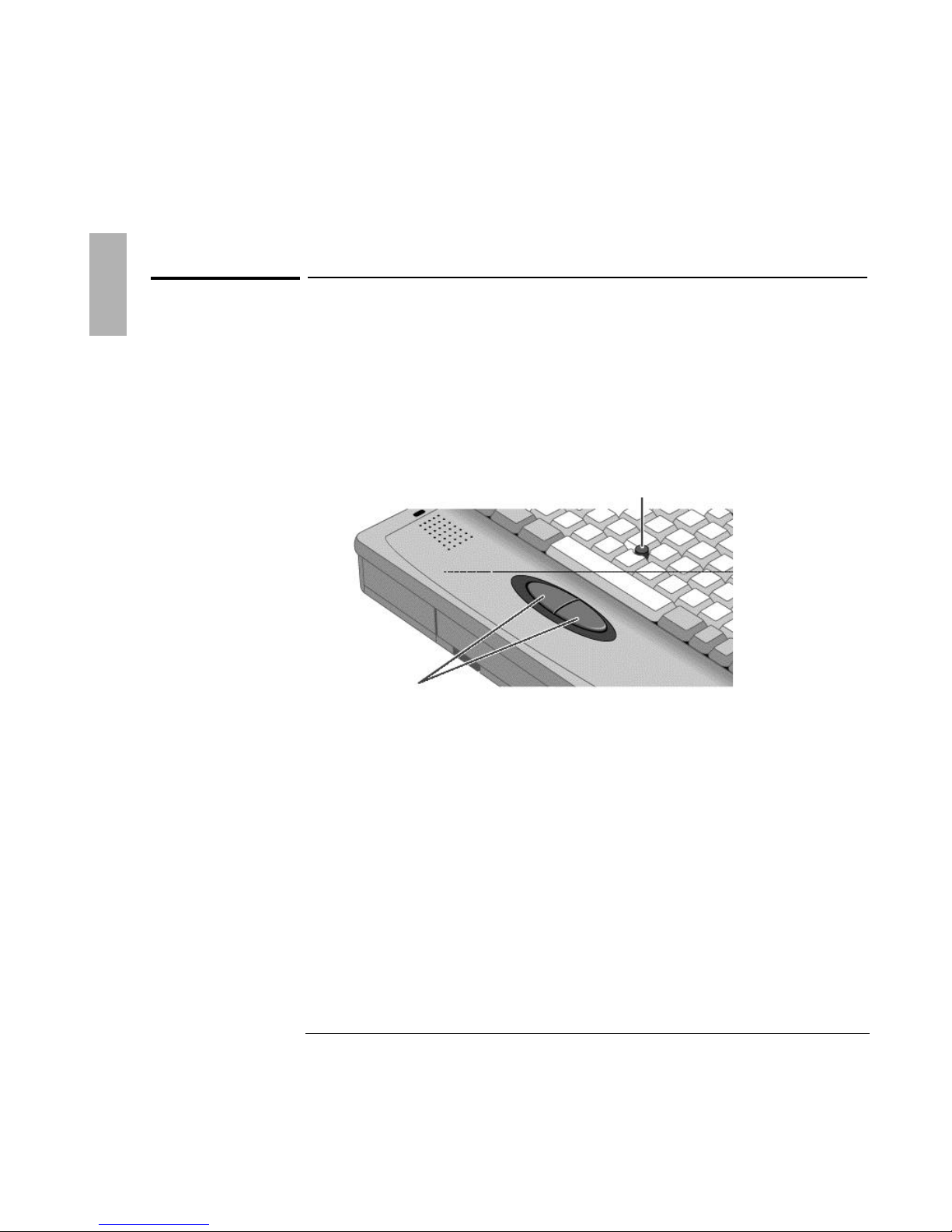

To use the pointing device.............................. 14
To turn off the Omnibook .............................. 15
To understand the status panel........................... 16
Setting up the Operating System............................ 17
To set up Windows 95 ................................. 17
To set up Windows for Workgroups ....................... 18
Restoring Files ........................................ 19
To recover Windows 95................................ 20
To set up a PCMCIA or parallel port CD-ROM drive ............. 21
To recover Windows for Workgroups ...................... 22
To make DOS 6.22 and Windows for Workgroups backup disks .... 23
To recover HP software programs......................... 24
To read the online User’s Guide .......................... 25
To install device drivers for other operating systems ............ 25
To remove the hard drive .............................. 29
To install drive C..................................... 30
Where to go from here .................................. 31
2 Troubleshooting....................................... 33
Solving Basic Problems .................................. 35
3 Specifications and Regulatory Information 39
Hardware Specifications ................................. 41
Safety Information ..................................... 42
Regulatory Information .................................. 47
U.S.A. ............................................ 47
Canada ........................................... 48
Japan ............................................ 48
Europe ........................................... 49

7
1
Starting Out with Your
OmniBook

8
Starting Out with Your OmniBook
Congratulations! Your OmniBook sets a new standard in personal computing.
Although it’s compact and easy to carry, the OmniBook is infused with the quality
and attention to detail that are the hallmark of Hewlett-Packard.
This OmniBook Getting Started manual shows how to get your OmniBook up and
running quickly. It also shows what to do if you run into trouble getting it started.
For complete information about operating the OmniBook—and information about
how to remove and exchange hardware modules, consult the OmniBook User’s
Guide—an online manual.
About Your OmniBook Manuals
Your OmniBook provides these manuals—convenient, yet portable sources of
extensive information about your OmniBook and its installed software:
• The online OmniBook User's Guide introduces the OmniBook and shows you
how to operate and maintain your OmniBook. It also contains thorough
troubleshooting information. In Windows for Workgroups, look in Program
Manager in the OmniBook Library group. In Windows 95, look in Start,
Programs, OmniBook Library.
• For Windows for Workgroups, the online Windows Quick Start and MS-DOS
Quick Start manuals contain information about Windows for Workgroups and
MS-DOS. Look in Program Manager in the OmniBook Library group.
For Windows 95, the printed Introducing Microsoft Windows 95 manual contains
information about Windows 95.

Starting Out with Your OmniBook
Setting Up the OmniBook
9
Setting Up the OmniBook
The OmniBook Getting Started guide introduces the OmniBook and shows you how
to set up the OmniBook and select an operating system. For more information
about using your OmniBook, look in the online OmniBook User’s Guide.
This manual explains how to
♦ Set up the OmniBook.
♦ Adjust the display.
♦ Use the pointing device.
♦ Turn the OmniBook off.
♦ Understand the status panel symbols.
♦ Select an operating system.
♦ Recover system files.
♦ Recover HP OmniBook applications.
♦ Remove and replace the hard disk drive.
♦ Get more information about using the OmniBook.

Starting Out with Your OmniBook
Setting Up the OmniBook
10
To set up the OmniBook
1. Remove the battery from its packaging.
2. Slide the battery all the way into the battery compartment.
CAUTION
Do not mutilate, puncture, or dispose of the battery in fire. The battery can
burst or explode, releasing hazardous chemicals. A rechargeable battery pack
must be recycled or disposed of properly.
3. Plug the power cord into the ac adapter, then into a grounded ac outlet. Then
plug the ac adapter into the OmniBook. When you plug in ac power, the
battery starts charging automatically.

Starting Out with Your OmniBook
Setting Up the OmniBook
11

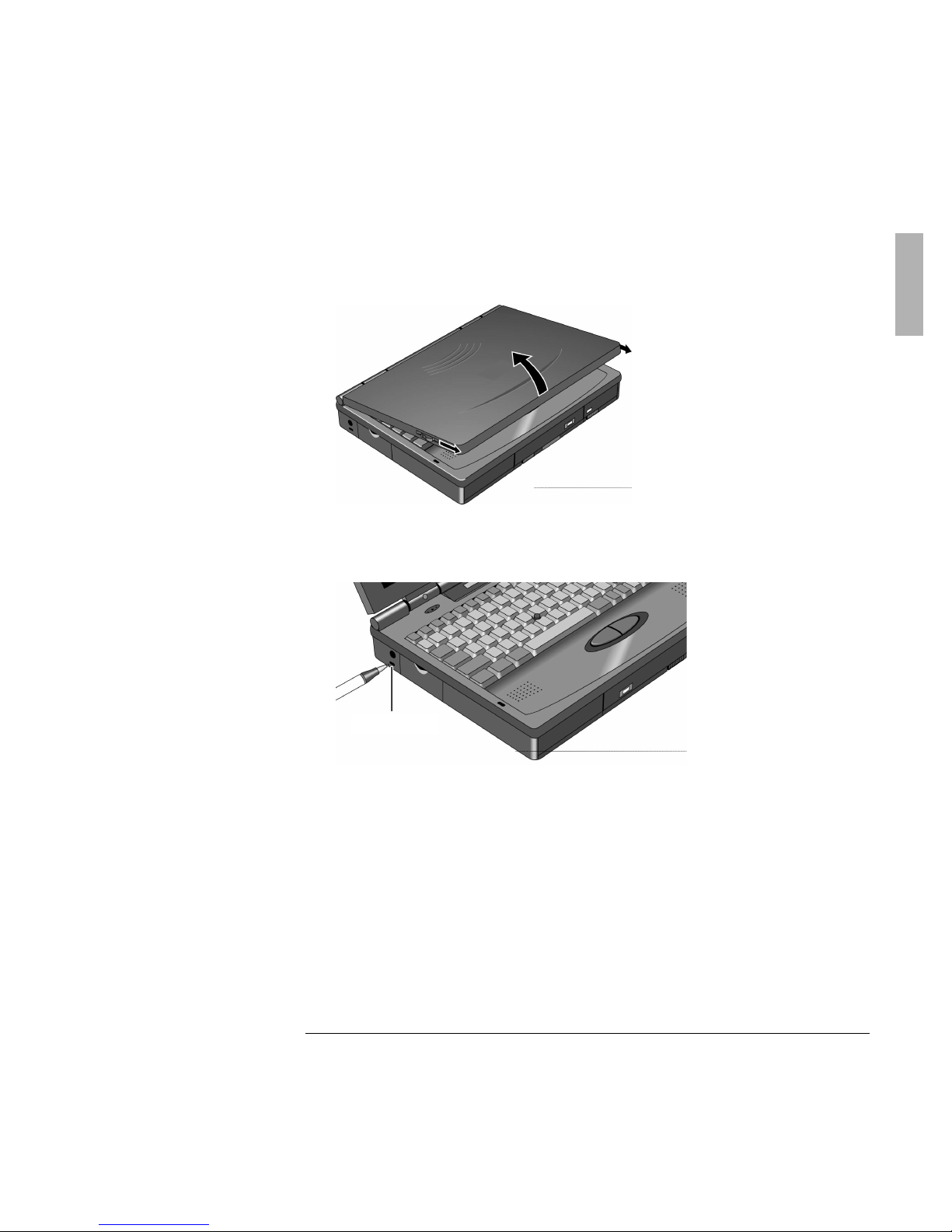

4. Open the OmniBook. Pull the two latches on the right and left sides of the
OmniBook toward you and lift the lid away from the keyboard.
5. Press the reset button. Insert a pen or pencil tip or other slender object into the
small opening below the ac adapter socket on the left side of the computer.
The OmniBook will take half a minute or more to reset and turn on.
Reset button

Starting Out with Your OmniBook
Setting Up the OmniBook
12
If the OmniBook does not turn on, press the blue On/Off button located on the
upper right-hand corner above the keyboard.
On/Off button

Starting Out with Your OmniBook
Setting Up the OmniBook
13
To adjust the display
All OmniBooks are equipped with a brightness control. Some models also have a
contrast control. Your OmniBook display controls are located either to the right of
the display or under the display.
If you have two controls, the upper slider controls the brightness, and the lower
slider controls the contrast.
• Slide the control up to increase the brightness or contrast, and slide the control
down to decrease it.
• If your controls appear under the screen, slide right to increase brightness or
contrast, and slide left to decrease it.
The following illustration shows the position of the display controls.
Brightness
Contrast
Display controls
On some OmniBook
models, the display
controls are below
the screen.

Starting Out with Your OmniBook
Setting Up the OmniBook
14
To use the pointing device
The pointing device is located in the center of the keyboard and the two click
buttons are located below the keyboard. The pointing device controls the motion of
the pointer on the screen by detecting pressure. The pointer speed corresponds to
the amount of pressure. The pointing device itself does not move. The click buttons
work like those on a standard mouse—what they do depends on the software
you’re using.
1. Place your hands in the typing position.
2. With your index finger, gently press the pointing device in the direction you
want the pointer to move.
Pressing the pointing device away from you moves the pointer up the screen
and pressing it toward you moves the pointer down the screen.
3. Click the buttons with your thumb to select and drag.
Click buttons
Pointing device

Starting Out with Your OmniBook
Setting Up the OmniBook
15
To turn off the Omnibook
There are three ways to turn off the OmniBook depending on how long you’ll be
away from the OmniBook and how much battery life you want to save.
Instant On/Instant Off
Use Instant On mode when you're away from the OmniBook for short periods of
time—a few hours. The OmniBook’s instant on feature retains your current work
session. You don’t have to worry about losing information when you turn off the
power.
• Press the blue On/Off button located at the upper right-hand corner of the
keyboard.
The bookmark icon appears in the status panel. When you turn the OmniBook
back on again, it comes back exactly where you left it!
Save-To-Disk
Use when you're away from the OmniBook for longer periods of time—a week or
more.
1. If connected, unplug the ac adapter.
2. Press FN+F12 to save-to-disk.
When you press On/Off again, the last screen displayed appears.
Shut down
Use to completely shut down the OmniBook. It reboots when you turn it on.
1. Exit Windows.
2. Press CTRL+ALT+blue On/Off button.

Starting Out with Your OmniBook
Setting Up the OmniBook
16
To understand the status panel
The OmniBook status panel, located above the keyboard, contains indicators that
show the current status of the OmniBook. There are three groups of icons on the
status panel that indicate
• Keyboard status.
• Data storage status.
• Power status.
Keyboard status
The icons on the right indicate Caps Lock, Num Lock, and Scroll Lock.
This icon appears when Caps Lock is active.
This icon appears when Num Lock is active.
This icon appears when Scroll Lock is active.
Data storage status
The center icons indicate data storage areas—CD-ROM activity, floppy disk activity,
hard disk activity, and PC card status.
This icon appears when the OmniBook is reading from the built-in CD-
ROM drive.
This icon appears when the OmniBook is reading or writing to the floppy
disk drive.
This icon appears when the OmniBook is reading or writing to drive C.
This icon appears when you insert PC cards into the card slots. The two
cards identify when one or two of the slots are occupied.

Starting Out with Your OmniBook
Setting up the Operating System
17
Power status
The left icons indicate power conditions—ac adapter use, battery status, charging
status.
This icon appears when the OmniBook is turned off; the
“
bookmark
”
icon reminds you that the state of the computer has been saved.
This icon appears when the ac adapter is plugged in.
The shading of the battery symbol shows the approximate charge level of
the battery relative to a full charge.
The lightning bolt symbol appears when the battery is charging. The
battery symbol blinks when the battery is low.
Setting up the Operating System
This product contains two Microsoft operating systems. You must make a one-time
selection of the operating system you want to use. Once made, you may not change
your selection unless you purchase a separate license.
You must also go though the Windows 95 setup—even if you want to install
Windows for Workgroups.
To set up Windows 95
• Plug in the ac adapter, press the reset button and follow the instructions on the
screen.
When Windows 95 is installed, the OmniBook resets automatically. You’re
ready to start working.

Starting Out with Your OmniBook
Setting up the Operating System
18
To set up Windows for Workgroups
1. Plug in the ac adapter, press the reset button and follow the instructions on the
screen.

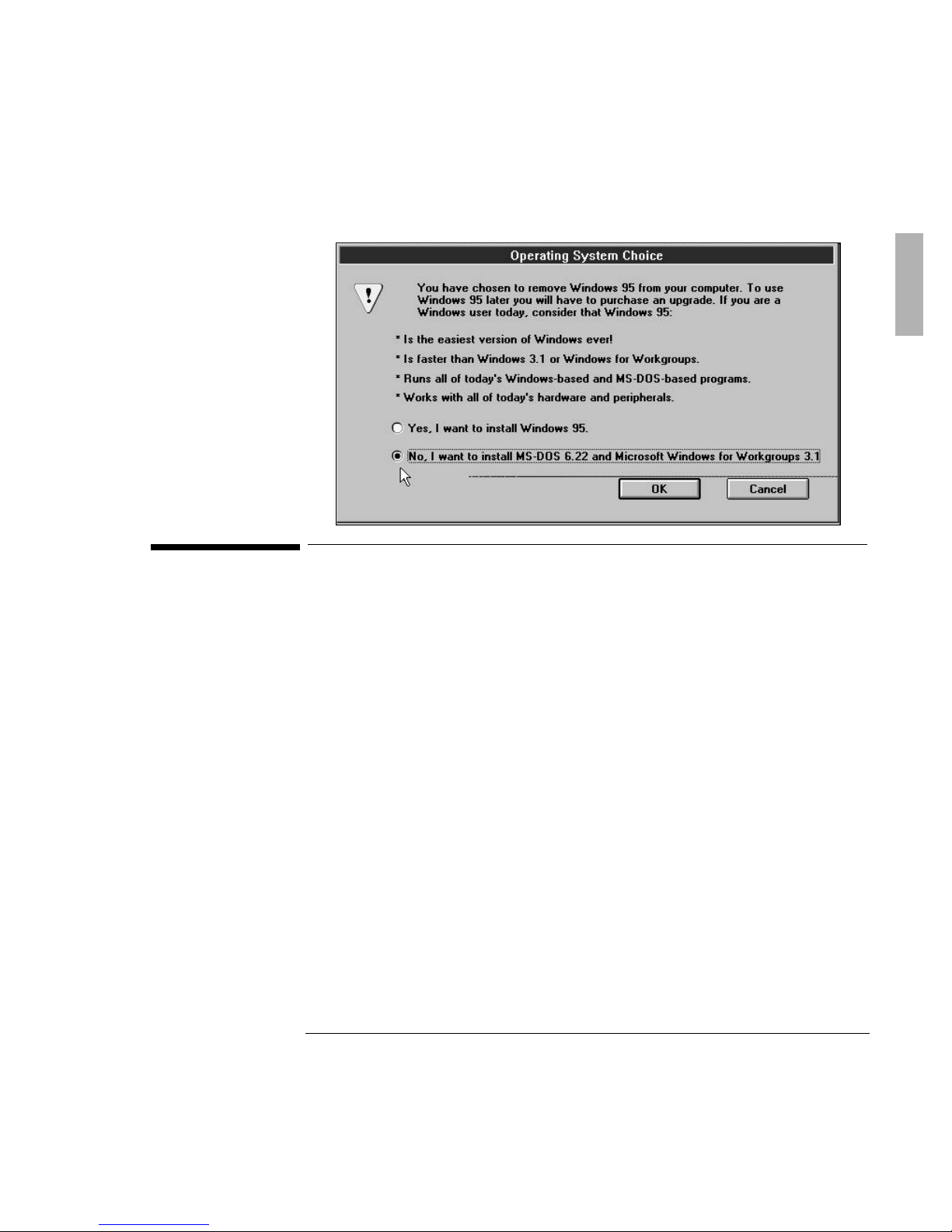

2. When you see the following screen, select the Change button.
3. Choose the following option, then choose OK.
No, I want to install MS-DOS 6.22 and Microsoft Windows for Workgroups 3.1

Starting Out with Your OmniBook
Restoring Files
19
Restoring Files
Your OmniBook package includes a Recovery CD ROM and a Support Utilities floppy
disk.
In this section you’ll learn how to
♦ Recover the Windows 95 operating system.
♦ Modify the Support Utility Disk to set up a PCMCIA or parallel port CD-ROM
drive.
♦ Recover the Windows for Workgroups and MS-DOS 6.22 operating systems.
♦ Make backup disks for Windows for Workgroups and MS-DOS 6.22.
♦ Recover software applications—such as the Appointment Book and the online
User’s Guide.
♦ Read the online manual from the CD.
♦ Access device drivers for various operating systems and networks.

Starting Out with Your OmniBook
Restoring Files
20
To recover Windows 95
The following procedure describes how to restore Windows 95 and your original
OmniBook software. These steps will format the hard drive. Back up any files you
would like to save.
The entire recovery process takes approximately 1 hour. To recover your Windows
95 operating system, you’ll need a CD-ROM drive, floppy disk drive, the Recovery
CD, and the Support Utility disk.
1. If you have an internal CD-ROM drive , connect the floppy disk drive to the
OmniBook’s parallel port and install the CD-ROM drive in the OmniBook.
–or–
If you have a SCSI CD-ROM drive and a docking system , connect the SCSI
CD-ROM drive to the docking system and install the floppy disk drive in the
OmniBook.
–or–
If you have a PCMCIA or Parallel Port CD-ROM drive , connect the PCMCIA or
Parallel CD-ROM drive and install the floppy disk drive in the OmniBook. See
“To set up a PCMCIA or parallel port CD-ROM drive.”
2. Connect the ac adapter to the OmniBook.
3. Insert the Recovery CD in the CD-ROM drive.
4. Insert the Support Utility disk in the floppy disk drive.
5. Press the reset button.
The DOS 6.22 Startup menu appears.
6. Choose option 2:
Recover Windows 95 from Recovery CD
7. Choose the type of CD-ROM drive you’re using—internal OmniBook, SCSI with
docking system, or PCMCIA or parallel port.
Do not interrupt the recovery process or unplug the ac adapter until recovery is
completed.
