1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
▲Select Start >Control Panel >System and Security. Then in the System area, click Device
Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
1

2 Components
Top components

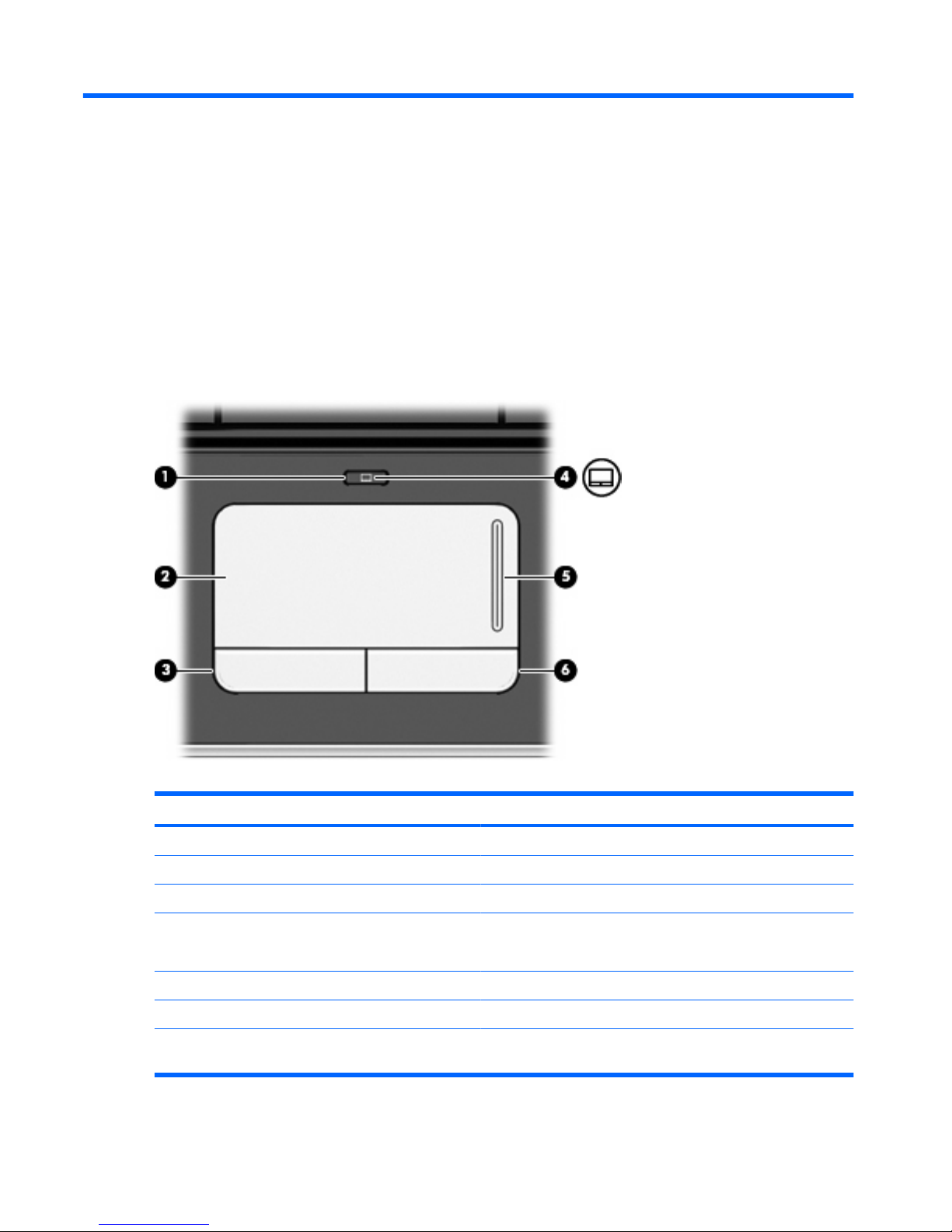

TouchPad
Component Description
(1) TouchPad on/off button Enables/disables the TouchPad.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) TouchPad light ●White: TouchPad is enabled.
●Amber: TouchPad is disabled.
(5) TouchPad scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change pointing device preferences, select Start >Devices and Printers.
Then right-click the device representing your computer, and select Mouse settings.
2 Chapter 2 Components

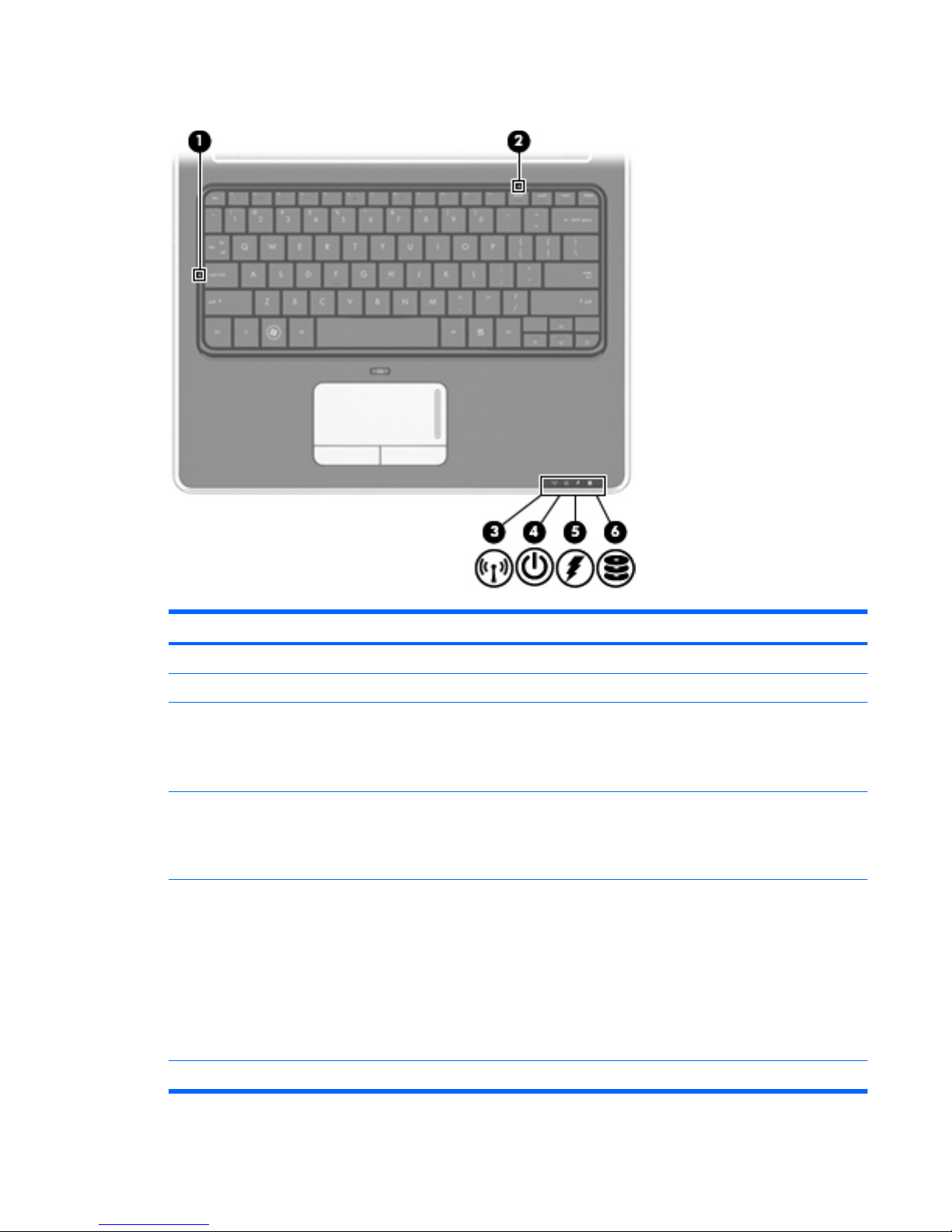

Lights
Component Description
(1) Caps lock light On: Caps lock is on.
(2) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
(3) Wireless light ●On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●Off: All wireless devices are off.
(4) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(5) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(6) Drive light Blinking: The hard drive or optical drive is being accessed.
Top components 3

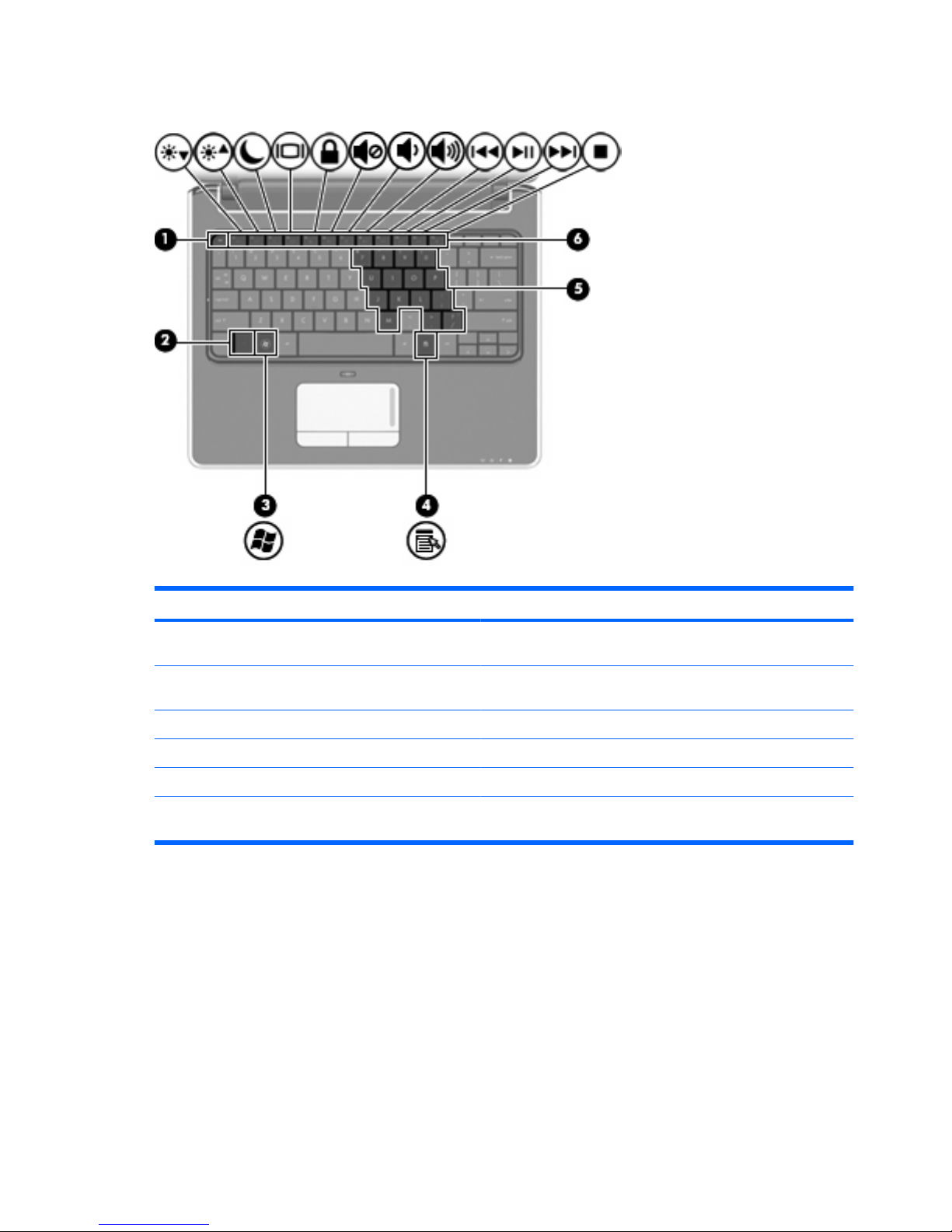

Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
4 Chapter 2 Components

Front components
Component Description
(1) Speakers (2) Produce sound.
(2) Wireless light ●On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●Off: All wireless devices are off.
(3) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(4) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a
critical battery level, the battery light begins blinking rapidly.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a low
battery level.
(5) Drive light Blinking: The hard drive or optical drive is being accessed.
Front components 5

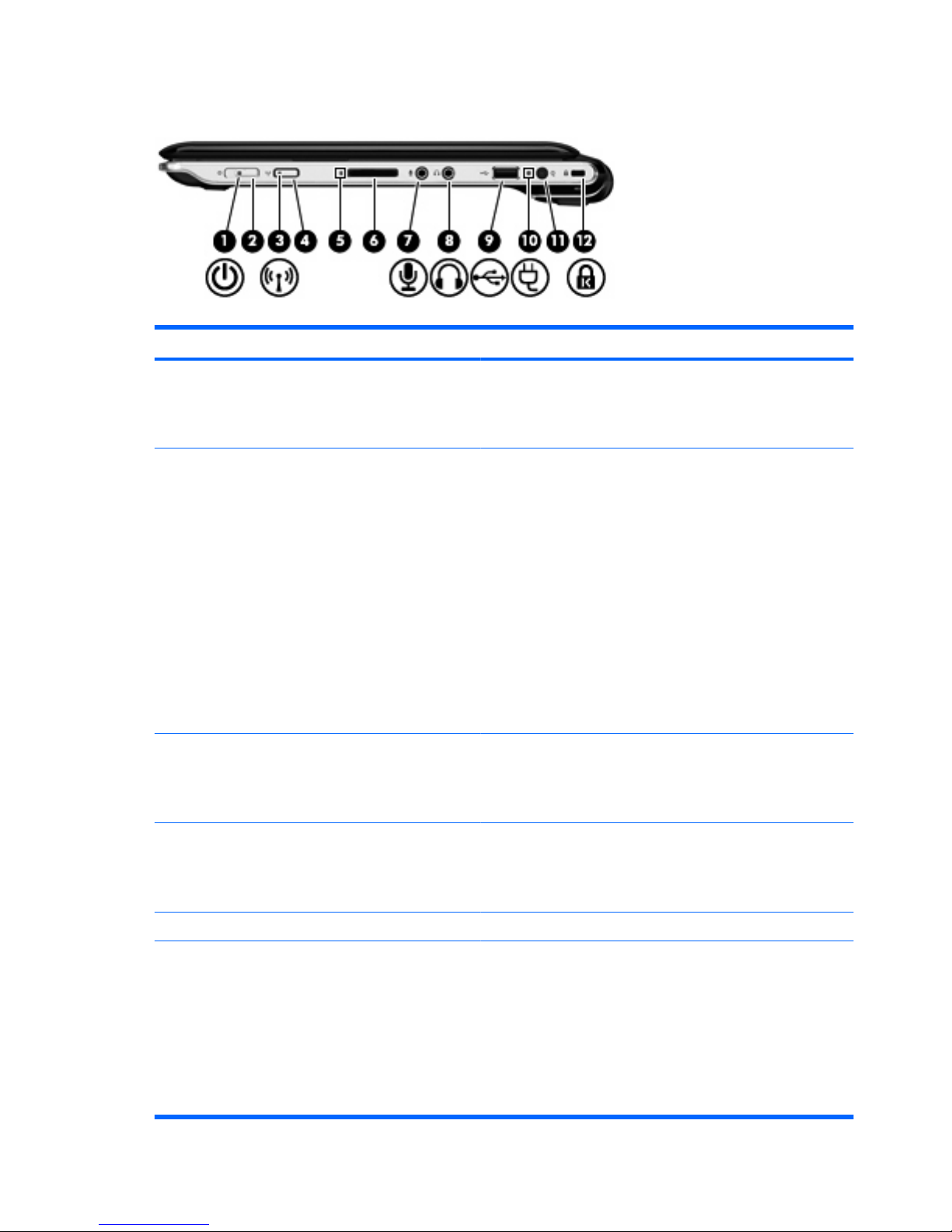

Right-side components
Component Description
(1) Power light ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Power switch ●When the computer is off, slide the switch to turn on the
computer.
●When the computer is on, slide the switch briefly to initiate
Sleep.
●When the computer is in the Sleep state, slide the switch
briefly to exit Sleep.
●When the computer is in Hibernation, slide the switch briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, slide and hold the power switch for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >Control
Panel >System and Security >Power Options.
(3) Wireless light ●On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●Off: All wireless devices are off.
(4) Wireless button Turns the wireless feature on or off but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
(5) Digital Media Slot light On: The Digital Media Slot is in use.
(6) Digital Media Slot Supports the following digital card formats:
●Memory Stick (MS)
●Memory Stick Pro (MSP)
●MultiMediaCard (MMC)
●Secure Digital (SD) Memory Card
●Secure Digital High Capacity (SDHC) Memory Card
6 Chapter 2 Components

Component Description
●xD-Picture Card (XD)
●xD-Picture Card (XD) Type H
●xD-Picture Card (XD) Type M
(7) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(8) Audio-out (headphone) jack Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
(9) USB port Connects optional USB device.
(10) AC adapter light ●On: The computer is connected to external power.
●Off: The computer is not connected to external power.
(11) Power connector Connects an AC adapter.
(12) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
Right-side components 7

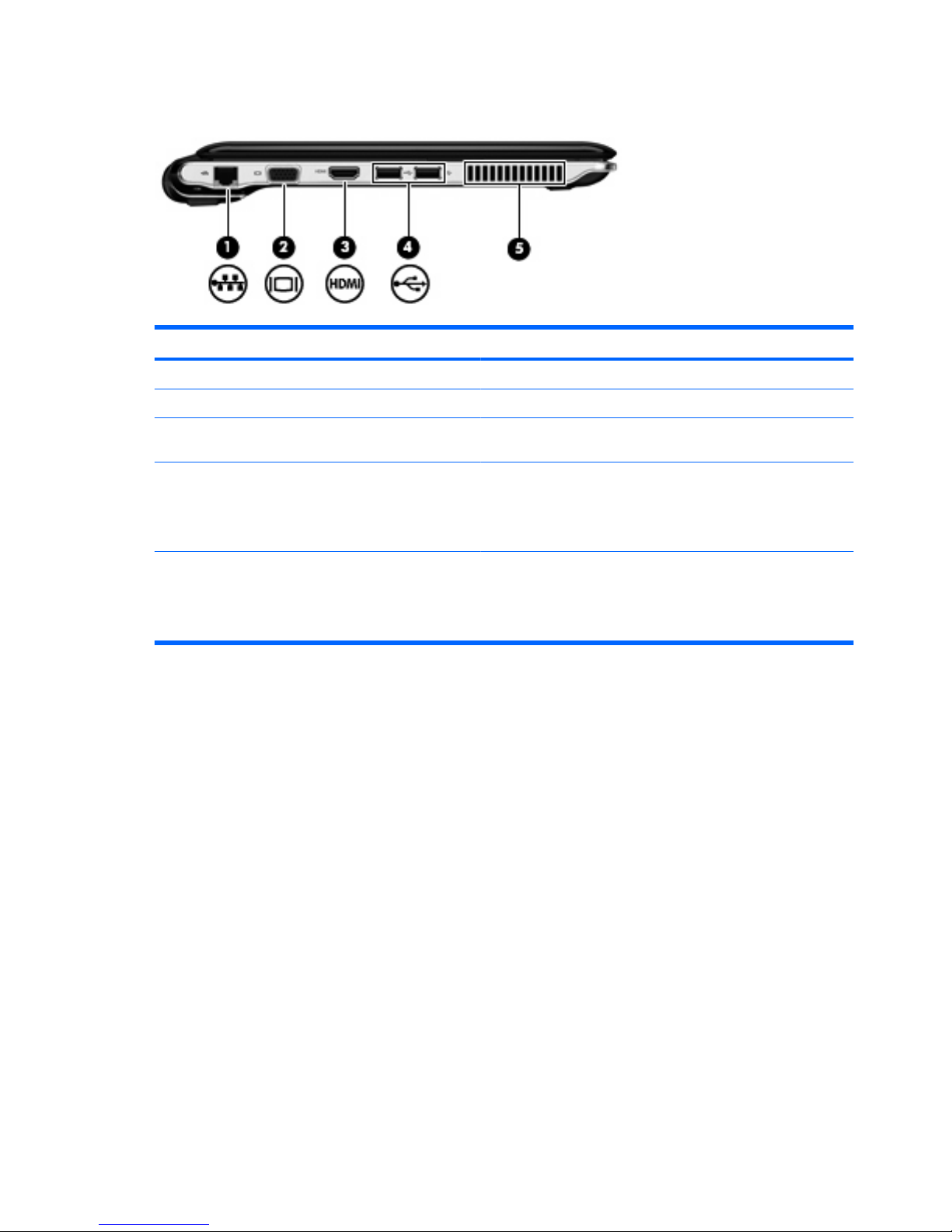

Left-side components
Component Description
(1) RJ-45 (network) jack Connects a network cable.
(2) External monitor port Connects an external VGA monitor or projector.
(3) HDMI port (select models only) Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
(4) USB ports (2) Connect optional USB devices.
NOTE: Select models only can be configured with an optional
external USB optical disc drive. For more information, refer to the
printed Quick Setup poster.
(5) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
8 Chapter 2 Components

Bottom components
Component Description
(1) Hard drive bay Holds the hard drive.
(2) Vents (3) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Memory module compartment Contains the memory module slots.
(4) Subscriber identity module (SIM) slot (select
models only)
Located inside the battery bay.
(5) Battery release latches (2) Release the battery from the battery bay.
(6) Battery bay Holds the battery.
(7) Wireless module compartment Holds a wireless LAN module.
NOTE: To prevent an unresponsive system, replace the wireless
module only with a wireless module authorized for use in the
computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and
then receive a warning message, remove the module to restore
computer functionality, and then contact technical support through
Help and Support.
(8) Bluetooth compartment (select models only) Contains a Bluetooth device.
Bottom components 9

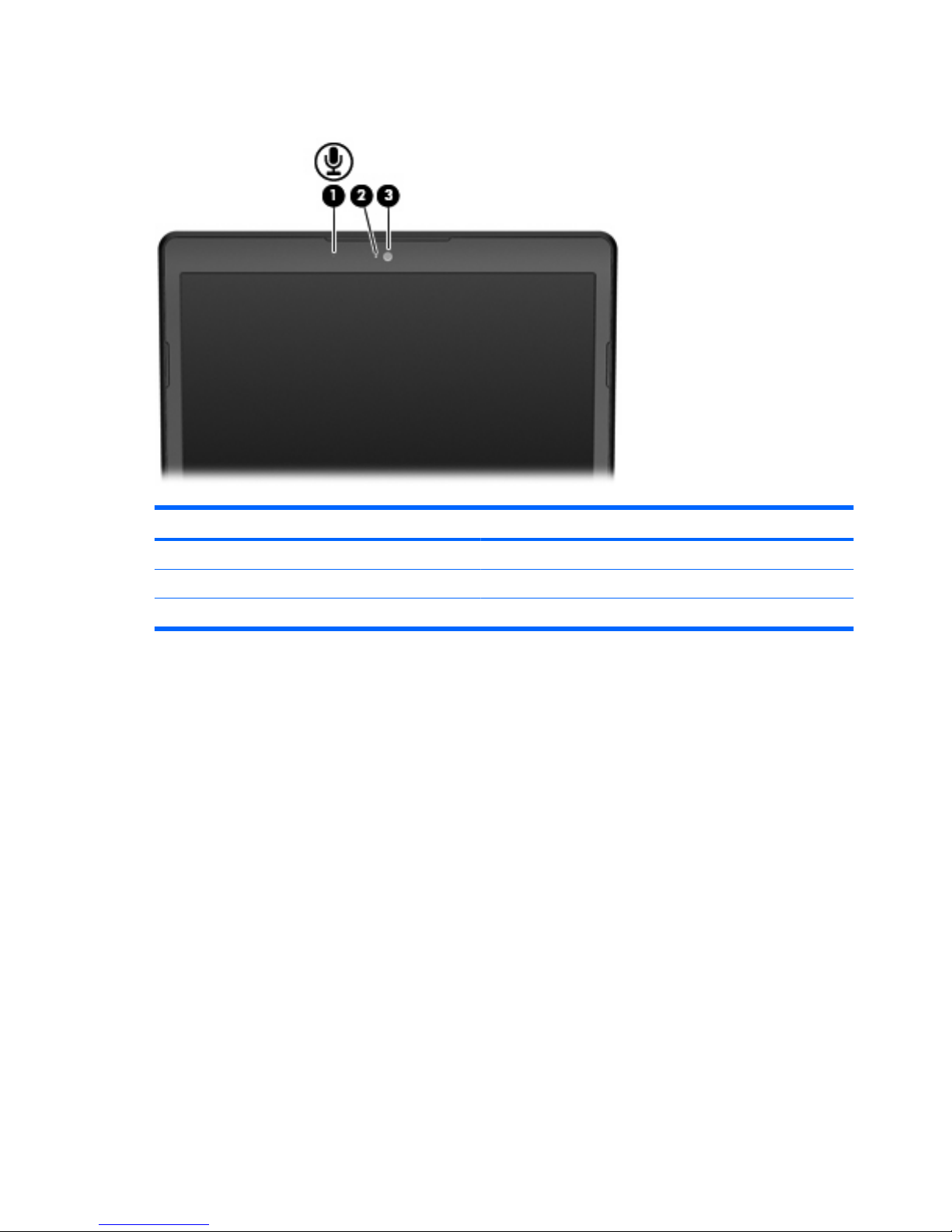

Display components
Component Description
(1) Internal microphone Records sound.
(2) Webcam light On: The webcam is in use.
(3) Webcam Records audio and video and captures still photographs.
10 Chapter 2 Components

Wireless antennas (select models only)

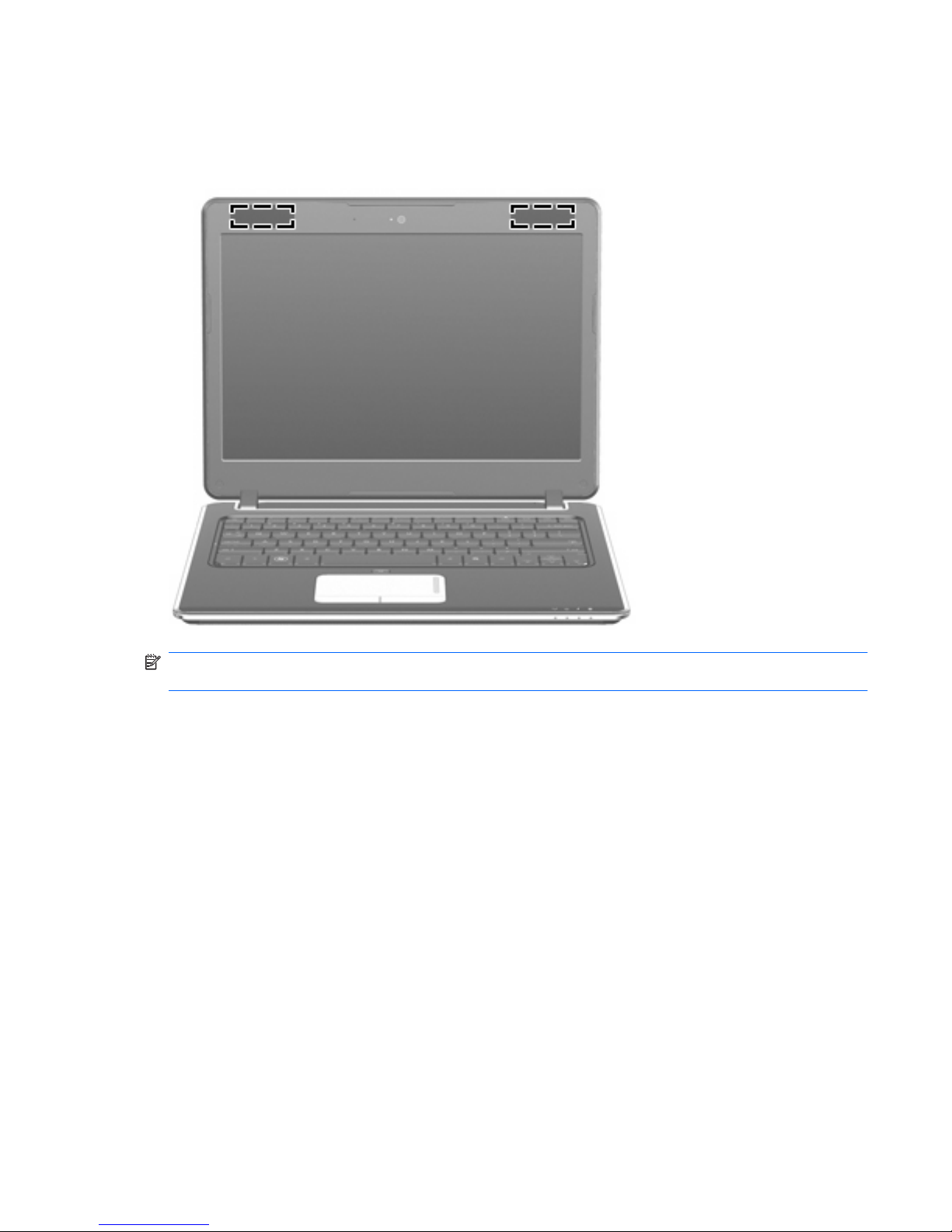

On select computer models, at least 2 antennas send and receive signals from one or more wireless
devices. These antennas are not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennas free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennas (select models only) 11

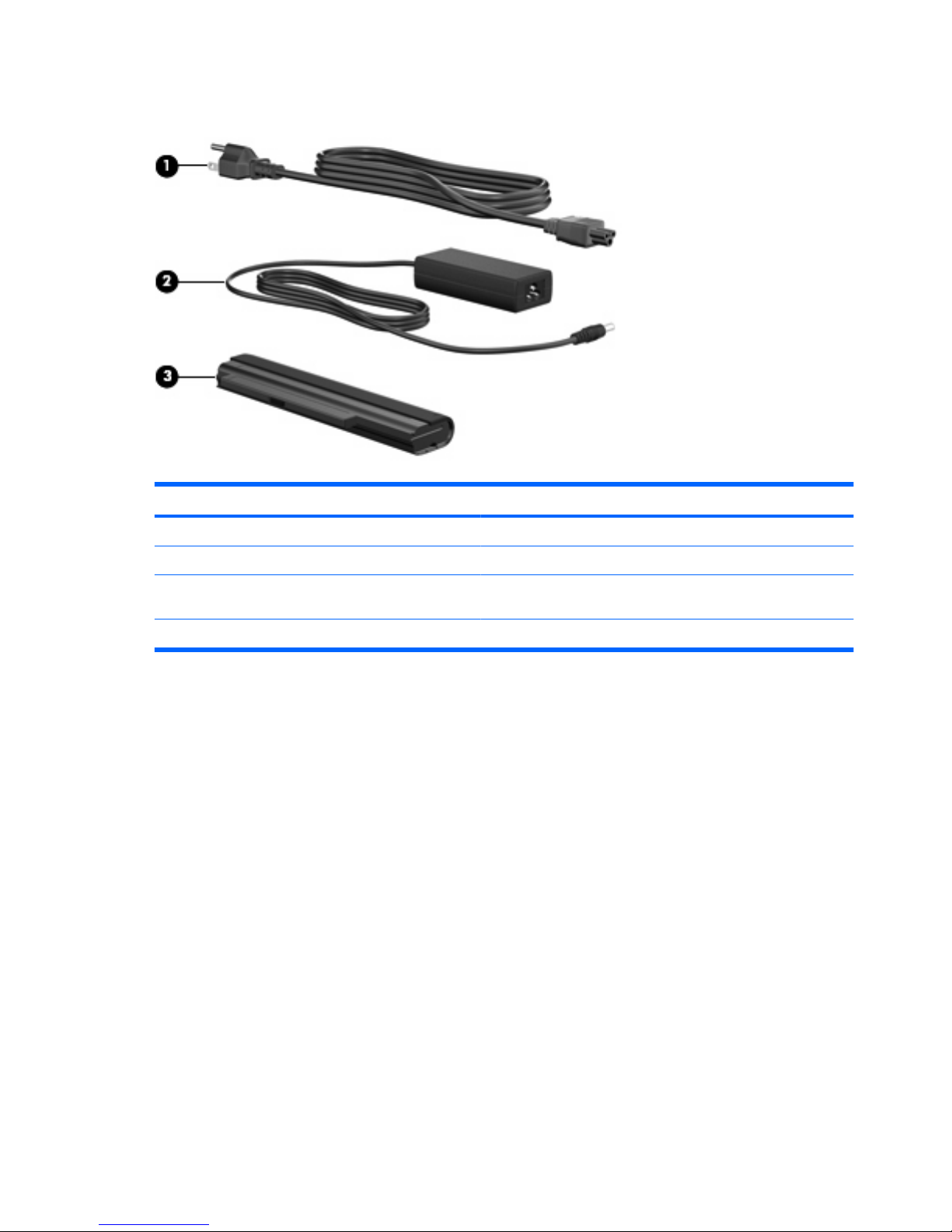

Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into
external power.
*Batteries and power cords vary in appearance by region and country.
12 Chapter 2 Components

3 Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
●Service tag—Provides important information including the following:
◦Product name (1). This is the product name affixed to the front of your notebook.
◦Serial number (s/n) (2). This is an alphanumeric identifier that is unique to each product.
◦Part number/Product number (p/n) (3). This number provides specific information about the
product's hardware components. The part number helps a service technician to determine
what components and parts are needed.
◦Model description (4). This is the number you use to locate documents, drivers, and support
for your notebook.
◦Warranty period (5). This number describes the duration (in years) of the warranty period for
this computer.
Have this information available when you contact technical support. The service tag label is affixed
to the bottom of the computer.
●Microsoft® Certificate of Authenticity—Contains the Windows® Product Key. You may need the
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
●Regulatory label—Provides regulatory information about the computer. The regulatory label may
be located under the battery or component doors.
●Wireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries or regions in which the devices have
been approved for use. An optional device may be a wireless local area network (WLAN) device
or an optional Bluetooth® device. If your computer model includes one or more wireless devices,
one or more certification labels are included with your computer. You may need this information
13

when traveling internationally. Wireless certification labels are affixed inside the Mini Card
compartment.
●SIM (subscriber identity module) label (select models only)—Provides the ICCID (Integrated Circuit
Card Identifier) of your SIM. This label is located inside the battery bay.
●HP Mobile Broadband Module serial number label (select models only)—Provides the serial
number of your HP Mobile Broadband Module. This label is located inside the battery bay.
14 Chapter 3 Labels
