HP MS-6575 User manual

1-1
Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the MS-6575 v3.X M-ATX
mainboard. The MS-6575 is based on SiS®651 & SiS®962
chipsets for optimal system efficiency. Designed to fit the ad-
vanced Intel®Pentium 4/Celeron processor in the 478-pin
package, MS-6575 delivers a high performance and professional
desktop platform solution.
Getting Started

1-2
MS-6575 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports Socket 478 for Intel®Pentium 4/Celeron Willamette & Northwood
processors
hCore Frequency from 1.5 GHz to 2.4 GHz and up
hSupports FSB 400/533 MHz
Chipsets
hSiS®651 chipset
- High performance host interface (400/533MHz)
- 64-bit performance DDR333/DDR266 memory controller
- Integrated AGP compliant target/66 MHz Host-to-PCI bridge
- Dedicated isochronous response queue
hSiS®962 chipset
- High performance SiS MuTIOL Technology Interconnecting SiS North
bridge and South bridge chips
- Dual IDE Master/Slave controller
- Integrated Audio controller with AC’97 interface
- Universal Serial Bus Host controller ( Integrated one USB 2.0 Host controller
and three USB 1.1 Host controllers)
MainMemory
hSupports two 184-pin unbuffered double-sided DDR DIMMs
hSupports up to 2GB DDR 333/DDR266 DDR SDRAMs
Slots
hOne AGP (Accelerated Graphics Port) 2x/4x slot
- support 1.5V/3.3V
hThree 32-bit PCI bus slots
On-BoardIDE
hDual IDE controller integrated in SiS 962
hSupport PIO, Bus Master and Ultra DMA66/100 operation modes
hCan connect up to four IDE devices
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

1-3
Getting Started
2.88Mbytes
- 1 serial port and 1 VGA port
- 1 parallel port
- 1 RJ-45 LAN jack (optional)
- 3 audio ports in vertical
- 1 IEEE 1394 pinheader and 1 IEEE 1394 port
- 6 USB ports (Rear * 4/ Front * 2)
Audio
hAC97 Codec ALC650F
LAN(optional)
hRealtek 8201BL
OnboardIEEE1394
hRealtek 8801B
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hM-ATX Form Factor: 24.4 cm (L) x 24.4 cm (W)
Mounting
h6 mounting holes
Others
hSupport STR/STD (S3/S4)
hPC2001 compliant

1-4
MS-6575 M-ATX Mainboard
Mainboard Layout
MS-6575 v3.X M-ATX Mainboard
PCI Slot 1
PCI Slot 2
PCI Slot 3
JPW1
JBAT1
JASOD1
JPDW1
JUSB1
J1394_1
CPUFAN1
BATT
+
JFP1
ATX
PowerSupply
JFHP1
SYSFAN1
BIOS
SiS
651
SiS
962
IDE1
IDE2
T: m o us e
B: keyboard
T:
Line-Out
B:Mic
Line-In
M:
Winbond
W83697HF
FDD1
AGP Slot
Codec
RTL
8801B
RTL
8201BL
JAUX1 JCD1
JFMIC1
DDR1
DDR2

2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump-
ers on the mainboard. Also, it provides the instructions on con-
necting the peripheral devices, such as the mouse, keyboard,
etc.
While doing the installation, be careful in holding the com-
ponents and follow the installation procedures.
Hardware Setup

2-2
MS-6575 M-ATX Mainboard
Quick Components Guide
JBAT1, p.2-25
JFHP1, p.2-23
JPW1, p.2-9 CPU, p.2-3
Back Panel
I/O, p.2-10
CPUFAN1, p.2-18
FDD1, p.2-16
SYSFAN1, p.2-18
JUSB1, p.2-20
IDE2, p.2-17
JFP1, p.2-19
J1394_1, p.2-21
JFMIC1, p.2-23
JAUX1, p.2-22
JCD1, p.2-22
CONN1, p.2-9
JPDW1, p.2-26
DDR DIMMs,
p.2-7
JASOD1, p.2-24
IDE1, p.2-17

2-3
Hardware Setup
Central Processing Unit: CPU
CPU Core Speed Derivation Procedure
CPU Clock multiplied by Core/Bus ratio equals the CPU core speed.
For example:
If CPU Clock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHz x 14
= 1.4 GHz
The mainboard supports Intel®Pentium®4/Celeron processor in the 478
pin package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a
heat sink and a cooling fan attached on the top to prevent overheating. If
you do not find the heat sink and cooling fan, contact your dealer to purchase
and install them before turning on the computer.

2-4
MS-6575 M-ATX Mainboard
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the cut edge. The cut
edge should point towards the
lever pivot. The CPU can only
fit in the correct orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
procedures may cause
permanent damages to your
mainboard.
5. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is
properly and completely
embedded into the socket.
CPU Installation Procedures for Socket 478
Open Lever
Sliding
Plate
Dot / Cut edge
Close
Lever
Press down
the CPU
90 degree
Dot / Cut edge
Correct CPU placement
Dot / Cut edge
Incorrect CPU placement
X
O

2-5
Hardware Setup
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly important. To dissipate heat, you
need to attach the CPU cooling fan and heatsink on top of the CPU. Follow
the instructions below to install the Heatsink/Fan:
2. Position the heatsink onto the reten-
tion mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers

2-6
MS-6575 M-ATX Mainboard
Note:
Overheating
Overheating will seriously damage the CPU and system, al-
ways make sure the cooling fan can work properly to protect
the CPU from overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power sup-
ply or unplug the power supply’s power cord from grounded
outlet first to ensure the safety of CPU.
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to toler-
ate such abnormal setting, while doing overclocking. Any at-
tempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks
caused by inadequate operation or beyond product
specifications.

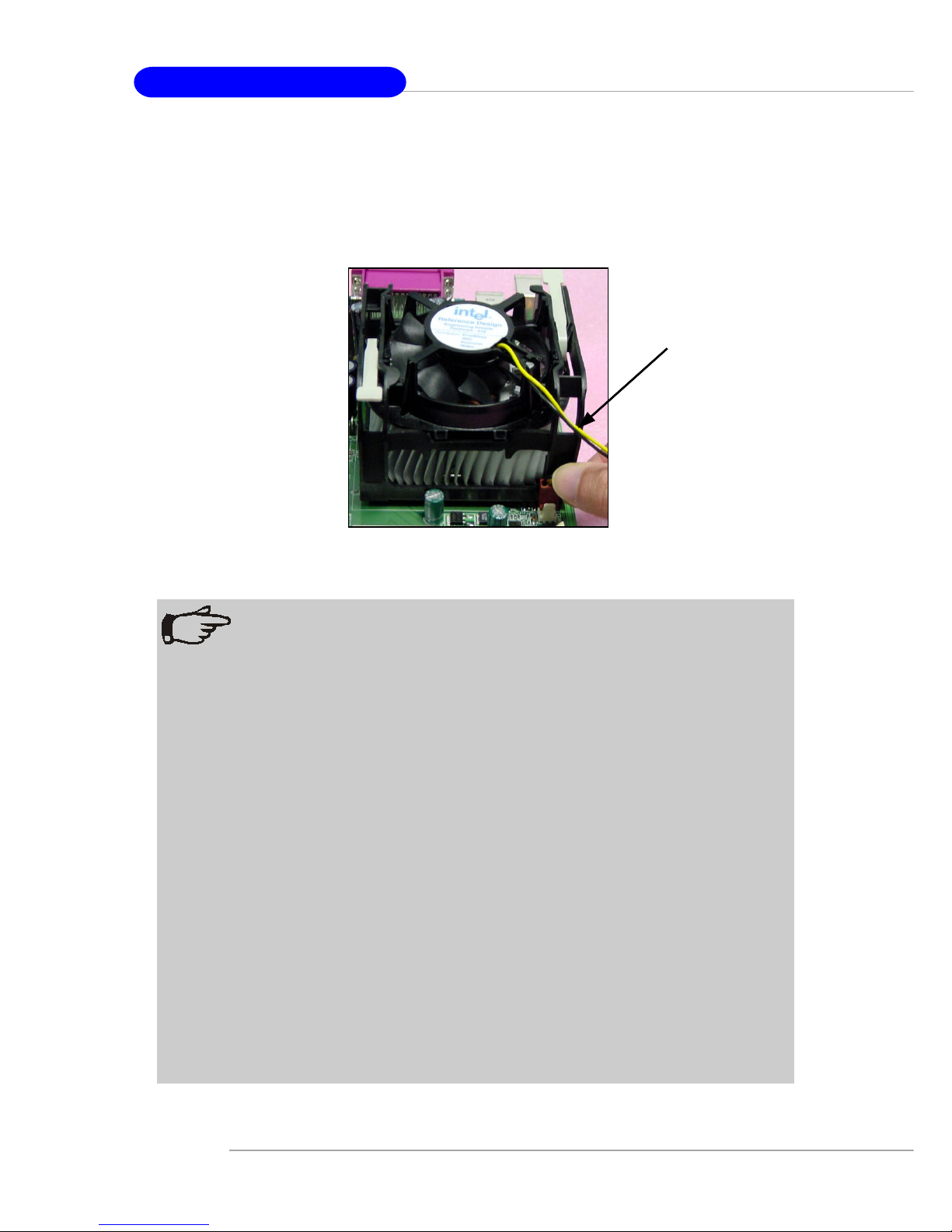

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector
on the board.
fan power cable

2-7
Hardware Setup

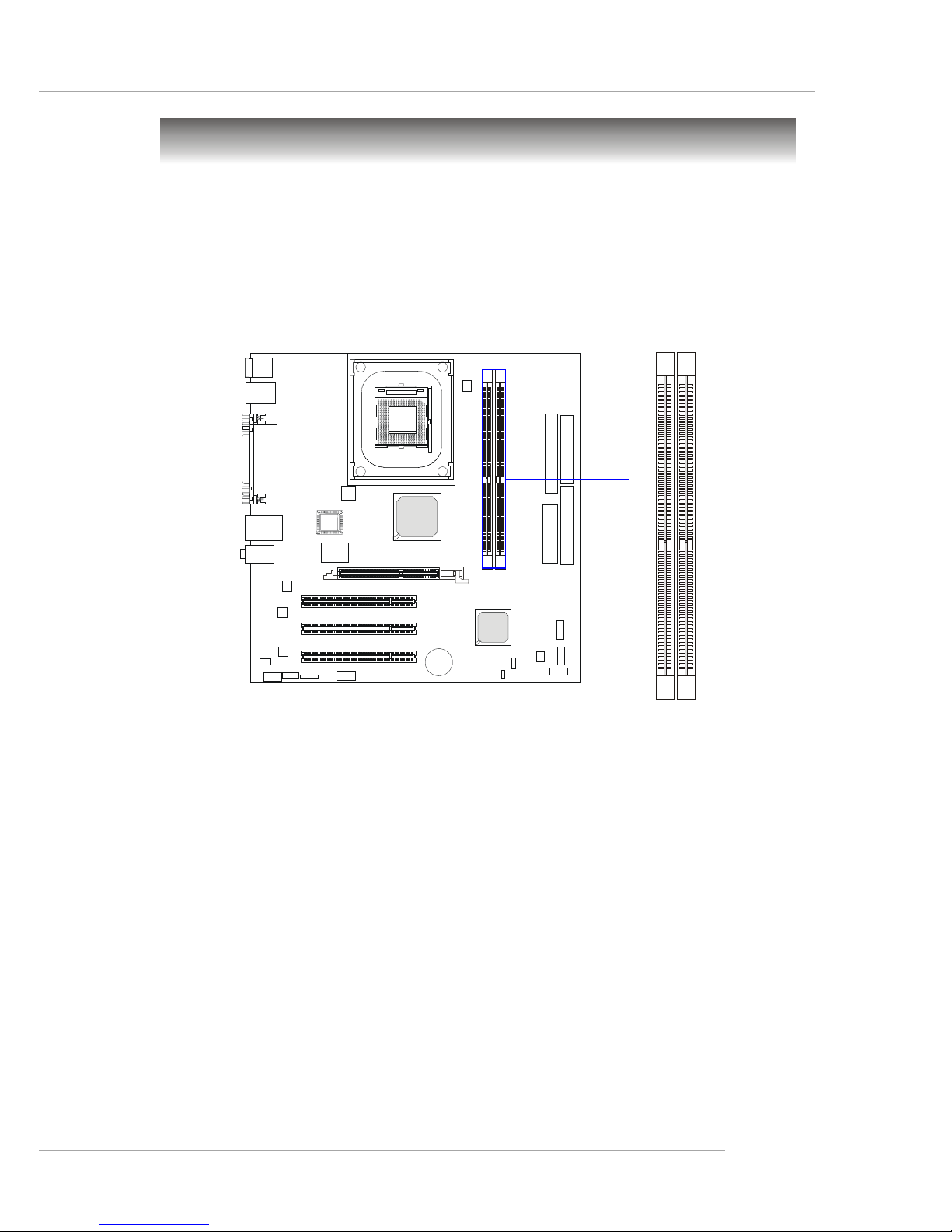

The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) modules and supports the memory size up
to 2GB. You can install PC2700/DDR333 or PC2100/DDR266 modules on
the DDR DIMM slots (DDR 1~2).
Memory
DDR DIMM Slots
(DDR 1~2)
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts, and
requires 184-pin DIMM modules. High memory bandwidth makes DDR an
ideal solution for high performance PC, workstations and servers.

2-8
MS-6575 M-ATX Mainboard
DIMM Module Combination
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-
sided modules to meet your own needs.
Memory modules can be installed in any combination as follows:
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The mod-
ule will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger on the memory module is deeply in-
serted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
S: Single Side D: Double Side
Slot Memory Module Total Memory
DIMM 1
(Bank 0 & 1)
S/D 64MB~1GB
DIMM 2
(Bank 2 & 3)
S/D 64MB~1GB
Maximum System Memory Supported 64MB~2GB
Note:
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt Notch

2-9
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Be-
fore inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
CONN1
10
1
20
11
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
CONN1 Pin Definition
PIN SIGNAL
1 GND
2 12V
3 12V
4 GND
JPW1 Pin Definition
JPW1
1
3
4
2

2-10
MS-6575 M-ATX Mainboard

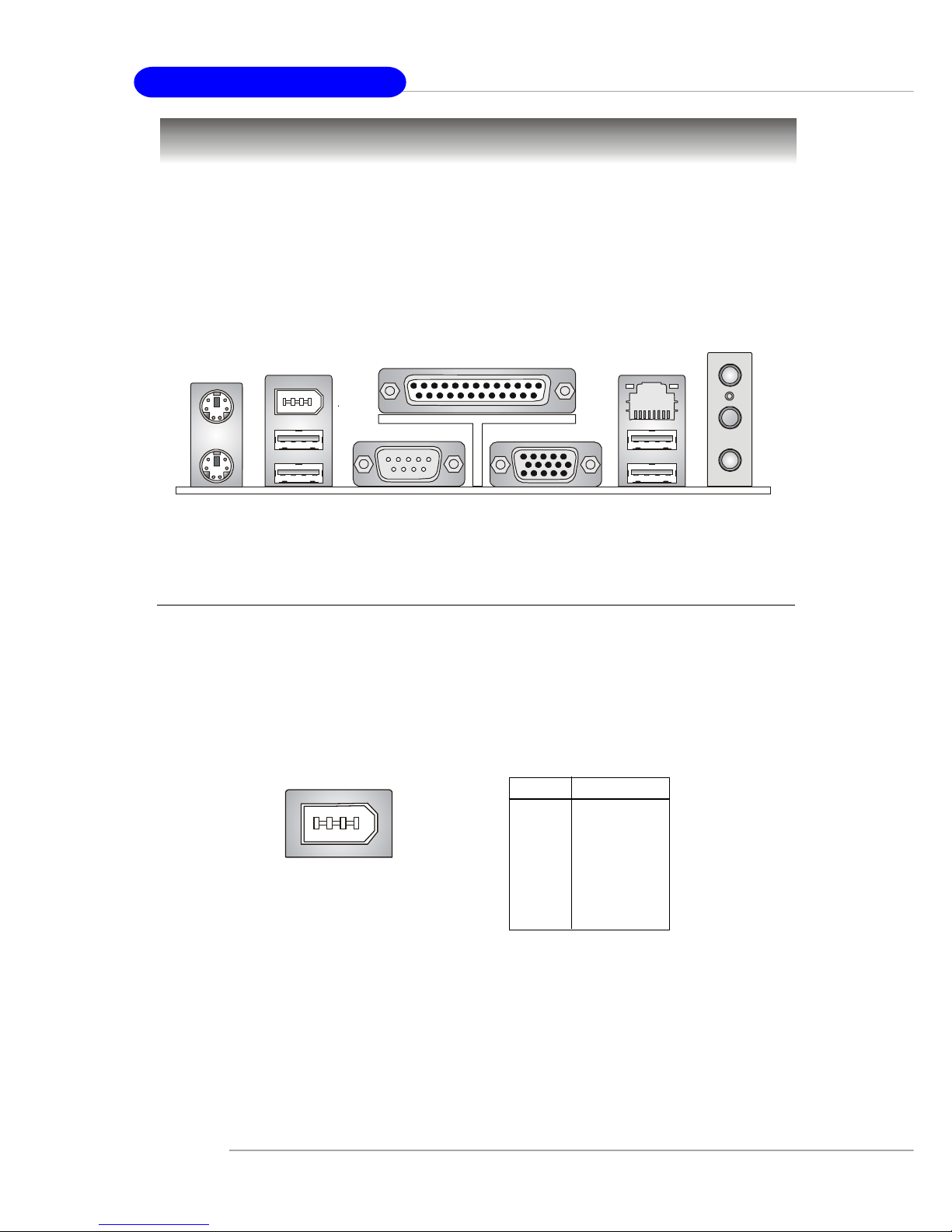

The back panel provides the following connectors:
Back Panel
Mouse
Keyboard USB
Parallel
COM A VGA
L-out
L-in
MIC
IEEE1394 LAN
USB
IEEE 1394 Port
The 6-pin IEEE 1394 port is used to connect 1394-compatible external
devices via 6-pin to 6-pin or 6-pin to 4-pin 1394 cables.
IEEE 1394 Port
1
2
3
4
5
6
PIN SIGNAL
1 PWR
2 GND
3 TPB-
4 TPB+
5 TPA-
6 TPA+
Pin Definition

2-11
Hardware Setup

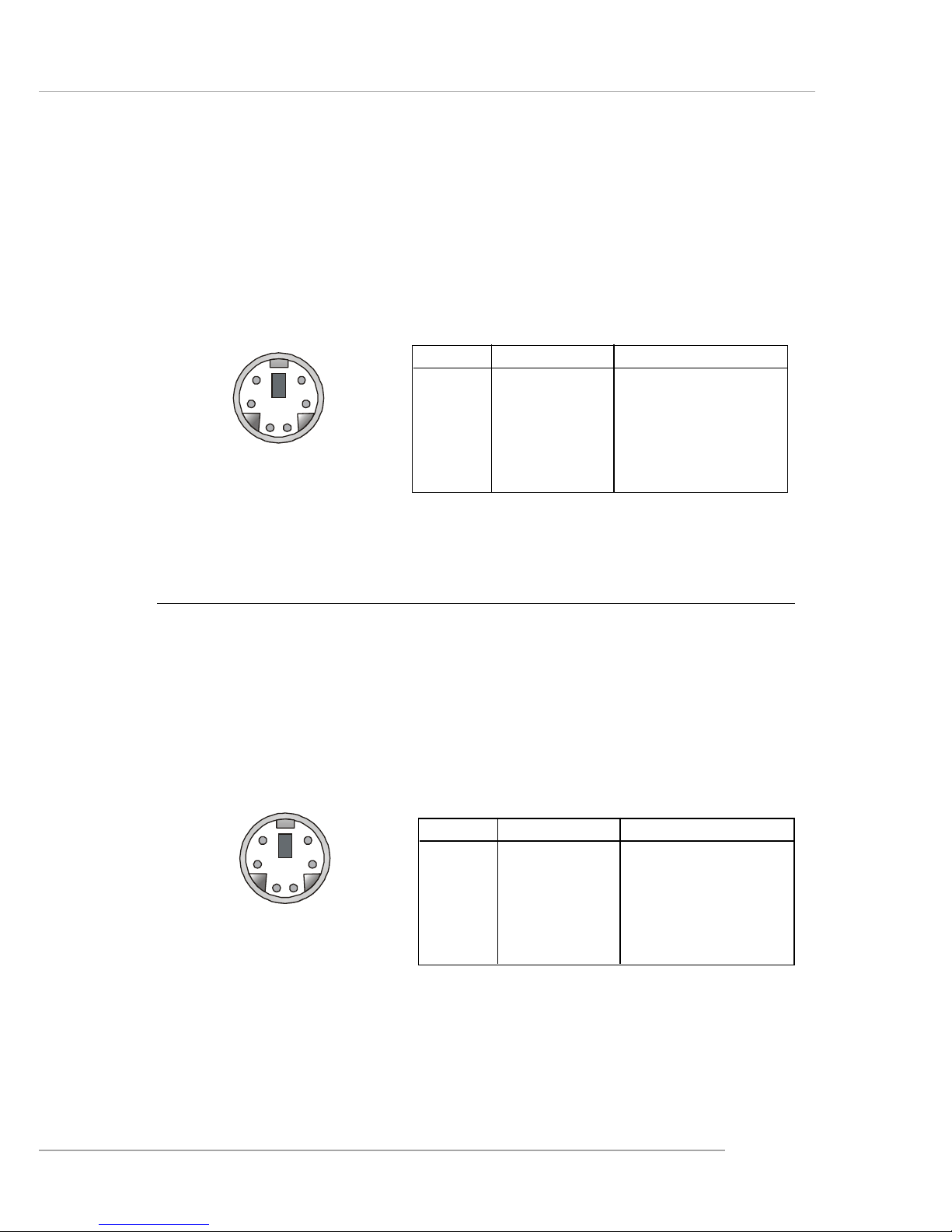

Keyboard Connector
The mainboard provides a standard PS/2®keyboard mini DIN connec-
tor for attaching a PS/2®keyboard. You can plug a PS/2®keyboard directly
into this connector.
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
PS/2 Keyboard (6-pin Female)
21
3
4
5
6
Mouse Connector
The mainboard provides a standard PS/2®mouse mini DIN connector
for attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector. The connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
21
3
4
5
6

2-12
MS-6575 M-ATX Mainboard
USB Connectors
The mainboard provides an OHCI (Open Host Controller Interface) Uni-
versal Serial Bus root for attaching USB devices such as keyboard, mouse or
other USB-compatible devices. You can plug the USB device directly into
the connector.
PIN SIGNAL DESCRIPTION
1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
USB Port Description
USB Ports
1 2 3 4
5 6 7 8
RJ-45 LAN Jack (Optional)
The mainboard provides a RJ-45 connector that allows your computer
to be connected to a network environment.
LAN Jack
(RJ-45)
Activity
Indicators
Pin Signal Description
1 TDP Transmit differential pair
2 TDN Transmit differential pair
3 RDP Receive differential pair
4 NC Not used
5 NC Not used
6 RDN Receive differential pair
7 NC Not used
8 NC Not used

2-13
Hardware Setup

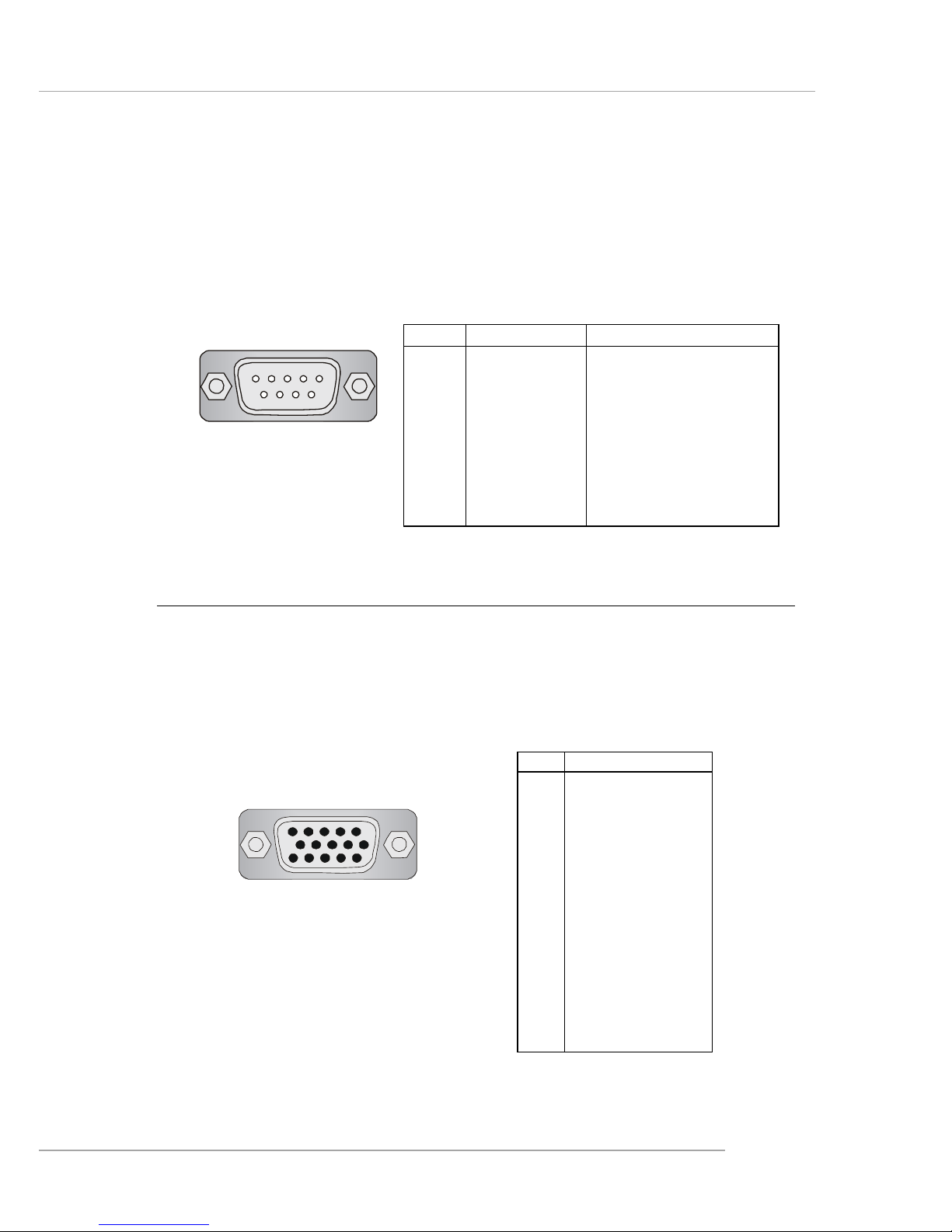

VGA Connector
The mainboard provides a DB 15-pin female connector to connect a
VGA monitor.
51
15 11
VGA Connector
(DB 15-pin)
Pin Signal Description
1 RED
2 GREEN
3 BLUE
4 N/C
5 GND
6 GND
7 GND
8 GND
9 +5V
10 GND
11 N/C
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
Serial Port Connector
The mainboard offers one 9-pin male DIN connector as the serial port.
It is 16550A high speed communication port that sends/receives 16 bytes
FIFOs. You can attach a serial mouse or other serial device directly to it.
9-Pin Male DIN Connector
1 2 3 4 5
6 7 8 9
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
Pin Definition

2-14
MS-6575 M-ATX Mainboard

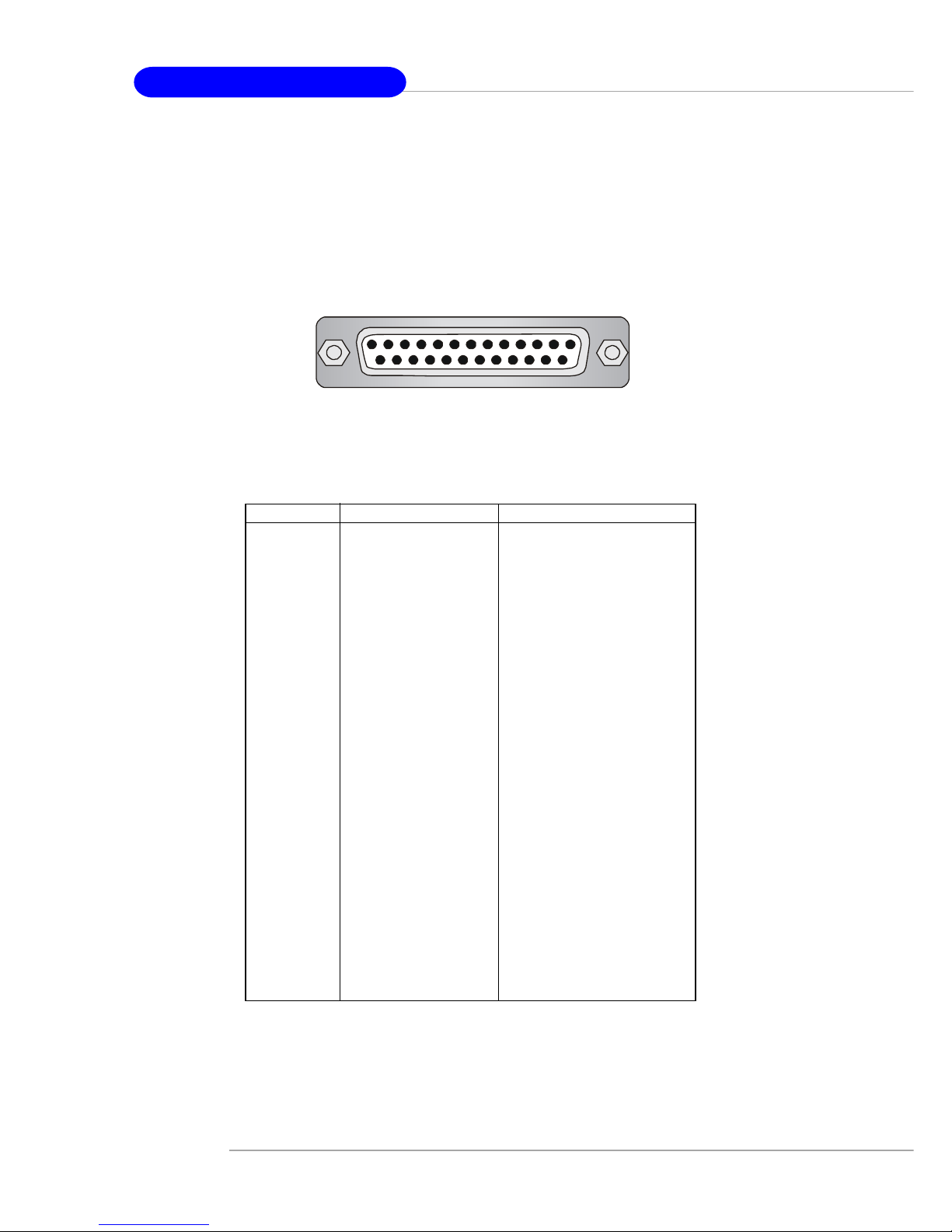

Parallel Port Connector: LPT1
The mainboard provides a 25-pin female centronic connector as LPT.
A parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
13 1
14
25
PIN SIGNAL DESCRIPTION
1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground
Pin Definition

2-15
Hardware Setup
Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used
for external CD player, Tape player, or other audio devices. Mic is a connec-
tor for microphones.
1/8” Stereo Audio Connectors Line Out
Line In
MIC

2-16
MS-6575 M-ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case,
modem, LAN, USB Ports, IR module and CPU/System/Power Supply FAN.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
