KZM-6120
MAINBOARD
MANUAL
DOC No.: M98C09
Rev. :A0
Date : 4, 1999
Part No. : 25-10927-20

Handling Precautions
Warning:
1. Static electricity may cause damage to the integrated circuits on
the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.
2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.
3. Discard used batteries according to the manufacturer’ s
instructions.
Observe the following basic precautions when handling the motherboard
or other computer components:
nWear a static wrist strap which fits around your wrist and is
connected to a natural earth ground.
nTouch a grounded or anti-static surface or a metal fixture such as a
water pipe.
nAvoid contacting the components on add-on cards, motherboards,
and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
monting brackets.
The above methods prevent static build-up and cause it to be discharged
properly.
Trademark
All trademarks mentioned in this manual are registered properly of
the respective owners.
Handling Precautions
This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.
Notice

i
Tableof Contents
Table of Contents
Chapter 1 Overview
Package Checklist .......................................................................... 1-1
The KZM-6120 Mainboard ....................................................... 1-2
Main Features ................................................................................ 1-3
Intelligent Properties ...................................................................... 1-4
ACPI Ready ................................................................................... 1-6
Chapter 2 Installation
Quick Reference ............................................................................. 2-2

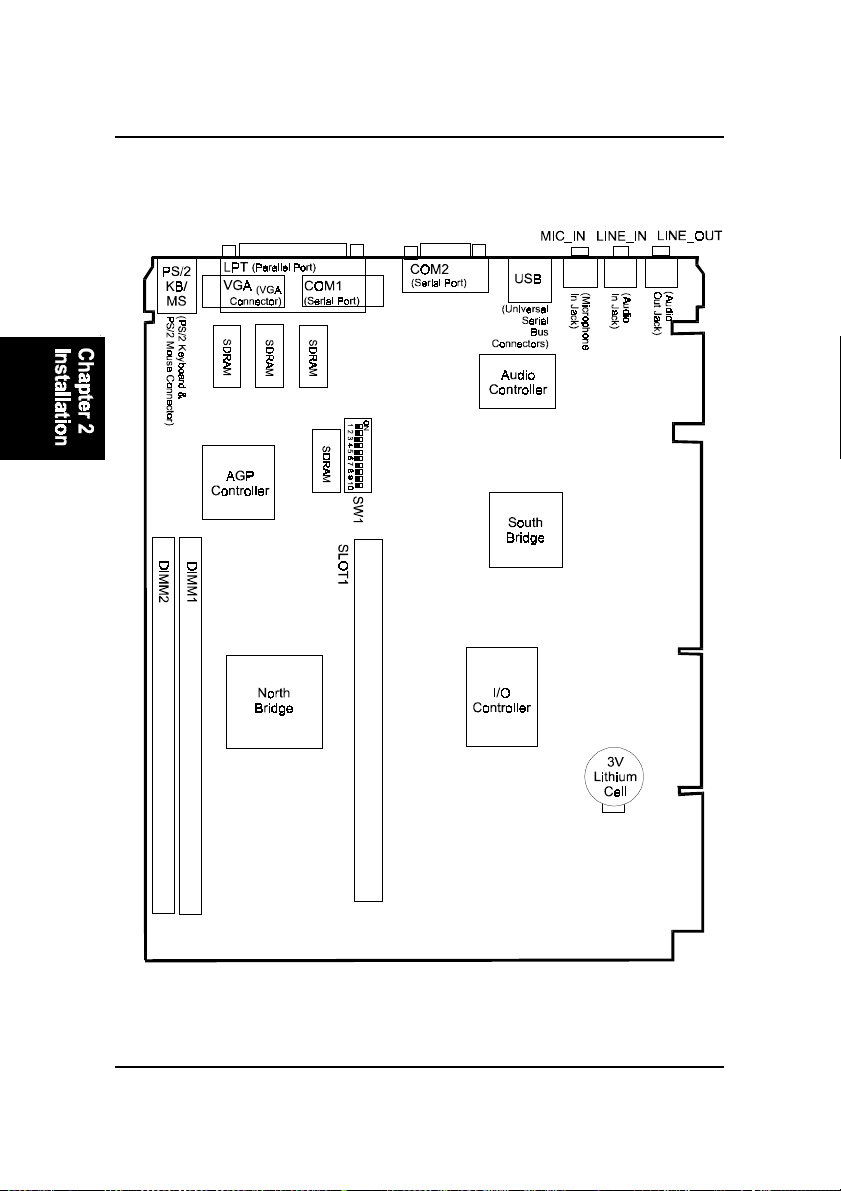

Mainboard Layout .................................................................... 2-6

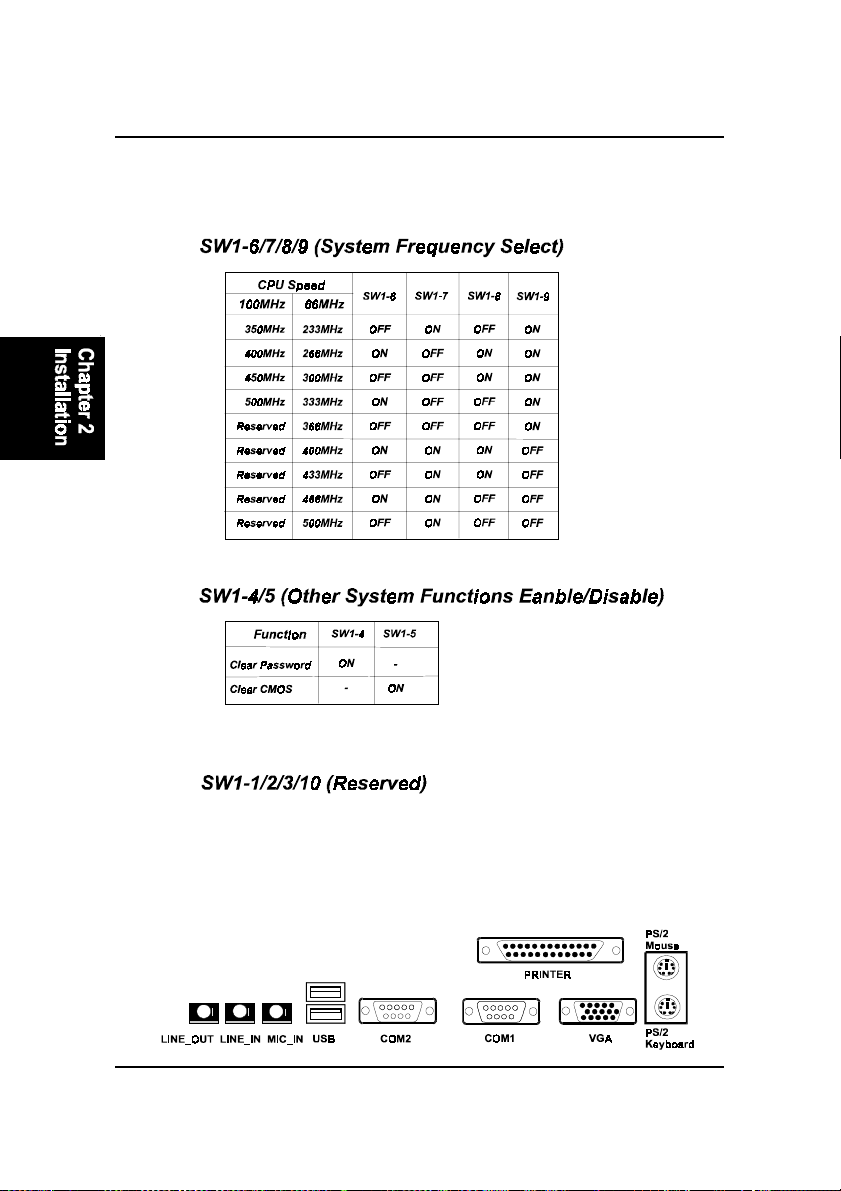

1). Set System Jumpers .................................................................. 2-8
Clear CMOS: SW1-4 .................................................................. 2-8
Clear Password: SW1-5 ............................................................. 2-8
2). Install RAM Modules ............................................................... 2-9
RAM Module Configuration ..................................................... 2-9
Install and Remove DIMMs ...................................................... 2-9
3). Install the CPU .......................................................................... 2-11
I). Install with Foldable Retention Mechanism Assembly ......... 2-11
II). Install with Non-Foldable Retention Mechanism Assembly 2-12
CPU Internal Frequency Select:
SW1-6, SW1-7, SW1-8, SW1/-9 ........................................ 2-14
4). Install Expansion Cards ............................................................. 2-14
5). Connect Cables and Power Supply ........................................... 2-16
Video Graphics Accelerator Connector: VGA ................... 2-16
PS/2 Keyboard and PS/2 Mouse Connector:
PS2/KB, PS2/MS ............................................................... 2-16
Printer Connector: LPT ...................................................... 2-17
Serial Port Connectors: COM1, COM2 .............................. 2-17
Universal Serial Bus Connectors: USB0, USB1 ................. 2-18
Audio I/O Jacks: L_OUT, L_IN, MIC_IN .......................... 2-18
Chapter 3 BIOS Setup
CMOS Setup Utility ....................................................................... 3-1
Standard CMOS Setup ................................................................... 3-2
Hard Disk Configurations .......................................................... 3-2
Software Turbo Speed ............................................................... 3-3

ii
KZM-6120MainboardManual
BIOS Features Setup ...................................................................... 3-3
Chipset Features Setup .................................................................. 3-6
Power Management Setup ............................................................. 3-9
PNP/PCI Configuration .................................................................. 3-13
Load BIOS Defaults ....................................................................... 3-14
Load Setup Defaults ...................................................................... 3-14
Integrated Peripherals .................................................................... 3-14
Supervisor/User Password ............................................................ 3-17
IDE HDD Auto Detection .............................................................. 3-17
Save and Exit Setup ....................................................................... 3-18
Exit without Saving ........................................................................ 3-18
Chapter 4 FAQs
General FAQs ................................................................................. 4-1
BIOS FAQs .................................................................................... 4-5
Windows 98 FAQs ......................................................................... 4-7
Windows 95 FAQs ......................................................................... 4-8
Intel CPU FAQs ............................................................................. 4-9

1 - 1
Overview
Chapter 1
The 1stMainboard KZM-6120 is the latest miniNLX form factor solution from
1stMainboard. The mini NLX form factor is able to incorporate the very latest
in leading edge technology, while at the same time offering a high level of
flexibility. Ready for the new Intel® Pentium® III processor (450-500 MHz),
the1stMainboard KZM-6120 also supports the Intel® Pentium® II (266-450
MHz) and Intel® Celeron (266-400 MHz) processors, at both 66 and 100
MHz Front Side Bus.
Based around the advanced architecture of the Intel® ZX chipset, the
1stMainboard KZM-6120 comes equipped with advanced onboard video and
audio capabilities. The Crystal CS4280 chip provides quality onboard audio,
while impressive video capabilities are provided by the Matrox Calao G200
AGP, with 8MB of SDRAM. Audio can be selected through the BIOS setup.
System upgrade can be easily facilitated through the use of a Riser card.
Other features of the 1stMainboard KZM-6120 include a complete range of I/
O connections and an Auto Power Failure Recovery Function, as well as
Wake-on-LAN (selectable through BIOS setup), Wake-on-Ring and Chassis
Intrusion functions. The 1stMainboard KZM-6120 has 2 DIMM, for up to 256
MB of SDRAM, and 2 PCI and 1 ISA expansion slot. Furthermore, the
1stMainboard KZM-6120 is PC98, Y2K and ACPI compliant.
Overview
Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor.
Ö The mainboard
Ö Thisuser manual
Ö Software utilities
Ö OneFDD cable(optional)
Ö OneHDD cable(optional)
Ö OneCD-ROM cable(optional)

1 - 2
KZM-6120MainboardManual
The KZM-6120 Mainboard

1 - 3
Overview
Main Features
■Easy Installation
||BIOS with support for Plug and Play, auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 95, Windows 98, Windows NT,
||and OS/2.
■Leading Edge Chipset
The Intel ZX chipset includes a CPU interface controller, integrated
memory controller, integrated power management unit, concurrent PCI
(PCI v.2.0 and 2.1), 3D video, IDE and ISA bus controller.
■Flexible Processor Support
Onboard Slot 1 supports leading-edge processors:
366/400/433/466/500 MHz and up.
|■Various External Bus and CPU/Bus Frequency Ratio Support
The board supports the Bus frequency of 66 / 68.5 / 75 / 103 / 112 /
133MHz and the CPU/Bus frequency ratio of 2x / 2.5x / 3x / 3.5x / 4x / 4.5x/
5x / 5.5x / 6.0x / 6.5x / 7.0x / 7.5x / 8.0x .|||(Please read Install the CPU in
Chapter 2 for more information).
■Versatile Main Memory Support
Accepts up to 512MB totally by using two DIMMs of 8, 16, 32, 64, 128,
256, 512MB with support for lightning-fast SPD SDRAM (66/100MHz).
■Enhanced PCI Bus Master IDE Controller with Ultra DMA/33 Support
Integrated Enhanced PCI Bus Master IDE controller features two dual-
channel connectors that accept up to four Enhanced IDE devices, includ-
ing CD-ROM and Tape Backup Drives. Standard PIO Mode 3, PIO Mode
4, DMA Mode 2, DMA Mode 4 devices are also supported.

1 - 4
KZM-6120MainboardManual
Intelligent Properties
This mainboard comes equipped with the most advanced new features that
not only optimize the performance of the latest processors but also enhance
the manageablity, power management capabilities, and user-friendliness of
your system. This section provides detailed information on these features,
and how they are implemented on the mainboard.
■High-Resolution VGA Subsystem
The onboard Matrox Calao G200 AGP graphics accelerator with 8MB
SDRAM is an integrated 2D, 3D, and video accelerator for bringing great
3D performance 1600x1200 in 16 bits (for onboard 8MB SDRAM) color
solutions. The mainboard also comes with a 16-bit, bi-directional video
port for allowing direct connections to popular video upgrades, such as
video capture/conferencing, hardware MPEG-2/DVD player.
■■
■■
■Remote Wake-Up Support
One LAN wake-up connector, WOL, supports LAN cards equipped for
remote wake-up functionality; also, an additional Wake-On-Ring connec-
tor awakes the system while the ring signal via modem.
■■
■■
■Super Multi Input/Output (I/O) Support
Integrated Plug and Play multi-I/O chipset features two high-speed UART
16550 compatible serial ports, one IR connector, one EPP/ECP capable
parallel port, and one FDD connector.
■USB Support
The integrated USB connectors on the edge of the board for allowing
convenient, high-speed Plug and Play connections (up to four USB ports)
to the growing number of USB compliant external peripheral devices on
the market.

1 - 5
Overview
■Intel LANDeskÒClient Manager (optional)
The mainboard comes with optional Intel LANDeskÒClient Manager, a
Desktop Management Interface (DMI) compliant application that simpli-
fies local and network management of desktop client systems by monitor-
ing PC health, and by alerting local and designated remote users of poten-
tial problems. For example, the application will indicate when memory
usage is high or hardware components are likely to fail. This capability
provides new levels of manageability to deliver a lower cost of PC owner-
ship by maximizing system uptime, increasing user productivity and re-
ducing the number of help desk calls. Because it is industry-standard
DMI compliant, Intel LANDeskÒClient Manager can be used with other
DMI-based network management tools.
■Compact Crystal Audio Subsystem for Sound and Game
The onboard Crystal audio controller that for the PCI bus provides 64-
voice XG wavetable synthersizer and support DirectSound hardware ac-
celerator, Downloadable Sound (DLS), and DirectMusic accelerator. It
offers OPL3, Sound Blaster Pro, MPU401 UART mode and joystick func-
tion for various PC game on real DOS mode that without software drivers.
The board comes with three jacks: MIC_IN, L_IN, L_OUT for sound
access between computer system and audio devices.

1 - 6
KZM-6120MainboardManual
■RTC Alarm
The RTC alarm feature allows you to preset the computer to wake-up at a
certain time allowing you to implement a number of useful functions, such
as automatically sending out a fax late at night.
■Remote Ring-On
The Remote Ring-On function allows your computer to be turned on
remotely via a modem while it is in sleep mode. This feature is particularly
usefully when you are expecting a fax late night and leave only your
modem on to minimize power consumption. As soon as possible the phone
rings, the modem automatically turn on the system, which answers the
phone and downloads the fax. Then the computer shuts off again, thereby
minimizing its consumption of power. The Remote Ring-On function
requires a power supply with a soft-off power controller.
■Soft-Off Support
The mainboards Soft-Off feature allows you to turn off your computer
using the operating system. This feature requires a power supply witha
soft-off power controller.
The major features of ACPI were listed as follows:
It is compatible with all other none ACPI operating systems. If you want to
setup ACPI feature under Windows 98, please follow the description below:
Run Windows 98 setup by using setup/p j on the command line for installing
Windows 98 with the ACPI control feature.
If you type setup without the parameter /p j, Windows 98 will be installed as
APM, PnP mode, no ACPI will be used.
For more detail information, please visit the web site of Microsoft. Its address
is: www.microsoft.com/hwtest/.
ACPI Ready
This mainboard fully implements the new ACPI (Advanced Configuration and
Power Interface) 1.0 Hardware and BIOS requirement. If you install ACPI aware
operating system, such as Windows 98, you fully utilized the power saving
under ACPI.

2 - 1
Installation
Chapter 2
Installation
The mainboard has several user-adjustable switches/jumpers on the board
that allow you to configure your system to suit your requirements. This chap-
ter contains information on the various hardware settings on your mainboard.
To set up your computer, you should follow these installation steps:
nStep 1 - Set system switches/jumpers
nStep 2 - Install memory modules
nStep 3 - Install the CPU
nStep 4 - Install expansion cards
nStep 5 - Connect cables and power supply
nStep 6 - Set up BIOS features
nStep 7 - Set up software utilities
CAUTION: If you use an electric drill to install this Mainboard
on your chassis, please wear a static wrist strap.
The recommended electric drill torque is from 5.0 to 8.0 kg/
cm to avoid damaging the chips’ pins.

2 - 2
KZM-6120MainboardManual
This Chapter is intended to aid quick and easy installation.
In the event that more detailed information is required, please
consult the Installation Procedures Chapter.

2 - 3
Installation

2 - 4
KZM-6120MainboardManual
1). CPU Frequency Select, Clear CMOS, Clear
Password
2). Integrated I/O Connectors

2 - 5
Installation
Load BIOS Defaults
BIOS defaults contain the most appropriate values of the system parameters
that allow minimum system performance. The OEM manufacturer may change
the defaults through MODBIN before the binary image burns into the ROM.
Load Setup Defaults
Selecting this field loads the factory defaults for BIOS and Chipset Features
which the system automatically detects.
1. Format a bootable system floppy diskette by typing the command format
a:/s in command mode.
2. Visit the the web site of the vendor and visit the BIOS Update page in the
related Technical Support section.
3. Select the BIOS file you need and download it to your bootable floppy
diskette.
4. Insert the bootable diskette containing the BIOS file into the floppy dis-
kette drive.
5. Assuming that the floppy diskette drive is A, reboot the system by using
the A: drive. At the A: > prompt, run the BIOS upgraded file by executing
the Flash BIOS utility and the BIOS file with its appropriate extension.
Do not turn off or reset the computer during the flash process or if there is
a problem.
4). How to Upgrade BIOS
3). Load BIOS Setup Default

2 - 6
KZM-6120MainboardManual
Mainboard Layout

2 - 7
Installation
ONBOARDMARK MEANING PAGE
SW1-4 Clear CMOS Data 2 - 8
SW1-5 Clear Password 2 - 8
SW1-6/7/8/9 CPU Internal Frequency Select 2 - 14
DIMM1/2 DIMM Socket 2 - 10
SLOT1 CPU SLOT1 | 2 - 11
VGA VGA Connector 2 - 16
PS2/KB, PS2/MS PS/2 Keyboard & Mouse
Connector 2 - 16
LPT Printer Connector 2 - 17
COM1, COM2 Serial Port Connectors 2 - 17
USB0, USB1 Universal Serial Bus Connector 2 - 18
L_OUT, L_IN, MIC_IN Audio I/O Jacks 2 - 18

2 - 8
KZM-6120MainboardManual
1). Set System Jumpers
Clear CMOS: SW1-4
The CMOS RAM is powered by the onboard button cell battery. To clear the
RTC data: (1). Turn off your computer, (2). Enable this feature by setting the
SW1-4 to On position, (3). Turn on your computer to boot the system, (4).
Turn off the computer, (5). Disable the Clear CMOS feature, (6). Turn on the
computer. (7). Hold down the Delete key when boots and enter BIOS Setup to
re-enter user preferences.
Clear Password: SW1-5
This switch allows you to enable or to disable both the keyboard and system
password settings. You may need to adjust it if you forget your password. To
clear the password setting: (1). Turn off your computer, (2). Enable this feature
by setting the SW1-5 to On position, (3). Turn on your computer to boot
screen, (4). Turn off your computer, (5). Disable the Clear Password feature by
setting the SW1-5 to Off position, (6). Turn on your computer.

2 - 9
Installation
2). Install RAM Modules
RAM Module Configuration
This mainboard provides two onboard DIMM sockets for allowing 3.3V (un-
buffered) SDRAM DIMM modules. Either 32, 64, 128, 256, or 512MB DIMM
can be installed on these four sockets. The maximum total memory supported
is up to 512MB.
Install and Remove DIMMs
SDRAM DIMM modules have different pin contact on each side and there-
fore have a higher pin density. Complete the following procedures when in-
stalling DIMMs:
NOTE: Do not use memory modules with more than 18 chips per
module. Modules with more than 18 chips exceed the design speci-
fications of the memory subsystem and will be unstable.
The notch on the DIMM module will shift between left, center, or
right to identify the type and also to prevent the wrong type from
being inserted into the DIMM slot on the mainboard. Ask your re-
tailer for the specifications before purchasing.

2 - 10
KZM-6120MainboardManual
1. Locate the DIMM slots on the mainboard.
2. Install the DIMM straight down into the DIMM slot with both hands.
3. The clip on both ends of the DIMM slot will close up to hold the DIMM
in place when the DIMM touches the slots bottom.
Press the clips with both hands to remove the DIMM.
ON
1 2 3 4 5 6 7 8 9 10
DIMM2 (DIMM Socket)
DIMM1 (DIMM Socket)
