Motherboard Layout
KB_MS
COMA
SOCKET 478
ATX
LPT
USB LAN
FDD
F_PANEL
F_USB1
PWR_LED
BAT1
ICH4
PCI1
PCI2
PCI3
CODEC
IT8712
BIOS
XP-P4IM533GV
CPU_FAN
VGA
CD_IN
ATX_12V
Intel 845GV
IDE2
DDR1
IDE1
AUDIO
DDR2
AGU
SYS_FAN
R_USB
CODEC
F_AUDIO

English
5
CPU Socket 478 for Intel®Pentium®4 (Northwood) with HTTechnology
Intel®Pentium®4 400/533MHz FSB
2nd cache depends on CPU
Chipset North Bridge: Intel® 845GV
South Bridge: Intel® ICH4
Memory 2 184-pin DDR DIMM sockets, supports up to 2GB DRAM (Max)
Supports DDR333*/DDR266 DIMM
Supports only 2.5V DDR SDRAM
Slots 1AGU slot device support
3 PCI slots support 33MHz & PCI 2.2 compliant
On-Board IDE 2 IDE controller provide IDE HDD/CD-ROM(IDE1, IDE2) with PIO,
Bus Master (Ultra DMA33/ATA66/ATA100) operation modes
Can connect up to 4 IDE devices
On-Board Floppy 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88M bytes
On-Board Peripherals 1 Parallel port supports Normal/EPP/ECP mode
1 Serial port (COMA), 1 VGA port
6 USB 2.0/1.1 ports (4 x Rear, 2 x Front by cable)
1 Front Audio connector
1 PS/2 Keyboard
1 PS/2 Mouse
On-Board LAN Builit-in RTL8100C chipset
1 RJ45 port
On-Board VGA Builit-in Intel® 845GV chipset
On-Board Sound AD 1885 CODEC
Support 2 channel
Line Out / Line In / Mic In
CD In
BIOS Licensed AWARD BIOS
Supports Expert Flash
I/O Control IT8712
Hardware Monitor CPU Fan Revolution detect
CPU temperature detect
System Voltage detect
Form Factor Micro ATX size form factor, 24.3cm x 19cm
* Only for Intel®845GV B-Stepping chipset.
1. Production Introduction
The user manual provides steps related to quick installation. If you wish to view complete
product information, please select the " ",Open User Manual button located on the driver
CD or link to our website at http://www.axper.com to received the most up-to-date information.
1.1. Feature Summary

6
English
1.2. I/O Back Panel and Connectors&Jumper Setting
1.2.2. Connectors&Jumper Setting
FDD (Floppy Disk Drive Connector)
The FDD connector is able to connect a single floppy disk drive via a FDD cable. Usually one
edge of the FDD cable is marked in red, please attach this marked edge to position 1 on the
connector.
IDE1 / IDE2 (IDE1 and IDE2 Connector)
The IDE connector is able to connect two IDE devices via an IDE cable and requires checking
of the IDE jumper setting. It is recommended that the hard drive be connected to the first IDE
connector while the optical drive be connected to the second IDE connector.

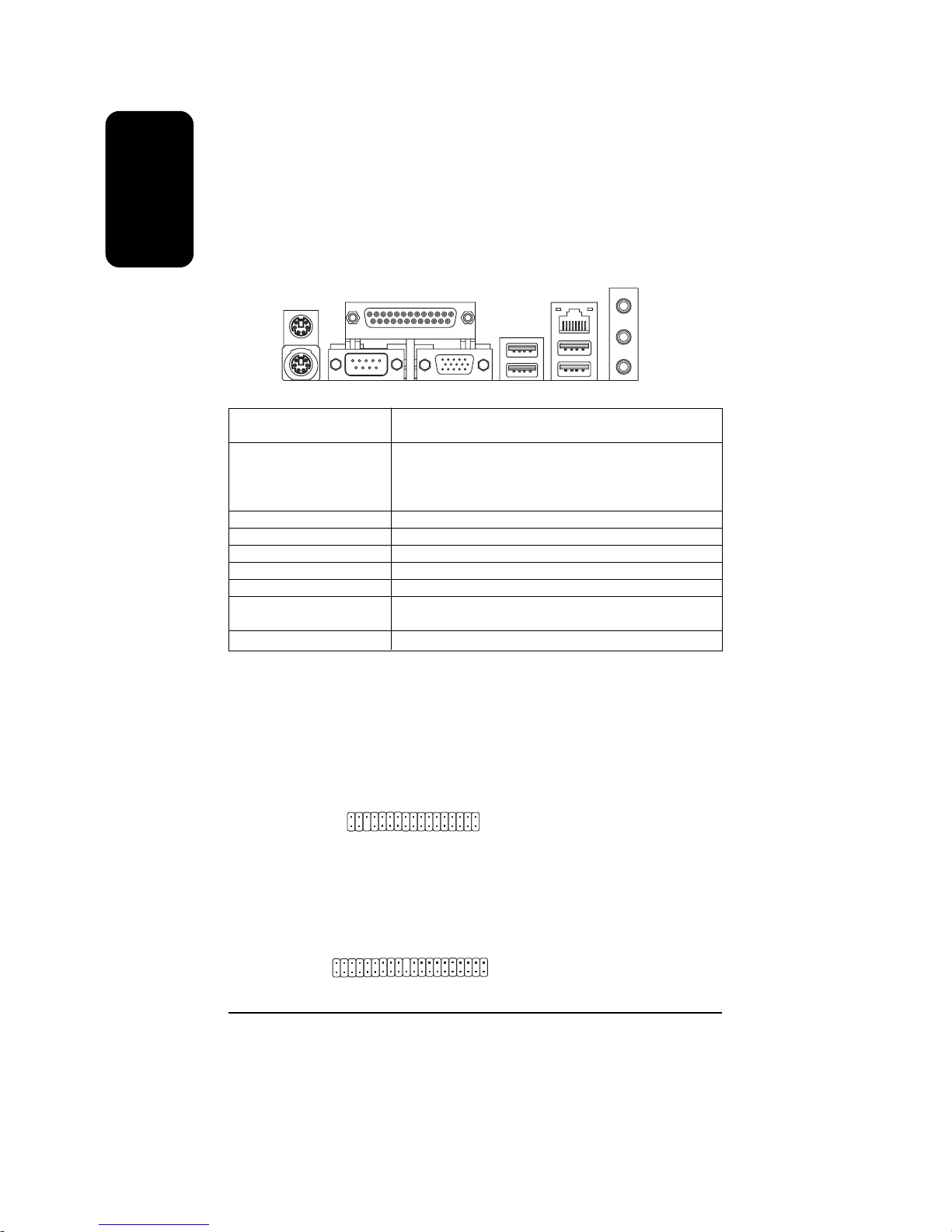

1.2.1. I/O Back Panel
PS/2 Mouse LAN
Parallel Port
PS/2 Keyboard
USB
VGACOMA
Line Out
Line In
MIC In
USB
PS/2 Keyboard Connects PS/2 standard keyboard and PS/2 standard
PS/2 Mouse connector mouse
USB Prior to use, please make sure that your system as well
(Universal Serial Bus Port) as the connected attachments support the USB interface.
If driver installation is required, please consult the USB
section of the user manual.
LAN (RJ45 LAN Port) Internet connection with speed of up to10/100Mbps
Parallel port (LPT) Connects to printer
COMA (Serial port) Connects to serial-based mouse or data processing devices
VGA port Connects to 15pin D-Sub device such as a monitor
LineOut Connects to speakers or headphones
Line In Connects to optical devices, CD players and other audio
input devices
Mic In Connects to microphone
1
342
33
139
240

English
7
CPU_FAN (CPU Fan Power Connector); SYS_FAN (System Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and
possesses a ful-proof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire indi-
cates a positive connection and requires a +12V power voltage. The black connector wire is the
ground wire (GND).
Please remember to connect the power to the cooler to prevent system overheating and failure.
Caution!
Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

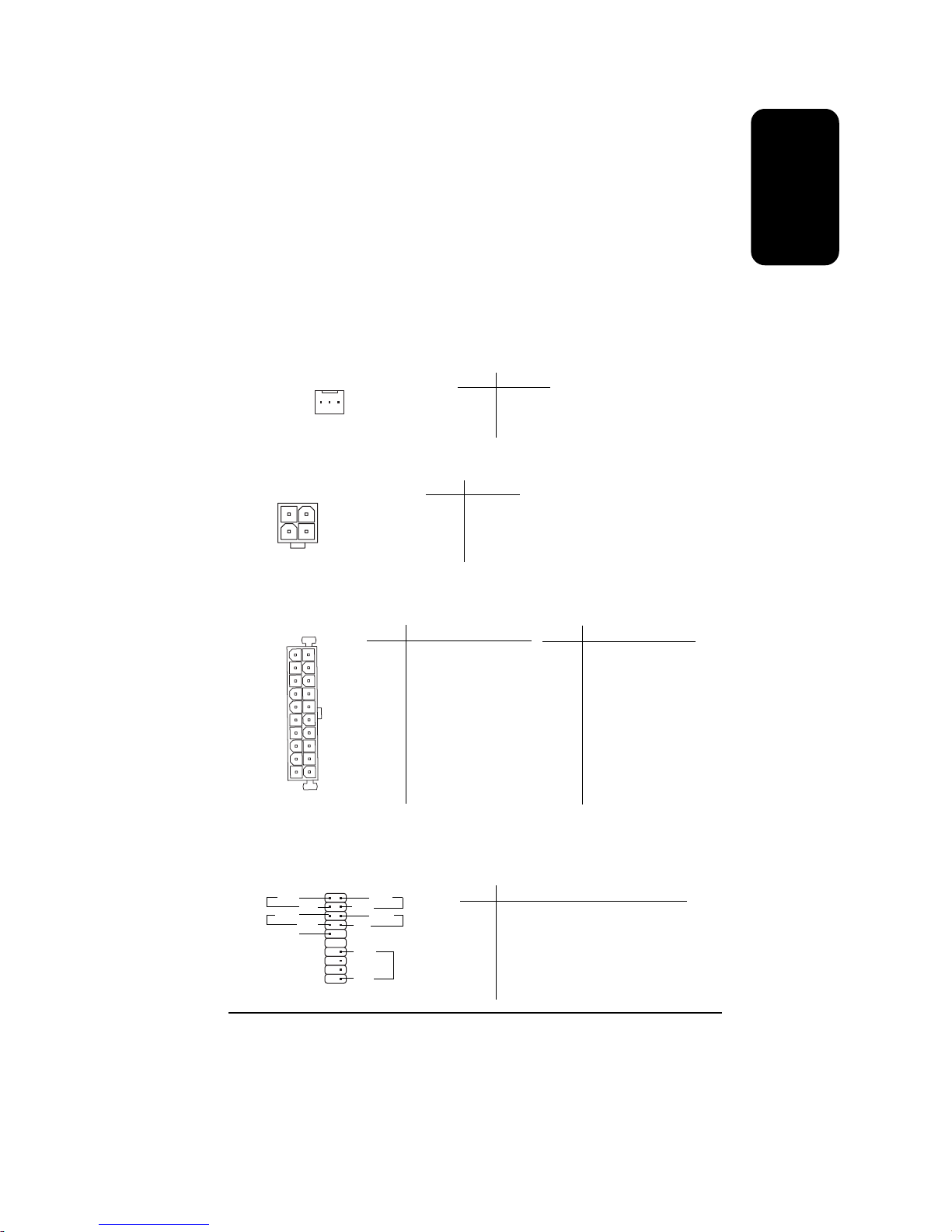

ATX_12V (+12V Power Connector)
TheATX_12V power connector provides power to the CPU. If this connector is notAttached,
the system will not start.
ATX (ATX Power Connector)
The ATX power connector provides power to the motherboard. Prior to connection, please
make sure that the power supply is disconnected.
F_PANEL (Front Panel Control Connector)
The F_Panel Control Connector connects to certain connectors on the front panel of the
system casing such as IDE Hard DiskActive LED, speaker, reset, and power on/off connectors.
You can use the schematic diagram below as the basis for connection.
PIN SIGNAL
1 GND
2 GND
3 +12V
4 +12V
20
11
10
1
1
3
2
4
12
19 20
HD-
HD+
RES+
RES-
NC
SPK-
MSG-
MSG+
PW- PW+
SPK+
PIN SIGNAL
HD IDE Hard Disk Active LED
SPK Speaker Connector
RES Reset Switch
PW Soft Power Connector
MSG Message LED/Power/Sleep LED
NC NC
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
4 VCC
5 GND
6 VCC
7 GND
8 Power Good
9 5VSB (stand by +5V)
10 +12V
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON (soft on/off)
15 GND
16 GND
17 GND
18 -5V
19 VCC
20 VCC
1
PIN SIGNAL
1 GND
2 +12V
3 Sense

8
English
F_AUDIO (Front Audio Connector)
Connects to the audio connector located on the front panel of the system casing
(dependent on case design). When use of the front panel audio connector is required,
please remove the 5-6 pin, 9-10pin jumper.
Please note that use of only the front panel audio connector or the rear panel audio connector
is permitted.
CD_IN (Optical Drive Audio Connector)
Connects CD-ROM or DVD-ROM audio connector.
1
F_USB1 (Front USB Connector)
Connects to the USB connector located on the front panel of the system casing (dependent on
case design). Note: Please make sure that each USB connection matches its designated
position. If connections are made incorrectly, the result can lead to inability to use the function
or even damage.
PIN SIGNAL
1 CD_L
2 GND
3 GND
4 CD_R
PIN SIGNAL
6 USB Dy+
7 GND
8 GND
9 NO PIN
10 NC
PIN SIGNAL
1 POWER
2 POWER
3 USB Dx-
4 USB Dy-
5 USB Dx+
1
10 9
2
210
19
PIN SIGNAL
1 MIC
2 GND
3 MIC_BIAS
4 POWER
5 Front Audio (R)
PIN SIGNAL
6 Rear Audio (R)
7 Reserved
8 NO PIN
9 Front Audio (L)
10 Rear Audio (L)
PWR_LED
Connects to the system power LED indicator whereby the power is indicated as ON or OFF.
However, the indicator will flash when the system is suspended.
1
PIN SIGNAL
1 MPD+
2 MPD-
3 MPD-

English
9
2. Hardware Installation
2.1. Installation of a Pentium 4 CPU and Fan Sink
1. Please make sure that the CPU used is supported by your motherboard.
2. Please be aware of the placement position of the CPU. If the CPU does not
insert properly, do not apply force but check the placement position.
3. Please make sure that an even layer of heat sink paste is added between the
CPU and the fan sink.
4. Please do not turn on the power prior to installing the fan sink. Doing so can
result in overheating and lead to permanent damage to the CPU.
5. Please follow the CPU specifications when setting the frequency. It is not
recommended that system speed settings exceed that of hardware
specifications. If you wish to set your system speed to exceed the recom
mended specifications, please check your hardware specifications eg: CPU,
graphics card, memory, hard drive
The following must be supported to allow the use of Hyper-Threading Technology:
- an Intel Pentium 4 CPU with HT
- a motherboard supporting HT
- HT selection feature within BIOS
- an operating system supporting HT
1
Note the small gold colored triangle on one corner of the CPU.
Place the triangle in the corner closest to the metal lever and
gently insert the CPU into its position.
The improper removal of the battery can result in harm. When replacing a
battery, please make sure you use one that is of similar brand and model
number.
For information related to battery specifications and precautions, please refer
to the manufacturer instructions.
If you wish to delete the data stored in the CMOS, please follow the steps
below:
1. Please turn off your computer and unplug the power.
2. Remove the battery from the motherboard.
3. Wait 30 seconds and then replace the battery onto the motherboard.
4. Plug in the power supply and turn on your system.
BAT1(Battery)
+

10
English
4
Connect the 3-pin cooler power connector to the CPU Fan
connector located on the motherboard.
2.2. Installation of Memory
1. Before installing or removing memory, please make sure that the computer power
is turned off to prevent hardware damage.
2. Please make sure that the memory used is supported by the motherboard.
3. Memory modules have a foolproof insertion design. The memory can be in
stalled only when facing the correct position. If you cannot insert the module,
please switch directions.
4. It is recommended that memory of similar capacity, specifications and brand be
used.
1. Unfasten the clips on each end of the memory slots.
Correctly align the memory module in the slot and
push downwards..
2. Once the memory module is correctly inserted, the
clips will automatically refasten. If the memory mod
ule is positioned in the wrong direction, it will not
insert. If this occurs, please switch directions.
The motherboard supports DIMM memory modules, whereby BIOS will automatically detect
memory capacity and specifications. Memory modules are designed so that they can be
inserted only in one direction.
3
Position and attach the clips on one end of the fan sink firmly
atop the CPU. Please do the same for the clips on the other
end of the fan sink.
2
When the CPU is inserted into its position, gently press the
metal lever downwards until a click is heard. Then add an
even layer of heat sink paste between the CPU and fan sink
for heat dissipation.

English
11
2.4.1. Graphics Card Support List
(The items below are all supported under the Windows XP operating system. When
using an add-on graphics card, please first delete the onboard graphics driver
before installing the driver for the add-on graphics card.)
Graphics Chip Maker Model Name
Nvidia Gigabyte GA-620
Gigabyte GA-622
Gigabyte GA-660 Plus
Gigabyte GA-GF2560
Figure 1-1. 4XAGP Card
To be continued...
2.4. What is Axper's A.G.U.?
Axper's Advanced Graphics Upgrade (A.G.U.) is a unique feature on 845GV motherboards
that includes an added AGPgraphics interface. Axper's A.G.U. allows the addition of a
graphics card for high-performance graphics for multimedia and gaming applications.Axper's
A.G.U. is bothAGP 4X and 8X compatible and supports the new Microsoft DirectX 9.0 standard.
The Advantages of Axper's A.G.U.
1) Performance
Axper's 845GV motherboards offers better graphics output than other 845GV platforms due to
the extra addition of a dedicated AGPgraphics interface
2) Flexibility
With the AxperA.G.U., users have the flexibility in choice of a wide range ofAGP4X and
AGP8X-based graphics cards (please refer to support list on manual or website) for their
845GV chipset platforms.
3) Value
Axper's 845GV motherboards provide superior value by offering performance nearing to that
of 845GV chipset platforms but at a noticeably lower cost for great performance at
unbelievable savings!

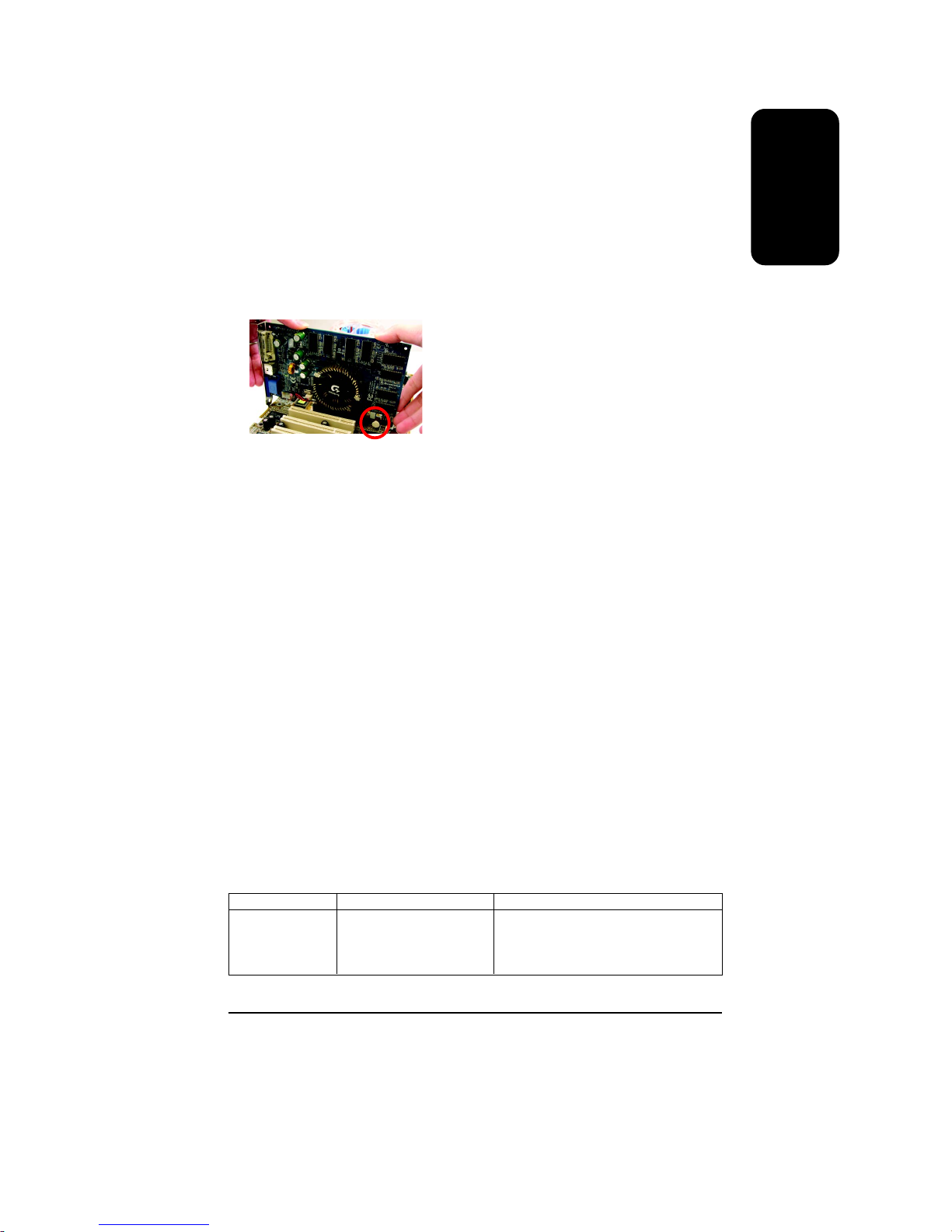

2.3. Installation of the Graphics Card
1. Before installing the graphics card, please carefully read the accompanying user manual.
As well, make sure the computer power is turned off.
2. When installing or removing the graphics card, first pull out the whiteAGU knob before
insertion or removal. Releasing the AGU knob will hold the graphics card firmly in place.

12
English
Graphics Chip Maker Model Name
Nvidia ASUS V9180TD
ASUS V9480-TVD
ASUS V9520
MSI MX440-VTD8X MS-8888
MSI Ti4600-TD-8X
Leadtek WinFast A280LE TD
Leadtek WinFast A310 TD
Albatron NVIDIA 5950
ATi Gigabyte GV-R9700 Pro
Gigabyte GV-R9700
Gigabyte GV-R9500
Gigabyte GV-R9200C3
Gigabyte GV-R98P128D
Gigabyte GV-R92P128VH
SiS Triplex Xabre Pro
Power Color Xabre 600 Pro
Figure 2. 8X AGPCard
For the most up-to-date information related to graphics card support, please link to our
website at http://www.axper.com
Graphics Chip Maker Model Name
Nvidia Gigabyte GA-GF2000
Gigabyte GA-GF1280
Gigabyte GV-GF2010D
Gigabyte GA-GF3000D
Gigabyte GV-GF1280-32E
Gigabyte GV-GF1280T-32P
Gigabyte GV-GF3200TF
Gigabyte GV-GF3500TF-GH
ELSA Gladiac Ultra
ELSA Gladiac 517
ELSA Gladiac 517vivo
ELSA Gladiac 525A128
Leadtek WinFast A170 TH
Leadtek WinFast A250 TO
Leadtek WinFast A250 Ultra
ATi Gigabyte GV-AR64DL-T-SI
Gigabyte GV-AR64S-H
Gigabyte GV-AP64D
Gigabyte GV-AP64DH
Gigabyte GV-AP128DG-H
Gigabyte GV-AF128D-GH
SiS Prolink SiS315 64MB
Savage ASUS V3500
Figure 1-2. 4XAGP Card

English
13
3. BIOS Setup
BIOS (Basic Input and Output System) stores all the information of the motherboard settings
that is needed for system initiation within the CMOS. The CMOS SETUPutility allows the user
to make changes in BIOS configurations that are required or to activate certain features.
The CMOS SETUP saves each item configuration in the CMOS SRAM of the motherboard.
When the power is turned off, the battery on the motherboard supplies the required power to
the CMOS SRAM.
When the power is turned on, pushing the <Del> button during the BIOS POST (Power-On
Self Test) will bring up the CMOS SETUP screen. If you wish to enter the BIOS setup, please
press "Ctrl + F1" at the BIOS setup screen.
When using BIOS setup for the first time, it is recommended that you save the present BIOS
onto a disk in case you need to reset the BIOS back to its original settings. If you wish to
update to a new BIOS, the "BIOSNOW!" can be used.
The user can select "BIOSNOW!" as a way to quickly and easily update or back up BIOS
without entering the operating system.
Instructions
< , , , ,Enter> Movement in all four directions to highlight a desired option,
pressing <Enter> will select the option and take you to its
appropriate screen
<Page Up,Page Down> Used to toggle up and down the available options for a
particular item, whereby <Page Up> can also be used to
increase value option and <Page Down> to decrease
value option
<Esc> Return to main setup screen or exit setup
<F1> Gives the list of options available for each item
<F2> Gives the list of options available for the current item
<F5> Returns settings to previous values (not applicable to main setup
screen)
3.1. Setup Screen Features (BIOS version:F1)
øWhen you enter the CMOS SETUP screen, you will see the following screen and setting
selections as shown below.
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
}Standard CMOS Features
}Advanced BIOS Features
}Integrated Peripherals
}Power Management Setup
}PnP/PCI Configurations
}PC Health Status
}Frequency/Voltage Control
Top Performance
Load Fail-SafeDefaults
Load OptimizedDefaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
ESC: Quit higf: Select Item
F8: BIOSNOW! F10: Save & Exit Setup
Time, Date, Hard Disk Type...

14
English
<F6> Gives the list of options available for each item
<F7> Return to Optimized default values (not applicable to main
setup screen)
<F8> Enters Expert-Flash feature
<F9> Displays system information
<F10> Saves settings and exits setup
3.2. Standard CMOS Features
øIncludes the settings for items such as date, time, floppy disk drive specifications, and
hard drives connected to the IDE interface.
nn
nn
nDate (mm:dd:yy)
Allows you to setup the date in the mm:dd:yy fashion.
nn
nn
nTime (hh:mm:ss)
Allows you to set up the date in the hh:mm:ss fashion. The time must be entered in the
24-hour format.
nn
nn
nIDE Primary Master(Slave) / IDE Secondary Master(Slave)
[IDE Device Setup]
IDE HDDAuto-Detection Press "Enter" to select this option for automatic device
detection.
IDE Primary Master(Slave) / IDE Secondary Master(Slave) IDE Device Setup. You can
use one of three methods:
Auto Allows BIOS to automatically detect IDE devices during POST(default)
None Select this if no IDE devices are used and the system will skip the
automatic detection step and allow for faster system start up.
Manual User can manually input the correct settings
Access Mode Use this to set the access mode for the hard drive. The four options are:
HB/LBA/Large/Auto(default:Auto)
Hard drive information should be labeled on the outside drive casing. Enter the
appropriate option based on this information.
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Standard CMOS Features
Date (mm:dd:yy) Fri, Jan 9 2004
Time (hh:mm:ss) 22:31:24
}IDE Primary Master [None]
}IDE Primary Slave [None]
}IDE Secondary Master [None]
}IDE Secondary Slave [None]
DriveA [1.44M, 3.5"]
Drive B [None]
Floppy 3 Mode Suport [Disabled]
Holt On [All, But Keyboard]
Base Memory 640K
Extended Memory 127M
Total Memory 128M
higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Fail-Save Default F7: OptimizedDefaults
Item Help
Menu Level}
Change the day, month,
year
<Week>
Sun. to Sat.
<Month>
Jan. to Dec.
<Day>
1 to 31 (or maximum
allowed in the month)
<Year>
1999 to 2098

English
15
nn
nn
nFloppy 3 Mode Support
Allows user to configure a Japanese standard 3 Mode floppy drive.
Options: Disabled (No 3 Mode drive installed)
Drive A(3 Mode Drive installed in A:)
Drive B (3 Mode Drive installed in B:)
Both (3 Mode Drive installed in A: and B:)
nn
nn
nHalt on
Tells the BIOS specifically which types of errors will halt the computer during the power-
on self test (POST) section of the boot.
Options: No Errors (Never halt when an error is detected)
All Errors (Halt whenever an error is detected)
All, But Keyboard (Halt whenever an error is detected with the
exception of the keyboard)
All, But Diskette (Halt whenever an error is detected with the ex
ception of the diskette)
All, But Disk/Key (Halt whenever an error is detected with the
exception of the diskette and keyboard) (default:All, But Keyboard)
nn
nn
nMemory
When BIOS is displayed during POST, memory capacity is also displayed as shown
below:
Base Memory, Extended Memory, Total Memory (the user can verify the accuracy of
these values)

16
English
" # " If the installed CPU is an Intel Pentium 4 CPU supporting Hyper-Threading Technology,
the system will automatically provide this option.
3.3. Advanced BIOS Features
øAllows the configuration of advanced settings such as boot sequence, password
check, etc.
nn
nn
nFirst / Second / Third Boot Device
The user can select the order in which the system will boot.
Options: Floppy,LS120,HDD-0~HDD3,SCSI,CDROM,ZIP,USB-FDD, USB-ZIP,USB-
CDROM, USB-HDD, LAN, Disabled
nn
nn
nBoot Up Floppy Seek
This feature controls whether the BIOS checks for a floppy drive while booting up.
(default:Disabled)
nn
nn
nPassword Check
Allows user to set a password. To remove the password entry requirement, enter
SETUP and make sure there is no entry and then press <Enter>.
Options: System (Password entry is required during system start up and to enter
CMOS SETUP)
Setup (Password entry is required to enter CMOS SETUP)(default:Setup)
nn
nn
nCPU Hyper-Threading #
Allows user to enable the CPU Hyper-Threading function, of which must also be sup
ported by the operating system. (default: Enabled)
nn
nn
nInit Display First
Allows you to select whether to boot the system using theAGP graphics card or the PCI
graphics card.
Options: AGU (boot using AGU graphics card)
Onboard/AGP (boot using onboardAGP)
PCI(boot using PCI graphics card). (default:AGU)
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Advanced BIOS Features
First Boot Device [Floppy]
Second Boot Device [HDD-0]
Third Boot Device [CDROM]
Boot Up Floppy Seek [Disabled]
Password Check [Setup]
CPU Hyper-Threading# [Enabled]
Init Display First [AGU]
GraphicsAperture Size [128MB]
Graphics Share Memory [8MB]
higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Fail-Save Default F7: OptimizedDefaults
Item Help
Menu Level}
Select Boot Device
priority
[Floppy]
Boot from floppy
[LS120]
Boot from LS120
[HDD-0]
Boot from First HDD
[HDD-1]
Boot from Second HDD

English
17
3.4. Integrated Peripherals
øThis menu allows you to control the various ports of the computer such as IDE,
SATA, USB, IEEE1394, COM port, LPT port,AC97 audio, etc.
nn
nn
nOn-Chip Primary PCI IDE
Allows the user to enable or disable the first onboard IDE channel.
(default:Enabled)
nn
nn
nOn-Chip Secondary PCI IDE
Allows the user to enable or disable the second onboard IDE channel.
(default:Enabled)
nn
nn
nIDE1 Conductor Cable
Allows user to select the type of IDE1 conductor cable. Prior to selecting the setting,
please make sure that the IDE device and cables support the desired setting.
Options: Auto, ATA66/100, ATA33 (default:Auto)
nn
nn
nIDE2 Conductor Cable
Allows user to select the type of IDE2 conductor cable. Prior to selecting the setting,
please make sure that the IDE device and cables support the desired setting.
Options: Auto, ATA66/100, ATA33 (default:Auto)
nn
nn
nGraphics Memory Size
Allows user to set the size of the graphics memory for improved memory performance.
Options: 128MB/Disabled (default:128MB)
nn
nn
nGraphics Share Memory
Allows user to set the amount of memory given for the graphics card frame buffer.
Options: 8MB/1MB (default:8MB)
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Integrated Peripherals
On-Chip Primary PCI IDE [Enabled]
On-Chip Secondary PCI IDE [Enabled]
IDE1 Conductor Cable [Auto]
IDE2 Conductor Cable [Auto]
USB Controller [Enabled]
USB Keyboard Support [Disabled]
USB Mouse Support [Disabled]
AC97 Audio [Auto]
Onboard H/W LAN [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
x ECP Mode Use DMA 3
Game Port Address [201]
Midi Port Address [Disabled]
Midi Port IRQ [10]
higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Fail-Save Default F7: OptimizedDefaults
Item Help
Menu Level}
If a hard disk
controller card is
used, set atDisabled
[Enabled]
Enable onboard IDE
PORT
[Disabled]
Disable onboard IDE
PORT

18
English
nn
nn
nUSB Controller
Allows the user to enable or disable the onboard USB2.0 controller. (default:Enabled)
nn
nn
nUSB Keyboard Support
Allows user to use a USB-based keyboard (Enable if you are using a USB keyboard,
otherwise Disable) (default:Disabled)
nn
nn
nUSB Mouse Support
Allows user to use a USB-based mouse (Enable if you are using a USB mouse,
otherwise Disable) (default:Disabled)
nn
nn
nAC97 Audio
Allows the user to use the onboardAC97 audio (default:Auto)
nn
nn
nOnboard H/W LAN
Allows the user to enable or disable the onboard LAN (default:Enabled)
nn
nn
nOnboard Serial Port 1
Allows the user to enable or disable the first onboard serial port
Options: Auto,3F8/IRQ4, 2F8/IRQ3,3E8/IRQ4, 2E8/IRQ3,Disabled(default:3F8/IRQ4)
nn
nn
nOnboard Parallel Port
Allows the user to enable or disable the onboard parallel port.
Options: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled (default:378/IRQ7)
nn
nn
nParallel Mode
Use this to select the operation mode for the parallel port.
Options: SPP (normal)
EPP (Enhanced Parallel Port)
ECP (Extended Capabilities Port)
ECP+EPP (both ECP and EPP) (default:SPP)
nn
nn
nGame Port Address
Allows the user to select the Game PortAddress
Options: 201, 209, Disabled (default:201)
nn
nn
nMidi Port Address
Allows the user to select the Midi PortAddress
Options: 300, 330, Disabled (default:Disabled)
nn
nn
nMidi Port IRQ
Allows the user to select the Midi Port IRQ
Options: 5, 10 (default:10)

English
19
3.5. Power Management Setup
øThis is used to control the various power saving features of the PC.
nn
nn
nACPI Suspend Type
Allows user to select the Advanced Configuration and Power Interface(ACPI) as S1/
POS (Power On Suspend) or S3/STR(Suspend To RAM) (default:S1/POS)
nn
nn
nSoft-off by PWR-BTTN
Controls whether the PC shuts off immediately after hitting the power button or delaying
a few seconds. (default:Instant-off)
Options: Instant-off (PC shuts off immediately)
Delay 4 Sec. (PC shuts off after a 4sec. delay)
nn
nn
nPME Event Wake Up
Allows user to select the Power Management Event (PME) wake up function which
requires the system to have a +5VSB power supply using a rate of 1A or less.
(default:Enabled)
nn
nn
nResume by Alarm
If set to Enabled, the user can set the date and time for automatic system power-on.
(default:Disabled)
Settings:
Date (of Month) Alarm : Everyday, 1~31
Time (hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)
nn
nn
nPower On Mouse
Allows user to turn on system using the mouse. (default:Disabled)
nn
nn
nPower On Keyboard
Allows user to turn on system using the keyboard.
Options: Password (input an 8 character long password)
Keyboard 98 (the power button on Windows 98 keyboard)
Disabled (default:Disabled)
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
Power Management Setup
ACPI Suspend Type [S1(POS)]
Soft-Off by PWR-BTTN [Instant-Off]
PME Event Wake Up [Enabled]
Resume by Alarm [Disabled]
x Date (of Month) Alarm Everyday
x Time (hh:mm:ss)Alarm 0 : 0 : 0
Power On by Mouse [Disabled]
Power On by Keyboard [Disabled]
x KB Power ON Password Enter
AC Back Function [Soft-Off]
higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Fail-Save Default F7: OptimizedDefaults
Item Help
Menu Level}
[S1]
Set suspend type to
Power On Suspend under
ACPI OS
[S3]
Set suspend type to
Suspend to RAM under
ACPI OS

20
English
3.6. PnP/PCI Configuration
øThis menu allows you to configure your PCI slots. You can assign IRQ's for various PCI
slots.
nn
nn
nPCI 1 IRQ Assignment
Allows you to assign an IRQ for the first PCI slot. Options:Auto,3,4,5,7,9,10,11,12,14,
15 (default:Auto)
nn
nn
nPCI 2 IRQ Assignment
Allows you to assign an IRQ for the second PCI slot. Options:Auto,3,4,5,7,9,10,11,12,
14,15 (default:Auto)
nn
nn
nPCI 3 IRQ Assignment
Allows you to assign an IRQ for the third PCI slot. Options: Auto,3,4,5,7,9,10,11,12,14,
15 (default:Auto)
nn
nn
nKB Power ON Password
Allows user to set a 1-5 character long password for powering on the keyboard. Select
Enter to complete setting.
nn
nn
nAC Back Function
Allows user to select system status when power is removed and returned.
Options: Memory (return prior to power removal)
Full-On (return to full system power)
Soft-Off (use of Soft PWR button to power on system)(default:Soft-Off)
CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
PnP/PCI Configurations
PCI 1 IRQ Assignment [Auto]
PCI 2 IRQ Assignment [Auto]
PCI 3 IRQ Assignment [Auto]
higf: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1:General Help
F5: Previous Values F6: Fail-Save Default F7: OptimizedDefaults
Item Help
Menu Level}
Device(s) using this
INT:
Display Cntrlr
-Bus 1 Dev 5 Func 0
