HP ProLiant DL180 G User instructions

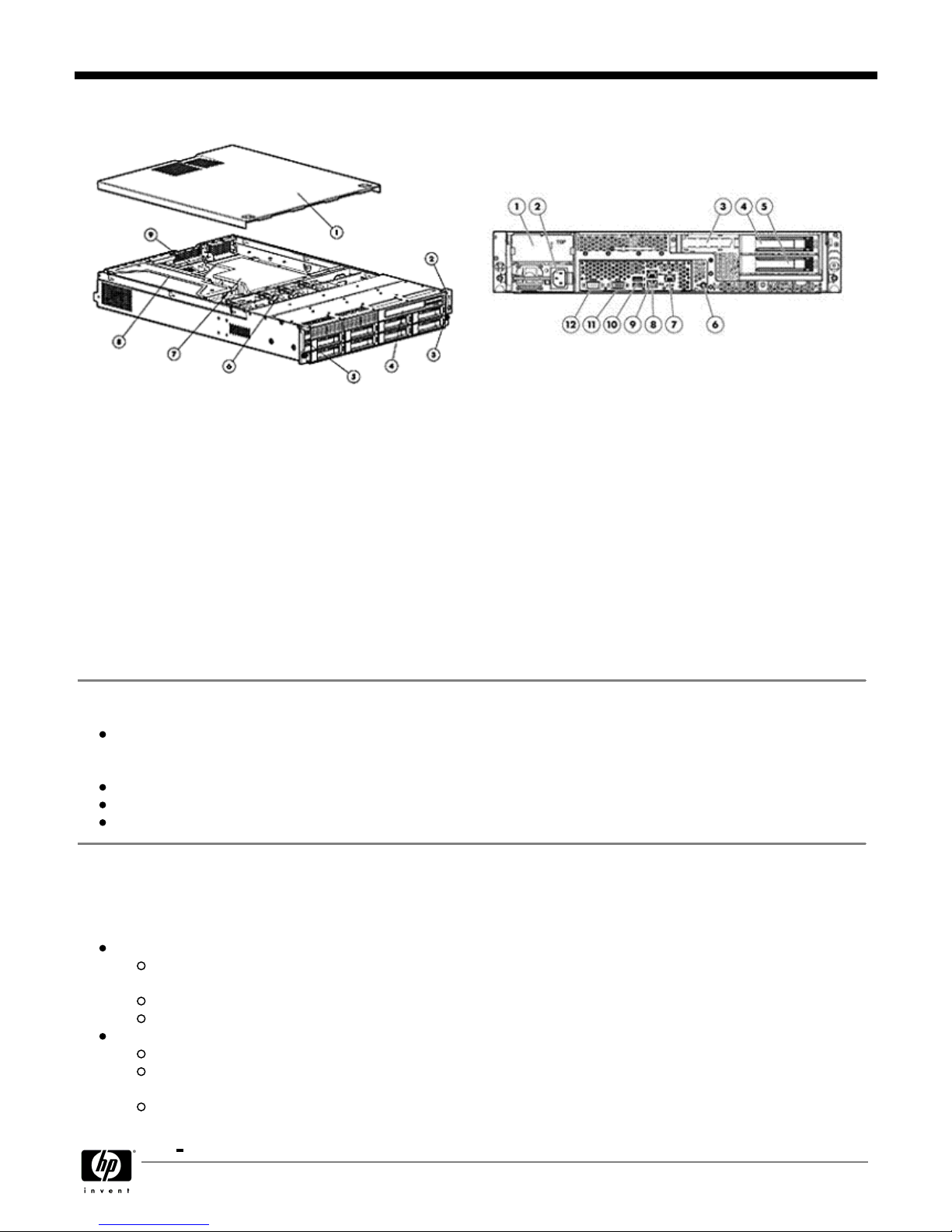

Front View: Rear View:
1. Access panel 1. Redundant Power Supply Bay (Optional)
2. Front LED Indicators 2. Power Supply Cable Socket
3. Power on/off 3. Low Profile Card Slot
4. Optional DVD-RW or DVD-ROM drive 4. PCI Expansion Card Slot
5. Front USB Ports (2) 5. PCI Expansion Card Slot
6. Non-Hot Plug Non Redundant fans (4 fans) 6. UID LED Button
7. Air Baffle 7. (Optional) LO100i 10/100 Mbps LAN port for IPMI
management (RJ-45)
8. PCI Cage
9. System Board 8. LAN Port
9. LAN Port
10. 2 Rear USB 2.0 Ports
11. VGA Port
12. Serial Port
What's New
Announcing support for the Intel® Xeon® processor 5600 series-the next generation of intelligent server processors -
offering significant performance (up to 40% over single-core processors), power regulation (Low Voltage DIMMs)
enhancements
Announcing the new High Efficiency server mode.
Support for 750 W and 460 W Platinum Power Supply
Support for I/O Accelerators
At A Glance
The HP ProLiant DL180 G6 is a low cost high capacity storage optimized 2-way server that delivers on a history of design
excellence and 2U density for a variety of rack deployments and applications.
Processors :
Supports up to two Intel® Xeon® Six and Four -Core 5600 sequence processors with up to 12 MB Level 3
cache
Supports up to two Quad-Core Intel® Xeon® processors: 5500 sequence with 8MB Level 3 cache
Intel® 5520 Chipset
Memory :
Up to 12 DIMM slots
Up to 192GB, using 16GB Quad-Rank PC3-8500R-7 DDR3 Registered (RDIMM) memory, operating at 800MHz
when fully populated at 2 DIMMs per Channel in 12 slots
Up to 96GB, using PC3-10600R DDR3Registered (RDIMM) memory, operating at 1066MHz when fully
populated at 2 DIMMs per Channel in 12 slots.
QuickSpecs
HP ProLiant DL180 Generation 6
Overview
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 1

Up to 48GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully
populated at 2 DIMMs per Channel in 12 slots
NOTE: Half DIMM slots are available when one processor is installed.
Internal Drive Support :
Support for up to twenty-five (25) SFF with a Smart Array controller.
Hot Plug Serial ATA (SATA) Models: Up to 12.5 TB (25 x 500GB Hot Plug 2.5"hard drives)
Hot Plug Serial Attached SCSI (SAS) Models: Up to 12.5 TB ( 25 x 500GB Hot Plug 2.5"hard drives)
Support for up to fourteen (14) LFF with a Smart Array controller:
Hot Plug Serial ATA (SATA) Models: Up to 28.0TB (14 x 2TB Hot Plug 3.5" hard drives)
Hot Plug Serial Attached SCSI (SAS) Models: SAS Model: Up to 28.0TB (14 x 2TB Hot Plug 3.5" hard
drives)
NOTE: Four (4), eight (8) and twelve (12) hard drives models are supported standard via BTO. Eight (8)
and twelve (12) hard drive model support requires the addition of a Smart Array or HBA controller. Hot
Plug and SAS functionality require the addition of a Smart Array or HBA controller.
Standard model drive bays:
Four (4) 3.5"Large Form Factor (LFF) hot-plug drive bays supporting up to 6Gb/s SAS or 3Gb/s SATA
transfer rate.
NOTE: Embedded SATA controller support transfer rate up to 1.5Gb/s SATA. HP Smart Array P212 or
P410 controller is required to achieve 6Gb/s SAS or 3Gb/s SATA transfer rate
Eight (8) 3.5" Large Form Factor (LFF) hot-plug drive bays supporting up to 6Gb/s SAS or 3Gb/s SATA
transfer rate.
Twelve (12) 3.5" Large Form Factor (LFF) hot-plug drive bays supporting up to 3Gb/s SAS or 3Gb/s SATA
transfer rate.
Optional drive bays:
Twenty Five (25) 2.5" Small Form Factor (SFF) hot-plug drive bays supporting up to 6Gb/s SAS or 3Gb/s
SATA transfer rate.
Eight (8) 2.5" Small Form Factor (SFF) hot-plug drive bays supporting up to 6Gb/s SAS or 3Gb/s SATA
transfer rate.
Rear Two (2) 3.5" Large Form Factor (LFF) hot-plug drive bays to use with 12LFF bays supporting up to
3Gb/s SAS or 3Gb/s SATA transfer rate.
NOTE: Full Height/ Full Length Riser Option is not available when the Rear 2LFF drive bays is selected for
the system.
NOTE: All Hard drive bay options except 4LFF require HP Smart Array P410 or P212 controller.
NOTE: To achieve highest possible stated transfer rate please make sure the firmware on the drive bays
(backplanes) and HP Smart Array controller up to date. Latest firmware are available to download from HP
support web site.
Network Controller :
HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controllers :
4 HDD BTO Models: HP Embedded SATA RAID Controller RAID 0,1,10
NOTE: Embedded SATA controller support transfer rate up to 3Gb/s SATA
NOTE: To enable RAID on Embedded SATA, use the HP Smart Array B110i SATA Raid controller, To enable
use of the B110i, enter the ROM based setup utility(RBSU). The option for enabling RAID can be found in the
Advanced section of the RBSU
NOTE: For Hot Plug SATA, upgrade to the Smart Array Hot Plug Advance Pack for B110i
8 HDD BTO Models: HP Smart Array P410 /256MB Controller (RAID 0/1/1+0/5/5+0 NOTE: Support speed up to
6Gb/s SAS or 3Gb/s SATA
NOTE: Available upgrades: 512MB with BBWC or FBWC, Battery kit upgrade (for the 256MB cache), and Smart
Array Advanced Pack (SAAP)
12 HDD BTO Models: HP Smart Array P212 /256MB Controller(RAID 0/1/1+0/5/5+0)
NOTE: A minimum of 256 MB cache, battery kit, and Smart Array Advanced Pack License Key upgrade is
required to enable RAID 6, 6+0 NOTE: Support speed up to 3Gb/s SAS or 3Gb/s SATA
25 HDD BTO Model: HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Available upgrades: P410 with FBWC, 256MB with BBWC, 512MB with FBWC, Battery kit upgrade (for
the 256MB cache), and Smart Array Advanced Pack (SAAP). NOTE: Support speed up to 6Gb/s SAS or 3Gb/s
SATA
NOTE: To achieve highest possible stated transfer rate please make sure the firmware on the drive bays
(backplanes) and HP Smart Array controller up to date. Latest firmware are available to download from HP
QuickSpecs
HP ProLiant DL180 Generation 6
Overview
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 2

support web site
Expansion Slots :
Up to Four (4) available PCI-Express Slots via the three (3) PCI-E Slot Riser
One available Low Profile x16 PCI-Express slot using a Low profile Riser
One 3PCI-E x8 Full Height Kit, providing 2x8 full length/full height slots as well as an additional x8(x4 electrically
) slot
Two Full Height/ Full Length Riser options:
Option 1: 2 PCIe2x8 and 1 PCIex8(4) full-length/full-height slots (Standard)
Option 2: 2 PCIe2x8 full-length/full-height PCI-Express slots (Optional)
Option 3: 2 PCI-X, full-length/full-height riser Slots(Optional)
Option 4: 1 PCIe2x16 full-length / full-height slot (Optional)
Option 5: 2 PCIe2x8 and 1 PCIex8(4) full-length/full-height slots (Optional)
NOTE: Full Height/ Full Length Riser Option are not available when the Rear DVD or rear 2LFF drive bay
are selected for the system. The rear DVD kit includes the riser option
Redundancy :
Fully redundant non-hot plug fans (Optional)
Hot plug power supply with optional redundancy
Power Sources :
Dual Common Slot Bay for Right Sized, Hot plug and Redundant Power
HP 750W CS HE Gold Power Supply (Standard on some models)
HP 460W CS HE Gold Power Supply (Standard on some models)
HP 460 W CS Platinum Power Supply Kit (Standard on some models)
HP 750W CS Platinum Power Supply Kit
Infrastructure Management :
With G6, ProLiant 100-series server administrators are able to deploy and monitor their servers using methods
similar to 300 series servers and above. Agents and the Easy Set-up CD are available that provide a user
experiences consistent with 300 series and above.
With Easy Set-up CD, customers get SmartStart "like" deployment tools that reduce the time required for
server setup and updates. Easy Set-up CDs and their ISO images are provided with each ProLiant G6
100-series server and are used to perform assisted installations for one or two servers. Users performing
multi-server installations involving large numbers of servers may require the following deployment tools:
SmartStart Scripting Toolkit - Automated scalable deployment utility
Smart Components - a self-executable software consisting of driver and firmware
With agents and providers, ProLiant 100 series servers get environmental monitoring that is similar and
consistent to that of ProLiant 300 series servers and above. This server now offers the HP Insight
Management Agents and HP Insight Management WBEM Providers, two well established sets of
management and Internet standards technologies that provide capabilities which provide integration to HP
Systems Insight Manager (SIM).
HP Insight Control for Linux, a product option, delivers essential infrastructure management that can help save
time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure
through a single, simple management console. Insight Control for Linux supports Linux-based central
management servers.
Ports :
Five USB ports (two front, two rear , one optional internal)
NOTE: In order to utilize the internal USB port the USB cable (P/N: 536769-B21) must be connected to the
internal USB header
Optical Drive :
Support for one (optional): DVD-ROM, DVD/CD RW
NOTE: In the12LFF or 25SFF drives bay model Optical drives are required to be installed with rear option kit
(P/N 515826-B21)
Form Factor :
2U rack models
Operating Systems and Virtualization Software:
Supports Windows, RHEL, SLES, VMware, and Citrix XenServer (Retail)
Deployment/Serviceability :
HP ProLiant DL180 G6 models have fixed rails which provide support for racks with round mounting holes and
tool-free support for racks with square mounting holes (including Compaq/HP 7000, 9000, 10000 and HP
series), with an adjustment range of 26" - 36"
QuickSpecs
HP ProLiant DL180 Generation 6
Overview
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 3

Tool-less access to all system components for easy in rack serviceability
Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow
for greater flexibility in performing defective parts replacement
Warranty :
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of
HP Authorized Channel Partners. Hardware diagnostic support and parts replacement is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive
QuickSpecs for details.
NOTE: Server Warranty includes 3-Years Next Business Day Parts replacement, 0-Years Labor, 0-Years Onsite
support. Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant DL180 Generation 6
Overview
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 4

NOTE: For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information -
Factory Integrated Models" section.
Processor
One of the following
depending on Model
Six-Core Processors
Intel® Xeon® Processor X5670 (2.93 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor X5660 (2.80 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W, DDR3-1333, HT, Turbo
2/2/2/2/3/3) FIO
Intel® Xeon® Processor L5640 (2.26GHz, 12MB L3 Cache, 60W, DDR3-1333, HT, Turbo
2/2/3/3/4/4) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Quad -Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
1/1/2/2) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
1/1/2/2) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
1/1/2/2) FIO
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Intel® Xeon® Processor L5630 (2.13 GHz, 12M L3 Cache, 40W, DDR3-1066, HT, Turbo 1/1/2/2/)
FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor L5630 (2.13 GHz, 12ML L3 Cache, 40W, DDR3-1066, HT, Turbo
1/1/2/2/) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Two -Core Processors
Intel® Xeon® Processor E5503 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800) FIO
NOTE: Available through Configure To Order only. See Factory Integration Models section for
more details.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo
Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5000 Series, the letter preceding the model number indicates the
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 5

performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes
Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
Upgradeability Upgradeable to two processors
Chipset Intel® 5520 Chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/ .
Cache Memory 12 MB Level 3 cache (L5630,E5620,X5650)
4 MB Level 3 cache (E5506)
Memory Protection Advanced memory protection
Mirroring Mode
Lockstep Mode
Memory Type DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard (Entry Models) 4GB (1 x 4GB)
Standard (Base Models) 8GB (2 x 4GB)
Standard (Performance
Models)
16GB (4 x 4GB)
Maximum (RDIMM) 192GB (12 x 16GB)
Maximum (UDIMM) 48GB (12 x 4GB)
NOTE: Depending on the memory configuration and processor model, the memory speed may run
at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator .
DDR3 memory options part number decoder
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 6

Expansion Slots Slot Number Bus Speed Bus Number * Device
Number **
Hot Plug
(Y/N)
Notes
1 x16 PCI-
Express
6 0 N Low Profile
2 x8 PCI-Express 5 0 N Full Length
Full Height
3 x8 PCI-Express 4 0 N Full Length
Full Height
4 x4 PCI-Express 3 0 N Full Length
Full Height
2 PCI-X *** Dynamic 1 N Full Length
Full Height
3 PCI-X *** Dynamic 2 N Full Length
Full Height
NOTE: All slots can accept universal keyed PCI cards.
NOTE: Support is limited to PCI-X cards only.
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment
number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest
Device ID by bus (starting with the lowest bus).
*** PCI-X bus speed will be 100MHz in maximum and support two PCI-X/100MHz cards.
**** Slot 2 contains bus 4 and bus 5 because BIOS configures this x16 PCI-express.
NOTE: PCI-X support is limited to PCI-X cards only.
NOTE: Slot to two x8 PCI-express slot for production riser, this is valid only on Option1: 2
PCIe2x8 full-length/full-height PCI-Express slots (Optional) or Option 4: 2 PCIe2x8 and 1 PCIex8
(4) full-length/full-height slots (Optional).
Storage Controller 4HDD Models HP Smart Array B110i SATA RAID
NOTE: To enable RAID on Embedded SATA, use the HP Smart Array
B110i SATA RAID Controller, To enable use of the B110i, enter the
ROM based setup utility(RBSU). The option for enabling RAID can be
found in the Advanced section of the RBSU.
NOTE: Embedded SATA controller support transfer rate up to 3Gb/s
NOTE: A diskette drive or virtual FDD using LO100 Advanced Pack is
needed to install storage controller drivers during a Windows operating
system installation from a CD.
8HDD Models HP Smart Array P410/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Support transfer rate up to 6Gb/s SAS or 3Gb/s SATA
12HDD Models HP Smart Array P212/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Available upgrades: P410 with FBWC, 256MB with BBWC,
512MB with FBWC, Battery kit upgrade (for the 256MB cache), and
Smart Array Advanced Pack (SAAP).
NOTE: Support transfer rate up to 3Gb/s SAS or 3Gb/s SATA
25HDD Models HP Smart Array P410/256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Available upgrades: P410, 512MB with FBWC, Battery kit
upgrade (for the 256MB cache), and Smart Array Advanced Pack
(SAAP).
NOTE: Support transfer rate up to 6Gb/s SAS or 3Gb/s SATA
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 7

NOTE: A minimum of 256 MB cache, battery kit, and Smart Array Advanced Pack License Key
upgrade (P/N: 516471-B21) is required to enable RAID 6, 6+0
NOTE: To achieve highest possible stated transfer rate please make sure the firmware on the
drive bays (backplanes) and HP Smart Array controller up to date. Latest firmware is available to
download from HP support web site.
Storage Diskette Drives Via USB only
Optical Drives Optional HP Slim SATA DVD-ROM Optical Drive
Optional HP Slim SATA DVD RW Optical Drive
NOTE: Support in 4, 8, and 12 drive models. Optical drives can only be
installed in 12 drive model and 25SFF drive bay system with rear option
kit (P/N 515826-B21).
Drive Bays Up to 14 Hot Plug SAS/SATA 3.5" drives
Up to 25 Hot Plug SAS/SATA 2.5" drives
NOTE: 4 Drive Models are Non-Hot Pluggable. Smart Array Controller
must be added for Hot Plug drive capability. 4 Drive Models can be
upgraded with the addition of a Smart Array Controller and a SAS/SATA
Multi-lane cable (496013-B21).
NOTE: The addition of a Smart Array Controller requires the addition of
a SAS/SATA Multi-lane cable (P/N 496013-B21).
Maximum Internal
Storage
Hot Plug 3.5" SATA 28.0TB (14 x 2TB)
Hot Plug 3.5" SAS 28.0TB (14 x 2TB)
Hot Plug 2.5" SATA 12.5TB (25 x 500GB)
Hot Plug 2.5" SAS 12.5TB (25 x 500GB)
Interfaces Network RJ-45
(Ethernet)
2 10/100/1000 NIC ports (plus 1 dedicated for the HP ProLiant Lights
Out 100i Remote Management)
Serial 1
Graphics 1
USB 5 total ports: (2) front, (2) rear, (1) optional internal
NOTE: In order to connect a USB device internally, the internal USB
Cable G6 Kit must be used (P/N 536769-B21).
NOTE: Please see the following URL for additional information
regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-
support.html .
Graphics 32MB* shared supporting all display resolutions up to 1600x1200 16bpp@75Hz
NOTE: 8MB is dedicated to video memory.
Form Factor Rack (2U), (3.5 in/8.89 cm)
Embedded
Manageability
HP Lights-Out 100
(LO100) Advanced
HP Lights-Out 100, simplifies server setup, control, and lights-out
remote administration of ProLiant 100 Series servers and functions
without additional software. It can be accessed from any location via
LAN or Internet and works hand-in-hand with HP Systems Insight
Manager (SIM), helping customers unlock the value of the ProLiant
platform and deliver the highest possible quality of IT service to the
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 8

business. Advanced Licenses are required for Virtual KVM and Virtual
Media feature activation.
Key features of LO100 are:
IPMI 2.0 & SMASH CLP support
ROM Setup Utility
Improvements to virtual media with the addition of USB 2.0 drives
and protocol support for much faster transfer speeds and DVD-
ROM support plus simplified virtual media (floppy and CD with no
FTTP server requirements)
Enhanced browser interface and embedded KVM over IP provides
OS-independent remote graphical console
24x7 Technical Support and Update (TSU) 1 year support and
license upgrades included in Advanced license
NOTE: For more information, see: http://www.hp.com/go/lo100
HP Insight Control
management software
HP Insight Control for
Linux
HP Insight Control for Linux, as a product option, delivers essential
infrastructure management that can help save time and money by
making it easy to deploy, monitor, remote control, and optimize your IT
infrastructure through a single, simple management console. The Insight
Control for Linux installs and license software modules that are
integrated into HP System Insight Manager.
The HP Insight Control for Linux (IC-Linux) serves environments
requiring a Linux-based management consoles. See www.hp.com/go/ic-
linux
HP Insight Control include one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff
and proactive delivery of software updates. For more information about
this service, please visit: http://www.hp.com/services/insight
Insight Control server
deployment
HP Insight Control server deployment is a deployment solution for HP
ProLiant and Integrity servers hosted on a Windows CMS. It automates
the process of deploying and provisioning server software, enabling
companies to quickly and easily adapt to changing business demands.
Insight Control server deployment includes software optimizations for
HP servers, including the HP scripting toolkits, configuration jobs for
leading industry-standard operating systems, sample unattended files,
and HP server support packs that include software drivers, management
agents, and important documentation. Deploying servers can be
accomplished either through imaging or through scripting.
Insight Control server deployment is hosted on a Windows server and is
intended for heterogeneous environments deploying Windows, Linux,
VMware ESX and Microsoft Hyper-V systems.
Insight Control server deployment includes one year of 24 x 7 HP
Software Technical Support and Update Service ensuring rapid access
to HP support staff and proactive delivery of software updates. For more
information about this service, please visit:
http://www.hp.com/services/insight .
Core Server
Management
ProLiant 100 Series G6
Core Management
Software
HP provides management solutions that are designed to simplify a
server's installation, configuration, and maintenance throughout the
entire server lifecycle. This provides the customers with higher levels of
operational efficiency and highly reliable systems.
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 9

While ProLiant 100 series G6 servers do not support the Insight
Foundation Suite for ProLiant, they support a key subset of this
important suite software tools and utilities which are very suitable for this
class of server: SIM, SMH, agents, providers, and a SmartStart 'like'
deployment CD called Easy Set-up which greatly simplifies server set-
up. Additionally the DL100 and SL100 G6 models support the
SmartStart Scripting Toolkit (SSSTK), an automated scalable
deployment utility.
Information on core management supported on ProLiant 100 series G6
servers can be found at these URLS:
Core Management: www.hp.com/go/coremanagement
HP ProLiant 100 series Easy Set-up CDs:
www.hp.com/servers/easysetup
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers,
storage and other infrastructure devices, (both HP and non-HP) across
multiple operating system platforms.
Insight Management
Agents
HP Insight Management Agents and Insight Management
Providers are available for HP Systems Insight Manager (SIM)
Integration.
ProLiant 100-series G6 servers can use the same SNMP based
Insight Management Agents supported by other ProLiant servers.
As a result, administrators can use HP Systems Insight Manager
(SIM) 5.3 and greater to manage ProLiant 100-series G6 servers.
Administrators can also use any other SNMP- based management
tool. These agents are obtained as part of the ProLiant 100-series
model-specific "Easy Set-up" CDs, or through:
www.hp.com/servers/easysetup
The following capabilities are enabled on the 100-series G6
servers by the SNMP agents:
Health monitoring capabilities, including monitoring for drives,
fans, network, power supplies, and temperature
Alerting capabilities, including basic alert notification for Smart
Array drive pre-failure only
Performance monitoring capabilities providing information on
processor, memory, disk free space, network utilization
NOTE: For additional information, please see:
http://www.hp.com/go/insight
Easy Set-up CD Easy Set-up CDs are available on all 100-series G6 servers and are
also available as an ISO image web download. HP ProLiant Easy Set-
up CDs provide easy, step-by-step, single and multi-server server
utilities for the ProLiant 100-series G6 servers to streamline server
setup for 100-series G6 servers. The user experience is consistent with
SmartStart and offers the following capabilities:
Boot environment and GUI
Assisted Installation: Windows 2003 Server and Windows 2008
Server drivers
Manual installation: Windows 2003 Server, Windows 2008 Server,
and Linux drivers (specific OS support varies by server. Refer to
each server's QuickSpecs for supported versions)
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 10

HP Insight Diagnostics
AutoRun
Array Configuration Utility (ACU) has been combined with Array
Diagnostics Utility (ADU) to offer both configuration of array
controllers and storage devices and testing of array controller
hardware
SmartStart Scripting Toolkit (SSSTK) and Smart Components for
software and drivers for DL100 and SL100 servers
NOTE: OS and SW available for Manual Installation are listed on each
servers' QuickSpecs.
SmartStart Scripting
Toolkit (SSSTK)
The SmartStart Scripting Toolkit is a server deployment product that
delivers an unattended automated installation for high-volume server
deployments. The SmartStart Scripting Toolkit includes a set of utilities
for configuring and deploying servers in a customized, predictable, and
unattended manner. These utilities enable you to duplicate the
configuration of a source server on target servers with minimum user
interaction.
The Toolkit is designed for IT experts with experience in scripting
operating system installations and configuring ProLiant server hardware.
NOTE: For additional information, please see:
http://h18004.www1.hp.com/products/servers/management/toolkit/
index.html
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-
based email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at:
http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq, software and
latest drivers
The latest software, drivers, and firmware fully optimized and tested for
your ProLiant server and options; downloaded from Software and
Drivers download pages website at: http://www.hp.com/go/support and
from www.hp.com/servers/easysetup . Contains the following:
HP Insight Management Agents for Systems Insight Manager
(SIM) Integration
HP Systems Management Homepage
Array Configuration Utility (ACU)
Array Diagnostics Utility (ADU)
HP Insight Diagnostics
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 11

Security Power-on password
Setup password
Diskette boot control
Secure Sockets Layer (SSL)
Secure Shell (SSH)
Security - Trusted
Platform Module
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used
to authenticate the server platform. These artifacts can include passwords, certificates and
encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature
available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a
Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user
data and to ensure that a server running Windows Server 2008 has not been tampered with while
the system was offline.
NOTE: For more information about TPM, including a white paper, go to www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or
losing the key could result in data loss.
Server Power Cords One 6' Highline (IEC-IEC) power cord ships standard
NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords (P/N 163719-
002) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are
primarily connected to PDU's in data center racks so they now ship standard with a PDU power
cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle
(NEMA-15), the NEMA power cord (P/N 227099-001) must be ordered separately.
If customers require a local power cord, they can check the power cord matrix for the appropriate
cord. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix
NOTE: Rack models ship standard with an IEC cable.
Localized cables included with geographic specific models in other world regions.
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page.
Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions,
requirements, and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords .
Power Supply HP has a new design for ProLiant power. The new Common Slot Power Supply bay. This design
provides the customer with commonality in power supplies across multiple platforms to save on
the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs.
Many HP ProLiant Servers come with Common Slot, High Efficiency and Right-Size Power
Supplies. Common Slot (CS) designates commonality of the power supply across multiple
ProLiant servers. HP's new Common Slot power supplies are designed for highest efficiency to
provide power efficiency without degrading performance of the ProLiant. Power Supplies will have
efficiency ratings up to 92%. There are three Right Size power options available, depending on
the configuration of your server. To make sure you select the correct power supply to meet your
configuration, we suggest that you use the HP Power Advisor to decide the "Right-Size" for your
configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and
Redundant.
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 12

Common Slot ProLiant It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power
supply for your needs. HP offers Power Supply Options:
460Watts, Common Slot, 92% Efficiency
750Watts, Common Slot, 92% Efficiency
460Watts, Common Slot, 94% Efficiency
750Watts, Common Slot, 94% Efficiency
HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple Energy Efficiency
Initiatives. Climate Savers Computing Initiative GOLD, ECOS Consulting 80PLUS GOLD and
plans on offering models that meet the Energy Star for Server requirements when they are
published.
HP's ProLiant Common Slot Power supplies (1200W) meet multiple Energy Efficiency Initiatives.
Climate Savers Computing Initiative Bronze, ECOS Consulting 80PLUS Bronze Power Supply
requirements.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through
power supply option kits.
System Fans 4 system fans ship standard; Non-hot plug, Non-redundant
NOTE: Redundant fan kit (P/N 516009-B21) available for purchase.
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Microsoft Windows Server Hyper-V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware ESX Server
Citrix Essentials for XenServer (Retail)
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available for your server, please visit
our Support Matrix at: http://www.hp.com/go/supportos and our driver download page
http://www.hp.com/support/DL180G6
Rack Airflow
Requirements
Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for
maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow
830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate
airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must
be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.
This arrangement ensures proper airflow. Using a rack without blanking panels results in improper
cooling that can lead to thermal damage.
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 13

Rack Kit HP ProLiant DL180 rack models have fixed rails which provide support for racks with round
mounting holes and tool-free support for racks with square mounting holes (including Compaq/HP
7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".
Telco Rack Support Support for all 2 and 4 post Telco racks and threaded hole racks requires an additional option kit
from Rack Solutions. The Rack Solutions brackets can be purchased at:
www.hp.com/go/rackandpower .
Factory Express
Portfolio for Servers
and Storage
HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server model please contact
your sales representative or go to: http://www.hp.com/go/factory-express .
HP Enterprise
Configurator
The HP eConfigure Enterprise Configurator now provides factory default racking for our HP
hardware portfolio. This approach is aligned with our strategic direction to meet the needs and
expectations of our valued customers. If you require "custom" rack configuration, please contact
HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator .
HPC Interconnect NOTE: High Performance Computing (HPC) interconnect technologies are available for this server
under the Cluster Platform product portfolio. These high-speed interconnects are fully supported
by HP when they are part of these configure to order clusters. Solutions can be defined with a lot
of flexibility with the help of configuration tools. Please visit the following URL to configure HPC
Clusters with InfiniBand or Gigabit Ethernet:
http://www.hp.com/techservers/clusters/ucp/index.html
InfiniBand PCI-Express Generation 2 adapters
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 14

Service and Support HP services provide total care and support expertise with committed response designed to meet
your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the
server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and
smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the
same service level and for the same coverage period as the server. Coverage of UPS Battery is
not included, standard warranty terms & conditions apply. For servers or storage systems installed
within a rack, service also covers all HP qualified rack options installed within the same rack.
To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of multi vender support solutions provides a range of support services
designed to meet the varying needs of business. Whether an SMB or large global corporation HP
has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
Recommended Service - Simplify ProLiant solution implementation, maintenance and
management.
Support Service - 3-Year 24x7 4 hr Response service support coverage
Deployment Service - Hardware Installation
Enhanced Service - Optimize service level to increase IT performance and availability
Support Service - 3-Year 24x7 24 hr Call to repair service support coverage
Support - - 3-Year 24x7 6 hr Call to repair service support coverage
Support Plus - 24x7 4 hr Response service support including OS coverage
Installation of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or
Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://h20219.www2.hp.com/services/us/en/warranty/carepack-servers-proliant.html
QuickSpecs
HP ProLiant DL180 Generation 6
Standard Features
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 15

Four Drive Serial ATA (SATA) Models
NOTE: Upgrading from 4 Non-Hot Plug SATA hard drives to 4 Hot Plug SATA/SAS hard drives requires the addition of a
storage controller and one Internal mini-SAS cable (P/N 496013-B21).
NOTE: Upgrading to 8 Hot Plug SATA/SAS hard drives requires the addition of a HP 2U G6 8HDD LFF DL18X KIT (P/N
506924-B21), storage controller (Smart Array P410/256MB recommended), and two Internal SATA/SAS cables (mini-SAS
cable (P/N 496013-B21).
HP DL180G6 E5504
2x2GB 4LFF
487502-xx1
Processor Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W,
DDR3-800)
Cache Memory 4MB shared L3 cache (E5504)
Memory 4GB (2 x 2GB) PC3-10600E (UDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller Embedded SATA Raid Standard RAID 0,1,10
Hard Drive 1x 160GB Hot Plug SATA
NOTE: Hot-plug functionality requires the addition of a Smart Array
controller.
Internal Storage 8.0TB (4 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
8.0TB (4 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 L5520
2x2GB 4LFF
487506-xx1
Processor Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 8MB shared L3 cache (L5520)
Memory 4GB (2 x 2GB) PC3-10600E (UDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller Embedded SATA Raid Standard RAID 0,1,10
Hard Drive 1x 160GB Hot Plug SATA
NOTE: Hot-plug functionality requires the addition of a Smart Array
controller.
Internal Storage 8.0TB (4 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
8.0TB (4 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 E5506
1x4GB 4LFF
590637-xx1
Processor Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W,
DDR3-800)
Cache Memory 4MB shared L3 cache (E5506)
Memory 4GB (1 x 4GB) PC3-10600R-9 (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array B110i SATA RAID Controller
Hard Drive None Ship Standard
Internal Storage 8.0TB (4 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
8.0TB (4 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency power supply
Form Factor Rack (2U)
QuickSpecs
HP ProLiant DL180 Generation 6
Models
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 16

Eight Drive Serial ATA (SATA) Models
NOTE: Supports up to 8 Hot Plug SATA or SAS Hard Drives.
HP DL180G6 E5620
2x4GB 8LFF
590638-xx1
Processor Intel® Xeon® Processor E5620 (2.4 GHz, 12MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 8MB shared L3 cache
Memory 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0)
NOTE: Smart Array Advanced Pack License Key upgrade (P/N 516471-
B21) is required to enable RAID 6, 6+0
Hard Drive None ship standard
Internal Storage 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 E5520
3x2GB 8LFF
487503-xx1
Processor Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 8MB shared L3 cache
Memory 6GB (3 x 2GB) PC3-10600E (UDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P410 /256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: A minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade (P/N 516471-B21) is required to
enable RAID 6, 6+0
Hard Drive None ship standard
Internal Storage 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 L5630 1x4
GB 8LFF
590636-xx1
Processor Intel® Xeon® Processor L5630 (2.13 GHz, 12M L3 Cache, 40W, DDR3-
1066, HT, Turbo 1/1/2/2)
Cache Memory 12MB shared L3 cache
Memory 4GB (1 x 4GB) PC3L-10600R-9 (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P410 /256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: A minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade (P/N 516471-B21) is required to
enable RAID 6, 6+0
Hard Drive None ship standard
Internal Storage 16.0TB (8 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
16.0TB (8 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 460W common slot, high efficiency Platinum power supply
QuickSpecs
HP ProLiant DL180 Generation 6
Models
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 17

Form Factor Rack (2U)
Twelve Drive Serial ATA (SATA) Models
NOTE: Internal Storage expandable to 14 SAS/SATA drives with 2 Rear Drive Option Kit (P/N 488234-B21)
HP DL180G6 E5620
2x4GB 12LFF US
590639-xx1
Processor Intel® Xeon® Processor E5620 (2.4 GHz, 12MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 12MB shared L3 cache
Memory 8GB (2 x 4GB) PC3-10600R-9 (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P212 /256MB BBWC Controller (RAID 0/1/1+0/5/5+0)
NOTE: Smart Array Advanced Pack License Key upgrade (P/N 516471-
B21) is required to enable RAID 6, 6+0
Hard Drive None ship standard (up to 12 Hot Plug SATA or SAS drives supported)
Internal Storage 24.0TB (12 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
NOTE: Internal Storage expandable to 14 SAS/SATA drives with 2 Rear
Drive Option Kit (P/N 488234-B21)
Optical Drive None ship standard
Power Supply 750W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 E5540
6x2GB 12LFF US
487507-xx1
Processor (2) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 8MB shared L3 cache
Memory 12GB (6 x 2GB) PC3-10600R (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P212 /256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade (P/N 516471-B21) is required to
enable RAID 6, 6+0
Hard Drive None ship standard (up to 12 Hot Plug SATA or SAS drives supported)
Internal Storage 24.0TB (12 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
NOTE: Internal Storage expandable to 14 SAS/SATA drives with 2 Rear
Drive Option Kit (P/N 488234-B21)
Optical Drive None ship standard
Power Supply 750W common slot, high efficiency power supply
Form Factor Rack (2U)
HP DL180G6 E5520
3x2GB 12LFF
487508-xx1
Processor Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
Cache Memory 8MB shared L3 cache
Memory 6GB (3 x 2GB) PC3-10600E (UDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P212 /256MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade (P/N 516471-B21) is required to
enable RAID 6, 6+0
Hard Drive None ship standard (up to 12 Hot Plug SATA or SAS drives supported)
QuickSpecs
HP ProLiant DL180 Generation 6
Models
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 18

Internal Storage 24.0TB (12 x 2TB Hot Plug 3.5" SATA hard drives), Maximum
24.0TB (12 x 2TB Hot Plug 3.5" SAS hard drives), Maximum
NOTE: Internal Storage expandable to 14 SAS/SATA drives with 2 Rear
Drive Option Kit (P/N 488234-B21)
Optical Drive None ship standard
Power Supply 750W common slot, high efficiency power supply
Form Factor Rack (2U)
Twenty Five Drive SAS Models
HP DL180G6 X5650
4x4GB 25SFF US
590640-xx1
Processor (2) Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W,
DDR3-1333, HT, Turbo 2/2/3/3)
Cache Memory 12MB shared L3 cache
Memory 16GB (4 x 4GB) PC3-10600R-9 (RDIMM)
Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P410/256MB BBWC Controller (RAID 0/1/1+0/5/5+0)
NOTE: Smart Array Advanced Pack License Key upgrade (P/N 516471-
B21) is required to enable RAID 6, 6+0
Hard Drive None Ship Standard
Internal Storage 12.5TB (25 x 500GB Hot Plug 2.5" SATA hard drives), Maximum
12.5TB (25 x 500GB Hot Plug 2.5" SAS hard drives), Maximum
Optical Drive None ship standard
Power Supply 750 W common slot ,power supply
Form Factor Rack (2U)
Country Code Key xx=00 U.S.
xx=29 Japan
xx=37 APD
xx=42 Europe
xx=AA PRC
QuickSpecs
HP ProLiant DL180 Generation 6
Models
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 19

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Hot Plug LFF Models
HP ProLiant DL180 G6 Hot Plug SAS/SATA Rack CTO Chassis 507168-B21
Factory Integrated Model ships with:
HP NC362i Integrated Dual Port Gigabit Server Adapter
Three available PCI-Express slots:
Slot 1: x16 low-profile/half-height slot
Optional Slots 2, 3, & 4: 2x8 full-height/full length, 1x4 full-height/full length
(Recommended)
NOTE: Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height
PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is
installed in the server.
NOTE: Optional FL/FH option kit includes: Slot 1: full length/full height slot.
One HP SATA Embedded Cable Kit
One Highline IEC Power Cord
4 Non-Hot Plug Fans
Rack (2U), (3.5 in/8.89 cm)
Tool-less Fixed Rails
Hot Plug SFF Models
HP ProLiant DL180 G6 Hot Plug SAS/SATA Rack CTO Chassis 594911-B21
Factory Integrated Model ships with:
HP NC362i Integrated Dual Port Gigabit Server Adapter
Three available PCI-Express slots:
Slot 1: x16 low-profile/half-height slot
Optional Slots 2, 3, & 4: 2x8 full-height/full length, 1x4 full-height/full length
(Recommended)
NOTE: Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height
PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is
installed in the server.
NOTE: Optional FL/FH option kit includes: Slot 1: full length/full height slot.
One HP SATA Embedded Cable Kit
One Highline IEC Power Cord
4 Non-Hot Plug Fans
Rack (2U), (3.5 in/8.89 cm)
QuickSpecs
HP ProLiant DL180 Generation 6
Configuration Information - Factory Integrated Models
DA - 13248 Worldwide QuickSpecs — Version 22 — 7/13/2010 Page 20
