HP StorageWorks arrays: bridging
the gap between data explosion and
storage infrastructure
Regardless of the size of your organization, it’s likely
that you are facing daunting challenges regarding
data storage. You not only require immediate access to
exploding volumes of data, but government regulations
and corporate governance are dictating what must be
kept, for how long, and when you need to gain access
to it. Therefore, it is critical that you invest in a cost-
effective, long-term solution that can support your
business now and well into the future, and that all of
the different components and options are compatible
with one another.
HP StorageWorks’ family of disk arrays reduces the
complexity of your storage environment and helps to
lower costs because they are easy to install, easy to
manage, and easy to support. All of your storage
needs are addressed—whether it’s an entry-level
modular array, an enterprise-class disk array, or
intelligent management software. Our simplified array
and user interface designs mean that you’ll spend less
time installing, configuring, and managing your
storage management tasks.
The HP StorageWorks disk array portfolio includes:
•All-in-One (AiO) Storage Systems—providing simple,
affordable networked storage; specifically, network-
attached storage (NAS) and Internet small computer
system interface (iSCSI), with integrated data
protection features and simplified management
•Modular Smart Arrays (MSAs)—enabling low-cost,
scalable, high-performance storage consolidation
through SANs to meet entry-level to midrange
requirements
•Enterprise Virtual Arrays (EVAs)—an ideal storage
solution for midrange to enterprise-class environments
that require high performance, high capacity, and
high availability
•P Disk Arrays—The HP StorageWorks
XP24000/XP20000 Disk Arrays are large enterprise-
class storage systems designed for organizations that
simply cannot afford any downtime or tolerate any
data loss.
Plus, we offer a range of complementary offerings to
help you tackle the most basic to the most complex
storage challenges. These include everything from a
single tape drive to an automated tape library as well
as enterprise-wide SANs with arrays flexible enough to
manage gigabytes to petabytes of storage.
Our server portfolio consists of the HP Integrity and
HP ProLiant server families as well as HP BladeSystem.
When you combine HP StorageWorks solutions with
HP servers, the advantages multiply even further:
hardware and software integrate seamlessly, systems
are easy to manage, change is simplified, and you’re
prepared for future challenges. You can learn more
about our server portfolio on page 12.

Why should you choose HP storage with your HP
server? There are many reasons why HP StorageWorks
is your best storage option with your HP server. Here
are just a few:
• Do you need a single interface to monitor, automate,
and control your complex IT environment? Is pooling
and sharing of resources important for increasing
your IT utilization? Do you need to reduce business
risk from unplanned downtime?
Our software allows you to manage, virtualize, and
protect IT resources to simplify and optimize your
infrastructure. For example, HP Systems Insight
Manager can lower costs and simplify with common
storage and server management.
• How efficiently do your storage and servers work
together?
We spend hundreds of hours rigorously testing our
storage and servers together so you can deploy our
solutions with confidence.
• Do you need to save time when deploying storage
and servers?
Accelerate deployment with solutions that are ready
to run. With Factory Express you can choose how
your solution is built, tested, integrated, shipped, and
deployed, which means you know your solutions will
work from Day One.
• How important is it that your service partner provides
a single point of ownership and accountability? Do
they meet your service needs across your enterprise?
Have you reached the mission-critical reliability you
require to meet your business needs?
From training and basic product support to selective
outsourcing, our services help you realize the full
potential of your technology to meet your business
requirements.
• Do you have everything you need to meet your
infrastructure needs?
Our server and storage options—including memory,
disk drives, processors, racks, operating system
software, array-based software, power, and
cooling—help optimize your solution by enhancing
system performance and functionality.
Storage matters more than ever, and the demands on
your storage and server infrastructure will only continue
to grow. Over the next several pages, you’ll see how
HP StorageWorks solutions have been designed to
answer your unique needs and requirements—and
promote greater business outcomes—now and into
the future.
4

5
For more information, visit www.hp.com/go/AiOStorage.
Description
Number of processors
Processor
iSCSI initiator support
File serving support
Memory
Remote management
External storage expansion
(via Smart Array controller)
Expansion slots
Internal storage
Rack height (form factor)
Warranty
HP StorageWorks 400t All-in-One
Storage System (AiO400t)
HP StorageWorks 400r All-in-One
Storage System (AiO400r)
HP StorageWorks 600 All-in-One
Storage System (AiO600)
HP StorageWorks 1200r All-in-One
Storage System (AiO1200r)
Entry-level
Four-drive entry-level tower
All-in-One network storage for
smaller environments
1
Dual-Core Intel®Pentium®
E2160 1.8 GHz with
1 x 1 MB L2 cache
2 GB (4 GB maximum)
Optional Lights-Out 100c
None
Full-height, half-length 32-bit/
33 MHz PCI slot
Full-height, half-length PCIe x1 slot
Full-height, full-length PCIe x1 slot
(x8 connector)
Full-height, full-length PCIe x8 slot
Lights-Out 100c slot
1 TB SATA (4 x 250 GB)
584 GB SAS (4 x 146 GB)
Micro tower
Four-drive entry-level rackmount
All-in-One network storage for
smaller environments
1 (supports 2)
Quad-Core Intel®Xeon®
E5405 2.00 GHz, 80W,
1333 MHz FSB)
2 GB (4 GB maximum)
Lights-Out 100i
MSA50, 60, 70
Full-length, full-height PCI Express
(PCIe) x16 slot (occupied)
Low-profile PCIe x4 slot (x8 connector)
1 TB SATA (4 x 250 GB)
2 TB SATA (4 x 500 GB)
1.2 TB SAS (4 x 300 GB)
1U (rack)
Six-drive All-in-One network storage
with hardware redundancy and
easy expandability
1 (supports 2)
Dual-Core Intel Xeon
2.67 GHz/1333 MHz
FSB with 4 MB L2 cache
1 GB (4 GB maximum)
Integrated Lights-Out 2 (iLO2)
MSA20, 30, 50, 60, 70
(3) x4 PCI Express (x8 connectors)
(1) 64-bit, 133 MHz 3.3 V PCI-X
(2) 64-bit, 100 MHz 3.3 V PCI-X
1.5 TB SATA (6 x 250 GB)
3.0 TB SATA (6 x 500 GB)
876 GB SAS (6 x 146 GB)
1.8 TB SAS (6 x 300 GB)
5U (tower or rack)
Twelve-drive All-in-One network
storage with high performance and
high internal capacity
1 (supports 2)
Quad-Core AMD Opteron™
Model 2354 2.2 GHz with
4 x 512 B L2 cache and
2 MB shared L3 cache
2 GB or 4 GB (4 GB maximum)
Lights-Out 100i
MSA50, 60, 70
(2) x8 full-length, full-height
PCI Express (one slot occupied
by Smart Array P800/512 MB
controller)
3.0 TB SATA (12 x 250 GB)
6.0 TB SATA (8 x 750 GB)
9.0 TB SATA (12 x 750 GB)
12.0 TB SATA (12 x 1 TB)
2.4 TB SAS (8 x 300 GB)
3.6 GB SAS (12 x 300 GB)
2U (rack)
Interoperable with standards-compliant iSCSI initiators including those from Windows®2000, Windows Server 2003, Windows Server 2008,
VMware ESX Server 3, SUSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, and QLogic 40xx series iSCSI hardware HBAs.
Heterogeneous file serving with support for SMB/CIFS, NFS, AppleTalk, Novell, HTTP, FTP
HP StorageWorks All-in-One Storage Systems
Unified solutions combining shared iSCSI storage and customized NAS
file serving with integrated data protection, designed to be deployed and
managed by IT generalists with no storage expertise.
HP related offerings
Recommended services
Software
Tape
HP StorageWorks Storage Mirroring to replicate iSCSI array and file data to another system
HP StorageWorks Data Protector Express Options to protect servers connected to the AiO
SCSI Ultrium tape drives
1/8 G2 Autoloader with
Ultrium 448 Tape Drive(s)
1/8 G2 Autoloader with Ultrium 920
Tape Drive(s)
SCSI Ultrium tape drives
1/8 G2 Autoloader with Ultrium 920
Tape Drive(s)
MSL2024 Tape Library with Ultrium
920 and Ultrium 960 Tape Drive(s)
1 year parts, 1 year labor,
1 year on-site support
3 years Support Plus 24
Hardware Installation
1 year parts, 1 year labor,
1 year on-site support
3 years parts, 3 years labor,
3 years on-site support
1 year parts, 1 year labor,
1 year on-site support
3 years Support Plus 24
Hardware Installation
3 years Support Plus 24
Hardware Installation
3 years Support Plus 24
Hardware Installation
SCSI Ultrium tape drives
1/8 G2 Autoloader with
Ultrium 448 Tape Drive(s)

6
For more information, visit www.hp.com/go/msa.
Entry-level

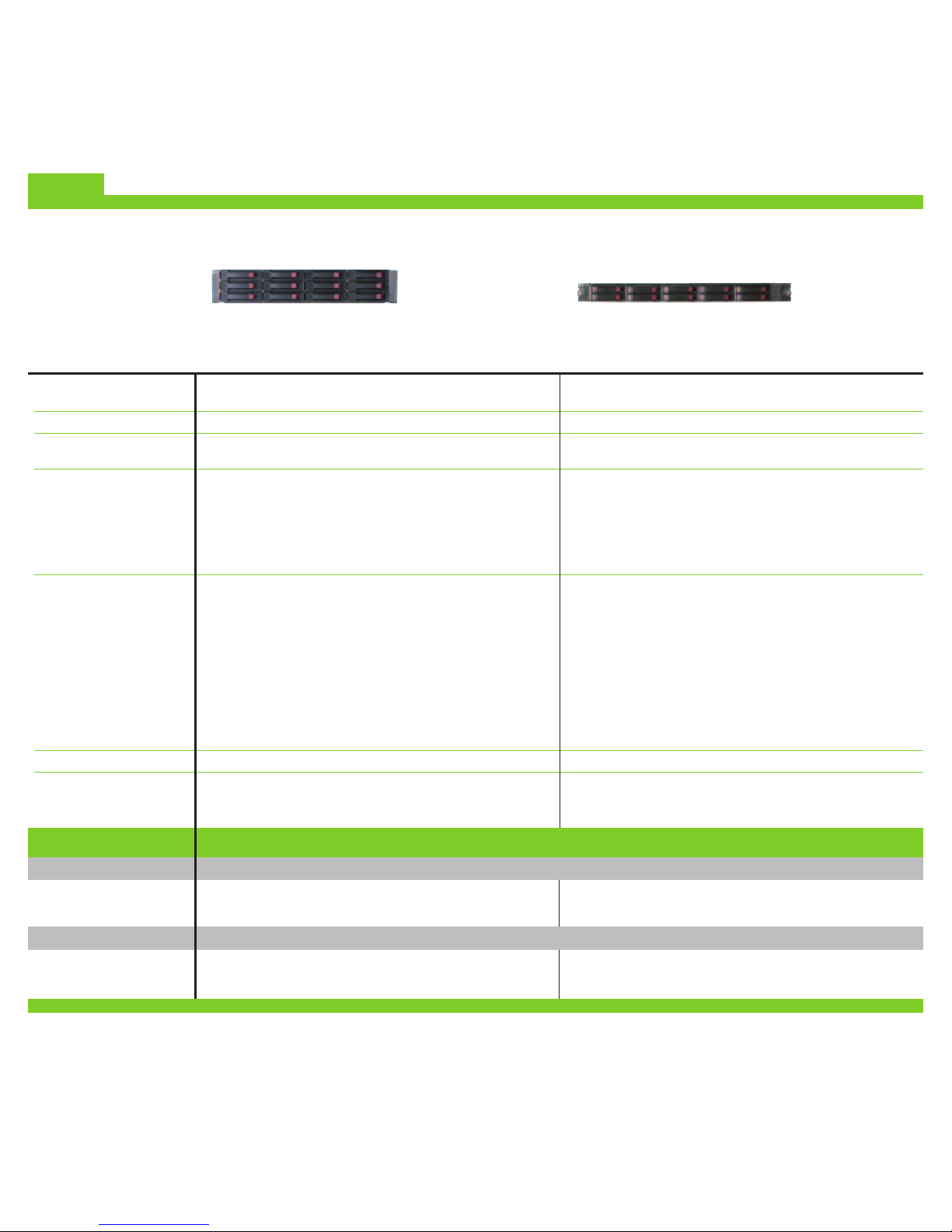

HP StorageWorks 20 Modular Smart Array (MSA20) HP StorageWorks 50 Modular Smart Array (MSA50)
SATA drive enclosure; capacity for direct attach SAS storage enclosure supporting SAS and SATA
HP StorageWorks Modular Smart Arrays
The HP StorageWorks Modular Smart Array (MSA) family is ideal for organizations
looking for entry-level/midrange SANs and low-cost DAS solutions.
3 years Support Plus 24
On-site Hardware Support Service
HP Systems Insight Manager (SIM)
HP Array Configuration Utility (ACU)
3 years Support Plus 24
On-site Hardware Support Service
HP Systems Insight Manager (SIM)
HP Array Configuration Utility (ACU)
Maximum storage
Host interface
Maximum number of drives
Hard drives supported
Operating systems supported
Rack height
Warranty
Up to 12 TB with SATA drives
Ultra320 SCSI
Up to 12 SATA Large Form Factor (LFF) drives
1TB 3G 7.2 3.5 inch SATA
750 GB 3G 7.2 3.5 inch SATA
500 GB 3G 7.2 3.5 inch SATA
250 GB 3G 7.2 3.5 inch SATA
Note: 3G drives only function at 1.5G
Microsoft®Windows®Server 2003
Microsoft Windows Server 2000
Microsoft Windows Storage Server 2003
Novell NetWare 6.5
Red Hat Enterprise Linux 2.1
Red Hat Enterprise Linux
SUSE Linux Enterprise 9 (SLES9)
SCO OpenServer 6.0.0
SCO UnixWare 7.1.3
SCO UnixWare 7.1.4
VMware
2U
3 years parts
Up to 1.44 TB with SAS drives
Up to 1.2 TB with SATA drives
SAS
Up to 10 SAS and/or SATA Small Form Factor (SFF) drives
1
46 GB 3G 10 2.5 inch Single Port SAS
72 GB 3G 10 2.5 inch Single Port SAS
36 GB 3G 10 2.5 inch Single Port SAS
72 GB 3G 15 2.5 inch Single Port SAS
36 GB 3G 15 2.5 inch Single Port SAS
120 GB 1.5G 5.4 2.5 inch SATA
60 GB 1.5G 5.4 2.5 inch SATA
Microsoft Windows Server 2000
Microsoft Windows Server 2003
Microsoft Windows Storage Server 2003
Microsoft Windows 2008
Novell Open Enterprise Server
Novell NetWare 6.5 SPS
SCO OpenServer 5.0.7, 6
SCO UnixWare 7.1.3, 7.1.4
Red Hat Enterprise Linux
Solaris 10
SUSE Linux Enterprise Server 9, 10
VMware ESX 3.5
1U
3 years parts
HP related offerings
Recommended services
Software
For additional information on related software for these products, see page 13.

7
For more information, visit www.hp.com/go/msa.

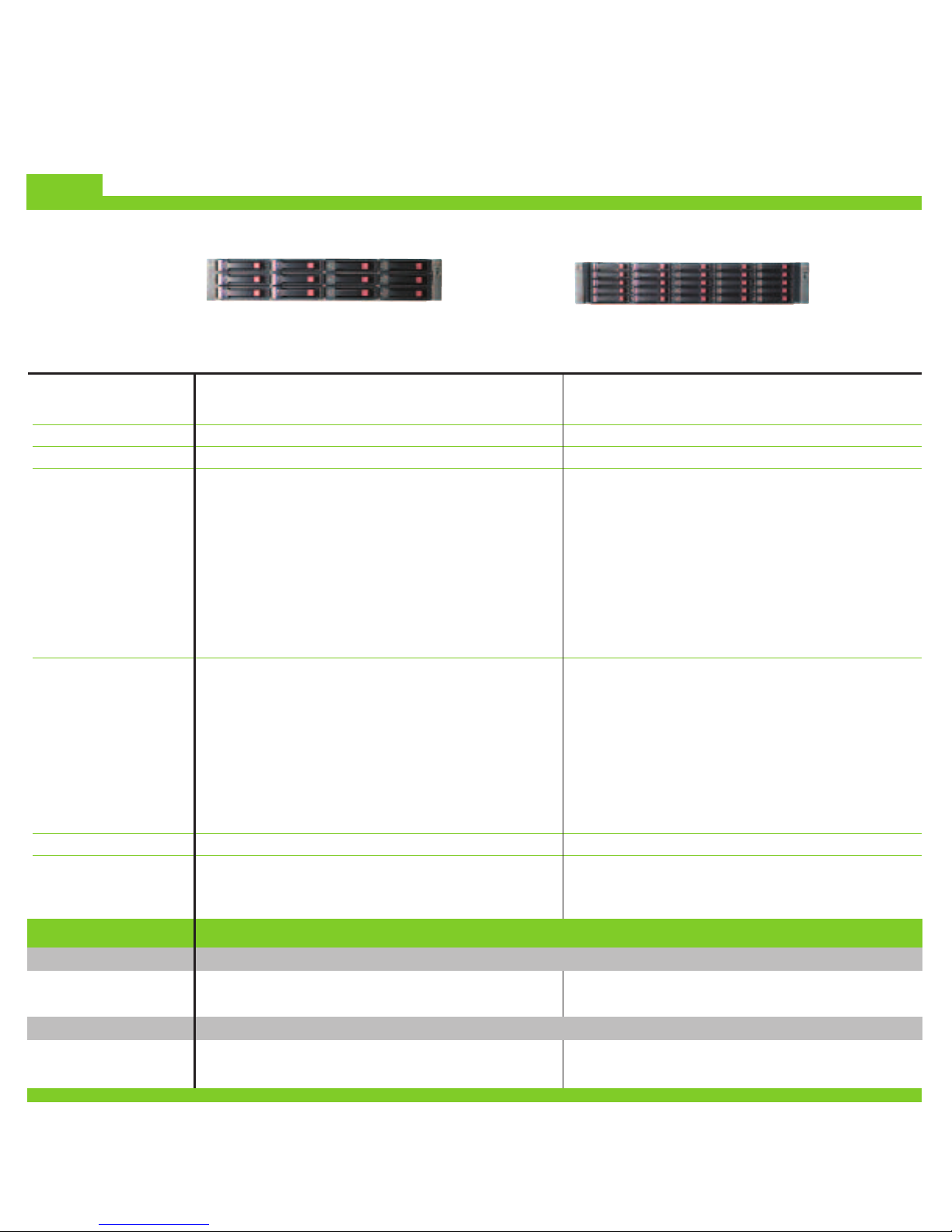

HP StorageWorks 60 Modular Smart Array (MSA60) HP StorageWorks 70 Modular Smart Array (MSA70)
SAS/SATA drive enclosure for direct attach SAS/SATA drive enclosure for direct attach
Entry-level
HP StorageWorks Modular Smart Arrays (continued)
The HP StorageWorks Modular Smart Array (MSA) family is ideal for organizations
looking for entry-level/midrange SANs and low-cost DAS solutions.
Maximum storage
Host interface
Maximum number of drives
Hard drives supported
Operating systems supported
Rack height
Warranty
Up to 5.4 TB with SAS drives
Up to 12 TB with SATA drives
Up to 12 TB with SAS Dual Port Midline (MDL) drives
SAS
Up to 12 SATA and/or SAS LFF drives
450 GB 3G 15 3.5 inch Dual Port SAS
300 GB 3G 15 3.5 inch Dual Port SAS
146 GB 3G 15 3.5 inch Dual Port SAS
72 GB 3G 15 3.5 inch Dual Port SAS
300 GB 3G 15 3.5 inch Single Port SAS
146 GB 3G 15 3.5 inch Single Port SAS
72 GB 3G 15 3.5 inch Single Port SAS
1 TB 3G 15 3.5 inch Dual Port MDL SAS
750 G 3G 15 3.5 inch Dual Port MDL SAS
1 TB 3G 7.2 3.5 inch SATA
750 GB 3G 7.2 3.5 inch SATA
500 GB 3G 7.2 3.5 inch SATA
250 GB 3G 7.2 3.5 inch SATA
Microsoft Windows 2003
Microsoft Windows 2008
HP-UX 11i v2, 11i v3
HP OpenVMS 8.31H
Novell Open Enterprise Server
Novell NetWare 6.5 SPS
SCO OpenServer 5.0.7, 6
SCO UnixWare 7.1.3, 7.1.4
Red Hat Enterprise Linux 3, 4, 5
SUSE Linux Enterprise Server 9, 10
Solaris 10
VMware ESX 3.5
2U
3 years parts only
Up to 3.6 TB with SAS drives
Up to 3.0 TB with SATA drives
SAS
Up to 25 SAS or SATA SFF drives
72 GB 3G 15 2.5 inch Dual Port SAS
36 GB 3G 15 2.5 inch Dual Port SAS
72 GB 3G 15 2.5 inch Single Port SAS
36 GB 3G 15 2.5 inch Single Port SAS
146 GB 3G 10 2.5 inch Dual Port SAS
72 GB 3G 10 2.5 inch Dual Port SAS
146 GB 3G 10 2.5 inch Single Port SAS
72 GB 3G 10 2.5 inch Single Port SAS
120 GB 1.5G 5.4 2.5 inch SATA
60 GB 1.5G 5.4 2.5 inch SATA
Microsoft Windows 2003
Microsoft Windows 2008
HP-UX 11i v2, 11i v3
HP OpenVMS 8.31H
Novell Open Enterprise Server
Novell NetWare 6.5 SPS
SCO OpenServer 5.0.7, 6
SCO UnixWare 7.1.3, 7.1.4
Red Hat Enterprise Linux 3, 4, 5
SUSE Linux Enterprise Server 9, 10
Solaris 10
VMware ESX 3.5
2U
3 years parts only
3 years Support Plus 24
On-site Hardware Support Service
HP Systems Insight Manager (SIM)
HP Array Configuration Utility (ACU)
3 years Support Plus 24
On-site Hardware Support Service
HP Systems Insight Manager (SIM)
HP Array Configuration Utility (ACU)
For additional information on related software for these products, see page 13.
HP related offerings
Recommended services
Software

8
For more information, visit www.hp.com/go/msa.
Entry-level
Maximum storage
Host interface
Number of hosts supported
Maximum number of drives
Hard drives supported
Operating systems supported
Rack height
Warranty
HP StorageWorks Modular Smart Arrays (continued)
The HP StorageWorks Modular Smart Array (MSA) family is ideal for
organizations looking for entry-level departmental or remote SAN solutions.
48 TB
4 Gb Fibre Channel
64
1–48
146 GB 3G 15 3.5 inch Dual Port SAS
300 GB 3G 15 3.5 inch Dual Port SAS
500 GB 3G 7.2 3.5 inch SATA
750 GB 3G 7.2 3.5 inch SATA
1 TB 3G 7.2 3.5 inch SATA
Microsoft Windows 2008 IA32 version
Microsoft Windows 2008 x64
Microsoft Windows 2003 R2
Microsoft Windows 2003 x64
Red Hat Enterprise Linux 4, 5
SUSE Linux Enterprise Server 9, 10
VMware ESX 3.0.1, 3.0.2, 3.5
2U
3 years parts
48 TB
1 Gb Ethernet iSCSI
16
1–48
146 GB 3G 15 3.5 inch Dual Port SAS
300 GB 3G 15 3.5 inch Dual Port SAS
500 GB 3G 7.2 3.5 inch SATA
750 GB 3G 7.2 3.5 inch SATA
1 TB 3G 7.2 3.5 inch SATA
Microsoft Windows 2003 R2
Microsoft Windows 2003 x64
Red Hat Enterprise Linux 4, 5
SUSE Linux Enterprise Server 9, 10
VMware ESX 3.0.1, 3.0.2, 3.5
2U
3 years parts
48 TB
3 Gb/sec SAS
4
1–48
146 GB 3G 15 3.5 inch Dual Port SAS
300 GB 3G 15 3.5 inch Dual Port SAS
500 GB 3G 7.2 3.5 inch SATA
750 GB 3G 7.2 3.5 inch SATA
1 TB 3G 7.2 3.5 inch SATA
Microsoft Windows 2008 IA32 version
Microsoft Windows 2008 x64
Microsoft Windows 2003 R2
Microsoft Windows 2003 x64
Red Hat Enterprise Linux 5
SUSE Linux Enterprise Server 10
VMware ESX 3.5
2U
3 years parts
3 years Support Plus 24
Disk Array SAN Solution Service
HP StorageWorks MSA2000 Snapshot and
Volume Copy Software
HP StorageWorks Storage Mirroring
3 years Support Plus 24
Disk Array SAN Solution Service
HP StorageWorks MSA2000 Snapshot and
Volume Copy Software
HP StorageWorks Storage Mirroring
3 years Support Plus 24
Disk Array SAN Solution Service
HP StorageWorks MSA2000 Snapshot and
Volume Copy Software
HP StorageWorks Storage Mirroring
NewNew
HP StorageWorks 2000fc Modular Smart Array
(MSA2000fc) 4 Gb Fibre Channel connected, 2U
storage area network (SAN) solution designed
for small to medium-size deployments or remote
locations
HP StorageWorks 2000i Modular Smart Array
(MSA2000i) iSCSI connected, 2U storage area
network (SAN) solution designed for small to
medium-size deployments or remote locations
HP StorageWorks 2000sa Modular Smart Array
(MSA2000sa) Modular, reliable, affordable, and
easy-to-manage shared storage array solution
For additional information on related software for these products, see page 13.
New
HP related offerings
Recommended services
Software

9
For more information, visit www.hp.com/go/eva.
Midrange
Maximum storage
Number of controllers
Hard drives supported
Maximum number of drives
per enclosure
Cache (per controller pair)
Operating systems supported
Warranty

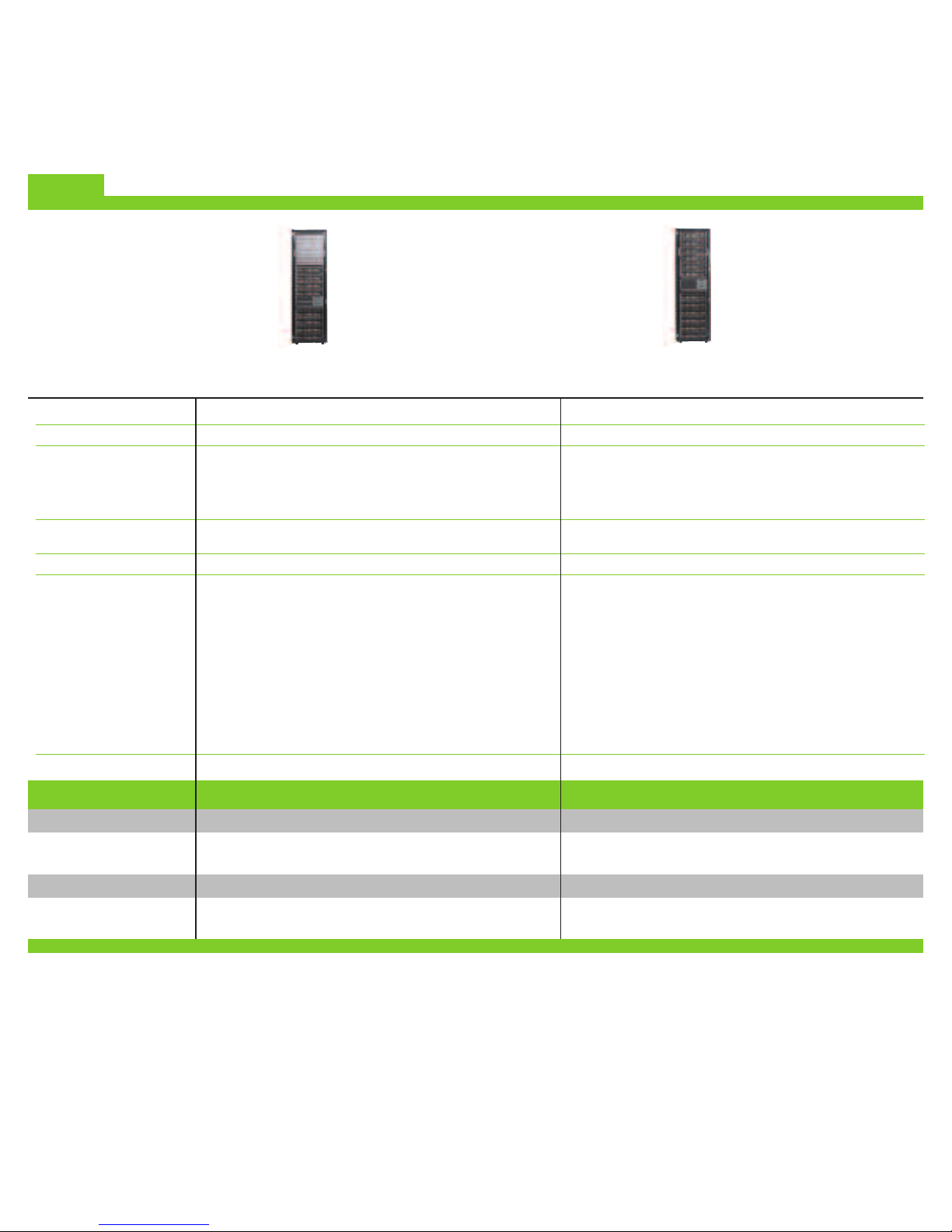

HP StorageWorks 4400 Enterprise Virtual Array (EVA4400)
Easy to deploy and affordable enterprise-class storage array functionality for the midsize customer
96 TB
2
146 GB 15 rpm
300 GB 15 rpm
450 GB 15 rpm
400 GB 10 rpm
1 TB FATA
12
4 GB
Microsoft Windows Server 2003
Microsoft Windows Server 2008
HP-UX
HP OpenVMS
Linux
Sun Solaris
Novell NetWare
IBM AIX
VMware
Apple Mac OS X
2 years parts, 2 years labor, 2 years on-site support
HP StorageWorks Enterprise Virtual Arrays
HP StorageWorks Enterprise Virtual Arrays (EVAs) provide
outstanding TCO to support business-critical processes.
HP related offerings
Recommended services
Software
SAN Solution Service
Backup and Recovery Solution Service
HP StorageWorks Business Copy EVA
HP StorageWorks Continuous Access EVA
For additional information on related software for these products, see page 13.
Or visit www.hp.com/storage/evasoftware.

HP related offerings
Recommended services
Software
Backup and Recovery Solution Service
SAN Solution Service
HP StorageWorks Business Copy EVA
HP StorageWorks Continuous Access EVA
Backup and Recovery Solution Service
SAN Solution Service
HP StorageWorks Business Copy EVA
HP StorageWorks Continuous Access EVA
Maximum storage
Number of controllers
Hard drives supported
Maximum number of drives
per enclosure
Cache (per controller pair)
Operating systems supported
Warranty
10
For more information, visit www.hp.com/go/eva.

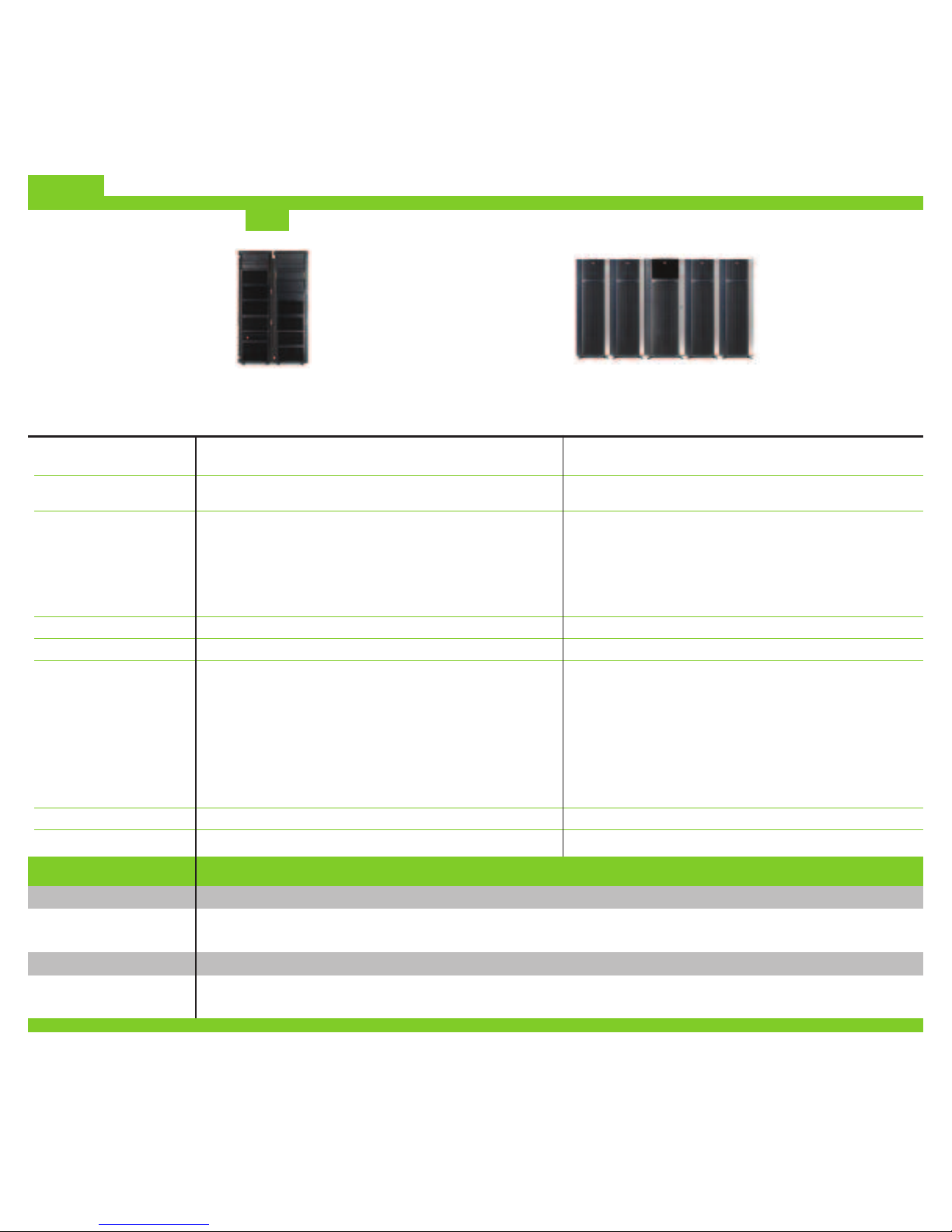

HP StorageWorks 6100 Enterprise Virtual Array (EVA6100) HP StorageWorks 8100 Enterprise Virtual Array (EVA8100)
Simple to deploy, strong performance with higher capacity Simple to deploy, highest performance and highest capacity EVA
than EVA4100 or EVA4400
Midrange
112 TB
2
450 GB 15 rpm
300 GB 15 rpm
146 GB 15 rpm
300 GB 10 rpm
1 TB FATA
14
4 GB
Microsoft Windows Server 2000
Microsoft Windows Server 2003
Microsoft Windows Server 2008
HP-UX
HP OpenVMS
HP Tru64 UNIX
Sun Solaris
Linux
IBM AIX
Novell NetWare
VMware
Apple Mac OS X
2 years parts, 2 years labor, 2 years on-site support
240 TB
2
450 GB 15 rpm
300 GB 15 rpm
146 GB 15 rpm
300 GB 10 rpm
1 TB FATA
14
8 GB
Microsoft Windows Server 2000
Microsoft Windows Server 2003
Microsoft Windows Server 2008
HP-UX
HP OpenVMS
HP Tru64 UNIX
Sun Solaris
Linux
IBM AIX
Novell NetWare
VMware
Apple Mac OS X
2 years parts, 2 years labor, 2 years on-site support
HP StorageWorks Enterprise Virtual Arrays (continued)
HP StorageWorks Enterprise Virtual Arrays (EVAs) provide
outstanding TCO to support business-critical processes.
For additional information on related software for these products, see page 13.
Or visit www.hp.com/storage/evasoftware.
