HP Surestore 6164 - Switch User manual

reference manual
version 2.3
MIB
www.hp.com

Notice
© Hewlett-Packard Company, 2001. All rights reserved.
Edition: E0801
Hewlett-Packard Company makes no warranty of any
kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and
fitness for a particular purpose. Hewlett-Packard shall not
be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
This document contains proprietary information, which is
protected by copyright. No part of this document may be
photocopied, reproduced, or translated into another
language without the prior written consent of
Hewlett-Packard. The information contained in this
document is subject to change without notice.
Use, duplication, or disclosure by government is subject
to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software Clause
at DFARS 252.227.7013.
Warranty
If you have any questions about the warranty for this
product, contact your dealer or local Hewlett-Packard
sales representative.
Trademarks
Brocade, SilkWorm, Brocade Extended Fabrics, Brocade
Fabric Manager, Brocade Fabric OS, Brocade Fabric
Watch, Brocade QuickLoop, Brocade Remote Switch,
Brocade Web Tools, and Brocade Zoning are trademarks
or registered trademarks of Brocade Communications
Systems, Inc. in the United States and/or in other
countries.
All other brands, product or service names are or may be
trademarks or service marks of, and are used to identify
products of services of their respective owners.
Brocade Extended Fabrics, Brocade Fabric Manager,
Brocade Fabric OS, Brocade Fabric Watch, Brocade
QuickLoop, Brocade Remote Switch, Brocade Web Tools,
and Brocade Zoning are hereafter referred to as Extended
Fabrics, Fabric Manager, Fabric OS, Fabric Watch,
QuickLoop, Remote Switch, Web Tools, and Zoning
respectively.
Safety notices
Any servicing, adjustment, maintenance, or repair must be
performed only by authorized service-trained personnel.
Format conventions
variable Indicates that you must supply a value.
output Denotes text displayed on the screen.
[ ] Indicates that the enclosed element is
optional and may be left out.
{ } Indicates that you must specify one of the
listed options.
| Separates alternatives.
. . . Indicates a repetition of the preceding
parameter.
Tip Denotes ideas for enhanced product usage.
Note Denotes significant concepts or operating
instructions.
CAUTION Denotes a hazard that can cause hardware or
software damage.
WARNING Denotes a hazard that can cause personal
injury or death.
2

3
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Getting Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1MIB-II Object Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

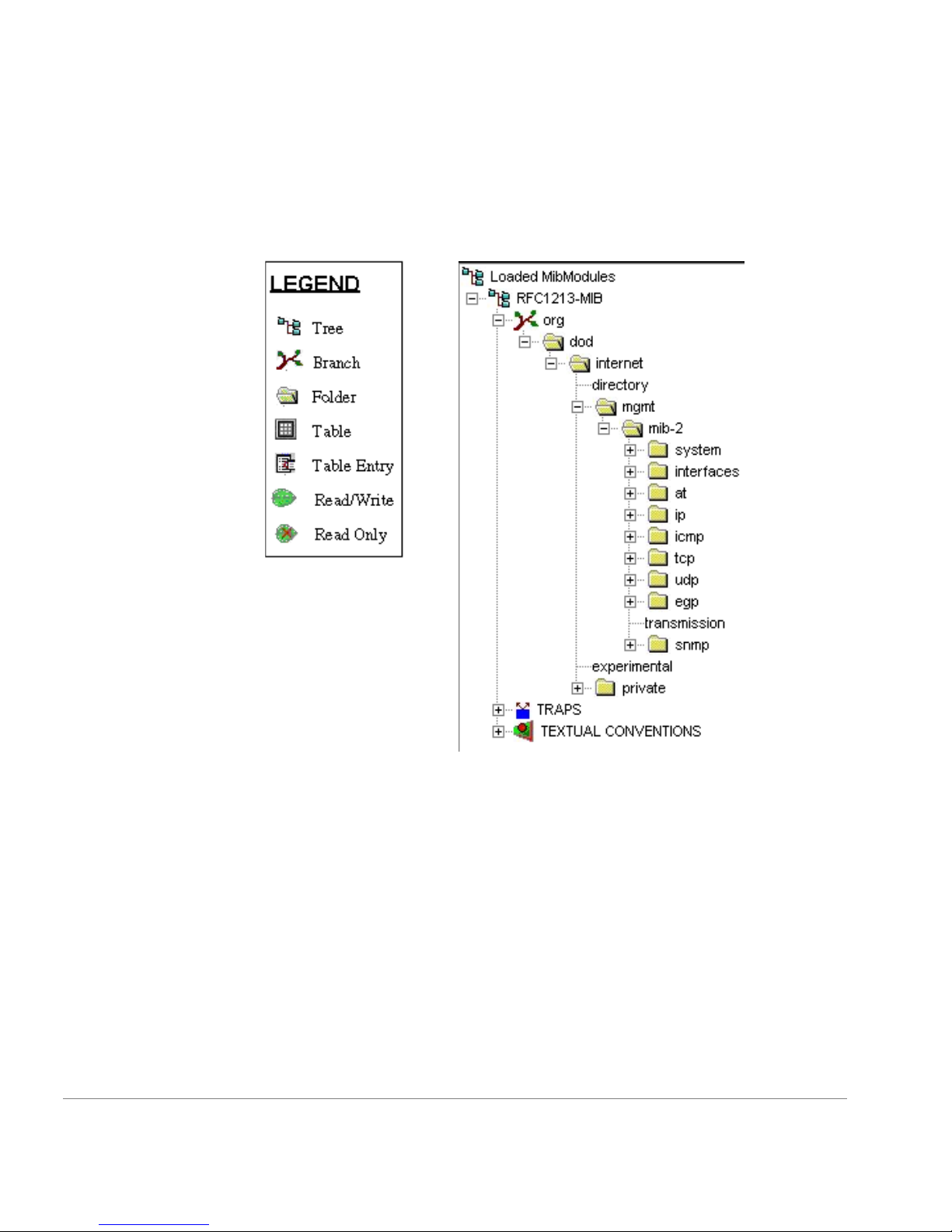

MIB-II File System Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Definitions for MIB-II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Imports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Object Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
System Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interfaces Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Interfaces Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Address Translation Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Address Translation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
IP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
IP Address Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
IP Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
IP Address Translation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Additional IP Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
ICMP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
CONTENTS

4 MIB Reference Manual
TCP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
TCP Connection Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Additional TCP Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
UDP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
UDP Listener Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
EGP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
EGP Neighbor Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Additional EGP Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Transmission Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
SNMP Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
2Fibre Alliance MIB Object Types . . . . . . . . . . . . . . . . . . . 99
FAMGMT-MIB File System Organization . . . . . . . . . . . . . . . . . . . . 99
Definitions for FAMGMT-MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Connectivity Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Connectivity Unit Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Connectivity Unit Table of Revisions for Hardware/Software
Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Connectivity Unit Sensor Table . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Connectivity Unit Port Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Connectivity Unit Event Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Connectivity Unit Link Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
SNMP Trap Registration Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
SNMP Trap Registration Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Revision Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Statistics Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Connectivity Unit Port Statistics Hub Table . . . . . . . . . . . . . . . . . . 168
Connectivity Unit Port Statistics Fabric Table . . . . . . . . . . . . . . . . 171
Connectivity Unit Port Statistics SCSI Table . . . . . . . . . . . . . . . . . 175
Connectivity Unit Port Statistics LAN/WAN Table . . . . . . . . . . . . 178
Related Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Contents 5
3FC Fabric Element MIB Object Types . . . . . . . . . . . . . . 185
FE-MIB File System Organization . . . . . . . . . . . . . . . . . . . . . . . . . 185
Definitions for FE-MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Configuration Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
fc Fabric Element Module Table . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
FxPort Configuration Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
FxPort Common Service Parameters . . . . . . . . . . . . . . . . . . . . . . . . 204
FxPort Classes of Service Parameters . . . . . . . . . . . . . . . . . . . . . . . 206
Other FxPort Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Operation Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
FxPort Operation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
F_Port Fabric Login Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
FxPort Physical Level Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
FxPort Fabric Login Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Error Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
FxPort Error Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Accounting Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Class 1 Accounting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Class 2 Accounting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Class 3 Accounting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Capability Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Fx Port Capability Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
4FC Switch MIB Object Types . . . . . . . . . . . . . . . . . . . . . 253
SW-MIB File System Organization . . . . . . . . . . . . . . . . . . . . . . . . . 255
Definitions for SW-MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
System Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Flash Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Operating Environment Sensor Table
(Temperature, Fan, Power Supply, and Others) . . . . . . . . . . . . . 274
Fabric Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Immediate Neighborhood ISL Family Table . . . . . . . . . . . . . . . . . . 281
SW Agent Configuration Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
SNMP Agent Configuration Table . . . . . . . . . . . . . . . . . . . . . . . . . 288

6 MIB Reference Manual
Fibre Channel Port Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Fibre Channel Port Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Name Server Database Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
sw Name Server Local Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Event Group
(To Map the errLog) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Fabric Watch Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
License Scalar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
ClassArea Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
End Device Rls Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
sw Trap Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
sw Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Traps for Fabric Watch Subsystems . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Traps for Track Changes Subsystems . . . . . . . . . . . . . . . . . . . . . . . . . . 344
AMIB Functional Groupings . . . . . . . . . . . . . . . . . . . . . . . 345
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Switch Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Sensor Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Port Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Variables for State and Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Variables for Statistics and Measurement . . . . . . . . . . . . . . . . . . . . 346
Event Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
ISL and End Device Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
ISL Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
End Device Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
SNMP Configuration Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

7
Revision History
July 2001 First release.

8 MIB Reference Manual

9
PREFACE
About This Guide
This guide provides the following information about Management
Information Bases (MIBs):
Chapter 1
MIB-II Object Types Provides information about MIB-II object types.
Chapter 2
Fibre Alliance MIB Object
Types
Provides information about
FCMGMT-MIB object types.
Chapter 3
FC Fabric Element MIB Object
Types
Provides information about FE-MIB
object types.
Chapter 4
FC Switch MIB Object Types Provides information about FC Switch MIB object types.
Appendix A
MIB Functional Groupings Provides information about how MIB object types can be grouped, according to
their function.
Glossary Provides definitions for common terms.

10 MIB Reference Manual
Note The tables within this document often contain a column labeled
Description. This column contains information about those MIB objects
that have been modified or in some way require explanation beyond the
scope of the standard explanation.
If no information is present in the Description column for a particular MIB
object, the standard return values apply.
Related Publications
Related product information can be found in the following publications.
Those publications with part numbers are provided as printed copies with
your product. The HP Surestore FC Switch 6164 Documentation CD
contains all publications listed in the table below and is also provided with
your product..
For information about Fibre Channel standards, visit the Fibre Channel
Association web site, located at
http://www.fibrechannel.com.
Title Part Number
HP Surestore FC Switch 6164 Documentation
CD A7326-11011
HP Surestore FC Switch 6164 Installation and
Reference Guide A7326-90902
HP Surestore FC Switch 6164 Quick Start Guide A7326-90901
Distributed Fabrics User’s Guide, version 2.2 Available only on CD
Fabric OS Reference Manual, version 2.4 Available only on CD
Fabric Watch User’s Guide, version 2.2 Available only on CD
QuickLoop User’s Guide, version 2.3 Available only on CD
Web Tools User’s Guide, version 2.3 Available only on CD
Zoning User’s Guide, version 2.2 Available only on CD

Preface 11
Getting Help
For support information, visit the HP web site located at:
http://www.hp.com
Getting Software Updates
Firmware and software updates are found on the HP web site at:
http://www.hp.com
New switch firmware can be installed from the following host operating
systems:
• UNIX
• Windows NT
• Windows 2000
• Windows 98
• Windows 95

12 MIB Reference Manual

13
1
MIB-II OBJECT TYPES
This chapter provides descriptions and other information specific to MIB-II
object types. The object types in MIB-II are organized into the following
groupings:
•“System Group”on page 19
•“Interfaces Group”on page 22
•“Address Translation Group”on page 35
•“IP Group”on page 38
•“ICMP Group”on page 59
•“TCP Group”on page 67
•“UDP Group”on page 76
•“EGP Group”on page 79
•“Transmission Group”on page 87
•“SNMP Group”on page 88

14 MIB Reference Manual
MIB-II File System Organization
Figure 1 through Figure 4 depict the organization and structure of the
MIB-II file system:
Figure 1. MIB-II Overall Tree Structure

MIB-II Object Types 15
Figure 2. Tree Structure for MIB-II system, interfaces, at, and ip Groups

16 MIB Reference Manual
Figure 3. Tree Structure for MIB-II icmp, tcp, udp, and egp Groups

MIB-II Object Types 17
Figure 4. Tree Structure for MIB-II SNMP Group

18 MIB Reference Manual
Definitions for MIB-II
The following definitions are used for MIB-II.
Imports
The following objects are imported from RFC1155-SMI:
•mgmt
•NetworkAddress
•IpAddress
•Counter
•Gauge
•Time Ticks
Object Identifiers
•mgmt = { iso org(3) dod(6) internet(1) mgmt(2) }
•directory = { internet 1 }
•experimental = { internet 3 }
•private = { internet 4 }
•enterprises = { private 1 }
•mib-2 = { mgmt 1 }
Table 1. MIB-II Conventions
Type Definition Value Declaration Description
Display String Octet String of
size 0 to 255
PhysAddress Octet String

MIB-II Object Types 19
System Group
Implementation of the system group is mandatory for all systems. If an
agent is not configured to have a value for any of these variables, a string of
length 0 is returned.
sysDescr
Syntax Display String of size 0 to 255
Access Read-only
Status Mandatory
Description A textual description of the entity.
Note This value should include the full name and version identification of
the system’s hardware type, software operating-system, and networking
software. It is mandatory that this contain only printable ASCII characters.
Default Value = fibre channel Switch.
Can be set using the agtcfgSet Telnet command.
sysObjectID
Syntax Object Identifier
Access Read-only
Status Mandatory
Description The vendor’s authoritative identification of the network management
subsystem contained in the entity.

20 MIB Reference Manual
Note This value is allocated within the SMI enterprises subtree
(1.3.6.1.4.1) and provides an easy and unambiguous means for determining
what kind of box is being managed. For example, if vendor “Flintstones,
Inc.”was assigned the subtree 1.3.6.1.4.1.4242, it could assign the
identifier 1.3.6.1.4.1.4242.1.1 to its “Fred Router”.
Default value =
iso.org.dod.internet.private.enterprises.bcsi.commDev.fibrechannel.fcSwit
ch.sw
sysUpTime
Syntax Time Ticks
Access Read-only
Status Mandatory
Description The time (in hundredths of a second) since the network management
portion of the system was last re-initialized.
sysContact
Syntax Display String of size 0 to 255
Access Read-write
Status Mandatory
Description The textual identification of the contact person for this managed node,
together with information on how to contact this person.
Note Default value = Field Support.
Can be set using the agtcfgSet Telnet command.
