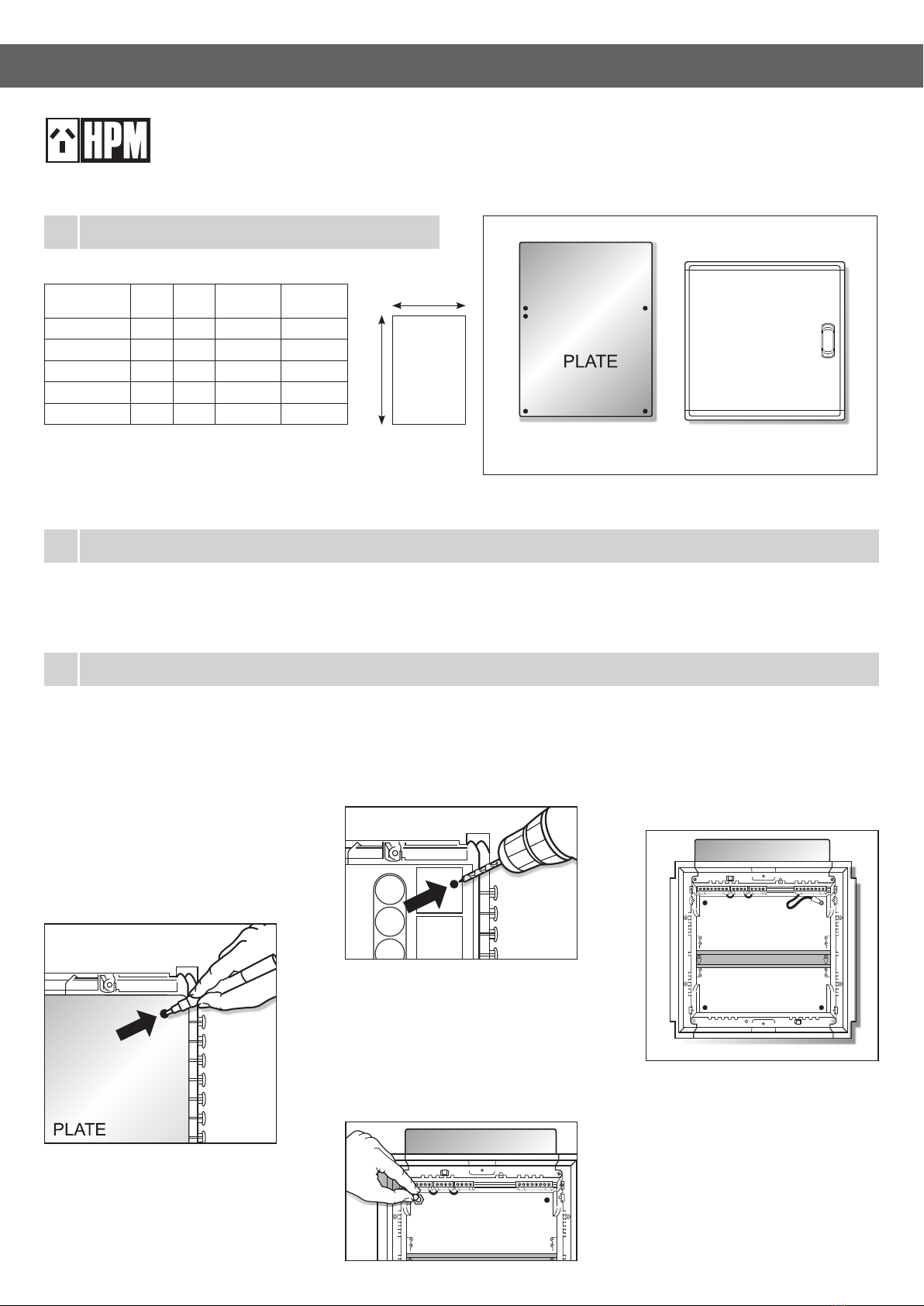

HPM HL12FS-BP User manual

Earthed Metal Back Plate
to suit HL/HEE Flush Load Centres
Cat. HL12FS-BP, HEE18FS-BP, HL24FS-BP, HL36FS-BP, HL48FS-BP
Instruction Manual
1Range
Reference : AS3000:2007 wiring rules requirement (Clause : 3.9.4.4 (b).
2
3
Standards
Step 1:
Position the plate so that
overhang is on the side of the
incoming cable. Mark drilling
holes to fix the plate on back of
the enclosure with the help of
pre-drilled holes on back plate
(5 holes to mark : 4 corners +
earth).
Part No A
(mm)
B
(mm)
Thickness
(mm)
to suit
enclosure
HL12FS-BP 425 265 0.9 HL12F
HEE18FS-BP 367 384 0.9 HEE18F
HL24FS-BP 550 265 0.9 HL24F
HL36FS-BP 675 265 0.9 HL36F
HL48FS-BP 800 265 0.9 HL48F
B
A
Installation
Step 2:
Drill with 4mm bit on back of the
enclosure.
Step 3:
Fix back plate to enclosure using
bolts, washers & nuts provided.
Make sure the overhang is
covering unprotected cables (top
or bottom).
Step 4:
Fix 4mm² earth strap to the earth
bar and stud (overhang portion on
the side of the earth terminal)
Metal plate back Flush enclosure

Warranty
HPM Legrand will honour all statutory guarantees that you
as a consumer are entitled to rely upon under the Australian
Consumer Law against a manufacturer including a guarantee
that HL12FS-BP, HEE18FS-BP, HL24FS-BP, HL36FS-BP and
HL48FS-BP products are of acceptable quality.
To make a claim under any statutory guarantee (or other
warranty) you should first contact the supplier, contractor or
retailer from whom you purchased the products.
