HSPos 80MM User manual

80MM Thermal Receipt Printer
User Manual
Please read this manual carefully before using it, and keep
it for future reference.

I
About this manual
Thank you for your purchase of our company's 80MM thermal
printer.
This manual can help you learn to use this product. Please read this
manual before use, and safekeeping, so that all the use of this product
can read it.
Note
Due to our constant efforts to improve and upgrade the product's
function and performance, our company reserves the right to change
the hardware and software specifications in the manual without prior
notice.
If you find any errors or missions in the contents of this manual, please
tell us or our agent,thank you very much.
Without the prior written permission of our company, the contents of the
relevant manual attached to the product shall not be reproduced,
transmitted, transcribed, stored, etc..
Statement
This product is type A product, may cause the radio interference in
the living environment , in this case,the user need to protect the
interference with effective protection measures.
Safety tips
●Do not disassemble the printer personally, pls read this manual
before use.
●The printer should be installed in a solid place to avoid vibration
or impact damage to the printer.

II
●Do not store and use the printer in the environment of high
temperature, high humidity, and heavy pollution.
●The power adapter of the printer should be connected to the
grounding socket, should be avoided to connected to the same socket
with large motor or other can lead to voltage fluctuation equipments, or
may lead abnormal to printer and even damage to the printer.
●Pls use the standard power adapter to the printer.
●When plug connection line, please make sure the printer power is
closed.
●When the printer is printing, please do not open the paper cover,
otherwise it may cause unexpected situation, and even damage the
printer.
●After printing, print head is still at high temperature, pls do not
touch, to avoid burn.
●Pls do not use dissolved substances, such as: benzene, thinner
or alcohol wipe to clean the printer casing. At the same time, please do
not use corrosive chemicals and detergent to contact printer. To avoid
damage to the printer.
●Pls use our company approved or regular factory produced
printing paper, otherwise it may lead to poor print quality, and even
damage the printer core.
●Thermal printing paper printing letter save time is related to
thermal printing paper quality, if you want to print the long-term
preservation bills, please choose a long-term thermal paper.
●The printer is only suitable for using in the altitude below 2000M.
●The printer is only suitable for use in non tropical climates.
Application Area:

III
●Electronic cash register POS system printing
●Electronic transfer system printing
●Sports, postal, civil aviation bill printing
●Query, service system bill printing
●Catering industry bill printing
●Tax bill printing
Package:
●Printer 1PC
●Standard power adapter (including power line) 1SET
●Paper roll 1ROLL
●Data line 1PC
●User manual 1PC
●Driver CD 1PC
Printer Features：
●300 mm / second ultra high-speed printing, improve the printing
efficiency
●Excellent waterproof, anti - oil, anti-dust structure design
●Support wall hanging function, meet the special environment
printing
●Movable baffle design, support 80MM, 58MM different width of
the paper roll printing
●Support 80MM large diameter roll
●Support kitchen printing and Internet printing
●Support printer monitoring function,to avoid losing bills
●Using 100M Ethernet card, connect printer faster, to avoid losing
bills
●Recover printing after netwok disconnection,to avoid losing bills

IV
●2048K super input buffer,to avoid losing bills
●Support LOGO Graphical download and print
●Support 1D,2D bar code printing
●Support order come remind and error alarm
●Support black mark orientation and re-print Large font
●Support Multi language printing
●Richinterface:Internet(100M)+USB+COM;Internet(100M)+USB+
WIFI;USB+GPRS;USB+COM;USB+Bluetooth
●Built-in WEB server,configure printer by IE browser
●Compatible with ESC/POS print instruction mode
●SupportWindows,Linux,Android and IOS system printing
Printer Parameters:
Item Parameters
Print
parameters
Printing
Method
Thermal Line
Printing
width
72mm
Resolution 576 Dots/Line or 512 Dots/Line
（8dots/mm,203dpi）
Print speed 300mm/Second
Interface Internet（100M）+USB+COM;Internet（100M）
+USB+WIFI;USB+GPRS;USB+COM;USB+
Bluetooth
Line
Spacing
3.75mm（Can adjust line spacing by
command）

V
Line No. FontA-48Lines/FontB-64Lines/Simple,
traditional Chinese-24 lines
Character Standard GB18030 simplified / traditional
Chinese Fonts
Character
Size
ANK character,Font A:1.5×3.0mm（12×24
dots）;Font B:1.1×2.1mm（9×17 dots）
Simplified/Traditional
Chinese3.0×3.0mm(24×24 dots)
Bar code
Character
Extended
character
set
PC437/Katakana/PC850/PC860/PC863/
PC865/WestEurope/Greek/Hebrew/
EastEurope/Iran/WPC1252/PC866/PC852/
PC858/IranII/Latvian/Arabic/PT151,1251/
PC737/WPC/1257/ThaiVietnam/PC864/
PC1001/(Latvian)/(PC1001)/(PT151,1251)/
(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code 1D bar code：
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128
2D barcode：QRCODE
Graphics
printing
Graphics
printing
Supports bitmap download and print
Cutter Cutter
Function
Full cut/Half cut
Paper
Type Thermal
Width 79.5±0.5mm
Diameter ≤80mm
Feed
method
Easy feed(Clameshell feed)

VI
Print
commands
Comman
ds
ESC/POS
Power
Power
Adaptor
Input：AC 100V-240V,50～60Hz
Output：DC 24V/2.5A
Cash
Drawer
output
DC 24V/1A
Buffer Input
Buffer
2048K bytes
NV Flash 256K bytes
physical
characterist
ics
Weight 1.2KG
Dimensio
n
186*145*133(MM)
Environme
nt
Working Temp：5 ~ 45 ℃，Humidity：10 ~ 80%
Storage Temp：-10 ~ 50 ℃，Humidity：10 ~ 90%
(No dew)
Reliability
parameter
Print
Head Life
100KM（print density≤12.5）
Cutter
Life
1000,000times
Software Driver Android,IOS,Linux,Win2000,Win2003,WinXP,
Win7,Win8,Win8.1
Printer connection:
1.connect the power adapter cable to the printer power supply
interface.
2.connect the data cable to the printer's interface.

VII
3.the cashier drawer cable connected with printer interface .
Install the print paper
80MM series thermal printer using 58MM thermal paper, using
easy paper structure, convenient to install paper.
1 Pressing down the cover open button, open the printer cover
2 Put thermal print paper in the paper holder according to the pic
below
3 Pull a little paper out of the warehouse
4 tear excess printing paper

VIII
Note: take care of the roll direction, if reverse direction, the content
won’t be print out.
Set print mode (DIP switch)
DIP switch settings can change the printer's cutting knife, beep,
print density, language, font size, print width, print speed, etc..

IX
Printer bottom DIP switch function table
Switch, key name, indicator and function
No Function on off
SW-1 self cutter yes No
SW-2 beep remind on off
SW-3 printing density high density normal density
SW-4 Character mode Chinese
(double byte) Foreign language (single byte)
SW-5 Number of
characters per line 42 48
SW-6 Printing width 80MM 58MM
SW-7 Transmission speed (COM port is valid)
SW-8
SW-7 off off on on
SW-8
off
on
off
on
Transmission speed
(BPS or bit / sec)
9600 19200 38400 115200

X
1 power switch
The switch can turned on and off theprinter power supply.
2 (feed) key (FEED)
Press the button can feed, if keep on press this button will
continued to feed.
3 (short paper) light (Paper)
This indicator and the Error lamp flashing at the same time
indicates that the printer is short of paper, this indicator and the Error
lamp off means the printer has paper.
4 (power) lamp (power)
The indicator light on indicates that the printer is connected to the
power supply, this light off indicates that the printer power is off.
5 (error) light (Error)
When the printer is missing paper, print head overheating, the lid is
not closed well etc., the indicator lights will flashing.
Self test
Printer self-test method are as follows: when the printer connected
tothe power adapter, press (feed) key and open theprinter power at the
same time, released the button after approximately 2 seconds,
printers will print out current printer status and settings.
Hex number system:
When the printer connected to the power adapter, ppress (feed)
key and open the printer power at the same time, released the button
after approximately 6 seconds. The printer print out the words "Dump
Hexadecimal".
Printer restore factory settings

XI
When the printer connected to the power adapter, ppress (feed)
key and open the printer power at the same time, released the button
after approximately 10 seconds, printer is restored to factory settings.

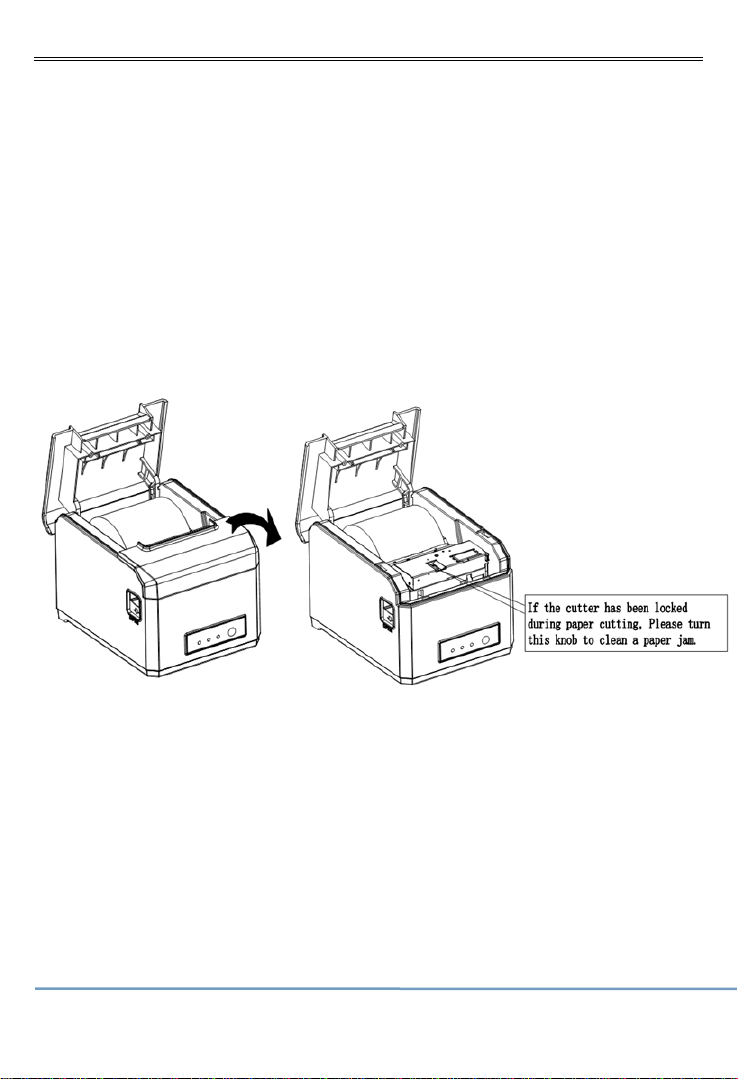

Cutter stuck maintenance
Solution 1:Press the power switch to turn off the printer power,
restart, let the cutter back.
Solution 2:Open the printer cover, rotating theprinting head cutting
knife gear, let the cutter return to its initial position, open the cover and
install paper roll then can can print normally.
Note: do not force open the cover, as to avoid unrecoverable
damage to the print head and the cutter.
Printer driver
80MM series thermal printer driver mode has two kinds, one is
using the port for directly drive printing, one is in stall driver in Windows
system to print.
1.port direct drive

XII
In this way, do not need to install the driver, only need to output the
character (instructions and data) directly to a port, and to achieve
character conversion of print by internal printer hard character library ,
using port directly drive, make the print control more convenient.
If you use port direct drive mode, you need to use the print command
set to control the printer's printing, 58MM series thermal printer has
been integrated within theESC/POS instruction set.
2.Install driver in windows system
To install the driver in CD in windows, you only need to call the
driver in the program to achieved print. In this way, in fact there is a
Windows driver to turn the character into a graphic dot matrix way to
print.
Windows driver installation steps and instructions:

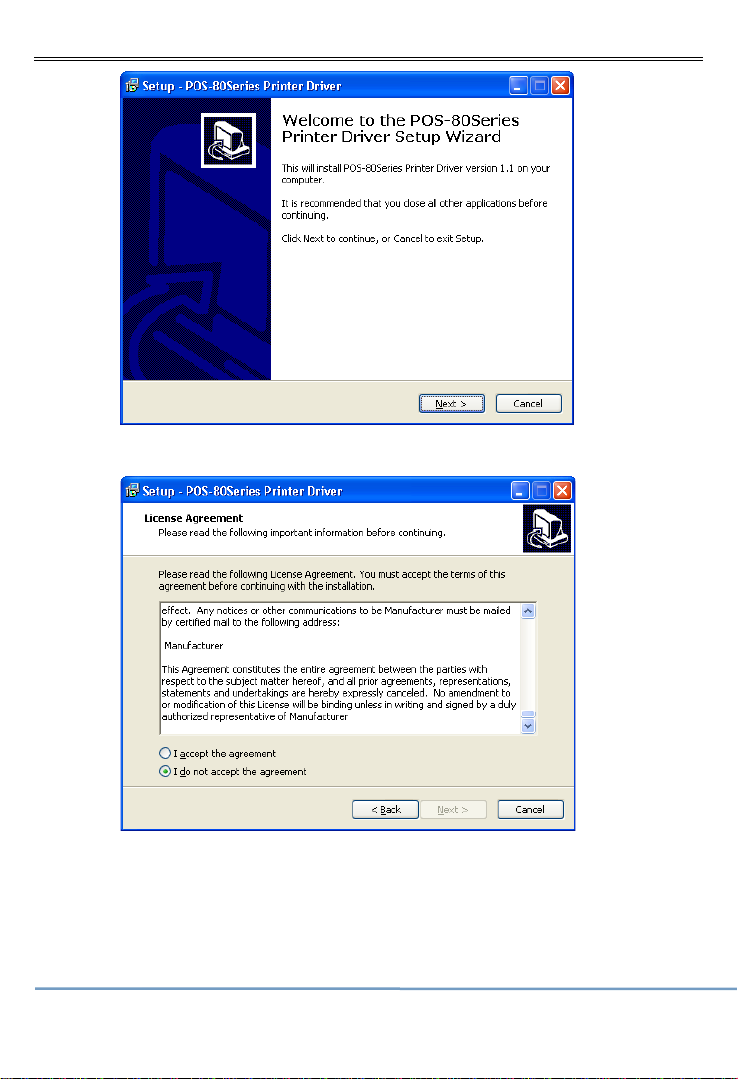

（1）Double click the driver setup ，click "ok"
（2）Click the "next step"

XIII
（3）Select "I accept this Agreement", click "next"
（4）Click "install"

XIV
（5）Setup software will automatically identify the version of the
Windows system, click "Next "
（6）Select the corresponding port and click "OK"

XV
（7）Click "finish" to complete the driver installation
Printer Repair and maintenance
1. printer external and warehouse cleaning: please use a wet cloth
gently wipe the printer surface and internal paper warehouse.

XVI
2. Printer core clean: printer core must be clean on time, especially
the quality of printing is decline, cleaning methods are as follows: put
cotton dipped in anhydrous alcohol and gently wipe the printer core
ceramic parts as shown in the picture below until clean enough.
3.If find water inside printer, pls immediately disconnect the printer
power, and dry the printer naturally.
Failure Analysis:
Failure
phenomenon Failure cause Solution
Printer paper
indicator and Error
indicator flashing at
same time,and
make a Di Di...
beep sound
Printer lack of
paper Install paper correctly
Printer error
flashing and make
a Di Di...beep
sound
1.The printer head
is too hot
2. T
he flip not
closed well
1.Open the cover and
dissipate heat fully then go
on printing.
2. Cover the flip well
When the printer
prints only paper
run but not print
Print paper install
reverse
Pls install the print paper for
a opposite direction
The print
er print
fuzzy
The print head not
clean for a long
time
Put cotton dipped in
anhydrous alcohol and
gently wipe the printer core
ceramic parts until clean
enough

XVII
The character
colour in thermal
paper no good
Pls choose high quality
thermal paper
There is no
response of printer
The power
adaptor not
connected
Pls check power adaptor is
connected well or
not,power switch is turn on
or not
Printer can self test,
but can not print
online
Driver port
selection error
Pls select the correct print
driver port ba
sed on the
actual connection port
Printer serial port
does not print or
print garbled
Bit rate slection
error
Pls set the COM baud rate
accoridng to the COM info
on self check page
