HSV HSV-SPZ-189903 User manual
0099002058-00
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE.
This manual will explain how to use the work light safely and effectively. Please
read and follow these instructions and precautions carefully.

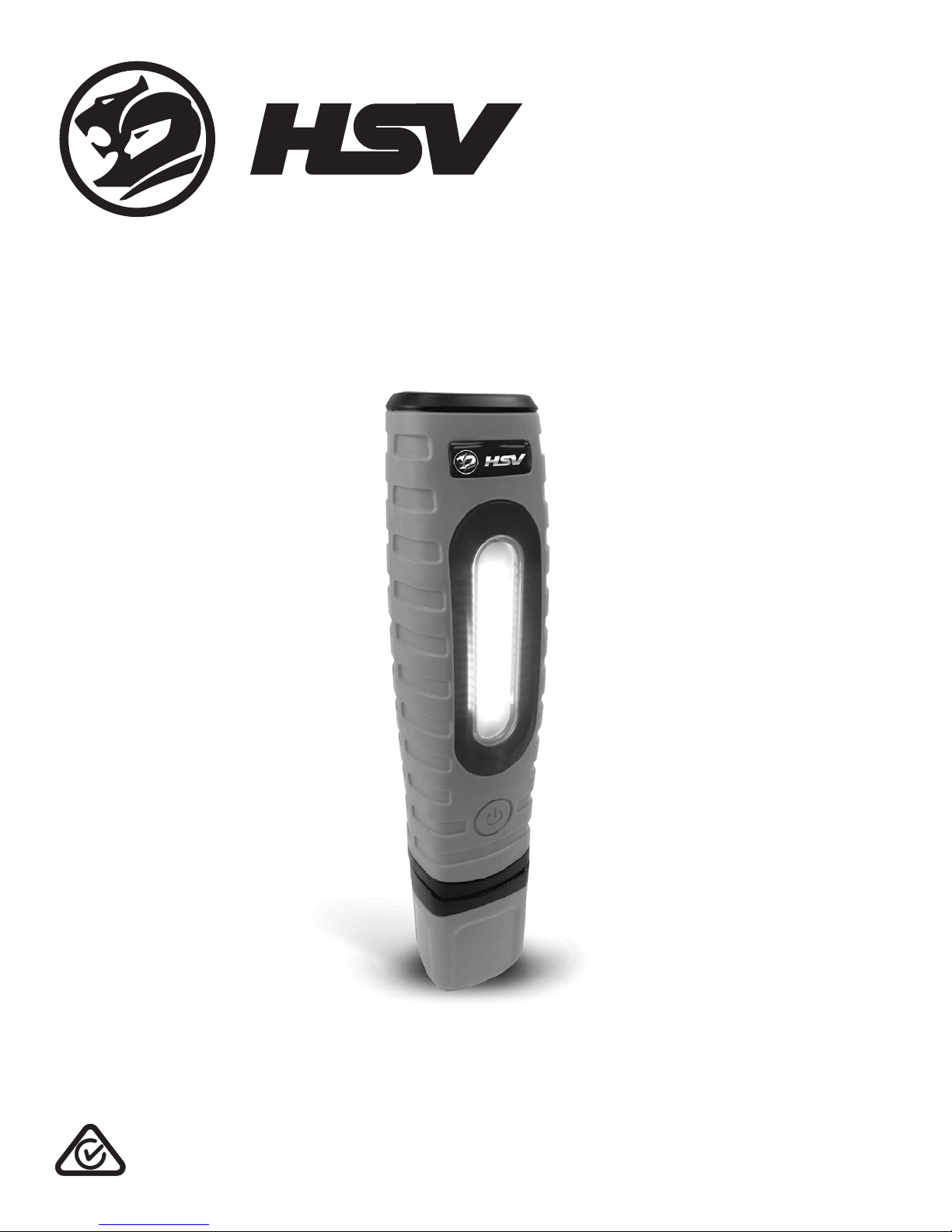

Lithium Ion 360°
Cordless LED Work Light
MODEL HSV-SPZ-189903
User Manual
• 2 •
1. IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS.
1.1 SAVE THESE INSTRUCTIONS – This manual contains important safety and
operating instructions.
1.2 Read, understand and follow all instructions, cautions and warnings listed in this
manual. Failure to follow all instructions and abide by all cautions and warnings
could result in personal injury, injury to others and property damage.
1.3 IMPORTANT! CHARGE WORK LIGHT IMMEDIATELY AFTER PURCHASE,
AFTER EACH USE, AND AT LEAST EVERY 6 MONTHS.
1.4 DO NOT turn on the work light while it is being charged.
1.5 DO NOT handle or move the work light while it is being charged.
1.6 DO NOT look directly into the light or shine the light directly into the eyes of any
person or animal.
1.7 DO NOT allow children to use the work light.
1.8 DO NOT operate the work light if it has received a sharp blow, been dropped, or
otherwise damaged in any way; take it to a qualied service person.
1.9 DO NOT leave the battery in a discharged state.
1.10 DO NOT use the work light with a charger which has a damaged cord or plug,
replace the cord or plug immediately.
2. PERSONAL SAFETY PRECAUTIONS
WARNING! TO REDUCE THE RISK OF BURNS OR FIRE, FOLLOW THESE
SAFETY PRECAUTIONS:
2.1 DO NOT disassemble the work light; take it to a qualied service person when
service or repair is required. Incorrect reassembly may result in a risk of re.
2.2 DO NOT crush, puncture, short external contacts or dispose of in re or water.
2.3 DO NOT expose to temperatures above 140°F (60°C).
2.4 Recycle or dispose of the used battery as required by local regulations.
2.5 If the electrolyte in the cells gets on your skin, wash thoroughly with soap
and water. If it gets into your eyes, rinse thoroughly with cool water and seek
immediate medical attention.
• 3 •
2.6 This product contains a lithium ion battery. In case of re, you may use water, a
foam extinguisher, Halon, CO2, ABC dry chemical, powdered graphite, copper powder
or soda (sodium carbonate) to extinguish the re. Once the re is extinguished, douse
the product with water, an aqueous-based extinguishing agent, or other nonalcoholic
liquids to cool the product and prevent the battery from re-igniting. NEVER attempt to
pick up or move a hot, smoking, or burning product, as you may be injured.
3. SET UP INSTRUCTIONS
3.1 Remove any cord wraps and uncoil the charging cable.
4. FEATURES
1. Horizontal magnets
2. Charging status LED indicators
3. Charging socket
4. Rotating (360°) hooks
5. 3W end LED
6. 16 SMD LED lights
7. ON/OFF power button
8. Vertical magnet
9. USB/Micro USB charging cable
123
4
5
6 7
8
9
5. CHARGING
IMPORTANT! CHARGE THE WORK LIGHT IMMEDIATELY AFTER PURCHASE,
AFTER EACH USE, AND AT LEAST EVERY 6 MONTHS. Failure to do this will
reduce the battery’s capacity and may void the warranty.
5.1 Connect the micro USB end of the charging cable to the micro USB port on the back
of the work light. Insert the USB end of the cable into the USB port on your charger.
5.2 Plug your charger into a live power source.
• 4 •
5.3 The green charging status LEDs will ash, to indicate charging has begun.
5.4 The number of green lights ashing indicates the level of charge. When the
battery has charged fully, all three LEDs will show steady green.
5.5 Recharge the work light after use, and at least every 6 months.
6. OPERATING INSTRUCTIONS
6.1 Hang the work light, using the hooks on the back. When hung from a single hook,
the work light can be rotated 360°for more precise positioning.
6.2 The magnets may be used instead. Attach to any ferrous metal surface.
6.3 Direct the lens away from your eyes before turning on the work light.
6.4 Press once to turn on the 3W end LED.
Press a second time to turn on the high-power SMD LEDs.
Press a third time to turn on the low-power SMD LEDs.
Press to turn off.
6.5 Recharge the work light after use, and at least every 6 months. VOTING
7. MAINTENANCE INSTRUCTIONS
7.1 After use and before performing maintenance, unplug and disconnect the work light.
7.2 Use a dry cloth to wipe any dirt or oil from the charging cable and case.
7.3 Any servicing should be performed by qualied service personnel.
8. STORAGE INSTRUCTIONS
8.1 Store inside, in a cool, dry place.
8.2 Take care to avoid/prevent damage to the charging cable and unit. Failure to do
so could result in personal injury or property damage.
8.3 Charge the work light’s internal battery immediately after purchase, after every
use and every 6 months.
8.4 All batteries are affected by temperature. The ideal storage temperature is at
70°F (21 ˚C). The internal battery will gradually self-discharge (lose power) over
time, especially in warm environments. Leaving the battery in a discharged state
may result in permanent battery damage. To ensure satisfactory performance and
avoid permanent damage, charge the internal battery every 6 months.
• 5 •
9. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The work light does
not operate.
The battery is not charged. Recharge the battery to full
charge.
10. SPECIFICATIONS
Battery ..............................................................(2) Lithium Ion, 3.7V, 2600 mAh
Light (main) ............................................................16 x 0.5W SMD LED, 6500K
Light (top) .................................................................................. 3W LED, 6500K
Lumen output (main) .................................................300 lm (low); 600 lm (high)
Lumen output (top)................................................................................... 150 lm
Ingress protection rating...............................................................................IP54
Operating time.....................Main: 12 hours (low); 6 hours (high); Top: 14 hours
Charging time.......................................................................................... 6 hours
Operating temperature .............................................14˚
–
104˚ F (-10˚
–
+40˚ C)
11. REPLACEMENT PARTS
USB to Micro USB charging cable.....................................................3899003752Z
12. DISPOSAL INFORMATION
This product should not be disposed with other household wastes.To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
• 6 •
13. LIMITED WARRANTY
WARRANTY TERMS AND CONDITIONS
Schumacher Electric Corporation (the “Manufacturer”) or the resellers authorized
by the Manufacturer (the “Reseller”) warrant this work light (the “Product”) for
one (1) year, according to the following stipulations. Any and all warranties, other
than the warranty included herein, are hereby expressly disclaimed and excluded
to the fullest extent permissible under applicable law. Legislation may imply
warranties or conditions or impose obligations on Manufacturer which cannot be
excluded, restricted or modied in relation to consumer goods.
Consumer End-User Warranty
Any claims under this warranty must be communicated to Reseller within
2 months after discovery of the non-conformity.
Resellers/Professional End-User Warranty
The Manufacturer provides a limited warranty for hidden defects or non-conformities.
This warranty is subject to the following conditions:
a. The Manufacturer only warrants hidden defects in material or workmanship
present in their root cause at the moment of the rst sale by the Manufacturer;
b. Manufacturer’s obligation under this warranty is limited to repairing or
replacing the Product with a new or reconditioned unit at the sole option
of the Manufacturer;
c. Manufacturer does not have any warranty obligations if the alleged
defects were caused by abnormal usage, fair wear and tear, unauthorized
use of the Product or use of the Product differing from the description in
the applicable manual or other specications given by the Manufacturer,
insufcient care, repairs carried out by persons or entities or with parts not
approved by Manufacturer, poor care, accidents, unauthorized changes
or modications, incorrect transport, storage or treatment of the Product;
d. In order to exercise this right, the Product must be returned complete and
in its original state and packaging, with mail costs prepaid, along with
proof of purchase to the Manufacturer or its authorized representatives in
order for repair or replacement to occur.
• 7 •
Common Warranty Provisions
The warranty mentioned above only applies to the rst professional or consumer
user having legally acquired the Product from the Manufacturer or a Reseller. No
warranty is extended towards clients, agents or representatives of those buyers.
The Product is sold under the specications, for the use and purpose in
accordance with the provisions of this manual, with express exclusion and
disclaimer of warranty of any other specications, uses and purposes.
Authorized Resellers are prohibited from making any statements or providing
any warranty in excess of the above warranties Non-authorized resellers may
only sell the product under the condition that they assume all warranty obligations
with the total exclusion of any warranty provided by the Manufacturer.
Manufacturer does not provide any warranty for any accessories used with the
Product that are not manufactured by Schumacher Electric Corporation.
This warranty does not exclude or diminish any claims the Manufacturer may
have against the distributors of The Product.
THE MANUFACTURER NEITHER ASSUMES NOR AUTHORIZES ANYONE TO
ASSUME OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT
OTHER THAN THIS WARRANTY.
Warranty, Repair Service and Distribution Centers:
Australia/New Zealand:
Schumacher Asia Pacic Pty. Ltd.
A.B.N. 43613943525
Unit 53B – 28 Burnside Road, Ormeau
Queensland, Australia, 4208
07 3807 6510
