HTC GL 35 D User manual

www.htc-floorsystems.com/support
MANUAL
HTC GL 35 D
Translation of manual in original language

Contact Information
HTC Sweden AB
Box 69
SE-614 22 Söderköping - Sweden
Tel: [phone]
Fax: [phone]
You can find addresses for our retailers and service partners on our website:
www.htc-floorsystems.com
Always specify the model and serial number when asking questions about your product.
Trademarks
HTC is a trademark owned by HTC Sweden AB. Other names and products mentioned
in this manual may be registered trademarks owned by the relevant companies.
© 2013 HTC Sweden AB. All rights reserved.

EC Declaration of conformity
Manufacturer: HTC Sweden AB
Box 69
SE-614 22 Söderköping
Sweden
[phone]
Type of equipment: Dust Extractor
Make: HTC
Trademark: HTC GL 35 D
Year of manufacture: See machine name plate
Serial number: See machine name plate
As the manufacturer, we hereby declare under our sole responsibility that the above
product with serial numbers from 2011 and onward conforms to the applicable
regulations in directives MD 2006/42/EC, EMC 2004/108/EC as well as LVD
2006/95/EC. The following standards have been used as a basis: ISO 5349-1:2001, ISO
5349-2:2001, ISO 20643:2005, ISO 3741.
The product was CE marked in 2011. The technical documentation is available from the
manufacturer.
Original of the EC declaration of conformity (Swedish). Other languages are
translations of the original of the EC declaration of conformity.
Söderköping 11-08-01
Peter Lundgren
Development Manager
HTC Sweden AB
Kåre Kilgren
Product Manager
HTC Sweden AB

HTC GL 35 D Table of contents
i
1 Introduction
1
1.1 General ............................................................................
1
1.2 Liability ............................................................................
1
1.3 Manual .............................................................................
1
1.3.1 Safety explanations - explanation of symbols ....
1
1.4 Transportation .................................................................
2
1.5 On delivery ......................................................................
2
1.6 Unpacking the equipment ................................................
3
1.7 Machine name plate ........................................................
3
1.8 Handling and storage ......................................................
4
1.9 Noise ...............................................................................
4
2 Safety
5
2.1 General ............................................................................
5
2.2 Warnings .........................................................................
5
2.3 Notes ...............................................................................
6
3 Machine description
8
3.1 General machine description ...........................................
8
3.2 Description of controls - Keypad .....................................
9
4 Operation
11
4.1 General ............................................................................
11
4.2 The positions for the dust extractor .................................
11
4.2.1 The dust extractor's operating position ...............
12
4.2.2 Lowering the dust extractor to the transport
position ...............................................................
14
4.3 Lifting the machine ..........................................................
15
4.4 Handling Longopac .........................................................
16
4.4.1 Removing the full waste bag ..............................
17
4.4.2 Fitting Longopac .................................................
19
4.5 Installing extra ventilation hose .......................................
23
4.6 Operation .........................................................................
23
4.6.1 Start the dust extractor .......................................
23
4.6.2 Filter cleaning .....................................................
25
4.7 Making operation easier ..................................................
27

Table of contents HTC GL 35 D
ii
5 Maintenance and repairs
29
5.1 General ............................................................................
29
5.2 Cleaning ..........................................................................
29
5.3 Daily ................................................................................
29
5.3.1 Check HEPA filters .............................................
29
5.3.2 Check the main filter ...........................................
31
5.4 Every week ......................................................................
33
5.4.1 General inspection .............................................
33
5.5 Every month ....................................................................
34
5.5.1 Check the condition of the hoses. ......................
34
5.6 Every six months (or 600 hours) .....................................
34
5.6.1 Check the fastening of the bolts .........................
34
5.7 Every year .......................................................................
34
5.7.1 Replacement of HEPA filters ..............................
34
5.7.2 Replacement of main filter ..................................
34
5.8 Repairs ............................................................................
35
5.9 Spare parts ......................................................................
35
6 Troubleshooting
36
6.1 General ............................................................................
36
6.2 The dust extractor will not start .......................................
36
6.3 The dust extractor stops after starting .............................
36
7 Technical data
37
8 Environment
40
8.1 Chassis ............................................................................
40
8.2 Dust extractor ..................................................................
40
8.3 Electrical system .............................................................
40
8.4 Recycling .........................................................................
41
9 Warranty and CE marking
42
9.1 Warranty ..........................................................................
42
9.2 CE marking ......................................................................
42

HTC GL 35 D Introduction
1.0 1
1 Introduction
1.1 General
HTC GL 35 Dis a dust extractor that is best used together with HTC grinding machines
when dry grinding stone and concrete floors, in accordance with HTC's
recommendations. HTC GL 35 Dis equipped with a main filter as well as an HEPA
filter. The dust sucked up is collected in a bag under the dust extractor.
Read the manual carefully, so you are totally familiar with the machine before you start
to use it. Contact your local retailer for further information. For contact information, see
Contact Information at the start of the manual.
1.2 Liability
Even though every effort has been made to make this manual as complete and accurate
as possible, we bear no responsibility for incorrect or missing information. HTC
reserves the right to change the descriptions contained in this manual without prior
notice.
This manual is protected by the Copyright Act and no part of it may be copied or used
in any other way without the written approval of HTC.
1.3 Manual
In addition to the general functions, this manual deals with the areas of application and
the maintenance of the dust extractor.
1.3.1 Safety explanations - explanation of symbols
A number of symbols are used in the manual to highlight the most important sections,
see below. It is important that you carefully read through the descriptions of the symbols
in order to avoid the risk of both material damage and personal injury. There are also
other symbols indicating practical tips. These are to help you use the machine in the
easiest and most effective way.
The following symbols are used in the document to indicate where special attention is
needed.
Warning!
This symbol means Warning! and indicates a risk of personal injury or material
damage in the event of incorrect use of the machine. If you see this symbol next
to a section of text, you must pay particular attention when reading through the
text and not carry out any operations of which you are unsure. This is for your
own and other users' safety and to avoid damage to the machine.

Introduction HTC GL 35 D
2 1.0
Note!
This symbol means Note! and indicates a potential risk of material damage in
the event of incorrect use of the machine. If you see this symbol next to a
section of text, you must pay particular attention when reading through the text
and not carry out any operations of which you are unsure. This is to avoid
damage to the machine.
Tip!
This symbol means Tips! and implies the inclusion of tips and advice on
effective use of the machine or ways of reducing wear and tear to the machine.
If you see this symbol next to a text, you should read through the text to make
your work easier and to extend the service life of the machine.
1.4 Transportation
Always ensure that the machine is emptied of dust and other particles before it is
transported, lifted or hoisted.
Always make sure that the machine is securely anchored to its surrounding during
transport to prevent it from coming into motion. Make sure that the securing straps, or
other equipment used for anchoring during transport, are tightened over non-moving
parts, e.g. the machine's chassis.
When lifting the machine, do so according to chapter Lifting the machine, page15.
Do not transport the machine on steep sloping surfaces, e.g. loading ramps, without
securing it properly, for example with a winch. This is a safety measure in case the
machine starts to roll out of control. Also make sure that people (including operator) in
the vicinity are at a safe distance in order to prevent personal injury, in the event that the
machine starts to roll out of control.
When the machine is to be hoisted, it must be securely anchored in the notches for

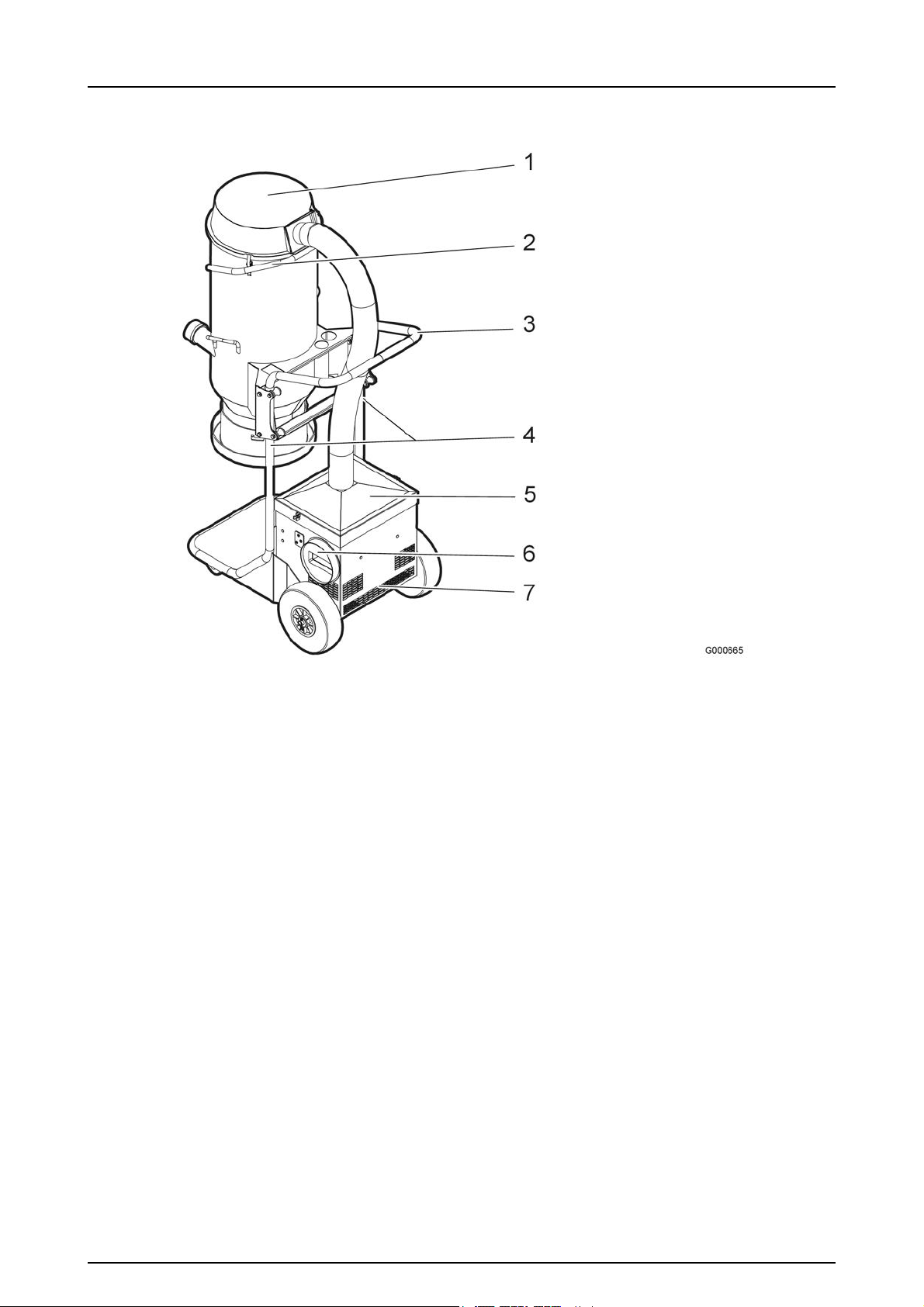

secure lifting (see position 4, Figure3-2, page9), which are found on both of the
chassis' long sides. To prevent the machine from tipping, make sure you pull with equal
force so the machine does not twist and end up on its side.
The swivelling wheel must be pointing forwards in the direction of travel.
1.5 On delivery
The following items are included in the delivery. Contact your retailer if anything is
missing.

HTC GL 35 D Introduction
1.0 3
• Dust extractor
• Manual disc
• Suction hose with couplings
1.6 Unpacking the equipment
Warning!
Read carefully through the safety instructions and user manual before using the
equipment.
• Check the packaging and equipment carefully on delivery for any possible
transportation damage. If there is any sign of damage, contact your retailer and
report it. Report packaging damage to the transport company as well.
• Check that the delivery matches the order. If there are any discrepancies, contact
your retailer.
1.7 Machine name plate
The machine name plate provides the following information. The model and serial
number must be specified when ordering spare parts for the machine.

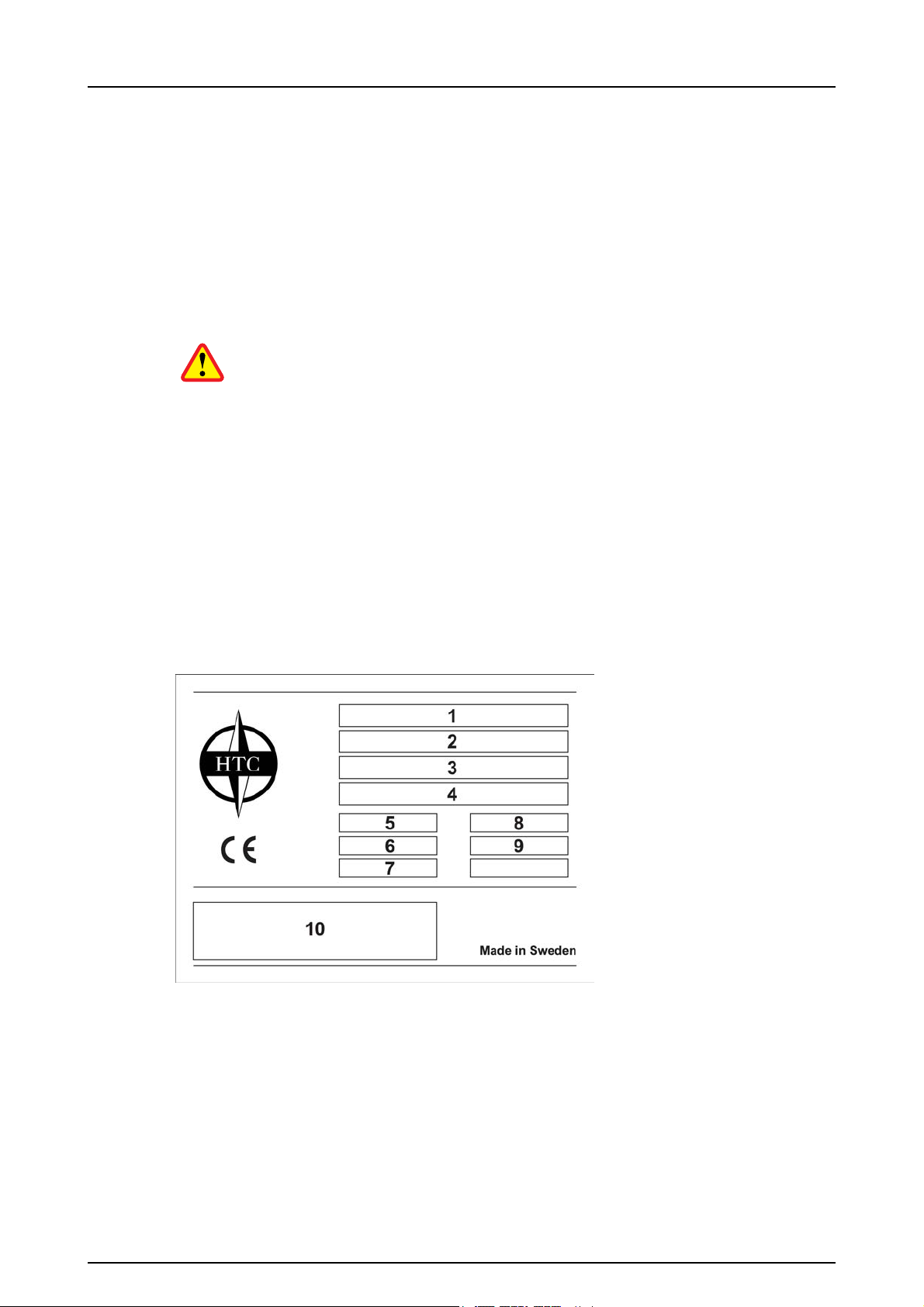

Figure 1-1. Machine name plate
1. Model
2. Model number
3. Serial number
4. Year of manufacture
5. Power (kW)
6. Voltage (V)

Introduction HTC GL 35 D
4 1.0
7. Current (A)
8. Frequency (Hz)
9. Weight (kg)
10. Address field
1.8 Handling and storage
The machine should be stored in a heated, dry area when not in use. Otherwise it may
be damaged by condensation and cold.

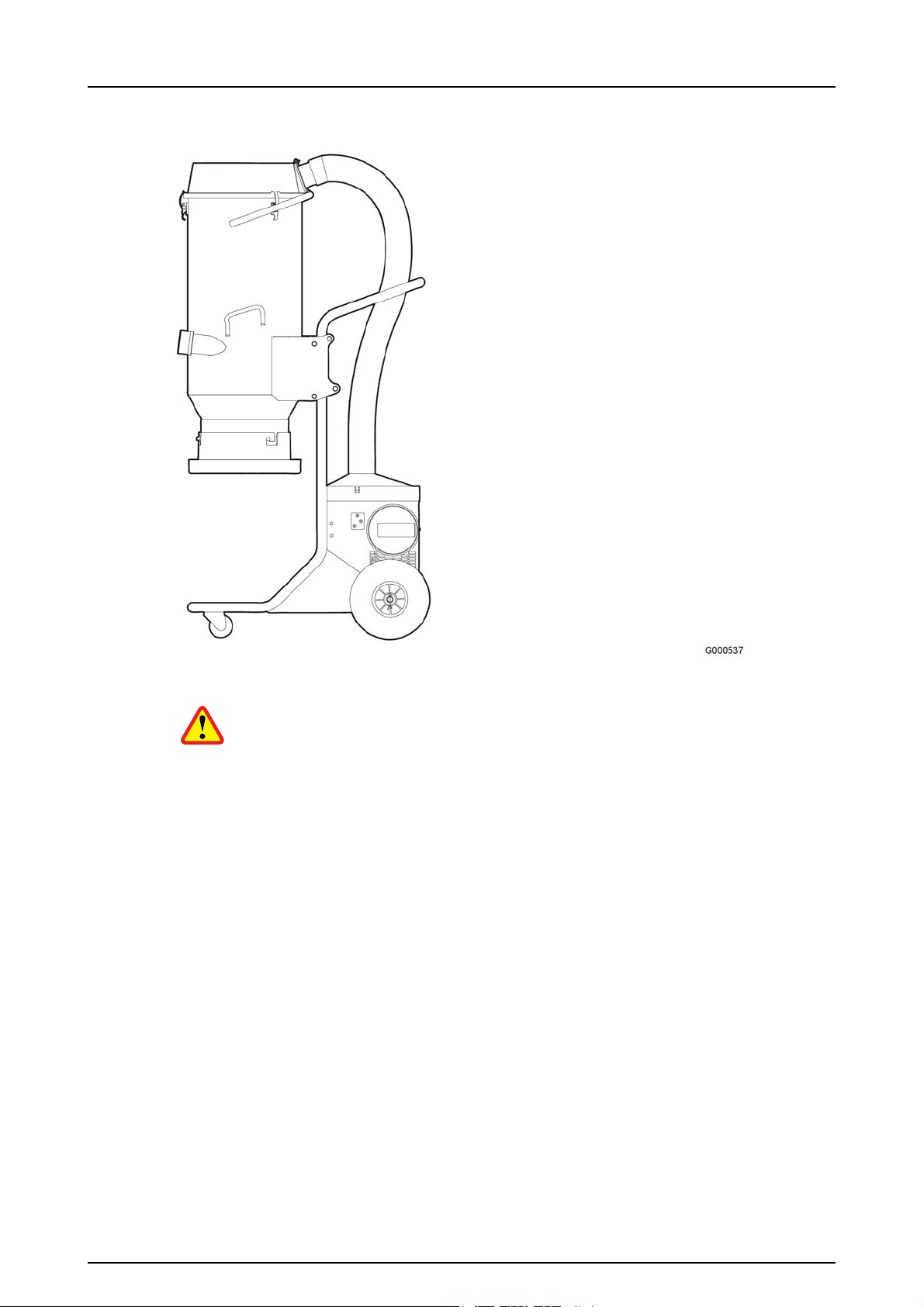

In the operating position, the dust extractor is 189 cm high, but it can be lowered so it is
only 154 cm high, which makes transport and maintenance work easier.
The machine can be lowered to the transport position, which facilitates transport and
maintenance work. See Figure3-2, page9when lifting. Make sure that all the
constituent parts of the machine are properly assembled before lifting.
Warning!
If handled carelessly, the machine can overturn and cause both personal injury
and damage to the equipment. Ensure that there are always two people present
when it is to be rotated.
1.9 Noise
Warning!
Always use hearing protection when using the machine.
This machine is tested for noise in accordance with ISO 3741 . For information on the
sound pressure level and sound power level for each model, see the table in Chapter
Technical data, page37.

HTC GL 35 D Safety
1.0 5
2 Safety
2.1 General
This chapter contains all the warnings and notes that must be considered for the dust
extractor.
2.2 Warnings
Warning!
Read carefully through the safety instructions and user manual before using the
equipment.
Warning!
Always use hearing protection when using the machine.
Warning!
The machine may only be used or repaired by personnel who have received the
appropriate theoretical and practical training and who have read this manual.
Warning!
Never use the machine in an environment where there is a risk of explosion or
fire. Familiarise yourself with and follow the relevant fire safety regulations
when using the machine.
Warning!
Use protective equipment such as safety shoes, safety goggles, protective
gloves, mouth mask and hearing protection.
Warning!
During use, some surfaces on the machine become very hot. Use protective
gloves and let the machine cool a little before you touch it.
Warning!
The dust that is sucked up is harmful if inhaled. Follow local regulations and
use breathing protection.
Warning!
During maintenance and repairs, the power to the machine must be
disconnected.

Safety HTC GL 35 D
6 1.0
Warning!
Do not rinse off the machine, as moisture can penetrate to the electrical parts
and damage the motors as well as causing an electrical shock.
Warning!
Do not rinse off the machine, as moisture can penetrate into the HEPA filter and
main filter.
Warning!
The machine must always be placed on a horizontal level surface during
operation. There is a risk for crush injuries, if it should start to roll.
Warning!
The machine must be connected to a residual current device.
Warning!
If handled carelessly, the machine can overturn and cause both personal injury
and damage to the equipment.
Warning!
There is a risk of crush injuries while lowering to the transport position or
raising to the operating position. Use the lifting handles to avoid trapping your
hands and fingers.
2.3 Notes
Note!
The machine is best used together with HTC's grinding machines in connection
with dry grinding of stone and concrete floors, and in accordance with HTC's
recommendations.
Note!
Never use the machine in connection with wet grinding or to suck up moisture
and water, since this can cause blockages in the dust extractor's suction hose as
well as damage to the main filter, HEPA filter and motors.
Note!
Only use original spare parts from HTC for the machine. Otherwise, neither the
CE marking nor the warranty will be valid.
Note!
For the CE marking to be valid, the instructions in this manual must be
followed.

HTC GL 35 D Safety
1.0 7
Note!
The machine should be stored in a dry, warm (above zero) location when not in
use.
Note!
If the dust extractor is stored in a cold location (below zero), it must be placed
in a warm location (above zero) for at least two hours before use.
Note!
Discolouration on the top of the HEPA filter indicates that the main filter is not
functioning as it should. If the HEPA filter is dirty on the underside, the filter is
defective.
Note!
When checking the HEPA filter, the machine must be placed in the operating
position.
Note!
Anti-static hoses must be used when coupling to the grinder and dust extractor.

Machine description HTC GL 35 D
8 1.0
3 Machine description
3.1 General machine description
HTC GL 35 D is constructed from a number of main components, such as chassis,
electrical cabinet, etc, see Figure3-1, page8and Figure3-2, page9. Several
different designs are available, adapted for different markets. For model variants, see the
table in Technical data, page37. The dust that is vacuumed up is captured in a
Longopac bag, which can be sealed when the desired quantity of dust has been reached.
Figure 3-1. The front of the dust extractor
1. Inlet, suction hose connection
2. Longopac holder
3. Collection plate for waste bag
4. Plug, electrical connection
5. Guides/Chassis
6. Lifting handles, adjustable height
7. Dust cylinder including main filter

HTC GL 35 D Machine description
1.0 9
Figure 3-2. The back of the dust extractor
1. Top dust cylinder
2. Handle filter cleaning valve
3. Handle
4. Attachment point for lifting the machine
5. HEPA filter holder
6. Outlet, ventilation hose connection (ø 160 mm)
7. Motor package including HEPA filter
3.2 Description of controls - Keypad
The picture below shows the keypad for the dust extractor.

Machine description HTC GL 35 D
10 1.0

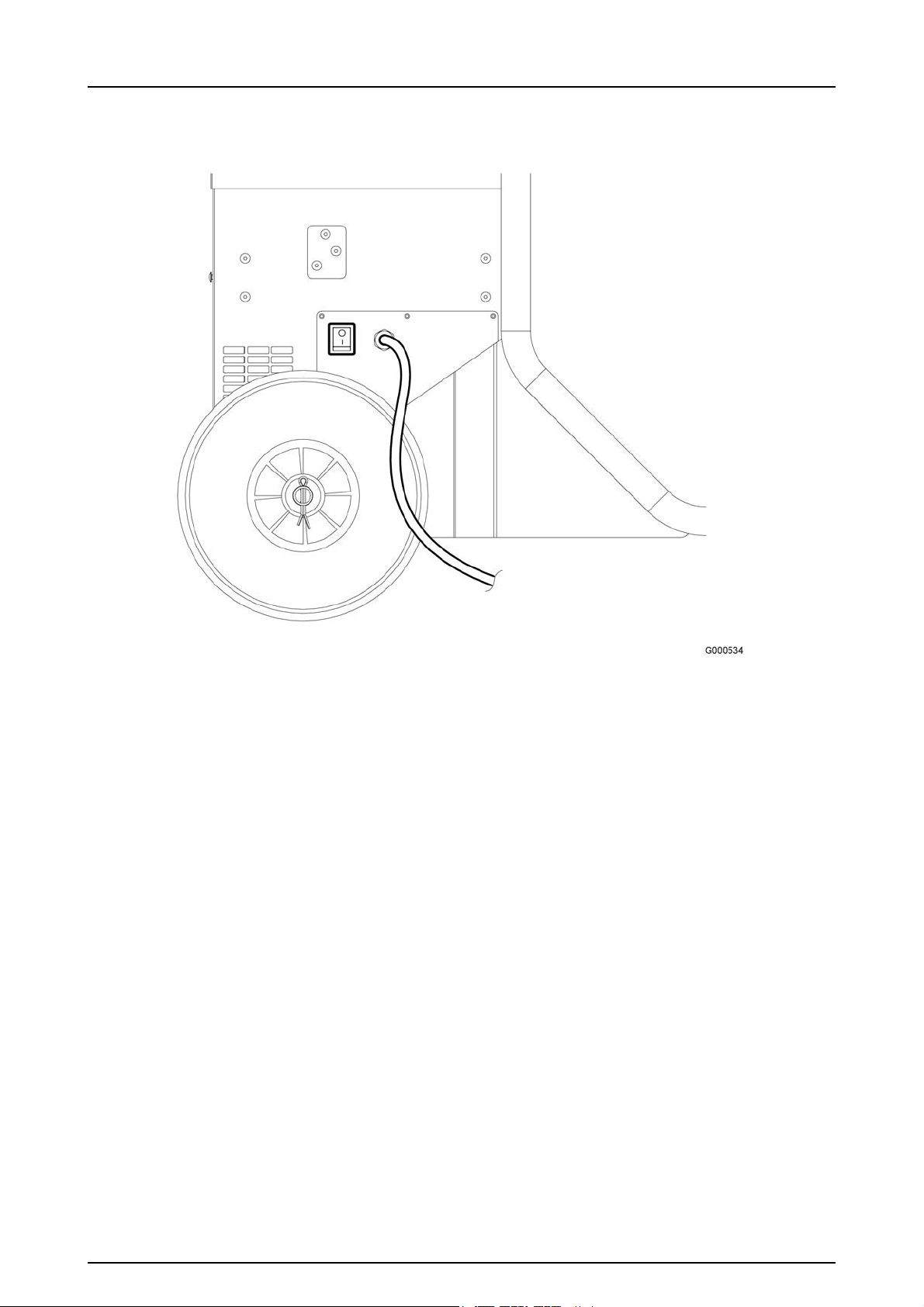

Figure 3-3. Keypad
•I (ON)- Start the dust extractor: Press the switch to position "I" to start the dust
extractor.
•O (OFF)- Switch off the dust extractor: Press the switch to position "O" to
switch off the dust extractor.

HTC GL 35 D Operation
1.0 11
4 Operation
4.1 General
The following section describes how the dust extractor is operated, the dust extractor's
different positions, and how to replace the Longopac and the different filters used in the
dust extractor.
Warning!
The machine may only be used or repaired by personnel who have received the
appropriate theoretical and practical training and who have read this manual.
Warning!
Use protective equipment such as safety shoes, safety goggles, protective
gloves, mouth mask and hearing protection.
Warning!
The machine must only be used and moved on level surfaces. There is a risk of
crush injuries if the machine starts to roll.
Tip!
Check the minimum recommended cable area before using an extension cord.
You will find the recommended cable area under Technical Data.
4.2 The positions for the dust extractor
The dust extractor can be placed in two positions; operating position and transport
position, see Figure4-4, page15 and Figure4-3, page14.
Warning!
If handled carelessly, the machine can overturn and cause both personal injury
and damage to the equipment. Ensure that there are always two people present
when it is to be rotated.

Operation HTC GL 35 D
12 1.0
4.2.1 The dust extractor's operating position
When the dust extractor is in use, it must be in the operating position, see Figure4-3,
page14.
1. Raise the dust cylinder package from the transport position by lifting with the lifting
handles, see Figure3-1, page8, according to Figure4-1, page12.
Figure 4-1. Raising the dust cylinder package

HTC GL 35 D Operation
1.0 13
2.
Lift until the catches Figure4-2, page13 fasten firmly in the top lug on the
chassis for operating position.
Figure 4-2. Locking the dust cylinder package
3. Make sure that both catches are properly located in the lugs.

Operation HTC GL 35 D
14 1.0
Figure 4-3. Operating position
Warning!
If the catches are not properly located in the lugs, there is a risk that the dust
cylinder package can drop, with a consequential risk of crush injury.
4.2.2 Lowering the dust extractor to the transport position
The dust extractor can be lowered to the transport position, see Figure4-4, page15.
When the dust extractor is in the operating position, and you want to lower it to the
transport position, do as follows:
1. Lift the dust cylinder package with both hands, using the lifting handles, see
Figure3-1, page8. To avoid the risk of the suction system tipping, place a foot
on the collection plate for the waste bag.
2. Lift the dust cylinder package up and out a little, so the catches, see Figure4-2,
page13, release. Then let the dust cylinder package drop slightly and fold in the
dust cylinder package again, so the catches fasten in the lower lug on the chassis for
transport position.
