OptiX PTN 3900 Packet Transport Platform of PTN Series
Quick Installation Guide
Issue: 14
Date: 2013-07-30

Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://www.huawei.com
Email:
[email protected]

This document aims to provide simple and distinctive guidelines for hardware installation.
This document does not describe operations for the pre-delivery installation. Instead, this document
describes only the operations for on-site installation.

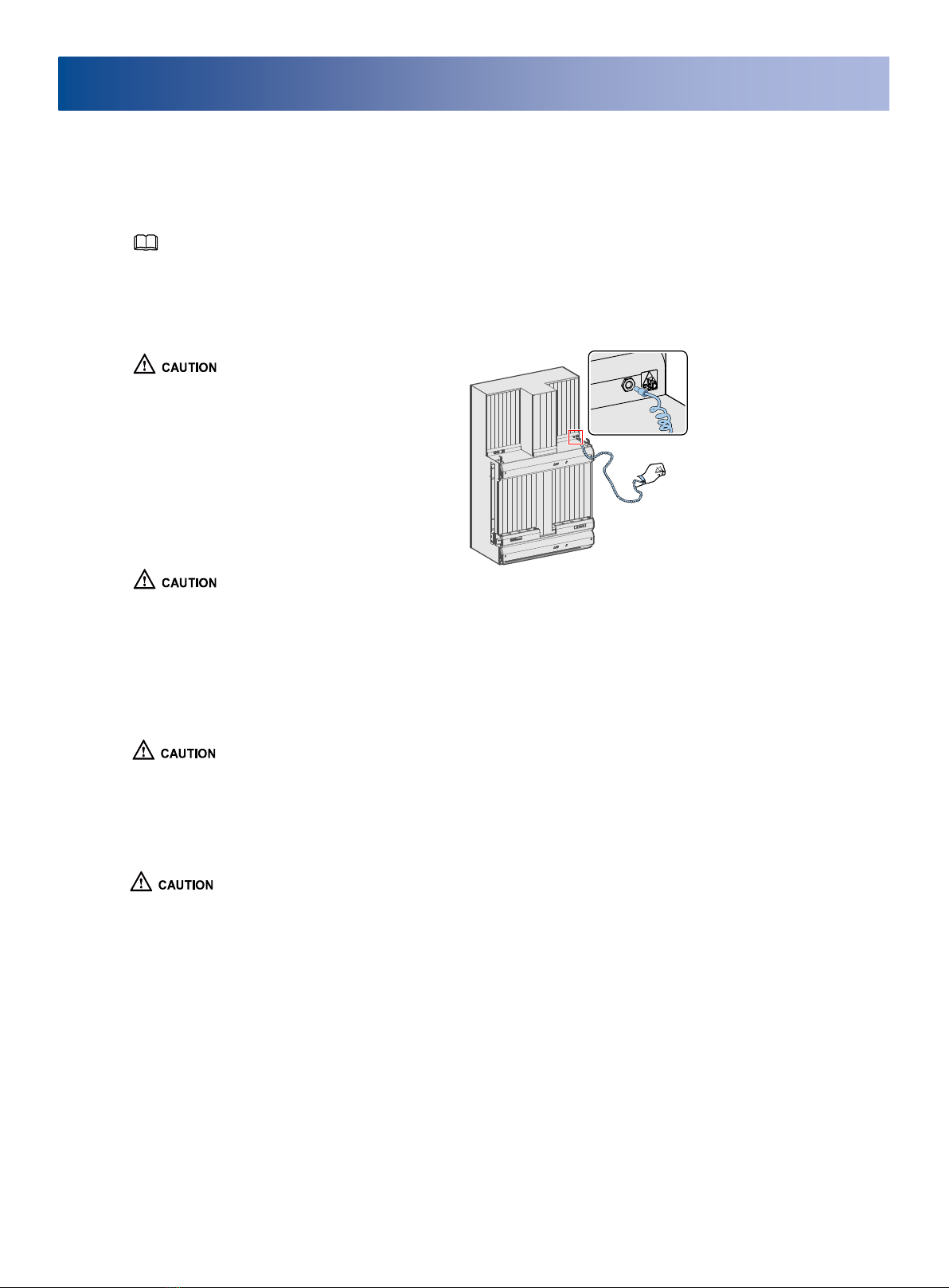

NOTE
Electrostatic Discharge
Before touching the device, or holding the boards and IC
chips, wear the anti-static wrist strap to prevent the
electrostatic discharge of the human body from
damaging the sensitive components. Ensure that the
other end of the antistatic wrist strap is well grounded.
Bundling Cables
The distance between cable ties or fiber binding straps inside the cabinet should be within 250 mm. (For
subscriber cable, the distance is 200mm. )
The distance between cable ties for all cables and corrugated pipes outside the cabinet is determined
according to the distance between two horizontal beams. For the cabling trough without beams, bundle the
cables with the distance not exceeding 250 mm between cable ties.
Pre-Installation Check
Verify that the equipment room, power supply, ground cables and optical cables are ready for installation.
Start the installation according to the engineering design documents after confirming that conditions are met.
Refer to the Installation Guide for information about specific operational requirements and technical
specifications.
Affixing Labels or Tags
Affix the label or tag to the signal cable, 2 cm away from the connector. When the cable is placed vertically,
the label or tag should point towards the right. When the cable is placed horizontally, the label or tag should
point downwards.
Precautions

2
2
Instructions and Precautions for Handling Boards
Do not hold a board without hand protection. Wear an ESD wrist strip or ESD gloves before handling a board.
Insert filler panels into vacant slots on an NE to prevent foreign matters from getting into the NE, which may
result in faults on the NE.
Boards are fragile and valuable. When handling or placing a board, exercise caution and put it into a
dedicated packing box.
Holding aboard without hand protectionWearing ESD gloves Wearing an ESD strip
Hold the front panel of a board with hands.

Tools for Installation
Tape measure Philips screwdriver Flathead screwdriver
Adjustable wrench Socket wrench Paper knife
Crimping pliers Cable cutter Wire stripper
Torque spanner Cable tester Multimeter
Electric soldering iron Hydraulic crimper Heat gun
Coax stripper Ethernet cable crimping pliers Diagonal pliers

3
Cabling Holes on the Top and at the Bottom of the Cabinet
2
Installing and Routing Power Cables
3
Contents
Installing and Routing Fibers
Upward Cabling
2
Downward Cabling
3
Installing the Cable Distribution Plate 1
2
Installing and Routing Cables
Overview of Cables
12
4
Installing and Routing Cabinet Indicator Cables
4
Installing and Routing Alarm Cables
514
Installing and Routing E1 Cables
616
Installing and Routing Ethernet Cables
720
Installing and Routing External Clock and Time Cables
821
Installing and Routing Network Management Cables 22
24
25
Connecting the Equipment Power Supply 27
1Open Corrugated Pipe 23
9
23
13
Appendix 28
Checking the Installation 26

1
Installing the Cable Distribution Plate
37th hole
Cable distribution plate
Panel screw
1st hole
22nd hole
36th hole
The holes are numbered from the bottom up. The hole at the bottom is numbered 1. The 73rd and 74th holes
are for installation of the upper cable distribution plate .

2
Installing and Routing cables
1

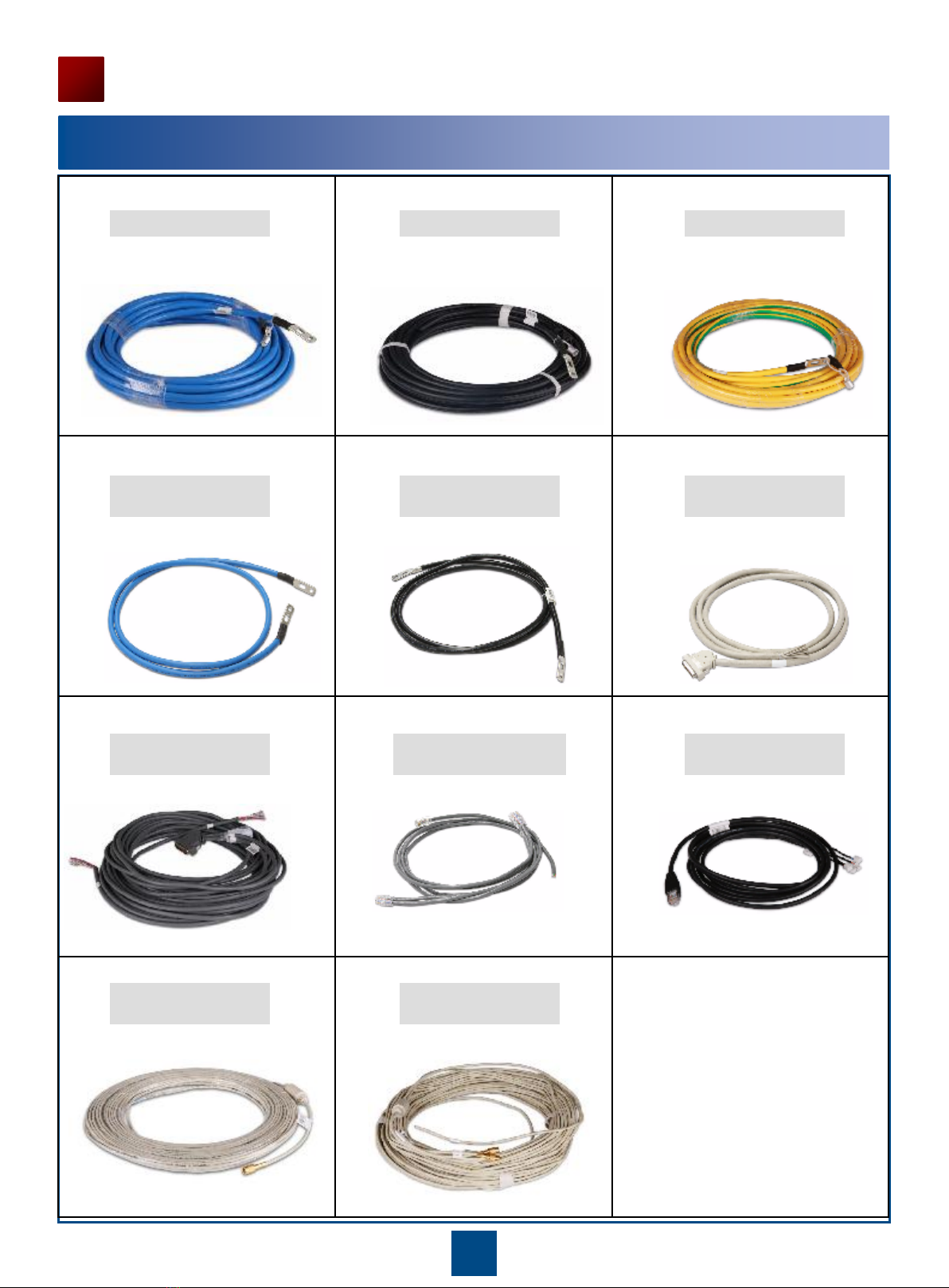

Overview of Cables
BGND power cable-48V power cable PGND cable
Subrack power
cable(positive)
Subrack power
cable (negative) 75-ohm 8 x E1 cable(1)
Alarm output and
concatenation cable
120-ohm 8 x E1
cable Cabinet indicator cable
Two-Channel clock
transfer cables
One-Channel clock
transfer cables

3
2
Installing and Routing cables

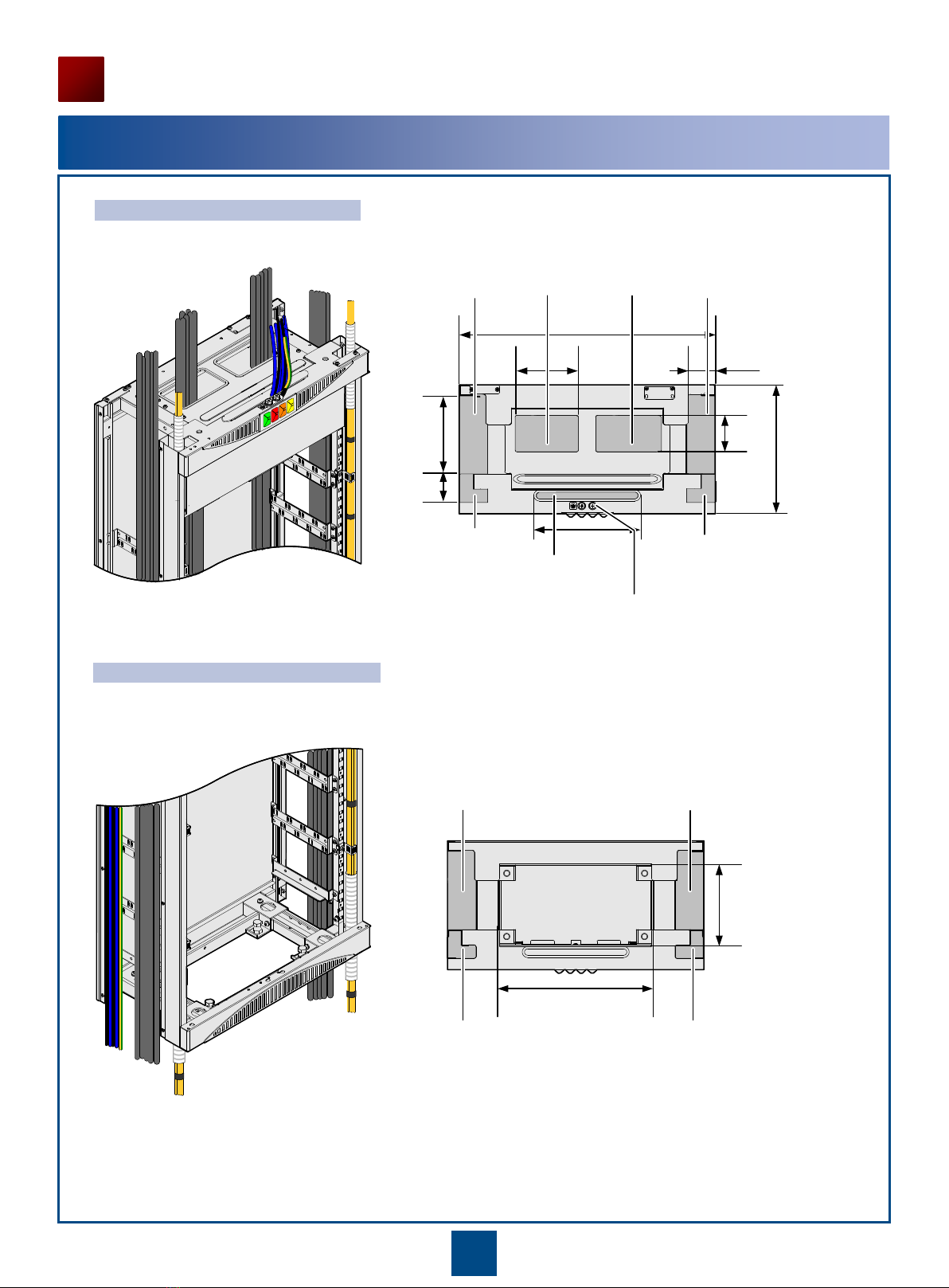

Cabling Holes on the Top and at the Bottom of the Cabinet
Cabling holes on the top of the cabinet
Power cable hole
M8 grouding bolt
Fiber hole
Cabling hole
600mm
251mm
62mm
300mm
81mm
143mm
188mm
66mm
Fiber hole
Cabling hole Cabling hole Cabling hole
Cabling holes at the bottom of the cabinet
360mm
184mm
Cabling hole
Fiber hole
Cabling hole
Fiber hole

4
3
Installing and Routing cables
Installing and Routing Power Cables －Connection of Power Cables (TN81PDU)
Office grounding
bar
PGND cable
To office power supply
A
A
Subrack
power cable
Cabinet grounding
A
Subrack
power cable
connector
PIU
PWRB
PWRA
ALM
PIU
RTN1(+) NEG1(-)
RTN2(+) NEG2(-)
PIU
PWRB
PWRA
ALM
PIU
RTN1(+) NEG1(-)
RTN2(+) NEG2(-)
Power cables are classified into cabinet power cables and subrack power cables. The subrack power cables
are connected to the power distribution unit before delivery. Connect the subrack power cable connector to the
PIU board in the subrack during installation.

5
3
Installing and Routing cables
Installing and Routing Power Cables －Connection of Power Cables (DPD63-8-8)
Office grounding
bar
PGND cable
To office power supply
A
A
Subrack power cable
Cabinet grounding
A
Subrack
power cable
connector
PIU
PWRB
PWRA
ALM
PIU
RTN1(+) NEG1(-)
RTN2(+) NEG2(-)
PIU
PWRB
PWRA
ALM
PIU
RTN1(+) NEG1(-)
RTN2(+) NEG2(-)
Power cables are classified into cabinet power cables and subrack power cables. The subrack power cables
are connected to the power distribution unit before delivery. Connect the subrack power cable connector to the
PIU board in the subrack during installation.

6
3
Installing and Routing cables
Installing and Routing Power Cables －Power Distribution Unit (TN81PDU)
Power supply
output area Power supply
output area
Power supply
switch area Power supply
switch area
Power supply
input area
a1 a2 a3 a4 A1 A2 A3 A4 B1 B2 B3 B4 b1 b2 b3 b4
Area A of the
DC PDU Area B of the DC PDU
Installing copper plates
No
Standard power input of the cabinet
4 ×63 A
Yes
8 ×32 A
Power input of each subrack
2 ×63 A
4 ×32 A
Installing Copper Plates on Site
Suggestion
Yes
No
A DC PDC contains eight power inputs and eight power outputs. If a short-circuit copper bar is used, the eight
power inputs and eight power outputs are changed to four power inputs and eight power outputs.
Area A and area B of the DC PDU serve as mutual hot backups.
The power output terminal at side A of the DC PDU provides two channels of power supplies to the PIU
housed in slot 27 of the OptiX PTN 3900 subrack. The power output terminal at side B of the DC PDU
provides two channels of power supplies to the PIU housed in slot 28 of the subrack.

7
3
Installing and Routing cables

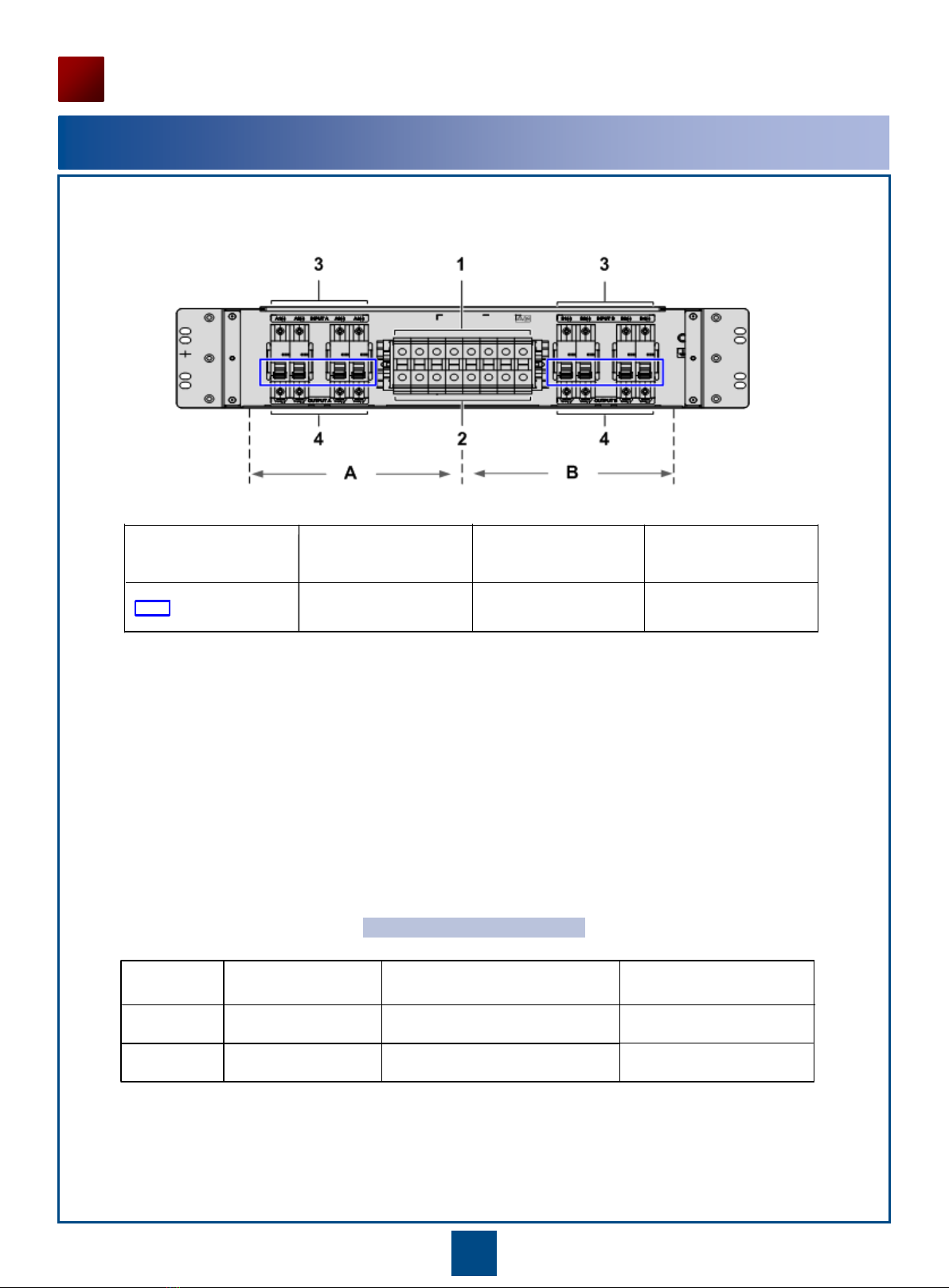

Installing and Routing Power Cables －Power Distribution Unit (DPD63-8-8)
The PDU (DPD63-8-8) consists of two parts: A and B, which backs up each other. Both A and B receive four -
48V/-60V power supplies and output four power supplies for subracks in the cabinet.
1 Power supply input area
(Positive) 2 Power supply output area (Positive) 4 Power supply output area (Negative)
3 Power supply input area
(Negative)
Power switch A Area A of the DC PDU B Area B of the DC PDU -
Power supply input area (Positive): There are four input terminals on areas A and B respectively. These
input terminals are used to be connected to positive poles of external power cables and are marked as RTN(+)
A1 to RTN(+) A4 and RTN(+) B1 to RTN(+) B4 from left to right.
Power supply input area (Negative): There are four input terminals on areas A and B respectively. These
input terminals are used to be connected to negative poles of external power cables and are marked as
INPUT A A1(-) to A4(-) and INPUT B B1(-) to B4(-) from left to right.
Power supply output area (Positive): There are four output terminals on areas A and B respectively. These
input terminals are used to be connected to positive poles of the subrack power cables and are marked as
RTN(+) A1 to RTN(+) A4 and RTN(+) B1 to RTN(+) B4 from left to right.
Power supply output area (Negative): There are four output terminals on areas A and B respectively. These
input terminals are used to be connected to negative poles of the subrack power cables and are marked as
OUTPUT A A1(-) to A4(-) and OUTPUT B B1(-) to B4(-) from left to right.
Installing copper plates
No
Standard power input of the cabinet
4 ×125 A
Yes
8 ×63 A
Power input of each subrack
2 ×125 A
4 ×63 A
Installing Copper Plates on Site
Suggestion
Yes
No

8
3
Installing and Routing cables

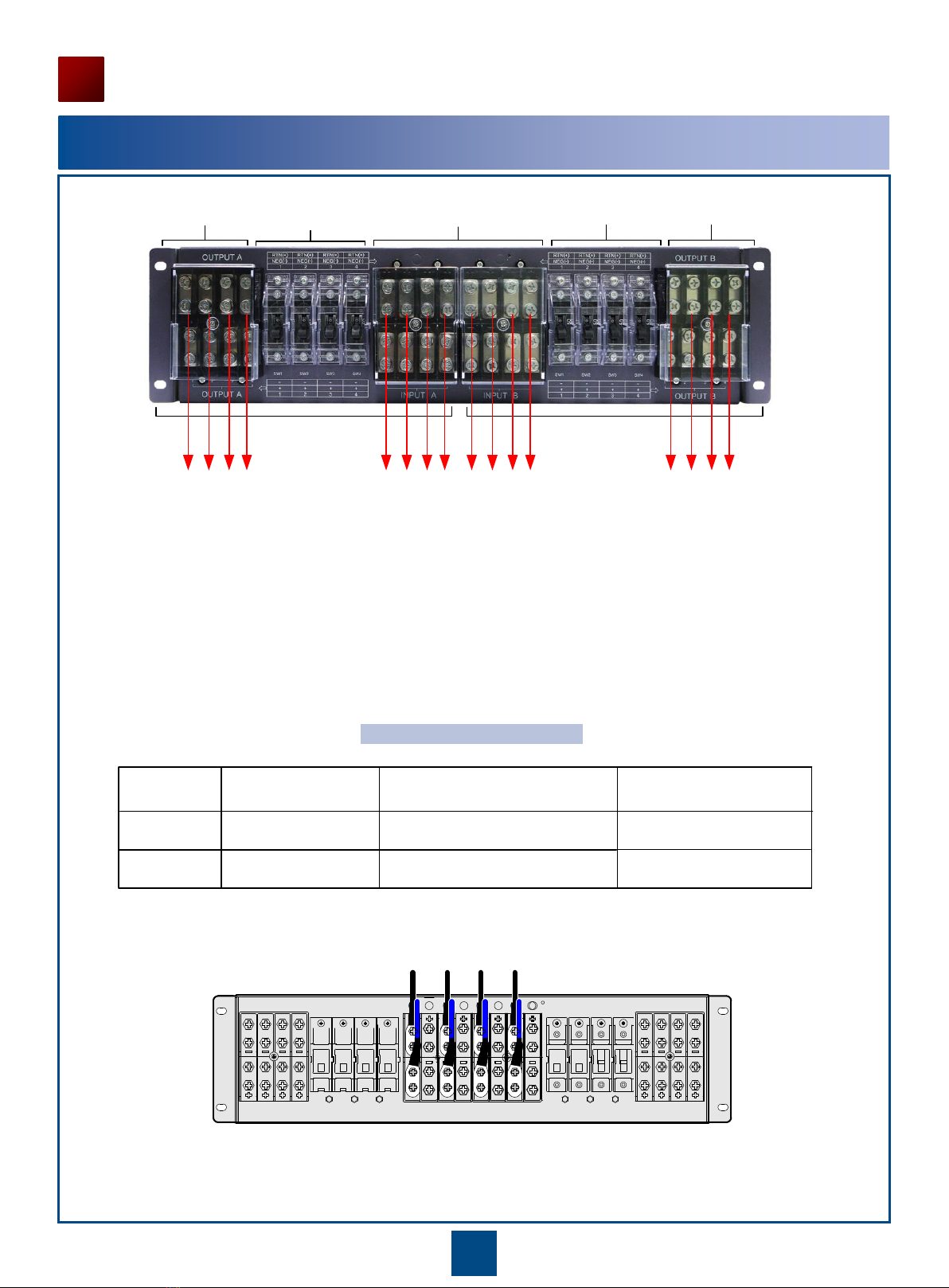

Installing and Routing Power Cables －Installing Copper Plates on Site (TN81PDU)
Do not install the copper plates in the power supply output area of the DC PDU. You should determine
whether the copper plates are installed in the power supply input area only according to the on-site power
supply situation.
If new equipment is not configured with sufficient external power inputs according to the standard
configurationsof a cabinet, instead, if it is configured with external power inputs according to the number of
actually configured subracks, power cables of the subracks need to be increased during later installation of
subracks for expansion. For how increase the power cables, refer to the Appendix.
The following figures show how to install short-circuit copper bars in Area A. The method to install short-circuit
copper bars in Area B is the same as that in Area A.
Determine the input terminal groups to be short-circuited. Install the copper plate on the input terminal
groups (+) to be short-circuited. Then, connect the external power cables (black) to the input terminals (+).
Repeat the preceding operations and short-circuit the target input terminal groups (-). Then, connect the
external power cable (blue) to the input terminals (-).
Repeat the preceding operations and short-circuit the target input terminal groups (-). Then, connect the
external power cable (blue) to the input terminals (-).

9
3
Installing and Routing cables
Installing and Routing Power Cables －Installing Copper Plates on Site (DPD63-8-8)
Copper Plates
Copper fitting
RightLeft
Do not install the copper plates in the power supply output area of the DC PDU. You should determine
whether the copper plates are installed in the power supply input area only according to the on-site power
supply situation.
Determine the input terminal pairs that must be connected internally. Then position the copper plates to the
NEG(-) input terminals on the air breakers on the PDU. Tighten the screws on the air breakers to secure
the copper plates. Note that there are copper plates targeted for the left and right power input areas and
they are not interchangeable.
Install an appropriate copper fitting on the RTN(+) input terminals in the middle of the PDU.
Connect external power cables (blue) to the NEG(-) input terminals and BGND cables (black) to RTN(+)
input terminals.

10
3
Installing and Routing cables

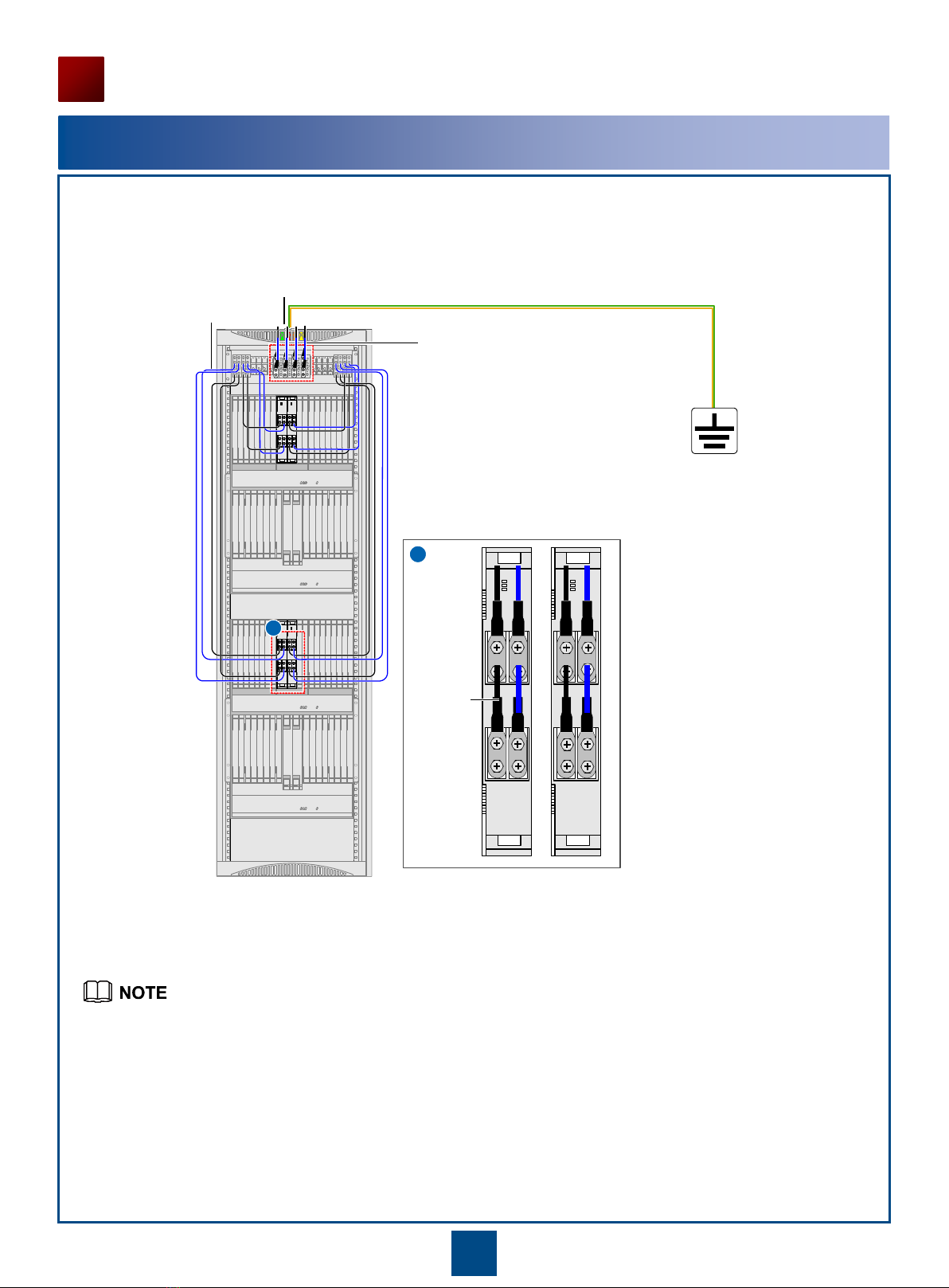

Installing and Routing Power Cables －Upward Cabling (TN81PDU)
M8 grounding bolt
To office power supply (4×63A)
PGND cable
BGND power cable
-48V power cable
Do not install or demount the power cable while the power is on. To avoid personal injuries, turn off the power
before performing the operations.
The signal cable, power cable and fiber should be routed and bundled separately. Connect these cables in
sequence: PGND cable > BGND power cables > -48 V power cables.
When installing the PGND cable, connect the PGND cable to one grounding bolt on the cabinet and to the
grounding bar on the other side.

11
3
Installing and Routing cables
Installing and Routing Power Cables －Upward Cabling (DPD63-8-8)
The signal cable, power cable and fiber should be routed and bundled separately. Connect these cables in
sequence: PGND cable > BGND power cables > -48 V power cables.
When installing the PGND cable, connect the PGND cable to one grounding bolt on the cabinet and to the
grounding bar on the other side.
Do not install or demount the power cable while the power is on. To avoid personal injuries, turn off the power
before performing the operations.
To office power supply (4×125A)

12
3
Installing and Routing cables
Installing and Routing Power Cables －Downward Cabling
Do not install or demount the power cable while the power is on. To avoid personal injuries, turn off the power
before performing the operations.
The signal cable, power cable and fiber should be routed and bundled separately. Connect these cables in
sequence: PGND cable > BGND power cables > -48 V power cables.
When the power cables are routed downward, the number of cables respectively routed on the two sides of
the cabinet should be the same. See the previous figure.

13
4
Installing and Routing cables
Installing and Routing indicator cables
Cabinet indicator
concatenation cable
Cabinet indicator cable
A
B
To the cabinet
indicator
LAMP1
LAMP2
LAMP1
B
A
SLOT 29
SLOT 29
Use the cabinet indicator cables to connect the LAMP1 interface of the SCA in the upper subrack and the
LAMP2 interface of the SCA in the lower subrack.
Use the cabinet indicator cables to connect the cabinet indicators and the LAMP1 interface on the SCA board
in the lower subrack.

14
5
Installing and Routing cables

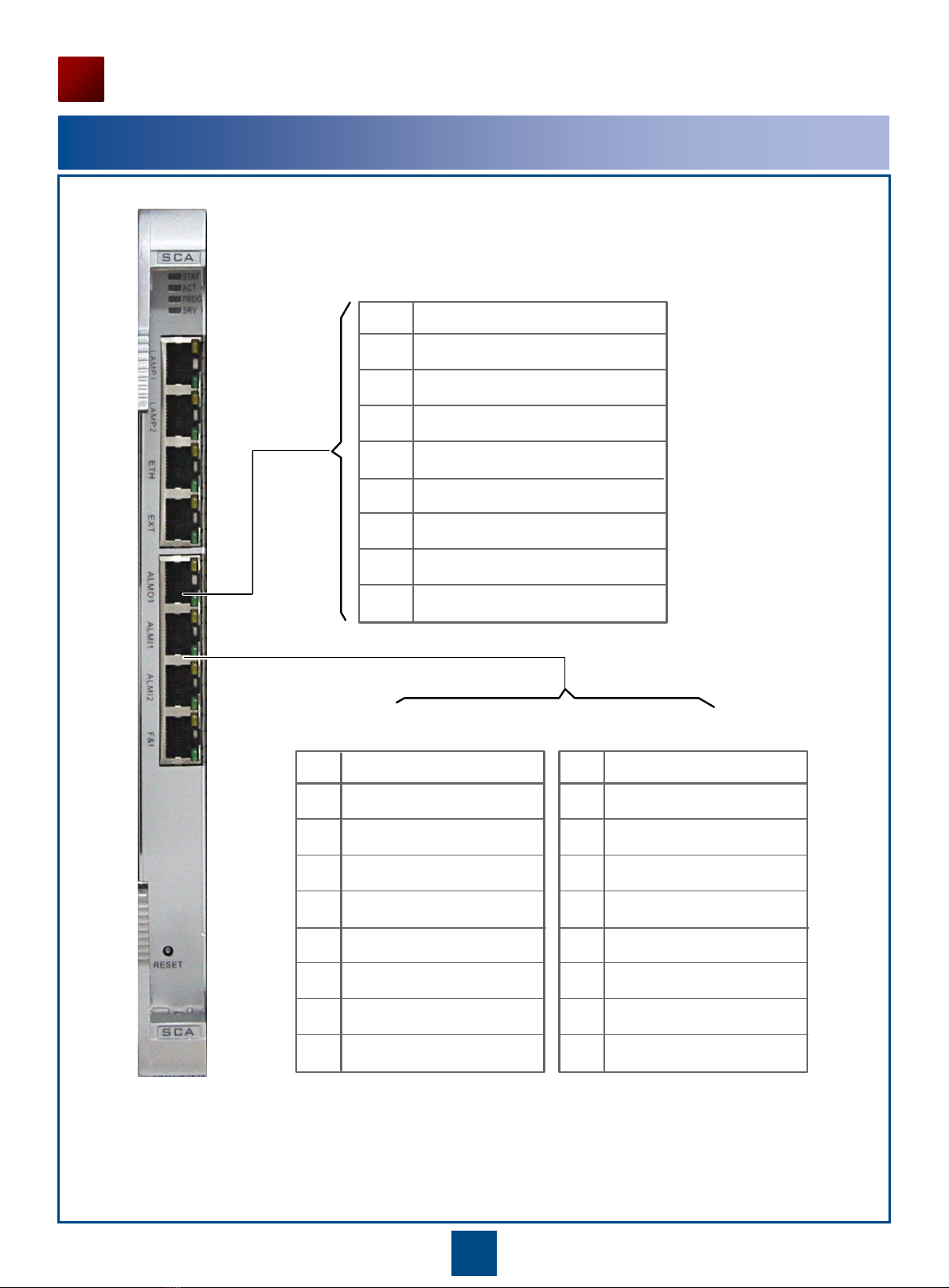

Installing and Routing Alarm Cables －Alarm Interfaces
1
2
5
4
3
6
7
8
Alarm input 1
Alarm input interface （ALMI1）
Ground of alarm input 3
Pin Funciton
Alarm input 2
Alarm input 4
Alarm input 3
Ground of alarm input 1
Ground of alarm input 2
Ground of alarm input 4
1
2
5
4
3
6
7
8
Alarm input 5
Alarm input interface （ALMI2）
Ground of alarm input 7
Pin
Alarm input 6
Alarm input 8
Alarm input 7
Ground of alarm input 5
Ground of alarm input 6
Ground of alarm input 8
1
2
5
4
3
6
7
8
Alarm output signal 1 (positive)
Pin
Alarm output signal 1 (negative)
Alarm concatenation signal 1 (negative)
Alarm concatenation signal1 (positive)
Alarm output signal 2 (positive)
Alarm output signal 2 (negative)
Alarm concatenation signal 2 (positive)
Alarm concatenation signal 2 (negative)
Alarm concatenation and output interface (ALMO1)
Funciton
Funciton
