Huawei SmartAX MA5800-X15 User manual

HUAWEI TECHNOLOGIES CO., LTD.
SmartAX MA5800-X15
Quick Installation Guide
Issue: 02
Date: 2017-03-31

i
About This Document
Change History
Symbol Conventions
Updates between document issues are cumulative. Therefore, the latest document issue
contains all updates made in previous issues.
The symbols that may be found in this document are defined as follows.
Symbol Description
Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, could
result in equipment damage, data loss, performance deterioration, or
unanticipated results.
NOTICE is used to address practices not related to personal injury.
Calls attention to important information, best practices and tips.
NOTE is used to address information not related to personal injury,
equipment damage, and environment deterioration.
Updates in Issue 01 (2016-05-30)
This is the first release.
Intended Audience
This document describes how to install the MA5800-X15.
The intended audience is hardware installation engineers.
Updates in Issue 02 (2017-03-31)
Based on issue 01 (2016-05-30),Added 7.1 Cabinet with Routed Cables and 7.2 Routing the
External Power Cable and PGND Cable.

ii
Content
1 Precautions …………………………………..…………………………............................………….1
2 Tools and Meters………………………….………………………….............................…………….2
3 Appearance and Structure……………………………………….............................…………….3
4 Environment Requirements on Third-Party Cabinets ……..………….…………….………4
5 Space Requirements on Third-Party Cabinets …………………………….………..…......5
5.1 When the Cabinet Accommodates One MA5800-X15 Subrack………….………….5
5.2 When the Cabinet Accommodates One MA5800-X15 Subrack and Another Device..6
6 Installing the Service Subrack……………….……………………...............................………...7
7 Routing Cable …………………………………….……………………...............................………..8
7.1 Cabinet with Routed Cables……………...........................................................................8
7.2 Routing the External Power Cables and PGND Cable......................................................9
7.3 Routing the Power Cables and PGND Cable of the Equipment ………..........................10
7.4 Routing Clock Cables………….......................................................................................11
7.5 Routing Network Cable..……….……..............................................................................12
7.6 Routing Trunk Cables………...........................................................................................13
7.7 Routing Optical Fibers (Upstream)..................................................................................14
7.8 Routing Optical Fibers (P2P Board)…............................................................................15
7.9 Routing Optical Fibers (GPON Board)............................................................................16
8 Post-Installation Check…………………………………………………...............................…...17
9 Powering on the System………………………………………..............................…................18

1
1 Precautions
•After routing the cable, attach the label or fasten the tag to the cable 20 mm away from the
connector.
•After the label for the signal cable is attached to the signal cable, the rectangular text area of
the label must face rightwards or downwards.
•After the identification plate for the power cable is attached to the power cable, the text area of
the plate must face rightwards or upwards. Ensure that the side attached with the label faces
outwards.
ESD gloves ESD wrist strap
Affixing labels / tags
Copyright © Huawei Technologies Co., Ltd. 2017 All rights reserved.
•This document aims to provide simple and distinctive guidelines for hardware installation.
•This document does not describe operations for the pre-delivery installation. Instead, this
document describes only the operations for on-site installation.
Electrostatic Discharge
Before touching the device, or holding the boards and IC chips, wear the ESD gloves or the
ESD wrist strap to prevent the electrostatic discharge of the human body from damaging the
sensitive components. Ensure that the other end of the ESD wrist strap is properly grounded.
•The distance between cable ties or binding straps inside the cabinet must be within 250 mm.
(For user cable, the distance must be within 200 mm.)
•Use diagonal pliers to cut off the extra part of the cable tie to the end, and ensure that the
cable tie is neat without sharp edges to prevent hand injury.
Bundling cables

2 Tools and Meters
2
ESD gloves ESD wrist strap
Optical power meterMultimeter
Network cable
crimping tool Network cable tester
Before you begin, get the following tools ready.
Marker Flat-head screwdriver Phillips screwdriver Diagonal pliers
Optical fiber
cleaner
Optical fiber
microscope

3 Appearance and Structure
The MA5800-X15 service subrack, 11U high and 19 inches wide, has 20 slots and a fan try
on the top. The subrack is installed in the cabinet through the IEC mounting ears.
Unit: mm
3
442
482.6
Fan tray
Universal interface
board
Service board
Power board
Grounding point
Control
board
Mounting ear
ESD jack
Service board
486
287

4
4 Environment Requirements on Third-Party Cabinets
•Cabinet dustproof requirement: The MA5800-X15 subrack is not dustproof, so select
dustproof cabinets that support dust filter maintenance.
•Cabinet installation requirements:
For the MA5800-X15, select an IEC60297-compliantcabinet with a depth of 300 mm or
more so that a space with a depth of 55 mm or more can be reserved for cable/fiber routing
after boards are installed.
•Cabinet door requirement: When devices are operating, keep the cabinet door closed.
•Grounding requirement: Huawei cabinets are grounded through mounting bars. Ensure that
third-party cabinets are properly grounded based on site conditions.
•Power distribution requirements: Ensure that an over-current protection mechanism has
been deployed on the upper-level device.A 60-A over-current protection mechanism is
recommended for the MA5800-X15. Ensure that the circuit breaker trip value of the upper-level
device is greater than or equal to the rated value on the device nameplate.
•Heat dissipation requirements:
Ensure that the cabinet has an air inlet and the hole density of the cabinet door is 60% or
higher.
When a cabinet accommodates multiple subracks or the device shares a cabinet with other
active devices, ensure that the following space requirements are met.

5
•Reserve at least 2 U space for air flow-in when you route fibers or install other passive
devices. You are advised to reserve more than 4 U space to facilitate subsequent air inlet or
dust filter cleaning.
5 Space Requirements on Third-Party Cabinets
5.1 When the Cabinet Accommodates One MA5800-X15 Subrack
•The heat dissipation of the MA5800-X15 is assured only when more than 2 U space is
reserved at the air inlet and 3 U space is reserved at the air outlet.
•You are advised to reserve more than 4 U space above and under the MA5800-X15
respectively to minimize the impact on other components in the cabinet.
STATUSFAN
SCUN
RUN
ALM
ACT
RESET
LINKACT
1
0
2
3
CON ETH ESC
TX0
RX0
TX1
RX1
TX2
RX2
TX3
RX3
SCUN
RUN
ALM
ACT
RESET
LINKACT
1
0
2
3
CON ETH ESC
TX0
RX0
TX1
RX1
TX2
RX2
TX3
RX3
PRTE
RTN(+)
ALARM
NEG(-)
PRTE
RTN(+)
ALARM
NEG(-)
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
X2CS
RUN ALM
TX0
RX0
LINK ACT
1
0
TX1
RX1
X2CS
RUN ALM
TX0
RX0
LINK ACT
1
0
TX1
RX1
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
GPBD
RUN
ALM
BSY
PON
0
2
4
6
1
3
5
7
0
1
2
3
4
5
6
7
CITD
RUN MAJ MIN
IN0 OUT
COM ALMETH
IN1
BITS/TOD
3U
4U
Front view Side view
Airflow blockingobject

6
Without an air deflector Withan air deflector
Front view Side view Front view Side view
•Reserve 10 U space between the devices or add a 3 U air deflector to redirect air flows to
minimize the mutual heat dissipation impacts on the devices.
•Reserve at least 2 U space for air flow-in when you route fibers or install other passive devices.
You are advised to reserve more than 4 U space to facilitate subsequent air inlet or dust filter
cleaning.
5.2 When the Cabinet Accommodates One MA5800-X15 Subrack and
Another Device
5 Space Requirements on Third-Party Cabinets
3U
10U
4U
2U
4U
Air deflector (3 U)

6 Installing the Service Subrack
7
Determine the location of floating nuts
by using the installation template.
Install the upper and lower cable manager.
Install the service subrack.
Installation
template
Phillips screwdriver
Upper cable manager
Lower cable manager
Locate the installation positions of
the cable manager and service
subrack on the mounting bars, and
install captive nuts at these
positions.
Floating nut
Mounting bar (use a
flat-head screwdriver
if no mounting bar is
available.)

7.1 Cabinet with Routed Cables
7 Cable Routing
8
Cabinet configured with 2
MA5800-X15 subracks Installation
positions for
floating nuts
Cabinet configured with a
MA5800-X15 subrack Installation
positions for
floating nuts
133
129
82
112
105
94
87
84
78
76
46
39
28
21
18
16
12
10
133
129
46
39
28
21
18
16
12
10

7.2 Routing the External Power Cables and PGND Cable
7Cable Routing
9
PGND cable (with
OT terminals)
External Power
cables
PGND cable
Reserved
Hole for power cables and
ground cables.
Front door side
Top of the cabinet (top view)
Phillips screwdriver
NEG
(Blue) RTN(Black)
NEG
(Blue)
•Shut off the DC input, and attach labels on the switches that will be set during the cabling work.
•Insulate the DC terminals and all unnecessary bare parts.
•If the lap resistance between PGND cable of the device and ground bar exceeds 0.1 ohm, route
PGND cable again.
To office power supply
•The four power inputs need
to be controlled by
independent circuit breakers
when being connected to
the DC PDU.
•The PDU requires four -48
V/-60 V power inputs and
the rated current of one
break circuit is at least 60 A.
•The image is for your
reference only. The
appearance of actual
delivered PDB prevails.

7 Routing Cables
Connect the PGND cable
Connect the power cables
RTN(black)
NEG (blue)
To the DC PDU
If the subrack is installed in a Huawei cabinet, it does not need to be separately grounded
because the Huawei cabinet has been ground through mounting ears. However, it needs to
be separately grounded if being installed in a third-party cabinet or rack that cannot be
grounded through mounting ears. The ground point can be either of the following points.
•The two power inputs need to be controlled by
independent circuit breakers when being
connected to the DC PDU.
•The PDU requires two -48 V/-60 V power inputs
and the rated current of one break circuit is at least
60A.
7.3 Routing the Power Cables and PGND Cable of the Equipment
•Shut off the DC input, and attach labels on the switches that will be set during the cabling work.
•Insulate the DC terminals and all unnecessary bare parts.
•If the lap resistance between PGND cable of the device and ground bar exceeds 0.1 ohm, route
PGND cable again.
Phillips screwdriver
Power cables
PGND cable
10

Network cable
7 Routing Cables
7.4 Routing Clock Cables
BITS IN0 to
clock source
BITS IN1 to
clock source
BITS OUT to
lower level clock
To the external clock device
11

7 Routing Cables
Network cable

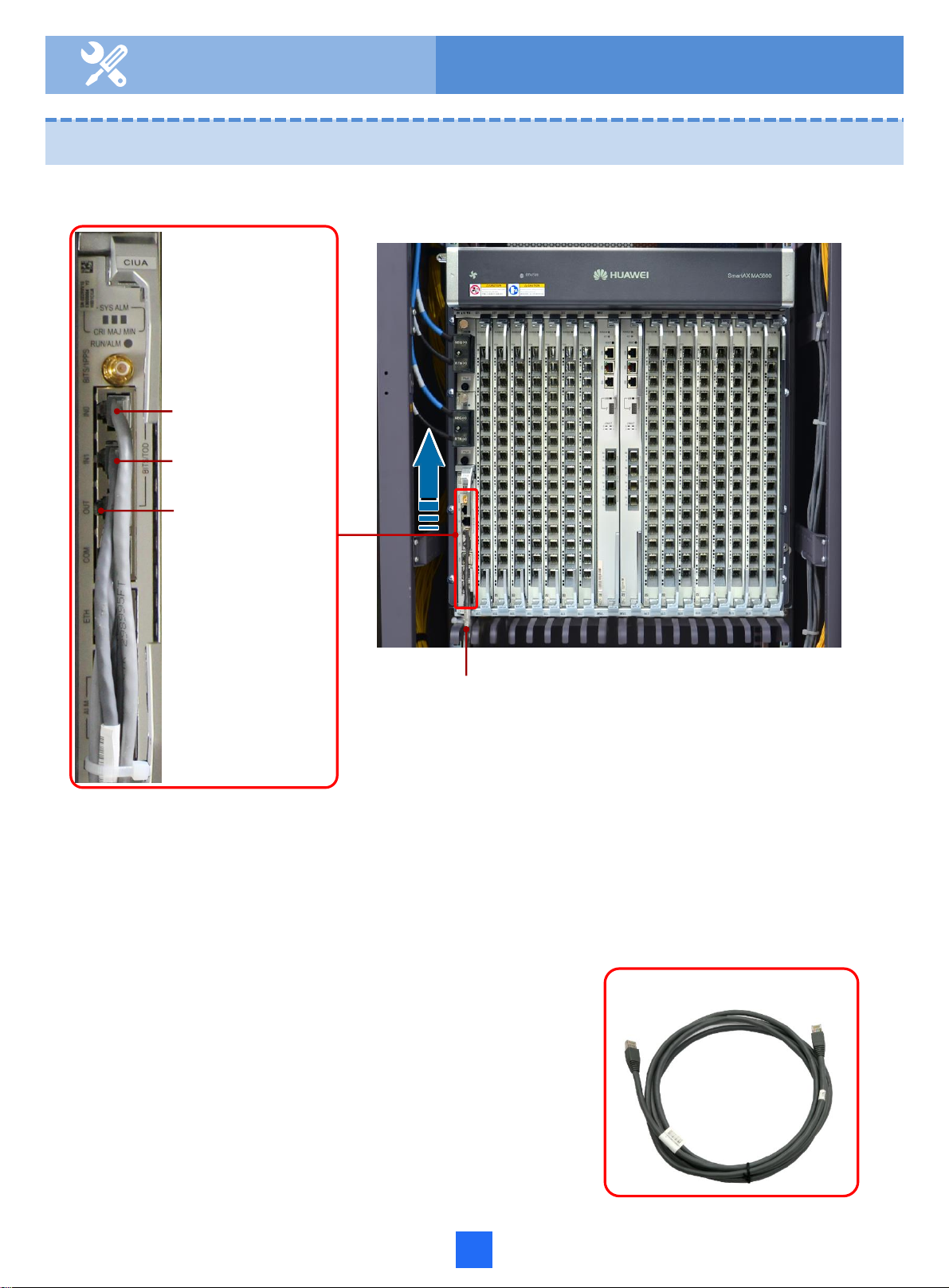

7.5 Routing Network Cables
TO the maintenance terminal or
transmission unit
12

7 Routing Cables
7.6 Routing Trunk Cables
Trunk cable
Flat-head screwdriver
Binding position
13
To DDF

7 Routing Cables
14
•When handlingoptical fibers, do not stand close to or look into the optical fiber outlet directly
with naked eyes.
•Lead the optical fiber through a corrugated pipe.The mouth of the corrugated pipe must be
wrapped with the adhesive tape. In the cabinet, the corrugated pipe should not be longer
than 100 mm. In addition, the corrugated pipe is bound at the cabling aperture.
•The bending radius of the optical fiber should be more than 20 times the cable radius. In
general, the bending radius of the optical fiber is more than or equal to 40 mm.
7.7 Routing Optical Fibers (Upstream)
≤ 42±1 mm
To ODF
Fiber (LC)
Fiber (LC)

7 Routing Cables
Fiber (LC) •When optical modules are preinstalled to boards before
delivery, ensure that optical modules are properly
installed before connecting fibers to boards.
•To facilitate the subsequent maintenance, bundle the
newly routed optical fiber with the originally routed
optical fiber firmly. Ensure that the height of the bundled
optical fibers is lower than 55 mm.
15
To ODF
•When handlingoptical fibers, do not stand close to or look into the optical fiber outlet directly with
naked eyes.
•Lead the optical fiber through a corrugated pipe. The mouth of the corrugated pipemust be
wrapped with the adhesive tape. In the cabinet, the corrugated pipe should not be longer than 100
mm. In addition, the corrugated pipe is bound at the cabling aperture.
•The bending radius of the optical fiber routed on the 48-port P2P board is greater than or equal to
5 mm.
•The 48-port P2P board has 24 optical transceivers. 12 optical fibers for six optical transceivers are
bundledin a group. When bundling the optical fiber, lean the optical fiber towards the right side of
the board. Do not pile up the optical fibers on the board. This avoids oppression among optical
fibers. Use four fiber bindingstraps at even distance to bundlethe optical fibers of each board.
7.8 Routing Optical Fibers (P2P Board)
Binding
position 1
(ports 0-11)
Binding
position 3
(ports 0-35)
Binding
position 4
(ports 0-47)
Binding
position 2
(ports 0-23)
Fiber
(LC)
≤30±1mm
To ODF

7 Routing Cables
16
Fiber (SC)
Fiber
(SC)
Binding
position 1
(ports 0-4)
Binding
position 2
(ports 0-9)
Binding
position 3
(ports 0-15)
7.9 Routing Optical Fibers (GPON Board)
•When optical modules are preinstalled to boards before delivery, ensure that optical modules are
properly installed before connecting fibers to boards.
•Route the fibers of the service boards on the left of the control board to the left side of the
cabinet, and route the fibers of the service boards on the right of the control board to the right
side of the cabinet.
•When the device uses the uplink interface board for upstream transmission of services, the
optical fiber for the uplink interface board is routed in the same way as that for the control board.
≤ 57±1 mm
To ODFTo ODF

8 Post-Installation Check
No. Description Method
1 Do not place any materials on the chassis. Observe
2 All vacant slots in a service subrack are filled in with filler panels. Observe
3 All the cables are bound with proper tightness. The space between
the cable ties is even, and the remaining parts of the cable ties are
cut off neatly. All cable ties face the same direction, keeping the
overall appearance nice.
Observe
4 The cross sectional area of the power cable and ground cable
complies with the engineering design, and satisfy the requirements of
equipment running.
Observe
5 The power cable and ground cable adopt a whole segment of copper
core. The cable has no connection in the middle or scratch on the
skin.
Observe
6 The power cables and ground cables must be routed horizontally and
vertically without crossover. Proper margins must be reserved at the
turning.
Observe
7 The power cables and ground cables must be connected correctly
and reliably. Observe
8 The identifiers on the power cable and ground cable must be correct,
legible, and neat. Observe
9 The power cables, ground cables, and signal cables must be routed
separately. Observe
10 Signal cables must be long enough, and must not be damaged or
broken, without joint in the cable. Observe
11 The connectors of the signal cables must be neat and intact. The
connectors must be connected correctly and firmly. The tips must be
connected securely.
Observe
12 Labels at both ends of the signal cables must be marked correctly,
clearly and neatly. Observe
13 If the fibers must be routed outside the cabinet, protection measures
must be taken, such as usingcorrugated pipes or guide troughs. Observe
14 Place the optical fiber pairs in order and bind them carefully with
optical binders. No sharp edge is allowed. Observe
17
