Huawei U.S. Cellular FT2260 Setup guide

Wireless Home Phone Connect
DEVICE SPECIFICATIONS
Dual Band CDMA 800/1900 MHz
Transmit Ranges - 200 mW (23dBm)
Chipset: QSC6055
Memory: 16 MB RAM/64MB Flash
Environment
- Operating temperature range: -10°C to + 50°C
- Storage temperature range: -40°C to +50°C
- Humidity: 5% to 95% (non-condensing)
RJ-11 Interface
-Ringer equivalence number (REN) 5.0
-Dynamic echo cancellation
-PSTN Emulation
Connectors
-Two RJ-11 interface jacks for telephone
GPS
-Integrated GPS for 911 support
TTY/TTD Compatible
E911 Support (system dependent)
LED Indicators
-Power/Battery status
-Message Waiting Indicator
Antenna
-2 dBi dipole antenna
AC-to-DC Switching Power Supply
-Voltage: 110 – 230 VAC
-Frequency: 50/60 Hz
Dimensions: (H) 1.5" x (W) 7.0" x (D) 5.0"
Weight: 12 oz.
Battery Backup (Optional) – 1500 NiMH
- provide up to 2 hours talk time and up to 36 hours
standby time
The Wireless Devices Group introduces the
Wireless Home Phone Connect
Wireless Home Phone Connect provides users with a high-quality, home phone
service on CDMA network.
Customers plug their existing home phone into the Home Phone Connect unit, complete the
over-the-air service activation and begin to make calls, while keeping their existing home
telephone number. The sleek device is a cost- efcient alternative to existing landline service
and comes equipped with dual band xed wireless with GPS.
PACKAGE CONTAINS
• Wireless Home Phone Connect
• Standard Battery
• AC Adapter
• Antenna
• User Manual
Condential and proprietary material for authorized HUAWEI personnel only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by
written agreement.

Home Phone Connect Accessories
In Box - AC Adapter
In Box - Battery Pack NiMH
1500 mAh
In Box - Battery Cover
In Box - Antenna
Condential and proprietary material for authorized HUAWEI personnel only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by
written agreement.

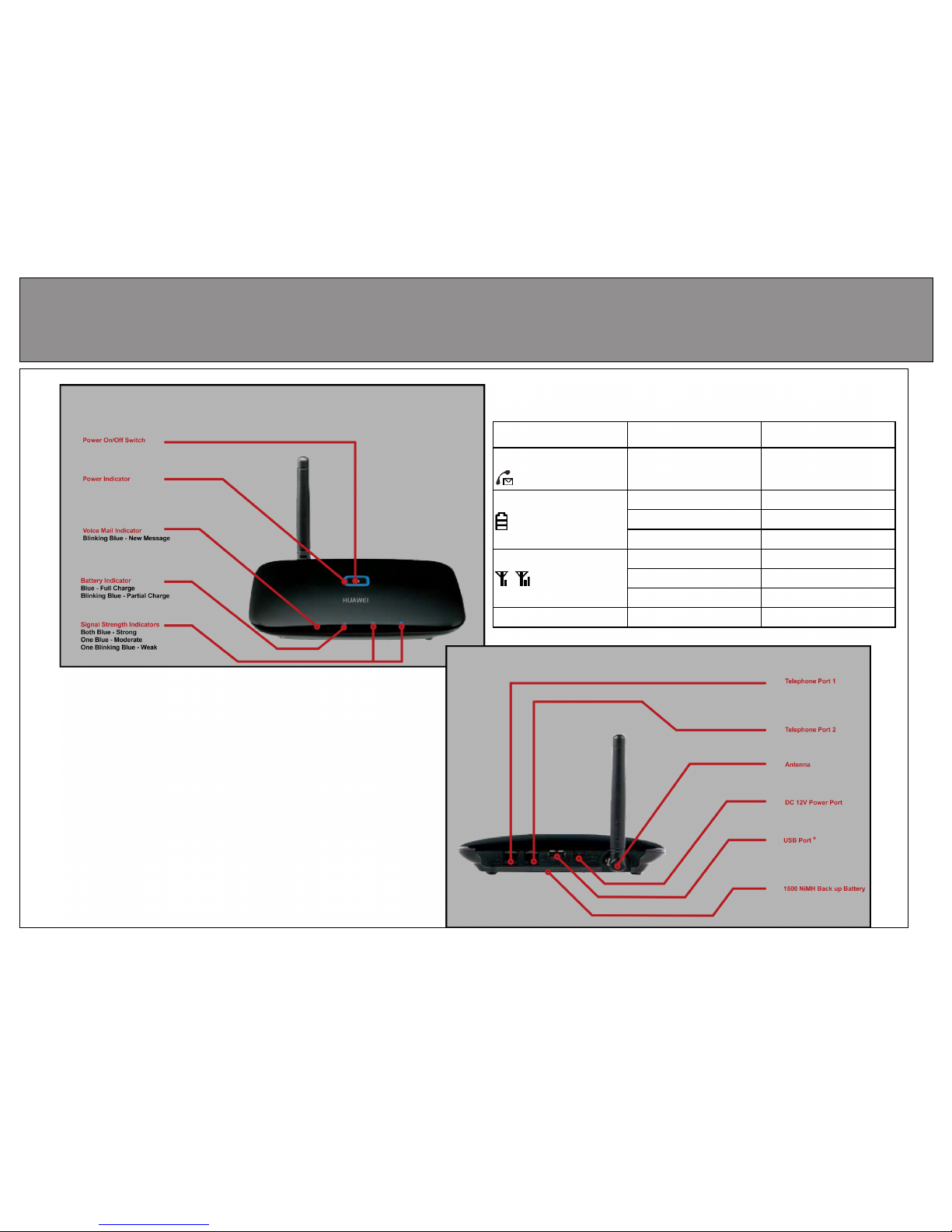

Device Overview
Signal Strength Indicators
Icon Indicator Status
Voice mail Blinking Blue New Message
Battery Blue Full Charge
Blinking Blue Partial Charge
Blinking Red Low Charge
Signal Strength Both Blue Strong
One Blue Moderate
One Blinking Blue Weak
Power Blue The device is on
* Note: Never place a USB-based device into the
USB port of the Home Phone Connect under any
circumstances. Doing so may damage the device
and negate its warranty. The port was designed
for diagnostic purposes only; it is not intended for
customer use.
Condential and proprietary material for authorized HUAWEI personnel only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by
written agreement.

Set up of the Home Phone Connect
NOTE: The battery is intended for backup purposes only (in the event of a
power failure). The device takes 3.5 hours to charge fully. The charge time
may be impacted by environmental factors. Talk time is about 2 hours and
standby time is about 36 hours, but the actual values vary with network
environment.
Remove the battery cover. Carefully insert the battery connection cable into
the battery port. The connection cable will click into place when correctly
inserted. Place the battery in the battery slot and return the battery cover.
Make sure the device is turned Off. Align the antenna with the antenna port on
the device as illustrated below. Screw the antenna into the port, ensuring that
the connection is secure.
Under normal usage, the device relies on the external power adapter for its
power supply. Insert one end of the power adapter into the DC input port,
and plug the unit into an AC wall outlet.
The device provides two telephone ports. The ports use the same telephone
number.
Plug one end of a telephone cable (RJ11) into a telephone port and the other
end into the back of a home telephone or home telephone base unit.

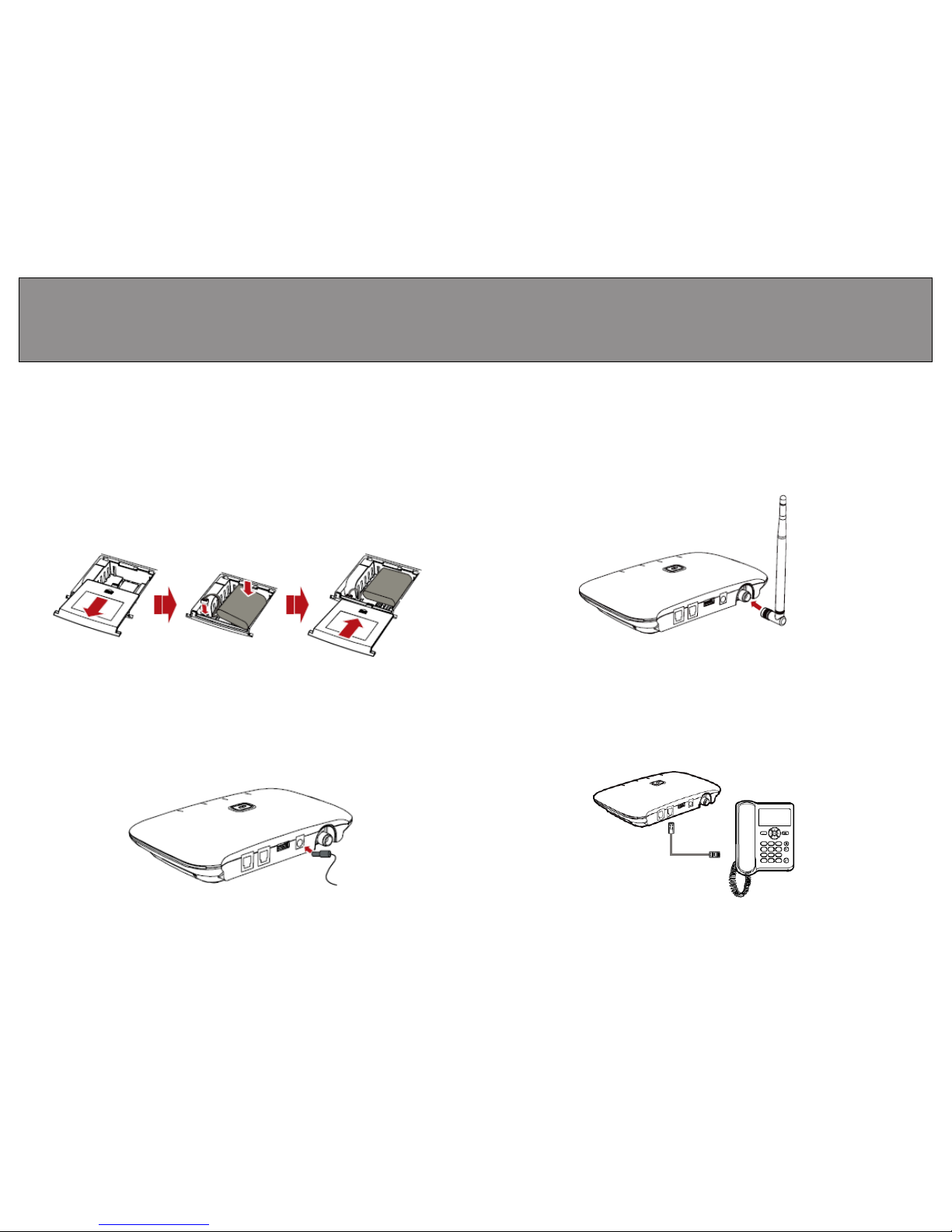

STEP 1: Installing the battery in the Home Phone Connect STEP 2: Installing the antenna on the Home Phone Connect
STEP 3: Installing the power adapter on the Home Phone
Connect
STEP 4: Connecting Home Phone Connect to a Telephone
NOTE: The telephone cable is not included.
Condential and proprietary material for authorized HUAWEI personnel only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by
written agreement.

Powering On and activating your Home Phone
Connect
1. Press the button to power on the device. When the device
is on, the power indicator will be blue.
2. Make sure you follow the instructions provided in the User
Manual or Quick Start Guide to set up your device.
3. Dial *228 from your home telephone. (The phone must be
connected to the Home Phone Connect device.)
• Press 1 and follow the prompts.
• Wait up to two minutes while your device is being programmed.
• You will receive a message that programming is complete.
IMPORTANT!
Your Wireless Home Phone Connect may not be compatible with
certain Home Security systems. Please check with your security
system provider to conrm the compatibility requirements of your
Home Security system.
Call Forwarding
Wireless Home Phone Connect allows customers to forward
calls to another phone number, including your mobile phone
or ofce number. Your home phone will not ring until you
deactivate the service. Airtime applies to forwarded calls
even if you send the call to wireline telephones. When
forwarding calls to phone numbers outside your local calling
area, you will be billed for any toll, long distance, and airtime
charges incurred. Additional per-minute charges may apply to
all forwarded calls. This feature is also known as "Immediate
Call Forwarding" .
To Activate Call Forwarding:
1. Dial *72.
2. Immediately enter the phone number where you want calls
to be forwarded. (e.g. *72-212-123-4567).
3. You will hear a conrmation tone.
4. Hang up your home phone or return your phone receiver
to its base.
To Deactivate Call Forwarding:
1. Dial *73.
2. You will hear a conrmation tone.
3. Hang up your home phone or return your phone receiver
to its base.
Home Phone Connect Incompatibilities
• The Wireless Home Phone Connect does not support
incoming or outgoing fax service, Collect Calls (send and
receive), select Home Security Systems and DSL Dial- Up
(check with ISP).
Making Calls
1. Before making a call, make sure at least one signal strength
indicator ( is lit up (or blinking).
2. Place a call by entering the desired telephone number. The
number will be dialed automatically.
3. Hang up or return the phone to the receiver to ensure that you
can receive calls.
NOTE: Your Wireless Home Phone Connect requires 10-digit
dialing. Please use the three digit Area Code when dialing all
local and long distance numbers. Your Wireless Home Phone
Connect does not support rotary or pulse dialing phones.
Condential and proprietary material for authorized HUAWEI personnel only. Use, disclosure or distribution of this material is not permitted to any unauthorized persons or third parties except by
written agreement.
