Huawei UPS5000-E Series User manual

1
Issue: 02
Part Number: 31500DCY
Date: 2020-11-10
UPS5000-E-(30 kVA-120 kVA)-FM
Quick Guide
Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.

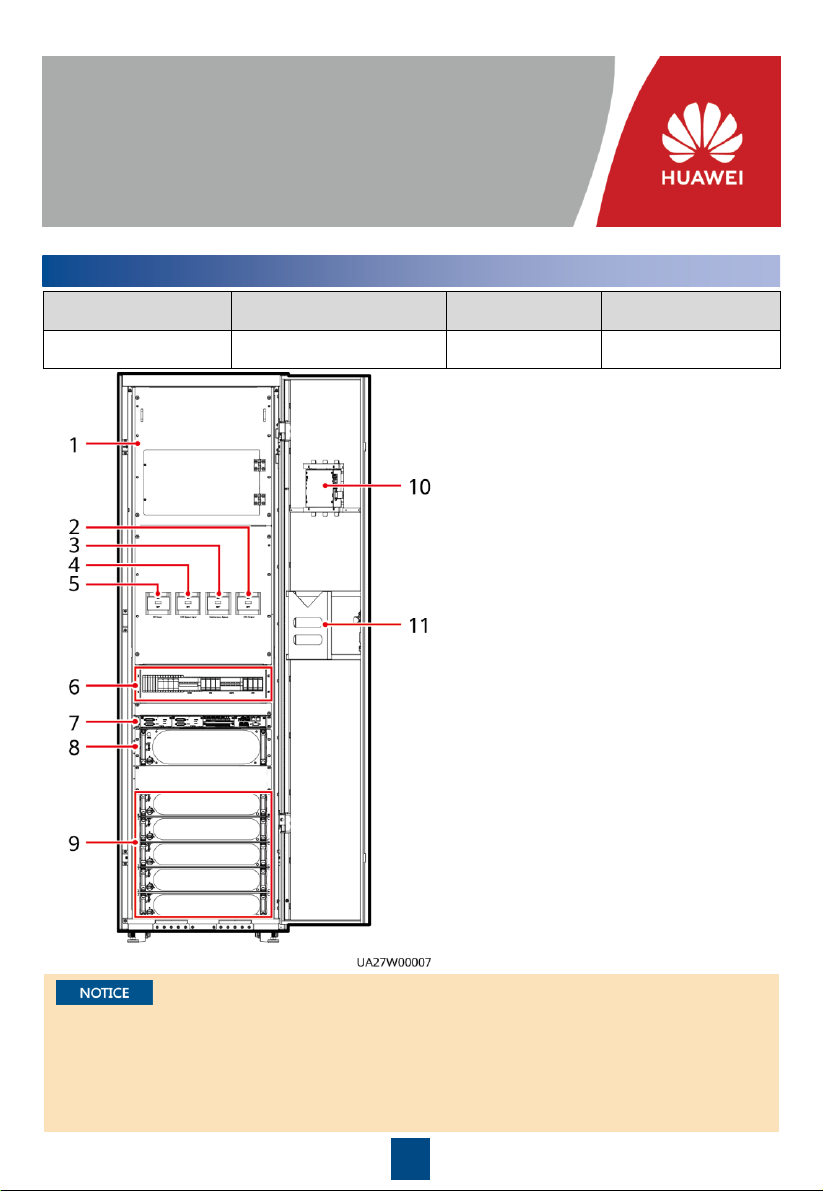

1Overview
UPS Model Capacity Configuration Weight (Full
Configuration)
Dimensions (H x W
x D)
UPS5000-E-120K-FM 30 kVA, 60 kVA, 90 kVA,
120 kVA 310 kg 2000 mm x 600 mm x 850 mm
(1) Cover
(2) Output switch
(3) Maintenance bypass switch
(4) Bypass input switch
(5) Mains input switch
(6) Surge protective module
(optional)
(7) Control module
(8) Bypass module
(9) Power modules
(10) Monitor display module (MDU)
(11) Folder
1. Before installation, read the user manual carefully to get familiar with product information
and safety precautions.
2. Use insulated tools when installing the equipment.
3. Only engineers certified by Huawei or its agent are allowed to install, commission, and
maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the
resulting UPS faults are beyond the warranty scope of Huawei.

2
2Installing the UPS

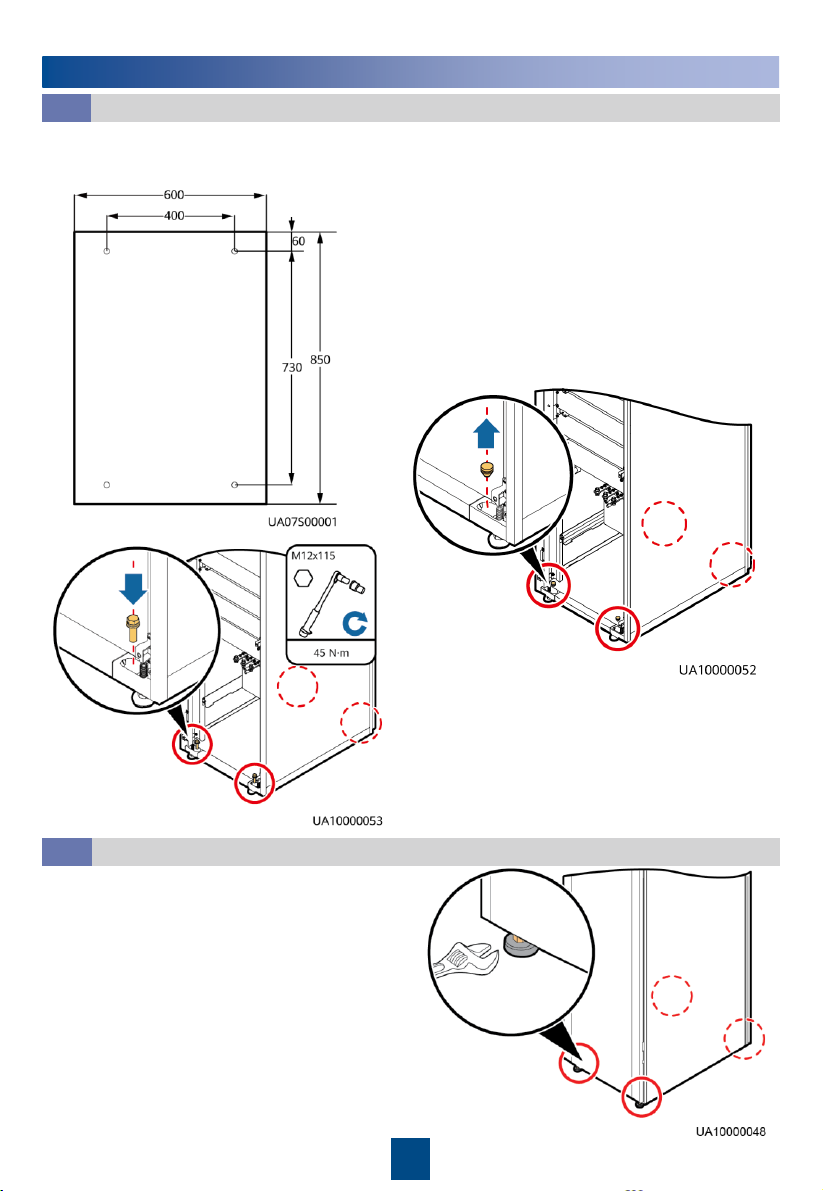

Secured Installation
1. Determine the position for installing the
cabinet. Mark mounting holes based on
the drawings. (unit: mm)
2. Use a hammer drill to drill four holes for
installing expansion bolts and then install four
expansion bolts in the holes. Remove the bolt,
spring washer, and flat washer.
3. Slide the cabinet on its castors to the installation
position.
4. (Optional) If the castors of the UPS need to be
lifted from the ground, perform Step 1 to Step 2
in Non-Secured Installation.
5. Remove the rear panel of the cabinet, and then
open the front door.
6. Remove the four plugs from the bottom of the
cabinet (two on the front and two at the back).
7. Insert four M12x115 expansion bolts into
the expansion bolt holes in the floor, and
tighten the expansion bolts.
2. Check whether the bottom of the cabinet is
horizontal by using a level. If the cabinet is
not leveled, adjust the leveling feet.
1. Lower the four leveling feet at the bottom of
the cabinet by using a wrench until all the four
castors at the bottom hang in the air and the
leveling feet bear the whole cabinet weight.
Non-Secured Installation

3
3Connecting Cables
•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps
may ignite and cause personal injury or device damage.
•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets
and surrounding environment clean and tidy.
•You need to prepare terminals onsite. The stripped length of the copper wire should be the
same as that of the part of the terminal that covers the conductor.
UPS Cable Connection Reference
3.1
The cabling route is for reference only. Connect cables based on site requirements.
Installing Cables
3.2
1. Ensure the maintenance bypass switch is
OFF. Open the front door, remove the front
cover, and remove covers from the top of
the cabinet based on the site requirements.
2. (Skip this step if the mains input and
bypass input share a power source.)
Remove the copper bars between the
mains input and bypass input.
Scenario 1: Routing Cables from the Top

4
3. Connect the ground cable, power cable, and signal cable. There is no need to connect the
bypass input power cable if the mains input and bypass input share a power source.
Signal cable
Port
Description Bolt Specifications Torque
Mains input M10 x 30 26 N•m
Bypass input M10 x 30 26 N•m
Battery input M12 x 35 46 N•m
Output M10 x 30 26 N•m
PE M10 x 30 26 N•m
The wire routed from the middle point of positive
and negative battery strings is the neutral wire.
Take a battery string consisting of 40 batteries for
example. The battery neutral wire is routed from
the middle between positive and negative battery
strings, each consisting of 20 batteries.

5

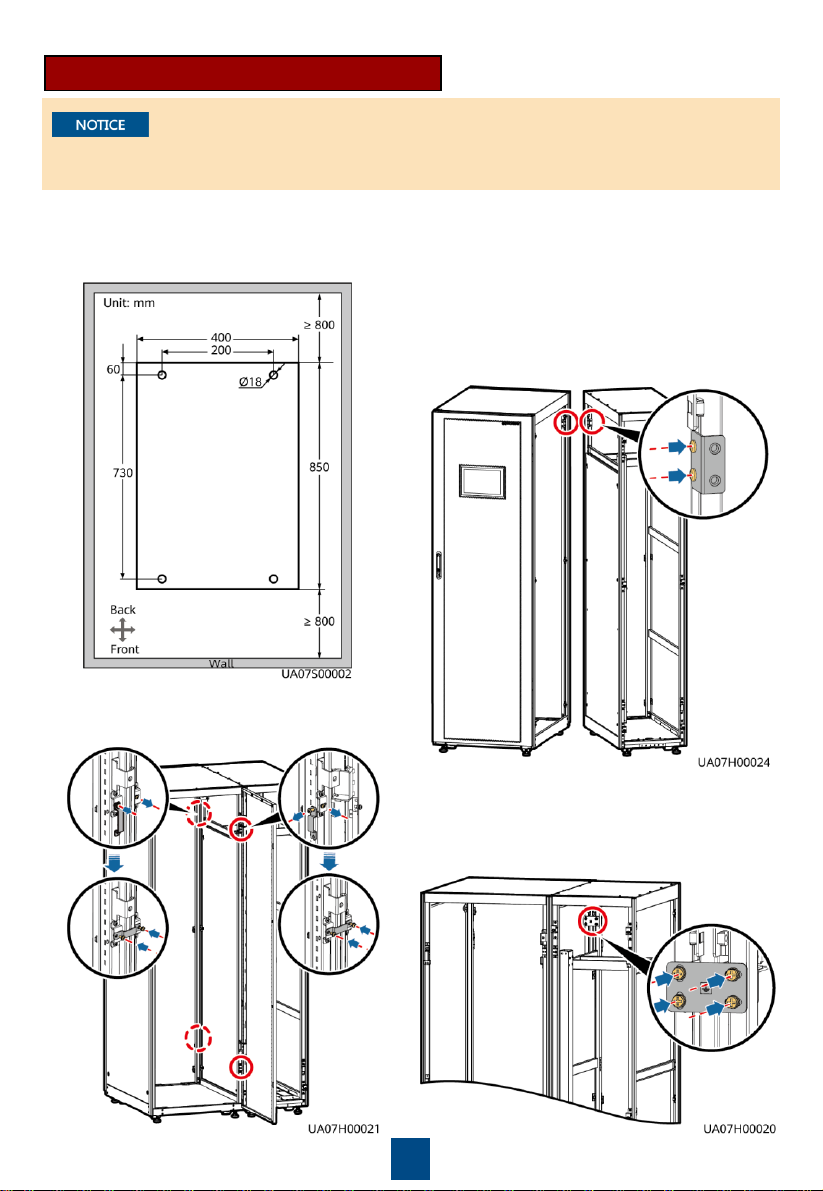

Scenario 2: Routing Cables from the Bottom
A cable entry cabinet needs to be installed when cables are routed from the bottom. This
document uses the cable entry cabinet installed on the right of the UPS cabinet as an example.
1. (Optional) Determine the installation
position for the cable entry cabinet, and
draw mounting holes in the installation
position based on drawings.
2. Remove the right and rear covers from the
UPS cabinet, and remove the front and rear
covers from the cable entry cabinet. Put
away the removed screws and covers.
3. Adjust the anchor bolts of the cable entry
cabinet to make it flush with the UPS cabinet.
4. Install equipotential plate mounting kits on
the same horizontal plane of the UPS cabinet
and cable entry cabinet.
5. Place the cable entry cabinet on the
right of the UPS cabinet.
6. Install the front and rear connecting kits.
7. (Optional) Secure the cable entry cabinet
to the ground.
8. Install an equipotential plate.

6
9. Remove covers from the top of the cable
entry cabinet based on the site requirements.
10.Remove a certain number of small covers
from the bottom of the cable entry cabinet
based on the actual cable conditions.
11.Connect ground cables and power cables.
For the screw specifications and torque used
for connecting cables in a bottom cable
routing scenario, refer to the top cable
routing scenario. This section only shows
the cable routes in the bottom cable
routing scenario.

7

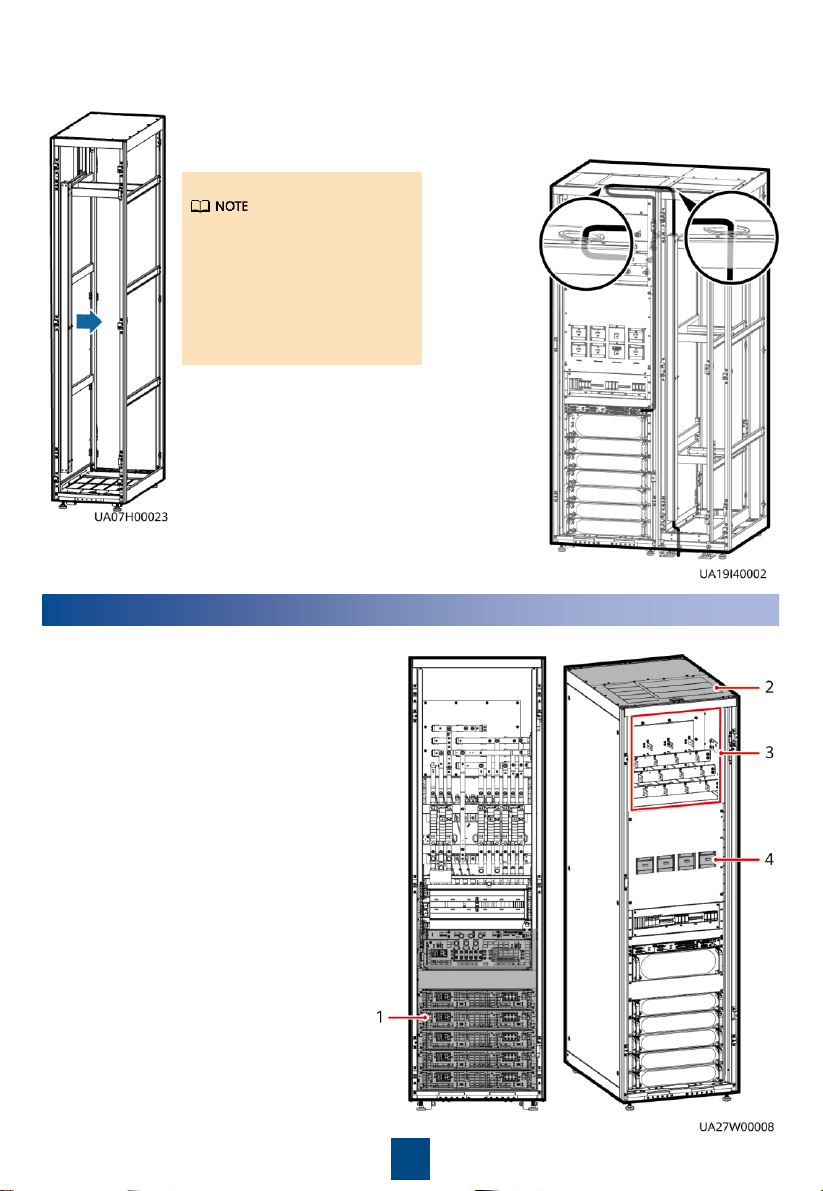

12.Remove the signal cable trough cover
from the cable entry cabinet. 13.Connect the signal cable. (Route the signal
cable out of the UPS cabinet through the
cable hole on the top, and then into the cable
entry cabinet through the cable hole on the
top of that cabinet.)
If the cable entry cabinet is
placed on the left of the
UPS cabinet, remove the
cable trough for signal
cables and install it on the
right of the cable entry
cabinet.
4Verifying the Installation
1. Check that there is no foreign matter
at the top and bottom of the cabinet,
copper bars, switches, and the rear of
modules.
(1) Rear of modules
(2) Cabinet top
(3) Wiring terminal
blocks
(4) Switches
14.Install the right cover of the UPS cabinet on the right of the cable
entry cabinet, and install other covers in the original positions.

Dustproof cover
8
2. After verifying the installation, reinstall all the
covers.
3. (Remove the paper protective film from the
sealing putty.) After routing cables and
verifying cable connections, seal the gap
between cables and the cabinet using sealing
putty.
Sealing putty
Paper protective
film
Sealing putty must be used
as a whole and the gap can
be sealed only from the top.
4. Do not remove the dustproof cover
before power-on to prevent dust inside
the UPS.
5Powering On and Starting the UPS
1. Before powering on the UPS, ensure that the UPS has passed all check items in the UPS5000
Commissioning and Acceptance Report and Chapter 5.
2. Measure the voltage and frequency of the UPS upstream input switch. The line voltage range
is 138–485 V AC, and the frequency range is 40–70 Hz.
Powering On the UPS
5.1
Close the upstream input switch.
Close the UPS bypass input switch, output switch, and mains input switch.
After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an
initialization progress bar.
(Optional) If a surge protective module is configured, turn on its switch.

9
Initial Startup
5.2
Download and install the Service Expert app.
After login, tap Power-on password
activation on the screen. A message is
displayed, indicating whether to start the UPS.
Tap OK.
Insert the WiFi module into the USB port on
the MDU. Enable the mobile phone WLAN,
search for the UPS_WIFI signal, and connect to
the WiFi signal. The password is Changeme.
Set the Site and Device Type as required, and
connect the device. Set IP to 192.168.0.10, Port
to 443, Username to admin, Password to
Changeme, and click Login.
Enter Bar code and Verification code
obtained from the LCD on the Offline
Activation screen. Tap Generate PWD to
generate a startup password.
Set Site and Device Type as required,
and tap Offline Activation.
Enter the generated password in the
password textbox on the LCD to start the
UPS.
Use the app to
start the UPS
online?
Yes
No, start
the UPS
offline
On the app home screen, tap StartUp to access the Set Startup screen.
•If the UPS is powered on for the first time, you need to obtain the startup password from the
Service Expert app. Skip this step if the UPS is not powered on for the first time.
•The Service Expert app can be downloaded from Google Play Store and can run on Android.
1. Obtain the startup password.

10
System User LCD Preset Password WebUI Preset Password
admin (system
administrator) 000001 Changeme
operator (common user) 000001 Changeme
To ensure system security,
change the LCD and WebUI
passwords after the first login.
1. On the main menu, choose Common Functions and
tap Inv. ON.
2. In the displayed login window, enter the user name and
password, and tap .
3. In the displayed dialog box, tap Yes to start the inverter.
Starting inverter
5.3

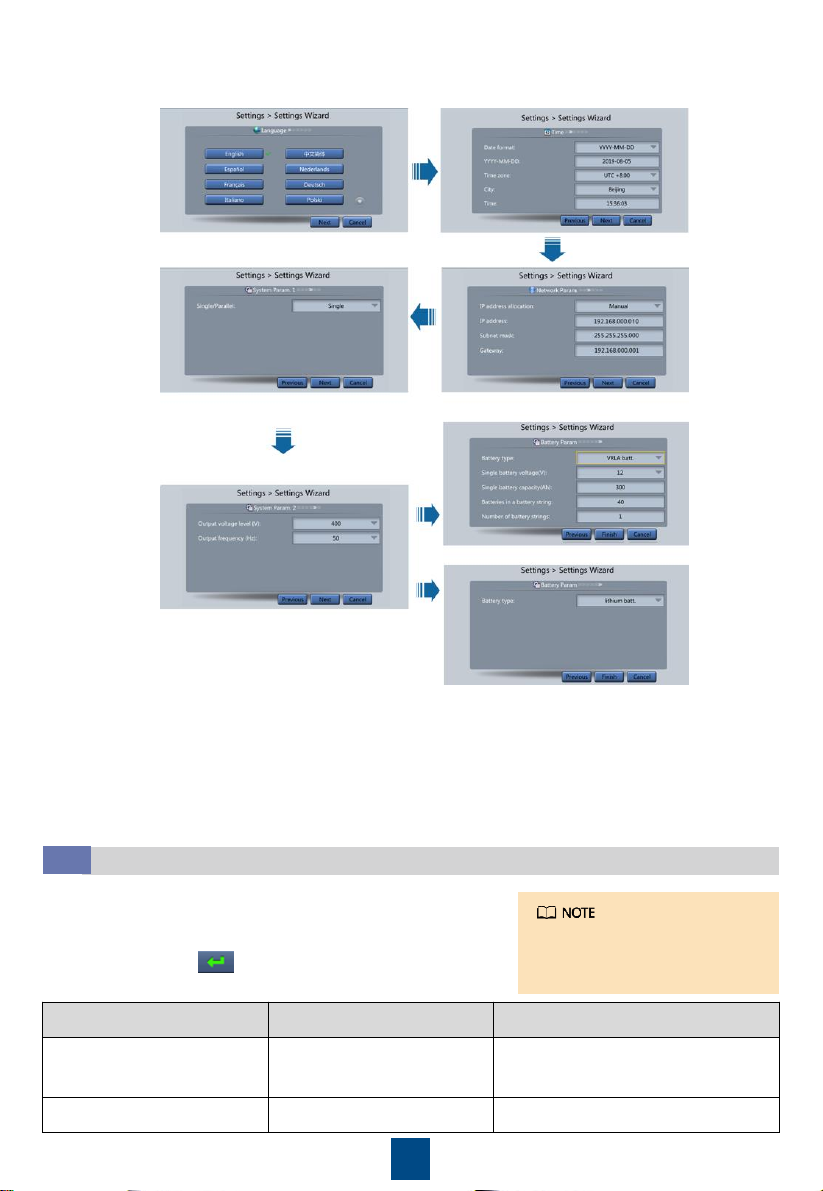

2. Set the language, time, date, network parameters, and system parameters on the Settings
Wizard screen.
4. If the system has connected to the remote EPO switch, you need to choose Monitoring > UPS
System > Running Parameter > System Settings on the WebUI and set EPO detection to
Enable.
5. View the system running status diagram on the MDU to check that the UPS is working in
bypass mode.
3. After you perform the settings, the Bypass mode and No battery alarms are reported by
the MDU and do not need to be cleared. If there is any other alarm, you need to rectify
the fault.

11
6Shutting Down the UPS
After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal;
the UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure
that all loads have been shut down.
Powering Off a Single UPS
6.2
Shutting Down the Inverter to Transfer the UPS to Bypass Mode
6.1
Powering On Loads
5.4
1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears
from the MDU.
2. After confirming that the battery strings are properly connected, turn on the battery string
input circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each
battery string and then turn on the general circuit breaker between battery strings and the
UPS. The No battery alarm disappears from the MDU.
3. Turn on the UPS downstream output switch to supply power to the loads.
(Optional) Setting Parameters for the BCB Box
5.5
1. On the main menu of the LCD, choose Common Functions and tap Inv. OFF.
2. In the displayed login window, enter the user name and password, and tap .
3. In the displayed dialog box, tap Yes to shut down the inverter.
Open the downstream output switch and battery string switch. If there are
multiple battery strings, open the general switch between battery strings
and the UPS and then the switch for each battery string.
Open the UPS mains input switch, bypass input switch, and output switch.
Open the upstream input switch.
1. If a BCB box is configured, set MUE05A connection to Enable in System Info > Settings >
Dry Contacts Set, and then set BCB connection [OL] and Battery breaker [STA] to Enable.

12
