HuaYao S650 User manual

PORTABLE SOLAR GENERATOR
Universal Instruction manual
ATTENTION: This product user manual is universal for portable solar generator AC output range
between 100V~240V/50Hz~60Hz. Actual product specification, actual AC outlets will be different
according to different countries, areas or customers. Please refer to the actual
product before you use the product.

ABOUT THE UNIT
Thank you for applying our multi-function portable solar generator. In case of
power failure or you need to charge on a travel, you can temporarily charge your
electrical or digital devices with this unit. This unit can provide USB, DC and AC
output. You can keep laptops, appliances, lights and more going for hours longer.
Before using this unit, please read the user manual carefully and properly keep it
for reference.
ATTENTION!
This manual is to help you use the product correctly; it does not represent any
description on the hardware and software configuration of the product. About the
product configuration, please refer to the contract related to this product (if there
is), or consult to the seller that sells the product. Pictures in this manual is for
reference only, if there are individual pictures do not match the actual, please
prevail in actual products.
The unit provides Pure Sine Wave output
The unit is built-in pure-sine wave inverter, which means it produces an output
that is exactly the same as supplied by an AC wall plug in your house. It produces
power output that makes it compatible with almost all AC electric devices in your
house. The pure-sine wave inverter allows unit to safely power almost everything
under 400 watts in your house that you would normally plug into the wall. This
product is only used for emergency, it cannot replace the normal alternating
current for long-term use.
▲
Sine wave graphic
▲
Oscilloscope display of sine wave

【I 】PRODUCT PARAMETERS
Capacity
360Wh/97200mAh,3.7V
444Wh/120000mAh,3.7V
Dimensions(LWH)
307x134x184mm
Weight
about 4.8Kg
about 5Kg
Built-in Battery
High Quality Lithium Polymer Batteries
Input Recharging
13~22V, Up to 6.2A Max input charge
Fully Charged Time
DC 15V/6A: about 6 hours
DC 15V/6A: about 7 hours
Output
3xUSB 5V-2.1A(Max); 2xDC 9-12.6V/15A (Max);
1x Cigarette Lighter 9~12.6V/15A Max
AC Output
This user manual is universal for unit AC range between
AC100V~240V /50Hz~60Hz (IMPORTANT! AC OUTLETS,
VOLTAGE AND FREQUENCY ARE DIFFERENT ACCORDING TO
DIFFERENT COUNTRIES, AREAS. PLEASE REFER TO THE
ACTUAL PRODUCT BEFORE USING)
AC Power
AC Continuous Power Output: 400W
Power Indicator
LED Indicators
Operation
temperature
range
-10℃-40℃
Lifecycle
>500 times
Package include
1 x Portable Solar Generator
1 x Power Adapter
1 x Car Charger Adapter
1 x User manual
※There may be some differences on different spare parts. Please adhere
to the actual product instead.

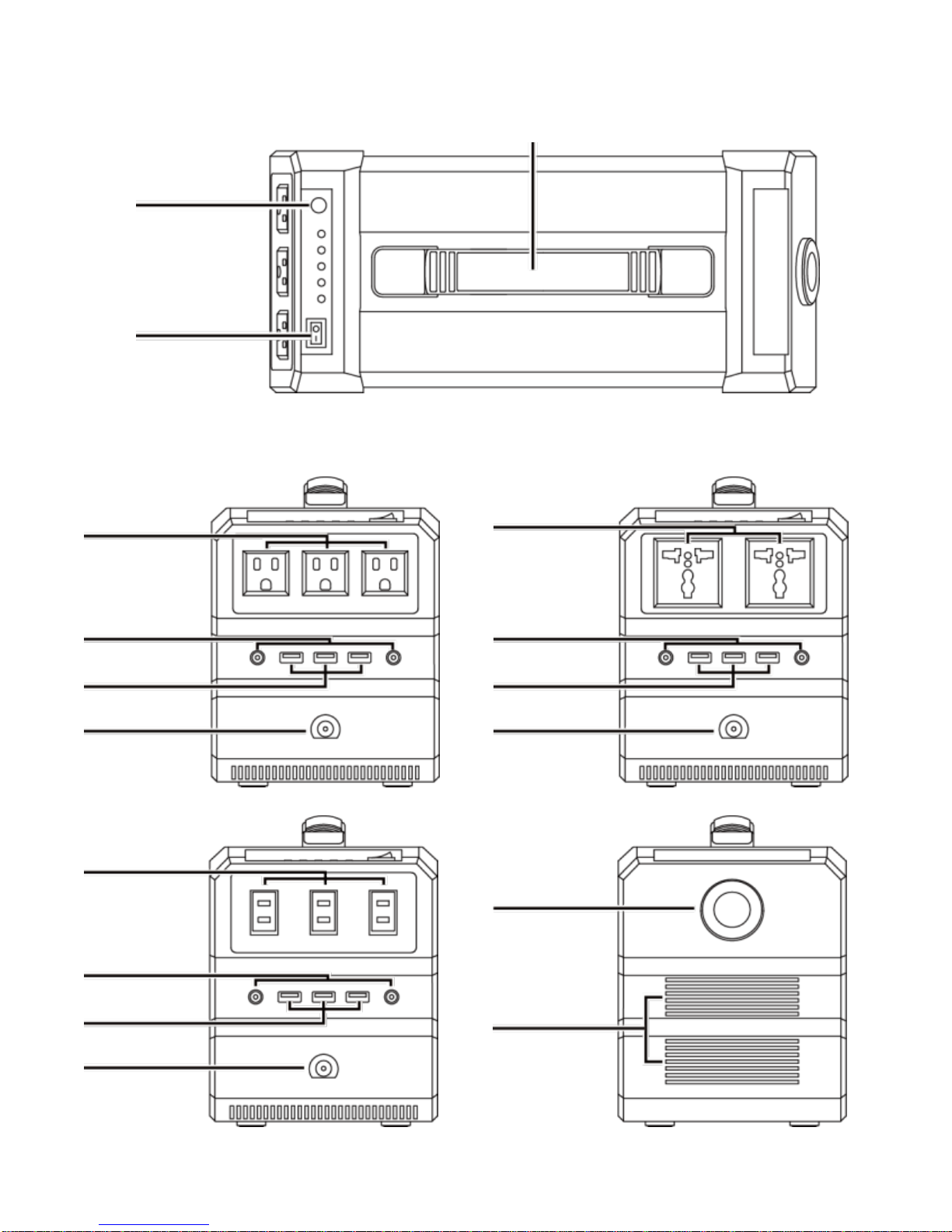

【II 】PRODUCT DESCRIPTION
【Front】
【Right】
AC Power
ON/OFF
US AC Outlets
5.5mm
DC Output
Cigarette
Lighter port
Cooling vents
5.5mm DC Input
Charging port
ATTENTION! AC Outlets, AC output voltage and frequency will be different according to different countries
or areas. Please refer to the actual product before using.
USB Output
Battery
Capacity Check
USB Output
Handle
Universal Outlets
5.5mm
DC Output
5.5mm DC Input
Charging port
USB Output
Japanese
Outlets
5.5mm
DC Output
5.5mm DC Input
Charging port
USB Output
【Left
】

【III】PRODUCT INSTRUCTION
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC
output port to gain power.
Notices: Please confirm whether your DC12V appliance support charging with
5.5mm DC header interface (The diameter of the DC Port of the Product is:
5.5mm),otherwise it is unable to connect with the DC output, you can consult the
electrical manufacturer, buy the corresponding adapter and connect with it.
【Left】
5.5MM DC12V for Fan or
LED lights (power<180W)
DC12V Cigarette
Lighter for car kits
(power<180W)
【Right】
5.5MM DC12V for Fan or
LED lights (power<180W)
Support DC12V car kits,such as Vacuum Cleaner,
Inflation Pump,Electric wrench,fridge,etc.
or charge car kits via DC to Cigarette Litghter Connector

※Note: The 12V DC output voltage is range between 9V~12.6V, maximum output
current is 15A. DC output voltage drops while battery capacity drops due to chemical
characteristics of the battery. If your appliance is not built-in input voltage stabilizing
function, it may shutdown when input voltage is too low, please unplug your device from
the unit in time. And please charge the unit in time.
2) How to provide power for AC appliances with this product?
Connect the power cable plug of the electrical appliance to the AC outlet of
the product, switch on the power button and the unit will start providing
power to your appliances.
WARNING! The Ac outlets, AC voltage and frequency are different according to
different countries ; please carefully check whether the product specifications are
consistent with the appliance specifications before use, otherwise it can lead to
dangerous situations.
※When the AC port is not in use, turn it off to conserve power.
【Right】
Protection Mode:
Shortcircuit/Overpower Protection: If the AC output is shortcircuited or
overpowered(Load(s) power>400W), the unit will shutdown AC output to protect
itself. Please clear the problem and re-press the AC button for AC output.
※Some devices, such as refrigerator, ice maker or a laser printer may require a
peak power to start or work during a very time period, the peak power could
exceed 400W or even higher, this could cause overpower protection with this unit.
Please remove the devices and consult with the device manufacturers for more
information.please clear the problem and re-press the AC button for AC output.
Limited Appliance Wattage<400W,Lamp,
Electric Fan, TV, etc. AC will shutdown
when it’s short circuited or power
overloaded. Remove the device and charge
the unit to recover from short-circuit or
overpower protection.

3) How to provide power for USB digital appliances with this product?
Connect the standard USB cable of digital appliance to the USB output of the unit
to gain power. USB output is plug and play. But if the unit fail to supply power to
the USB appliances automatically, press the “Batt.Check /USB Out” button or
press the AC power output button to switch on manually.Please switch off the AC
power output button to save power when USB digital appliances are fully charged.
【Right】

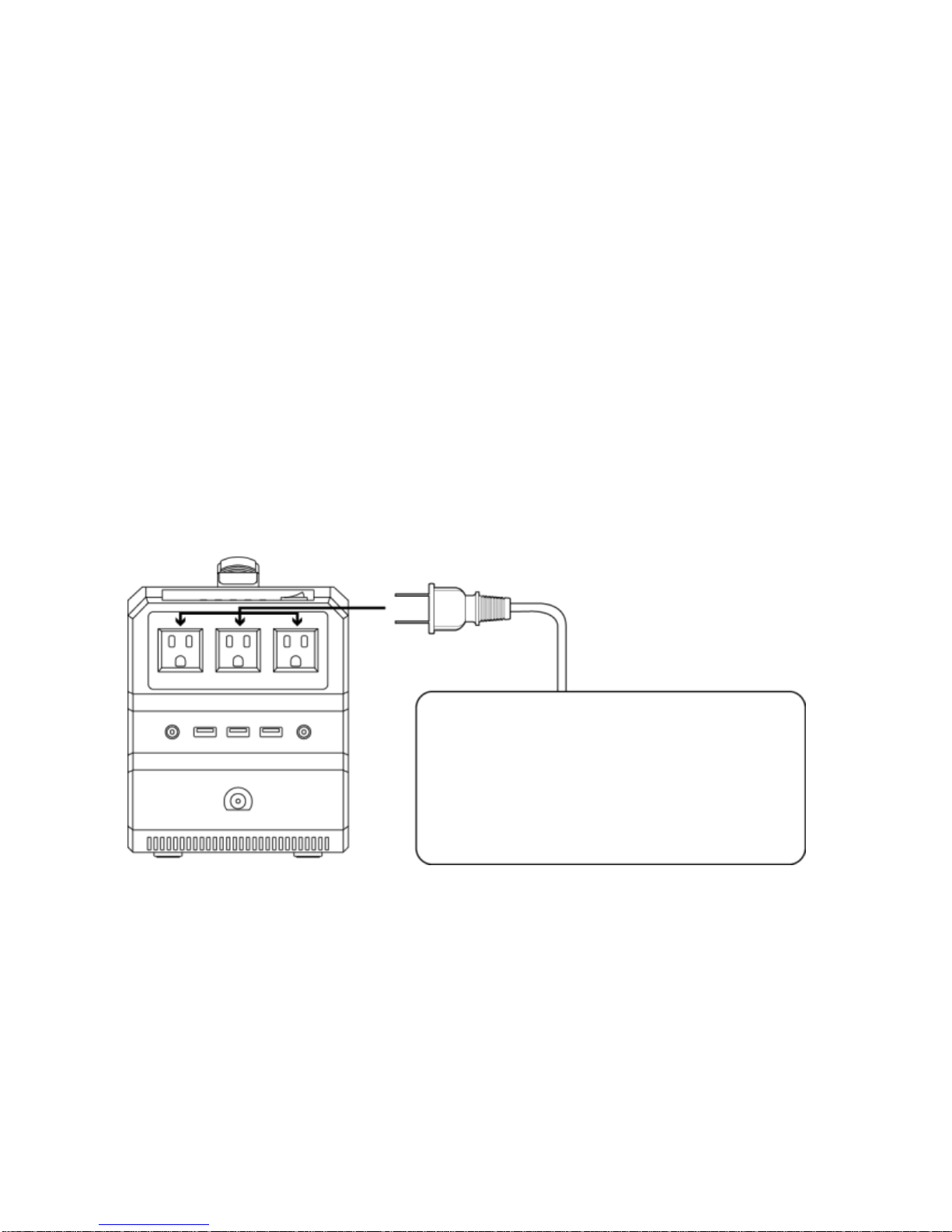

4) How to charge the unit?
a. Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit.
You will know the unit is charging when the blue LED battery indicators are blinking. The
unit is fully charged when all battery indicators stop blinking and remain solid. After the
unit is fully charged, please remove the AC wall charger in time.
b. Charge from Solar panel
SmartPhone,Tablet,Etc.
AC outlet
▲
AC Adapter (charger) 15V/6A

1. Place your solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging. You will
know the unit is charging when the blue LED Battery Indicator lights up and blinks. The
unit is fully charged when all battery indicators stop blinking and remain solid.
SUPPORT MPPT TECHNOLOGY
This unit is designed to support charging by solar panel. It’s built-in MPPT
(Maximum Power Point Tracking) technique, which is designed to use with wind
turbines and photovoltaic (PV) solar systems to maximize power extraction under
all conditions.
With MPPT technology, the unit can compare the output of the solar panels to the
battery voltage. It then figures out what is the best power that the panel can put
out to charge the battery. And help the unit get maximum AMPS from the solar
panels. ※Actual gain can vary widely depending weather, temperature, battery state of
charge, and other factors.
c. Charge from your car with a 12V cigarette lighter.
Using the included car charger, plug the unit into a 12V cigarette lighter (car port)
of your car. You will know the unit is charging when the blue LED Battery Indicator
lights up and blinks. The unit is fully charged when all battery indicators stop
blinking and remain solid.
Attention: To avoid car battery power loss. Charging this unit through your car
cigarette lighter is only available when your car engine is started.
【IV 】LED light indicator instruction
【Left】
Input Charging
13~22V, Up to 6.2A max

The Battery indicators indicate the charge level of the unit. There are 5 indicators to the
battery, approximating 20% - 40% - 60% - 80%-100% capacity. As you use the unit,
indicators will be on, indicating the remaining capacity. When charging the unit you will
notice a battery indicator blinking at about 1 second interval. This indicates the current
charge status. Once the unit is fully charged, all battery segments will be lit and remain
solid.
【V 】SECURITY AND MAINTENCE
a) Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all
metal objects (e.g. coins, hair-pins, keys, etc.).
b) Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from
high temperatures. Do not expose the unit to direct sunlight.
c) Keep away from high humidity, dusty places.
d) Do not disassemble or reassemble this unit.
e) Do not drop, place heavy objects on, or allow strong impact to this unit.
f) This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
g) Children should be supervised to ensure that they do not play with the appliance.
h) Do not cover the device with towels, clothing and other item.
i) The unit may become hot when charging. This is normal. Use caution when handling.
j) Do not charge the unit over the required time.
【Front
】

k) Disconnect the unit when fully charged.
l) Use the unit properly to avoid electronic shock.
m) Please deal with scrap products in accordance with the regulations, do not treat the
built-in battery as a household garbage, so as not to cause the explosion and pollution.
n) The product is only used for emergency situations, it cannot replace the standard DC
or AC power of household appliances or digital products.
【VI 】PRODUCT APPLICATION SKILLS
a) This product is built in high quality original lithium ion battery, it has no memory effect
but high-capacity, and it is durable. However, we still recommend you to apply in the
range of 10 ℃~30 ℃, so as to obtain the optimal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and
other equipment.
c) If the device has not been used for a long time, please disconnect the cable and
store.
d) Some portable devices may need to be set in charge mode to charge, see the
corresponding equipment use manual for more information.
e) In order to extend the life of product (lithium battery), it is best to charge within 3
months, and charge at least once within 6 months.
Cold Weather Usage
Cold temperatures (below freezing) can affect the unit’s battery capacity due to
chemical characteristics of the battery. If you’ll be living off-grid in sub-zero
conditions, we recommend you keep your unit in an insulated cooler, and
connected to a power source (solar panels). The natural heat generated by the
unit contained in an insulated cooler will keep battery capacity at its highest.
Recycle
Always return your used electronic products, batteries, and packaging materials to
dedicated collection points. This way you help prevent uncontrolled waste
disposal and promote the recycling of materials.
Battery information
Your device has and internal, non-removable, rechargeable battery. Do not
attempt to remove the battery, as you may damage the device.

The battery can be charged and discharged over 500 times, but it will eventually
wear out.
Statement
All rights reserved. Reproduction in whole or in part without written permission is
prohibited. All other trademarks are trademarks of their respective owners.
Features and specifications are subject to change without notice.
