Huayu HY-RSD-1 User manual

For our home energy independence.
Huayu(Ningbo)New Energy Technologies Co., Ltd.
Installation and Operation Manual
Rapid Shutdown
HY-RSD-1
HY-RSD-2
HY-RSD-3
HY-RSD-4

Company Profile  01
Contents




1. Introduction 01

2. Safety Instruction 02

3. FCC Compliance 03

4. Installation 03
01
01
01
1.1Prefix

034.1 Attach HY-RSD to the Racking 
044.2 HY-RSD System Diagram
9. System Mark 09

 088.1 PV Connector Options
 088.2 HY-RSD-1-xy
 088.3 HY-RSD-4 P-xy
 088.4 HY-RSD-4 L-xy


098.5 HY-RSD-4 LR-xy
1.2 Standards Compliance
1.3 How to Use This Manual
 01
1.4 Label
5. Operating Instructions  05
6. PV Panel Monitoring Using HY-MDL  06
7. Specification  06
8. Models and Marking  08
09
8.6 HY-RSD-4 B-xy.

This indicates a situation where failure to follow instructions may be a safety hazard or cause equipment
malfunction. Use extreme caution and follow instructions carefully.
1. Introduction
1.1 Prefix
1.2 Standards Compliance
1.3 How to Use This Manual
1.4 Label
Thank you for choosing the HY-RSD rapid shutdown from Huayu. We hope our products will meet your need for
renewable energy. Meantime, we appreciate your feedback regarding our products.
This manual provides detailed product information and installation instructions for the HY-RSD rapid shutdown.
Please read through this manual before installation and operation.
Label is located on the side of the inverter. The information on the label includes technical data as well as type and
serial number of the device. Safety instructions are listed and explained below:
HY-RSD rapid shutdown devices comply with the NEC 2014 and NEC 2017 article 690.12, and CEC 2015 section 64-218.
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
01
Huayu New Energy is dedicated to be a world’s leading “Safe & Smart Solar Energy” supplier for homeowners.
“For our home energy independence” is a vision deserved for all people who truly trust clean energy is the future for
our children, whatever you’re from rich families or low-income families.
Since the establishment of Huayu New Energy, we specialize in R&D of Safe Module-Level Solar Solution and Smart
Energy Storage Solution which are controlled by Huayu Portal Management Platform with over 10 languages, these
innovative technologies are developed to configure a Smart Distributed Solar System with bidirectional flow of energy
which no doubt is the basic infrastructure of our future Energy Internet.
Featured with “Renewable, Distributed, Interconnected, Open & Intelligent”, Energy Internet is a must for human
beings in 21st century to realize a de-monopolistic & de-centralized sustainable power supply system across the
globe. Huayu New Energy was born to be the leader of “Safe & Smart” distributed energy solution and play an
irreplaceable role for the most exciting renewable energy revolution in human history.
Till today, we have delivered thousands of Huayu microinverters(300-2000W)and Huayu storage inverters(3-12kW)for
global families and small businesses in Europe, North America, LATAM, South East Asia, Middle East and Africa.
Together with us, to be a part of game changer for “Safe & Smart Energy” via “Honesty, Trust, Teamwork & Sharing”.
Company Profile

WHEN THE PHOTOVOLTAIC ARRAY IS EXPOSED TO LIGHT, IT SUPPLIES A DC VOLTAGE TO THE
HY-RSD.
PLEASE READ THIS MANUAL BEFORE INSTALLATION. ANY DAMAGE TO THE PRODUCT DUE TO NOT
FOLLOWING THIS MANUAL IS NOT COVERED BY THE WARRANTEE.
ALL THE INSTALLATION SHOULD BE DONE BY CERTIFIED ELECTRICIAN.
BESIDES THE CABLE CONNECTORS, NOTHING INSIDE THE PRODUCT SHOULD BE MODIFIED.
ALL INSTALLATION SHOULD FOLLOW THE LOCAL ELECTRIC CODES. THIS PHOVOLTAIC RAPID
SHUTDOWN EQUIPMENT(PVRSE) DOES NOT PERFORM ALL OF THE FUNCTIONS OF A COMPLETE
PHOTOVOLTAIC RAPID SHUTDOWN SYSTEM (PVRSS). THIS PVRSE MUST BE INSTALLED WITH OTHER
EQUIPMENT TO FORM A COMPLETE PVRSS THAT MEETS THE REQUIREMENTS OF NEC (NFPA 70)
SECTION 690.12 FOR CONTROLLED CONDUCTORS OUTSIDE THE ARRAY. OTHER EQUIPMENT
INSTALLED IN OR ON THIS PV SYSTEM MAY ADVERSLY AFFECT THE OPERATION OF THE PVRSS.
IT IS THE RESPONSIBILITY OF THE INSTALLER TO ENSURE THAT THE COMPLETED PV SYSTEM
MEETS THE RAPID SHUTDOWN FUNCTIONAL REQUIREMENTS.
PLEASE CONTACT AUTHORIZED SERVICE AGENTS FOR ANY SERVICE WORK.
2. Safety Instruction
Danger!
The term “danger” describes an issue which, if ignored can cause personal injury.
CE mark
The product complies with essential requirements of relevant directives of EU
Attention!
With the term “attention” a circumstance is listed which may cause property damage
if disregarded.
Instructions for use!
Under “Instructions for Use“, it is pointed out that installation and operating instructions
are to be read and understood before installation or repair.
Caution, hot surface!
Under “Caution, hot surface”, it should be noted that surfaces of equipment may be
hot and create a burn hazard.
Special disposal instructions!
With “Note Separate Disposal”, it is pointed out that this product may not be disposed
of with normal garbage. An improperly conducted disposal can lead to damage to the
environment.
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
02

4. Installation
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance may void the user’s
authority to operate the equipment.
Mount HY-RSD on the racking use hardware recommended by module racking vendor.
Recommend bolt size of 1/4 and torque no more than 76 in lbs.
If the HY-RSD is mounted at the back of a PV panel, installer shall follow PV module installation instructions.
The minimum distance between any portion of HY-RSD to the back of the PV panel shall be at least 0.5 in.
3. FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
BE AWARE THAT INSTALLATION OF THIS EQUIPMENT INCLUDES RISK OF ELECTRIC SHOCK.
NORMALLY GROUNDED CONDUCTORS MAY BE UNGROUNDED AND ENERGIZED WHEN A
GROUND FAULT IS INDICATED.
4.1 Attach HY-RSD to the Racking
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
03

Port PV-1 must be connected to a PV panel to power the HY-RSD.
Cables (PV+ and PV-) of an unused PV port shall be connected.

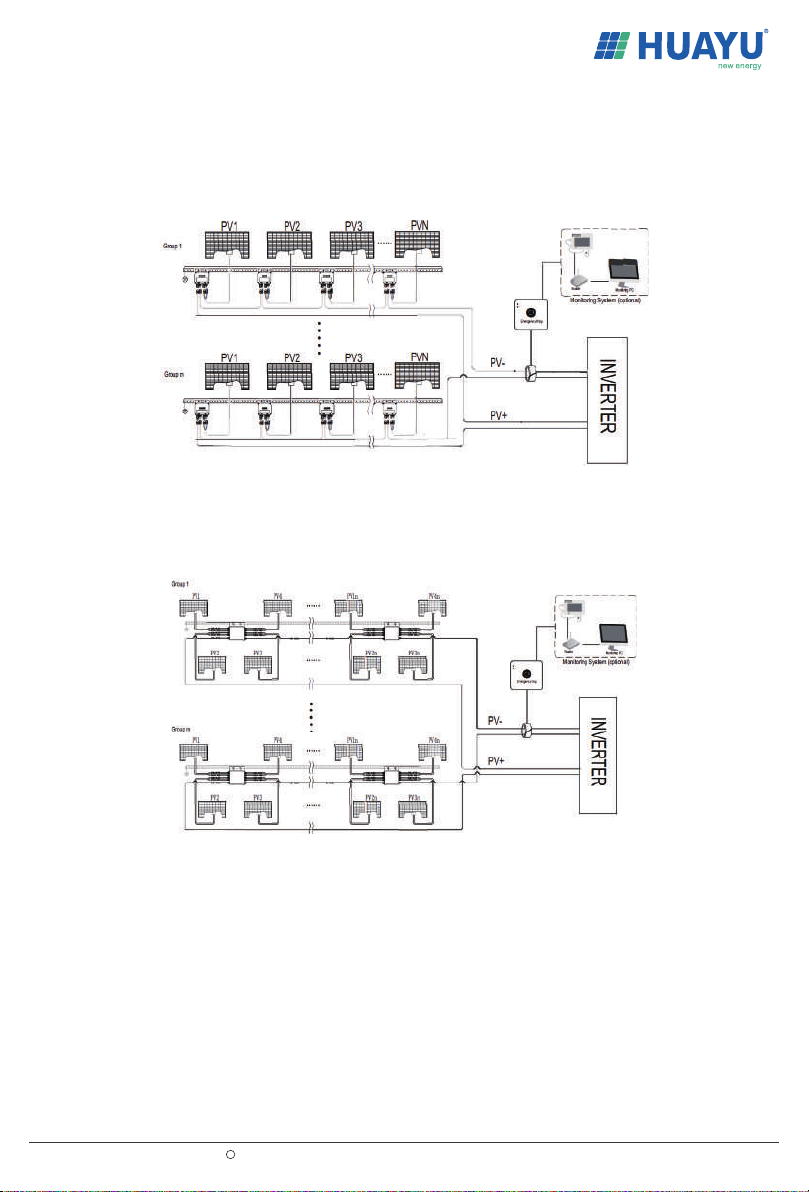

4.2 HY-RSD System Diagram
4.2.1 HY-RSD-1 System Diagram
4.2.2 HY-RSD-4 System Diagram
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
04
RSD Controller
Data Logger
RSD Controller
Data Logger

5. Operating Instructions
HY-RSD are powered by the output of PV panels. Thus rapid shutdown is operable during daytime when the PV
panel is energized. Rapid shutdown can be activated by one of the following two operations only after inverters
have stopped generating power:
1.Disconnect AC power supply.
2.(OPTION) Press the E-STOP button attached to the HY-RSD controller to re-connect the PV panels,
a re-connection command can be sent to each HY-RSD by the following steps:
1.Reconnect AC power supply
2.(OPTION) Release the E-Stop button attached to the HY-RSD controller.
This operation can only be done at day time since the HY-RSD is powered by PV panels.
HY-RSD RAPID SHUTDOWN SYSTEM SHALL BE CHECKED AFTER INSTALLATION.
TEST SHALL BE DONE AT DAYTIME AND WITH ALL INVERTERS HAVE STOPPED GENERATING
POWER. BY MANULLAY PUSHING DOWN THE EMERGENCY BUTTON OR DISCONNECTING AC
POWER SUPPLY OF HY-RSD CONTROLLER, THE DC VOLTAGE ACROSS ANY PV CONDUCTORS
AND BETWEEN ANY PV CONDUCTORS AND GROUND SHALL DROP TO LESS THAN 30 VDC WITHIN
30 SECONDS. INSIDE THE CONTROLLED ZONE, THE DC VOLTAGE ACROSS ANY PV CONDUCTORS
AND BETWEEN ANY PV CONDUCTORS AND GROUND SHALL DROP TO LESS THAN 80 VDC WITHIN
30 SECONDS.
HY-RSD RAPID SHUTDOWN SYSTEM SHALL BE CHECKED REGULARLY TO MAKE SURE IT
FUNCTIONS PROPERLY. TEST SHALL BE DONE AT DAYTIME AND WITH ALL INVERTERS HAVE
STOPPED GENERATING POWER. BY MANULLAY PUSHING DOWN THE EMERGENCY BUTTON
OR DISCONNECTING AC POWER SUPPLY OF HY-RSD CONTROLLER, THE DC VOLTAGE ACROSS
ANY PV CONDUCTORS AND BETWEEN ANY PV CONDUCTORS AND GROUND SHALL DROP TO
LESS THAN 30 VDC WITHIN 30 SECONDS. INSIDE THE CONTROLLED ZONE, THE DC VOLTAGE
ACROSS ANY PV CONDUCTORS AND BETWEEN ANY PV CONDUCTORS AND GROUND SHALL
DROP TO LESS THAN 80 VDC WITHIN 30 SECONDS.
RAPID SHUTDOWN SHALL ONLY BE INITIATED AFTER INVERTERS HAVE STOPPED GENERATING
POWER, THROUGH DISCONNECTING MAIN AC SWITCH OR INVERTER AC SWITCH.
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
05

6. PV Panel Monitoring Using HY-MDL (Optional)
7. Specification
Using HY-MDL data logger, DC current, voltage, power, daily energy, and temperature of each PV panel can be
monitored using MICROVIEWER locally, or Huayu Portal remotely.
HY-MDL usage should refer to the HY-MDL data logger manual.
Connection of HY-MDL and HY-RSD-C
Connection of HY-MDL and HY-RSD-C-D1
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
06
HY-RSD-n =(n 1/2/3/ 4) HY-RSD
INPUT (DC) Max DC Open Circuit Voltage (Vdc) 90Vdc per input
Max DC Input Current (Adc) 15
OUTPUT(DC) Maximum Output Current (Adc) 15
Maximum Output Voltage (Vdc) 0 ~ Voc(*n)
SYSTEM
PV Cable 12 AWG
Maximum System Voltage (Vdc) 1000/1500
Communications DC Power Line
PROTECTION
Protection Degree NEMA-6
Ambient Temperature -40℃~+85℃
Product Safety Compliance
UL 1741
CSA C22.2 No. 107.1
NEC 2014/2017 690.12
Canada CEC 2015 64-218

Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
07
HY-RSD-C HY-RSD Remote Controller
INPUT (DC) DC Input 5V, 2Adc
SYSTEM Maximum System Voltage (Vdc) 1000/1500
Communications DC Power Line
PROTECTION
Protection Degree NEMA-1
Ambient Temperature -20℃~+85℃
Product Safety Compliance
UL 1741
CSA C22.2 No. 107.1
NEC 2014/2017 690.12
Canada CEC 2015 64-218
CONTROL Optional Controls
On-Grid / OFF-Grid
Primary / Secondary
5Vdc output for relay
MONITORING Optional Monitoring Panel-by-Panel with HY-MDL
HY-RSD-C-D1 HY-RSD Remote Controller
INPUT (AC) AC Input 100~480Vac, 0.2Aac
SYSTEM Maximum System Voltage (Vdc) 1000/1500
Communications DC Power Line
PROTECTION
Protection Degree NEMA-1
Ambient Temperature -20℃~+85℃
Product Safety Compliance
UL 1741
CSA C22.2 No. 107.1
NEC 2014/2017 690.12
Canada CEC 2015 64-218
CONTROL Optional Controls
On-Grid / Off-Grid
Primary / Secondary
5Vdc output for relay
MONITORING Optional Monitoring Panel-by-Panel with HY-MDL
HY-RSD-C-D2 HY-RSD Remote Controller
INPUT (DC) DC Input 12Vdc, 1Adc
SYSTEM Maximum System Voltage (Vdc) 1000/1500
Communications DC Power Line
PROTECTION
Protection Degree NEMA-1
Ambient Temperature -20℃~+85℃
Product Safety Compliance
UL 1741
CSA C22.2 No. 107.1
NEC 2014/2017 690.12
Canada CEC 2015 64-218
MONITORING Optional Monitoring Panel-by-Panel with HY-MDL

8.1 PV Connector Options
8. Models and Marking
Huayu(Ningbo)New Energy Technologies Co.,Ltd. All rights reserved.
c
08

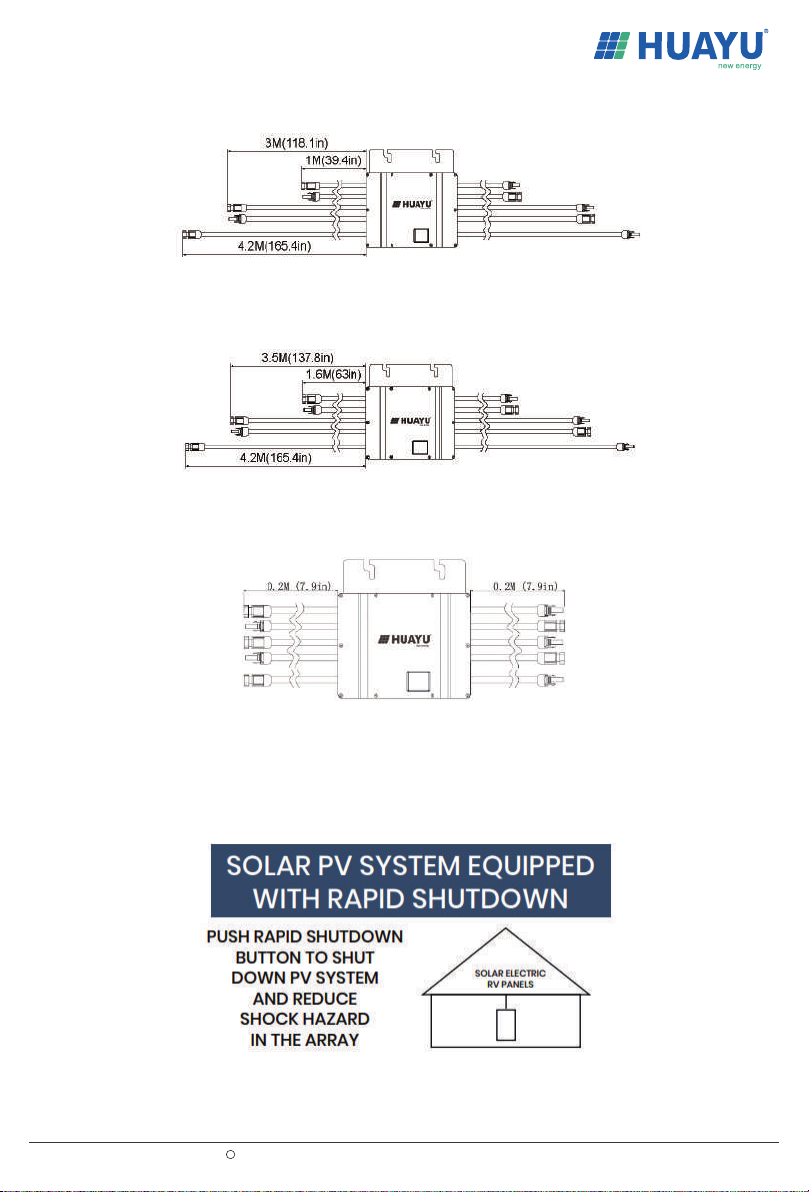

8.3 HY-RSD-4-xy
8.4 HY-RSD-4-L-xy
8.2 HY-RSD-1-xy
Male Connector Female Connector
A
xy Manufacturer
Stäubli Electrical Connectors (MC) PV-KBT4/6X-UR
BQC Connectors QC4.10
PV-KST 4/6X-UR
QC4.10
C Xietong Connectors PV-XT101.1 PV-XT101.1
DAmphenol Helios H4 Helios H4
