Huazheng HZDD5Y User manual

HZDD5Y
Centrifuge
Huazheng Electric Manufacturing (Baoding) Co., Ltd

Contents
I、Features and uses.................................................................................................................1
II、How it works.......................................................................................................................... 1
III、Main technical parameters.................................................................................................. 2
IV、Technical parameters of rotor............................................................................................. 3
V、Shape and mechanism......................................................................................................... 3
VI、Installation............................................................................................................................ 3
VII、Operation method................................................................................................................4
VIII、Precautions..........................................................................................................................7
IX、Maintenance.......................................................................................................................... 8
X、Common faults and troubleshooting...................................................................................8
XI、After sales service commitment....................................................................................... 11
XII、Packing List.........................................................................................................................11

1
I、Features and uses
HZDD5Y crude oil water content determination centrifuge is a conventional
instrument for centrifugal precipitation in medicine and biology, with the maximum speed
of 5000r / min, the maximum capacity of 4 × 100ml and the maximum centrifugal force of
4300xg.
The instrument is driven by variable-frequency motor, the rotating speed and time are
all displayed on LCD screen, the electrical control system is controlled by microprocessor,
the key programming, simple operation, the instrument design is humanized and beautiful,
and the structure is simple.
The door cover of the instrument adopts electronic safe and reliable door lock. If the
door cover is not covered (the door lock is not locked), the instrument cannot be started.
Do not open the door cover when the instrument is running! The door cover can only be
opened when the speed is zero. If the door cover is opened by mistake, the instrument will
stop automatically and give an alarm to ensure the safety of the instrument in use.
The instrument adopts the optimized design scheme for the shock absorption system. The
instrument operates stably with small vibration, low noise and good separation effect.
This instrument has the following main functions:
1.Automatic storage of all the running parameters, the next boot can be used directly;
2.When the maximum speed is over 500r / min, automatic speed reduction and shutdown
protection will be provided;
3.Equipped with door cover, overspeed and other protection functions.
This instrument conforms to YY / T 0657-2017 medical centrifuge industry standard.
II、How it works
Centrifuges use the principle of centrifugal sedimentation to separate, concentrate or
purify cells (particles) with different densities in the solution under the action of centrifugal
force.
Place the centrifuge tube with the same amount of test solution symmetrically in the
rotor tube hole. After starting the instrument, the relative centrifugal force (RCF) generated
by the motor driving the rotor to rotate at a high speed will separate the cells (particles)

2
with different densities in the test solution. The relative centrifugal force depends on the
horizontal distance from the position of the sample to the axis, i.e. the rotation radius R
and the rotation speed n. The calculation formula is as follows:
RCF＝1.118×10-5n2r×g
N ----------- speed (RPM)
R ----------- radius of rotation (CM)
The time Ts required for particle separation and precipitation in the mixture is
calculated by the following formula:
F
Where:
Rmax -------- the radius of rotation of the test solution farthest from the axis
Rmin ------ radius of rotation of the test solution nearest to the axis
ρ -------- density of mixed liquid (g / cm3)
μ -------- viscosity of mixture (poise)
N ----------- speed (RPM)
R ------------ particle radius (CM)
σ -------- particle density (g / cm3)
III、Main technical parameters
Table 1
Maximum speed
3000r/min
Power Supply
AC220V 50HZ 15A
Maximum capacity
4×100ml
（petroleum pipe）
Rated power
1.2KW
Maximum centrifugal
force
1548×g
Noise of the whole
machine
≤65dB（A）
Timing range
1～99min
Driving mode
Variable frequency
motor drive
temperature control
20-90℃
Temp Accuracy
±2℃
Speed accuracy
±15rpm/min
Diameter of centrifugal
chamber
500mm
External dimension
740×550×780（mm）
Weight
85kg
 
 




22
minemaxe
Srn
RLogRLog27.4
T

3

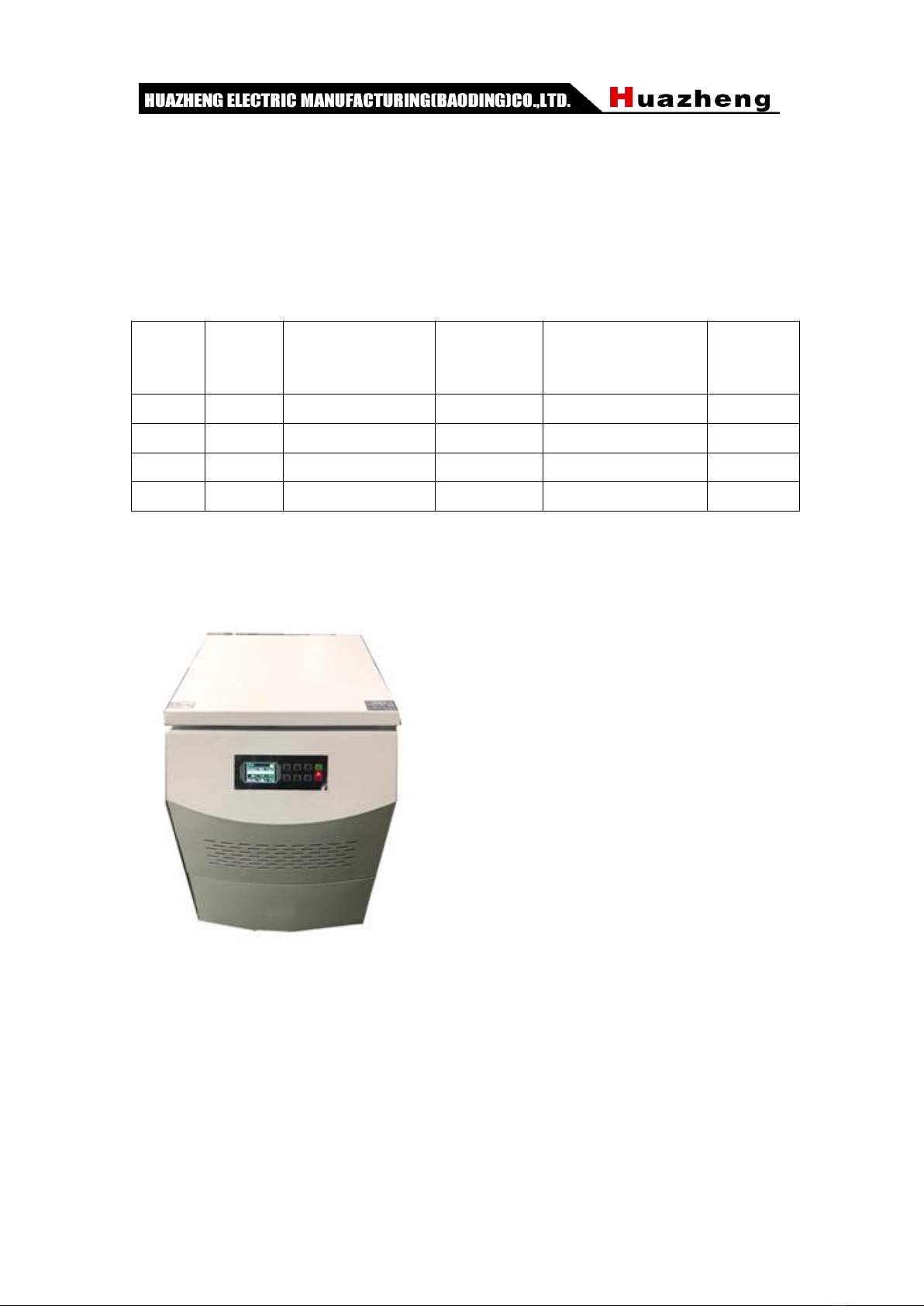

IV、Technical parameters of rotor
Main parameters of available rotors (see Table 2).
Table 2 (mark "√" in the remark column to indicate the rotor number currently used by
the machine)
Please operate the rotor according to the highest speed of each rotor number!!!!
V、Shape and mechanism
As shown in the figure:
VI、Installation
After the instrument arrives at your company, check whether the appearance of the
packing box is severely damaged in the process of transportation before unpacking. Once
it is found, inform the transportation company immediately, issue the damage certificate,
and then inform the company.
Rotor
No
Rotor
name
Rotor name
(Number of
tubes×ml）
Maximum
speed
（r/min）
Maximum relative
centrifugal force
（×g）
Remarks
√

4
If there is no sign of damage, unpack the packing case, take out the packing list, and
check whether the attached accessories are consistent with the packing list. If there is any
difference, please contact our sales department. After checking the attached accessories,
remove the main engine from the bottom plate of the box and place it on a flat ground. The
instrument installation shall meet the following requirements:
1. Environmental requirements
a. The ground shall be solid and flat concrete floor, without vibration source.
b. The highest altitude is 2000 meters.
c. This equipment is limited to indoor work. The centrifuge is suitable for constant
temperature (about 20 ℃), the maximum relative humidity is 80% at 31 ℃and 50% at
40 ℃. Therefore, the centrifuge should not be placed near the heat source (such as direct
sunlight, heating pipe and radiator, etc.).
2. Installation space requirements:
The centrifuge should have enough space to ensure the air flow around the centrifuge,
otherwise it may lead to overheating and poor effect.
3. Power requirements
The power supply shall be 220V 15A single-phase power supply with independent
ground wire. It is not allowed to replace the ground wire with zero wire. The centrifuge
must be properly grounded.
4. Installation requirements of the machine: ensure safety and centrifugal effect after
being placed in place. The instrument must be placed on a solid, shockproof and
horizontal platform, and ensure that four machine feet are evenly stressed.
5. Plug in the power cord (external power separator)
VII、Operation method
1. Power on the instrument
The upper right corner of the instrument is equipped with a power switch. Move the
switch upward to the "on" end ("off" end is off), and the centrifuge is powered on.
2. Open the door cover
A "manual door opening" device is arranged at the groove on the right side of the

5
instrument door cover. Press and hold the door cover and pull it slightly, the door lock will
be opened, push the door cover upward, and the steam spring will help to open the door
cover.
be careful!
Check whether the locking screw on the rotor is loose. If it is loose, tighten the screw.
3) Put in the blood bag or adapter. If the instrument is equipped with multiple types of
adapters, if you need to use both adapters at the same time, please place the two
adapters symmetrically!
3. Place the test bottle or blood bag
1）The centrifuge tube is filled with the test solution (about 70% of the nominal capacity
of the tube). After the tube is filled with the test solution, the height of the test solution is
basically the same by visual inspection (if conditions permit, balance weight is
recommended).
2) If the reagent is not enough, empty test tube shall be used for water injection instead
of unbalanced operation.
3) Finish the work above and cover the back door.
4. Close the door cover
Close the door cover gently and press down hard. When you hear the sound of "pa", the
door cover is locked.
5. Set parameters
Centrifuge operation control panel as follows
Panel introduction
Each time you press the select key, the cursor of the rotor, speed and time window will
flash in turn. The window that is flashing is the window to enter the setting.
(1) Set rotor number: press the selection key, when the cursor in the rotor window
flashes, enter the rotor number setting, and then press the plus or minus key to select the
rotor number of this operation.
Special note: the set rotor number must be consistent with the configuration
specification of the used rotor (different rotation

6
The maximum speed limit is not necessarily the same for different speed up curves of
sub numbers). The corresponding relationship between rotor number and rotor
configuration specification is shown in the column of "matching rotor" in the [technical
index] of this manual.
(2) Set speed: press the selection key. When the cursor in the speed window flashes,
you will enter the speed setting, and then press the plus or minus key to determine the
speed of this operation.
Special reminder: when the horizontal rotor and adapter of this machine are of different
configuration specifications, they all have the specified rotor number (and maximum
speed limit). When setting the speed parameters, the user must strictly abide by the
speed limit regulations in the column of "matching rotor" in the [technical indicators], and it
is strictly prohibited to run over speed, so as to ensure the operation safety.
(3) Set time: press the selection key, when the cursor in the time window flashes, the
time setting will be entered, and then press the plus or minus key to determine the running
time.
(4) When the above steps are completed, press the "approval key" in time to confirm,
otherwise the set value will be automatically eliminated and restored to the original value
after flashing for 8 seconds.
After checking the above settings, press the "start" key to start the instrument.
(Note: if the pressure of the upper sealing ring of the centrifugal chamber on the door
cover is too large, and the electronic door lock cannot be opened by itself relying on its
own electromagnetic force to overcome the friction between the door cover latch and the
door lock latch, the door cover can be opened by lightly pressing the door cover with one
hand and pressing the [stop] key with the other hand). Take out the centrifugal tube with
small heart to complete the whole separation process.
(5) Turn off the power switch and cut off the power supply of the centrifuge.
(6) In case of sudden power failure of the electronic door lock of this machine, just press
the door cover lightly with one hand, and pull the small handle on the front upper part of

7
the left side of the instrument outwards slightly with the other hand to open the door cover.
(7) Up and down speed gear setting:
Warning!!! Do not open the door cover during operation!
VIII、Precautions
1 .Artificial overspeed is strictly prohibited
Manual overspeed operation is a serious violation of the operating procedures,
The danger is very easy to cause personal equipment accidents,
2. before each use, pay attention to check whether the rotor and hanging cup have fine
cracks. If any crack is found, it shall be stopped immediately.
It is strictly prohibited to use cracked rotors, and use cracked rotors,
Danger of rotor rupture.
3. before starting the centrifuge, check whether the hanging cup is hung properly!!!
4. After starting the centrifuge, the operator cannot leave immediately. Wait until the
centrifuge speed reaches the set value and there is no abnormal sound before leaving.
5. During the maintenance of the instrument, the power plug shall be removed,
otherwise electric shock may occur easily.
Tips:
1) The hanging cup shall be placed on the rotor hanging pin according to the number;
2) After removing the rotor and cleaning the centrifugal cavity, when reinstalling the rotor,
it is necessary to adjust the perpendicularity of the center of the locking screw. After
locking the locking screw, move the rotor by hand and observe whether there is swing on
the top of the locking screw. Otherwise, loosen the locking screw, turn a little washer on
the locking screw, tighten the locking screw, and move the rotor by hand until there is no
swing on the top of the locking screw Stop.
6 .it is strictly prohibited to run unbalanced operation, which will shorten the service life
of the instrument or even directly lead to the scrapping of the instrument.
7. attention! After the separation of radioactive, toxic or viral substances, steam
disinfection and purification shall be carried out for the rotating head, test tube, adapter,

8
etc. see Table 8 for the purification method.
Table 8 time -- temperature conditions
IX、Maintenance
1. After centrifugation, if it is no longer used on the same day, please dry the
centrifugation chamber with a clean soft cloth
Dirt from rotors and centrifuges. Open the door cover to help evaporate the water in the
centrifugal chamber.
2. Check the rotor and centrifugal pipe regularly for cracks.
3.When the instrument needs to stop using for more than one month, please take out
the rotor from the centrifugal chamber, apply a thin layer of grease to the center hole of the
rotor and the main shaft of the centrifuge, and keep the rotor in a dry place.
X、Common faults and troubleshooting
Some common troubleshooting methods of this machine are as follows:
Common faults
Reason
Exclusion
method
The display doesn't light up when
the power is plugged in
No 220V power supply
Check the power
supply
Fuse blown
Check and replace
Absolutepressurekpa
Corresponding steam temperature
Minimum holding
time
min
Rated
temperature/℃
Range/℃
225
150
115
75
136.0
127.5
122.5
116.5
134-138
126-129
121-124
115-118
3
10
15
30
Note: the minimum holding time is the purification time at temperature

9
Loose communication
Check adjustment
Large vibration after startup
The centrifugal pipe in the rotor is
not placed symmetrically
Check adjustment
Rupture of centrifugal pipe
Inspection and
replacement
Rotor not tightened
Check adjustment
Shock absorption part damaged
Check and replace
The display shows 0000, press the
start key and the machine will not
run
Circuit board or transformer damaged
Replace
Loose connector of control system
Reinsert
The key is damaged
Replace panel
Motor damage or leakage
Replace
It can run but can't go up in speed.
The machine has strange noise or
peculiar smell
Control system or motor failure
Send to the
manufacturer for
maintenance
The actual speed is different from
the set or displayed speed, out of
control or unstable
Control system failure
Send to the
manufacturer for
maintenance
The temperature does not meet the
set low temperature requirements
Without precooling or insufficient
Precooling
Sufficient
Precooling
Compressor damaged
Check and replace
amaged solenoid valve
Check and replace
Insufficient refrigerant
Add proper
amount of
refrigerant

10
Note: the machine is equipped with a replaceable fuse f10al250v on the power socket of
the rear cover plate. The fuse is a low-voltage (250V) fuse with a maximum fuse current of
10A. It is mainly used to protect the semiconductor elements of the instrument control
system. The fuse is a closed glass tube structure and is connected by plug-in type. It has
compact structure, safe use and convenient replacement.
Figure 1 is the fuse structure diagram, and Figure 2 is the fuse replacement diagram.
Figure 1
Front view of the fuse holder
Side view of the fuse holder
Figure 2

11
XI、After sales service commitment
1. The main machine of the centrifuge is provided with a one-year warranty period. In case
of non-human damage to the product, the company shall provide free maintenance
service within one year from the date of purchase. In case of damage or failure within one
year, the company will charge a certain cost for maintenance.
2. The company will not be responsible for any of the following situations of supporting
rotors:
Use when the maximum speed of rotor is exceeded;
The rotor is scratched or bruised;
The rotor is seriously corroded by acid and alkali;
Repair by unauthorized professionals.
3. Unauthorized professionals are not allowed to open the machine without permission of
the company; all repairs and adjustments must be carried out by professionals in
accordance with the maintenance manual.
4. The company will not be responsible for the repair and adjustment of unauthorized
personnel!
XII、Packing List
No
Item
Qty
1
Main engine
1
2
Power line
1
3
Special wrench
1
4
Horizontal rotor
1
