Huazheng HZZD-501 User manual

HZZD-501
Multi-function Automatic
Oscillator
Huazheng Electric Manufacturing (Baoding) Co., Ltd

Dear use r:
Thank you for cho os in g HZZD-501 Multi-functio n A-utomati c Oscillat or.
We hope that this instrument can make your work easier and more
enjoyable, so that you can get th e feeling of offic e automation in the test
and ana ly si s work.
Before usin g the instru ment, ple as e read this manual, and oper ate and
maintain the instru ment accord in g to the manual to prolong its service life.
"Just a light press, the test will be com pleted automatically" is the
operating chara ct eristi cs of this instrum en t.
If you are sat isfi ed with this inst rume nt, ple ase tel l your co lleagues;
if you are not satisfie d with this instrument, please call (03 12 ) 6775656 to
tell you to serve you at all times-Baoding Huazheng Electric Manufact urin g
Co. , Ltd., our company will def in itely make you sati sf ied !

Contents
I. Overview .......................................................................................................................... 1
II.Technical specifications .................................................................................................... 1
III.Overview of the instrument ...............................................................................................2
IV. Operation Instructions .................................................................................................3
V.Warm Tips ......................................................................................................................... 6
VI. Packing List .................................................................................................................. 7

1
I. Overview
This instrument complies with the methods of GB/T 17623-1998 "Gas
Chromatographic Determination of Dissolved Gas Component Content in Insulating Oil"
and DL429.4-91 "Quantitative Determination of Water-soluble Acids"; used for samples
such as transformer oil in the laboratory The constant temperature shock degassing.
This instrument uses a 5-inch color LCD screen, which displays rich contents and is
easy to use. The user can customize the heating and oscillating time of the instrument
according to user needs, with flexible functions, simple and convenient operation, and
high temperature control accuracy. The instrument adopts high-quality motor and
advanced transmission mechanism, which has the characteristics of small size, light
weight and low noise.
When using this product, it is also necessary to comply with the relevant laboratory
requirements for the use of such equipment and relevant operating procedures. If you
encounter some technical problems while using the instrument, please refer to the
relevant part of this manual, or contact our company directly. Thank you for your
cooperation.
Multi-function Automatic Oscillator is an instrument used for laboratory. The
Instrument auto heating and control temperature reach target value, Next shaking for
some time by user set, then stilling for some time by user set . The Instrument built in
degassing program for gas chromatography and mixing program for Water-soluble acid
and Can follow the user-defined run.
II.Technical specifications
2.1 Technical parameters
Temperature control range: room temperature :100℃
Temperature control accuracy: room temperature : 50℃: ±0.2℃
50℃-100℃: ±0.3℃
Temperature control method: digital PID automatic control
Screen: 5-inch color touch screen
Oscillation amplitude: 35mm
Oscillation frequency: 275±3 times/min
Sample placement method: 4 Pieces of 50ml syringes
Maximum power consumption: 500VA
Working voltage: AC220V±10%
Power frequency: 60Hz
Ambient temperature: 10℃-40℃;
Environmental humidity: ≤85%

2
Weight: 35Kg
2.2 Run mode：
Mode 1 ：Degas
Temperature: 50℃；
Shaking time : 20min；
still time: 10min；
Mode 2 :Mixing for Water-soluble acid
Temperature: 75℃；
Shaking Time: 5min；
Still time: 0min；
Mode 3 : User define：
Temperature : 0-100℃；
Shaking time: 0-99mins can be set as per customer’s needs.
Still time: can customize among 0-99mins；
Shaking :Start shaking and Stop Shaking

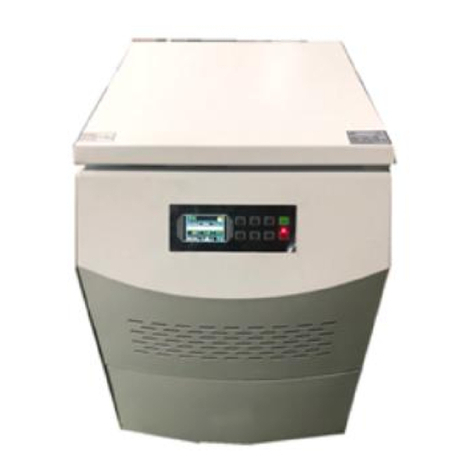

III.Overview of the instrument
1 Display
2 Keypad
3 Thermometer hole
4 Equipment cover
5 Power supply
6 Fuse
7 Switch

3
IV. Operation Instructions
4.1 Turn on the power and enter the below interface
4.2 Degassing
When press “Mode 1” key in main menu the instrument start degassing program and
then display the follow Page
Press the "start" key, and the instrument will automatically heat up, oscillate, and keep
constant temperature until the end of the test.

4
After the test is over, the buzzer of the instrument will emit a warning tone.
When the test is in progress, press the "Stop" button, and the instrument will stop
heating, oscillating, and constant temperature.
Press the "Exit" key to exit the current interface and return to the main boot interface.
4.3 water-soluble acid interface;
When press “Mode 2” key in main menu the instrument start mixing program for
Water-soluble acid then display the follow picture

5
Press the "Start" key, and the instrument will automatically heat up and oscillate to the
end of the test.
When the test is in progress, press the "Stop" button, and the instrument will stop
heating, oscillating, and constant temperature.
Press the "Exit" key to exit the current interface and return to the main boot interface.
4.4 User Define
When press “Mode 3” key in main menu the instrument can follow the user-defined run
then display the follow page.

6
The temperature, oscillation time and static time can be set arbitrarily according to
the requirements of use; the test is in progress, press the "stop" button, the instrument
will stop heating, oscillation, and constant temperature. Press the "Exit" key to exit the
current interface and return to the main boot interface.
4.5 Direct Shaking
Press "Start Oscillation Directly" to check whether the oscillation function of the
instrument is normal;
Extrapolation thermometer method
1. Remove the sealing screw of the thermometer socket of the upper door, and insert
the thermometer according to the size specified in the figure below (left figure).
2. Stick the thermometer on the size specified in the above picture (right picture) with
tape to make it higher by a step so that the thermometer can be positioned and stuck on
the socket.
V.Warm Tips
1. The instrument should be installed on a level and firm workbench;
2. The instrument must not be installed in a room with corrosive gas;
3. The instrument should not be placed in a place with high humidity;
4. Do not impact or bump the instrument display with your hands or hard objects

7
VI. Packing List
No.
Item
Quantity
1
Stainless steel frame
1
2
Power line
1
3
Fuse pipe
2
