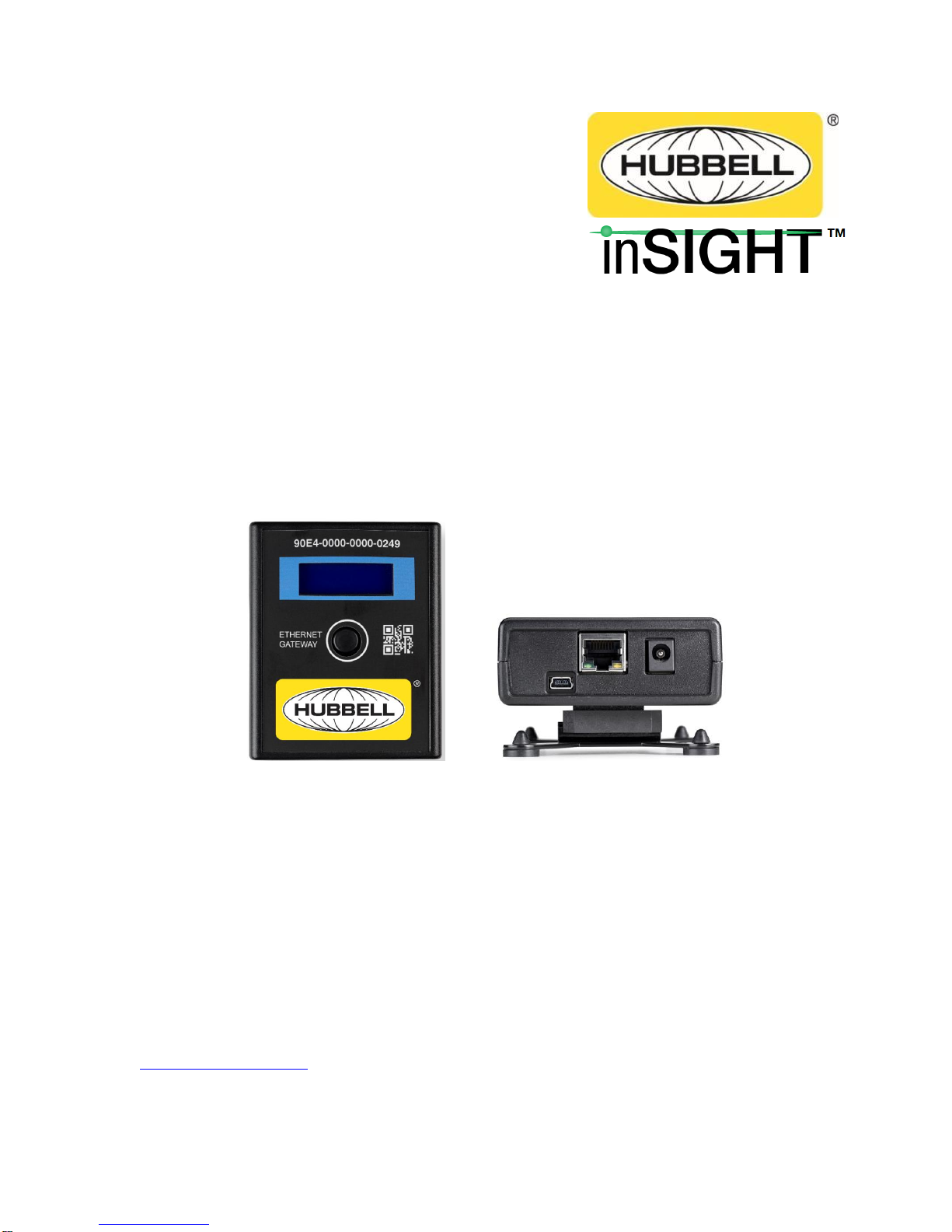

Hubbell HBLGW04000EUS1 User manual

PD2864 9/18
Data Monitoring
Ethernet Gateway User’s Manual
Version 1.0
Wiring Device –Kellems
Hubbell Incorporated (Delaware)
Shelton, CT 06484
1-800-288-6000
www.hubbell-wiring.com

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 1
Contents
Contents .................................................................................................................................................1
Ethernet Gateway Overview...................................................................................................................3
Network Configuration............................................................................................................................4
Configuring Network Settings.............................................................................................................4
Configuring using the Gateway Web Console ...................................................................................6
Physical Installation..............................................................................................................................10

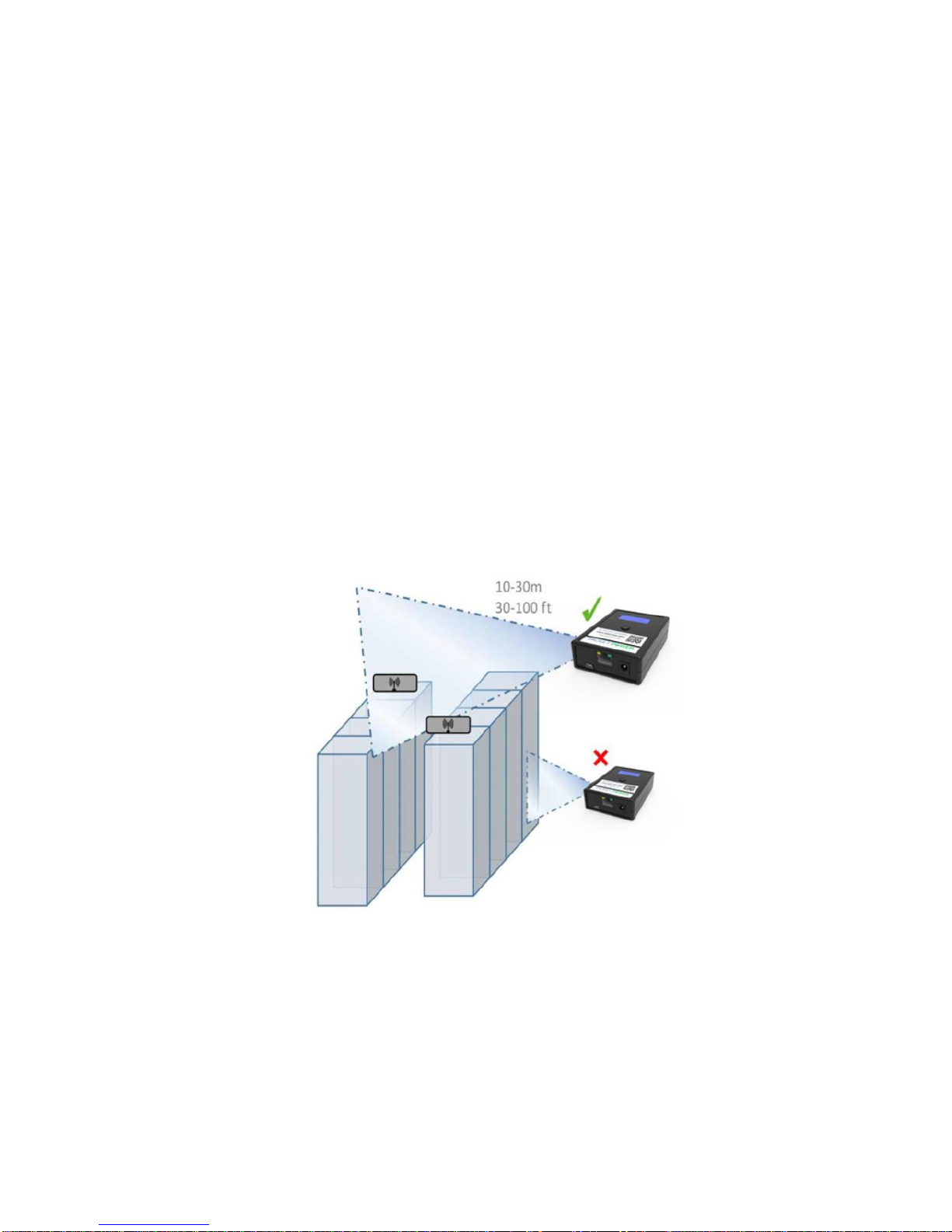

Placement Guidelines ......................................................................................................................10

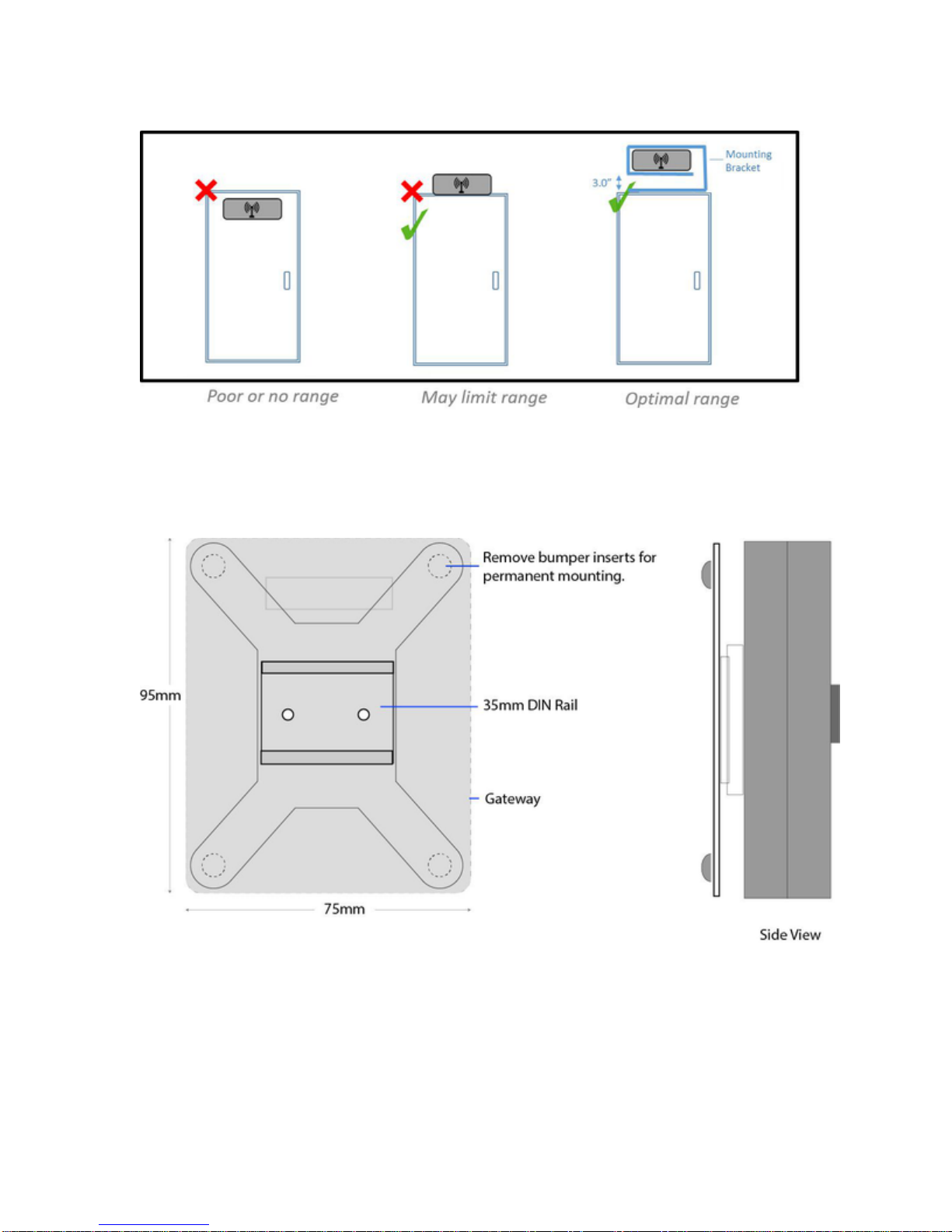

Mounting Bracket .............................................................................................................................11
Power ...............................................................................................................................................12
Gateway Web Console.........................................................................................................................13
Status ...............................................................................................................................................13
Monitoring Data................................................................................................................................14
Update images to Hubbell gages.......................................................Error! Bookmark not defined.
Data Sources....................................................................................................................................15
Data Destinations.............................................................................................................................17
System .............................................................................................................................................18
Firmware Upgrades..............................................................................................................................27
SNMP Implementation..........................................................................................................................28
Data Output from SNMP Gateways.................................................................................................28
Accessing the Gateway Console .....................................................................................................29
Accessing the MIB files from Gateway Console ..............................................................................29
Accessing active OIDs .....................................................................................................................31
Viewing monitoring node readings on the Gateway Console ..........................................................32
Uploading an SNMP license to the Gateway...................................................................................33
Enabling and configuring the SNMP Agent......................................................................................34
Using the iReasoning MIB browser..................................................................................................35
Virtual IP addressing / Assigning Virtual IPs to monitoring nodes...................................................40
Modbus TCP/IP Implementation...........................................................................................................45
Modbus Overview.............................................................................................................................45

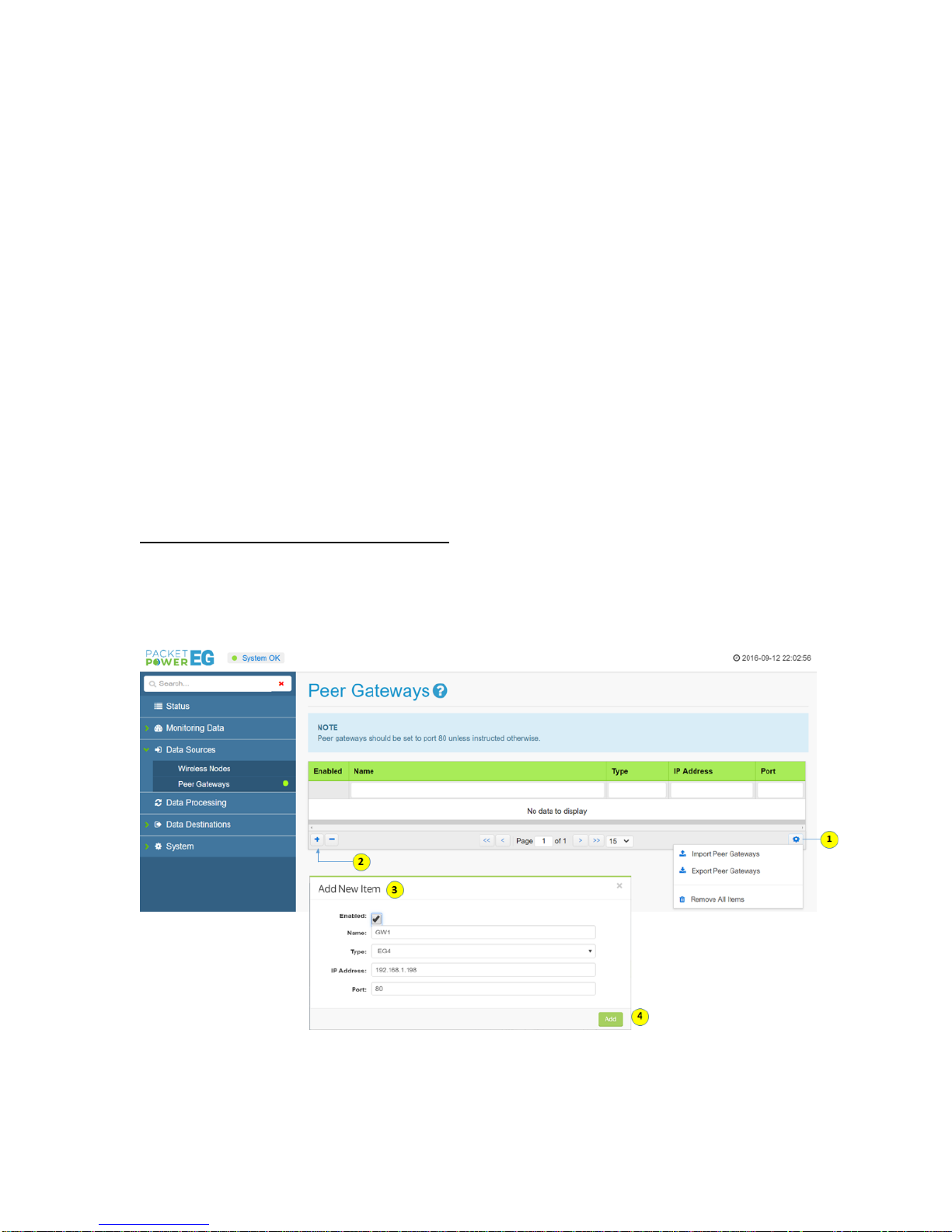

Peering Gateways and Using a Master Gateway ............................................................................45
Enabling Modbus Output..................................................................................................................46
Enabling and Configuring the Modbus Driver ..................................................................................47
Viewing and Verifying Monitoring Data using the Gateway Console...............................................48
Register Maps ..................................................................................................................................48
Manually Assigning Registers and Register Maps...........................................................................50

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 2
Modbus Device IDs..........................................................................................................................52
Accessing and Verifying Modbus Readings Using the Gateway Console.......................................54
Exporting Modbus Readings............................................................................................................55
MTConnect Implementation .................................................................................................................56
EthernetIP Implementation...................................................................................................................57
Technical Specifications.......................................................................................................................59
Regulatory Information and Labels.......................................................................................................60
Regulatory Information.....................................................................................................................60
Regulatory Label..............................................................................................................................61

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 3
Ethernet Gateway Overview
The Ethernet Gateway is a key component of the Hubbell system architecture. It provides an interface
between the wireless monitoring devices and the monitoring application. The Gateway automatically
detects any new monitoring devices, seamlessly adding them to the network.
All Gateways need to be installed and configured to run on the local Ethernet network. If the
monitoring application is gathering data using SNMP or Modbus protocols, some additional steps are
needed that are specific to each of those protocols.
Gateway Models
Model Number
Description
Protocol
Monitoring
units
HBLGW04000EUS1
HBLGW04000LUS1
Ethernet Gateway V4
EMX
100
30
HBLGW0400MEUS1
HBLGW0400MLUS1
Ethernet Gateway V4 Modbus
Modbus
TCPIP
100
30
HBLGW0400SEUS1
HBLGW0400SLUS1
Ethernet Gateway V4 SNMP
SNMP
100
30
HBLGW040MTEUS1
HBLGW040MTLUS1
Ethernet Gateway V4 MT Connect
MT Connect
100
30
HBLGW0400EEUS1
HBLGW0400ELUS1
Ethernet Gateway V4 Ethernet/IP
Ethernet/IP
100
30

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 4
Network Configuration
Installing the Ethernet Gateway
Each location in which Smart Power Cables are deployed must have one or more Hubbell Ethernet
Gateways to gather data from the Smart Power Cables.
Refer to Hubbell’s Ethernet Gateway User’s Manual or Quick Start Guide for more information.
Configuring Network Settings
The Gateway requires an IP address prior to being network accessible unless it is being used in
DHCP mode.
Before setting the IP address make sure that you have the following data provided to you by your IT
administrator.
1) IP Address
2) Gateway
3) Netmask
4) DNS
Using the Joystick to navigate
If the Gateway is new and does not have an IP address you can enter the IP address directly onto the
Gateway using the on board "joystick / selector button" and display.
After the Gateway is energized and completes its boot sequence (approximately 30-60 seconds), the
Network Status menu will appear.
This will reveal details about the Gateway's version, IP address (if previously programmed), MAC
address, and Uptime (duration since last energization).
To navigate the menu, move the joystick in a corresponding direction and “push” to enter a selection.

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 5
Gateway LCD menu
The network status menu will display any configured network parameters.
Version: Gateway's firmware version
IP Address: Programmed IP address
MAC Address: Applicable MAC address
System Reboot: Reboots the Gateway
Uptime: Total time since the Gateway was last energized
Turning DHCP on/off using the local LCD Menu
The Gateway is provided with DHCP "on" as a default.
DHCP addressing relies on the server to automatically assign the IP information eliminating the need
to manually input the IP addressing.
To enable manual IP addressing, as required in most cases, it is necessary to turn DHCP off by
following the menu instructions below.
When DHCP is turned off, the configuration menu will reveal options for inputting IP address
information.
Entering IP address data using the local LCD Menu
With DHCP turned off the Configure menu will reveal options for setting the IP address, Netmask and
Gateway.
All of these parameters need to be filled in before the Gateway can be operational.

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 6
If you do not have this information it can be provided to you by your network administrator.
Configuring using the Gateway Web Console
Once an IP address is assigned to the Gateway either manually or via DHCP, you can access the
Gateway console using a standard web browser and entering the IP address of the Gateway.
This requires that the Gateway be connected via Ethernet network router or switch. Under some
circumstances the Gateway can be accessed and configured directly from a PC but many enterprise
systems prevent external IP addressing functions on a PC.
The Gateway console is described in greater detail online at: https://dox.packetpower.com/ Ethernet-
--Gateway---Version---4---Web---Console.html???
The Gateway Console status screen will appear as shown below.

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 7

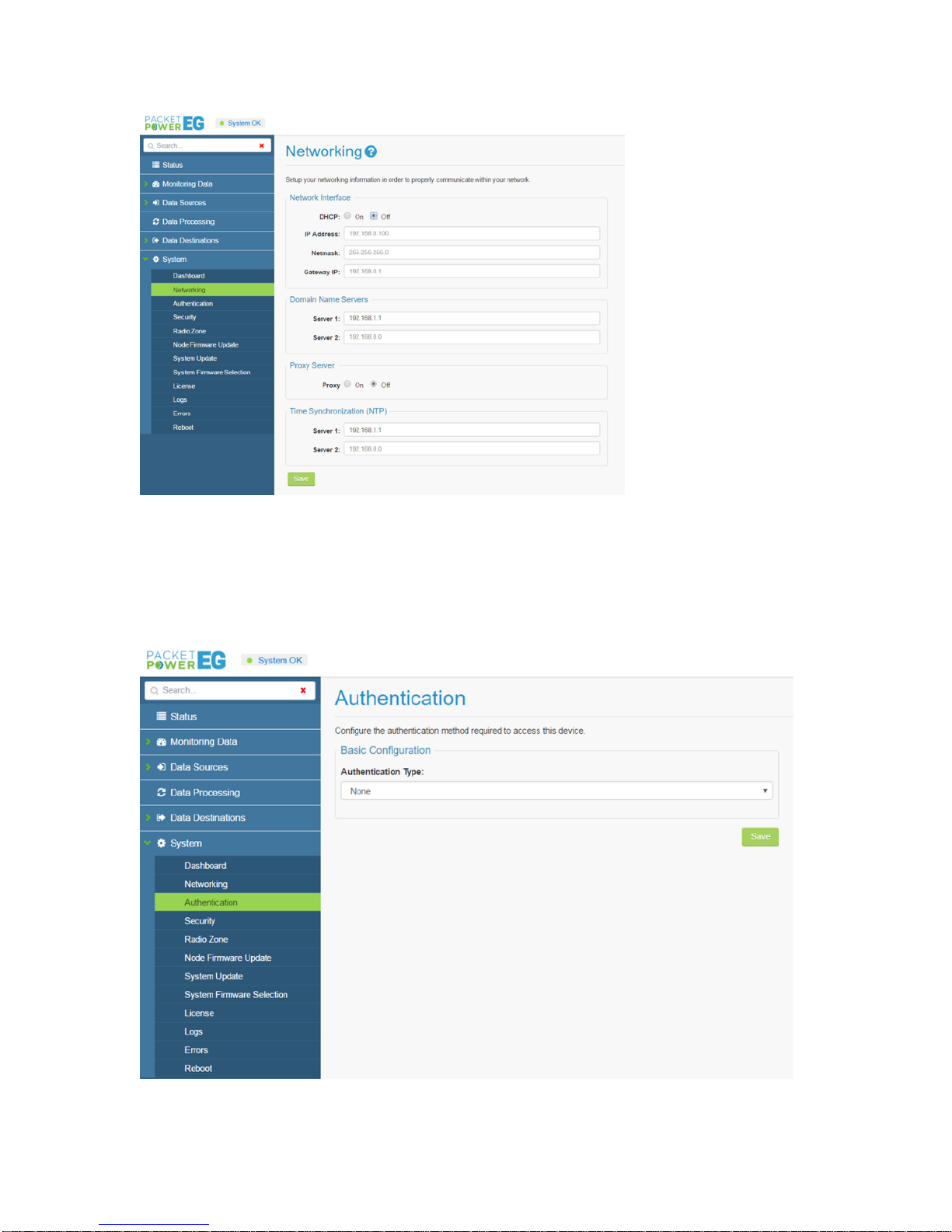

To access the network settings, click the "System" tab on the left.
In the System tab sub menu, click the “Networking” tab.
If DHCP is “on” you will not be able to access any network setting until it is switched off under the
Network Interface section.
When DHCP is turned off the network settings will be revealed in the Network Interface section.
It is now possible to modify the IP address, Netmask, Gateway addresses.

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 8
If using DNS (Domain Name Servers), input the server address under the Domain Name Server
section.
In order for the Gateway to have a proper time reference, a NTP server address is needed in
the Time Synchronization Section.
The default time servers are 0.pool.ntp.org and 1.pool.ntp.org. Once a time server is entered confirm
the time at the top right of console. For more information on available NTP servers see the NTP server
section. The time will be expressed in the top right corner of the Console screen.
Configuring Data Destinations
Data Destinations configures how the Gateway delivers data. The Gateway can make monitoring
data accessible via three formats:
1. EMX Monitoring Portal –Note: data can be provided simultaneously to the EMX Portal while
serving Modbus TCP/IP or SNMP data.
2. Modbus TCP/IP
3. SNMP (versions 1,2 and 3)
Configure the data destinations following these steps:

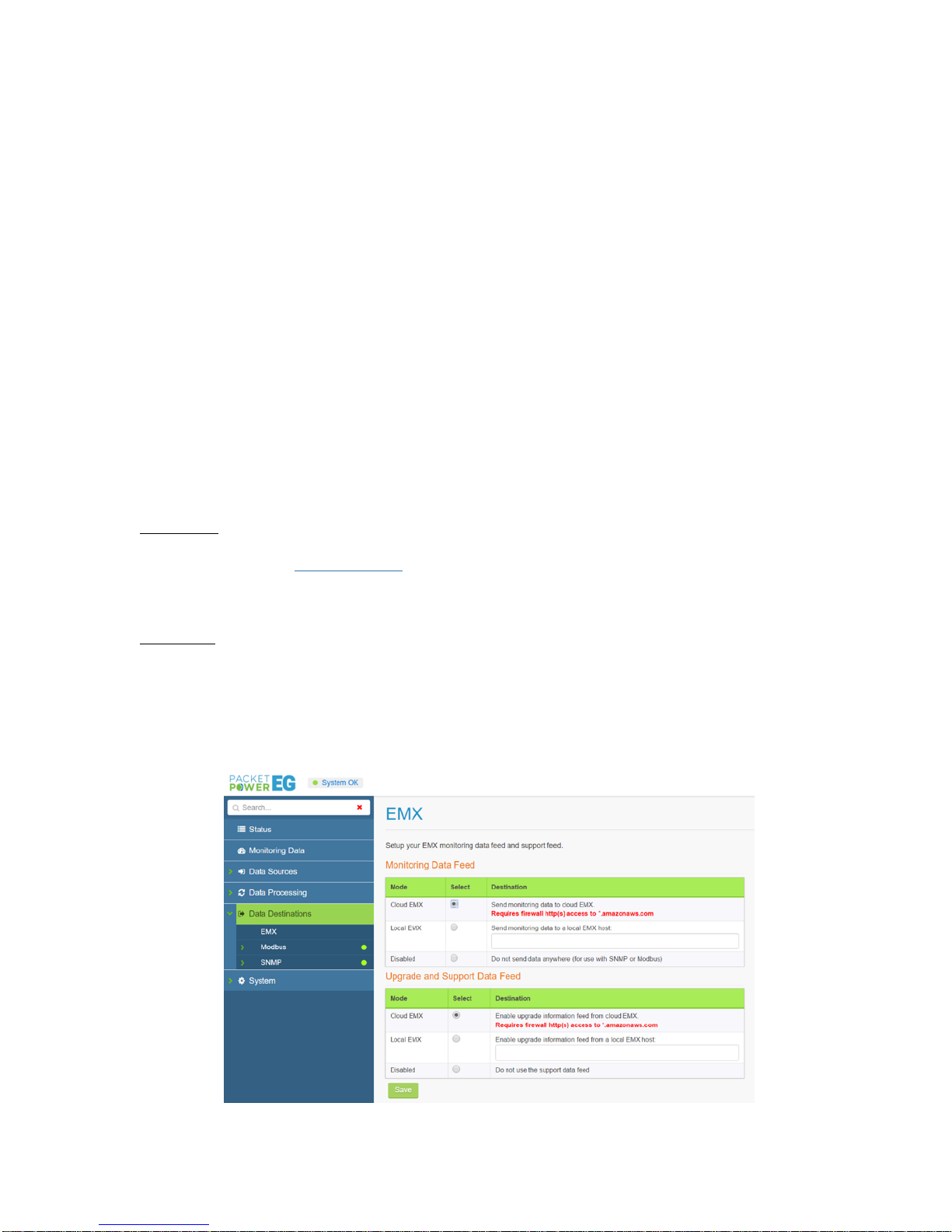

1. Click on the “Data Destinations” tab on the left menu.

Hubbell Ethernet Gateway V4 User’s Manual
PD2864 9/18 Page 9
2. Select how you want to receive your data: EMX, Modbus or SNMP. Note that EMX feeds can
be delivered simultaneously with Modbus and SNMP feeds.
3. For SNMP and Modbus implementation refer to the SNMP or Modbus support pages
4. Select the desired EMX implementation type (cloud is default) for both “Monitoring Data
Feed” and “Upgrade and Support Data Feed” sections.
5. Ensure that the Gateway’s IP address has outbound access to port 80 (HTTP) or 443
(HTPPS) for *.amazonaws.com when using cloud EMX.
6. Confirm that cloud and support data feeds are enabled with the network manager (cloud EMX
implementations only).
7. For local EMX implementation, enter the IP address of the server.
8. Before you can access your data via EMX make sure your Hubbell representative has set up
an EMX account. See the EMX support section for additional details.
