HUBER+SUHNER MASTERLINE Flex Box User manual

INSTALLATION
MANUAL
HUBER+SUHNER AG
Fiber Optics
MASTERLINE Flex Box, Upgrade 1_2
modules
DOC-0000891604
November 19, 2020
Rev. C
Page 1 of 4
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages resulting from the
use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel
voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the gen-
eral handling of these products please contact HUBER+SUHNER.
MASTERLINE Flex Box, Upgrade 1_2 modules
Table of contents
• GENERAL INFORMATION .......................................................................................... 1
• NOTES IN THIS MANUAL ........................................................................................... 1
• NOTES ON THE FULFILMENT OF LEGAL CRITERIA .............................................. 1
• INSTALLATION ............................................................................................................ 2
• REVISION HISTORY ................................................................................................... 4
GENERAL INFORMATION
Read the cable system user manual and installation manual carefully. General safety instructions apply unless this docu-
ment stipulates more specific instructions. HUBER+SUHNER declines all liability and claims if the specifications are not
met.
NOTES IN THIS MANUAL
The following symbols are used in this manual.
Info notes:
Info notes contain important instructions for installation and proper use of the product throughout its life
cycle. The info notes also indicate that non-compliance may result in material damage or financial loss.
Notes about hazards and safety precautions:
Notes which indicate that non-compliance may result in danger to life and limb, as well as to material
damage. It is imperative that these notes are heeded.
NOTES ON THE FULFILMENT OF LEGAL CRITERIA
The installation of optical communications systems requires that requisite permits be obtained from all the competent au-
thorities. The installation technician is responsible for compliance with all applicable regulatory restrictions, usage regula-
tions and other guidelines. This applies to permanent and temporary installations.
 Ascertain the applicable restrictions and usage regulations prior to installation.
 Draw up a cable-laying plan prior to installation.
 Check the finished system for compliance with usage and safety regulations.

INSTALLATION MANUAL
MASTERLINE Flex Box, Upgrade 1_2 modules
Page 2 of
4
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages
resulting from the use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel
voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the gen-
eral handling of these products please contact HUBER+SUHNER.
INSTALLATION
Step 1: Replacing of lid
Handling with the box:
The MLFB box has edges and an opening
mechanism which requires the use of screw-
drivers. Use protective gloves and work care-
fully to avoid trapping or hurting fingers or
other parts of the body.
Open and close MLFB box :
To open and close of the lid, open and close
the 4 screws of the box with an appropriate
screw driver.
Change of hinge side:
Open lid :
Open the lid so that the hinges can be pushed
over the cam.
Slide the lid out :
When the correct position is reached, slide the
lid down and open the hinge.
Replacement of the lid :
Replace the small lid with the large lid.
Re- mounting of lid :
Fasten the lid in reverse order.
Small lid Large lid

INSTALLATION MANUAL
MASTERLINE Flex Box, Upgrade 1_2 modules
Page 3 of
4
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages
resulting from the use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel
voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the gen-
eral handling of these products please contact HUBER+SUHNER.

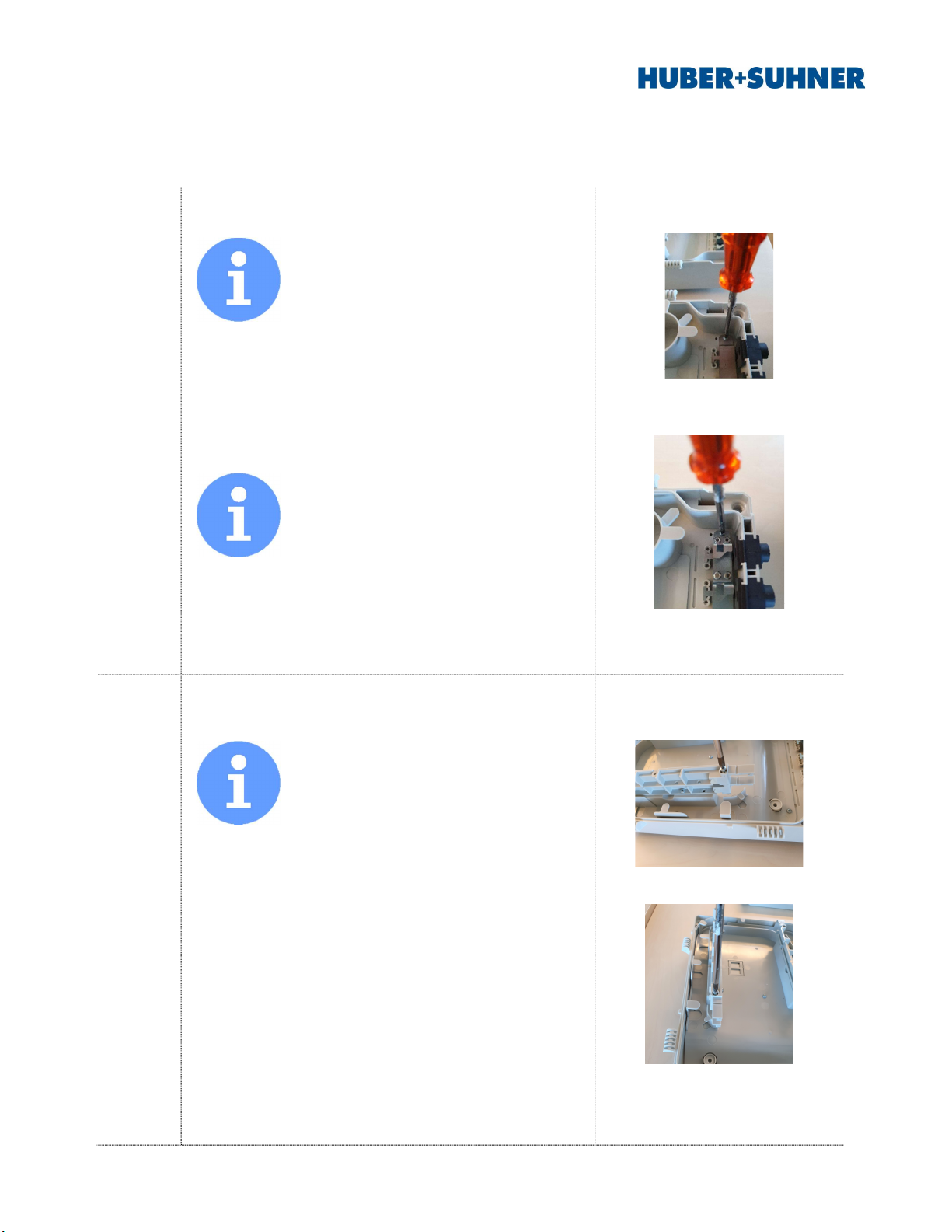

Step 2: Replacement of cable holder:
Remove cable holder :
Unscrew the current cable holder and take it
off.
Fixing the cable holder :
Insert the new cable holder and fix it with the 2
(KA30x8) screws. Insert the new cable holder
and fix it with the 2 screws. The screws must
be tightened only gently. It is sufficient if the
cable holder lies flat on the plastic, the screws
must not be over tightened.
Step 3: Extending the module holder :
Fixing of additional module holders :
Fasten the two additional module holders over
the existing module holder. The screws
(KA30x8) must be tightened only gently. It is
sufficient if the cable holder lies flat on the
plastic, the screws must not be over tightened.

INSTALLATION MANUAL
MASTERLINE Flex Box, Upgrade 1_2 modules
Page 4 of
4
HUBER+SUHNER disclaims any liability resulting from incorrect installation and use, including any damages
resulting from the use of tools and
accessories other than the ones recommended herein. Any installation performed by unqualified personnel
voids the product warranty provided by
HUBER+SUHNER. All due care and attention must be exercised when performing the installation of these products. For advice concerning the gen-
eral handling of these products please contact HUBER+SUHNER.
Fixing of metal bracket:
Fasten the metal bracket over the module
holder. The screws (KA30x8) must be tight-
ened only gently. It is sufficient if the cable
holder lies flat on the plastic, the screws must
not be over tightened.
REVISION HISTORY
Revision Description of detailed changes Product manager
Engineer Date
Rev. A First Version David Neher 2020-07-28
Rev. B New H+S Logo David Neher 2020-08-13
Rev. C Replacement of pictures David Neher 2020-11-19
