Hudson Reed 1/2 NPT User manual

½”NPT and ¾” NPT
SINGLE CONTROL VALVE WITH INTEGRAL SHUT OFF
VÁLVULA DE CONTROL SIMPLE NPT DE ½” Y NPT DE ¾”
CON CIERRE INTEGRAL
VANNE À UNE FONCTION AVEC MÉCANISME DE
FERMETURE INTÉGRÉ ET RACCORD NPT DE ½ po OU ¾ po
PLEASE LEAVE THIS INSTRUCTION WITH THE END USER
ESTAS INSTRUCCIONES DEBERÁN QUEDAR EN MANOS DEL USUARIO
FINAL
VEUILLEZ LAISSER CE GUIDE À L’UTILISATEUR FINAL

1
English: 1
Español: 13
Français: 25
CONTENTS:
1. Introduction & Safety 2
2. Dimensions 3
3. Technical Data 4
4. Operation 4
5. Components 5-6
6. Installation 7-9
7. Flow Shut Off Adjustment 10
8. Max Temperature Adjustment 11
9.Aftercare 12
10. Fault diagnosis 12
INS015 Rev 0

2
1. INTRODUCTION AND SAFETY
Thank you for choosing this shower valve. Please read the manual before
installation.
This installation guide is for the Single Control Valve with an Integral Shut Off.
It covers the installation, maintenance and operation of the Shower Valve.
The Single Control Valve is thermostatically regulated by a wax element. It is
designed to provide a flow of water at a safe temperature when installed as
described in this manual.
For use with shower heads rated at 9.5 L/min (2.5 gpm) or higher.
OPERATING CONDITIONS
Hot Water Inlet Temperature
52 °C to 65 °C (125 °F to 149 °F)
Cold Water inlet temperature
5.0 °C to 20 °C (41 °F to 68 °F)
We recommend that this product is fitted by a fully qualified installer. The
installation must comply with all current local water regulations.
Please note: This valve MUST be commissioned on site to suit site conditions.
In order for this product to operate as designed it must be installed,
commissioned and maintained as stated in this manual.
Handle & plate design may vary depending on model chosen.

3

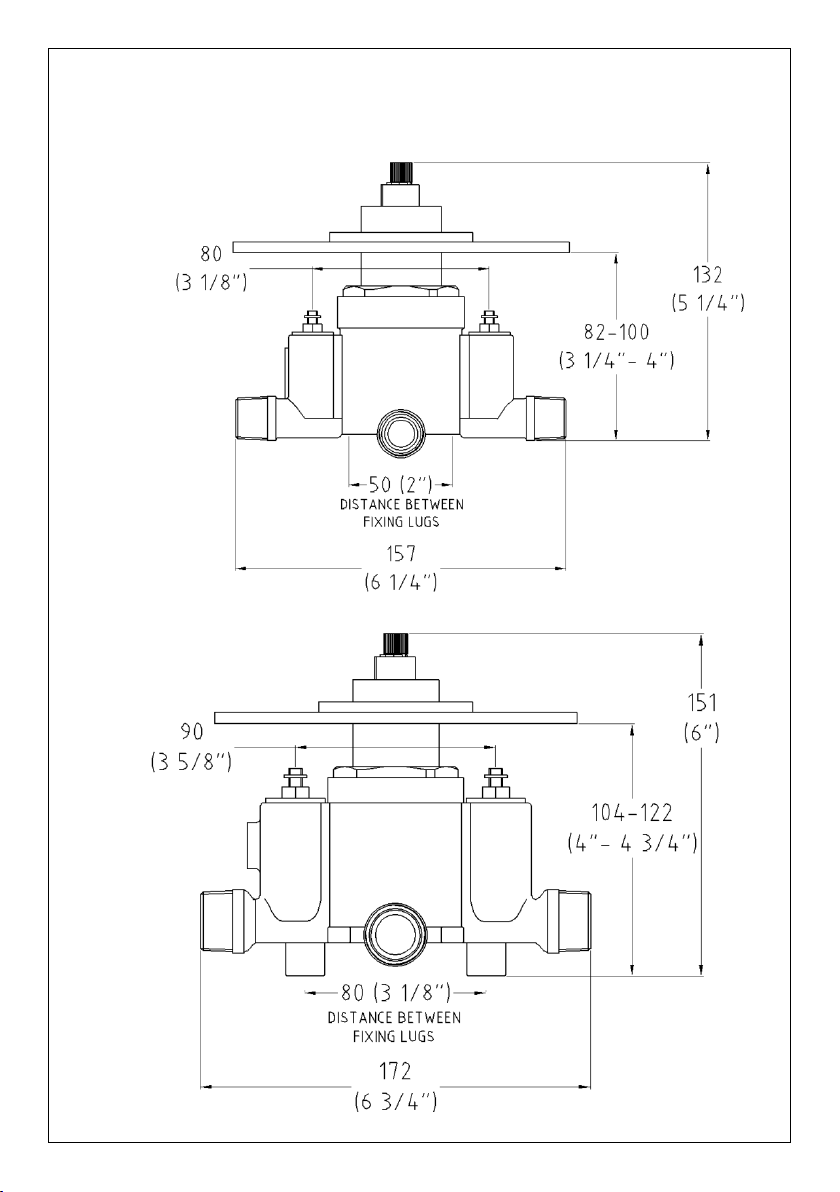

2. DIMENSIONS
ALL DIMENSIONS ARE APPROXIMATE
DIMENSIONS ARE BASED ON A TYPICAL PLATE OPTION
½” NPT
¾” NPT

4
3. TECHNICAL DATA
Single Control Valve with an Integral Shut Off. The flow and temperature
is controlled by the same handle.
½” NPT or ¾” NPT depending on model selected.
The valves have integral serviceable check valves and strainers. Please see
the components section.
The cartridge is reversible. If the valve body is installed with the water
feeds going to the wrong side of the valve, simply remove the cartridge,
turn 180° and replace. It is also perfect for back to back installation.
The cartridge is constructed of an engineering polymer which is highly
resistant to calcium build up, even in hard water areas.
4. OPERATION
ROTATING THE HANDLE ANTI
CLOCKWISE TURNS THE
SPINDLE AND INCREASES THE
TEMPARETURE GRADUALLY TO
THE FULLY HOT POSITION. TO
MAKE THE SHOWER COLD
TURN THE HANDLE
CLOCKWISE. THE SHOWER
VALVE WILL EVENTUALLY
REACH THE SHUT OFF
POSITION.
SPINDLE

5

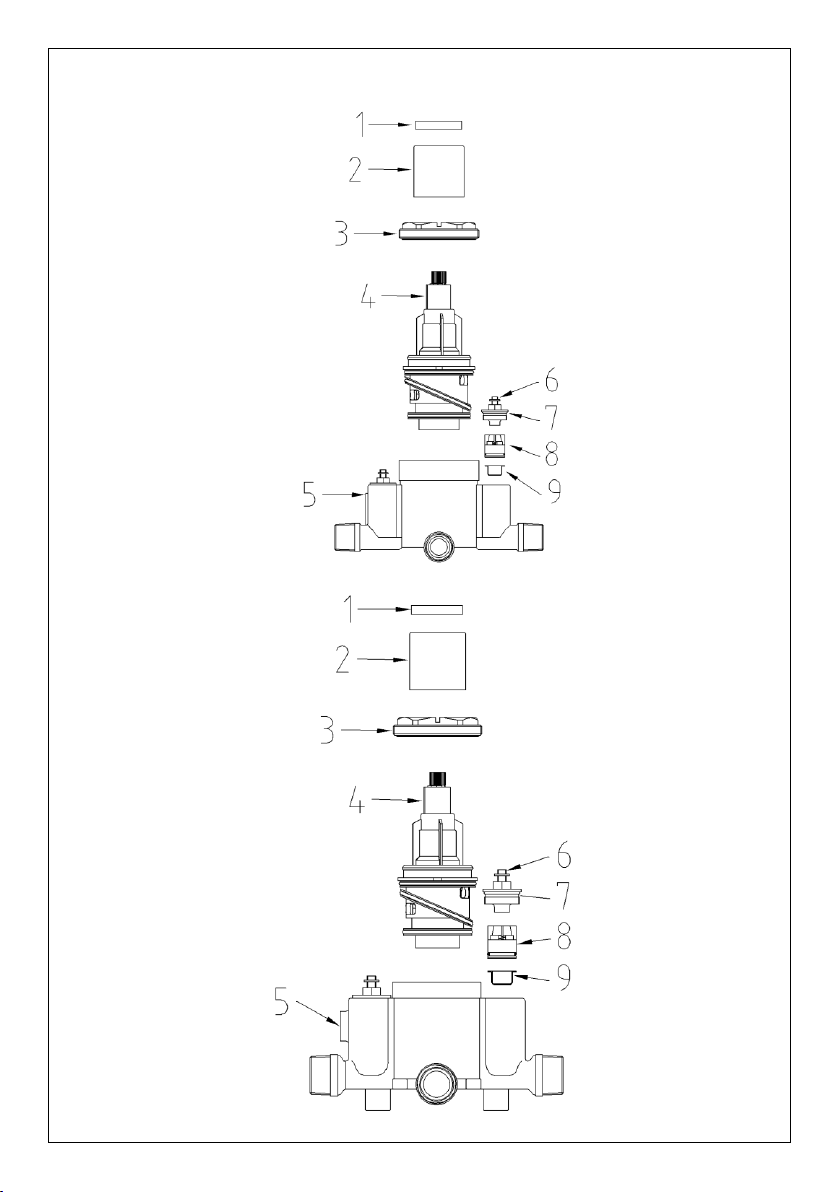

5. COMPONENTS
½” NPT
¾” NPT

6
PARTS LIST
COMPONENTS
½” NPT Valve
¾” NPT Valve
1
Wear Strip
1
1
2
Chrome Collar
1
1
3
Retaining Nut
1
1
4
Thermostatic Cartridge
1
1
5
Valve body
1
1
6
Isolating Screw
2
2
7
Check Valve Housing Nut
2
2
8
Check Valve
2
2
9
Strainer
2
2
10
Blanking Nut (Not Shown)
1
1

7
6. INSTALLATION
Connections:
WARNING
CARTRIDGE REVERSAL:
Please note that the pipework on site should be plumbed with the hot on
the left and the cold on the right as you look at it. If this is not the case,
NB: PLEASE AVOID OVER HEATING THE BODY
TO AVOID PLASTIC COMPONENTS BEING
DAMAGED. REMOVING THE CARTRIDGE AND
CHECK VALVES WILL PREVENT DAMAGE
DURING SOLDERING. PLEASE AIM THE FLAME
AWAY FROM THE BODY

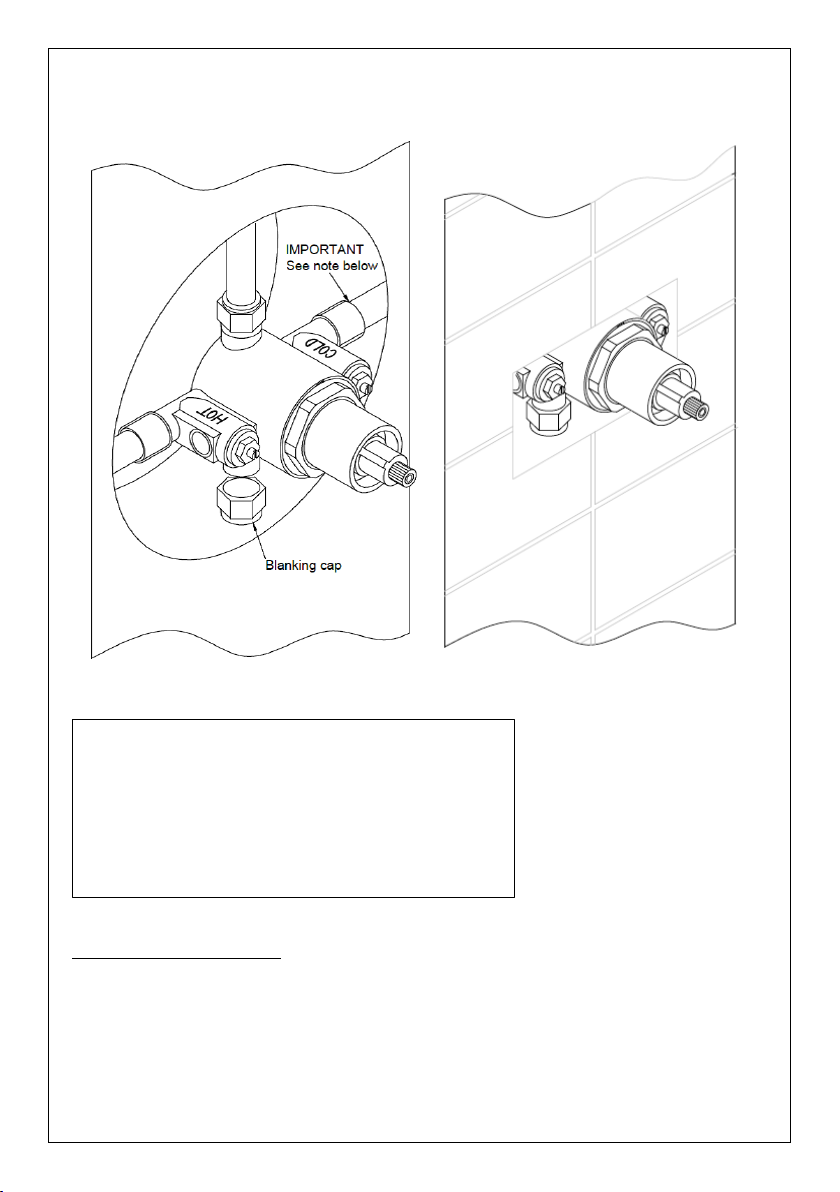

HOT & COLD INLETS
ARE CLEARLY MARKED
ON THE BODY
Fig 1
Fig 2

8
instead of turning the valve body around to match the pipework, the
cartridge can be taken out of the valve body, turned 180° and placed back
in the valve body. The Hot & Cold inlets will now match the incoming water.
When removing the cartridge, please undo the retaining nut and then pull
gently on the cartridge. There may be some residual water behind the
cartridge. Remove the cartridge from the valve body and turn it 180° so that
the positional lug on the cartridge lines up with the slot in the valve body.
Push the cartridge into the valve body making sure the lug is in the slot.
Replace the retaining nut being careful not to over tighten.
INSTALLATION:
1. Remove the chrome sleeves from the shower valve body, and leave to
one side in a safe place.
2. Determine the fixing position for the valve and make a recess in the wall
to house the valve. Please see the Dimension section for the depth of
recess required.
3. Screw the shower valve body in position, using the mounting lugs that
are cast into the base of the body.
4. Now the shower valve body is securely mounted onto the wall, make
sure the pipework is thoroughly flushed through to remove any debris

9
from the system before connecting the water supplies. Failure to do this
could result in debris entering the product and hindering performance.
5. The plumbing connections should then be made to the HOT & COLD
water inlets (which are clearly marked).
6. Make the plumbing connection to the water outlet. This will take the
water to the chosen auxiliary product (shower kit) you have selected to
run with this shower (fig 1).
7. Turn on the water supply and check for leaks.
8. Please make sure the shut off position is correctly set and that there is
no water coming from the valve when in the off position. If there is
please see the shut off position adjustment section.
9. Check the max water temperature from the terminal fitting with a
thermometer. The recommended maximum terminal outlet is 47 °C
(116.6 °F). If you need to change the water temperature please see the
temperature adjustment section.
10. Re fit the chrome sleeves to the shower body. Please tile up to the valve
as in fig 2.
11. Apply a small bead of silicone behind the chrome concealing plate (this
will give a water tight seal so water cannot ingress into the wall cavity).
Slide the plate into position over the chrome sleeves, and fit up against
the finished wall surface.
12. Fit the chrome control handles. The thermostatic control handle is
clearly marked with H & C. Your shower valve is now ready for use.

10

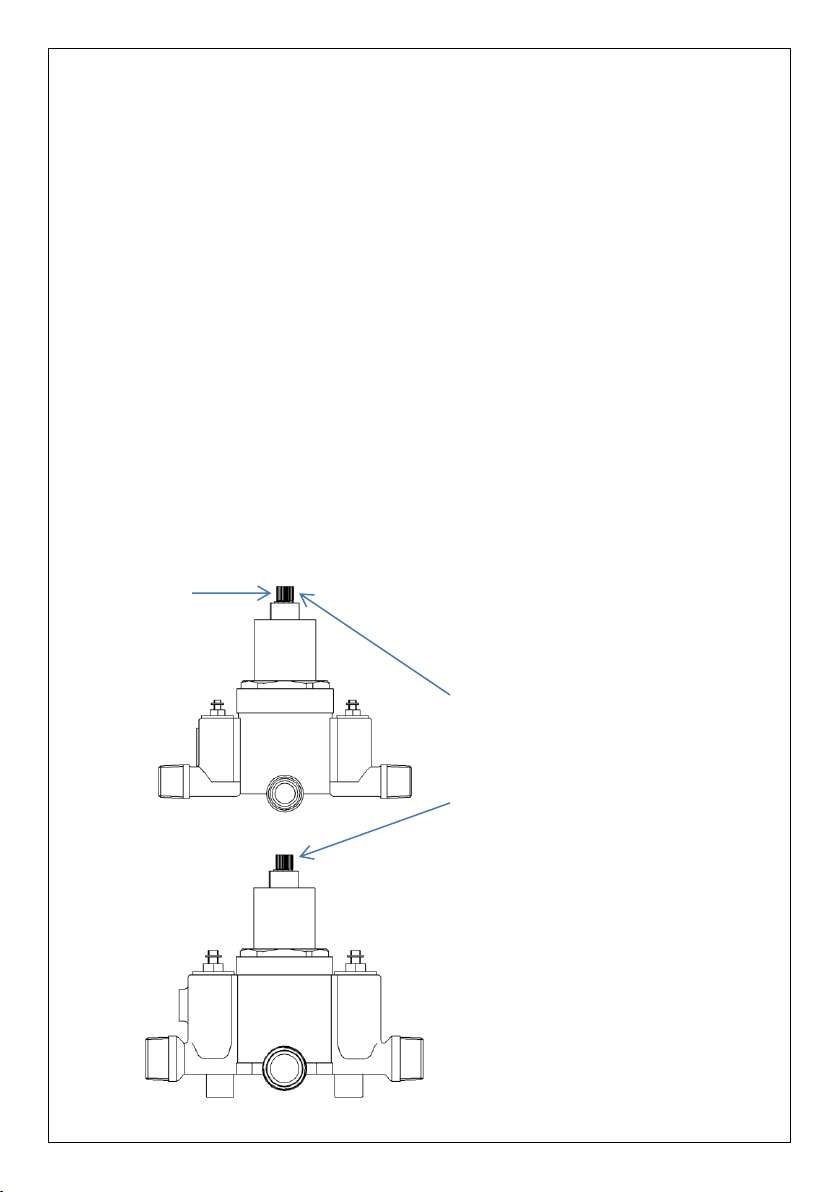

7. FLOW SHUT OFF ADJUSTMENT
If the valve is not shutting of completely when in the fully off position, please
follow these steps:
1. Remove the handle and/or the brass stop ring (if there is one with the
handle type).
2. Loosely place the handle or brass stop ring on the spline and turn
clockwise. As soon as the water stops flowing remove the handle or brass
stop ring.
3. Replace the handle or brass stop ring with the lug (fig 3 or fig 4) against
the cartridge lug so that the handle or brass stop cannot turn any further
clockwise. This sets the flow off position.
4. If you need to you can now set the max temperature. Please see the next
section.
Integral Handle Stop Lug:
FIG 3
Brass bush in flow off position:
COLD ½”
BSP
FEMALE
INLET
BRASS STOP RING –SOME
HANDLE TYPES HAVE A BRASS
STOP RING WHICH IS PLACED
OVER THE SPLINE AND MAKES
CONTACT WITH THE
CARTRIDGE STOP LUG
SETTING THE FLOW OFF
POSITION
STOP LUG
INTEGRAL HANDLE STOP LUG:
SOME HANDLES HAVE AN
INTEGRAL STOP LUG WHICH
MAKES CONTACT WITH THE
CARTRIDGE STOP LUG AND
SETS THE FLOW OFF POSITION
FIG 4

11

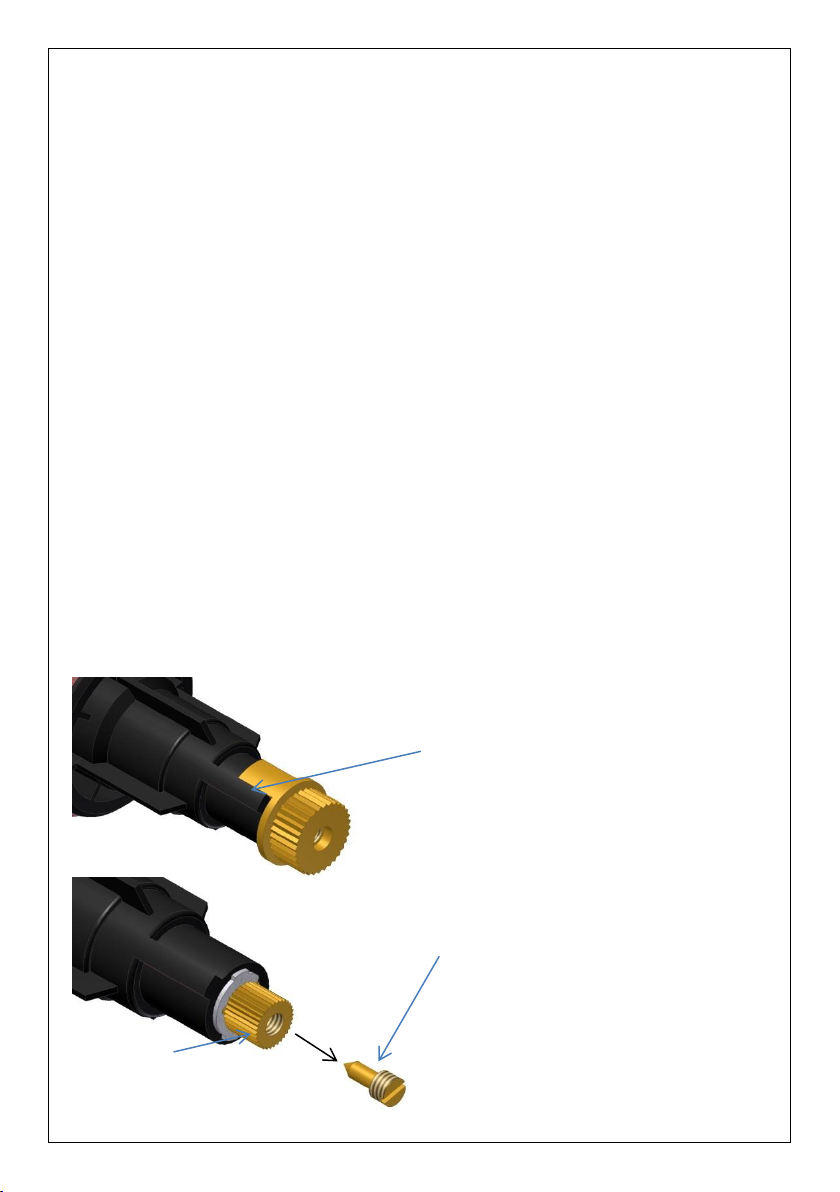

8. MAX TEMPERATURE ADJUSTMENT
1. Turn the handle to the max temperature setting by turning the handle
anti-clockwise (fig 5). Measure the temperature with a thermometer.
2. Remove the handle and brass stop ring if there is one, being very careful
not to turn the temperature spindle again.
3. Using a small flat head screw driver (3mm), undo the plug screw located
inside the spindle which will allow you to access the calibration screw.
Water may leak from inside the cartridge now, this is normal.
4. Using the same screw driver, locate the calibration screw inside the valve
and turn it clockwise to decrease the temperature and anti-clockwise to
increase the temperature. Please turn the screw driver in small
increments allowing time for the valve to adjust. Measure after each
adjustment until you reach the desired temperature. We recommend a
max of 47°C.
5. Replace the handle or brass stop ring so that the stop lug is against the
cartridge stop lug and cannot move any further anti-clockwise. This sets
the max temperature.
6. Turn the cartridge fully clockwise to the off position until it reaches the
stop. There should be no flow from the valve. If there is then the spindle
was most likely moved anti-clockwise during temperature adjustment and
the shut off position needs to be reset.
BRASS STOP RING UP AGAINST
CARTRIDGE STOP LUG AT THE
MAX TEMPERATURE SETTING
(FULLY CLOCKWISE)
REMOVE PLUG SCREW TO
ACCESS CALIBRATION SCREW
INSIDE BODY. BE CAREFUL NOT
TO TURN THE SPINDLE DURING
MAX TEMPERATURE SETTING
PROCEDURE
SPINDLE
FIG 5
FIG 6

12
9. AFTERCARE
When cleaning the valve please do not use a substance that could
possibly damage the surface finish. We recommend that soapy water
with a mild detergent is used.
Please take care not to damage the surface finish of the valve. The
finish is polished chrome and can be easily marked.
10.FAULT DIAGNOSIS
Fault
Possible Cause
No hot water
from the Valve
1. Check the hot water temperature from the boiler.
2. Inlets are reversed; cartridge needs to be turned 180°.
3. Calibration is incorrect.
4. Operating conditions are incorrect.
5. Blockage in system.
No cold water
from the Valve
1. Inlets are reversed; cartridge needs to be turned 180°.
2. Operating Conditions are incorrect.
3. Blockage in the system.
No or low flow
from the Valve
1. Possible blockage in the system.
2. Operating Conditions are incorrect.
3. Automatic Shut Off has been activated due to water
supply conditions. Either hot/cold water supply has
failed.
Mixed water is
too hot
1. Calibration is incorrect. Change to a desired
temperature. Do not exceed max temperature.
Flow from Valve
in the off
position
1. The shut off position is incorrect.
2. Debris blocking shut off.
3. Hot seat is damaged.
4. Cold shut off O ring is damaged.
Leak from
Spindle
1. The Spindle Sealing Screw is not screwed in far
enough or not screwed in at all.
Leak from Body
1. Retaining Collar is not tightened properly.
2. Cartridge O rings need to be replaced.
Mixed
Temperature
fluctuating
1. Hot supply temperature fluctuating.
2. Supply pressure is fluctuating.
3. Thermostat arrangement is faulty.

13
ÍNDICE:
1. Introducción y seguridad 14
2. Dimensiones 15
3. Datos técnicos 16
4. Operación 16
5. Componentes 17-18
6. Instalación 19-21
7. Ajuste de cierre de flujo 22
8. Ajuste de temperatura 23
9. Mantenimiento 24
10. Diagnóstico de fallas 25

14
1. INTRODUCCIÓN Y SEGURIDAD
Gracias por elegir esta válvula de ducha. Lea el manual antes de instalar.
La guía de instalación es para la Válvula de control simple con un cierre
integral. Comprende la instalación, el mantenimiento y la operación de la
válvula de ducha.
La válvula de control simple cuenta con un elemento de cera termostático.
Está diseñada para brindar un flujo de agua a una temperatura segura si se la
instala según las instrucciones de este manual.
Compatible con rociadores de ducha de 9,5 l/min (2,5 gpm) o superiores.
Condiciones de Operación
Temperatura de Entrada del Agua Caliente
52 °C to 65 °C (125 °F to 149 °F)
Temperatura de Entrada del Agua Fría
5.0 °C to 20 °C (41 °F to 68 °F)
Se recomienda que una persona calificada instale este producto. La
instalación debe cumplir con todas las normativas de agua locales vigentes.
Nota: Esta válvula DEBE ponerse en servicio en la ubicación para adecuarse a
las condiciones del sitio de instalación.
Para que este producto funcione correctamente, debe instalarse, ponerse en
servicio y mantenerse según lo especificado en este manual.
El diseño de la manija y la placa pueden variar según el modelo.

15
2. DIMENSIONES
TODAS LAS DIMENSIONES SON APROXIMACIONES
LAS DIMENSIONES SE BASAN EN UNA OPCIÓN DE PLACA TÍPICA
NPT de ½”
NPT de ¾”
Distancia entre orejas de sujeción
Distancia entre orejas de sujeción

16
3. DATOS TÉCNICOS
Válvula de control simple con un cierre integral. El flujo y la
temperatura se controlan con la misma manija.
NPT de ½” o NPT de ¾” según el modelo seleccionado.
Las válvulas cuentan con válvulas de retención y filtros incorporados
que requieren de mantenimiento. Consulte la sección de
componentes.
El cartucho es reversible. Si el cuerpo de la válvula se instala con las
entradas de agua del lado incorrecto de la válvula, simplemente quite
el cartucho, gírelo 180° y reemplácelo. También resulta ideal para
instalación de manera adyacente.
El cartucho está construido con un polímero de ingeniería que es
altamente resistente a la acumulación de calcio, incluso en las zonas
con agua dura.
4. OPERACIÓN
AL GIRAR LA MANIJA EN EL
SENTIDO CONTRARIO A LAS
AGUJAS DEL RELOJ, GIRA EL
HUSILLO Y AUMENTA LA
TEMPERATURA
GRADUALMENTE HASTA
LLEGAR A LA TEMPERATURA
MÁXIMA. PARA ENFRIAR EL
AGUA, GIRE LA MANIJA EN EL
SENTIDO DE LAS AGUJAS DEL
RELOJ. LA VÁLVULA DE LA
DUCHA LLEGARÁ FINALMENTE
A LA POSICIÓN DE CERRADO.
HUSILLO

17
5. COMPONENTES
NPT de ½”
NPT de ¾”

18
LISTA DE PIEZAS
COMPONENTES
Válvula NPT de
½”
Válvula NPT de
¾”
1
Cinta de desgaste
1
1
2
Anillo cromado
1
1
3
Tuerca de retención
1
1
4
Cartucho termostático
1
1
5
Cuerpo de la válvula
1
1
6
Tornillo aislante
2
2
7
Tuerca de la carcasa de la
válvula de retención
2
2
8
Válvula de retención
2
2
9
Filtro
2
2
10
Tuerca ciega (sin imagen)
1
1

19

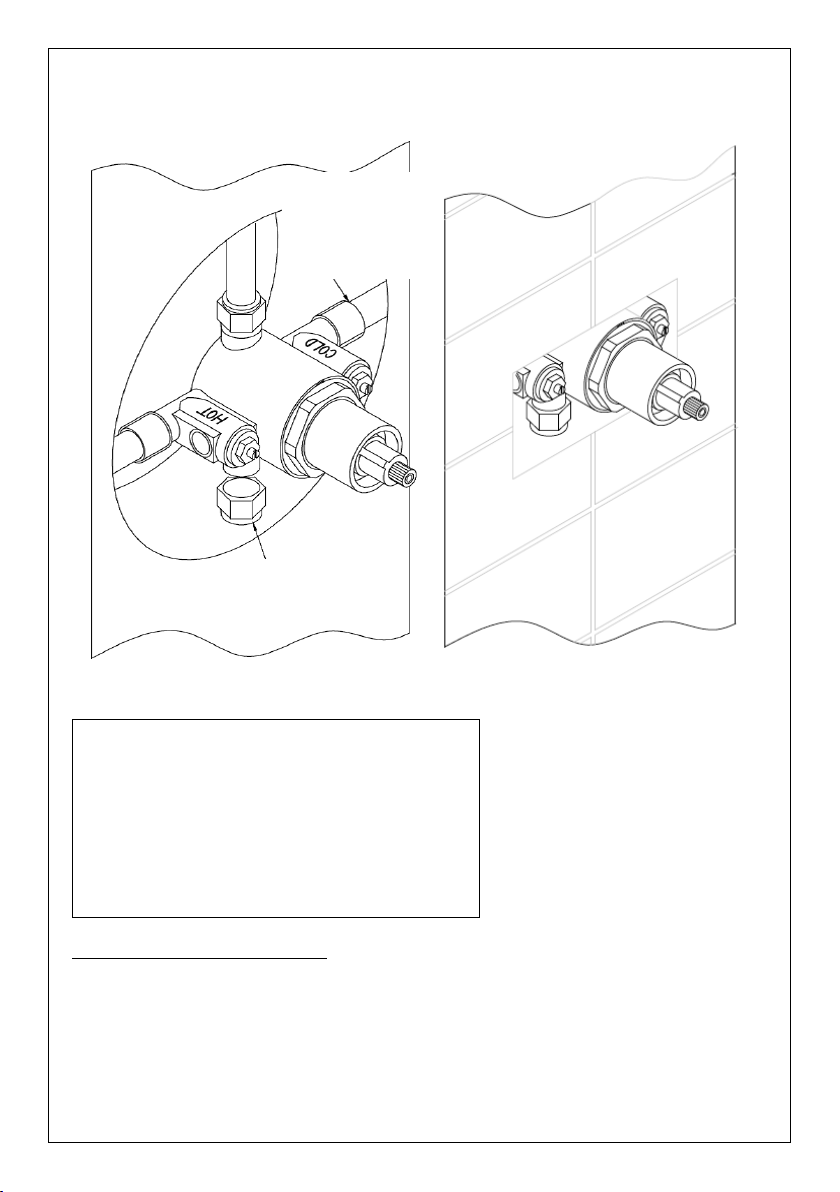

6. INSTALACIÓN
Conexiones:
ADVERTENCIA
INVERSIÓN DEL CARTUCHO:
Tenga en cuenta que las tuberías del sitio de instalación deben estar
conectadas con el agua caliente a la izquierda y el agua fría a la derecha si
NOTA: NO SOBRECALIENTE EL CUERPO
PARA EVITAR DAÑAR LOS COMPONENTES
PLÁSTICOS. SI EXTRAE EL CARTUCHO Y
LAS VÁLVULAS DE RETENCIÓN, EVITARÁ
DAÑOS DURANTE LA SOLDADURA.
APUNTE LA LLAMA A UNA DISTANCIA
CONSIDERABLE DEL CUERPO.
LAS ENTRADAS HOT
(CALIENTE) Y COLD
(FRÍA) ESTÁN
INDICADAS EN EL
CUERPO
Fig 1
Fig 2
Tapa ciega
IMPORTANTE
Ver nota a
continuación
