Human HumaRock User manual

HumaRock
|User Manual
Cat No. 145701

REVISION LIST OF THE MANUAL
Rev. /DATE. REVISION DESCRIPTION
01/2014-07 First edition
02/2014-08 Specification update
SYSTEM VERSION
COPYRIGHT
Copyright 2014, Human GmbH, Wiesbaden, Germany. All rights reserved.
No part of this documentation may be reproduced in any form, nor processed, copied or distribut-
ed by means of electronic systems, without prior permission of Human GmbH in writing. Since all
precautionary measures were taken into account in producing these operating instructions, the
manufacturer accepts no responsibility for any errors or omissions. This includes any liability for
damage that could arise from possible incorrect operation based on this information. Subject to
changes without notice as result of technical development.
SERVICE UND SUPPORT

CONTENTS
TABLE OF CONTENTS
1 SAFETY INSTRUCTIONS 3
1.1 INTRODUCTION 3
1.2 USER WARRANTY 3
1.3 INTENDED USE OF THE INSTRUMENT 4
1.4 GENERAL SAFETY WARNINGS 4
1.5 DISPOSAL MANAGEMENT CONCEPT 5
1.6 BIOHAZARD WARNING 5
1.7 INSTRUMENT DISINFECTION 6
1.8 SYMBOLS 6
2 DESCRIPTION 7
2.1 UNPACKING 7
2.1.1 Receiving Inspection 7
2.1.2 Listing of Items 7
2.2 CONTROL 8
2.3 ABBREVIATIONS 8
3 ROUTINE UTILIZATION 9
3.1 OPERATION 9
4 MAINTENANCE 11
5 TROUBLESHOOTING 13
6 APPENDIX 15
6.1 SPECIFICATION 15
6.2 ACCESSORIES AND CONSUMABLES 15

CONTENTS

Safety InStructIonS 3
1 SAFETY INSTRUCTIONS
1.1 Introduction
This manual is considered as a part of the instrument; it has to be at the
operator’s hand as well as at the maintenance operator’s availability. For accu-
rate installation, use and maintenance, please read the following instructions
carefully. In order to avoid instrument damage or personal injury, carefully read
the ”GENERAL SAFETY WARNINGS”, describing the suitable operating proce-
dures. In case of breakdowns or any troubles with the instrument, apply to the
local Technical Service.
1.2 User Warranty
HUMAN warrants that instruments sold by one of its authorised representa-
tives shall be free of any defect in material or workmanship, provided that this
warranty shall apply only to defects which become apparent within one year
from the date of delivery of the new instrument to the purchaser.
The HUMAN representative shall replace or repair any defective item at no
charge, except for transportation expenses to the point of repair.
This warranty excludes the HUMAN representative from liability to replace
any item considered as expendable in the course of normal usage, e.g.: lamps,
valves, syringes, glassware, fuses, diskettes, tubing etc.
The HUMAN representative shall be relieved of any liability under this warranty
if the product is not used in accordance with the manufacturer‘s instructions,
altered in any way not specified by HUMAN, not regularly maintained, used with
equipment not approved by HUMAN or used for purposes for which it was not
designed.
HUMAN shall be relieved of any obligation under this warranty, unless a com-
pleted installation / warranty registration form is received by HUMAN within
15 days of installation of this product.
This warranty does not apply to damages incurred in shipment of goods. Any da-
mage so incurred shall be reported to the freight carrier for settlement or claim.

HumaRock | User manual
4
1.3 Intended Use of the Instrument
The instrument is intended for diagnostic application by professional users. It
has to be used for the expected purposes and in perfect technical conditions,
by qualified personnel, in working conditions and maintenance operations as
described in this manual, according to the GENERAL SAFETY WARNINGS. This
manual contains instructions for professional qualified operators.
1.4 General Safety Warnings
Use only chemical reagents and accessories specified and supplied by HU-
MAN and/or mentioned in this manual. Place the product so that it has proper
ventilation.
The instrument should be installed on a stationary flat working surface, free
from vibrations.
Do not operate in area with excessive dust.
Work at room temperature and humidity, according to the specifications listed
in this manual.
Do not operate this instrument with covers and panels removed.
Only use the power cord specified for this product, with the grounding conduc-
tor of the power cord connected to earth ground.
Use only the fuse type and rating specified by the manufacturer for this in-
strument, use of fuses with improper ratings may pose electrical and fire ha-
zards. To avoid fire or shock hazard, observe all ratings and markings on the
instrument.
Do not power the instrument in potentially explosive environment or at risk of
fire.
Prior to cleaning and/or maintaining the instrument, switch off the instrument
and remove the power cord.
For cleaning use only materials specified in this manual, otherwise parts may
become damaged. It is recommended always to wear protective apparel and eye
protection while using this instrument. Respective warning symbols, if appea-
ring in this manual, should be carefully considered.

Safety InStructIonS 5
1.5 Disposal Management Concept
The currently valid local regulations governing disposal must be observed. It is in
the responsibility of the user to arrange proper disposal of the individual
components.
All parts which may comprise potentially infectious materials have to be
disinfected by suitable validated procedures (autoclaving, chemical treatment)
prior to disposal. Applicable local regulations for disposal have to be carefully
observed.
The instruments and electronic accessories (without batteries, power packs etc.)
must be disposed off according to the regulations for the disposal of electronic
components.
Batteries, power packs and similar power source have to be dismounted from
electric/electronic parts and disposed off in accordance with applicable local re-
gulations.
1.6 Biohazard warning
Analytical instruments for diagnostic application involve the handling of hu-
man samples and controls which should be considered at least potentially
infectious. Therefore every part and accessory of the respective instrument
which may have come into contact with such samples must equally be consi-
dered as potentially infectious.
For safety reasons, we have labeled instruments with the„BIOHAZARD“ war-
ning label below.
FIGURE 1
Biological Hazard Symbol

HumaRock | User manual
6
1.7 Instrument Disinfection
Before doing any servicing on the instrument it is very important to thorough-
ly disinfect all possibly contaminated parts. Before the instrument is removed
from the laboratory for disposal or servicing, it must be decontaminated. De-
contamination should be performed by authorised well-trained personnel only,
observing all necessary safety precautions.
Instruments to be returned have to be accompanied by a decontamination
certificate completed by the responsible laboratory manager.
If a decontamination certificate is not supplied, the returning laboratory will be
responsible for charges resulting from non-acceptance of the instrument by the
servicing centre, or from authority’s interventions.
1.8 Symbols
Warning!
- Read the operating instructions carefully before use.
- Ensure that only trained staff works with the instrument.
Protective ground contact!
- Ensure the socket must be grounded (protective ground
contact) before use.

DeScrIptIon 7
2 DESCRIPTION
The instrument is designed for mixing sticky substance in schools, laboratories
or factories. It can be installed on a variety of impeller, for different viscosity
of the medium. This instrument is not suitable for using in residential areas or
other constraints mentioned in Chapter 1.
Do not use the accessories recommended by the manufacturer, or failure to use
the instructions, may be caused unsafe situation.
The HumaRock rocking shaker is manufactured in accordance with the follow-
ing standards:
EN 61010-1,
EN 61326-1
2.1 Unpacking
2.1.1 RECEIVING INSPECTION
Unpack the instrument carefully and check for any damages which may have
arisen during transport. If it happens, please contact manufacturer/supplier for
technical support.
Note:
If there is any apparent damage to the system, please do not
connect to the power line.
2.1.2 LISTING OF ITEMS
Items Qty
Main unit 1
Power supply with EU Adapter 1
UK Adapter 1
US Adapter 1
User manual 1

HumaRock | User manual
8

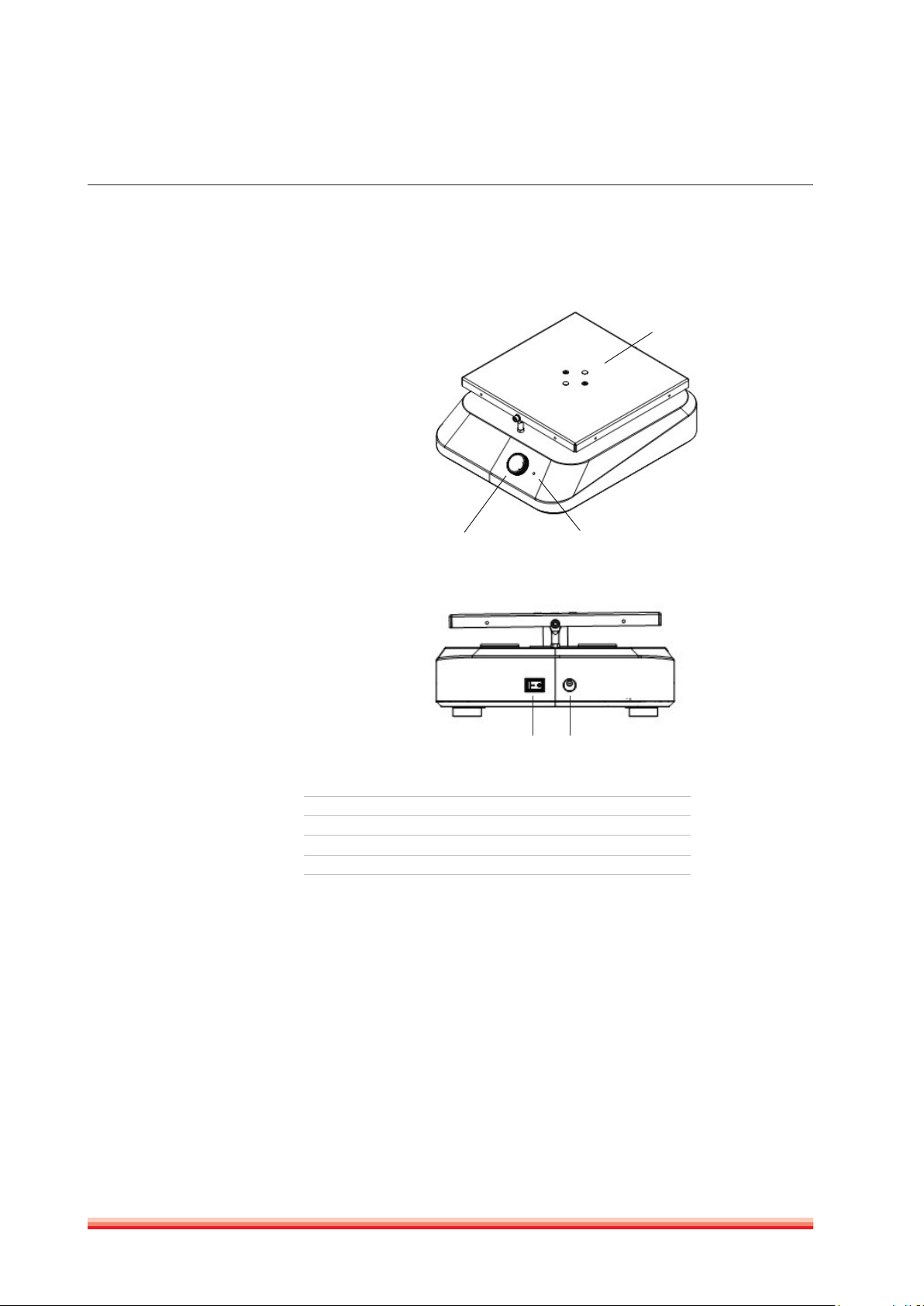

2.2 Control
Speed control knob Power light
Shaking table
Power Switch Power Interface
Items Descriptions
Speed control knob Set target speed.
Power switch Switch ON/OFF instrument.
Power interface Connect the power cable
Power light Green LED display light
2.3 Abbreviations
rpm revolutions per minute
w watt
v volt
Hz Hertz
kg kilogram
mm milimeter
cm centimeter
ml mililiter
dB decibel
FIGURE 2
Instrument overview

routIne utIlIzatIon 9
3 ROUTINE UTILIZATION
3.1 Operation
- Place the instrument in safe and stable surface, ensure the required opera-
ting voltage and power supply voltage matched.
- Connect the power cable.
- Install the platform.
- Switch ON the instrument.
- Rotate the speed control knob clockwise to set target speed, and the shaking
function will be switched on.
- Rotate the speed control knob to the left-most position to switch off the sha-
king function.
- Switch OFF the instrument
If these operations above are normal, the instrument is ready to operate. If not,
the instrument may be damaged during transportation, please contact techni-
cal support of manufacturer/supplier.
Note:
The speed value can be altered during shaking.

HumaRock | User manual
10

MaIntenance 11
4 MAINTENANCE
- Proper maintenance can keep instrument working properly and lengthen its
lifetime.
- Do not spray cleanser into the instrument when cleaning.
- Do not remove the power line when cleaning. Only use recommended clean-
sers:
Dyes Isopropyl alcohol
Construction Materials Water containing tenside / Isopropyl alcohol
Cosmetics Water containing tenside / Isopropyl alcohol
Foodstuffs Water containing tenside
Fuels Water containing tenside
- Before using other method for cleaning or decontamination, the user must
ascertain with the manufacturer that this method will not damage the in-
strument. Wear the proper protective gloves during cleaning of the instru-
ment.
Note:
- Electronic device cannot clean with cleanser.
- If you require maintenance service, must be cleaned the in-
strument in advance to avoid pollution of hazardous sub-
stances, and to send back into original packing.
- If the instrument will not use for a long time, please switch
off and place in a dry, clean, room temperature and stable
location.

HumaRock | User manual
12

troubleShootIng 13
5 TROUBLESHOOTING
When switched ON, the instrument does not work
- Check whether the power cable is connected
- Motor speed cannot reach set value
- Check whether it is overloaded

HumaRock | User manual
14

appenDIx 15
6 APPENDIX

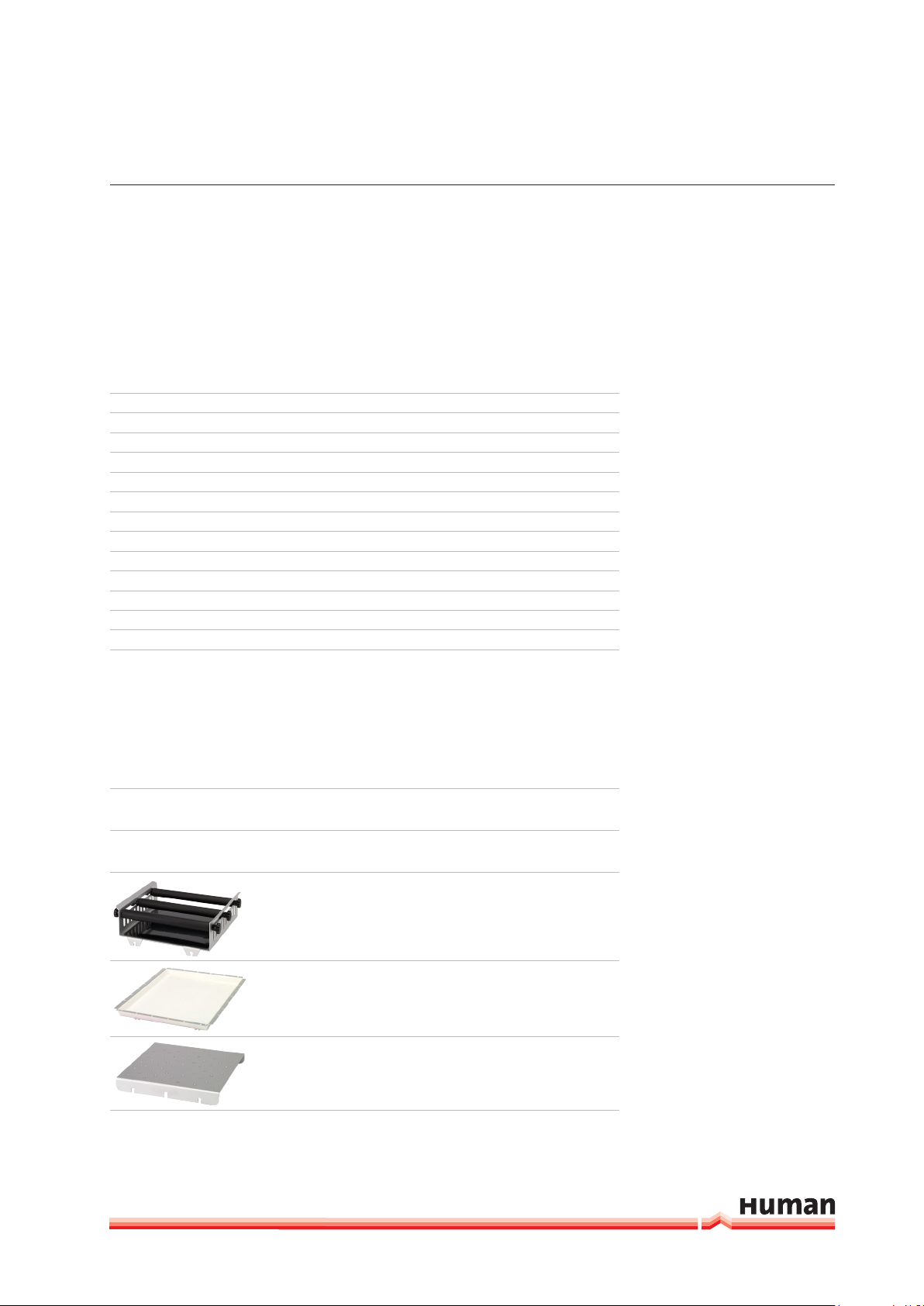

6.1 Specification
Technical Specification HumaRock
Voltage [VAC] 100-240
Frequency [Hz] 50/60
Power Consumption <25 watt
Tile Angel [o] ±7°
Max. Shaking Weight [kg] 3
Motor Type DC motor
Speed range [rpm] 0-80
Dimensions [W×H×D mm] 330x270x120
Weight [kg] 3.2
Permissible ambient temperature [°C] 5-40
Permissible relative humidity 80%
Protection class acc. DIN EN60529 IP21
Maximum altitude 4000m
Noise level <50 dB
6.2 Accessories and Consumables
Cat. No. Descriptions
14570 HumaRock, Analog Rocking Shaker, See-saw wave, angle 7,
US/UK/EU plug, 100V-240V, 50Hz/60Hz
Accessories Cat. No. Descriptions
14570/10 Universal attachment with 3 bars
14570/20 Special workplate LIA
14570/11 Fixing clip attachment

HumaRock | User manual
16
14570/12 Lengthways roller attachment
14570/13 Dish Attachment with non-slip mat
14570/15 Fixing clip for flask volume 25 ml
14570/16 Fixing clip for flask volume 50 ml
14570/17 Fixing clip for flask volume 100 ml
14570/18 Fixing clip for flask volume 200/250 ml
14570/19 Fixing clip for flask volume 500 ml
14570/14 Bar for 14570/10 Universal attachment,
black
