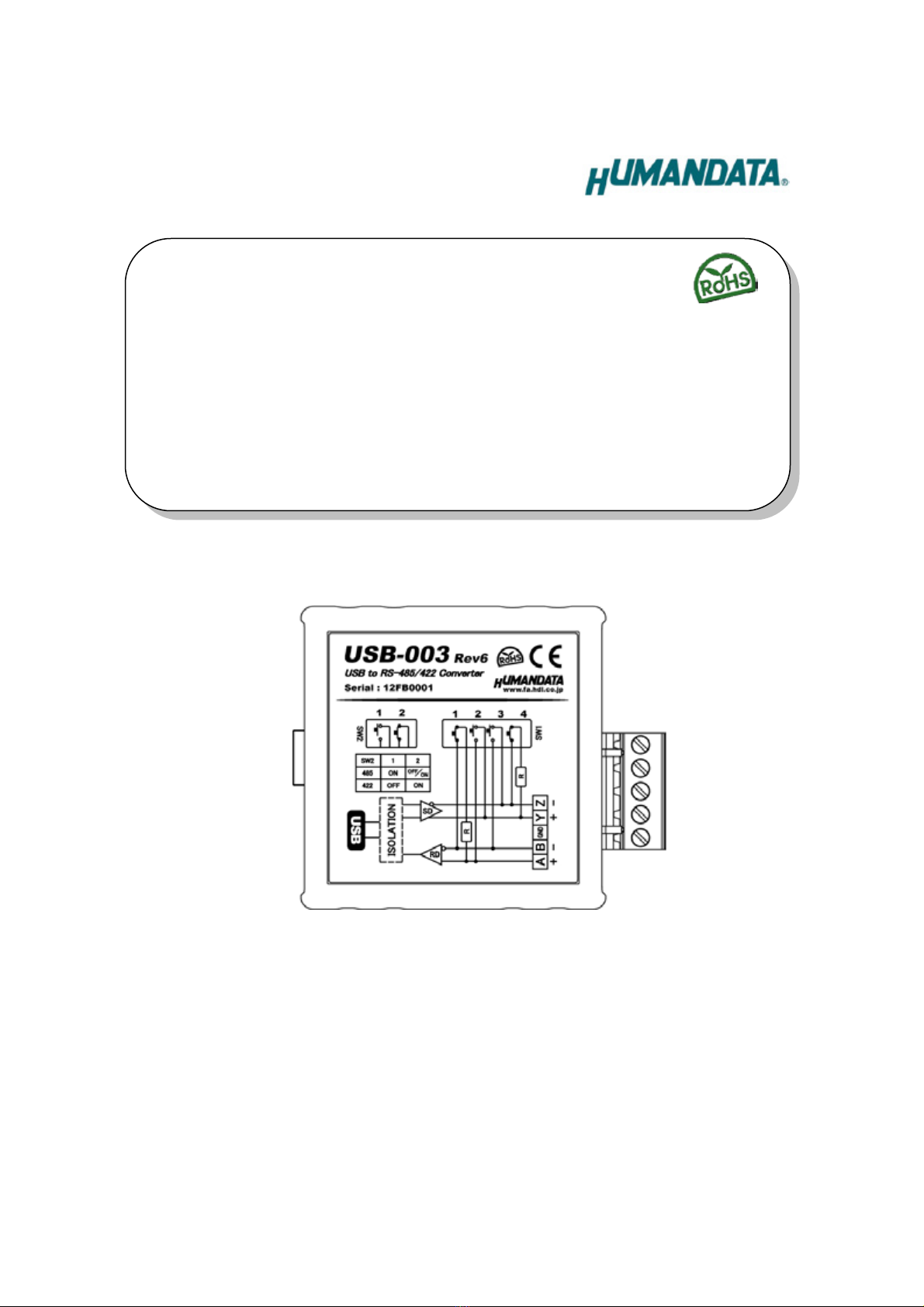

HuMANDATA LTD.
USB to RS-485/422 Converter
USB-003 (Rev6)
User’s Manual
Ver. 1.1

USB-003 (Ver.1.1)
Table of Contents
Precautions ..................................................................................................... 1
Revision History.............................................................................................. 2
Introduction .................................................................................................... 2
1. Overview............................................................................................................ 2
1.1. Power Supply........................................................................................................3
1.2. Block Diagram......................................................................................................3
2. Function............................................................................................................. 3
3. Specifications ..................................................................................................... 4
3.1. Optional Accessories ............................................................................................6
3.2. RS-485/422(4 wire) Mode.....................................................................................7
3.3. RS-485(2 wire) Mode............................................................................................7
4. Interface Terminal.............................................................................................. 8
5. Setting Switch.................................................................................................... 9
5.1. RS-485/422(4 wire)...............................................................................................9
5.2. RS-485(2 wire)................................................................................................... 10
5.3. Setting Switch (SW2) Function........................................................................ 10
6. Latency Timer .................................................................................................. 11
7. Additional Documentation and User Support ................................................... 11
8. Warranty and Compensation............................................................................ 11
9. Outline Drawing .............................................................................................. 12

1
USB-003 (Ver.1.1)
Precautions
1
This product uses ordinary off-the-shelf electronic components, and
is therefore inappropriate for use in applications that require special
quality or reliability and are expected to protect human lives or
prevent accidents, such as safety mechanisms in fields including
space, aeronautics, medicine, and nuclear power.
2
Do not be used underwater or in high-humidity environments.
3
Do not be used in the presence of corrosive gases, combustible gases,
or other flammable gases.
4
Do not turn on power when circuit board surface is in contact with
other metal.
5
Do not apply voltage higher than rated voltage.
6
This manual may be revised in the future without notice owing to
improvements.
7
All efforts have been made to produce the best manual possible, but
if users notice an error or other problem, we ask that they notify us.
8
Item 7 notwithstanding, HuMANDATA cannot be held liable for the
consequences arising from use of this product.
9
HuMANDATA cannot be held liable for consequences arising from
using this product in a way different from the uses described herein,
or from uses not shown herein.
10
This manual, circuit diagrams, sample circuits, and other content
may not be copied, reproduced, or distributed without permission.
11
If the product emits smoke, catches fire, or becomes unusually hot,
cut the power immediately.
12
Do not install the control cables or communication cables together
with the main circuit lines or power cables. In such an environment,
it may result in malfunction due to noise.
13
Be careful of static electricity.
Do Not
Attention

2
USB-003 (Ver.1.1)
Revision History
Date
Revision
Description
Dec. 11, 2014
v1.0
Initial release
Mar. 24, 2016 v1.1 Revise: Section "Block Diagram"
Revise: Section "Specifications"
Introduction
Thank you very much for purchasing our product of USB-003.
USB-003 is a USB to RS-485/RS422 converter that isolated between RS-485/422
and a USB port. So it’s safe for use in factory automation environment.

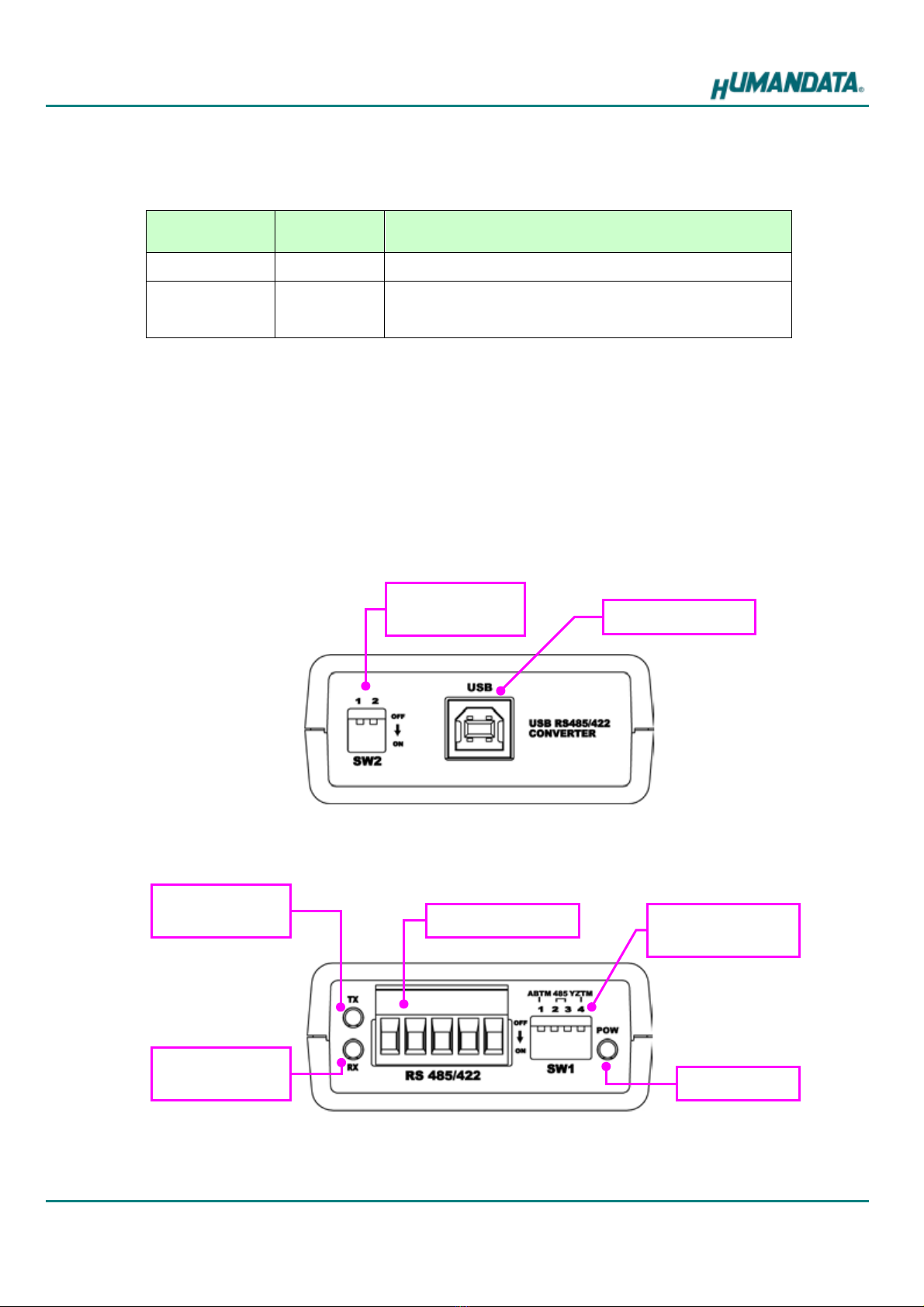

1. Overview
Front Side (USB)
Rear Side (RS-485/422)
USB Connector
Setting Switch
(SW2)
Transmit Data
LED
Terminal Block
Setting Switch
(SW1)
Power LED
Receive Data
LED

3
USB-003 (Ver.1.1)
1.1. Power Supply
USB-003 is powered through a USB port (Bus-powered). No external power supply
is required.

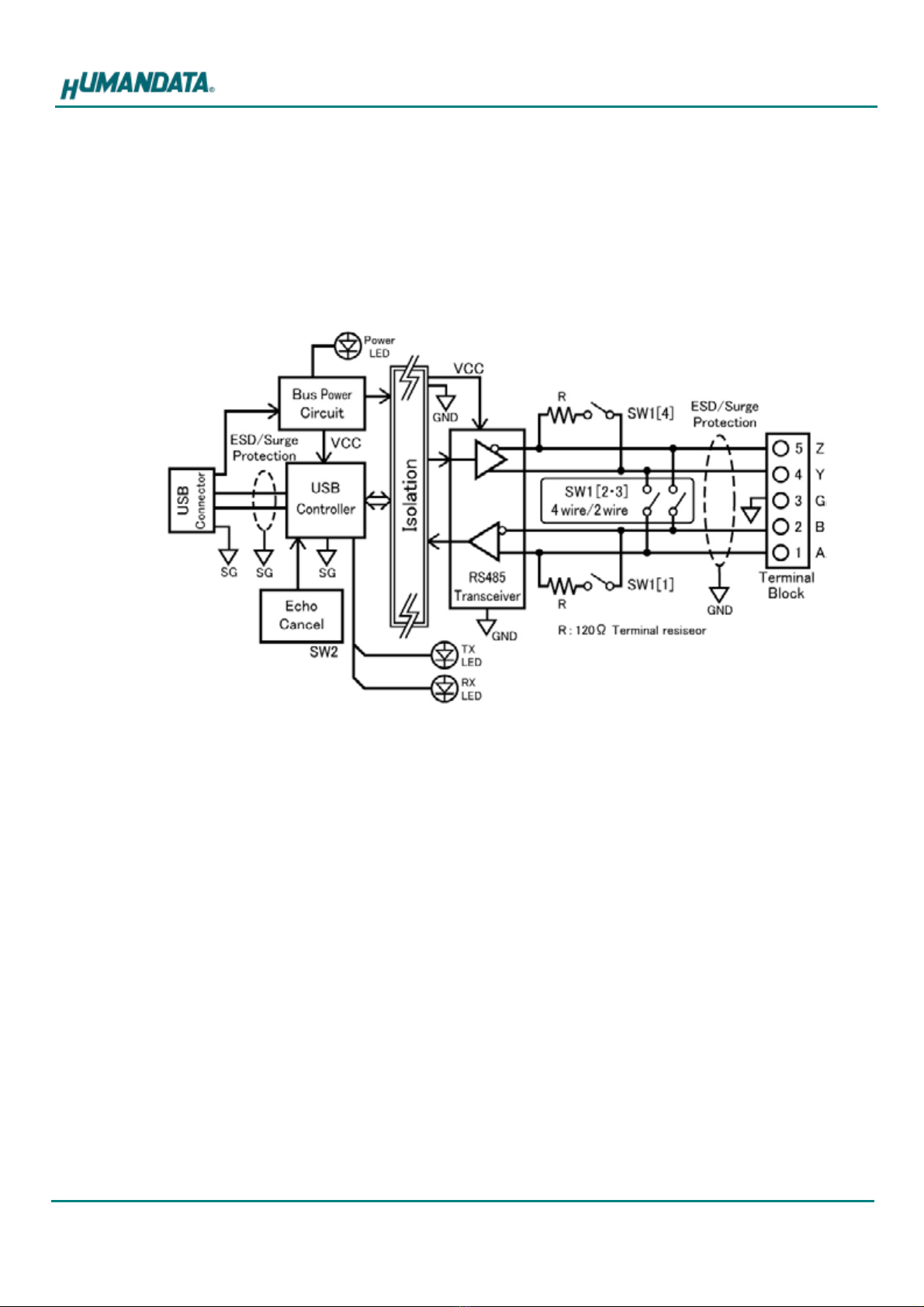

1.2. Block Diagram
Between USB and RS-485/422 are isolated.
2. Function
The driver IC built-in USB-003 supports RS-485 and RS-422.
By setting dip switch, USB-003 can support both RS-485 and RS-422.
This converter is that it has the dip switch to enable and disable the built-in 120
ohm terminal resistor and the echo cancelling function.

4
USB-003 (Ver.1.1)
3. Specifications
Item
Description
Remarks
Model
USB-003
Power
5VDC
Supplied through a USB
port(Bus-powered)
No external power supply
required
Current Consumption
Less than 100 mA
I/O Interface
RS-485/RS422
(2-wire or 4-wire) ESD protection ±15KV
HOST interface
USB 2.0 Compliant
(Support Full Speed)
USB 1.1 compatible
ESD protection
Baud Rate
300 bps to 250 Kbps Support custom baud rate
Data Bits
7 or 8 bit
Stop Bits
1 or 2 bit
Parity
Even, Odd, No-parity
FIFO RX Buffer Size
384 bytes
FIFO TX Buffer Size
128 bytes
Isolation Method
Bus isolation
Isolation Protection
2000VDC
Designed value
Processor
FT232BL FTDI
USB Driver
Virtual COM port driver
Supports OS
Windows
10/8.1/8/7/Vista/XP
LED
POW: USB bus power
RX: Receive data
TX: Transmit data
USB connector
Standard Type B Female
RS485/RS422 Connector
Detachable the screw
terminal 5pin(PHOENIX
CONTACT)
Operating Ambient
Temperature
-10 to 60℃No condensation permitted
Operating Ambient Humidity
30 to 85%RH

5
USB-003 (Ver.1.1)
Storage Ambient
Temperature
-20 to +55 °C No condensation permitted
Storage Ambient Humidity
30 to 85%RH
Compliance to Standards
CE
Weight
Approx. 90 [g]
Only main body
Dimensions
67 x 67 x 28 [mm]
(2.638" x 2.638" x 1.102") Without projections
* There is a case to be changed to the parts of the compatibility
* Power saving function (suspend, standby, sleep and others) is not supported
[CE marking]
USB-003 has applied the common standard for heavy industrial environment
EN61000-6-2 and EN61000-6-4.
--- Application of the standards ---
EMS: EN61000-6-2
· IEC61000-4-2 Electrostatic discharge requirements
· IEC61000-4-3 Radiated electromagnetic field requirements
· IEC61000-4-4 Electrical fast transient burst requirements
· IEC61000-4-5 Surge immunity test requirements
· IEC61000-4-6 Conducted radio frequency requirements
EMI: EN61000-6-4
· CISPR11 Group 1 Class A Emissions

6
USB-003 (Ver.1.1)
3.1. Optional Accessories
Model Name
Description
PEN-003
USB series Attachment with clamping screw
JAN：4937920800709
PEN-003-DIN
USB series Attachment for 35mm DIN rail
JAN：4937920800716
PEN-003-MG
USB series Attachment with neodymium magnet
JAN：4937920801201
ACC-005
5P Terminal to RJ45 Convert Adapter
JAN：4937920800730
TB-USB-5
Detachable 5P Terminal Connector : 1757048 (Phoenix)
JAN：4937920800747

7
USB-003 (Ver.1.1)
3.2. RS-485/422(4 wire) Mode
Item
Specification
Remarks
Comm. Method
Full-duplex transmission
Baud Rate
300 bps to 250 Kbps Custom baud rate is supported
Number of Connectable
Terminals
128 Typical example
Terminal Resistor
120 ΩConfigurable by setting switch
(SW1) ON/OFF
Transmit Enable
Control
Automatically controlled
by USB controller
Receive Enable Control
Available by setting switch
(SW2)
RS-422 or RS-485 mode can communicate with multiple terminals by using two twist
pair cables. Wires of upstream and downstream are separated and simultaneous
communication (full-duplex transmission) is available.
3.3. RS-485(2 wire) Mode
Item
Specification
Remarks
Comm. Method
Half-duplex transmission
Baud Rate
300 bps to 250 Kbps Custom baud rate is supported
Number of Connectable
Terminals
128 Typical example
Terminal Resistor
120 ΩConfigurable by setting switch
(SW1) ON/OFF
Transmit-Receive
Switching
Automatically controlled
by USB controller
Echo Cancellation
Available by setting switch
(SW2)
RS-485 mode can communicate with multiple terminals by using a twist pair cable.

8
USB-003 (Ver.1.1)

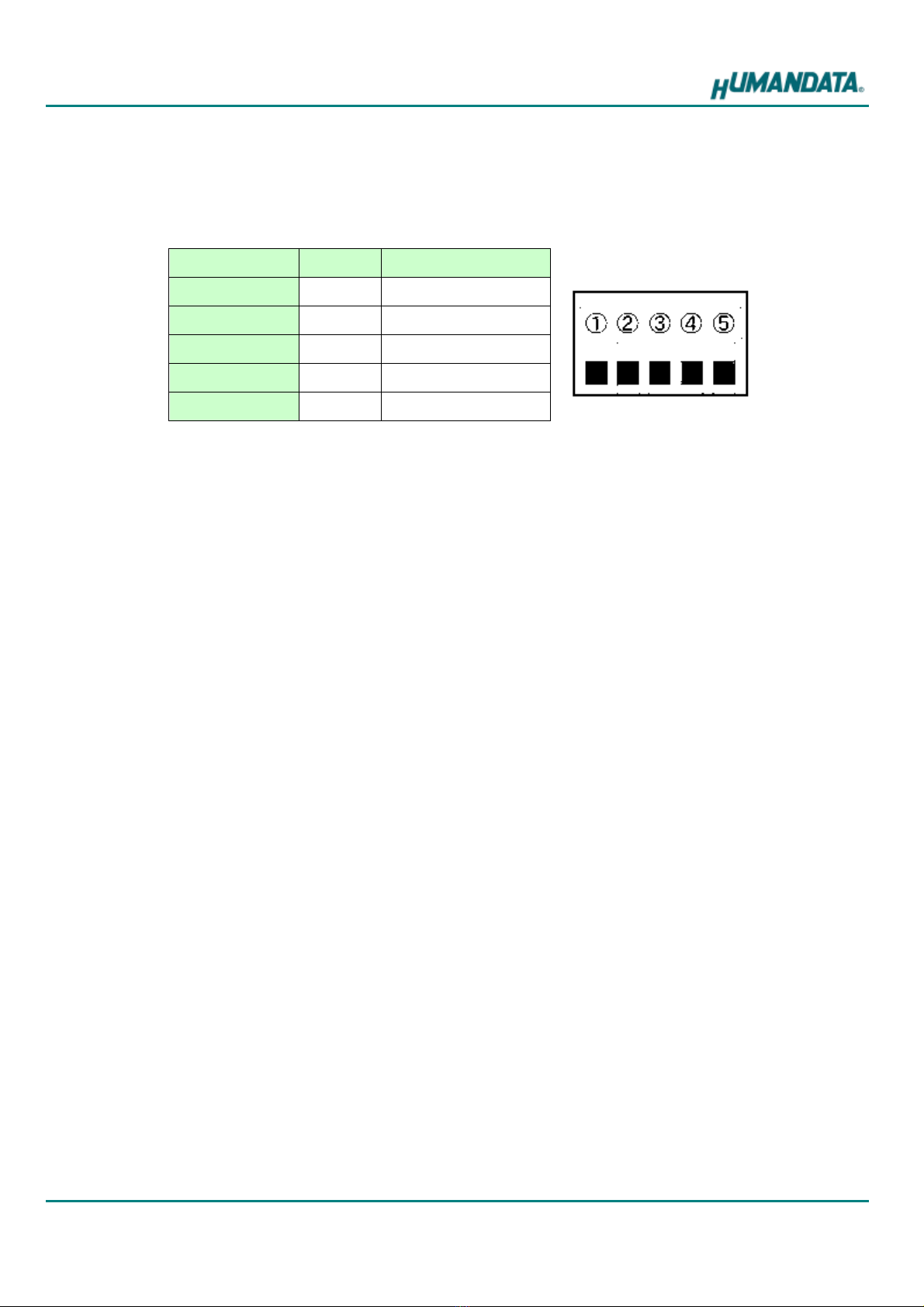

4. Interface Terminal
Terminal block is pluggable. Do not remove it while the power is supplied.
Pin Number
Signal
Signal and Polarity
1
A
RD+
2
B RD-
3
GND
GND
4
Y SD+
5
Z
SD-
The GND(Ground) pin is recommended to be wired.

9
USB-003 (Ver.1.1)
5. Setting Switch
By setting SW1 and SW2, USB-003 can change operating mode, switching echo
cancelling and terminal resistor.
5.1. RS-485/422(4 wire)
SW2
Factory
Setting
1
2
4 wire
OFF
ON
* Please refer to Section 5.3
SW1
1
2
3
4
No termination
OFF
OFF
OFF
OFF
SW1
1
2
3
4
Transmit Side
termination
OFF OFF OFF
ON
SW1
1
2
3
4
Receive Side
termination
ON
OFF OFF OFF
SW1
1
2
3
4
Both Sides
termination
ON
OFF OFF
ON

10
USB-003 (Ver.1.1)
5.2. RS-485(2 wire)

Echo Cancelling Enable (no echo)
SW2
1
2
2 wire
ON
OFF
* Please refer to Section 5.3
SW1
1
2
3
4
No termination
OFF
ON
ON
OFF
SW1
1
2
3
4
Termination
Enable
ON
ON
ON
OFF
Echo Cancelling Disable (echo enable)
SW2
1
2
2 wire
ON
ON
5.3. Setting Switch (SW2) Function
SW2-1
DE (
transmit enable) Control
OFF
Always Enable
ON
Enable in Transmission
SW2-2
Echo Control
OFF
Echo Cancelling Enable (no echo)
ON
Echo Cancelling Disable (echo enable)

11
USB-003 (Ver.1.1)
6. Latency Timer
In some cases, adjusting “Latency Timer” will help to speed up the response time of
application. The default value is set by device driver.
If you reduce the value of “Latency Timer”, its priority will be higher. But be careful
that the response time of the other applications will probably be slow.
Following steps of Windows OS show how to set “Latency Timer”.
Open “Device Manager” and right click “[USB-003/010/017…]”. Open “Properties”
window and open “Port Setting” tab, then click “Advanced” button.
7. Additional Documentation and User Support
The following documents and other supports are available at
http://www.hdl.co.jp/en/faspc/USB/usb-003
Device Driver
Outline Drawing
… and more.
8. Warranty and Compensation
Please refer to the following URL for the warranty.
http://www.fa.hdl.co.jp/en/fa-warranty.html

12
USB-003 (Ver.1.1)

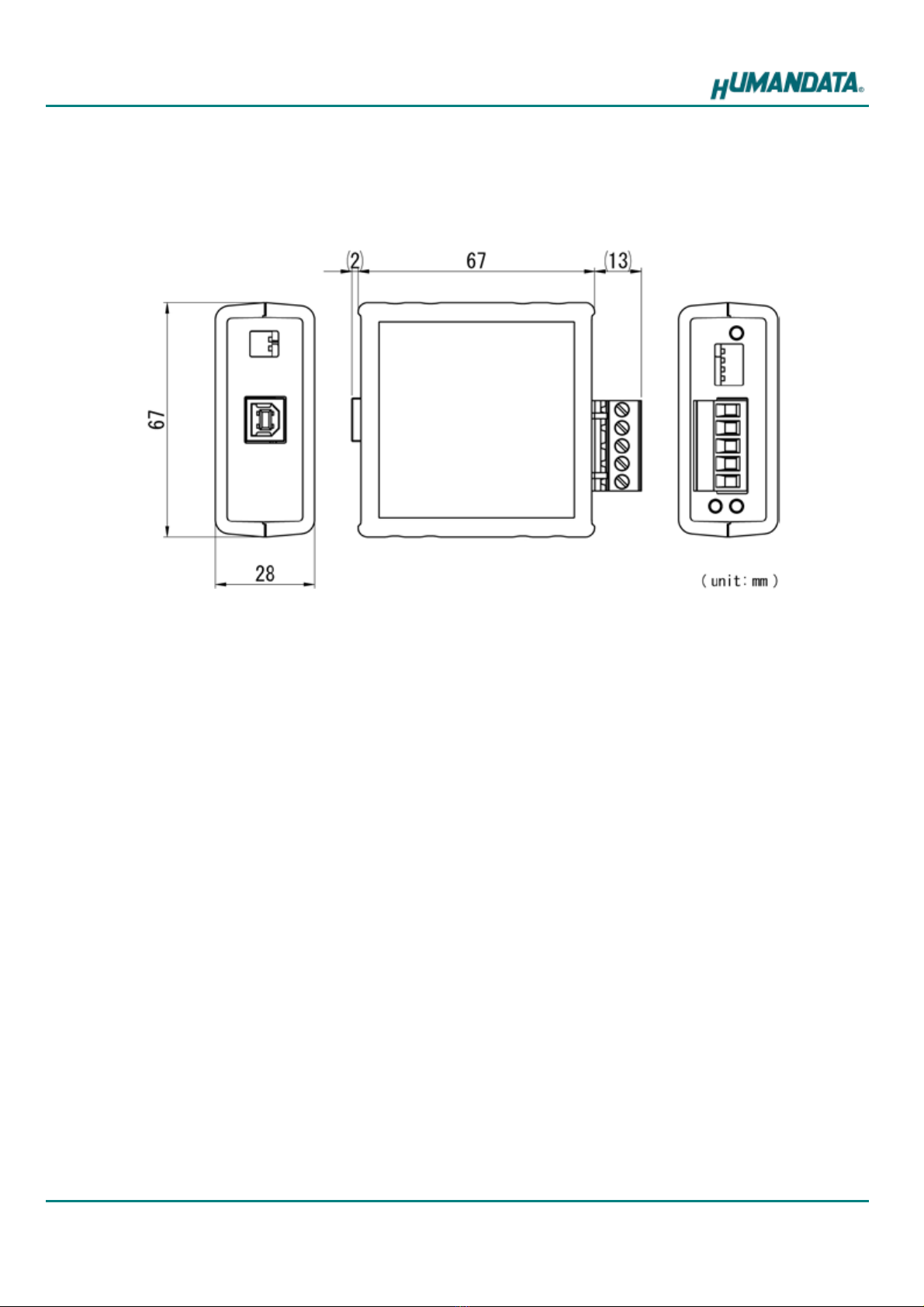

9. Outline Drawing
* The drawing above is designed values. Please note that some errors may be observed.

USB to RS-485/422 Converter
USB-003 Rev6
User’s Manual
Ver. 1.1 ........................................... Mar. 24, 2016
HuMANDATA LTD.
Address: 1-2-10-2F, Nakahozumi, Ibaraki
Osaka, Japan
ZIP 567-0034
Tel: [phone] (Japanese)
Fax: [phone] (Japanese/English)
URL: http://www.fa.hdl.co.jp (Japan)
http://www.fa.hdl.co.jp/en(Global)
