HumiBoX BU-24 IN User manual

www.humibox.cz
COMPRESSOR WINE COOLER
INSTRUCTION MANUAL
BU - 24 IN
BU - 41 IN
This manual contains important information including safety and in-
stallation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with
the operation of the appliance.

CONTENTS
IMPORTANT SAFETY INFORMATION.............................................................................................................3
DESCRIPTION OF APPLIANCE AND INSTALLATION.....................................................................................5
BU - 24 IN............................................................................................................................................................5
BU - 41 IN.............................................................................................................................................................6
ACCESSORY INSTALLATION BEFORE OPERATING......................................................................................7
UNPACKING AND CLEANING THE WINE COOLER ......................................................................................7
LOCK & UNLOCK THE DOOR (FOR OPTION)..................................................................................................6
OPERATING THE WINE COOLER.....................................................................................................................7
WORKING CLIMATE..........................................................................................................................................7
WINE STORAGE.................................................................................................................................................8
CONTROL PANEL...............................................................................................................................................9
POWER ON/OFF CONTROL .............................................................................................................................9
UNLOCKING THE CONTROL PANEL..............................................................................................................10
INTERIOR LIGHTING ON/OFF CONTROL.....................................................................................................10
TEMPERATURE DISPLAY WINDOW .............................................................................................................10
TEMPERATU RE SETTING...............................................................................................................................10
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY...........................................................................11
CAREANDMAINTENANCE..............................................................................................................................12
CLEANING THE WINE COOLER......................................................................................................................12
POWER FAILURE.............................................................................................................................................12
MOVING THE WINE COOLER ........................................................................................................................12
ENERGY SAVING TIPS.....................................................................................................................................12
TROUBLESHOOTING ......................................................................................................................................13
TROUBLESHOOTING ......................................................................................................................................14
REVERSE THE DOOR SWING..........................................................................................................................16

• Please removed all packaging, stickers and films from the products surface and clean the product’s surfaces with a
damp cloth and mild deturgent before using for the first time.
• Let the appliance stand upright for approximately 24 hours before connecting it to the power source, which helps
to reduce the possibility of a cooling-system malfunction from handling during transportation.
IMPORTANT SAFETY INFORMATION
Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of
fire, electrical shock, or injury when using the appliance, follow these basic precautions:
• This appliance is for domestic purposes only and is intended to be used exclusively for the storage of sealed bottled
wines and beverages.
• The appliance must be positioned so that the plug is accessible.
• Make sure the voltage/current marked on the rating label corresponds with your supply voltage. Plug into a groun-
ded 3-pin outlet, do not remove grounding pin, do not use an adapter, and do not use an extension cord.
• Do not connect or disconnect the electric plug with wet hands.
• To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull out by the cord.
• It is recommended that a separate circuit, serving only your appliance be provided.
• Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do so can result
in electrical shock or death.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
• The fuse (or circuit breaker) size should be 10 amps or higher.
• This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.

• To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Loca-
te the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
• Do not attempt to repair or replace any part of the appliance unless it is specically recommended in this
manual. All other servicing should be referred to a qualied technician.
• Ensure enough peoples to move and install the appliance to avoid any damage to the appliance or injury to
the peoples.
• It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s feet
to level it.
• Never clean the appliance parts with ammable uids which may create a re hazard or explosion. And do
not store or use gasoline or other ammable vapors and liquids in the vicinity of the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or disco-
lor the interior.
• Do not use this appliance for other than its intended purpose.
• Do not use electrical appliance inside the appliance.
• The use of attachments not recommended by the manufacturer may be hazardous.
• Please keep the products away from the re or similar glowing substance before you dispose the appliance.
• GWP( Global Warming Potential): R600a=3
• When you dispose the appliance, take off the door and leave the shelves in place so that children may not
easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the back/bottom of
the unit is not be damaged.
• The recycle symbol on the product or its packaging indicates that this product is not to be
handled as normal household waste and it is to be taken to a recycling collection point for
electrical and electronic goods.

DESCRIPTION OF APPLIANCE AND INSTALLATION
The following pictures only show description of appliance. The dimension and shelf quantity may differ
among the models of the same series.

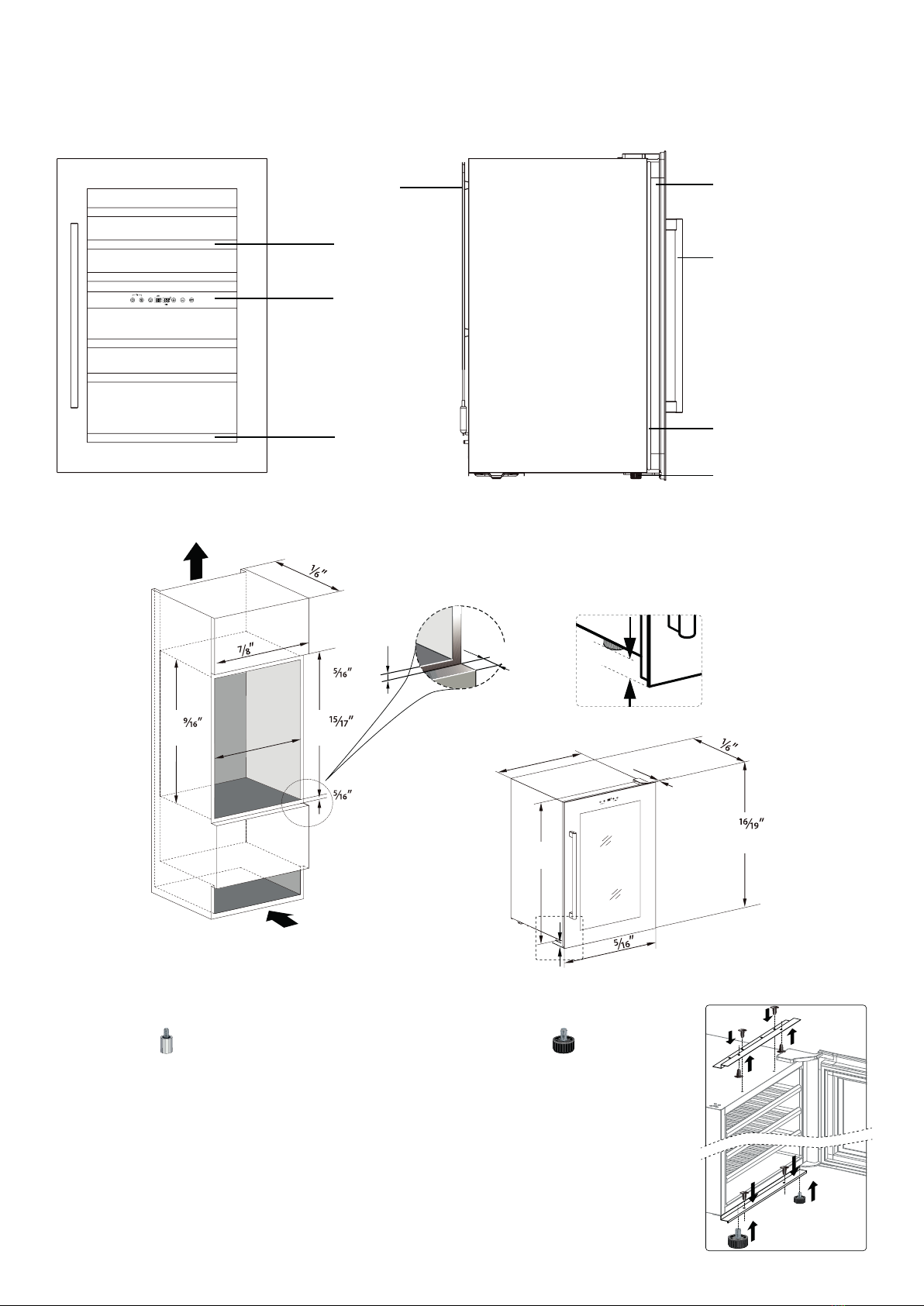

BU - 24 IN Single Zone 24 Bottles
Door
Handle
Gasket
Outside
Cabinet
Adjustable
Foot
Control Panel
Long Shelf
Condenser
Short Shelf
>22
>560mm
22
560mm
¾” (20mm)
(3mm)
21
¼”
(540mm)
¾”
(20mm)
17
(455mm)
23
(592mm)
17¾”
(451mm)
31in2 Min.
(200cm2Min.)
31in2 Min.
(200cm2Min.)
17¾”
(453mm)
23 -24¼”
(605-615mm)
22¼”-22¾”
(565-575mm)
Min.
(8mm) Min.
Min.
(8mm) Min.
18 Min.
(461mm) Min.

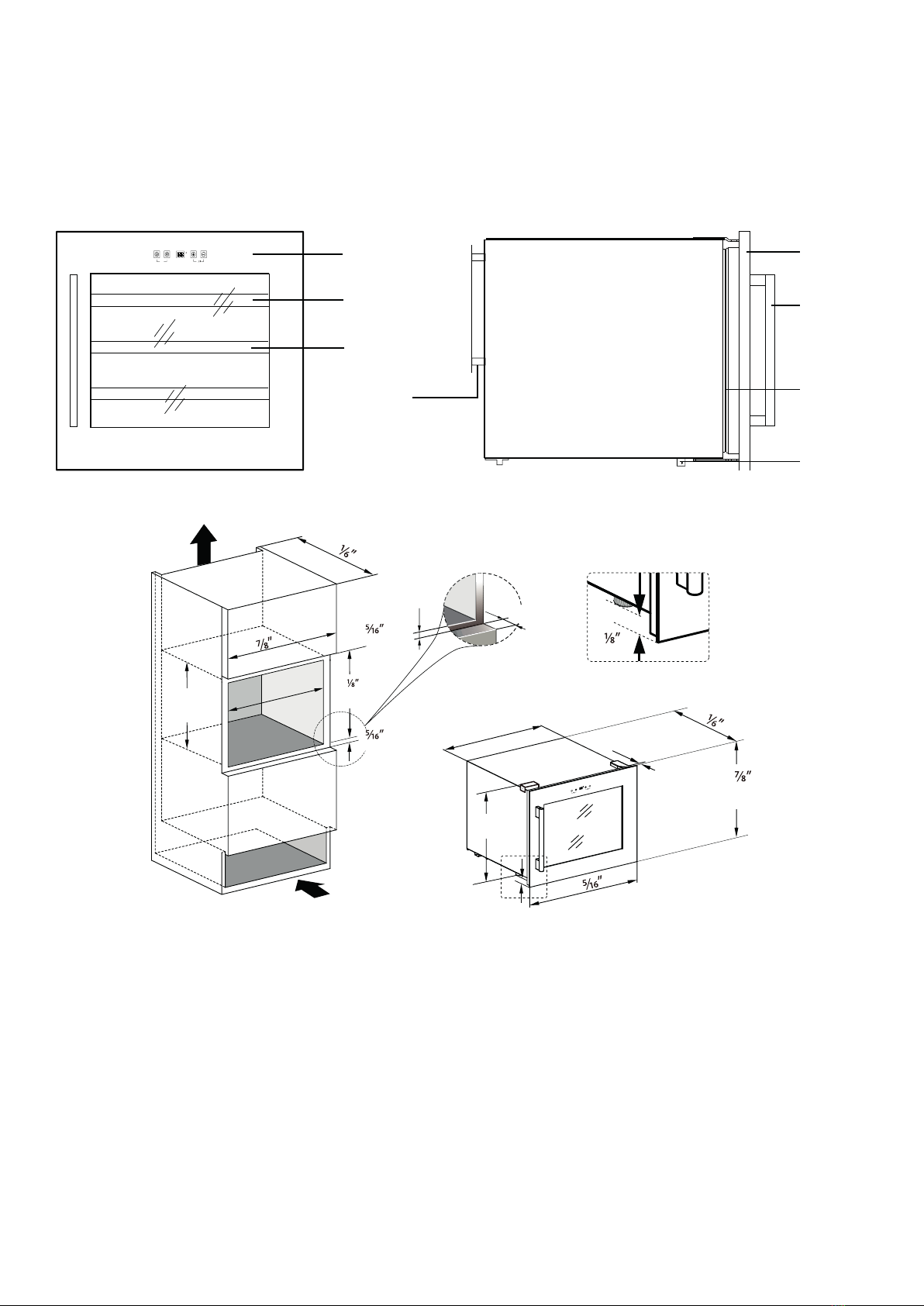

BU - 41 IN
Dual zone 41 bottles
Door
Handle
Gasket
Outside
Cabinet
Adjustable
Foot
Control Panel
Long Shelf
Short Shelf
Condenser
1. Before inserting the unit into the kitchen cabinet, please unscrew the original 4
leveling feet (in white), and screw the 2 short leveling feet (in black),
which are packed as the accessory, to the front bottom of the unit.
2. Tighten the 2 screws to x the Bottom Mounting Bar (which has been xed
on the bottom of the unit) to the kitchen cabinet.
3. For a rmly xing of the unit, you can install an extra Top Mounting Bar
(which is an accessory packed with the unit) onto the topside of the unit, and screw
it with the kitchen cabinet. See right drawing.
>22
>560mm
¾” (20mm)
¼”
(5mm)
¼”
(5mm)
21
¼”
(540mm)
¾”
(20mm)
23
(592mm)
31in2 Min.
(200cm2Min.)
31in2 Min.
(200cm2Min.)
23 -24¼”
(605-615mm)
22¼”-22¾”
(565-575mm)
Min.
(8mm) Min.
Min.
(8mm) Min.
34
(878mm)
34½”
(876mm)
34
(885mm)
34
(886mm)
22
560mm

ACCESSORY INSTALLATION BEFORE OPERATING
·UNPACKING AND CLEANING THE WINE COOLER
• Let the appliance stand upright for approximately 24 hours before connecting it to the power source, which helps
to reduce the possibility of a cooling-system malfunction from handling during transportation.
• Use a soft cloth to clean the interior surface with lukewarm water.
• Install the door handle provided with the appliance by following these steps:

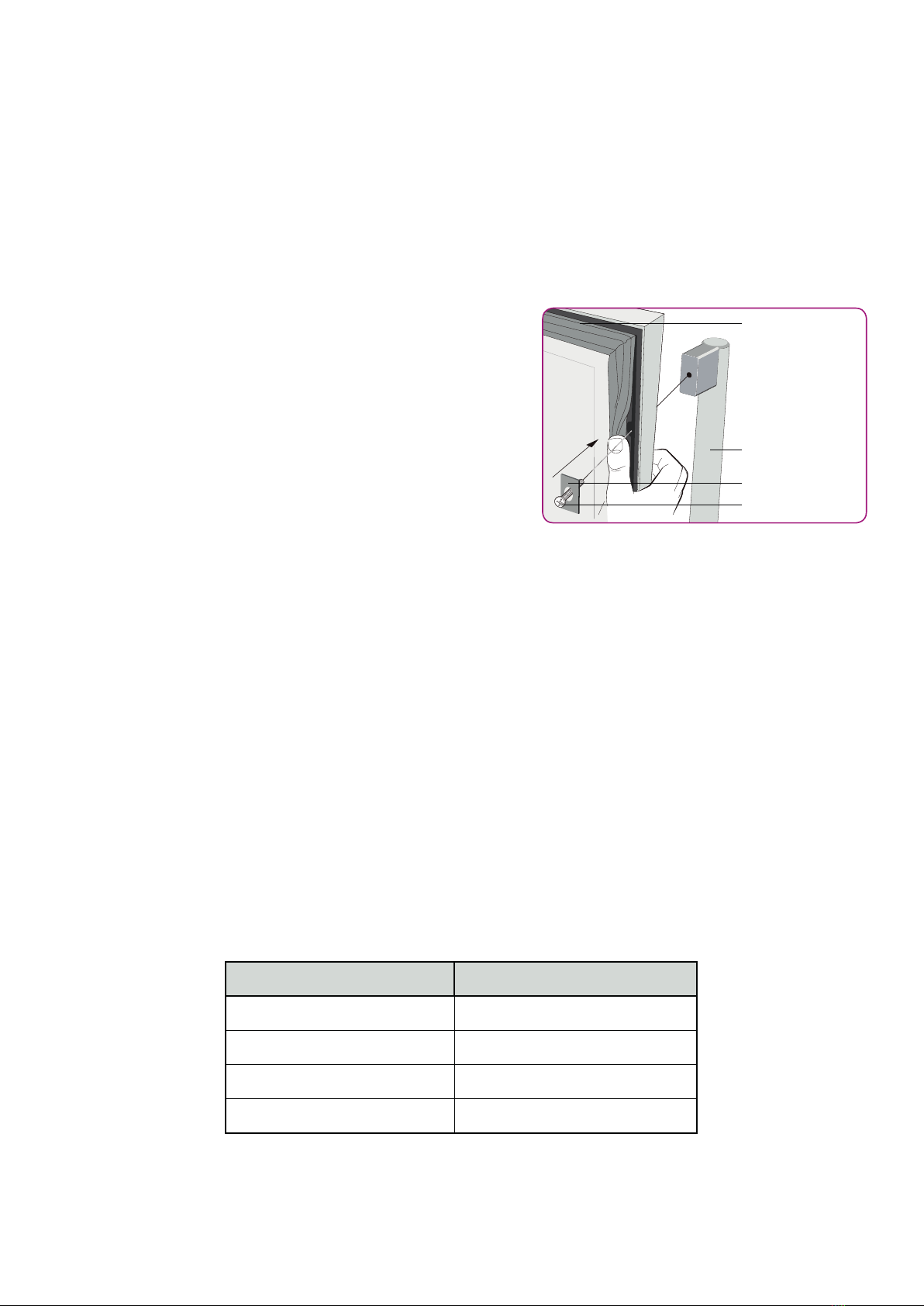

1st Step - Gently pull the door gasket to one
side to reveal the two designated
holes for handle installation.
2nd Step - Install the handle tightly as shown
below with the two screws,
and washers pre-installed.
3rd Step- Reinstall the Gasket.
· LOCK & UNLOCK THE DOOR (FOR OPTION)
· Lock is an optional function. If your Wine Cooler has such function, a key
should be attached inside the packing of this Manual.
·Insert the key into the lock and turn it counter-clockwise to unlock the door.
To lock it, please turn clockwise. Please save the key well.
Gasket
Handle
Washer
Handle Screws
OPERATING THE WINE COOLER
• WORKING CLIMATE
• The appliance is designed for operating from SN to N climate (see below climate class chart). It is recommended to
maintain the ambient around 22-25°C which helps the appliance working with low power consumption.
• If the ambient temperature is above or below the designed climate range, the performance of the unit may
be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior tem-
peratures to uctuate, and the temperature set 5-22°C may not be reached sometimes.
10 - 32 ˚C (50ºF-90ºF)
16 - 32 ˚C (61ºF-90ºF)
18 - 38 ˚C (64ºF-100ºF)
18 - 43 ˚C (64ºF-109ºF)
Climate Class
SN
N
ST
T
Ambient Temperature

• WINE STORAGE
• The standard shelves are designed perfectly for Bordeaux bottle storage. The maximum loaded bottles may vary
subject to the different size or dimension wine bottles you store.
• The shelves can be pulled out by 1/3 approximately for easy access to the wine storage.There are two designs for
the pull-out shelves:
1. The shelves are without telescopic rails, but with a plastic Stopper on each sides of the shelf track to prevent
bottles from falling.
2. The shelves are with Telescopic Rails which has stoppers by themselves.
• To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling
the shelves out.
• Please store wine in sealed bottles.
• Do not cover the shelves with aluminum foil or any other shelf material which may prevent air circulation.
Stopper
Telescopic
Rails
Stopper
• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after ca-
reful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation,
mold or odours forming.
• Recommended temperatures for chilling/storing your wines.
15 - 18ºC (59ºF-64ºF)
9 - 14ºC (48ºF-57ºF)
10 - 11ºC (50ºF-52ºF)
5 - 8ºC (41ºF-46ºF)
Wine Type
Red Wines
Dry/White Wines
Rose Wines
Sparkling Wines
Recommender Temp.

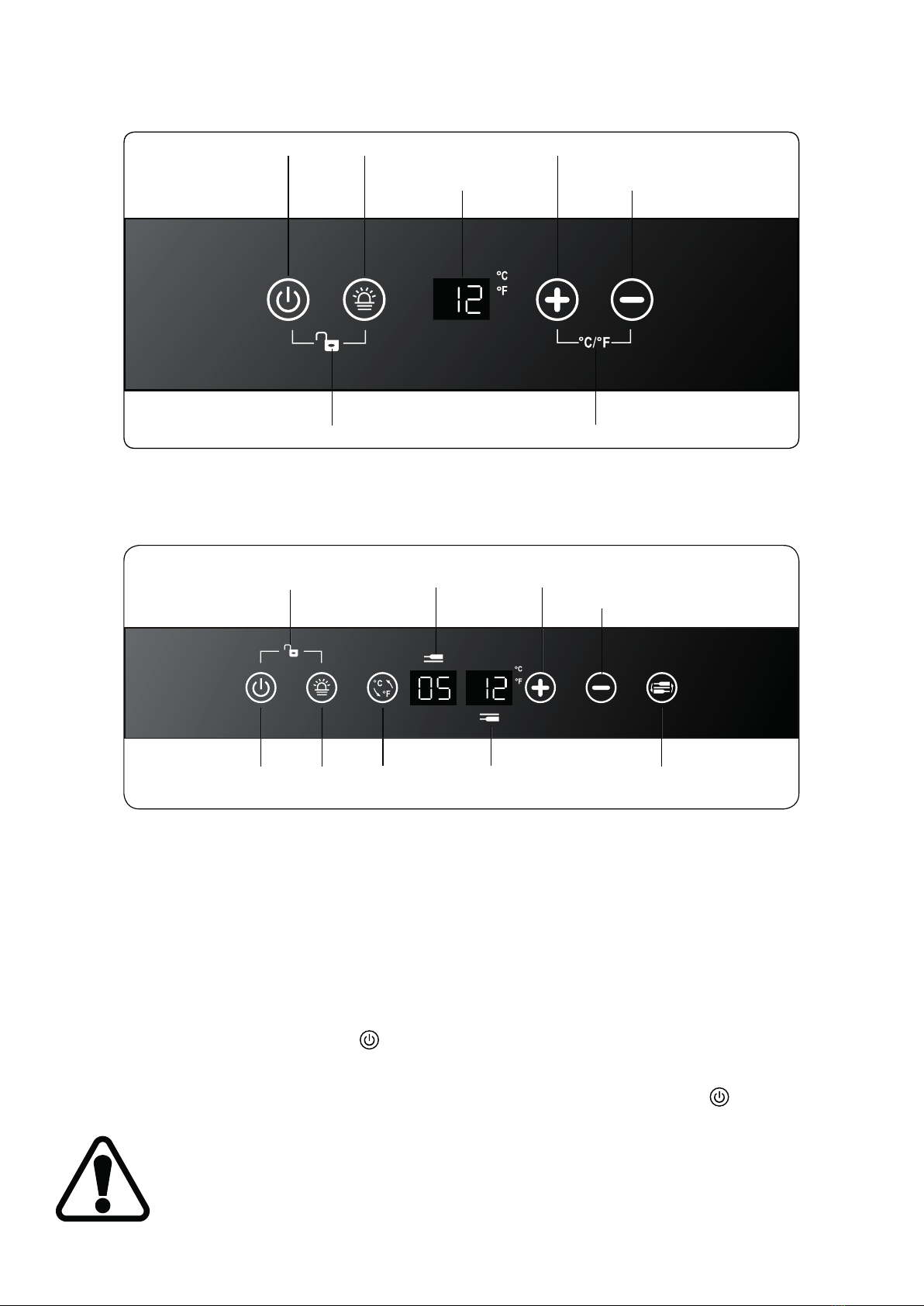

CONTROL PANEL
For Single Zone
CONTROL PANEL
For Dual Zone
POWER ON/OFF CONTROL
• When the appliance is plugged in to a power outlet, it powers on automatically.
• The power of Left and Right Zone will be turn off/on at the same time by Keep
pressing the power mark for 10 seconds on Left or Right Zone.
• No matter the Cntrol Panel is locked or unlocked, you can turn off the power of Left
and Right Zone at the same time by keep pressing the power mark
for 10seconds on Left or Right Zone.
Warning: To avoid damaging the compressor, please do not turn on the
appliance again within 5 minutes after you turn it off.
Power
Power
Lighting
Lighting
Lock / Unlock
Lock / Unlock
ºC/ºF Interchange
ºC/ºF
Interchange
Bottom Zone
Display Window
Temp.Up
Temp.Up
Display Window Temp.Down
Temp.Down
Upper Zone
Display Window
Zone select

UNLOCKING THE CONTROL PANEL
• To unlock the control panel, touch the power mark and lighting mark with 2 ngers at the same time and
hold for 3 seconds . When unlocked a buzz sound will be heard.
• The control panel will be automatically locked with a buzz sound heard after 10 seconds without being touched.
• Under the locked situation, the control panel will not react to any touching order for Lighting On/Off and Tempe-
rature Setting.
INTERIOR LIGHTING ON/OFF CONTROL
• Under the unlocked situation, touch the lighting mark to turn on (or turn off ) the interior cool LED lighting.
• The lighting will stay on unstil it is manually turned off.
TEMPERATURE DISPLAY WINDOW
• The temperature is displayed in digital which is the best way to be read out. The digital is shown as the set tempera-
ture when you are setting the temperature, and it will change to be the real temperature of the inside cabinet after 10
seconds without being touched.
• When the temperature probe is out of order, the display window will show with “HH” or “LL” instead of a digital
gure while continuous buzz sound will be heard. In case of this happens, this appliance is considerately designed to
keep periodical running of compressor and fans which helps to keep the coldness of the inside cabinet to
protect your stored wines.
Warning: To avoid destroying your stored wines, it is strongly recommended to have the
appliance repaired immediately, as the spare periodical running can not ensure the appliance to
achieve the temperature you have set.
TEMPERATURE SETTING
For Sigle Zone
• The temperature setting range is 5-22 ºC (41-72 ºF).
• Directly touch the or mark to set the wine cooler temperature as you want.
• The rst touch on or mark will recall the previous set temperature displayed.
• Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the contrary, touch the
mark to decrease the set temperature by 1ºC (or by 1ºF).
• The digital will change to display the real temperature of the inside cabinet after 10 seconds without being
touched.

For Dual Zone
• The temperature setting ranges are 5-12 ºC (41-54 ºF) for the upper zone and 12-22 ºC (54-72 ºF) for the bottom
zone.
• You need to select the set zone by touching the mark before touching the mark or to set the
desired temperature. The zone temperature will ash when it is ready to be set.
• The rst touch on mark or will recall the previous set temperature displayed in the digital window.
• Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the contrary, touch the mark to
decrease the set temperature by 1ºC (or by 1ºF).
• The digital will change to display the real temperature of the inside cabinet after 10 seconds without being touched.
Note:
For the rst time to use the appliance or to restart the appliance after having been shut off for a long time,
you may nd a few degrees variance between the set temperature and the displayed temperature. It will be
normal after a few hours running
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
For Single Zone
The Fahrenheit and Celsius display of the Left and Right Zone can be interchanged at the same time by
keep pressing the marks simultaneously for 5 seconds on Left or Right Zone.
For Dual Zone
Directly touch the mark , you can interchange the Fahrenheit and Celsius display
for both zones at the same time.

CARE AND MAINTENANCE
CLEANING THE WINE COOLER
• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2 table-
spoons of baking soda to 1 quart (approx. 1 litre) of warm water.
• Wash the shelves with a mild detergent solution. Allow wooden shelves to dry before placing back into
the wine cooler.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wipe the outside cabinet with warm water and mild liquid detergent. Wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the stainless steel. These will scratch the stainless steel with steel
particles and rusting may occur.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appli-
ance if you minimize the number of door openings. If the power is going to be off for a longer period of
time, you need to take the proper steps to protect your wines.
MOVING THE WINE COOLER
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of
appliance with a blanket, or similar item.
ENERGY SAVING TIPS
• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the
door frequently.

TROUBLESHOOTING
If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the
problem simply by yourself before calling for service.
No. PROBLEM PROBLEM POSSIBLE CAUSE / MEASURE
1 The wine cooler does not operate
2 The wine cooler is not cold enough
3 Automatically turn-on and
turn-off frequently
6 The wine cooler seems to make
too much noise
7 The door will not close properly.
8 The display window is shown with
“HH” or “LL” instead of a digital
gure, and/or with continuous
buzz sound.
4 The lighting does not work
5 Too much vibration
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The lighting is turned off.
Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in the
compressor chamber are loose.
The wine cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
The temperature probe is out of order.
The rattling noise may come from the ow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the ow of refrigerant.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The appliance is not level.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
The room temperature is hotter than normal.
A large amount of contents has been added to the
wine cooler.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.

REVERSE THE DOOR SWING
Note:
Door Reversal is NOT available for a unit with Control Panel on Door.
For BU - 41 IN cabinet Only
Remarks:
·This instruction is based on a unit with Right Door Hinge installed already.
· All removed parts must be saved to do the door reinstallation.
1st Step – Unscrew the 8 screws from Upper Hinge and Bottom Hinge one by one;
2nd Step – Unscrew the Upper Mounting Bar and Lower Mounting Bar, remove this two bars from left
side to the right edge of the unit. Fix this two bars by screwing it through leftmost screw holes.
Screws (4pcs)
Bottom Hinge
Upper Hinge
Screws (4pcs)
Upper
Mounting Bar
Lower
Mounting Bar
Leftmost
Hole
Leftmost
Hole

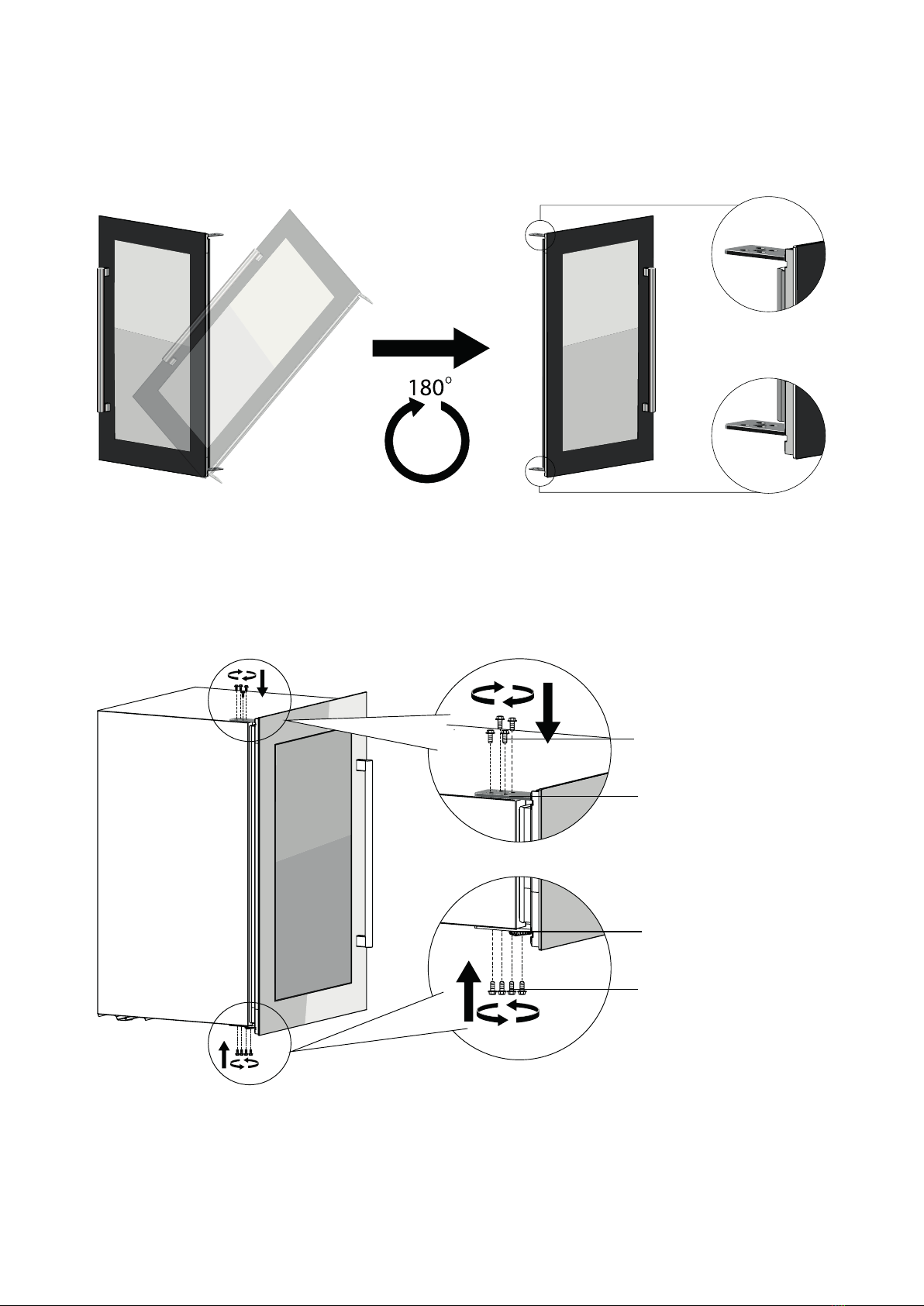

3rd Step – Turn the door over by 1800 (upside down);
4th Step – Screw the 8 screws of Upper Hinge and Bottom Hinge tightly one by one;
Screws (4pcs)
Bottom Hinge
Bottom Hinge
Upper Hinge
Upper Hinge
Screws (4pcs)

MAINTENANCE RECORD
WARRANTY CARD
Date Error description Service Location Service
center Repairer
Phone number
Purchase datePhone numberEmail
Signiture
Note: Please ll out the form completely. If the content is fake or changed, after-sales service will
not be provided, this page should be conserved by suppliers. Seal of approval must be given to
keep it efcient.
Model
Users’ information
Purchase information
Name
Working company
Address
Name of supplier
Address of supplier
Operator

Better Trading, spol. s.r.o.
Dobrovského 29, Brno 612 00
Warehouse: Dornych 102, Brno 602 00
Tel: [phone]
Business information: [phone]
Servis:[phone]
Email: [email protected]
www.humibox.cz

www.humibox.cz
VINOTéKA S KOMPRESOREM
NÁVOD K POUŽITÍ
BU - 24 IN
BU - 41 IN
Tento návod k použití obsahuje důležité informace včetně bezpečnost-
ních a instalačních pokynů. Prosím, pečlivě jej nastudujte před prvním
použitím a dodržujte všechny bezpečnostní a informační instrukce. Do-
poručuje se uschovat si tento manuál kvůli možnosti pozdějšího použití.

OBSAH
IMPORTANT SAFETY INFORMATION.............................................................................................................3
DESCRIPTION OF APPLIANCE AND INSTALLATION.....................................................................................5
BU - 24 IN 82cm..................................................................................................................................................5
BU - 41 IN 82cm..................................................................................................................................................6
ACCESSORY INSTALLATION BEFORE OPERATING......................................................................................6
UNPACKING AND CLEANING THE WINE COOLER ......................................................................................6
LOCK & UNLOCK THE DOOR (FOR OPTION)..................................................................................................6
OPERATING THE WINE COOLER.....................................................................................................................7
WORKING CLIMATE..........................................................................................................................................7
WINE STORAGE..................................................................................................................................................7
CONTROL PANEL...............................................................................................................................................8
POWER ON/OFF CONTROL .............................................................................................................................8
UNLOCKING THE CONTROL PANEL................................................................................................................9
INTERIOR LIGHTING ON/OFF CONTROL......................................................................................................9
TEMPERATURE DISPLAY WINDOW ...............................................................................................................9
TEMPERATURESETTING..................................................................................................................................9
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY...........................................................................10
CARE AND MAINTENANCE..............................................................................................................................11
CLEANING THE WINE COOLER.......................................................................................................................11
POWER FAILURE..............................................................................................................................................11
MOVING THE WINE COOLER ........................................................................................................................11
ENERGY SAVING TIPS......................................................................................................................................11
TROUBLESHOOTING ......................................................................................................................................12
MAINTENANCE RECORD and WARRANTY CARD........................................................................................13

• Prosím, před prvním použitím odstranťe z povrchu výrobku veškeré obaly, nálepky a povlaky a otřete povrch vý-
robku vlhkým hadříkem a jemným čisticím prostředkem.
• Nechejte spotřebič postavený vzpřímeně přibližně 24 hodin před zapojením do elektřiny, což umožní snížit mož-
nost závady chladicího systému z manipulace během přepravy.
DŮLEŽITÁ BEZPEČNOSTNÍ UPOZORNĚNÍ
Před použitím spotřebiče, dbejte na správné umístnění a instalujte ho tak, jak je popsáno v návodu. Aby se předešlo
riziku požáru, zraněním elektrickým proudem, nebo zranění, při použití spotřebiče, dodržujte následující bezpeč-
nostní opatření:
• Toto zařízení je určeno pouze pro domácí použití a je určeno výhradně pro uskladnění zavřených láhví vína a
nápojů.
• Tento spotřebič musí být umístněn tak, aby elektrická zásuvka byla přístupná.
• Ujistěte se, že napětí/je vyznačeno na štítku/souhlasí s vašim zdrojem napětí. Zapojte do uzemněné 3-kolíkové
zásuvky, neodstraňujte uzemňující pojistky, nepoužívejte adaptér, ani nepoužívejte prodlužovací šnůru.
• Nezapojujte nebo neodpojujte elektrickou zástrčku mokrýma rukama.
• Pro odpojení spotřebiče, uchopte zástrčku a vytáhněte ji ze zásuvky ve zdi. Nikdy netahejte za šnůru.
• Doporučuje se mít samostatný okruh, sloužící jen stanovenému zařízení.
• Vytáhněte zařízení ze zásuvky nebo odpojte od zdroje před čištěním, údržbou nebo prováděním servisu. Pokud tak
neučiníte, může dojít k úrazu elektrickým proudem nebo k usmrcení.
• Jestliže zdrojový kábel je poškozený, kvůli možnému riziku, musí být vyměněn výrobcem nebo autorizovanou
servisní firmou nebo obdobně kvalifikovanou osobou.
• Pojistka (nebo fázový jistič) by měla mít hodnotu 10 ampérů nebo vyšší.
• Spotřebič může být používán dětmi od 8 let a osobami s omezenými fyzickými, senzorickými nebo duševními
schopnostmi nebo osobami s nedostatečnými zkušenostmi či znalostmi, pouze mají-li nad sebou přímý dozor, nebo
pokud byly seznámeny s bezpečným používáním vinotéky a chápou možná rizika. Děti nesmí používat toto zařízení
jako hračku. Čištění a údržba nesmí být prováděna dětmi bez dohledu dospělých.
•Vinotéka není určena, aby ji užívaly osoby s omezenými fyzickými nebo duševními schopnostmi (včetně dětí) nebo
osobami s nedostatečnými zkušenostmi či znalostmi, pokud takové osoby nemají nad sebou přímý dozor nebo po-
kud nebyly seznámeny s používáním vinotéky osobou, plně odpovědnou za jejich bezpečnost. Děti by měly být pod
dozorem, aby se zajistilo, že si nebudou hrát se spotřebičem.
