Hunter Stoves AVALON 4 Series User manual

1
AVALON 4
CONSORT 5
HAWK 4 MKII
Instructions for
Installation/Operating/Maintenance/Servicing
Please leave this instruction booklet with the user after the installation is complete. Leave the
system ready for operation and instruct the user in the correct use of the appliance and
operation of its controls. Please refer to the appliance data plate for the specific model type.
JIN04KWGAS REV C 27/03/19

2
STOVE MODELS
AVALON 4 CONSORT 5
GTBAV4NM1/GTBAV4NR1 GTBCN5NM1S/GTBCN5NR1S
GTBAV4LM1/GTBAV4LR1 GTBCN5LM1SGTBCN5LR1S
GTBCN5NM1B/GTBCN5NR1B
GTBCN5LM1B/GTBCN5LR1B
HAWK 4 MKII
GTBHK4NM1D/GTBHK4NR1D
GTBHK4LM1D/GTBHK4LR1D
GTBHK4NM1T/GTBHK4NR1T
GTBHK4LM1T/GTBHK4LR1T

3
Table of Contents
Technical Data
4
Stove Dimensions
5
Installing the Appliance
6
Flue Arrangement
7
Additional Air Venting (GB only)
7
Opening the Stove Door
7
TTB Connection
8
Gas Supply Connections
8/9
Installation of the Fire-Bed
9/11
Fitting the canopy
11
Test for Spillage
11/12
Servicing Instructions
12
Troubleshooting
13/14
User Instructions
15/16
Care, Maintenance and Servicing
16
Instructions for Remote Control Use
17–24
Setting Up Full Function Handset (LCD)
17-19
Advanced Setting Full Function Handset (LCD)
19/20
Restoring Communication with The Fire
20/21
Remote Care and Maintenance
22-24
Installation and Commissioning Checklist
25
Service Records
26
Warranty Information
27/28
Welcome to the Hunter Stoves family and thank you for purchasing a Hunter
4kW Gas stove. This stove was designed and built to be a high-performance
heating appliance, and we hope it will bring you great enjoyment. The
natural environment is important to us, so our stoves are manufactured to
provide you with a clean and efficient burn that will keep you warm through
the cold winter nights.

4
Please read these instructions carefully
This appliance is intended for use on a gas installation with a governed meter.
It is important that your stove is correctly installed as Hunter Stoves Limited cannot accept
responsibility for any fault arising through incorrect installation. Any unauthorised changes to
the stove will negate the warranty.
TECHNICAL DATA
0558
NATURAL
GAS
MANUAL/REMOTE
LPG
MANUAL/REMOTE
Energy Efficiency
Class
Nominal Gas
Pressure
20mbar
37mbar
Main Burner Injector
(mm)
0.59 x 7
1.03
Pilot Injector (mm)
0.35
0.27
Burner Aeration
Φ7
Φ9
Supply Gas
Type/Category
G20/I2H
G31/lɜp
Energy Efficiency
71
75
Injector
Type/Marking
380
103
Heat Input (Gross)
Full
Low
4.7kW
3.5kW
4.7kW
3.2kW
Gas Flow Rate (m3/h)
Full
0.447
0.176
NOxClass
4
5
Efficiency Class
2
2
Countries of
Destination
AT, BG, CH, CZ, DK, EE, ES, FI,
GB, GR, HR, IE, IT, LT, LV, NO,
PT, RO, SE, SI ,SK, TR
BE, CH, CZ, ES, FR, GB, GR, IE,
IT, LT, NL, PL, PT, SI, SK

5
STOVE DIMENSIONS
AVALON 4
CONSORT 5
HAWK 4 MKII

6
INSTALLING THE APPLIANCE
Pre-installation notes
1. Check the stove data plate to establish the gas type required. Before installation check that the
local distribution conditions, nature of the gas and pressure, and adjustment of the application are
compatible.
2. A GAS SAFE REGISTERED INSTALLER or equally recognised competent person must fit the
appliance. That person is legally responsible for the safe installation of the appliance with due
regard to all relevant local and national building regulations.
3. All outer surfaces of the stove excepting the gas control knobs are defined as working surfaces.
4. Installation site - Any installation area previously used for a solid fuel fire or stove would probably be
deemed suitable for the appliance.
5. The stove must not be installed onto a combustible wall. Any combustible materials must be
removed from behind the appliance.
6. The appliance must be sited on a non-combustible hearth of minimum 12mm thickness.
7. The hearth should be edged or raised to prevent combustible floor finishes (e.g. Carpet) from being
laid too close to the appliance.
8. Opening Clearances: for the relevant clearance distances for installing the appliance in an opening
see figure 2 and table 1.
9. The stove cannot be installed in a basement or bathroom.
IMPORTANT NOTE! Adequate clearance must be given between the appliance and the walls so
that a satisfactory spillage test can be performed as detailed on page 11.
MINIMUM CLEARANCE DISTANCES TO:
DIMENSION DESCRIPTION
COMBUSTIBLE MATERIAL
NON-COMBUSTIBLE MATERIAL
A
Side of stove to wall
150mm
100mm
B
Top of stove to underside of
opening or shelf
250mm
200mm
C
Rear of stove to wall
100mm
100mm
D
Minimum distance for
hearth to extend in front of
stove
50mm
50mm

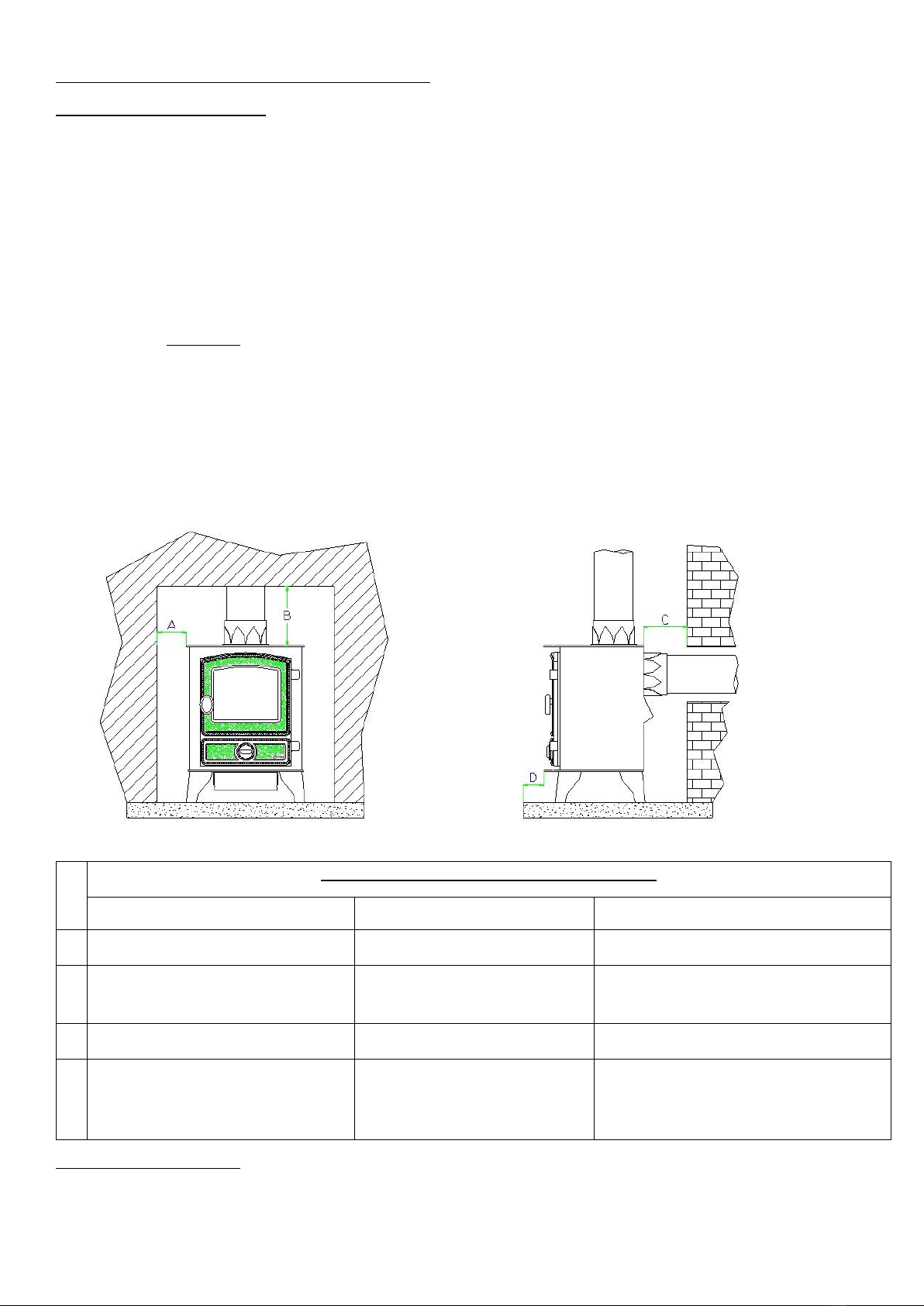

Figure 1: Opening Clearance

7
FLUE ARRANGEMENT
Prior to installation the flue the chimney should be given a precautionary clean to ensure its entire
length is free from blockages. Any flue dampers must be permanently fixed in the open position or
removed altogether. The chimney should be smoke tested to ensure soundness.
The GAS SAFE REGISTERED ENGINEER commissioned to install this appliance is wholly responsible
for deciding the suitability of any flue arrangement to operate in conjunction with this gas appliance.
The chimney or flue system that is to be fitted to the gas stove must comply with the current rules in force.
The 4kW gas stoves are also suitable for other specific class II installation arrangements: pre-cast
flues, ridge-vent flues, and pre-cast chimney block and with the relevant adaption, the appliance will
operate in a closure plate system.
It is suggested to run flue pipe at least 615mm vertically from the unit before there are any changes
in direction of the flue system. Wherever possible horizontal runs of the flue system should be avoided.
The flue must have a minimum of 2.6 meters of vertical height measured from the top of the stove
to the bottom of the terminal outlet.
Please note for rear flue appliances it is recommended that the vertical flue run be established as soon
as is practical from the rear flue exit. (Caution should be taken locating the exit of the flue as explained
in ‘The Building Regulations - Document J’.)
ADDITIONAL AIR VENTING (GB only)
The supply gas heat input into the appliance is nominally less than 7kW. Therefore, under the directives
of the current Health and Safety Executive gas safety and use regulations (Gas Safety [Installation and
Use] Regulations 1998 Approved Code of Practice and guidance) no additional air vents are required in
the room in which the appliance is situated.
OPENING THE STOVE DOOR
NOTE! This appliance must never be used if the glass door panel is broken, removed or if the door
is open.
Hawk 4/Consort 5/Avalon 4
Before gaining access to the burner tray, first make sure that the stove is switched off and is cold.
Remove the door handle using a 17mm spanner (diagram 1), turning anticlockwise. Keep turning
until the handle is completely removed. The door glass is held in place by 4 fixing brackets. Ensure
these brackets are tight before operation.
Diagram 1

8
TTB INSTALLATION
GAS SUPPLY CONNECTIONS
The appliance is supplied with an 8mm Bundy pipe and an 8mm compression elbow to allow easy
connection to the mains gas supply and is connected to the burner by a 14mm spanner. This supply gas
pipe should incorporate a gas service isolation tap situated within 1 metre of the application.
Figure 2: Gas Supply Access
The 8mm Bundy pipe being fitted to the gas
inlet on the valve. The compression joint is
tightened with a 15mm open-ended spanner.

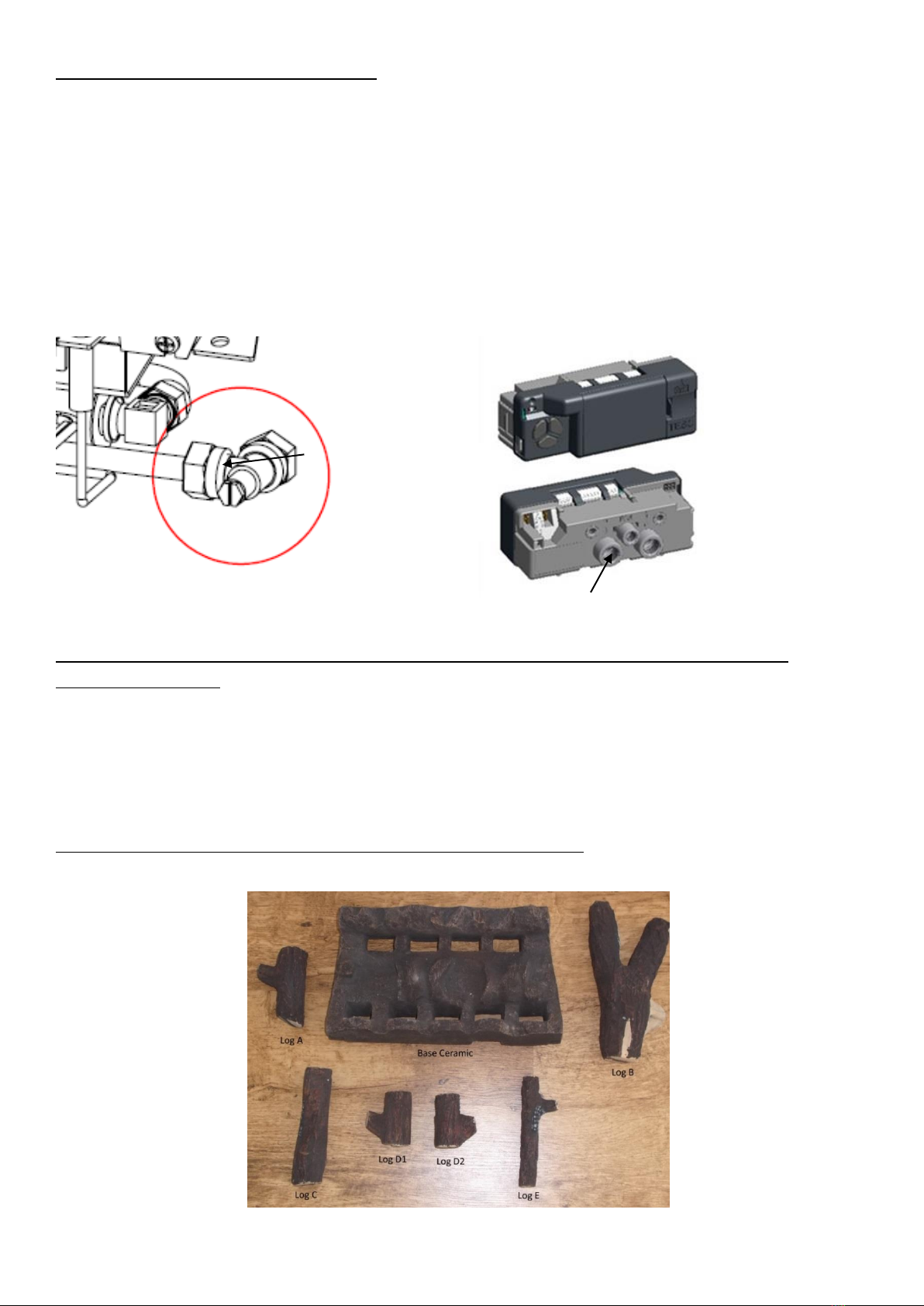

Insert the two TTB Pins into the two
connection holes on the outside next to
the copper bar highlighted by the circle
and arrow.
The circle and arrow
highlight the TTB
engaged into the valve.

9
TESTING SUPPLY PRESSURE
Gas pressure at the appliance is measured via the T-piece going to the control valve (circled in figure 5).
Turning the screw approximately half a turn anti-clockwise with a small flat-bladed screwdriver opens
the test point.
ALWAYS CLOSE TEST POINTS AFTER USE!
The gas pressure at the appliance is measured with the appliance running at full rate.
(For information on how to achieve ‘full rate’ read ‘Adjusting Between High and Low Output Settings’ in
the ‘Lighting the Appliance’ section of the User Instructions).
Inlet Gas Pressure should be: 20mbar ± 1.0mbar for Natural Gas
37mbar for LPG
The supply pressure test point (shown in figure 6) is measured at the burner inlet point.
INSTALLATION OF THE FIRE-BED INTO THE STOVE
IMPORTANT NOTE
CERAMIC COALS AND LOGS GET VERY HOT! NEVER ATTEMPT TO HANDLE HOT COALS OR
LOGS WITH BARE HANDS AND NEVER PLACE HOT COALS OR LOGS ON OR NEAR
COMBUSTIBLE SURFACES.
HUNTER STOVES LTD ACCEPTS NO RESPONSIBILITY FOR ANY INJURY HOWEVER CAUSED
WHILST HANDLING HOT COALS, LOGS OR CERAMICS.
FIRE-BED ARRANGEMENT AND INSTALLATION
This appliance can be fitted with log effect ceramics. The fire-bed is constructed of a base ceramic and 6
loose logs.
Figure 3: Supply Pressure Test Point
Inlet Pipe Location
Loose Log Ceramics

10
FITTING THE BASE CERAMIC
Log A is then placed around the left-hand front
flame port hole in the matrix. The log should sit
comfortably in place on the matrix as shown in
figure 5.
The second log to be placed is Log B. The single
end is positioned to the right of the second front
flame port hole in the matrix, in the slot provided.
The right-hand fork at the opposite end of the log is
then located in the cut-out on the top edge of the
back of the base ceramic. The left-hand fork should
then rest on the edge of the matrix and the side of
the stove. As shown in figure 6.
Log C sits in a groove to the right of Log B behind
the third flame port hole in the matrix. The top of
the log sits in the cut-out that is located on the
top edge of the back of the base ceramic (Figure 7).
Log D1sits on the short arm of Log B, with the top
of it sitting in the cut-out on the rear upright at the
back of the base ceramic (Figure 8).
Log D₂should be positioned behind the
furthermost right-hand flame port hole,
resting against the back upright of the
base ceramic, making sure that it is not
directly above the rear flame port
hole (Figure 8).
Figure 4: Installing Log A
Figure 5: Installing Log B
Figure 6: Installing Log C
Figure 7: Installing Log D1 and D2
Place the Base Ceramic into the fire. Looking from
above the matrix, make sure that the Base Ceramic
does not cover the holes in the tray top.

11
Log E is located to the left of the furthermost
right hole in the matrix, the top resting on log
C to the left of it (Figure 9).
FITTING THE CANOPY (OPTIONAL)
There is an optional canopy available for the Hunter Hawk
gas stove.
The canopy can be simply slid into place on the top plate
of the stove body (Shown in figure 10), making sure that
the two welded tabs (located either side of the canopy) fit
under the top plate.
The canopy is then secured in place by tightening the
two fixing screws (one located either side of the canopy)
with a flat-bladed screwdriver, shown in figure 11.
TEST FOR SPILLAGE
A spillage test MUST be carried out before the appliance is left
with the customer. Close all doors and windows in the room
containing the fire before the test is carried out. Complete the Log
picture, close the door and replace the handle and fixing bolt.
Ensure that the fire is burning at full rate for a minimum of 10
minutes.
1. Run a smoke match along the edge of the draught diverter,
both sides of the TTB Bracket (Figure 12).
2. Most of the smoke should be drawn into the draught diverter.
If not, leave the stove running at full rate for a further 10
minutes and then repeat the test.
3. If there is a fan in an adjoining room the spillage test must be
repeated with the fan running and all connecting doors
between the fire and fan open.
4. If there are still problems the chimney/flue or ventilation may
require attention. The stove should not be used until the fault
is rectified.
Figure 8: Installing Log E
Figure 9: Installing The Canopy
Figure 10: Tightening The Canopy
Figure 11: Spillage Test

12
SPILLAGE MONITORING SYSTEM
The appliance is fitted with spillage system (TTB), which is located near the draught diverter and
operates to shut the appliance off if the evacuation of combustion products is interrupted (for example
caused by lack of flue pull or flue blockage).
The spillage system MUST NOT be adjusted, modified or put out of action by the installer. The spillage
system MUST NOT be removed or ‘bridged out’ for any reason. If the spillage system is faulty and
requires replacement, only genuine Hunter Stoves parts should be used.
Nuisance shut down may occur if the stove is not installed in accordance with the clearance distances
set out in figure 1 on page 6.
SERVICING INSTRUCTIONS
Any recommendations made here are in addition to the standard servicing procedures used by the
servicing engineer.
Before Testing:
-Do a gas soundness test for the property the appliance is in ensuring there are no leaks before
servicing.
-Check the operation of the appliance before testing.
-Check the spark gap on the pilot is correct. (See Diagram 2)
-After testing advise the customer of any work that needs to be carried out.
A GAS SAFE registered fitter using only original Hunter Stoves parts should carry out servicing.
1. Open the stove door as described on Page 8.
2. Carefully lift-off the logs and remove the base ceramic.
3. Using a soft brush, clean away any lint or light carbon soot deposits out of the gas ports on the
burner top plate.
4. Replace the base ceramic and loose logs as per the fire-bed arrangement instructions (Page 9) using
all re-serviceable logs and any new replacements.
5. Check the gas operating pressure and pipe work for soundness, carry out a spillage test and check
the condition of the flue system.
6. If for any reason the TTB switch is removed or replaced during a service, we recommend wiping the
mating surfaces clean and re-applying a thin smear of 150°C Heat Sink Compound to the face of the
TTB switch.
*Door/glass/rope replacement should only be carried out by a Registered Gas Safe Engineer.
For spare parts please go to our website –www.hunterstoves.co.uk/spares
14mm
Diagram 2

13

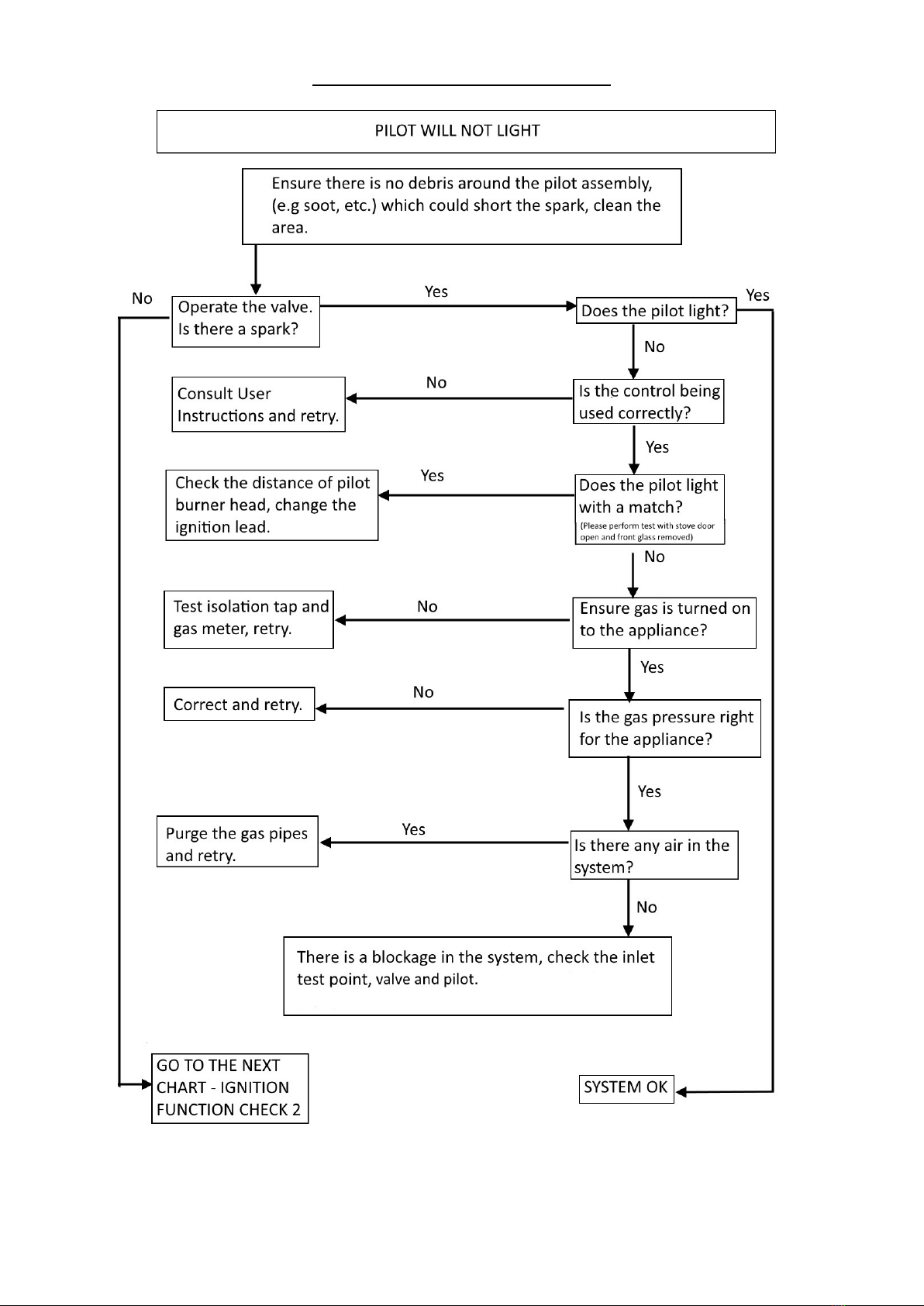

TROUBLESHOOTING

14

15
USER INSTRUCTIONS
This manual is designed to ensure your stove is installed correctly and to familiarise you with its
operation. The handset will need to be paired with the valve details can be found on pages 20/21.
Should you have further questions, please do not hesitate to contact your Hunter Stoves Retailer.
IMPORTANT POINTS FOR THE USER
•Read all instructions carefully before attempting to operate this appliance.
•If you have any doubts about the suitability of your chimney for the appliance, please consult your
local Hunter Stoves Gas stockist/dealer. The chimney must be given a precautionary sweep before
connection to the appliance.
•It is required by law that any appliance using gas is installed by a GAS SAFE registered fitter in
conjunction with these instructions and in accordance with current regulations.
•Fires can be dangerous, always use a fireguard in the presence of children, the elderly or the
infirmed.
•All outer surfaces of the appliance are working surfaces except for the gas control knobs and
control cover plate.
•It should be noted that heat given off from this appliance might affect articles placed close to it.
Curtains should not be positioned above the appliance or within 300mm of the sides. Caution
should also be taken if the appliance is to be sighted near to ‘embossed’ type wallpapers.
•Although the appliance is referred to as a stove it is not designed as a ‘cooker’ or a ‘dryer’. It is only
CE approved for use as a room heater with a decorative fuel effect.
•WARNING –Do not use the appliance if the glass door panel is broken, removed or if the door is
open.
•The GAS SAFE REGISTERED ENGINEER commissioned to install this appliance is wholly responsible
for deciding the suitability of any flue arrangement to operate in conjunction with this gas
appliance.
NOTE: During the first few uses the appliance may emit an unpleasant odour. This is the paint curing. It
is non-toxic, but for your comfort you may wish to ventilate the room by opening the doors and
windows.
GAS LEAK
If you think you have a gas leak, or you can smell gas call the 24-hour Gas Emergency Services
immediately on 0800 111 999.
Also do the following:
-Turn of the gas supply at the Meter / emergency control valve.
-Do not turn on/off any electrical switches.
-Ventilate the property; open all windows and doors.
-Do not smoke. Extinguish all sources of ignition.
THE FIREBED
•The stove is supplied with base ceramics and coals/logs, which are to be arranged by the fitter in
strict accordance with the installation instructions. The purchaser must not alter the layout of the
coals/logs or add any extra coals/logs.
•The coals/logs used in this stove to produce a realistic coal/log effect are made from ceramic fibre-
based material. The coals/logs may change colour after use, which is quite normal.
•Replacement base ceramic and coals/logs must be sourced from your approved Hunter Stoves Gas
stockist.
NOTE: It will take approximately 15-20 minutes for the firebed to take on its proper appearance of
glowing coals and yellow flames.

16
OPERATING THE APPLIANCE
Please see instructions on page 21 for pairing the handset to the valve. It is strongly recommended
that these instructions are read and thoroughly understood in advance of operating this appliance.
Gas Control Cover Plate
To gain access to the gas control valve, the cover plate must first be opened. The cover plate opens from
the left and swings out, away from the stove to expose the gas controls.
Burner Controls
The gas control valve is situated at the front on the left-hand side of the appliance, behind the gas
control cover plate.
Pilot Assembly
The pilot assembly is positioned at the front of the burner tray on the right-hand side.
IMPORTANT NOTE
The fitted with a spillage system (TTB), which is in close proximity to the draught diverter and operates
to shut the appliance off if the evacuation of combustion products is interrupted (for example caused by
lack of flue pull or flue blockage).
If this occurs, restart the appliance (as detailed in the “Lighting the Appliance” section, page 16).
If the spillage system repeatedly operates to shut the appliance down, a GAS SAFE registered engineer
should be contacted to examine the appliance and installation.
CARE, MAINTENANCE AND SERVICING
Check your chimney and flue arrangement and have the chimney system swept at least once a year.
Painted Appliances
Painted Finish - The stove is finished with a heat resistant paint and this can be cleaned with a dry
microfiber cloth. Do not clean whilst the stove is hot. At no point should any water based, or other
cleaning products be used on the stove. The finish can be renovated with Hunter Stoves paint,
available either through our website www.hunterstoves.co.uk/spares or through your local supplier.
Glass Panel
Clean the glass panel when cool with a propriety glass cleaner by applying the cleaner to a cloth. Do
not apply directly to the glass as this could cause run of which could soak into the rope seals around the
edge of the glass.
Highly abrasive substances should be avoided as these can scratch the glass and make subsequent
cleaning more difficult.
Door/glass/rope replacement should only be carried out by a Registered Gas Safe Engineer.
Servicing
A GAS SAFE registered fitter must carry out an annual service and where necessary replace
unserviceable components with only genuine Hunter Stoves Gas parts.
Service Records can be kept on the following page for your convenience.

17
INSTRUCTIONS FOR REMOTE CONTROL USE
SETTING UP THE FULL FUNCTION HANDSET (LCD DISPLAY)
USING THE DISPLAY HANDSET.
IMPORTANT USER INFORMATION –READ THIS BEFORE ATTEMPTING TO OPERATE THE FIRE
For safety reasons, the handset is designed so as to avoid accidental operation. If, during proper use, the
handset fails to communicate with the valve there is a possibility that the pairing has been inadvertently
altered –in this case the handset will need to be reset and re-paired with the valve.
For normal use: -
1) Prior to using the handset for the first time insert new, alkaline, AA batteries into the valve and
handset. Ensure they are mounted firmly and in the correct orientation, and that the battery covers
are replaced fully. Ensure the small isolation switch on the gas control is switched to the ON (I)
position
Hold the handset as shown, wrapping your hand around the handset to make
good contact with both sides. The green unlock light should illuminate, activating
the buttons (if the light is not illuminated, the buttons will not work).
Press and hold the power button, release as soon as PILOT appears on the display
(approx. 1-2 seconds). The fire will commence ignition sequence. If successful, the
fire will automatically go to maximum heat output.
NOTE: Releasing the power button too soon or depressing for too long after the PILOT
appear, will cause the fire not to light because system assumes press to be unintentional.
Power Isolation Switch

18

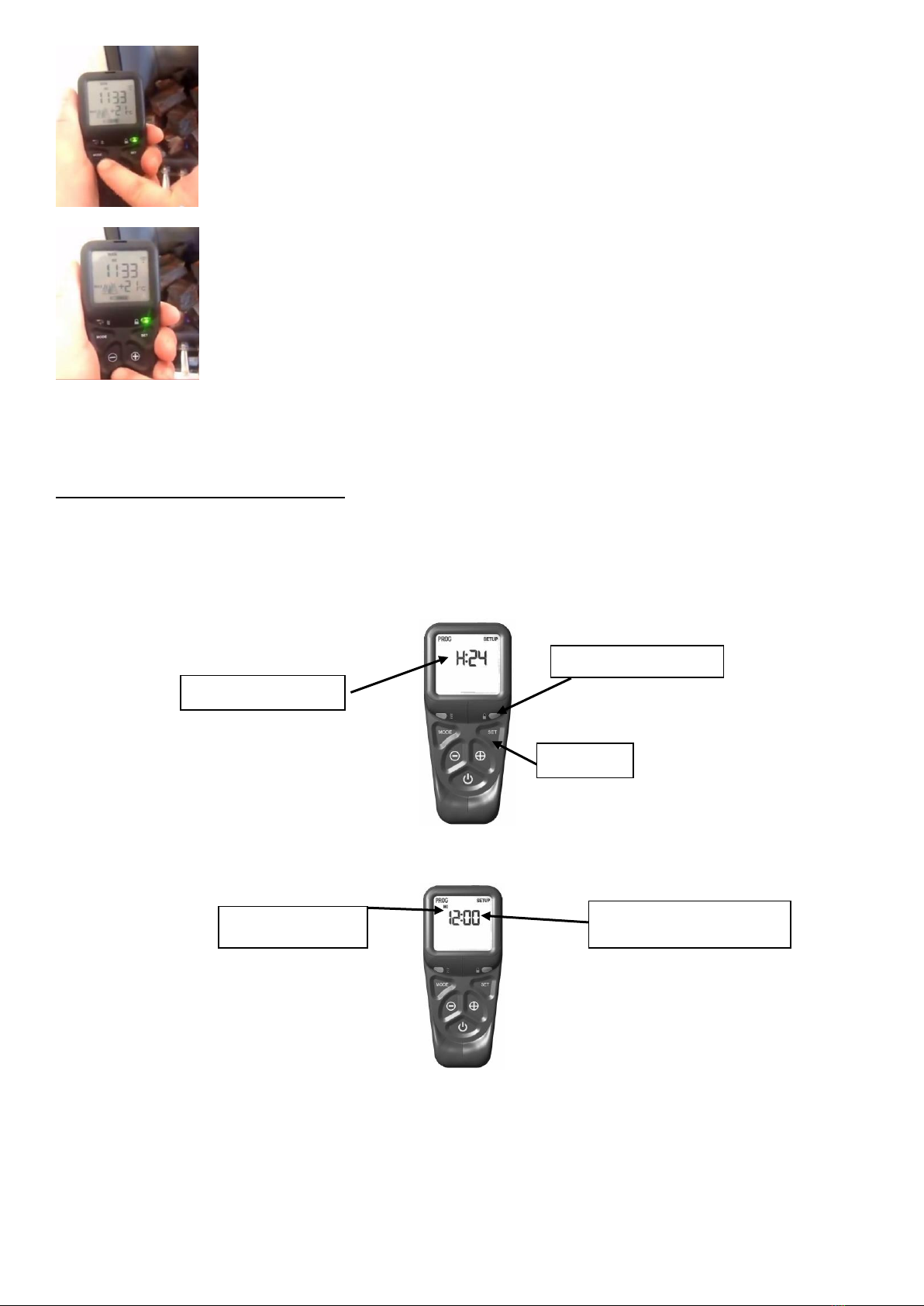

To adjust the flame, hold handset to activate buttons, and use + and –to increase
or decrease flame power accordingly. Tapping the button will increase or decrease
flame stepwise, holding the button will skip through steps. The fire basket display
on the handset will illustrate the level of flame being produced.
To STOP the fire, hold handset to activate buttons, then press the power button.
The fire should shut off immediately (n.b. residual heat will remain). If you wish to
start the fire again you must wait for OFF to be displayed on the handset before
trying to re-start.
NOTE: THE HANDSET IS DESIGNED TO MAKE REMOTE OPERATION OF THE FIRE AS SAFE AS POSSIBLE. IT HAS
BEEN SPECIFICALLY DESIGNED TO MINIMIZE THE RISKS OF ACCIDENTAL OPERATION, WITH THE EXPRESS
INTENTION THAT SUCCESSFUL OPERATION CAN ONLY BE ACHIEVED BY A CONSCIOUS, DELIBERATE ACT. ERGO IT
MAY TAKE SOME TIME TO BECOME FAMILIAR WITH THE INTRICACIES OF HANDSET OPERATION.
TIME, DATE AND TEMPERATURE
1) Hold the handset in one hand ensuring your hand is wrapped around the back and that your hand
comes into contact with both sides of the handset. The green “unlock” light should light, and the
screen will be as shown below.
2) The “H” symbol as shown below indicates that the timer can be set to either 24hr or 12hr mode.
Press the + or –buttons on the handset to move between the two settings.
3) When you have chosen your display, option confirm by pressing the SET button on the handset.
4) Press and release the + and –buttons on the handset until the correct day of the week is shown then
press SET.
5) As shown above the time on the handset can be set by using the + and –buttons to change the hour
and then press SET. Repeat to set the minute (+ and -) then SET to store.
Green unlock symbol
24hr or 12hr display
Day of the week
Hour and Minute display
Set button

19

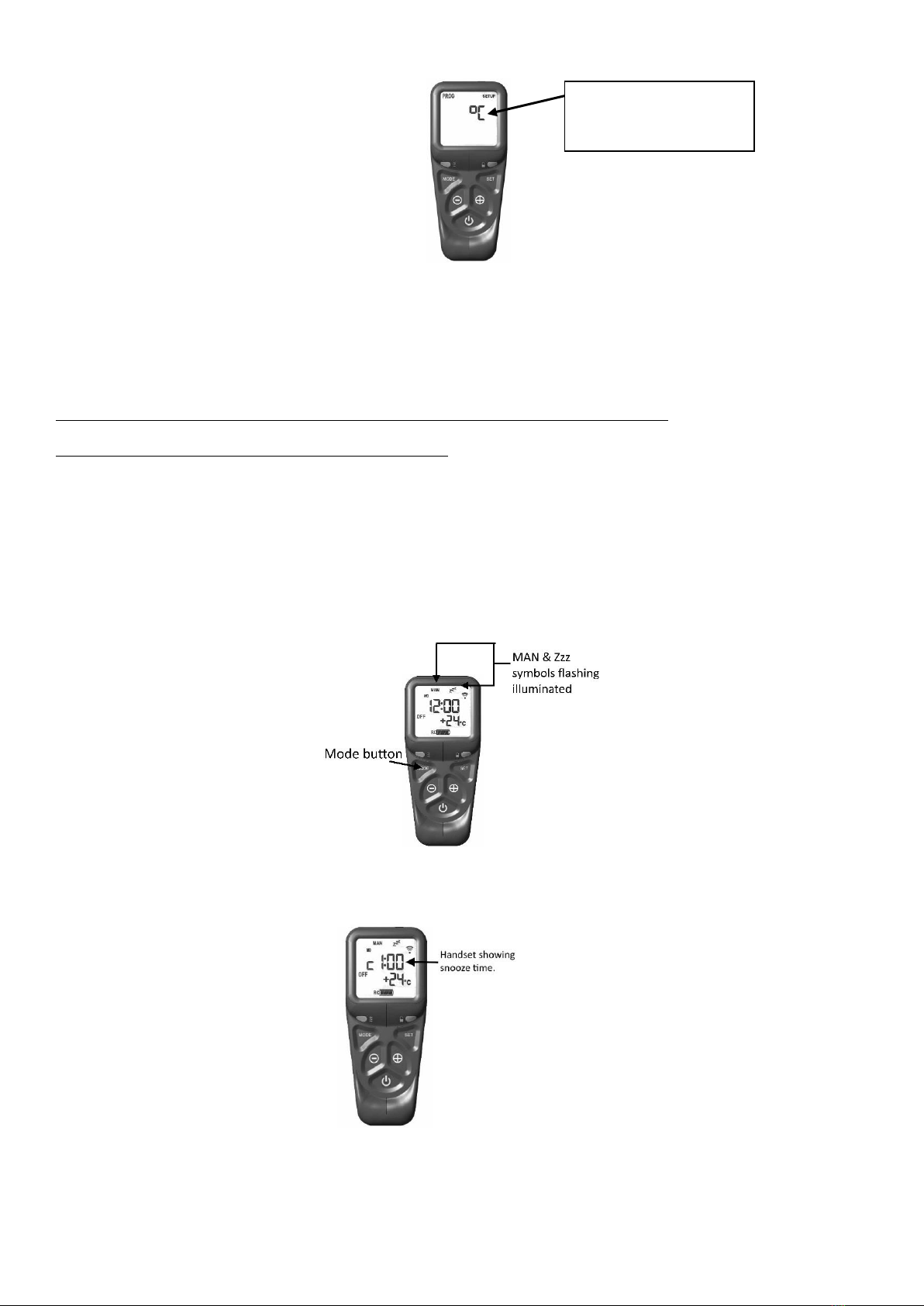

6) The handset will then display the temperature screen as shown below.
7) The control is now ready for use with the burner.
NOTE: If the handset is misplaced, you can “page it” by pressing the + button only on the
control valve on the fire for a period of 5 seconds. The handset will flash and make an audible
sound to help find it. Once you have found the handset wrap your hand around the back so
that your hand is in contact with both sides to stop the sound. The flashing and sound last for
60 seconds. If not found repeat actions.
ADVANCED SETTINGS FOR FULL FUNCTION HANDSET
SNOOZE MODE IN MANUAL OPERATION
1) Snooze mode is a time which can be set turn the fire automatically off after a certain period has
elapsed.
2) Hold the handset in one hand ensuring it is in contact with both sides. The green light of the unlock
symbol should be lit. The snooze time can be set either before or during manual operation of the
fire.
3) Press the mode button to scroll through the functions until the symbols MAN and Zzz are flashing at
the top of the display as shown below. Press and release the SET button and this will put the control
into the manual snooze mode. The default time in snooze mode is 1 hour.
4) Pressing the set button again will show you the snooze time period remaining. The time can be
adjusted by pressing the + or –buttons on the handset. The time period can be set from 1 minute to
4 hours (as shown below). Once done press the SET button.
5) When the countdown time for the snooze period has reached zero the fire will turn off.
Celsius or Fahrenheit
temperature display

20
THERMOSTATIC MODE
PLEASE NOTE: Thermostatic mode of this fire will only allow regulation of the room temperature by
the fire when it has been already lit via manual operation of the handset. It will not allow the fire
to light automatically due to low ambient room temperature and should therefore not be relied
upon for frost protection purposes.
1) Unlock the handset as previously described and press and
release the MODE button until the display has the thermometer
symbol flashing at the top of the display. Press the SET button to
enter this mode.
2) Press the SET button again to see the temperature setting that is set (the default is 24 degrees
Celsius). If a different set temperature is required, whilst the display is showing this set temperature,
press the + and –buttons to alter this setting, press the set button to store the required temperature,
or alternatively leave the handset for a few seconds and the temperature will be stored
automatically.
3) If at any time the power button is operated during thermostat mode, the control will cancel any
thermostat operation and return the control to manual mode.
IMPORTANT NOTE: Thermostat mode will not light the fire automatically and will only regulate
between the maximum and minimum burner setting. The fire must be lit manually via the
handset and then you enter thermostat mode as described in this section and set the
temperature. When no longer requiring the thermostat, mode turn off the burner and the
handset will return to manual mode.
RESTORING COMMUNICATION WITH THE FIRE
FULL FUNCTION (LCD) HANDSET
If the handset for whatever reason has lost communication with the Fire Control valve, when the
handset is held, the green light will be permanently lit but will pulse brighter.
In addition, the communication symbol
And other symbols will be missing from the display and it will appear as shown.
To reconnect do the following –
Reset the handset to clear the old pairing and enable it to accept a new pairing: -
1. Hold the handset as described previously to unlock the keypad and keep hold of the handset
2. while doing all the following.
3. Press and hold the SET button and keep held for around 3 seconds until you hear a second beep.
Release the SET button and PROG appears at the top left of the handset. SETUP should also be
flashing at the top right corner of the display.
4. When SETUP is flashing, press and release the SET button to enter the menu. (H24 (or 12), will be
flashing. Press and release the SET button about 9 more times until the display shows CA with a
flashing 0. Press and release the + or –button once to change the CA0 to CA1. Then press and
release the SET button once again. The display will now show 7ESC r4 (or any number next to
the r).
5. The handset is now at factory reset condition and a new pairing can be performed, see next
section.
A video is available on YouTube showing you how to do this please see link below –
https://www.youtube.com/watch?v=-bbeSuk0IWI
