Hunter Stoves HS Gas SELENE 6 D User guide

1
SELENE
6 D
GAS STOVE
Installation and Servicing Instructions
Please leave this instruction booklet with the user after the installation is
complete. Leave the system ready for operation and instruct the user in
the correct use of the appliance and operation of its controls.
Please refer to the appliance data plate for the specific model type.
RevE 18/02/14

2
Contents
TECHNICAL DATA................................................. 3
STOVE DIMENSIONS.............................................................................................................. 4
INSTALLING THE APPLIANCE..........................4
PRE-INSTALLATION NOTES ........................................................................................................ 4
FLUE ARRANGEMENT....................................................................................................................6
ADDITIONAL AIR VENTING (GB ONLY)...................................................................................6
REMOVING THE STOVE BODY......................................................................................................7
Removing the Glass .............................................................................................................................................................8
GAS SUPPLY CONNECTIONS ........................................................................................................8
TESTING SUPPLY PRESSURE........................................................................................................ 9
INSTALLATION OF THE FIRE-BED INTO
THE STOVE.............................................................. 10
FIRE-BED ARRANGEMENT...........................................................................10
Section A - Fitting the ‘Coal Effect’ Ceramic Matrices ...........................................................10
Fitting the Loose Ceramic Coals .........................................................................................................................11
Section B - Fitting the Log Effect Ceramic Matrices ..................................................................13
Fitting the Loose Ceramic Logs ..........................................................................................................................14
RE-ASSEMBLING THE STOVE .....................................................................................................16
TEST FOR SPILLAGE ......................................................................................................................16
SPILLAGE MONITORING SYSTEM..............................................................................................16
OPERATING THE APPLIANCE ..................................................................................................... 17
FITTING THE REMOTE CONTROL (OPTIONAL).................................................................... 17
Fitting the Motor to the Valve .............................................................................................................................17
Attaching the Remote Control Receiver Box .....................................................................................18
SERVICING INSTRUCTIONS............................ 19
PLEASE READ THESE INSTRUCTIONS CAREFULLY
It is important that your stove is correctly installed as HS GAS cannot accept
responsibility for any fault arising through incorrect installation.

3
TECHNICAL DATA
NATURAL GAS
LPG
Nominal Gas Pressure
20mBar
37mBar
Supply Gas Type/Category
G20/I2H
G31/I3P
Jet Type/Size
82/380
92/190
Heat Input (Gross)
Full
Low
6.5kW
4.2kW
6.4 kW
3.7 kW
Gas Flow Rate (m3/h)
Full
0.62 m3/h
0.236 m3/h
NOx Class
3
5
Efficiency Class
2
2
Countries of Destination
GB & IE Only
GB & IE Only

4

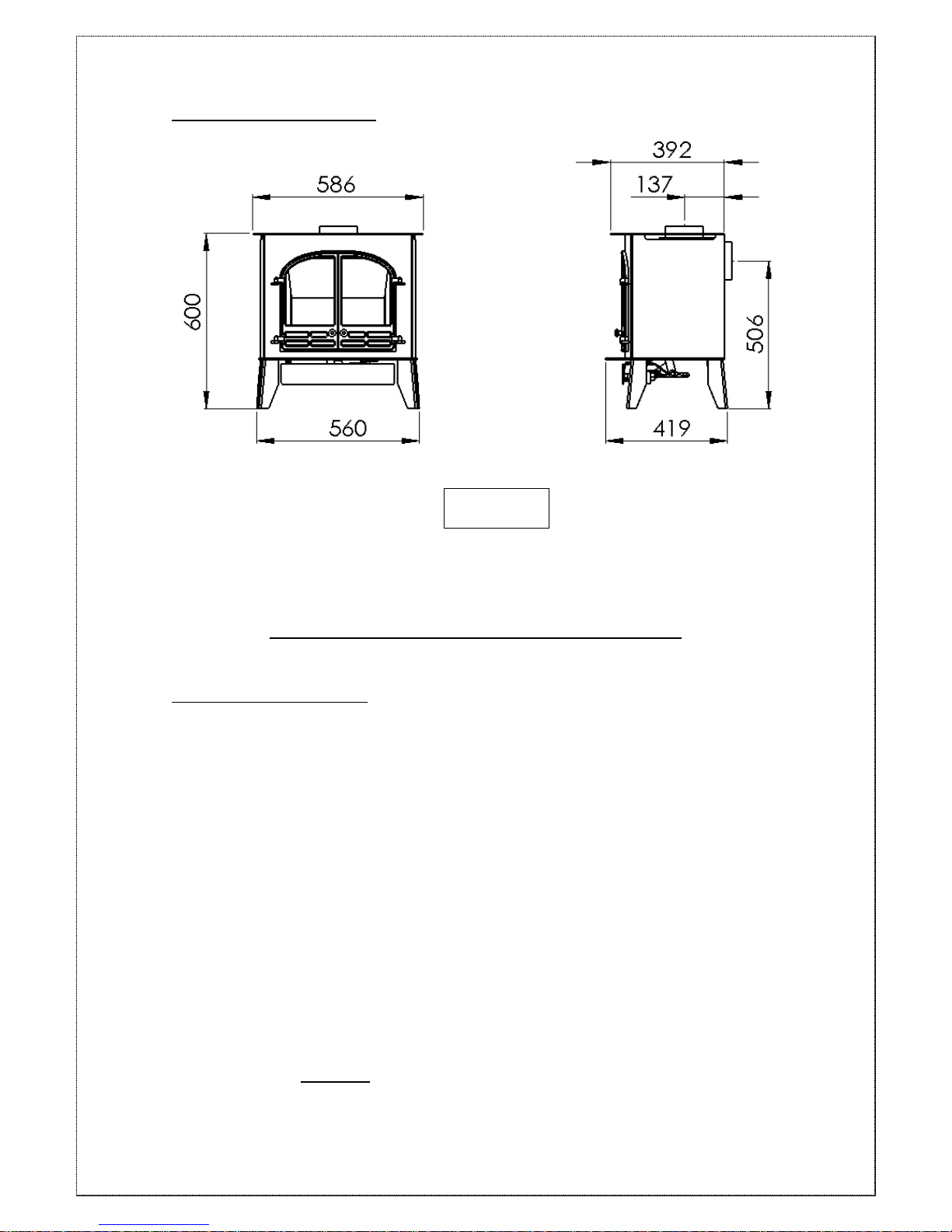

STOVE DIMENSIONS:
INSTALLING THE APPLIANCE
Pre-Installation Notes
1. Check the stove data plate to establish the gas type required. The data plate
can be found on a chain at the top left rear corner of the stove.
Before installation check that the local distribution conditions, nature of the
gas and pressure, and adjustment of the application are compatible.
2. A GAS SAFE REGISTERED INSTALLER or equally recognised competent
person must fit the appliance. That person is legally responsible for the safe
installation of the appliance with due regard to all relevant local and national
building regulations.
3. All outer surfaces of the stove excepting the gas control knobs are defined as
working surfaces.
4. Installation site
Any installation area previously used for a solid fuel fire or stove would
probably be deemed suitable for the appliance.
5. The stove must not be installed onto a combustible wall. Any combustible
materials must be removed from behind the appliance.
6. The appliance must be sited on a non-combustible hearth of minimum 12mm
thickness.
Diagram 1

5
7. The hearth should be edged or raised to prevent combustible floor finishes
(e.g. Carpet) from being laid too close to the appliance.
8. Opening clearances
For the relevant clearance distances when installing the appliance in an
opening see diagram 2 below:
IMPORTANT NOTE! Adequate clearance must be given between the appliance and
the walls so that a satisfactory spillage test can be performed as detailed on page 16.
MINIMUM CLEARANCE DISTANCES TO:
DIMENSION
DESCRIPTION
COMBUSTIBLE MATERIAL
NON-COMBUSTIBLE
MATERIAL
A
Edge of stove top
to wall
100mm
50mm
B
Top of stove to underside
of opening
300mm
200mm
C
Rear of stove
to wall
N/A
50mm
D
Minimum fireplace
opening/Hearth dimension
785mm
735mm
E
Minimum hearth
depth
515mm
515mm
F
Minimum distance for hearth
to extend in front of stove
50mm
50mm
Diagram 2

6
Flue Arrangement
The GAS SAFE REGISTERED ENGINEER commissioned to install this
appliance is wholly responsible for deciding the suitability of any flue
arrangement to operate in conjunction with this gas appliance.
The chimney or flue system that is to be fitted to the Selene gas stove must comply
with the current rules in force.
(The Selene range of stoves is also suitable for other specific class 2 installation
arrangements: pre-cast flues, ridge-vent flues and pre-cast chimney block and with
the relevant adaption, the appliance will operate in a closure plate type system.)
It is suggested to run flue pipe at least 615mm vertically from the unit before there are
any changes in direction of the flue system. Wherever possible horizontal runs of the
flue system should be avoided.
The flue must have a minimum of 2.6 meters of vertical height measured from the
top of the stove to the bottom of the terminal outlet. Please note for rear flue
appliances it is recommended that the vertical flue run be established as soon as is
practical from the rear flue exit. (Caution should be taken locating the exit of the flue
as explained in ‘The Building Regulations - Document J’.)
Before commencing any installation work the installing engineer must check that the
flue is free from all blockages, the chimney should be given a precautionary clean, and
finally the chimney should be smoke tested to ensure soundness. Additionally any
flue dampers must be permanently fixed open or removed altogether.
Additional Air Venting (GB Only)
The supply gas heat input into the appliance is nominally less that 7kw, therefore
under the directives of the current gas safety and use regulations (1995) no additional
air vents are required in the room the appliance is situated.

7
Removing the Stove Body
Open the two cast iron doors and gently lift them from their hinges as shown in
Diagram 3.
Completely remove the 2 securing bolts that are located behind the valve cover plate
by using a 10mm spanner, as shown in Diagram 4.
Slacken the rear locating bolts with a 13mm spanner and remove the stove shell by
sliding away from the combustion chamber. (Diagram 5).
Diagram 4
Diagram 5
Diagram 3

8
Removing the Glass
The glass is held in place by 6 fixing clips, 4
at the top and 2 at the bottom. Slightly
slacken the lower two fixing screws with a
flat blade screwdriver (There is no need to
fully remove the screws). Holding the glass
with one hand, slacken off the top 2 fixing
screws (Diagram 6) until the clips have
moved away from the glass panel. The glass
panel can then be lifted out.
Gas Supply Connections
The appliance is supplied with an 8mm Bundy pipe and an 8mm compression elbow
to allow easy connection to the mains gas supply. This supply gas pipe should
incorporate a gas service isolation tap that is situated within 1 metre of the
application.
Diagram 7 shows the 8mm Bundy
pipe being fitted to the gas inlet on
the valve. The compression joint is
tightened with a 12mm open-ended
spanner.
Diagram 7
Diagram 6

9
Testing Supply Pressure
1. Gas pressure at the appliance is measured via the rearward test nipple (Test nipple
‘A’ in diagram 8) on the left-hand side of the control valve. (Turning the screw
approximately half a turn anti-clockwise with a small flat-bladed screwdriver
opens the test point.)
ALWAYS CLOSE TEST POINTS AFTER USE!
2. The gas pressure at the appliance is measured with the appliance running at full
rate. (For information on how to achieve ‘full rate’ read, ‘Adjusting between High and
Low Output Settings’ in the ‘Lighting the Appliance’ section of the User Instructions.
Burner gas pressure should be:
Natural Gas @ 19mBars
LPG @ 36mBars
3. The mains supply pressure coming into the appliance can be checked by using
Test point ‘B’, shown in diagram 8.
Mains/Supply
Pressure Test Point
(Test Point ‘B’)
Gas Supply Connection
(8mm Compression Fitting)
Burner Pressure Test Point
(Test Point ‘A’)
Diagram 8

10
INSTALLATION OF THE FIRE-BED INTO
THE STOVE
IMPORTANT NOTE!!
CERAMIC COALS AND LOGS GET VERY HOT! NEVER ATTEMPT TO HANDLE
HOT COALS OR LOGS WITH BARE HANDS AND NEVER PLACE HOT COALS
OR LOGS ON OR NEAR COMBUSTIBLE SURFACES.
NO RESPONSIBILITY FOR ANY INJURY HOWEVER CAUSED WHILST
HANDLING HOT COALS, LOGS OR CERAMICS CAN BE ACCEPTED BY HS
GAS.
FIRE-BED ARRANGEMENT
This appliance can be fitted with either ‘coal effect’ or ‘log effect’ ceramics.
If you are fitting ‘Coal Effect’ ceramics please follow the instructions set out in
‘Section A – Fitting the Coal Effect Ceramic Matrices’ (Page 10).
If you are fitting ‘Log Effect’ ceramics please skip ‘Section A’ and follow the instructions
set out in ‘Section B – Fitting the Log Effect Ceramic Matrices’ (Page 13).
Section A - Fitting the ‘Coal Effect’ Ceramic Matrices
NATURAL GAS:The fire-bed is constructed of 3 ceramic matrices, 4 small coals, 10
medium coals and 4 large ‘diamond shaped’ coals.
LPG: The fire-bed is constructed of 3 ceramic matrices, 10 small coals, 4 medium
coals and 4 large ‘diamond shaped’ coals.
1. Place the rear ceramic matrix into the
fire. The ceramic should sit on the burner
tray top and be placed so that it touches
the back of the firebox (As shown in
diagram A9).
2. Place the middle ceramic matrix into the fire so
that the flat surface sits on the burner tray. Push
the middle ceramic back until it rests against the
rear ceramic shown in diagram A10.
Note!
Make sure that the middle ceramic does not block
any of the burner tray slots.
Diagram A9
Diagram A10

11
3. Place the front ceramic matrix into the
fire so that it sits between the middle
ceramic matrix and the 2 front tray supports
(Steel brackets at the front of the tray)
shown in diagram A11.
Fitting the Loose Ceramic Coals
4. The first row of coals consists of 4
small coals and 4 large coals. The first
row of coals are placed so that they sit
on top of the front and middle ceramic
matrices.
Starting with a large ‘diamond shaped’
coal, place the front of the coal on top
of the left hand support leg of the
front ceramic. The back of the coal
should rest on the middle ceramic.
Then take a small coal and place the
front of it in the first left notch in the
front ceramic, the back of the coal
resting on the centre ceramic.
Continue this process, alternating the
coal size until all the 8 coals are placed
as shown in Diagram A12.
Note!
Make sure that the coals do not fall down between the front and middle matrices.
A gap must be left between the coals to allow the flames to pass through.
5. The second row of coals consists of
4 medium sized coals. They are placed
between the large coals so that they sit
on the middle ceramic, shown in
Diagram A13.
Note!
The coals must not block the gap
between the middle and rear
ceramic matrices.
Diagram A11
Diagram A13
Diagram A12

12
Diagram A14
6. The third row of coals
consists of 6 medium sized coals
(6 small coals for LPG stoves).
The coals are placed so that they
sit on top of the last row of coals
and into the notches on the rear
ceramic matrix, shown in
Diagram A14.
Note!
Gaps must be left between the
coals for the flames to pass
through.
7. The fire-bed should now be completed. The stove should be lit and the flame
picture checked with the glass panel fixed securely in place. Any adjustments to the
flame picture can then be made as required.

13
Diagram B10
Section B - Fitting the Log Effect Ceramic Matrices
The fire-bed is constructed of 3 ceramic matrices and 6 loose logs.
A. Place the rear ceramic matrix into
the fire as shown in diagram B9.
The ceramic should sit on the burner
tray top and be placed so that it
touches the back of the firebox.
B. Place the middle ceramic matrix into
the fire so that the flat surface sits on
the burner tray. Push the middle
ceramic back until it rests against the
rear ceramic shown in diagram B10.
Note!
Make sure that the middle ceramic does
not block any of the burner tray slots.
C. Place the front ceramic matrix
into the fire so that it sits between
the middle ceramic matrix and the 2
front tray supports (Steel brackets at
the front of the tray) shown in
diagram B11.
Diagram B9
Diagram B11

14
Diagram B14
Fitting the Loose Ceramic Logs
D. Starting with the Y-shaped
log, place at the angle shown in
diagram B12. The bottom of the
log should sit in the cut-out on
the front ceramic matrix, with
the flat underside of it resting
on the flat area on the middle
matrix. Of the longer 2
branches, the tip of the right
hand branch should rest in the
left hand cut-out on the rear
ceramic.
E. The second log has two short
branches coming from it. It sits in the
furthest left cut-out on the front ceramic
and rests in the groove on the centre
ceramic, shown in diagram B13.
F. The third log to be placed is the
thin ‘twig’. The ‘Twig’ is placed in
the cut-out between the first two
logs. The small branch on the twig
should sit at an angle into the cut-
out on the front ceramic and so
stopping the twig from falling
between the front and centre
ceramic. The top of the twig
should rest on the large log as
shown in diagram B14. (Make sure
that the position of the ‘Twig’ does
not block any of the burner ports)
Diagram B13
Diagram B12

15

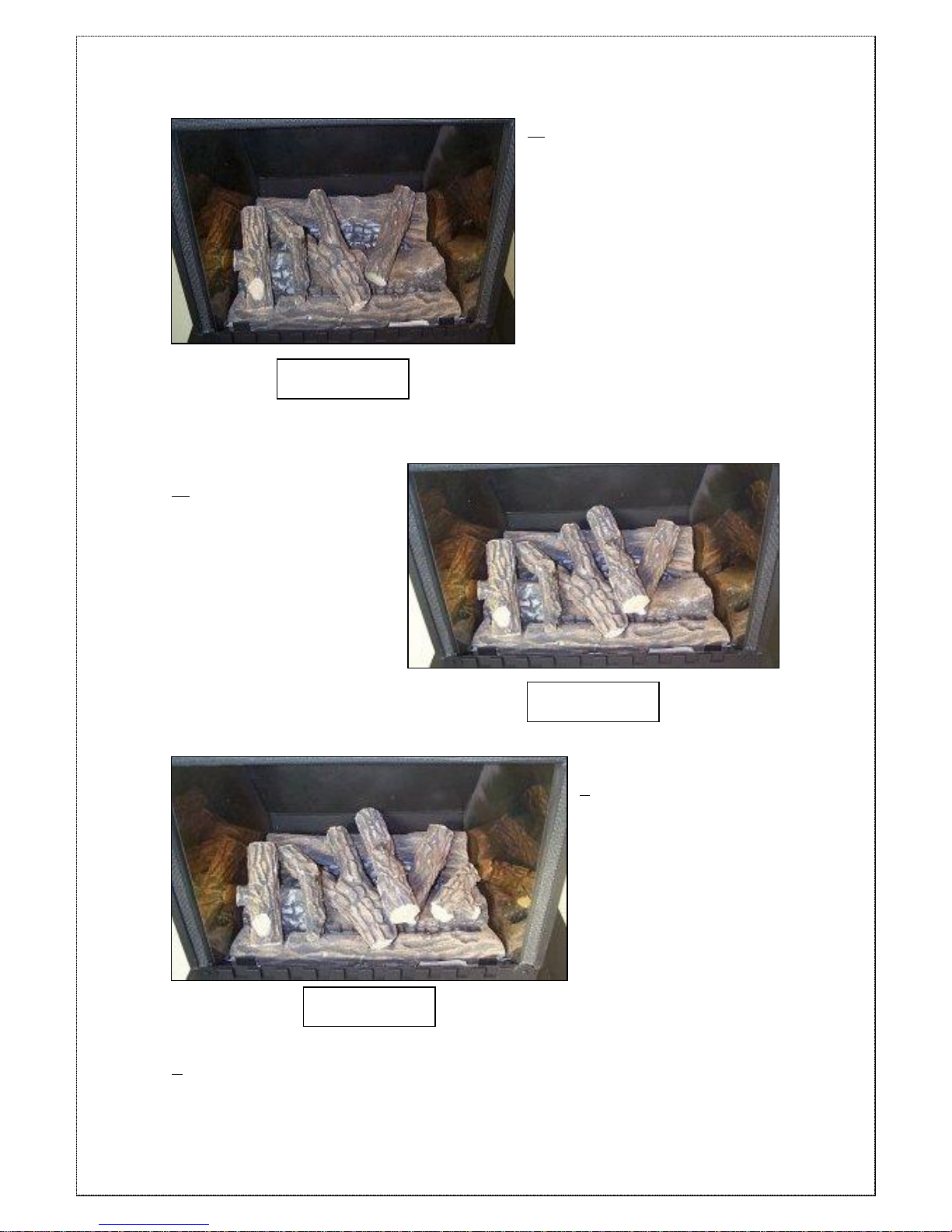

G. The fourth log is the shorter of
the two straight logs. The log
should rest on the middle ceramic
on the flat section to the right of
the large log. The top of the log
should rest in the groove on the
rear ceramic, as shown in diagram
B15.
H. The fifth log is the longer of
the two straight logs, the top
of this should sit in the final
groove on the rear ceramic in
between the large log and the
shorter straight log. The log
should also rest on the join
between the other 2 placed
logs as shown in diagram B16.
I. The sixth and final log
has a single branch coming
from it and one end is
shaped to be parallel with
the mirrored side. It should
sit on the flat surface on the
centre ceramic as shown in
diagram B17.
J. The fire-bed should now be completed. The stove should be lit and the flame
picture checked with the glass panel fixed securely in place. Any adjustments to the
flame picture can then be made as required.
Diagram B15
Diagram B16
Diagram B17

16
Re-Assembling the Stove
When the desired flame picture has been achieved, the stove body should be
reassembled.
The stove body can be slid back into place, making sure that the slots on the rear of
the body locate into the 2 securing bolts at the back of the base, shown in diagram 5
(Page 7). There is no need to tighten these bolts up as they are only used for location.
The two front fixing bolts can then be replaced and tightened to fix the body in place
(Shown in Diagram 4 –Page 7).
TEST FOR SPILLAGE
A Spillage test MUST be carried out before the appliance is left with the customer.
Carry out the test by first closing all doors and windows in the room containing the fire.
Ensure that the fire is burning at full rate for a minimum of 5 minutes.
Using a smoke match –run along the edge of the draught diverter, both sides of the TTB
Bracket as shown in diagram 17.
Most of the smoke should be drawn into the draught
diverter. If not, leave the stove running at full rate for
a further 10 minutes and repeat the test.
If there is a fan in an adjoining room the spillage test
must be repeated with the fan running and all
connecting doors between the fire and fan open.
If there are still problems the chimney/flue or
ventilation may require attention. The stove should
not be used until the fault is rectified.
SPILLAGE MONITORING SYSTEM
This appliance is fitted with an ‘oxygen depletion system’ (ODS) pilot assembly
which will monitor any spillage from the appliance.
The system MUST NOT be adjusted or changed by the installer.
Replacement systems must be obtained from HS Gas; no other pilot assembly must be
substituted in its place.
The appliance is also fitted with a thermostatic switch (TTB). This switch is located in
the draught diverter and shuts off the gas supply should the flue lack sufficient flow to
prevent flue gas spillage. The TTB MUST NOT be removed or ‘bridged out’ for any
reason and only genuine HS Gas replacements should be used. Nuisance shut down
may occur if the stove is not installed in accordance with the clearance distances set
out in page 5.
Diagram 17

17
Diagram 20
Operating the Appliance
FULL OPERATING INSTRUCTIONS ARE GIVEN IN THE USER INSTRUCTIONS.
Fitting the Remote Control (Optional)
Fitting the Motor to the Valve
Un-screw the cover retaining screw with a
small Philips screwdriver (Shown in
diagram 19). Prise off the cover at the snap
connection with a small flat-bladed
screwdriver located on the right hand side
of the valve.
Turn the main burner control knob
(Knob ‘B’ – diagram 20) fully anti-
clockwise until the end stop is
reached.
Fit the motor as shown in diagram 21,
making sure that the motor sits on the
locating pin.
Replace the valve cover and tighten the
Philips headed screw. (Do not
overtighten the screw as this may cause
the control to malfunction). Make sure
that the snap connector has located
properly. When fitted correctly, the
valve cover holds the motor in the
correct position.
Diagram 19
Diagram 21
Knob B
Motor

18
Attaching the Remote Control Receiver Box
The control lead is then attached to the receiver box using the plastic connector and
to the valve motor by the two spade terminals.
The Remote Control Receiver Box is powered by 4 x AA batteries (supplied). The
batteries are fitted by sliding the cover off the receiver box the orientation of the
batteries shown on the diagram in the box.
Fit the 9-volt battery to the remote control handset.
Test that the remote control system is working by pressing the increase and decrease
buttons on the handset.
If the system is working correctly, the receiver box can be sited. The ideal position
for the receiver box being on the hearth, at the back of the stove. The remote control
system is ultra-sonic and hence the receiver box does not have to be in line of sight of
the remote handset.
WARNING!
The receiver box should not be sited anywhere that the temperature will be greater
than 50Celsius. High temperatures will shorten the battery life and may cause the
remote control receiver to stop operating.

19
SERVICING INSTRUCTIONS
It must be understood that any recommendations made here are in addition to the
standard servicing procedures used by the servicing engineer.
1. A GAS SAFE registered fitter using only original HS GAS parts should carry
out servicing.
2. Remove the stove body and glass as described on Page 7 (Removing the Stove
Body).
3. Carefully lift-off the ceramic coals/logs and remove the 3 ceramic matrices.
4. Using a soft brush, clean away any lint or light carbon soot deposits out of the
gas ports on the burner top plate.
5. Check the TTB Bracket inside the draught diverter for blockage and clean as
necessary.
6. Replace the ceramic matrices and loose coals/logs as per the arrangement
instructions (Page 10- Fire-bed Arrangement) using all re-serviceable
ceramics and any new replacements. Replace the glass and stove body as
described on Page 16 (Re-assembling the Stove).
7. Check the gas operating pressure and pipe work for soundness, carry out a
spillage test and check the condition of the flue system.

20
SPARES LIST
PART DESCRIPTION
PART NUMBER
Bundy Tube –Main Burner
HG06/032
Bundy Tube –Pilot
HG06/033
Bundy Tube Inlet
HG06/034
TTB Switch
HG06/200
TTB Leads
HG06/201
Nat. Gas Burner Injector
HG01BU024
LPG Burner Injector
HG06083
Flue Collar
HG06/038
Flue Blanking Plate
HG06/037
Flue Gasket
HG01CE001
Glass Panel
HG06/036
Glass Sealing Kit (Adhesive Tape)
HG06/101
Glass Clip + Screw
HHR08/046
Natural Gas Pilot Assembly
HG06/090
LPG Pilot Assembly
HG06/085
‘Coal Effect’ Ceramic Spares
Small Ceramic Coal
HG06/044
Medium Ceramic Coal
HG06/045
Large Ceramic Coal
HG06/046
Front ‘Coal Effect’ Ceramic Matrix
HG06/041
Middle ‘Coal Effect’ Ceramic Matrix
HG06/042
Rear ‘Coal Effect’ Ceramic Matrix
HG06/043
‘Log Effect’ Ceramic Spares
Front ‘Log Effect’ Ceramic Matrix
HG06/071
Middle ‘Log Effect’ Ceramic Matrix
HG06/072
Rear ‘Log Effect’ Ceramic Matrix
HG06/073
Log 1 –‘Y – Shaped’
HG06/074
Log 2 –Small branch log
HG06/075
Log 3 –203 x 38mm No branch
HG06/076
Log 4 –152mm Double branch
HG06/077
Log 5 –152 x 38mm Single branch
HG06/078
Log 6 –‘Twig’
HG06/079
Aspen House, Pynes Hill, Exeter, EX2 5AZ
www.hs-gas.co.uk
