Hunter Stoves Inglenook CEV. II User manual

I N G L E N O O K
C E V . I I
M U L T I F U E L
C L E A N B U R N S T O V E
Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these instructions
to the stove user when the installation is complete. Leave the system ready for
operation and instruct the user in the correct use of the appliance and operation of
controls.
v09.09

Inglenook CE
Technical Specification
Stove Mass 148 kg
Wood
Total Efficiency 83.6 %
Nominal Heat Output 7.3 KW
Mean CO Emission (at 13% O2) 0.30 %
Mean Flue Gas Temperature 214 °C
Flue Gas Mass Flow 5.5 g/s
Ancit
Total Efficiency 68.4 %
Nominal Heat Output 6.0 KW
Mean CO Emission (at 13% O2) 0.21 %
Mean Flue Gas Temperature 235 °C
Flue Gas Mass Flow 6.8 g/s
This appliance is not suitable for use in a shared flue
This appliance is suitable for intermittent burning

Assembly Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY
It is important that your stove is orre tly installed, as Hunter Stoves Limited annot
a ept responsibility for any fault arising through in orre t use or installation.
Important Warning
This stove must not be installed into a chimney that serves any other heating appliance.
There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit
fumes into the room.
Flue Collar
Place the Flue Gasket on the top or rear outlet as required. Place the Flue Collar on top of the Gasket.
Secure to the four locating tabs, inside the flue outlet, using the M6 nuts & bolts supplied. Fit the 2 - M8
carriage bolts, washers & nuts into the Damper Holes, located on each side of the Flue Collar.
Flue Cover
Fit the Flue Gasket and Blanking Plate on the remaining free outlet and secure
it, using 2 - M6 screws.

Fire Bricks & Baffle
The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal
sequence that you will need to employ when servicing your Hunter stove.
Side Bricks
Rear Brick
Baffle
To assemble, simply reverse the above procedure.
Remove all of the Riddling Bars, Cam Bar,
Catch Bar and Ashpan.
Slide the Side Brick toward the front of the
Stove and pull the bottom edge into the
Lift up the Side Plates and remove from
Stove.
Pull the top edge of the Rear Brick towards
you and lift out of the Stove.
Lift the Baffle and slide it to the left. When
the right side of the Baffle clears the Baffle
Support lower it into the Stove and
remove.

Installation Instructions
READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALATION.
These instructions cover the basic principles to ensure satisfactory installation of the stove, although
detail may need slight modification to suit particular local site conditions. In all cases the installation
must comply with current Building Regulations, Local Authority Byelaws, European and national
standards and other specifications or regulations as they affect the installation of the stove. It should be
noted that the Building Regulations requirements may be met by adopting the relevant recommendations
given in British Standards BS 8303, BS 6461 and BS 7566 as an alternative means to achieve an
equivalent level of performance to that obtained following the guidance given in Approved Document J.
Competent Persons Scheme
Members of the following schemes may self-certify the installation of this stove. If the installer is not a member of
one of these schemes, your local building control department must approve the installation.
Scheme Web address Telephone
APHC (Association of Plumbing and Heating
Contractors (Certification) Limited www.aphc.co.uk
02476 470 626
Building Engineering Services Competence
Accreditation (BESCA Limited)
www.hvca.org.uk /
www.besca.org.uk 0800 652 5533
HETAS Ltd (Heating Equipment Testing and Approval
Scheme) www.hetas.co.uk
01462 634721
NAPIT Registration Ltd www.napit.org.uk 0870 444 1392
NICEIC Group Ltd www.niceic.org.uk 0800 013 0900
Health and Safety Precautions
Handling
Adequate facilities must be available for loading, unloading and site handling.
Fire Cement
Some types of fire cement are caustic and should not be allowed to come into contact with the skin. In
case of contact, wash immediately with plenty of water.
Asbestos
This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of
installation then please seek specialist guidance and use appropriate protective equipment.
Metal Part
When installing or servicing this stove, care should be taken to avoid the possibility of personal injury.

Installation
Chimney
The chimney height and the position of the chimney terminal should conform to Building Regulations.
Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the
flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met,
the chimney should be lined by a suitable method.
The chimney must be swept before connection to the stove.
Where the chimney is believed to have previously served an open fire installation, it is possible that the
higher flue gas temperature from the stove may loosen deposits that were previously firmly adhered, with
the consequent risk of flue blockage. It is therefore recommended that the chimney be swept a second
time within a month of regular use after installation.
If you have any doubts about the suitability of your chimney, consult your local dealer/stockist.
If there is no existing chimney then either a prefabricated block chimney in accordance with Building
Regulations Approved Document J, or a twin-walled insulated stainless steel flue to BS 4543 can be used.
These chimneys must be fitted in accordance with the manufacturer’s instructions and Building
Regulations.
Flue Draught
A flue draught of minimum 1.2mm to a maximum 2.5mm water gauge is required for satisfactory
appliance performance. The flue draught should be checked under fire at high output. If it exceeds the
recommended maximum, a draught stabilizer must be fitted so that the rate of burning can be controlled
and to prevent over firing. If the reading is less than the recommended minimum than the performance of
the appliance will be compromised.
Connection to the Chimney
An existing fireplace opening can be bricked up or sealed with a register plate. A short length of flue
pipe of a minimum 152mm internal diameter may then be used to connect the stove to the chimney. This
flue pipe should be of 316 grade stainless steel or vitreous enameled, nominal thickness 1.2mm.
Ensure that the pipe end is no closer than 76mm to the side or rear chimney walls.
Ideally, the old fireplace should be filled in so that there is a smooth streamlined entry into the flue way.
The length of any horizontal run of flue pipe must not exceed 152mm.
It is essential that all connections between the stove and chimney-flue are sealed and made airtight.
Both the chimney and flue pipe must be accessible for cleaning and if ANY parts of the chimney cannot
be reached through the stove (with baffle brick removed), a soot door must be fitted in a suitable position
to enable this to be done.
Air Supply
If a draught stabilizer is fitted, the air opening should be at least 3125 mm
2
. Due consideration should be
given to air requirements for any other appliances in the same room or space.

Material Clearances
The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm
must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat
output and for access to the rear of the stove.
All non-combustible walls closer than 300mm to the stove should be at least 75mm thick.
In all instances the hearth and back wall of the fire place should be made of non-combustible material.
Allow an apron of a least 300mm at the front of the stove and 150mm on either side.
The hearth on which the stove is to be placed should not be less than 125mm thick and should be in
accordance with the current building regulations.
Care should be taken to level the stove using the adjusting screws in the feet.
The appliance shall be installed on a floor with adequate load-bearing capacity. If the existing
construction does not meet this prerequisite, suitable measures (e.g. load distributing plate) should be
taken to achieve it.

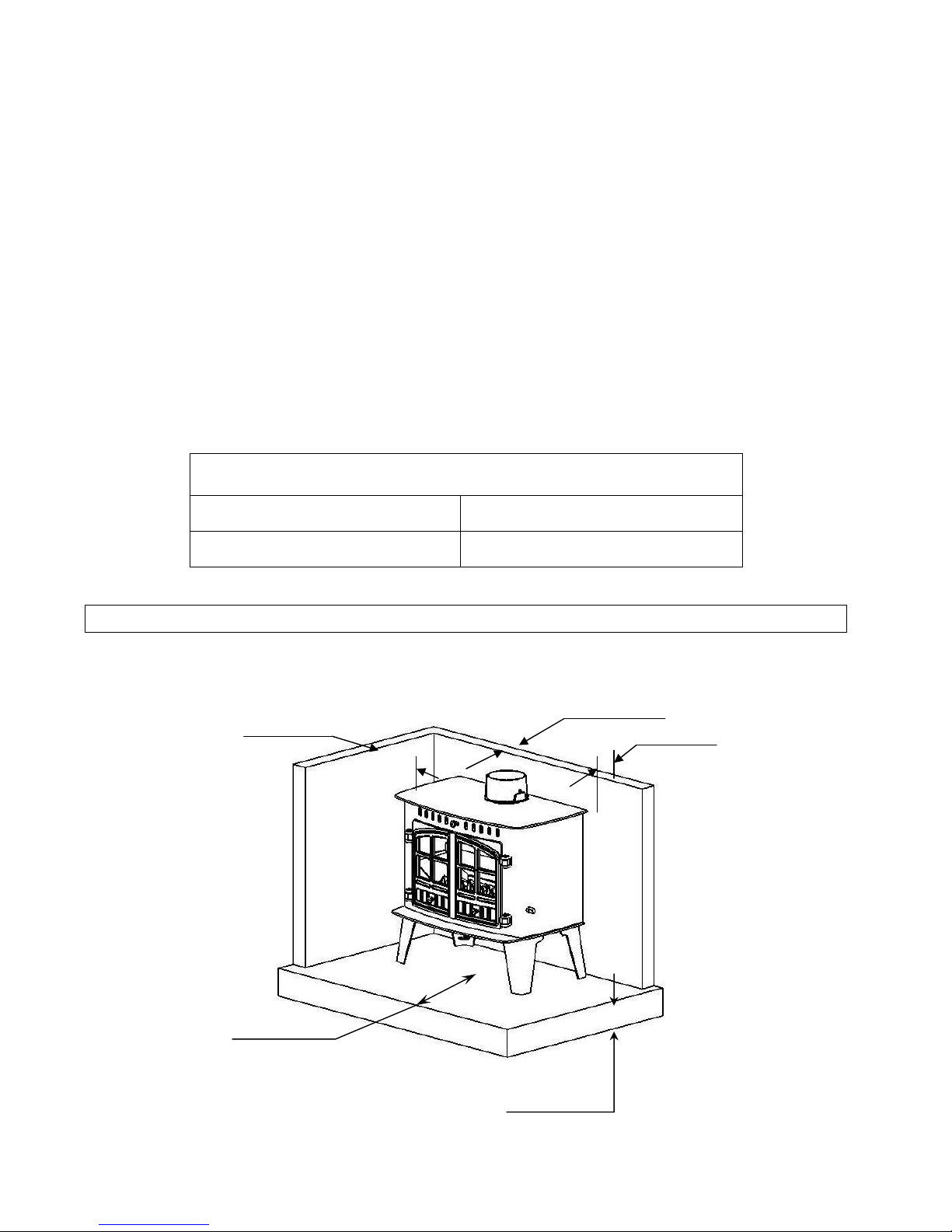

MINIMUM DISTANCE TO COMBUSTIBLE MATERIAL
Behind the stove 600mm
At the side of the stove 300mm
There should be NO furniture placed within 900mm from any surface of the Stove.
Note: Combustible material refers to any material that will degrade when subject to heat. E.g. plaster
Note: walls and hearth are non-combustible and all dimensions stated are minimum.
150mm
50mm
125mm
300mm
75mm

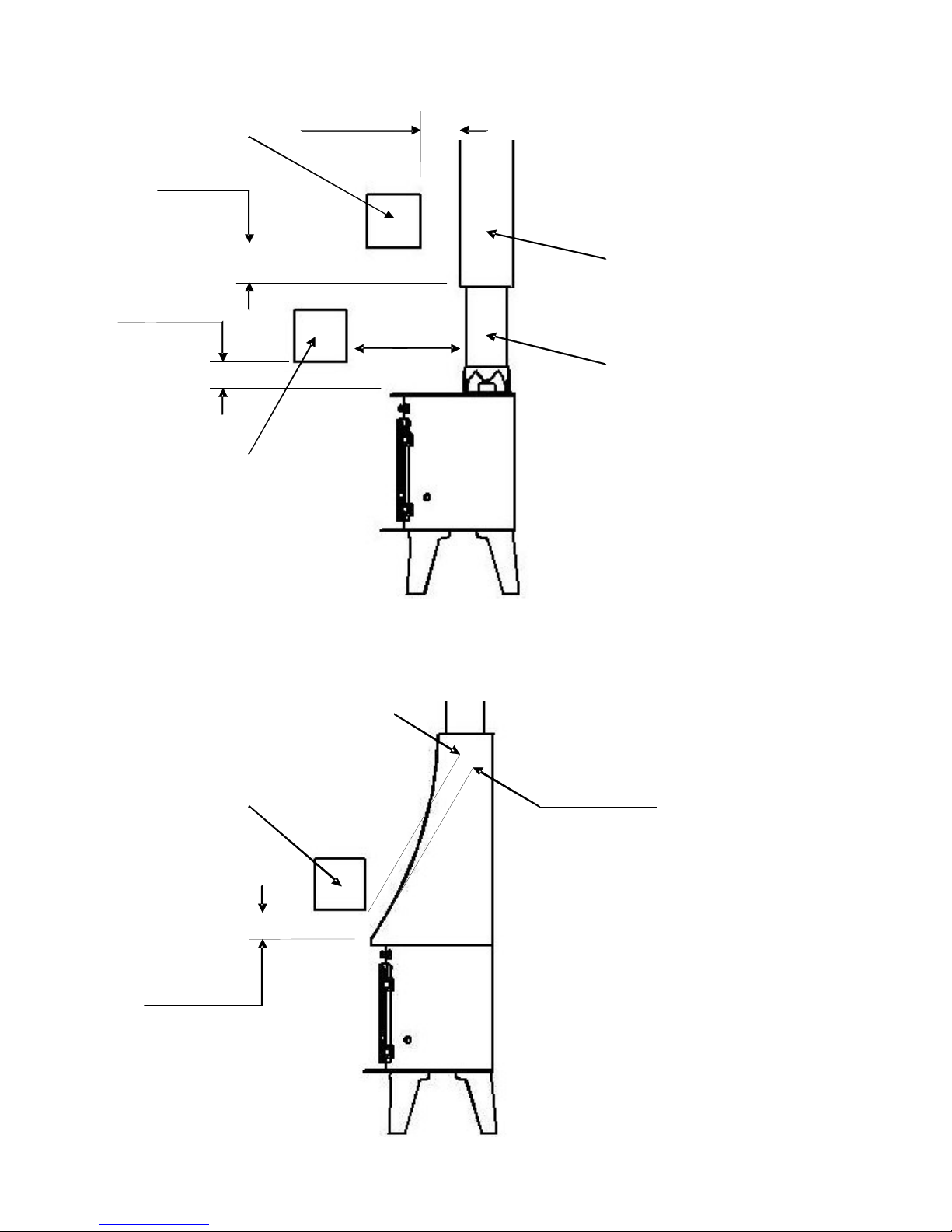

Clearances to Wooden Beams
Clearances to Wooden
Beams
75 mm
120 mm
450 mm
120 mm
150 mm
150 mm
6” Flue Pipe
–
Single Wall
Wooden Beam
6” Flue Pipe
–
Twin Wall
Inglenook Flat Top Stove
Wooden Beam
All dimensions stated are
minimum
and assume that additional heat
shielding is not installed
Wooden Beam
Inglenook High Canopy Stove

Commissioning and Handover
Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry
out.
A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the
chimney and emitted safely to atmosphere. Do not run the stove at full output for at least 24 hours.
On completion of the installation and commissioning, ensure that the operating instructions and operating
tools for the stove are left with the customer.
Advise the customer on the correct use of the appliance with the fuels likely to be used on the stove and
warn them to use only the recommended fuels for the stove.
Advise the user on what to do should smoke or fumes be emitted from the stove.
The user should be warned to use a fireguard to BS 6539 in the presence of children, aged and/or infirm
persons.

Operating Instructions
This appliance is not suitable for use in a shared flue
This appliance should not be operated with the doors open
Aerosol Sprays
Do not use an aerosol spray on or near the stove when it is alight.
Air Controls
This stove has been designed to burn efficiently with a relatively low output, for its size.
If used correctly this stove will burn far more efficiently than normal with the obvious notable feature of CLEAN
GLASS.
However, for this product to work properly it must be used correctly.
It is essential that the stove has an adequate air supply for combustion and ventilation.
The primary, secondary and tertiary air inlets must be kept clear from obstruction and blockage.
Air Controls
Primary Air
The sliders in each door control the Primary air. This provides a
conventional air draught to the bed of the fire. The controls are open
when they are pushed toward the outside of the Stove
Secondary Air.
Secondary air is controlled via the Slider above the Doors. It is this
“Airwash” that keeps a clean and uninterrupted view of the fire.
Tertiary Air.
Tertiary air aids in good secondary combustion of the fuel and reducing emissions into the environment.
Tertiary air can be controlled by adjusting the Cover Plate in the back of the Stove.
Damper Assembly (Optional)
When the damper is set in the open position the chimney draws at full draught, increasing the volume of
airflow through the stove and flue. Shutting the damper restricts the flow, slowing the rate of burning.
Close all other air controls and allow the fire to die down before closing the damper.
Warning!
This Appliance will be hot when in operation and due care should be taken. The riddling tool may be
used to operate the door handle. Thick gloves could be used to operate the primary and secondary air
controls.

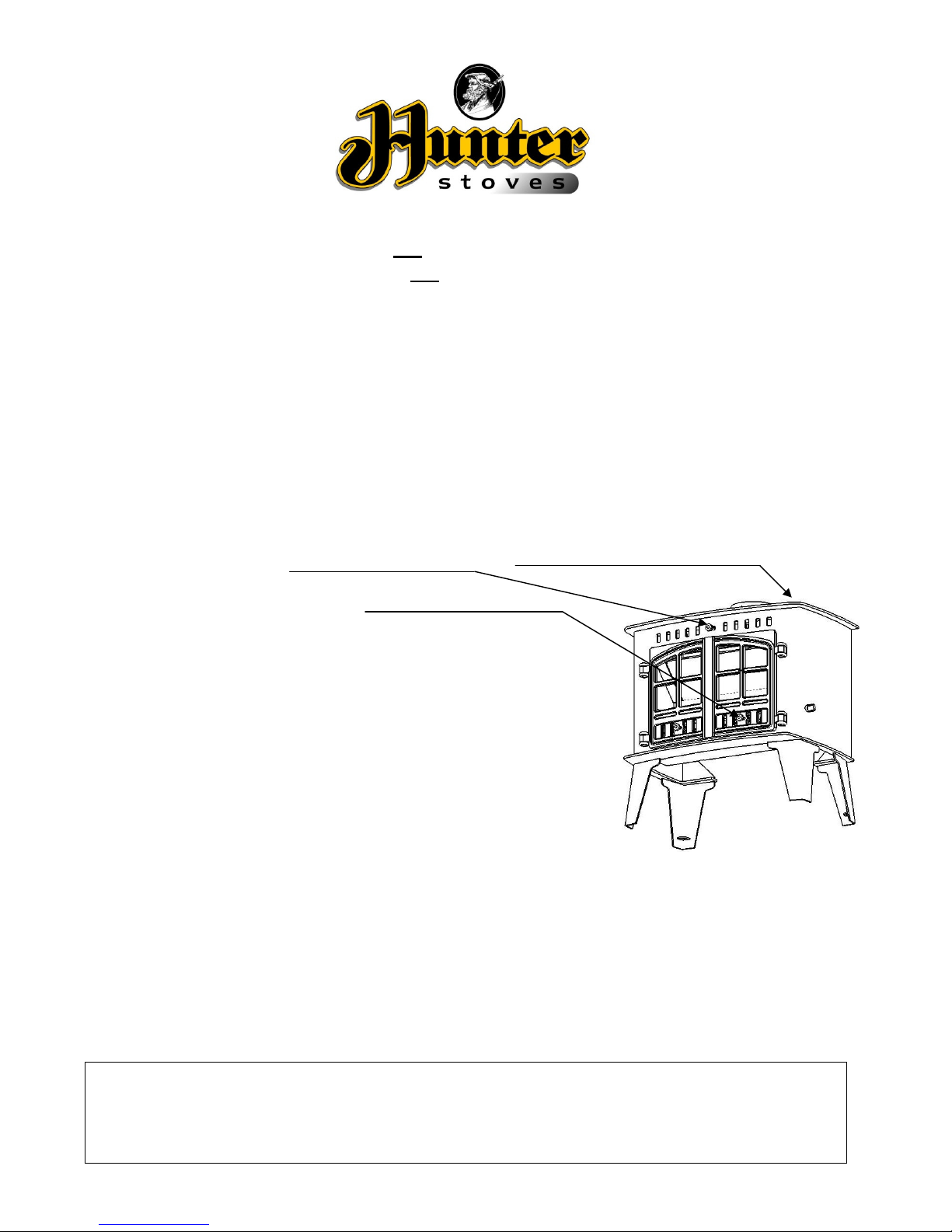

Tertiary Air Control (on Back Plate)
Primary Air Controls
Secondary Air Control

Multifuel Grate
Your Hunter Stove is fitted with a locomotive type grate. So that de-ashing
can be carried out cleanly and easily, it is riddled from the outside of the stove
with the doors closed. The grate is designed to burn both wood and solid
fuels.
To burn solid mineral fuels place the operating tool over the riddling spigot
and pull it down towards you. When left in that position, air is directed under
and up through the slots in the firebed, giving the optimum conditions for
burning solid fuels.
It is important that the riddling tool is used to remove the ash to ensure airflow
through the firebed and allow the fire to burn over the entire area of the grate.
The ashpan should be emptied at least daily and ash should never be allowed
to build up over a period of time as this will result in damage to the fire bars.
The flat end of the riddling tool can be used to carry the ashpan.
To burn wood, push the operating tool up and away from you. When left in this position, air is restricted
through the bed of the fire providing a solid base to build up a bed of ash. Surplus ash can be removed
either by gentle riddling or with a shovel.
It might prove beneficial when burning more reactive fuels to leave the grate in a “neutral” position, thus
directing some under fire air and some over fire air to the firebed.
Notes on solid mineral fuel burning
Solid mineral fuel should be placed in the stove so that there is no more than a 30° incline of the fuel bed
from front to back. It should not be stacked above the level of the rear firebrick as this may result in
damage to the stove.
With a full load of fuel, the stove will need to be refuelled approximately once every 2 hours.
Solid mineral fuel burns most efficiently with the secondary air control in the closed position.
The primary valve lever can then be used to control the burn rate of the stove.
Always de-ash before refuelling and do not let the ash build up to the underside of the grate bars.
Solid mineral fuel produces ash, which if allowed to build up will stifle the airflow through the Primary
air
controls and grate. This will eventually cause the fire to die.
With some solid mineral fuels a residue of burnt fuel or clinker will accumulate on the grate, allow the
fire to go out periodically to remove this.
Important! - We cannot stress firmly enough how important it is to empty the ashpan regularly. Air
passing through the firebed cools the grate bars. Distortion or burning out the grate bars is nearly always
caused by ash being allowed to build up to the underside of the grate.
Notes on Wood burning
With a full load of wood, the stove will need to be refuelled approximately once every 1 hours.
Wood can be stacked higher in the stove than solid mineral fuel but care must be taken that logs do not move the
baffle.Wood burns most efficiently with the primary air controls in a partially open position and the secondary
control fully open. Moving the secondary control will control the burn rate of the stove. Note - primary and
secondary air is needed to light the stove, see section entitled ‘Lighting the Stove’
Wood burns best on a bed of ash and it is therefore only necessary to remove surplus ash from the stove
occasionally.

Burn only dry, well-seasoned wood, which should have been cut, split and stacked for at least 12 months,
with free air movement around the sides of the stack to enable it to dry out. Burning wet or unseasoned
wood will create tar deposits in the stove and chimney and will not produce a satisfactory heat output.
Lighting the Stove
We recommend that you have two or three small fires before you operate your stove to its maximum heat
output. This is to allow the paint to cure in steadily and to give a long service life of the paint finish.
During this curing in process you may notice an unpleasant smell. It is non-toxic, but for your comfort
we would suggest that during this period you leave all doors and windows open.
First, load the fire with starting fuel, i.e. paper, dry sticks and/or firelighters in the mode chosen, either
wood or solid mineral fuel.
Light the fire at the base leaving all air controls open. Allow the fuel to reach a steady glow and build the
fire up gradually. Once you have a good fire established across the grate bed, further fuel can be added as
required.
Extended burning
The stove can be banked up for extended burning. When burning solid fuel, empty the ashpan.
Open air controls and let the fire burn brightly for a short period. Refuel and close primary and secondary
air controls, the exact setting required will depend on the fuel used and the chimney draw so some
practice may be necessary. It may also be necessary to adjust the tertiary air cover plate on the back of
the stove.
To revive the fire, open the air controls until the fire is burning brightly de-ash if necessary and refuel.
Set air controls as required.
Reduced Combustion
In order to reduce the combustion of the fire to a minimum, close the primary air sliders then close the
secondary air slider by moving the handle all the way to the left. If the controls are left in this position,
the fire will receive the minimum of air and will die down. If you want to revive the fire it is
recommended that the primary air control is open first, then open the secondary air slider.
Warning!- The stove will remain hot for a considerable time after the fire has been extinguished.
Recommended Solid Mineral Fuels
Only authorised fuels may be used in UK smoke control areas. A list of authorized fuels can be found at
http://uksmokecontrolareas.co.uk/fuels.php
This stove has been independently tested and approved to burn manufactured and natural smokeless fuels
that appear in the HETAS guide. A current list of approved fuels can be found at
http://hetas.co.uk/public/hetas_guide.html
Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above,
nor does it cover instructions for the use of other fuels.
Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance.
Should any difficulties arise over fuel quality or suitability, consult your local approved coal merchant or:
HETAS Ltd.– Telephone [phone] – www.hetas.co.uk
Solid Fuel Association – Telephone [phone] – www.solidfuel.co.uk

Safety notes for your guidance
FIRES CAN BE DANGEROUS – Always use a fireguard in the presence of children, the elderly or the
infirm. The fireguard should be manufactured in accordance with BS 6539 – Fireguards for use with
solid fuel appliances.
DO NOT OVERFIRE – it is possible to fire the stove beyond its design capacity, this could damage the
stove, so watch for signs of over firing – if any part of the stove starts to glow red, the fire is in an over
fire situation and the controls should be adjusted accordingly. Never leave the stove unattended for long
periods without first adjusting the controls to a safe setting – careful air supply control should be
exercised at all times.
WARNING – FUME EMISSION
Properly installed and operated, this appliance will not emit fumes. Occasional fumes from de-ashing and
refueling may occur. Persistent fume emission must not be tolerated.
If fume emission does persist, then the following immediate action should be taken: -
1. Open doors and windows to ventilate room.
2. Let the fire out, or eject and safely dispose of fuel from the appliance.
3. Check for flue chimney blockage and clean if required.
4. Do not attempt to re-light the fire until the cause has been identified and corrected.
If necessary, seek professional advice.
Important! – Do not fit an extractor fan in the same room as this appliance.
IN THE EVENT OF A CHIMNEY FIRE
•Raise the alarm to let others in the house know.
•Call the Fire Brigade.
•Reduce the appliance-burning rate by closing all air controls.
•Move furniture and rugs away from the fireplace and remove any nearby ornaments.
•Place a fireguard or spark guard in front of the stove.
•Feel the chimneybreast for signs of excessive heat.
If the wall is becoming hot, move the furniture away. Ensure that the Fire Brigade can gain access to
your roof space in order to check this area for signs of fire spread.

GENERAL MAINTENANCE
NO unauthorised modification of this appliance should be carried out.
Baffle
This should be removed and cleaned at least once a month to prevent any build up of soot or fly ash that
could lead to blocked flueways and dangerous fume emission.
If the baffle is removed the chimney/flueway can be swept through the appliance.
Stove Body
The stove is finished with a heat resistant paint and this can be cleaned with a soft brush.
Do not clean whilst the stove is hot; wait until it has cooled down.
The finish can be renovated with Hunter stove paint.
Glass Panels
Clean the glass panels when cool with a Hunter glass cleaner.
Highly abrasive substances should be avoided as these can scratch the glass and make subsequent cleaning
more difficult. Wet logs on heated glass, a badly aimed poker or heavy slamming of the doors could crack
the glass panels. The glass will not fracture from heat.
Firebricks
In normal use, these can last for many years. It is possible however, to crack them if logs are continually
jammed against them or if they are frequently struck with a poker.
Check periodically for seriously cracked bricks, which can be replaced with new; available from your
dealer.
Door Catch
Should the door catch require adjustment, to maintain the door seal, it is adjustable.
Slacken the locking nut, behind the Door Knob, turn the fan catch shaft one turn then re-tighten the locknut.
Rope
Check the rope around the door and glass. If rope is becoming detached, use Hunter Stoves rope glue to
reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from the Hunter
Stoves spares range.

Chimney and Flueways
It is important that the chimney, flueways and any connecting flue pipe are swept regularly. This means
at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle
plate will need to be removed from its supports in order to sweep the chimney (see assembly
instructions).
Only wire-centered sweeps’ brushes fitted with a guide wheel should be used.
If it is not possible to sweep all parts of the chimney through the appliance, ensure there is adequate
access to cleaning doors.
If the stove is fitted in place of an open fire, then the chimney should be swept one month after
installation to clear any soot falls which may have occurred due to the difference in combustion between
the stove and the open fire.
Troubleshooting
Fire will not burn
Check that:
1. The air inlet is not obstructed in any way.
2. Chimneys and flueways are clear.
3. A suitable fuel is being used.
4. There is an adequate air supply into the room.
5. An extractor fan is not fitted in the same room as the stove.
6. Flue draught is above minimum level (see installation instructions).
Fire blazing out of control
Check that:
1. The doors are tightly closed.
2. The air controls are all in the closed position.
3. The Primary air controls are not wedged in the open position.
4. A suitable fuel is being used.
5. The glass retaining clips are not loose.
6. The door rope seals are in good condition
7. Flue draught is below maximum level (see installation instructions).

INGLENOOK SPARES
Only Hunter Stoves authorised spares should be used with this appliance
RIGHT HAND DOOR
LEFT HAND DOOR
Glass Clip (HHR08/046)
Glass Clip Screw (FSJM05008SS )
Door Glass
(HHR08/082)
Glass Gasket
(HHR08/081)
Right Hand Door
(HHR08/084)
Door Slider (HHR08/119)
Slider Knob (HHR08/045)
Door Knob (HCR06/059)
M8 Full Nut (FNFM08)
Catch Shaft (HHR08/111)
Circlip (FLRX07)
M8 Full Nut (FNFM08)
Catch (HMSS04/037)
Door Slider (HHR08/119)
Slider Knob (HHR08/045)
Glass Clip (HHR08/046)
Glass Clip Screw (FSJM05008SS )
Door Glass
(HHR08/082)
Glass Gasket
(HHR08/081)
Left Hand Door
(HHR08/079)

STOVE BODY ASSEMBLY – PART SECTION – MULTIFUEL
Top Air Control
Gasket
(HHR14/071)
Slider Plate
(HHR14/070)
Slider
(HHR14/069)
Deflector
(HHR14/072)
Slider Shaft
(HHR14/073)
Slider Knob
(HHR08/045)
Flue Collar (CH08/030)
Flue Cover (CH08/031)
Side Plates (HIN03/032 A/B)
Side Bricks (HIN03/031)
Recouping Baffle
(HIN03/039)
Turbo Bar
(HHR08/140)
Rear Brick
(HIN03/030)
Riddling Support
(HH04/022)
Riddling Bar – Upper
(HHW05/034)
Riddling Bar – Lower
(HHW05/033) Catch Bar
(HHR08/083)
Cam Bar
(HIN03/011)
Ashpan
(HIN04/036)
