Hunter Stoves Hawk User guide

Revision D 30/08/2012
HAWK
GAS STOVE
Installation and Servicing
Instructions
Please leave this instruction booklet with the user after the installation is
complete Leave the system ready for operation and instruct the user in the
correct use of the appliance and operation of its controls
Please refer to the appliance data plate for the specific model type

2
Contents
TECHNICAL DATA...........................................3
S TOVE D IMENSIONS ................................................................................................ 3
INSTALLING THE APPLIANCE ....................4
P RE - INSTALLATION NOTES ....................................................................................... 4
F LUE A RRANGEMENT .............................................................................................. 6
A DDITIONAL A IR V ENTING (GB O NLY ) ................................................................... 6
O PENING THE S TOVE D OOR ....................................................................................
G AS S UPPLY C ONNECTIONS .....................................................................................
T ESTING S UPPLY P RESSURE ...................................................................................... 8
INSTALLATION OF THE FIRE-BED INTO
THE STOVE .......................................................8
FIRE-BED ARRANGEMENT ............................................................... 9
F ITTING THE C ERAMIC M ATRIX ............................................................................... 9
Section A - Fitting the Loose Ceramic Coals ........................................................... 10
Section B - Fitting the Loose Ceramic Logs ............................................................ 12
F ITTING THE C ANOPY – (O PTIONAL ) ...................................................................... 15
T EST FOR S PILLAGE ............................................................................................... 16
S PILLAGE M ONITORING S YSTEM ............................................................................ 16
SERVICING INSTRUCTIONS ....................... 1
SPARES LIST ................................................................................................ 18
Please read these instructions carefully
It is important that your stove is correctly installed as Hunter
Stoves Limited cannot accept responsibility for any fault
arising through incorrect installation.

3
TECHNICAL DATA
NATURAL GAS
Nominal Gas Pressure 20mBar
Supply Gas Type/Category G20/I
2H
Jet Type/Size 82/260
Heat Input (Gross)
Full
Low
4. kW
3.5kW
Gas Flow Rate (m
3
/h)
Full 0.42 m
3
/h
NO
x
Class 4
Efficiency Class 2
Countries of Destination GB & IE Only
Stove Dimensions
Diagram 1

4
INSTALLING THE APPLIANCE
Pre-installation notes
1 Check the stove data plate to establish the gas type required The data plate can
be found bolted to the inside of the door
Before installation check that the local distribution conditions, nature of the gas
and pressure, and adjustment of the application are compatible
2 This appliance is intended for use on a gas installation with a governed meter
3 A GAS SAFE REGISTERED INSTALLER or equally recognised competent
person must fit the appliance That person is legally responsible for the safe
installation of the appliance with due regard to all relevant local and national
building regulations
4 All outer surfaces of the stove excepting the gas control knob and valve cover
flap are defined as working surfaces
Installation site
5 Any installation area previously used for a solid fuel fire or stove would probably
be deemed suitable for the appliance
6 It should be noted that heat given off from this appliance might affect articles
placed close to it Curtains should not be positioned above the appliance or
within 300mm of the sides Caution should also be taken sighting the appliance
near to ‘embossed’ type wallpapers
7 The appliance must be sited on a non-combustible hearth of minimum 12mm
thickness
8 The hearth should be edged or raised to prevent combustible floor finishes
(e g Carpet) from being laid too close to the appliance
Clearances
9 For the relevant clearance distances for installing the appliance see diagram 2 on
page 5

5
IMPORTANT NOTE! Adequate clearance must be given between the
appliance and the walls so that a satisfactory spillage test can be performed
as detailed on page 16
MINIMUM CLEARANCE DISTANCES TO:
DIMENSION
DESCRIPTION
COMBUSTIBLE
MATERIAL
NON-COMBUSTIBLE
MATERIAL
A
Side of stove to wall 150mm 100mm
B
Top of stove to underside of
opening or shelf
250mm 200mm
C
Rear of stove to wall 150mm 100mm
D
Minimum distance for hearth
to extend in front of stove
50mm 50mm
Diagram 2
Clearance Distances for Diagram 2

6
Flue Arrangement
The GAS SAFE REGISTERED ENGINEER commissioned to install this
appliance is wholly responsible for deciding the suitability of any flue
arrangement to operate in conjunction with this gas appliance.
The chimney or flue system that is to be fitted to the Hawk gas stove must comply with
the current rules in force
(The Hawk gas stove is also suitable for other specific class 2 installation arrangements:
pre-cast flues, ridge-vent flues and pre-cast chimney block and with the relevant
adaption, the appliance will operate in a closure plate type system )
It is suggested to run flue pipe at least 615mm vertically from the unit before there are
any changes in direction of the flue system Wherever possible horizontal runs of the flue
system should be avoided
It is suggested that the flue has a minimum of 3 meters of vertical height Please note for
rear flue appliances it is recommended that the vertical flue run be established as soon as
is practical from the rear flue exit (Caution should be taken locating the exit of the flue
as explained in ‘The Building Regulations - Document J’ )
Before commencing any installation work the installing engineer must check that the flue
is free from all blockages, the chimney should be given a precautionary clean, and finally
the chimney should be smoke tested to ensure soundness Additionally any flue dampers
must be permanently fixed open or removed altogether
The flue collar and flue blanking plate should be fitted to the stove using the supplied
gaskets
Additional Air Venting (GB Only)
The supply gas heat input into the appliance is nominally less that 7kw, therefore under
the directives of the current gas safety and use regulations (1995) No additional air vents
are required in the room the appliance is situated

7
Opening the Stove Door
NOTE! This appliance must never be used with the door open or removed.
Before gaining access to the burner tray, first make sure that the stove is switched off and
is cold Now the cast iron door can be opened, this is secured in place by one fixing bolt
Firstly remove the door handle by turning anticlockwise
Keep turning until the handle is completely removed, as
shown in diagram 3
The door-fixing bolt can then be removed using a
13mm spanner as shown in diagram 4
Gas Supply Connections
The appliance is supplied with an 8mm Bundy pipe and an 8mm compression elbow to
allow easy connection to the mains gas supply This gas supply pipe should incorporate a
gas service isolation tap that is situated within 1 metre of the application
Diagram 5 shows the 8mm Bundy pipe
being fitted to the gas inlet on the valve
The compression joint is tightened with a
14mm open-ended spanner
Diagram 3
Diagram 4
Diagram 5

8
Testing Supply Pressure
ALWAYS CLOSE TEST POINTS AFTER USE!
The gas pressure at the appliance is measured with the
appliance running at full rate (For information on
how to achieve ‘full rate’ read ‘Lighting the main
burner’ in the ‘Operating the Appliance’ section of the
User Instructions)
The test point should be opened with flat bladed screwdriver and
is shown in diagram 6
Burner Gas Pressure should be:
Natural Gas@ 19mBars +/- 0.3mBar
INSTALLATION OF THE FIRE-BED INTO
THE STOVE
IMPORTANT NOTE!!
CERAMIC COALS AND LOGS GET VERY HOT! NEVER ATTEMPT TO
HANDLE HOT COALS OR LOGS WITH BARE HANDS AND NEVER PLACE
HOT COALS OR LOGS ON OR NEAR COMBUSTIBLE SURFACES
NO RESPONSIBILITY FOR ANY INJURY HOWEVER CAUSED WHILST
HANDLING HOT COALS, LOGS OR CERAMICS CAN BE ACCEPTED BY
HUNTER STOVES LTD
Test Point
Diagram 6

9
FIRE-BED ARRANGEMENT
F ITTING THE C ERAMIC M ATRIX
Place the ceramic matrix onto the tray
top, making sure that the cut-outs in
both of the front bottom corners of the
ceramic line up with the corresponding
matrix positioning brackets on the tray
top This is shown in diagram 7
Pull the Ceramic matrix forward so that the
bracket fits into the hole, as described by
diagram 8 Looking from above the matrix,
make sure that the ceramic matrix does not
cover the holes in the tray top
The spacing with the bracket should central,
and even either side If you lift the matrix
slightly the channels underneath should line
up above the vertical slots in the burner
tray
This appliance can be fitted with either ‘coal effect’ or ‘log effect’ ceramics
If you are fitting ‘Coal Effect’ ceramics please follow the instructions set out in ‘Section
A – Fitting the Loose Ceramic Coals’ - Page 10
If you are fitting ‘Log Effect’ ceramics please skip ‘Section A’ and follow the instructions
set out in ‘Section B – Fitting the Loose Ceramic Logs’ - Page 12
Diagram
Matrix Positioning
Bracket
Cut-out in Ceramic
Diagram 8

10
Section A - Fitting the Loose Ceramic Coals
Y OU S HOULD H AVE :
5 x Small Ceramic Coals
4 x Medium Ceramic Coals
2 x Large Diamond Ceramic Coals
The first coals to be placed are the two ‘Diamond’
shaped coals These should be placed in diamond
shaped cut-outs as shown in diagram 9 Make sure
that the coals do not block the flame port holes in
the matrix
The next coals to be placed are four of the
medium coals In a similar fashion to the coals
already placed, these should be positioned around
the flame port holes in the matrix as shown in
diagram 10
Finally the five small coals are
located behind the existing row
of coals, this time to each side of
the rear holes in the matrix so
that they rest on the back of the
matrix As shown in diagram 11
The following page shows some larger pictures for clarity
Diagram 9
Diagram 10
Diagram 11

11

12
Section B - Fitting the Loose Ceramic Logs
Y OU S HOULD H AVE :
1 x Y-Shaped Ceramic Log
1 x Small Branch Log
1 x 152x38 Single Branch
2 x 75x38 Very Small Branch Log
1 x Twig
The first log to be placed is the
small branch log This is placed
around the left-hand front flame
port hole in the matrix The log
should sit comfortably in place
on the matrix as shown in
diagram 12
The second log to be placed is the
large ‘Y-shaped’ log The single end
of this log is positioned to the right
of the second front flame port hole
in the matrix, in the slot provided
The right hand fork at the opposite
end of the log is then located in the
cut-out on the top edge of the back
of the ceramic matrix The left hand
fork should then rest on the edge of
the matrix and the side of the stove
As shown in diagram 13
Diagram 13
Diagram 12

13
The next to be placed is the
single branch log that sits in a
groove to the right of the ‘Y’
shaped log behind the third
flame port hole in the matrix
The top of the log sits in the
cut-out that is located on the
top edge of the back of the
ceramic matrix, as shown in
diagram 14
The fourth log is one of the
very small branch logs and
should be positioned behind
the furthermost right-hand
flame port hole The top of
this should be rested against
the back upright of the
ceramic matrix, making sure
that it is not directly above
the rear flame port hole

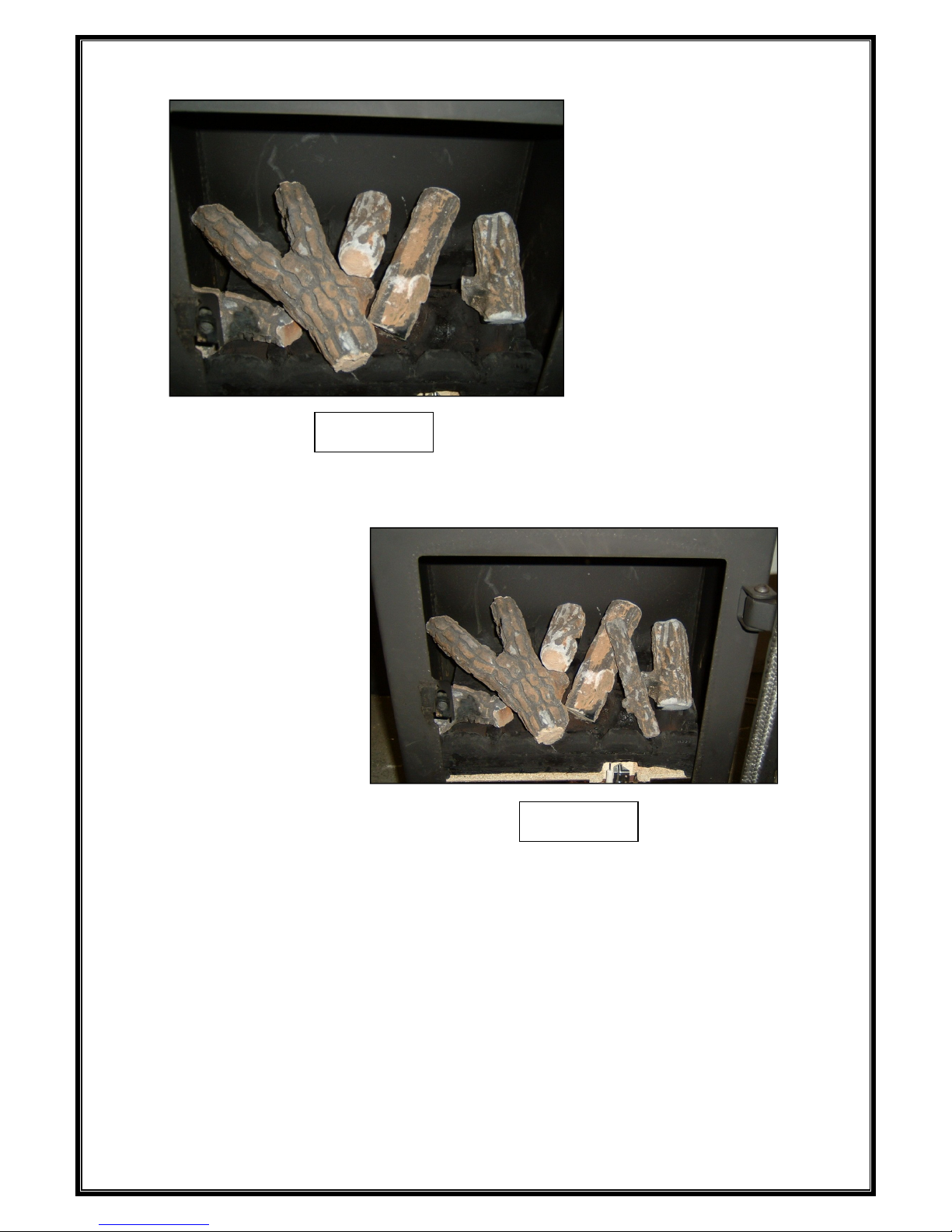

This is shown in diagram 15
Diagram 15
Diagram 14

14
The next log is the second
very small branch log that
sits on the short arm of the
‘Y’ shaped log The top of
this sits in the cut-out on the
rear upright at the back of
the matrix This is shown in
diagram 16
The final log is a thin twig
This locates to the left of
the furthermost right hole
in the matrix, the top
resting on the straight log
to the left of it This and
the complete log picture
are shown in diagram 17
Diagram 16
Diagram 1

15
F ITTING THE C ANOPY – (O PTIONAL )
There is an optional canopy available for the
Hunter Hawk gas stove
The canopy can be simply slid into place on
the top plate of the stove body (Shown in
diagram 18), making sure that the two welded
tabs (located either side of the canopy) fit
under the top plate
The canopy is then secured in place by
tightening the two fixing screws (one located
either side of the canopy) with a flat-bladed
screwdriver, shown in diagram 19
Diagram 18
Diagram 19

16
T EST FOR S PILLAGE
A Spillage test MUST be made before the appliance is left with the customer
Carry out the test by first closing all doors and windows in the room containing the fire
The Ceramic Coal, or Log picture complete, the door sealed and handle replaced
Ensure that the fire is burning at full rate for a minimum of 5 minutes
Using a smoke match – run along the edge of the draught diverter, both sides of the TTB
bracket (located at the rear of the stove), as shown in diagram 20
If most of the smoke is not drawn
into the draught diverter leave for a
further 10 minutes and repeat test
If there is a fan in an adjoining room
the spillage test must be repeated with
the fan running and all connecting
doors between the fire and fan open
If there are still problems the
chimney/flue may require attention
S PILLAGE M ONITORING S YSTEM
The appliance is fitted with a thermostatic switch (TTB) This switch is located in the
draught diverter and shuts off the gas supply should the flue lack sufficient flow to
prevent flue gas spillage The system MUST NOT be adjusted, changed or put out of
action by the installer The TTB MUST NOT be removed or ‘bridged out’ for any
reason and only genuine Hunter Stoves replacements should be used Nuisance shut
down may occur if the stove is not installed in accordance with the clearance distances
set out in page 5
OPERATING THE APPLIANCE
F ULL OPERATING INSTRUCTIONS ARE GIVEN IN THE U SER I NSTRUCTIONS .
Diagram 20

17
SERVICING INSTRUCTIONS
It must be understood that any recommendations made here are in addition to the
standard servicing procedures used by the servicing engineer
1 A GAS SAFE registered fitter using only original Hunter Stoves parts should
carry out servicing
1 Open the stove door as described on Page 7
2 Carefully lift-off the ‘coals/logs’ and remove the ceramic matrix
3 Using a soft brush, clean away any lint or light carbon soot deposits out of the
gas ports on the burner top plate
4 Replace the ceramic matrix and loose ‘coals/logs’ as per the arrangement
instructions (Page 9- Fire-bed Arrangement) using all re-serviceable ‘coals/logs’
and any new replacements
5 Check the gas operating pressure and pipe work for soundness, carry out a
spillage test and check the condition of the flue system
6 If for any reason the TTB switch is removed or replaced during a service, we
recommend wiping the mating surfaces clean and re-applying a thin smear of
150°C Heat Sink Compound to the face of the TTB

18
SPARES LIST
PART DESCRIPTION PART NUMBER
TTB Set
TTB Switch HG06/200
TTB Leads HG06/201
Natural Gas Burner Injector HGH/028
Control Valve HGH/045
Glass Panel (D Type Door) HCR06/058
Glass Panel (Standard Door) HCR06/039
Glass Clip + Screw HHR08/046
Door Rope Kit (D Type Door) SCPHKDRSK
Door Rope Kit (Standard Door) SCPHKRSK
Natural Gas Pilot Assembly HGH/030
Ceramic Spares
Vermiculite – Tray Top HGH/023
Ceramic Matrix – 1 Piece HGH/024
Small Ceramic Coal HG06/044
Medium Ceramic Coal HG06/045
Large Diamond Ceramic Coal HG06/046
Log 1 – ‘Y – Shaped’ Ceramic Log HG06/074
Log 2 – Small branch log HG06/075
Log 5 – 152x38 Single Branch HG06/078
75x38 Very Small Branch Log HGH/029
Log 6 – ‘Twig’ HG06/079
Aspen House, Pynes Hill, Exeter, EX2 5AZ
www hunterstoves co uk
