DOUBLE SIDED MULTIFUEL
AND WOOD STOVES
HAWK 4 & 4D
HERALD 6
HERALD 8
HERALD 14/
CE VII MODELS
Instructions for:
Installation/Operating/Maintenance/Servicing
JINHDDDS REV B 06/06/2019

2
STOVE MODELS
HAWK 4 4/4D DOUBLE SINGLE HAWK 4/4D DOUBLE DOUBLE
CVDSHK04FM/CVDSHK04FW CVDDHK04FM/CVDDHK04FW
CVDSHK04DFM/CVDSHK04DFW CVDDHK04DFM/CVDDHK04DFW
HERALD 6 DOUBLE SINGLE HERALD 6 DOUBLE DOUBLE
CVDSHH06FMN/CVDSHH06FM/CVDSHH06FWN CVDDHH06FMN/CVDDHH06FM/CVDDHH06FWN
CVSDSHH06FW/CVDSHH06LMN/CVSDSHH06LM CVSDDHH06FW/CVDDHH06LMN/CVSDDHH06LM
CVDSHH06LWN/CVSDSHH06LW/CVDSHH06HMN CVDDHH06LWN/CVSDDHH06LW/CVDDHH06HMN
CVSDSHH06HMN/CVDSHH06HWN/CVSDSHH06HW CVSDDHH06HM/CVDDHH06HWN/CVDDHH06HW
HERALD 8 DOUBLE SINGLE HERALD 8 DOUBLE DOUBLE
CVDSHH08FMN/CVDSHH08FM/CVDSHH08FWN CVDDHH08FMN/CVDDHH08FM/CVDDHH08FWN
CVSDSHH08FW/CVDSHH08LMN/CVSDSHH08LM CVSDDHH08FW/CVDDHH08LMN/CVSDDHH08LM
CVDSHH08LWN/CVSDSHH08LW/CVDSHH08HMN CVDDHH08LWN/CVSDDHH08LW/CVDDHH08HMN
CVSDSHH08HMN/CVDSHH08HWN/CVSDSHH08HW CVSDDHH08HM/CVDDHH08HWN/CVDDHH08HW
HERALD 14 DOUBLE SINGLE HERALD 14 DOUBLE DOUBLE
CVDSHH14FMN/CVSDSHH14FM/CVDSHH14FWN CVDDHH14FMN/CVSDDHH14FM/CVDDHH14FWN
CVDSHH14FW/CVDSHH14LMN/CVSDSHH14LM CVDDHH14FW/CVDDHH14LMN/CVSDDHH14LM
CVDSHH14LWN/CVSDSHH14LW/CVDSHH14HMN CVDDHH14LWN/CVSDDHH14LW/CVDDHH14HMN
CVSDSHH14HMN/CVDSHH14HWN/CVSDSHH14HW CVSDDHH14HM/CVDDHH14HWN/CVDDHH14HW

3
CONTENTS INDEX:
STOVE MODELS………………………………………………………………………………………………………. 2
TECHINCAL SPECIFICATION………………………………………………………………………………. 4/5
IMPORTANT INFORMATION…………………………………………………………………………….. 6
SAFETY…………………………………………………………………………………………………………….. 7
REMOVE INTERNAL COMPONENTS………………………………………………………………….. 8/9
APPLIANCE DIMENSIONS…………………………………………………………………………………. 9-11
PRE INSTALLATION REQUIRMENTS………………………………………………………………….. 12
LEGAL REQUIREMENTS……………………………………………………………………………………. 13
CLEARANCES……………………………………………………………………………………………………. 14
COMMISSIONING AND HANDOVER…………………………………………………………………. 14/15
OPERATING INSTRUCTIONS…………………………………………………………………………….. 15-18
MAINTENANCE &SERVICING………………………………………………………………………….. 19/20
TROUBLESHOOTING……………………………………………………………………………………….. 21/22
OPTIONAL EXTRAS…………………………………………………………………………………………. 23
SPARES……………………………………………………………………………………………………………. 23-31
INSTALLATION &COMMISSIONING CHECK LIST………………………………………………. 32
SERVICE RECORDS…………………………………………………………………………………………… 33
FULL WARRANTY INFORMATION…………………………………………………………………….. 34-35
Welcome to the Hunter Stoves family and thank you for purchasing a Herald
stove. This stove was designed and built to be a high-performance heating
appliance, and we hope it will bring you great enjoyment. The natural
environment is important to us, so our stoves are manufactured to provide
you with a clean and efficient burn that will keep you warm through cold
winter nights.

4
Technical Specification
GENERAL
Hawk 4/4D
Double Single
Hawk 4/4D
Double Double
Herald 6 Double
Single
Herald 6
Double
Double
Energy Efficiency
Class
Nominal Heat Output
Wood
6.0kW
10.6kW
6.5kW
10.5kW
Nominal Heat Output
Ancit
5.1kW
NA
NA
NA
Energy Efficiency
96
100
99
96
Efficiency
Wood
72.7%
75.4%
75.8%
76%
Efficiency
Ancit
68.8%
NA
NA
NA
Mean CO (@13% O₂)
Wood
0.46%
0.64%
0.32%
0.27%
Mean CO (@13% O₂)
Ancit
0.61%
NA
NA
NA
Appliance Mass
90kg
132kg
145kg
170kg
Recommended Fuels
Wood
Seasoned Wood (less than 20% moisture content)
Smokeless
Fuel
Anthracite or a manufactured briquette smokeless fuel which is suitable
for closed door appliances.
Log Length
280mm
280mm
380mm
380mm
FLUES
Mean Flue Gas
Temperature
Wood
344°C
357°C
268˚C
265˚C
Mean Flue Gas
Temperature
Ancit
NA
NA
NA
NA
Flue Gas Mass Flow
Wood
5.3 g/s
6.6 g/s
5.0 g/s
5.7 g/s
Flue Gas Mass Flow
Ancit
NA
NA
NA
NA
Flue Outlet Size (Top or Rear
Option)
125mm
125mm
150mm
150mm
VENTILATION
-Where leakage is greater than
5m³/hour/m²
-Ventilation normally required
= 550mm² per kW output over
5kW
550mm²
3080mm²
825mm²
3025mm²
-Where leakage is less than or
equal to 5m³/hour/m²
-Ventilation normally required
= 550mm² per kW output over
5kW
3300 mm²
5830mm²
3575mm²
5775mm²
For further information on ventilation please refer to Building Regulations Document J or your installer.

5
Technical Specification
GENERAL
Herald 8
Double Single
Herald 8
Double Double
Herald 14
Double Single
Herald 14
Double Double
Energy Efficiency
Class
Nominal Heat Output
Wood
8.9kW
11.5kW
12.5kW
17.8kW
Nominal Heat Output
Ancit
7.6kW
NA
13.3kW
NA
Energy Efficiency
99
106
99
106
Efficiency
Wood
74.3%
79%
75.7%
71.1%
Efficiency
Ancit
66.6%
NA
66.9%
NA
Mean CO (@13% O₂)
Wood
0.70%
0.36%
0.44%
0.35%
Mean CO (@13% O₂)
Ancit
0.44%
NA
0.22%
NA
Appliance Mass
160kg
230kg
165kg
270kg
Recommended Fuels
Wood
Seasoned Wood (less than 20% moisture content)
Smokeless
Fuel
Anthracite or a manufactured briquette smokeless fuel which is suitable
for closed door appliances.
Log Length
500mm
500mm
500mm
500mm
FLUES
Mean Flue Gas
Temperature
Wood
341°C
309°C
344˚C
443˚C
Mean Flue Gas
Temperature
Ancit
317˚C
NA
379˚C
NA
Flue Gas Mass Flow
Wood
6.2 g/s
7.5 g/s
8.3 g/s
12.5 g/s
Flue Gas Mass Flow
Ancit
10.4 g/s
NA
15.1 g/s
NA
Flue Outlet Size (Top or Rear
Option)
150mm
150mm
150mm
150mm
VENTILATION
-Where leakage is greater than
5m³/hour/m²
-Ventilation normally required
= 550mm² per kW output over
5kW
2145mm²
3520mm²
3630mm²
7040mm²
-Where leakage is less than or
equal to 5m³/hour/m²
-Ventilation normally required
= 550mm² per kW output over
5kW
4895 mm²
6720mm²
7315mm²
9790mm²
For further information on ventilation please refer to Building Regulations Document J or your installer.

6
General Guidance
It is important that your stove is correctly installed and operated as Hunter Stoves Group cannot accept
responsibility for any fault arising through incorrect installation, use, maintenance or servicing.
These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may
need slight modification to suit particular local site conditions.
The installation must comply with current Building Regulations, National and European Standards, Local Authority
Byelaws and other specifications or regulations as they affect the installation of the appliance. The Building
Regulations requirements may also be met by adopting the relevant recommendations in the current issues of
British Standards BS 8303 and BS EN 15287-1.
Only use approved fuels on this appliance. Information about this can be found on Page 18.
This is a Domestic Appliance and must only be used in accordance with these instructions. Do not place articles that
are affected by high temperatures on, or near, this appliance. Do not place furniture or other items within 1 metre
of the front of this appliance. See the note on material clearances on pages 14.
Fitting a stove in a room which also contains an extractor fan and/or cooker hood should be avoided where
possible. If this is unavoidable, the suitability of the space for fitting this appliance must be decided at the discretion
of a qualified installer, and a flue draught interference test must be performed.
Do not obstruct the ventilation required for the safe use of this appliance.
Competent Persons Scheme
Hunter Stoves Group recommend that this stove is installed by a member of an accredited competent persons
scheme e.g. HETAS.
If the installer is not a member of a competent person’s scheme, it is a legal requirement, in the UK, to notify your
Local Building Control Officer in advance of any installation work starting.
Health and Safety Precautions
Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work
Act are met.
Handling
This appliance is very heavy. Adequate facilities must be available for loading, unloading and site handling.
Fire Cement
Some types of fire cement are caustic and should not be allowed to come into contact with the skin. In case of
contact, wash immediately with plenty of water.
Asbestos
This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of installation, then
please seek specialist guidance and use appropriate protective equipment.
Metal Parts
When installing or servicing this stove, care should be taken to avoid the possibility of personal injury.
Modification
No unauthorised modification of this appliance should be carried out.
PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND OPERATION. KEEP THESE
INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE AND SERVICING.
THIS APPLIANCE WILL BECOME VERY HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS,
HUNTER STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY
OR INFIRM FROM HARM.
THE INSTALLER COMMISSIONING SHEET CAN BE FOUND ON THE BACK COVER. PLEASE ENSURE THAT IT IS
COMPLETED PRIOR TO USE.

7
Safety
WARNING –This appliance will be hot when in operation and due care should be taken. The supplied operating tool
or glove may be used to open the door and operate the air controls.
Aerosols
Do not use an aerosol spray on or near the stove when it is alight.
Fireguards
Always use a fireguard in the presence of children, the elderly or the infirm. The fireguard should be manufactured in
accordance with BS8423 –Fireguards for use with solid fuel appliances.
Do Not Over-Fire
It is possible to fire the stove beyond its design capacity. This could damage the stove so watch for signs of over-
firing. If any part of the stove starts to glow red, the stove is in an over-fire situation and the controls should be
adjusted accordingly.
Never leave the stove unattended for long periods without first adjusting the controls to a safe setting.
Careful air supply control should be exercised at all times.
Fume Emission
Properly installed, operated, this appliance will not emit fumes. Occasional fumes from de-ashing and refuelling may
occur. Persistent fume emission must not be tolerated.
This appliance should not be operated with the door open.
If fume emission persists, then the following immediate action should be taken: -
➢Open doors and windows to ventilate the room.
➢Let the fire go out, or eject and safely dispose of fuel from the appliance.
➢Check for flue/chimney blockage and clean if required.
➢Do not attempt to re-light the fire until the cause of the fume emission has been identified and corrected.
If necessary, seek expert advice.
Adverse Weather
In a small number of installations, occasional local weather conditions (e.g. wind from a particular direction) may
cause downdraught in the flue and cause the stove to emit fumes. In these circumstances, the stove should not be
used. A professional flue installer will be able to advice on solutions to this problem (e.g. anti-downdraught cowl).
Carbon Monoxide Detector
Hunter Stoves recommend a Carbon Monoxide Detector that conforms to the latest issue of BS EN 50292 is placed
in the same room as the appliance. The installation of such an alarm is not considered as a substitute for regular
maintenance or servicing or the appliance and Flue system.
IN THE EVENT OF A CHIMNEY FIRE:
➢Raise the alarm
➢Call the Fire Brigade
➢Close appliance air controls
➢Move furniture, ornaments etc. away
➢Place a fireguard in front of stove
➢Check the chimney breast for signs of excessive heat.
If the wall is becoming excessively hot, move furniture away. Ensure the Fire Brigade can gain access to your roof
space in order to check for fire spread.

8
Removing Internal Components
All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow
access to fixings and the flue outlet; as well as protect the internal components from damage during the installation
process.
1. Open the door and remove the ashpan.
2. Remove the grate bars by lifting the front up off the cam bar and sliding forward off the rear grate support
and lift out of the firebox.
3. Remove the cam bar by lifting the left-hand end of it upwards until it clears the side casting. Pull the left-
hand end towards the front of the stove and then slide all the way out. Take care not to lose the cam hole
plate.
4. Remove the catch bar by lifting upwards and pulling forwards out of the stove body.
Side Plates
Side Bricks
Turbo Bar
Baffle/Throat Plate
Remove the location pins
from the Turbo Bar. Slide
it to the left. Once clear
of the RH turbo duct pull
it towards you and out of
the LH turbo duct.
Lift the Baffle and slide to
the right. When the left side
of the Baffle clears the Baffle
Support, lower the Baffle
into the Fire Box and
remove.
Slide the base of the
Side Brick towards the
centre of the stove and
remove.
Slide the base of the
Side Plate towards the
centre of the stove and
remove.

9
STOVE ASSEMBLY
Flue Collar
RE-ASSEMBLING THE STOVE
Refit all the internal parts by following the ‘removing internal component’ instructions in reverse order.

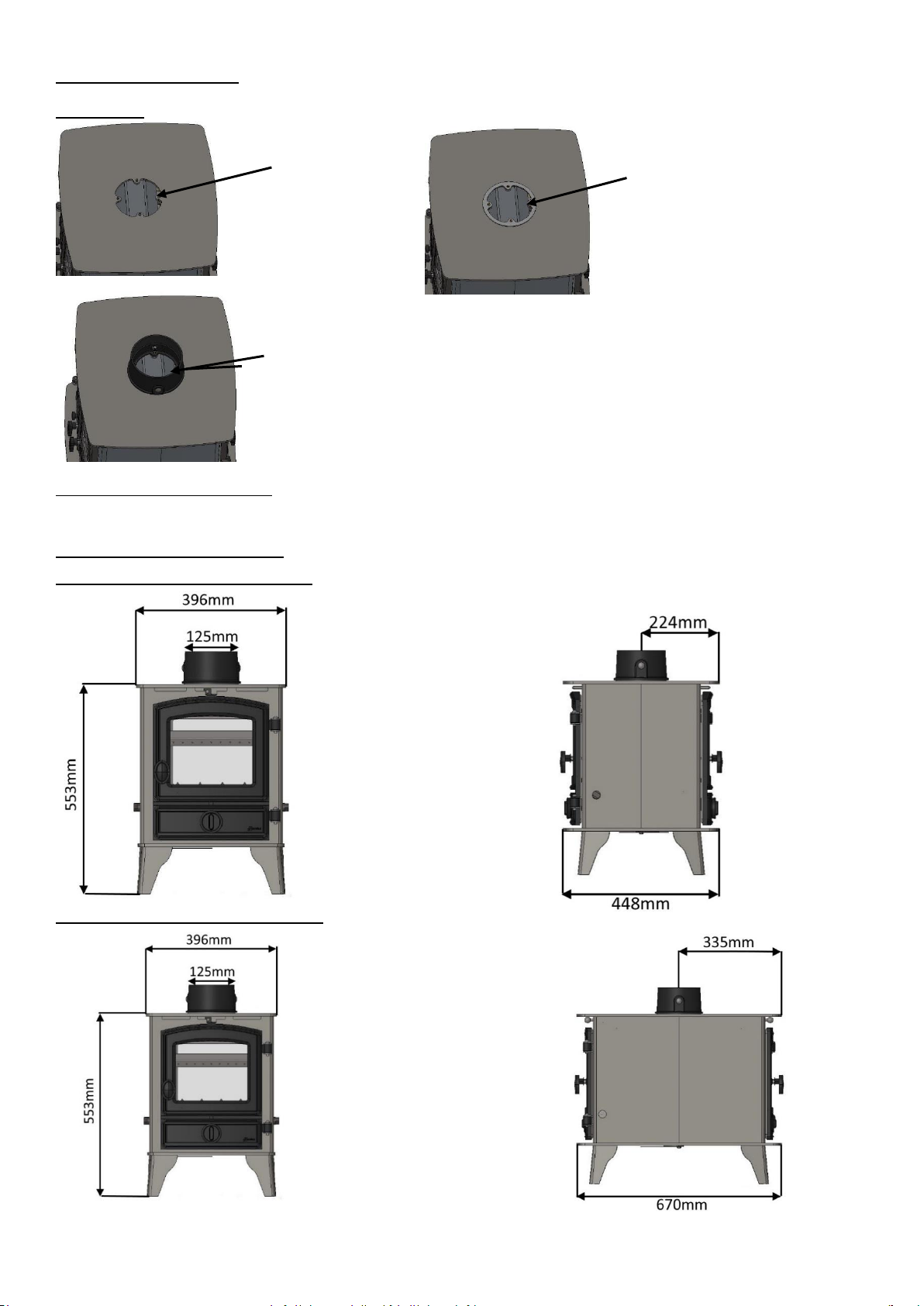

Appliance Dimensions
HAWK 4/4D DOUBLE SINGLE
HAWK 4/4D DOUBLE DOUBLE
Place the bolts downwards
through the fixing holes (head
side upwards). Then tighten
by using supplied nuts from
inside stove.
Place the flue collar
gaskets on the outlet.
Top outlet

10
HERALD 6 DOUBLE SINGLE
HERALD 6 DOUBLE DOUBLE
HERALD 8 DOUBLE SINGLE

11
HERALD 8 DOUBLE DOUBLE
HERALD 14 DOUBLE SINGLE
HERALD 14 DOUBLE DOUBLE

12
Pre-Installation Requirements
PLEASE CHECK THE FOLLOWING:
Any existing chimney/flue system must be confirmed as suitable for this appliance as defined in Building Regulations
Document J. It must be swept and inspected, by a competent person (see notes), to confirm that is structurally
sound and free from cracks and obstructions.
The diameter of the Flue should not be less than Ø125mm (Hawk 4) and Ø150mm (Herald 6, 8 and 14) and not more
than Ø200mm. Do not connect to systems that have large voids or spaces. If any of these requirements are not met,
the chimney should be lined by a suitable method.
If the chimney is suspected of previously serving an open fire it must be swept again, within a month of regular use,
to clear any soot that may have been dislodged due to the variation in combustion levels and higher flue gas
temperature levels. The chimney/flue system exit must comply with Building Regulations Document J. The minimum
height and should terminate in accordance with Table 1.
Connection to the Chimney
An existing fireplace opening can be bricked up or sealed with a register plate. A short length of flue pipe of
minimum 125mm (Hawk 4/4D) or 150mm (Herald 6, 8/14) internal diameter may then be used to connect the stove
to the chimney. This flue pipe should be made of 316 grade stainless steel or vitreous enamelled steel, nominal
thickness 1.2mm. Ensure that the pipe end is no closer than 76mm to the chimney walls. The length of any
horizontal run of flue pipe must not exceed 125mm (Hawk 4/4D) or 150mm (Herald 6, 8/14). It is essential that all
connections between the stove and chimney-flue are sealed and made airtight.
Make provision to access the chimney/flue system for cleaning and the removal of debris. If there is no existing
chimney then either a prefabricated block chimney in accordance with Building Regulations Approved Document J,
or a twin-walled insulated stainless-steel flue to BS4543 can be used. These chimneys must be fitted in accordance
with the manufacturer’s instructions and Building Regulations. New masonry and flue block chimneys must meet the
requirements of Building Regulations Document J. Any connecting flue pipe systems must also meet these
regulations.
Please check the suitability of the fireplace and/or surround for use with this appliance before installing it. If you
have any doubts about the suitability of your chimney, consult your local Dealer/Stockist or Installation Engineer.
Both the chimney and flue pipe must be accessible for cleaning and if ANY part of the chimney cannot be reached
through the stove (with baffle removed), a soot door must be fitted in a suitable position.
FLUE OUTLET POSITIONS (DOCUMENT J):
A full copy of Document J can be found here:
http://www.planningportal.gov.uk/uploads/br/BR_PD
F_ADJ_2010.pdf
Table 1.
Position on Roof
Clearances to flue exit
A
At or within
600mm of the ridge
At least 600mm
above the ridge
B
Elsewhere on a roof
(Pitched or Flat)
At least 2.3 M horizontally from the
nearest point on the weather
surface and:
a) At least 1.0 M above the highest
point of intersection between the
chimney and weather surface; or
b) at least as high as the ridge
C
Below (on a pitched
roof) or within 2.3 M
horizontally to an
opening window or
dormer
At least 1.0 M above the top of the
opening
D
Within 2.3 M of an
adjoining or adjacent
building, whether or
not beyond the
boundary
At least 600mm above any part of
the adjacent building within 2.3 M

13
Legal Requirements
Hunter Stoves Group requests that before installation and/or use of this appliance that you read these instructions
carefully to ensure that all the relevant requirements are fully understood.
These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may
need slight modification to suit particular local site conditions. In all cases the installation must comply with current
Building Regulations, Local Authority Byelaws, European and National Standards and other specifications or
regulations as they affect the installation of the stove.
It should be noted that the Building Regulations requirements may be met by adopting the relevant
recommendations given in British Standards BS 8303, BS 6461 and BS 7566 as an alternative means to achieve an
equivalent level of performance to that obtained following the guidance given in Approved Document J.
Your local Building Control Officer can advise you regarding the interpretation of the Regulations should there be any
questions.
This appliance must be installed by a Registered Installer (see Competent Persons Scheme) or approved by your local
Building Control Officer.
All works undertaken must be carried out with due care and attention to meet the requirements of the Health &
Safety code of practice and any other legislation that may have been introduced since the publication of these
instructions.
Competent Persons Scheme
Members of the following schemes may self-certify the installation of this stove. If the installer is not a member of
one of these schemes, your local Building Control Department must approve the installation.
Scheme
Web address
Telephone
APHC (Association of Plumbing and Heating
Contractors (Certification) Limited
www.aphc.co.uk
02476 470 626
Building Engineering Services Competence
Accreditation (BESCA Limited)
www.hvca.org.uk / www.besca.org.uk
0800 652 5533
HETAS Ltd (Heating Equipment Testing and
Approval Scheme)
www.hetas.co.uk
01462 634721
NAPIT Registration Ltd
www.napit.org.uk
0870 444 1392
NICEIC Group Ltd
www.niceic.org.uk
0800 013 0900
Air Supply
The room or space containing this appliance does not need a permanent, unobstructed air opening (Hawk 4/4D).
The following stoves need a permanent, unobstructed air opening of –
Herald 6 Double Single –110mm²
Herald 6 Double Double –3520mm²
Herald 8 Double Single –2145mm²
Herald 8 Double Double –3520mm²
Herald 14 Double Single –3630mm²
Herald 14 Double Double –7040mm²
If a draught stabiliser is fitted, the air opening should be at least –
Hawk 4/4D Double Single - 2350mm²
Hawk 4/4D Double Double - 6260mm²
Herald 6 Double Single –2775mm²
Herald 6 Double Double –6175mm²
Herald 8 Double Single –4315mm²
Herald 8 Double Double –6940mm²
Herald 14 Double Single –7110mm²
Herald 14 Double Double –12380mm²
Due consideration should be given to air requirements for any other appliance in the same room or space.
Any air opening must be kept clear from blockage or obstruction.

14
Hearth/ Material Clearances
Hearth constructions must comply with the current building regulations.
Your stove must be installed on a floor with adequate load-bearing capacity, otherwise suitable measures should be
taken.
If the existing construction does not meet this pre-requisite, suitable measures (e.g. load distributing plate).
Care should be taken to level the stove using the adjusting screws in the feet.
Material Clearances
Note: combustible material refers to any material that will degrade when subjected to heat e.g. plaster.
No combustible material must be stored underneath the stove.
Fireplace Recess (All)
Commissioning And Handover
Appliance Check
Please check that all components are correctly assembled and working correctly.
Ensure the Air Controls are working correctly.
Hunter Stoves Group recommend that you carry out a smoke draw test to check the soundness of the chimney/flue
system and seals:
Place a Smoke Pellet in the centre of the Grate, ensure that all of the Air Controls are fully open and close the Door.
The smoke should now be drawn up the chimney and you should be able to see it exit from the chimney/flue
terminal.
We recommend that you do this test with all of the windows and doors, to the room where the appliance is fitted,
closed.
If there any adjoining room(s) that have an Extractor Fan fitted, open the adjoining door to ensure that the
chimney/flue system is not compromised when the fan is operating. If there is a ceiling fan fitted in the room, please
operate it and ensure that it does not affect the operation of the chimney/flue system.
If any of these tests fail, please re-check the suitability of the chimney/flue system together with the ventilation.
Minimum Distances to
Combustible Material
Hawk 4
Double
Single
Hawk 4
Double
Double
Herald 6
Double
Single
Herald 6
Double
Double
Herald 8
Double
Single
Herald 8
Double
Double
Herald 14
Double
Single
Herald 14
Double
Double
At the side of the stove
450mm
900mm
900mm
850mm
500mm
400mm
700mm
500mm
In front of the stove
900mm
900mm
900mm
900mm
900mm
900mm
900mm
900mm

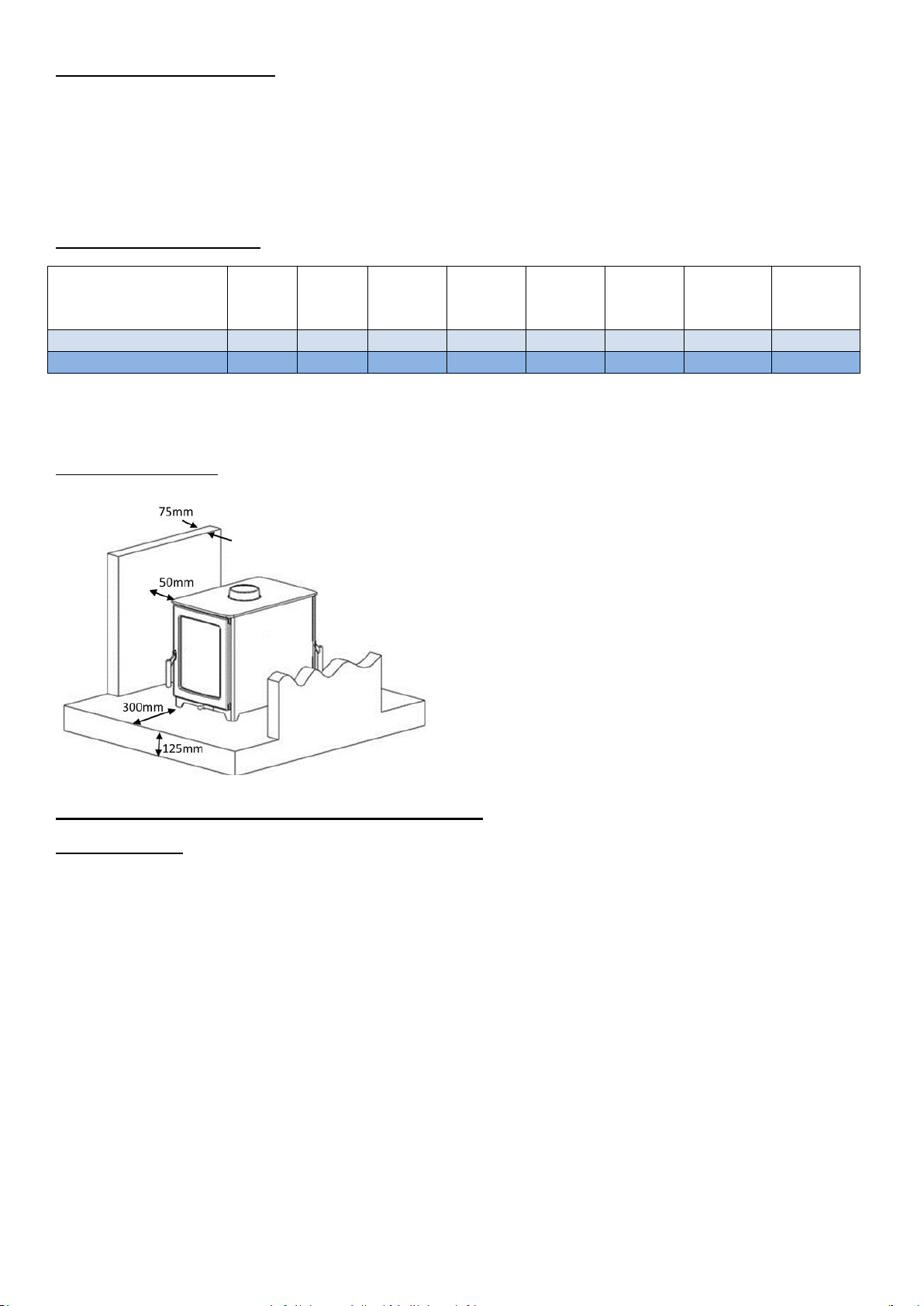

The stove can be recessed in a suitable sized fireplace but a
permanent free air gap of at least 150mm on top and
50mm at the sides (although we recommend 150mm for
the sides of the stove to obtain maximum heat output and
for access to the rear of the stove.)
The hearth should extend at least 300 mm from the front
of the stove. The stove should stand wholly above a solid,
non-combustible hearth, at least 125 mm thick (this may
include the thickness of a solid floor and a non-combustible
decorative hearth).

15
A small fire can now be lit and allow the appliance to heat up slowly ensuring that no products of combustion enter
into the room.
Carry out a spillage test using a smoke match around the door opening. If there is excessive spillage, please allow
the appliance to cool and then re-check the chimney/flue system and ventilation.
Do not run the stove at full output for at least 24 hours.
Upon completion, allow a suitable period of time for any fire cement and mortar to dry out. Please instruct the user
on the safe operation of this appliance, how the controls work and basic maintenance requirements.
Ensure that the operating instructions and appliance tools are left with the customer and the check lists have been
filled out correctly.
Please advise the customer on the correct use of the appliance with the fuels likely to be used on the stove and warn
them to use only the recommended fuels for the stove.
Advise the user on what to do should smoke or fumes be emitted from the stove.
The user should be warned to use a fireguard to BS 8423 in the presence of children, aged and/or infirm persons.
Hunter Stoves Group also recommend that a CO alarm is fitted into the room where the appliance is located.
Flue Draught
If the draught exceeds the recommended maximum, a draught stabiliser must be fitted so that the rate of burning
can be controlled and to prevent over firing.
If the reading is less than the recommended minimum, then the performance of the appliance will be compromised.
The flue draught should be checked under fire at high output with windows and doors closed. To take the reading
remove one of the coach bolts in the flue collar and put the probe in the hole.
Minimum Draught –1.2mm Water Gauge
Maximum Draught –2.5mm Water Gauge
Operating Instructions
Read the ‘General Guidance’ Section at the start of these instructions before operating your stove for the first
time.
Allow sufficient clearance between the stove and pictures, plasma screen televisions or ornaments etc., as these
could be damaged and could potentially create a fire hazard (For more information read the ‘Material Clearance’
section of these installation instructions).
WARNING –This appliance will be hot when in operation and due care should be taken. The supplied operating
tool or gloves may be used to open the door and operate the air controls.
Please Note
Your Building Insurance Company may require you to inform them of this new installation and that the work has
been carried out correctly. Please check your policy to ensure that it is still valid when this installation is complete.
Using The Appliance For The First Time
When being heated up for the first time, smells and fumes are often produced. This is a normal chemical process
that allows the specialist heat resistant paint to cure and harden.
SAFETY ADVICE
During the first operation it is highly likely that fumes and smells maybe produced as part of the
normal heat resistant paint curing process, much like a domestic oven. Therefore, good ventilation
during this process is of utmost importance. We recommend that pregnant women, allergic
persons and small children as well as domestic animals, especially birds, should not unnecessarily
stay in subjected areas.

16
Please arrange for good ventilation of the room. Open windows and doors and if necessary, use a ventilator for fast
interchange of air. Heat up to operation temperature for at least one hour. If maximum temperature is not
achieved after heating up, release of odour may appear later.
Aerosols
Do not use an aerosol spray on or near the stove when it is alight.
Air Control
This stove has been designed to burn far more efficiently than a traditional stove if used correctly, with the obvious
notable feature of CLEAN GLASS.
It is essential that the stove has an adequate air supply for combustion and ventilation.
The primary and secondary air inlets must be kept clear from obstruction and blockage.

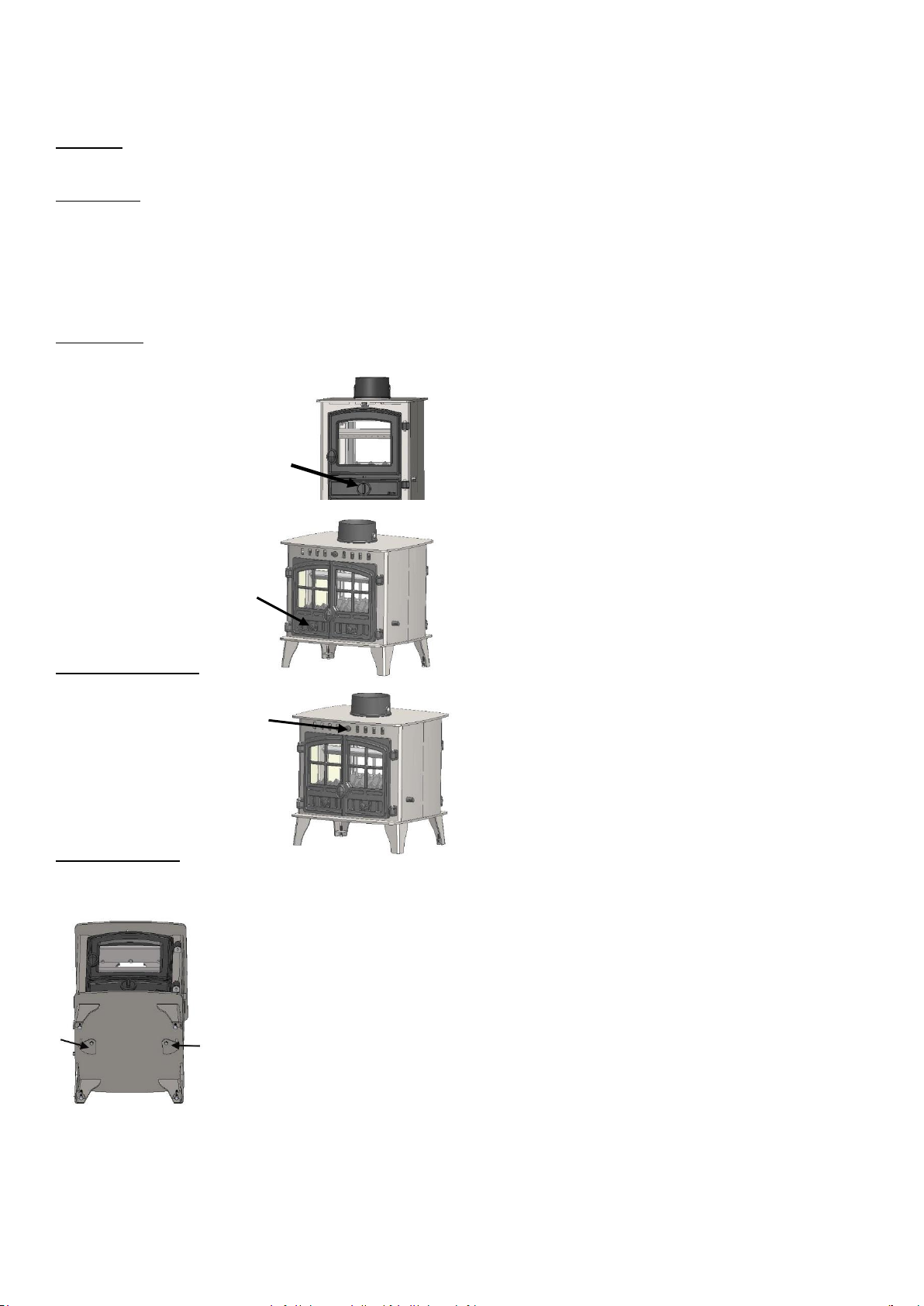

Primary Air
This provides a conventional air draught to the bed of the fire.
Hawk 4/4D only.
Primary air is controlled
via the spinner in the door.
Turn the spinner to the right
to open and to the left to close.
Herald 6/8/14
Primary air is controlled
via the slider(s) in the door(s).
To increase air, move the slider
to the right. This provides a
conventional air draught to
the bed of the fire.
Secondary Air (All)
Secondary air is controlled via
the slider above the door(s);
it is this “Airwash” that keeps
a clean and uninterrupted view
of the fire. The amount of air
can be increased by moving the
slider to the right.
Tertiary Air (All)
Tertiary air aids in good secondary combustion of the fuel and reducing emissions into the chimney and
environment.
Tertiary air can be controlled by adjusting the cover plates on the base of the stove.
Warning! –This Appliance will be hot when in operation and due care should be taken.
We advise that suitable gloves are used when operating the air control, and when opening the door.

17
Lighting the Stove
To light the stove, open the primary and secondary air controls fully.
Light one or two firelighters placed centrally on the grate, allowing the flames to become established before placing
several pieces of small dry kindling in a criss-cross fashion above the firelighters, taking care not to smother the fire.
Close the stove door. Once the kindling is well alight open the door and build the fire by gradually adding slightly
larger pieces of wood, closing the door afterwards.
Once you have a good fire established across the grate bed, further fuel can be added as required and the air
controls set to the correct position.
Should the fire fail to light correctly open the door and use a poker to spread the fuel across the grate. Close the
door and allow the fuel and stove to cool before attempting to relight the fire.
N.B. Leaving the air controls in the closed position, adding too much fuel or using wood that is wet or too large will
prevent the fire from establishing correctly and may result in smoke emission from the stove.

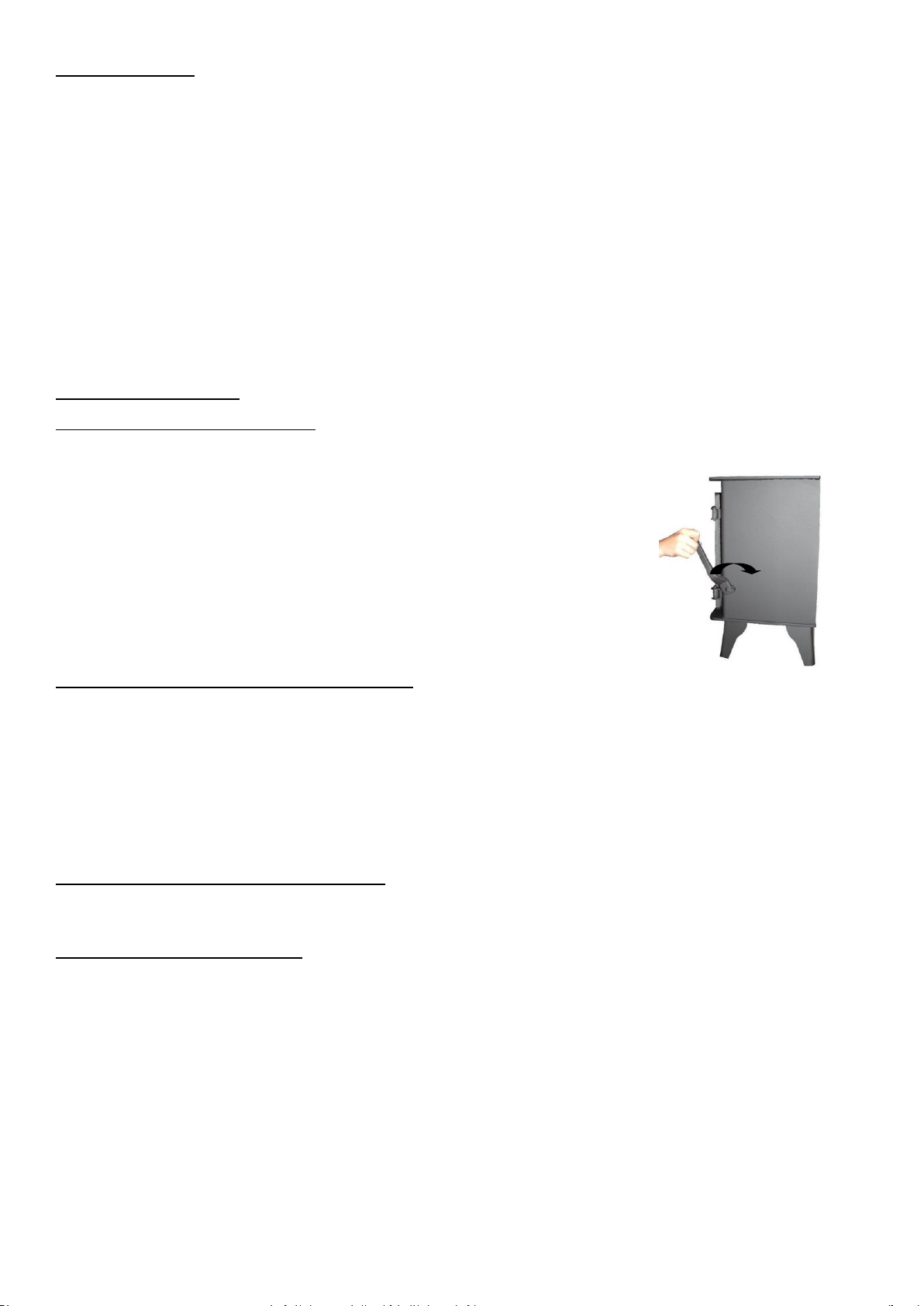

Locomotive Grate
Grate Operation & Burning Wood
Your stoves are fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is
riddled from the outside of the stove with the doors closed.
To burn wood, push the operating tool up and away from you.
When left in this position, air is restricted through the bed of the fire providing a
solid base to build up a bed of ash.
Surplus ash can be removed either by gentle riddling or with a shovel.
It might prove beneficial when burning more reactive fuels to leave the grate in a
“neutral” position, thus directing some under fire air and some over fire air to the
fire bed.
Grate Operation & Burnint Solid Mineral Fuels
To burn solid mineral fuels, place the operating tool over the riddling spigot and pull it towards you. When left in
that position, air is directed under and up through the slots in the firebed, giving the optimum conditions for burning
solid fuels.
It is important that the riddling tool is used to remove the ash to ensure airflow through the fire bed and allow the
fire to burn over the entire area of the grate. The ashpan should be emptied at least daily and ash should never be
allowed to build up over a period of time as this will result in damage to the fire bars. The flat end of the riddling tool
can be used to carry the ashpan.
Loading The Appliance (Solid Mineral Fuel)
It should not be stacked close to the turbo bar as this may result in damage to the bar. With a full load of fuel, the
stove will need to be refuelled approximately once every 2 hours.
Air Controls (Solid Mineral Fuel)
Solid mineral fuel burns most efficiently with the secondary air control in the closed position. The primary valve
lever can then be used to control the burn rate of the stove. Always de-ash before refuelling and do not let the ash
build up to the underside of the grate bars. Solid mineral fuel produces ash, which if allowed to build up will stifle
the airflow through the Primary air valve cavity and grate. This will eventually cause the fire to die. With some solid
mineral fuels, a residue of burnt fuel or clinker will accumulate on the grate, allow the fire to go out periodically to
remove this.
IMPORTANT!
We cannot stress firmly enough how important it is to empty the ashpan regularly. Air passing through the fire bed
cools the grate bars. Distortion or burning out the grate bars is nearly always caused by ash being allowed to build up
to the underside of the grate.

18
Extended Burning (Solid Mineral Fuel)
The stove can be banked up for extended burning. When burning solid fuel, empty the ashpan. Open air controls and
let the fire burn brightly for a short period. Refuel and close both air controls, the exact setting required will depend
on the fuel used and the chimney draw so some practice may be necessary.
To revive the fire, open the air controls until the fire is burning brightly de-ash if necessary and refuel. Set air
controls as required.
Never leave the stove unattended until you are certain that the flames are fully established.
Should the fire fail to light correctly open the door and use a poker to spread the fuel across the bottom of the
firebox. Close the door and allow the fuel and stove to cool before attempting to relight the fire.
Notes on Woodburning
With a full load of wood, the stove will need to be refuelled approximately once every hour. Wood can be stacked in
the stove, but care must be taken that logs do not touch the baffle. Overloading the stove can cause excess smoke
to be emitted. Wood burns most efficiently with the secondary air valve lever in the open position and the primary
control closed. Moving the secondary control will control the burn rate of the stove.
Note - primary and secondary air is needed to light the stove, see section entitled ‘Lighting the Stove’
Wood burns most efficiently on a bed of ash and it is therefore only necessary to remove surplus ash from the stove
occasionally.
If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur.
Refuelling must be carried out with a sufficient quantity of glowing embers and ash, so that the new fuel charge will
ignite quickly. If there are too few
embers, add some kindling to prevent excessive smoke.
Maximum Log Length: See Technical Data
Ensure your logs are well seasoned with a moisture content of less than 20%
Reduced Combustion
In order to shut down the stove, close the primary control, then close the secondary air slider by moving the handle
all the way to the left.
If the controls are left in this position, the fire will be starved of air and will die down.
If you want to revive the fire it is recommended that the primary air control is open first, and then open the
secondary air slider.
Warning! - The stove will remain hot for a considerable time after the fire has been extinguished.
Refuelling
Refuelling must be carried out with a sufficient quantity of glowing embers and ash, so that the new fuel charge will
ignite quickly. If there are too few embers, add some kindling to prevent excessive fuel. The air controls should not
need adjusting while refuelling.
(When refuelling it is important to have a damper in the open position if you have one.)
Recommended Fuels
Hunter Stoves Group recommend that only wood logs with a moisture content of less than 20% and anthracite or a
manufactured briquette smokeless fuel which is suitable for closed door appliances are used on this appliance.
Burning wet or unseasoned wood will create excess smoke emissions, tar deposits in the stove and chimney and will
not produce a satisfactory heat output.
Only authorised fuels may be used in UK smoke control areas.
A list of authorised fuels can be found at
http://uksmokecontrolareas.co.uk/fuels.php
WARNING - DO NOT BURN BITUMINOUS COAL, PETRO-COKE, OTHER PETROLEUM BASED FUELS OR TREATED
WOOD SUCH AS PALLETS AS THIS WILL INVALIDATE THE PRODUCT WARRANTY. HOUSEHOLD WASTE MUST NOT
BE BURNT ON THIS APPLIANCE.
A list of approved fuels can be found at:-
HETAS Ltd –Telephone [phone] –http://hetas.co.uk/public/hetas_guide.html
Solid Fuel Association –Telephone [phone] –www.solidfuel.co.uk

19
Maintenance And Servicing
WARNING!
NO unauthorised modification of this appliance should be carried out.
IMPORTANT!
In order to ensure continued compliance with current Building Regulations and Local Authority Byelaws, this
appliance requires regular maintenance by a competent person. N.B. Refer to the ‘Removing Internal Components’
section of the installation instructions for details on how to remove each component.
Periods Of Prolonged Non-Use
If the stove is to be left unused for a prolonged period, then it should be given a thorough clean to remove ash and
unburned fuel residues. To enable a good flow of air through the appliance to reduce condensation and subsequent
damage, leave the air controls fully open. If the appliance has been unused for a long period, such as during the
spring and summer months, a competent person should check the chimney for potential obstructions before lighting
the stove i.e. get the chimney swept before the start of the heating season?
Baffle
This should be removed and cleaned at least once a month to prevent any build-up of soot or fly ash that could lead
to blocked flue ways and dangerous fume emission. If the baffle is removed the chimney/flue way can be swept
through the appliance.
Stove Body
Painted Finish - The stove is finished with a heat resistant paint and this can be cleaned with a dry soft brush or dry
microfiber cloth. Do not clean whilst the stove is hot. At no point should any water or other cleaning products be
used on the stove. The finish can be renovated with Hunter Stoves paint.
Glass Panel
Clean the glass panel when cool with a propriety glass cleaner. Highly abrasive substances should be avoided as
these can scratch the glass and make subsequent cleaning more difficult. Wet logs on heated glass, a badly aimed
poker or heavy slamming of the doors could crack the glass panels. The glass will not fracture from heat. Should you
need to replace a glass panel please ensure you purchase a new Gasket at the same time. Please check periodically
that the glass clips and screws have not become loose. They should only be finger tight to allow for the expansion
and contraction of the glass.
Gaskets
All gasket used on this appliance are produced from a heat resistant material called Manniglas.
The glass gasket will have to be replaced when a new piece of glass is fitted as the gaskets become brittle after firing
the stove.
Over time you may also find that the gasket changes colour. This is due to a reduction in the pigment used in the
manufacture of the product and no cause for concern.
Firebricks
In normal use, these can last for many years. It is possible however, to crack them if logs are continually jammed
against them or if they are frequently struck with a poker. Check periodically for seriously cracked bricks, which can
be replaced with new, available from your dealer or our spares website www.hunterstoves.co.uk.
Door Catch
The door catch may require adjustment to maintain the door seal. By slackening the internal locking nut and turning
the catch bolt one turn towards the door you will achieve a tighter lock when the door is closed.
Rope
Check the rope around the door. If rope is becoming detached, use rope glue to reattach it. If the rope is in a poor
condition, a replacement rope kit may be ordered from the Hunter Stoves Group spares range.

20
Chimney and Flue ways
It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least
once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle will need to be
removed from its supports in order to sweep the chimney (see assembly instructions). Only wire-centred sweeps’
brushes fitted with a guide wheel should be used. If it is not possible to sweep all parts of the chimney through the
appliance, ensure there is adequate access to cleaning doors. If the stove is fitted in place of an open fire, then the
chimney should be swept one month after installation to clear any soot falls which may have occurred due to the
difference in combustion between the stove and the open fire.
Annual Service
Hunter Stoves Group recommend that this appliance is serviced annually, preferably prior to the start of the heating
season, thus avoiding any delay in receiving replacement components, should you need them.
If you feel unable to undertake this task, Hunter Stoves recommend that you contact the installation engineer for
advice.
Remove all the internal components:
Riddling Bars, Cam Bar, Catch Bar, Ashpan, Side Plates and Baffle. Clean them with a soft brush and inspect them for
damage.
Sweep the chimney/flue system if necessary.
Clean down the internal surfaces of the appliance using a scraper or wire brush.
Inspect these surfaces for damage/corrosion.
If corrosion or damage is found, we advise that you consult with your installer about rectification/repair.
Brush out or vacuum the inside of the appliance and re-fit the internal components.
Inspect the Glass and Gasket. Clean the Glass with a non-abrasive cleaner if required. If the Gasket is torn or
damaged, we recommend that is replaced to ensure that no products of combustion enters the room when the
appliance is used.
Painted Finish - Brush down the outer surface with a dry soft brush or dry microfiber cloth only and touch up the
paint if necessary.
Burn the appliance at a low rate, after maintenance, to allow any new seals, paint or glue cure properly.
The appliance may emit unpleasant odours during this process, please ensure the room is well ventilated.
The paint can be ordered through our website www.hunterstoves.co.uk.
