Owner’s Manual
Model
44905
Form# 44050-01
20100603
©2010 Hunter Fan Co.
English
7 Day Programmable
I N S T A L L A T I O N
5 MINUTE
M T WT F S S

44040-01 • 03/24/2010
2
Table Of Contents
At A Glance
Know Your ermostat .............................................................3
Setup
Setting Day, Time, and System ......................................................8
Scheduling
Scheduling Introduction ...........................................................10
Setting Your Schedule .............................................................12
Temporary Temperature Change ..................................................18
Turning Off Scheduling ............................................................20
Home Today. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Save Away .........................................................................24
Features
Alerts ..............................................................................26
Menu Options .....................................................................30
Advanced Menu Options .........................................................34
Energy Saver Bar ...................................................................46
Additional Features ...............................................................48
ermostat Assistance
Troubleshooting and Support .....................................................50
Technical Support .................................................................52
Warranty
1 Year Guarantee ..................................................................53

©2010 Hunter Fan Company 3
Your thermostat has been pre-programmed from the factory with no programming necessary.
We recommend using these pre-programmed settings for a few days before altering them as
they offer maximum energy saving benets. If you do decide to alter your programs, use the
charts on page 11 to write out your scheduled times and temperatures. After you have recorded
your preferences, follow the instructions on page 12 to alter your temperature settings.
There is no need to program the thermosat at the wall where it is mounted! Remove the thermostat
from the backplate by gripping the sides rmly and pulling it straight off. This allows you to
program the thermostat in comfort.
After you have programmed your thermostat, no other setting changes are necessary unless you
wish to browse through the menu to see how you may further adjust the independent settings of
your thermostat to meet your lifestyle. The features section starting on page 30 of this manual will
describe these settings. All settings have been preset for optimal performance.
If you need any assistance with installation or setup of your new Hunter Thermostat, please call
us, our technical support staff is ready to help!
USA: 1-888-830-1326
Canada: 1-866-268-1936
Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on
Saturday, Central Time. You may also contact us over the Internet at:
www.hunterfan.com
3Know Your ermostat
At A Glance

44040-01 • 03/24/2010
4
3
At A Glance
1. Returns you to the Home screen.
2. Main display.
3. Allows access to scheduling options.
4. Adjusts time and temperature settings as well as moving up or down menu lists.
5. Allows access to the advanced features of the thermostat.
6. Escapes to the home screen or resumes normal schedule from overrides.
7. Moves you back to the previous step while setting up features or schedules.
8. Sets the Home Today feature for when you are home during a regularly scheduled away
period.
9. Allows you to turn on or off your set schedules.
10. Sets the Save Away feature for when you will not be home during a regularly programmed
time.
11. Takes you to the next step while setting up features or schedules.
12. Conrms completion of an action or returns you to the Home screen.
13. Indicates whether the system is set to Auto, Cool, Off, or Heat.
14. Shows if the fan is set to Auto, Refresh, or On modes.
15. Allows you to switch between Auto, Cool, Off, or Heat modes.
16. Allows you to switch between fan Auto, Refresh, and On modes.
Know Your ermostat

©2010 Hunter Fan Company 5
At A Glance
3Know Your ermostat
Auto
Heat to
Energy Savings:
Good Best!
At home
Next
Back
Cancel
Resume
Home
Today Save Away
Done
Turn
Schedule
On Off
Home
Schedule
Menu
C
OO
AUTOCOOL HEAT AUTOREFRESH ONOFF
Friday 10:53 AM
Schedule Running - At Home
70 73
1
8
5
4
3
2
7 119 106 12
13 14
15 16

44040-01 • 03/24/2010
6
3
At A Glance
1. Will show when your thermostat or system is reporting a problem.
2. Displays time/day, instructions, help messages, and warnings.
3. Indicates help messages are available for this screen.
4. Shows when the thermostat is on the Home screen.
5. Indicates you are in scheduling options.
6. Shows the current mode of the fan: Auto, Refresh, On, or Off.
7. Indicates the current room temperature.
8. C will display when in Celsius mode. Nothing will display when set to Fahrenheit.
9. On when the current operating mode, Heat or Cool, is running.
10. Current operating mode, Heat or Cool.
11. Indicates the active schedule period.
12. Shows the system fan is running.
13. Current Set temperature.
14. Indicates you are in the Menu options.
15. Energy Savings Bar helps you make decisions on conserving energy.
16. Indicates the thermostat is locked and will not accept input without a passcode.
Know Your ermostat

©2010 Hunter Fan Company 7
At A Glance
3Know Your ermostat
Energy Savings:
Good Best!
Auto Heat to
73
At home
70O
O
FRIDAY 10:53 AM
SCHEDULE RUNNING - AT HOME ?
1
3
7
9
2
15 16
6
4
5
11 12
8
10
13
c
14

44040-01 • 03/24/2010
8
4
Setup
Setting Day, Time, and System
Once you install the batteries, the thermostat will prompt you to set the current date,
time, and system type.
1. “01” for current day will be ashing. Use the or button to select your current day,
then Next to move to month, and then year, until each is set. Next will advance you to time
setup.
2. Use the the or buttons to set the current time of day, AM or PM and then use Next to
advance to hours, and again to set minutes. Pressing Next again will advance you to system
setup.
3. Press [conventl] or [heat pump] to select your system type. You may also use the or
buttons to make your selection.
Note: At anytime, if you see the ? icon on the screen, you can press it for more
information about that setup, scheduling step, or menu option.
4. If you selected [conventl], select [gas/oil] or [electric] as your furnace type.
Note: Furnace type should be [electric] for heat pump systems.
5. Press Next . Choose [Schedule] if you want to setup your schedules or [manual] to set
one temperature and ignore scheduling. Press Next and See “Setting Your Schedule”
on page 12 if you chose [Schedule] or use the or buttons to set your temperature
and press
Done
for [manual] mode.

©2010 Hunter Fan Company 9
4Setting Day, Time and, System
Setup
Home
Menu
Schedule
Set current date
01/01/2010
Next
1
Home
Menu
Schedule
Set current time
00:00 AM
Back
Next
2
pick system type
[ conventl] [ heat pump]
Back
Next
3
?
Home
Menu
Schedule
Pick Furnace type
[ gas/oil] [ electric]
Back
Next
4
?

44040-01 • 03/24/2010
10
* The schedule time can be set in 15 minute increments, and remains the same for both
Heat and Cool programs.
* The scheduled temperature can be set in increments of 1°F (1°C).
* After 10 minute without a key press, the thermostat will return to the home display
screen.
* When setting the schedule time, note the AM / PM indicator.
* At any stage during your scheduling, you can use the Back or Next buttons to move
forward or backwards through the steps. Home/
Done will save any changes, even if you have
not scheduled or altered all settings.
* Arrows beside each schedule mode and beside heat/cool modes will indicate which
ones are active.
* A [Brackets] around a word in the message window at the top indicates it can be
pressed as a button.
* If the ? shows up on the screen, pressing it will give you more information about
that step.
Read the scheduling section thoroughly to ensure you understand your scheduling options and
which will best t with your lifestyle. The following notes should help you with scheduling:
5
Scheduling
Scheduling Introduction

©2010 Hunter Fan Company 11
5Personal Scheduling Charts
Scheduling
Note: Use a pencil so these records may be changed at a later time if necessary.
* The Home schedule automatically calculates the remaining times from Away and Asleep and assigns them
the Home temperature.
Default Schedule
Day Away Asleep Home*
Monday-Friday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (27OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (24OC)
Heat Temp: 71OF (21OC)
Cool Temp: 74OF (23OC)
Saturday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (27OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (24OC)
Heat Temp: 71OF (21OC)
Cool Temp: 74OF (23OC)
Sunday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (27OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (24OC)
Heat Temp: 71OF (21OC)
Cool Temp: 74OF (23OC)
Alternate Schedule
Day Away Asleep Home*
Monday-Friday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:
Saturday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:
Sunday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:

44040-01 • 03/24/2010
12
5
Scheduling
Setting Your Schedule

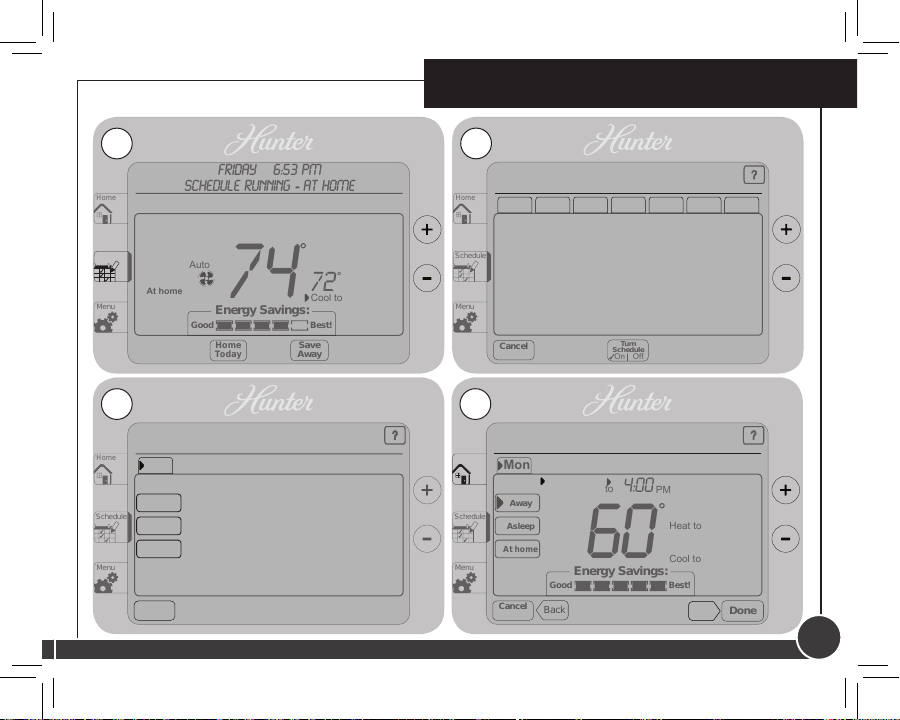

1. Press the Schedule Button to enter Scheduling mode.
2. Start by pressing the rst day you want to program on the day select screen. In this example
we will use Monday.
3. The thermostat will show Monday as the selected day. Choose the period you want to prgram
rst: Away, Asleep, or At home on the screen. Away will be used for this example.
4. Use the or buttons to adjust the start time on the left side of the screen for the period
you will be away and press Next .
5. Again, you will use the or buttons to adjust the end time on the right side of the screen
for this scheduled period. Press Next again.

©2010 Hunter Fan Company 13
5Setting Your Schedule
Scheduling
Home
Menu
Schedule
FRIDAY 6:53 pM
SCHEDULE RUNNING - AT HOME
Home
Today
Save
Away
Cool to
72
o
74
o
Auto
1
Energy Savings:
Good Best!
At home
Home
Menu
Schedule
Schedule
touch day to view/edit
Mon
Cancel
Turn
Schedule
On Off
2
SunSatFriThuWedTue
?
Home
Menu
Schedule
schedule
touch period to view/edit
Mon
Cancel
At home
Asleep
Away
3
?
Home
Menu
Schedule
schedule - away period
enter the time you leave
Mon
Next
Cancel
Done
Heat to
Cool to
60
o
At home
Asleep
Away
4:00 PM
to
4
Energy Savings:
Good Best!
8:00AM
?
Back

44040-01 • 03/24/2010
14
6. Set the temperature for your heating cycle as indicated by the ashing ”Heat to” icon on your
screen. Use the and buttons to change the temperature and press Next .
7. You will be asked to set your cooling cycle, indicated by the ashing “Cool to”. Set this
temperature with your or buttons and hit Next .
8. The thermostat will start this process again for “Asleep”. Repeat steps 1-9 to schedule the
time and set the temperature for your sleep period. When nished pressed Next to get to “At
Home”
9. When setting “At Home”, you will only be asked to set a temperature. The thermostat
calculates your “At Home” time by what remains unscheduled from your “Away” and
“Asleep” periods. Set your “Heat To” temperature rst and press Next , then Set your “Cool
To” temp and press
Done
To nish Scheduling your current day.
Note: You do not have to schedule all periods in order. Press any scheduled period
on the scheduling screen to bypass the others if you only need to make a single change
or you can press
Done
to exit.
5
Scheduling
Setting Your Schedule

©2010 Hunter Fan Company 15
5Setting Your Schedule
Scheduling
Home
Menu
Schedule
schedule - away period
enter the time you return
Mon
Next
Cancel
Done
Heat to
Cool to
60
o
At home
Asleep
Away
4:00 PM
to
5
Energy Savings:
Good Best!
8:00AM
?
Back
Home
Menu
Schedule
schedule - away period
enter heat temp
Mon
Next
Cancel
Done
Heat to
Cool to
68
o
At home
Asleep
Away
4:00 PM
to
6
Energy Savings:
Good Best!
8:00AM
?
Back
Home
Menu
Schedule
schedule - away period
enter cool temp
Mon
Next
Cancel
Done
Heat to
Cool to
72
o
At home
Asleep
Away
4:00 PM
to
7
Energy Savings:
Good Best!
8:00AM
?
Back
Home
Menu
Schedule
schedule - at home period
enter heat temp
Mon
Next
Cancel
Done
Heat to
Cool to
72
o
At home
Asleep
Away
9
Energy Savings:
Good Best!
?
Back

44040-01 • 03/24/2010
16
5
Scheduling
Setting Your Schedule
10. When you have completed scheduling your day, you will be returned to the copy day
screen. The copy day screen will now show
Copy
day to...
and ask you if you wish to copy the day
you just scheduled to any other days. Select
Copy
day to...
and choose the days you wish to add the
schedule too. Press the Cancel button to ignore changes and return to the home screen, or
Done
to save changes and select a new day individually.
11. Select each day you wish to copy the schedule to by touching it on the screen directly. The
arrow indicators beside each day you select will show to indicate the day has been selected.
In gure 12 you will see Tue - Fri have been selected.
Note: The original day scheduled will not show on the screen as it is the one being
copied. You may use a pen or other small instrument to select the days if necessary.
12. Press
Done
on the screen and it will ash “Mon coppied to (days selected)”
and return you to the day select screen to program another day if any are left
unprogrammed. Repeat steps 3-12 until all days are scheduled. Pressing Cancel at
any time will return you to the home screen without saving changes.
Note: You can press the
Turn
Schedule
at anytime while in Scheduling Mode to turn on or off
the scheduling.
13. Once all days are programmed, you will be taken back to the Home Screen. If
you need to make any changes, press the Schedule button to reenter schedule edit mode.
On Off

©2010 Hunter Fan Company 17
5Setting Your Schedule
Scheduling
Home
Menu
Schedule
press 'copy day' to copy
or 'done' to pick next day
Copy
day to...
Cancel
Done
10
?
Home
Menu
Schedule
schedule - copy mon
touch day(s) to copy to
Cancel
Done
11
SunSatFriThuWedTue
?
Home
Menu
Schedule
Schedule
touch day to view/edit
Cancel
Turn
Schedule
Off
12
SunSat
?

44040-01 • 03/24/2010
18
5
Scheduling
Temporary Temperature Change
With Temporary Temperature Change you have the ability to alter the temperature for
only the current running schedule for one day.
1. Press the or buttons to select a new temperature.
2. Press the
Done
button to save changes.
Note: Temporary Temperature Change is not a permanent setting. Your thermostat
will only run the new temperature until the next scheduled period change. After your
thermostat changes to a new schedule set, your thermostat will resume your existing
schedule.
3. To escape Temporary Temperature Change, press the Resume button. The help banner
will show Schedule running - and the appropriate schedule period to indicate the
thermostat has resumed your regular schedule.

©2010 Hunter Fan Company 19
5Temporary Schedule Change
Scheduling
Home
Menu
Schedule
setting temporary
temperature hold
Cool to
73
o
1
Done
Home
Menu
Schedule
setting temporary
temperature hold
Cool to
73
o
2
Done
Home
Menu
Schedule
temporary hold
[resume] to run schedule
Cool to
73
o
74
o
Auto
3
Energy Savings:
Good Best!
At home
Resume

44040-01 • 03/24/2010
20
5
Scheduling
Turning Off Scheduling
To turn off your schedule and have the thermostat permanently set to one temperature:
1. Press the
Schedule
button once.
2. Press the
Turn
Schedule
button.
3. The help banner will show schedule off - permanently hold temp at. Use the or
buttons to adjust your temperature and press
Done
when nished.
Note: You will notice the black bar on the screen beside the Schedule button is not
displayed anymore. This indicates, no schedule is set to run. You can see the difference
between gure 1 and 3.
4. From the home screen, use the or buttons to adjust your temperature.
The system will now ignore all schedules and run at the temperature set by you on the
home screen.
5. If at anytime you wish to change the temperature, just use the or buttons.
6. If you wish to reactivate your schedules, press the
Schedule
button and use the
Turn
Schedule
button
to turn schedules back on and then press
Done
.
Off
On
