OPERATION MANUALOPERATION MANUAL
REC-S624CC
198 N. Brandon Dr.
Glendale Heights, IL 60139
Phone [phone]
Fax [phone]
www.huskietools.com
REC-S624CC 8 Ton Cutting Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.

www.huskietools.com Page 2 800-860-6170
REGISTRATION/ TABLE OF CONTENTS
THANK YOU...
for purchasing a Huskie Tools product. Our
mission is to supply the finest steel cable
connecting and cutting tools and cable-related
products to the transmission and distribution
markets. Huskie Tools products represents the
state-of-the-art tools and are dependable & safe.
Trust, integrity, teamwork and mutual respect -
these words are something we take to heart here
at Huskie Tools.
Please take the time to read this manual carefully
to learn how to correctly operate and maintain
your tool.
Table of Contents
Registration/ Contents.......................... 2
Warranty................................................. 3
Safety...................................................... 4
Kit Includes........................................... 5
Specications......................................... 6
Operating Instructions......................... 7- 8
Operating Precautions...........................9
Breakdown.............................................10
Parts List.................................................11
TroubleShooting Guide........................12

www.huskietools.com Page 3 800-860-6170
WARRANTY
Warranty
Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to
back its tools as we do.
All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products
carry a 1 year warranty. The BP-80 & BP-84 batteries carry a 5 year warranty from the date stamped on the battery. The
BP-82 battery carries a 1 year warranty.
PRODUCT WARRANTY
REC-Series battery operated products 5 Years
ECO-Series battery operated products 1 Years
Batteries (BP-80, BP-84) 5 years/ (BP-82) 1 year
Chargers (CH-90, CH-94) 5 Years
The warranty does not cover any damages incurred from a Huskie tool including damages to property, bodily injuries
and lost wages resulting from such injuries. This warranty solely covers the repair or replacement of tools supplied by
Huskie. These remedies are exclusive, and the total liability of Huskie Tools, Inc. whether based on contract, warranty,
negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the tool. In no event
shall Huskie Tools, Inc. be liable for consequential, incidental or special damages.
HUSKIE TOOLS, INC. MAKES NO OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED.
Huskie reserves the right to determine all warranty claims. Huskie will not warranty tools containing parts or batteries
not originally supplied by Huskie. Failure due to misuse, improper maintenance, misapplication, not following
instructions or warnings, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service
center renders this warranty null and void.
Repair and Warranty Claims
All claims must be sent to Huskie for inspection and authorization. A Return Goods Authorization (RGA) is required
before shipping tools to Huskie. Secure the authorization by telephoning or writing to Huskie’s main office with details
of the claim. Non-warranty repairs are handled using the same procedure. Repairs exceeding 50 percent of the cost of
a new tool will be advised before repairs are made.
Payment Terms
Upon credit approval Huskie’s standard payment terms are net-30 days. Visa, Mastercard, Discover and American
Express are also accepted.
Freight
All Huskie tools are FOB, Glendale Heights, Illinois. Goods will be shipped pre-paid and added, unless otherwise
specified. Freight shipments over $17,000 are pre-paid.
Quotations
Special quantity quotations should be phoned in to discuss the scope of your tool requests.
Complete Support Services
Our customers have direct access to us for training, service, and problem solving. As specialists in tools, we maintain
a trained repair staff and a large stock of parts. This contrasts with many tool suppliers who carry tools as a sideline
without offering support services. Here are some reasons why our customers love to do business with us:
• Quick delivery
• We maintain inventory at our headquarters.
• Training and troubleshooting services.
• Fast repair service.
• Design and engineering service for special tool needs.

www.huskietools.com Page 4 800-860-6170
SAFETY
Safety Alert Symbol:
is safety alert symbol indicates a potential
personal injury hazard; it is not used for messages
related to property damage only.
Wear eye protection:
when operating this tool.
Failure to wear eye
protection could result in
serious eye injury from ying
debris.
Electric Shock hazard:
Use proper personal protective equipment when
using this unit on or near energized electrical lines.
Pinch Point Hazard:
Compression Dies at high
force can cause severe
personal injury. Keep all
body parts away from
moving parts of the tool
while operating.

www.huskietools.com Page 5 800-860-6170
KIT INCLUDES
The REC-S624CC was designed to cut the toughest steel used in construction today. It can replace an entire
tool kit, including several sizes of conventional bolt cutters, hacksaw, acetylene torches and cable cutters. The
REC-S624CC was designed from the same hydraulic system as the REC-658U featuring a rapid advance ram
for reduced cycle times.
The specially designed anvil style blades were made to cut EHS up to 9/16” and with
the pull of the trigger, you can cut ACSR cables up to 477 MCM, standard guy wires to 5/8”, and ground
rods to 5/8”. The specially designed flip-top latch and rotating head provide exceptional ease of use and
maneuverability in tight working quarters.
The REC-S624CC has an overload bypass, which will “kick out” when tool reaches 8 tons or is attempting to
cut cables beyond its capacities.
• 1 Battery Powered Tool
• 1 Carrying Case
• 1 CH-94 Charger
• 2 BP-84 Lithium Ion Batteries
• 1 Carrying Strap
Battery and Charger
• BP-84 Huskie Tools Lithium Ion Battery
• CH-94 Huskie Tools Charger
• This charger can charge the BP-84, BP-82 and BP-80 only.
Huskie Tools batteries, including the BP-70, BP-70EI
and the BP-70MH must be charged with the CH-90, CH-80, or
previous charger models.

www.huskietools.com Page 6 800-860-6170
SPECIFICATIONS
REC-S624CC
Specifications
Output 8 Ton
Weight 10.6 lbs. with Battery
Size 13.7”L x 10.2”H x 3.1”W
Jaw Opening .95”
Cutting Estimates
BP-84
477 ACSR 90
1/2” Rebar 60
1/2” Ground Rod 60
3/8” Guy Wire 40
Cutting Capacities
ACSR 477 MCM
Standard Guy Wire 5/8”
EHS Guy Wire 9/16”
Ground Rod 5/8”
Rebar (Sc 40) 5/8”
•Flip-Top Latching Head
•Tested Up to 75kV
•One Hand Operation
•Rotational Head
•Rapid Advance
•Ergonomically Balanced
•Ergonomic Pistol Grip Handle
•Weather Resistant Housing
•Overload Bypass Protection
•5 Year Warranty on Tool, Battery & Charger
Features

www.huskietools.com Page 7 800-860-6170
OPERATING INSTRUCTIONS
1. Insert the plug end into a 120V power source. The LED (Power) indicator will
be steady green indicating the charger is now in “stand-by” mode and ready to
charge the battery. Do not plug the charger into a generator as this will likely
cause the fuse in the charger to short, and will not operate.
2. To charge a drained battery, insert the battery into the charger. The LED
indicator shows a steady amber while charging. A depleted battery will be
completely charged in approximately 50-70 minutes. The LED indicator will show
a steady green when the battery is fully charged.
3. If the LED indicator goes out or is flashing quick amber, this could be a possible
short in the battery circuit, or a problem with the charger itself. It is best to consult
the factory at 1-800-860-6170 for service if such a condition occurs.
4. For technical questions or difficulty in operation, please call our customer
service department at 1-800-860-6170.
CHARGING THE BATTERY
1. While pressing the latch, pull out the battery cartridge. To replace the battery
cartridge, push the new cartridge firmly into place.
2. After inserting a battery cartridge, check that it is securely in
place by pulling gently. Do not press the latch when pulling the cartridge.
ATTACHING THE BATTERY CARTRIDGE
1. The ram advances when the trigger is pressed and stops when the trigger is
released.
2. To retract the ram, push the release button. The ram continues to retract while
the release button is pressed.
TRIGGER AND RELEASE BUTTON

www.huskietools.com Page 8 800-860-6170
OPERATING INSTRUCTIONS
CUTTING
MAINTENANCE AND INSPECTION
1. Retract blades by pressing the release button.
2. Be sure that material being cut is within the specified cutting capacity of the tool.
3. Place the material to be cut between the blades and press the advance trigger until blades
hold the material in place.
4. Check material for proper alignment to the cutting blades. It should be at a 90° degree
angle to the blades. Any other angle will cause the blades to spread apart and possibly break.
5. Continue to advance the blades until the material is cut. If material is cut and tool has not
yet by passed, it may be difficult to retract blades. If this occurs, continue to advance tool and
build pressure. A series of clicks will be heard while the tool running in a “neutral” mode. This
indicates that the tool has built full pressure and bypassed and can now be released.
1. Daily maintenance is required to ensure that the tool is kept in good working condition.
2. Sharpen blades occasionally with a sharpening stone on the back side of the blades to
remove any burrs that may occur.
3. Do not store the tool in a humid environment.
4. Wipe away any excess oil with a soapy cloth.
5. Provided that maintenance of the tool is carried out regularly, the tool should provide
many years of service.
6. Should you experience any difficulty with the operation and maintenance of this tool,
contact Huskie’s technical support department at 1-800-860-6170.
WRONG!
RIGHT!

www.huskietools.com Page 9 800-860-6170
OPERATING PRECAUTIONS
PRECAUTION FOR THE TOOL
PRECAUTION FOR THE CHARGER
1. Always point the tool AWAY from other people.
2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool
should be allowed to return to room temperature to ensure smooth operation Use the tool only
after it has been at room temperature for 1 hour.
3. Do not drop the tool. Dropping the tool may damage the hydraulic circuit and result in the tool
not functioning correctly.
4. Keep the head and ram clean and free of debris. Solvents can be used to clean the head, but
should not be used on the plastic body. Use soap and water to clean the body.
5. Do not use tool for continous use. If any sign of over heating, allow the tool to cool for 15 mins.
6. Do not allow tool to be submerged in water. The tool may be used to in damp or wet
environments. However it is recommended for tool to be air-dried before use.
PRECAUTION FOR THE BATTERY CARTRIDGE
1. Do not short circuit the contacts or expose the cartridge to water, oil or solvents.
2. Do not disassemble or attempt to repair the battery cartridge or dispose of in a fire.
3. Do not drop or otherwise abuse the battery cartridge.
4. Do not leave the cartridge in locations where it will be exposed to a temperature greater than
140ºF (60ºC) for an extended period.
5. The battery has a limited life. When the crimping capacity becomes about 1/2 that of the
original capacity, the battery should be replaced.
6. If the battery cartridge is stored without being charged, natural drainage will cause the power
to be reduced. The battery should be charged every 3 months if not in use.
1. The LED indicator lights up amber and remains lit when the unit starts charging a battery
cartridge. The indicator turns green when charging is completed.
2. The BP-84 can be charged with any of the Huskie Lithium-Ion chargers including the CH-80,
CH-90 & CH-94.
3. Allow battery cartridges to cool before charging. Allow at least 15 minutes between charges
when charging several cartridges in succession.
4. Charge batteries at an ambient temperature of 50º-95ºF (10º-35º C). Charging time is
approximately 50-70 minutes for the BP-84.
5. Never short circuit the output terminals.
6. Do not expose the charger to water, oil or solvents.
7. Do not disassemble, attempt to modify, drop or otherwise abuse charger.

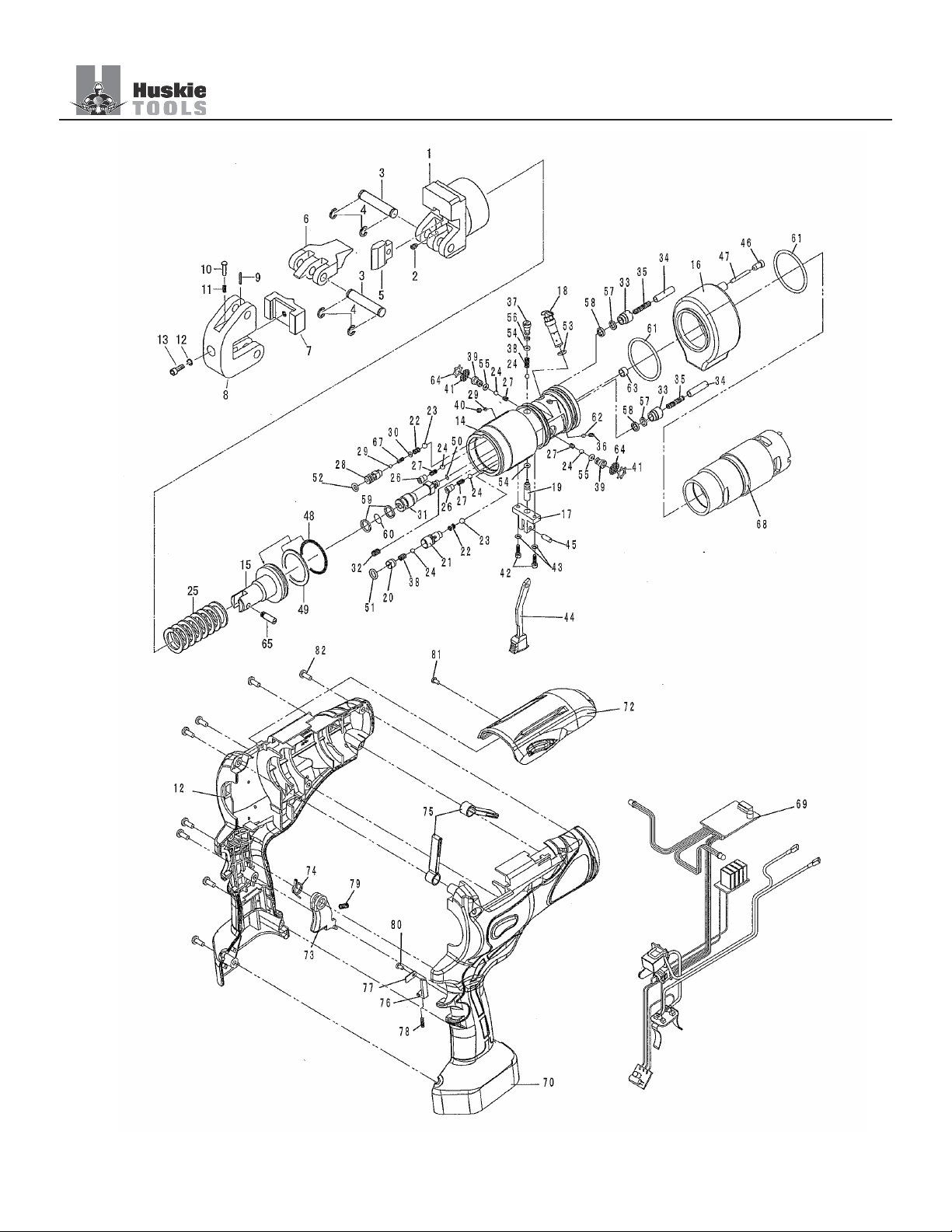

BREAKDOWN
www.huskietools.com Page 10 800-860-6170

www.huskietools.com Page 11 800-860-6170
PARTS LIST
NO. DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY.
1Body Head 24-09 142 M3x10 Screw 658-08 2
2M5 X 10 Screw (D.P.) 55A-11 143 M3 Lock Washer 5N-61 2
3Pin (142) 24-06 244 Release Lever 658-09 1
4CE-10 Snap Ring 40-16 445 G4x12 Dowel Pin 658-10 1
5Cutter Blade 24C-08 146 Plug SLND-12 1
6Latch 24-07 147 Magnet ROB-25 1
7Head Shear 24C-04B 148 P-36 O-Ring 55-22 1
8Head 24C-02 149 P-36 Back-Up Ring (B.C.) 55-21 1
92 X 10 Drive Pin (AW) 5-09 150 S-5 O-Ring 351-20 1
10 Slide Pin 20-71 151 P-7 O-Ring 16-60 1
11 Spring (144) 85-37 152 P-5 O-Ring 5N-35 1
12 M6 Lock Washer 610D-07 153 P-5 O-Ring (B) 610F-18 1
13 M x 20 Screw RF-05 154 P-3 O-Ring 16-36 2
14 Body 624C-01 155 P-3 O-Ring (U801) EZ-21 2
15 Ram 624C-02 156 P-3 Back-Up Ring (B.C.) 9H-38 1
16 Oil Reservoir 658-01 157 P-6 Back-Up Ring (B.C.) UC-28 2
17 Lever retainer 658-05 158 PS-6 Pent Seal EZ-14 2
18 Valve Cartridge EZ-25H159 P-11Back-Up Ring (B.C.) 610F-06 2
19 Push Pin 658-06 160 P-11O-Ring 610F-07 1
20 Valve Screw SL5-10 161 G35 O-Ring 658-11 2
21 LP control plug SL5-11 162 Retainer SLND-14 1
22 Spring (686) EZ-26 263 Bush R14A-19 1
23 3/16" Ball 16-49 264 Filter Screen R14A-22 2
24 5/32" Ball 22-21 665 Blade Screw 16-19 1
25 Ram Spring(375) 24-10 167 Spring (420) 9H2-02 1
26 auto-suction screw SL5-16 268 Power Unit SLND-11 1
27 Spring (688) EZ-22 469 Switch Unit(14) 658-12 1
28 Both-way plug SL5-18 170 Housing Set 6HS-Small 1
29 1/8" Ball 40-20 272 Top Cover 658-15 1
30 Stopper Ring SL5-19 173 Switch Knob 658-16 1
31 Inner Piston 620-03 174 Spring(693) 658-17 1
32 M5 X 8 Screw 410-49 175 Hanging Strap 558-07A 2
33 Cylinder Insert EZ-13 276 Lever Stopper 558-08 1
34 Pump Piston EZ-15 277 Retaining Plate 458-01 1
35 Spring (552) EZ-16 278 Spring(693) 458-02 1
36 M3 X 5 Screw UC-37A 179 Spring (177) 410-01 1
37 Release Plug EZ-24 180 M3 X 5 Screw (T.P.) ROB-94 1
38 Spring (689) EZ-23 281 M3 X 6 Screw R150-02 1
39 Suction Valve EZ-20 282 M4 X 10 Screw ROB-159 8
40 M4 X 4 Screw (F.P.) 85-47 1
41 SI-12.7 Ring R14A-23 2

www.huskietools.com Page 12 800-860-6170
TROUBLESHOOTING GUIDE
PROBLEM CAUSE SOLUTION
MOTOR RUNS, BUT THE
TOOL JAWS WILL NOT
ADVANCE
Insufficient Hydraulic Oil Consult Factory for Repair
Service
Air Block in Hydraulic System
Invert tool to allow air to rise
towards the top of the oil
bladder
Defective Hydraulic Circuit Consult Factory for Repair
Service
MOTOR RUNS, TOOL JAWS
ADVANCE, BUT WILL NOT
BUILD PRESSURE
Insufficient Hydraulic Oil Consult Factory for Repair
Service
Defective Suction Valve or
Bypass Cartridge
Consult Factory for Repair
Service
MOTOR WILL NOT RUN AT
ALL
Defective Battery Charge or Replace Battery
Bad Contact or Loose Battery
Connections
Check all Connections and
Wires
Misaligned Switch
Check to Make Sure that
Switch is Properly Aligned with
Trigger
Consult Factory for Repair
Service
TOOL JAWS WILL NOT
RELEASE
Tool Did Not Complete a Full
Cycle and Bypass
Press Trigger and allow Tool
to Bypass, Then Release Tool
Jaws
Connector is Jammed in Tool
Jaws
Press and Hold Release Trigger
While Prying Tool Jaws Apart
Release Trigger is Bent or Mis-
aligned
Consult Factory for Repair
Service

NOTES

NOTES

NOTES

198 N. Brandon Dr.
Glendale Heights, IL 60139
Phone [phone]
Fax [phone]
www.huskietools.com
