Husky HUS-WC33S User manual

1
INSTRUCTION MANUAL
HUSKY WINE COOLER
MODEL:
HUS-WC33S/HUS-WC33D
HUS-WC66B/HUS-DC66B
HUS-WC54S/HUS-WC54D/HUS-DC54
HUS-WC72S/HUS-WC72D
HUS-WC128S/HUS-WC128D
HUS-WC168S/HUS-WC168D/HUS-WC168T

2
CONTENTS
Important Safety Notes ----------------------------------------------------3
Warnings ----------------------------------------- 4
Components -----------------------------------------------------------------5
Operation Instruction ---------------------------------------------------------9
Care and Maintenance -------------------------------------------------------13
Troubleshooting --------------------------------------------------------------14

3
Important Safety Notes:
Always ensure you read the instructions before use
Ensure the unit is placed in a safe, well ventilated, dry environment away from direct
sunlight
Do not use the wine cooler if it is damaged
For safety the wine cooler must be properly earthed in accordance with
specifications
Always ensure the wine cooler is switched off before cleaning, moving or carrying out
repairs
All repairs should be carried out by a qualified engineer
Do not allow children near the appliance, sit on the appliance or hang on the door of
the appliance
Do not attempt to move the appliance when full with stock
Do not obstruct or cover the ventilation cover on the front of the unit
If you require the unit to be turned off, do not restart for at least 15 minutes after
switch off.
Always allow the Wine Cooler to sit for 12hours after initial delivery/ movement
before switching on.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.

4
Warnings
This Wine Cooler must be plugged into an earthed 220/240v 13amp
socket (Europe and Australia) or a grounded 120v AC circuit (USA)
Do not attempt to service or repair the item yourself
If your refrigerator uses r600a refrigerant, please note this can be
flammable or explosive. Repairs must always be carried out by a
r600a qualified engineer
When positioning the wine cooler ensure the supply cord is not
trapped or damaged
Do not locate/use extension cables or charging transformers/ power
supplies adjacent to the compressor at the back of the unit, this
could cause overheating
If the thermosts is set too low this may cause bottles to freeze and
even break, please take care when setting the temperature
Do not place any items on top of the chiller which may fall when the
door is opened
Do not place hot items on the Wine Cooler as it may damage the
paintwork
Ensure the unit is positioned on a flat, hard floor

5
Components of Wine Coolers (Single Zone)
1.HUS-WC33S/HUS-WC54S/HUS-DC54/HUS-WC72S/HUS-WC128S/HU
S-WC168S component diagram：
⑴Control panel ⑵Ventilation fan ⑶Active carbon filter
⑷Sensor ⑸Full wooden shelf ⑹Heater fan
⑺Small wooden shelf ⑻Ventilation base ⑼Adjustable feet
⑽Upper hinge ⑾Glass door ⑿Door seal ⒀Handle
⒁Latch Hook ⒂Lower hinge

6
Components of Wine Coolers (Dual Zone)
HUS-WC33D/HUS-WC54D/HUS-WC72D/HUS-WC128D/HUS-WC168D
component diagram：
⑴Control panel ⑵Active carbon filter ⑶Ventilation fan ⑷Sensor
⑸Full wooden shelf ⑹Baffle plate ⑺Heater fan ⑻Sensor
⑼Small wooden shelf ⑽Ventilation base ⑾Adjustable feet
⑿Upper hinge ⒀Glass door ⒁Door seal ⒂Handle
⒃Latch hook ⒄Lower hinge

7
Components of Wine Coolers (Triple Zone)
HUS-WC168T
component diagram：
⑴Control panel ⑵Active carbon filter ⑶Big wooden shelf
⑷Sensor ⑸Control panel ⑹Middle ventilation fan
⑺Big wooden shelf ⑻Sensor ⑼Baffle plate ⑽Heater fan
⑾Sensor ⑿Small wooden shelf ⒀Ventilation base
⒁Adjustable feet ⒂Upper hinge ⒃Glass door
⒄Door seal ⒅Handle ⒆Lock hook ⒇Lower hinge

8
Components of Wine Coolers (Side by side)
HUS-WC66B
component diagram：
⑴Left upper hinge ⑵Left control panel ⑶Large wooden shelf
⑷Left door with handle/gasket/lock ⑸Small wooden shelf
⑹Left lower hinge ⑺Front vent ⑻Right upper hinge
⑼Right control panel ⑽Glass shelf ⑾Wire shelf
⑿Wire basket ⒀Right door ⒁Right lower hinge
⒂Lock hook ⒃Feet

9
Installation
Before Using Your Wine Cooler
Remove the exterior and interior packing.
Before connecting the Wine Cooler to the power source, let it stand upright for
approximately 12 hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transportation.
Clean the interior surface with lukewarm water and a soft cloth.
The cooler is specially designed for wine storage, please do not use for other
items.
Installation:
Where possible good ventilation should be around the units
Place your wine cooler on a flat floor that is strong enough to support the unit when
it is fully loaded. To level your Wine Cooler, adjust the front leveling leg at the bottom
of the Wine Cooler.
Locate the Wine Cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Extreme cold ambient temperatures may also cause the unit not to
perform properly.
Avoid locating the unit in moist areas.
Plug in the proper power socket
Please also read „Warnings‟ Page of this manual

10
Operation Instructions
It is recommended you install the appliance in a place where the ambient
temperature is between 72-78°F(22-25℃). If the ambient temperature is
above or below recommended temperatures, the performance of the unit may
be affected.).
Recommended Temperatures for Chilling Wine.
Red Wines
58 - 65 ºF
14 - 18 ºC
Rose Wines
49 - 51 ºF
9 - 11 ºC
Dry / White
Wines
48 - 57 ºF
10 - 13 ºC
Sparkling
Wines
40 - 47 ºF
5 - 8 ºC
Wine Chiller Control Panel
Model: HUS-WC33S / HUS-WC54S / HUS-WC72S / HUS-WC128S /
HUS-WC168S/HUS-DC54/HUS-WC66B (Single Zone)

11
Model: HUS-WC33D / HUS-WC54D / HUS-WC72D / HUS-WC128D /
HUS-WC168D (Dual Zone)
Model:
HUS-WC-168T
(Triple Zone)
Top Zone:
Middle and Bottom Zones:
ON/OFF POWER
To turn the appliance On/OFF press for 3seconds.
SETTING THE TEMPERATURE CONTROL (Single Zone)
First press the button. The numbers in the display window will flash, You
can press and marks to control the internal temperature.
You can select temperature display setting from Fahrenheit or Celsius. Push the ºF/ºC
button. Fahrenheit or Celsius degrees‟ indicator will appear in blue color on the
temperature display window.

12
SETTING THE TEMPERATURE CONTROL (Dual Zone)
First press the button, the display for the lower zone will flash. Follow the
single zone procedure to set. Press again to set the Upper Zone and repeat
procedure.
NOTE:
If the unit is unplugged or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time, the Wine Chiller
will not start.
When you use the wine chiller for the first time or restart the wine chiller
there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and will revert
itself in due course

13

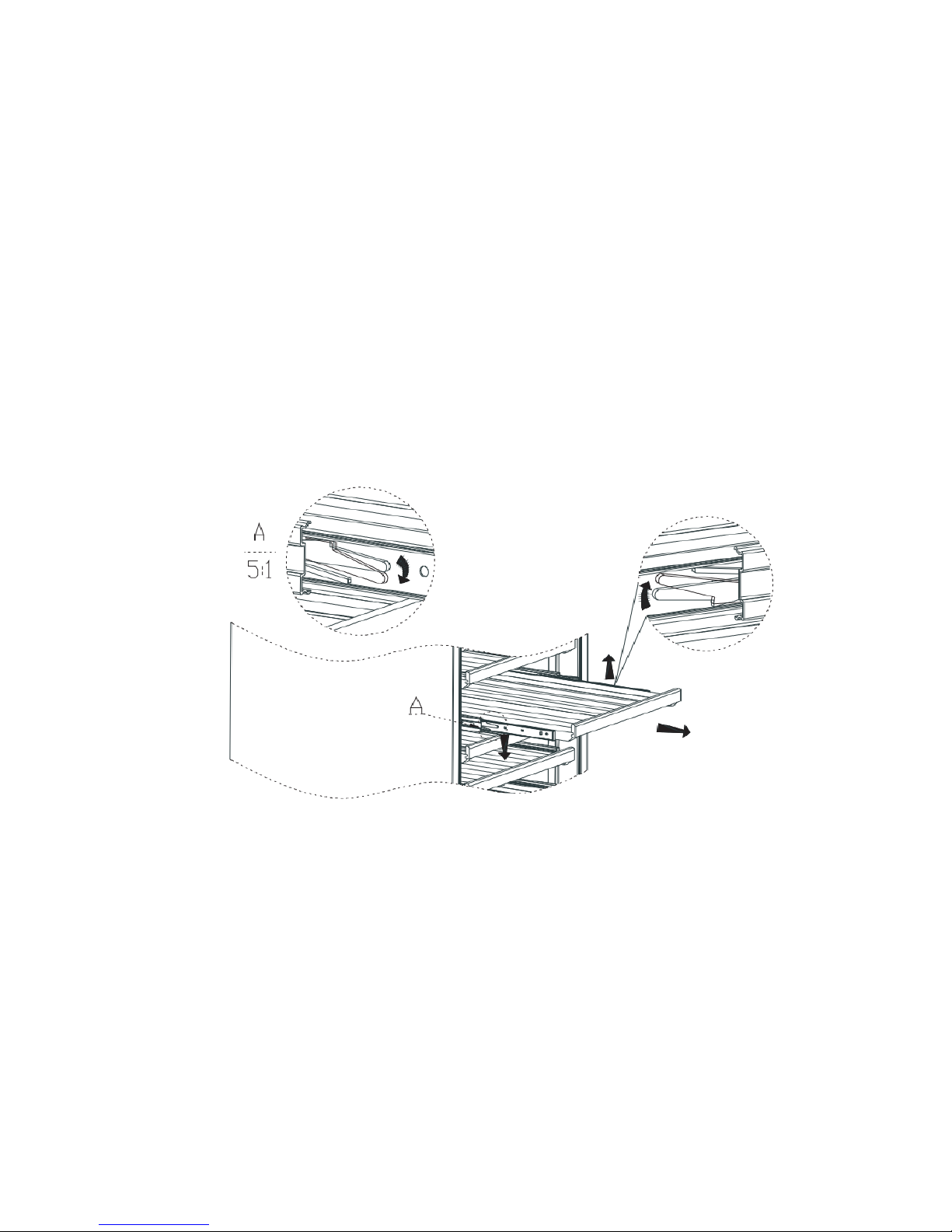

◎Shelf Change
Your Wine Cooler comes complete with telescopic pull out shelving.
These shelves can be taken out completely by following these
instructions:
Firstly switch off the unit and empty the shelf. Press down the left lever on side of shelf at
same time as pulling up lever on right hand side of shelf. At this time pull and the shelf
will release. Your unit also comes with adjustable shelf runners. Once the shelf is
removed you can release these runners and re position accordingly.

14
◎Reversing the door swing of your appliance
The unit is delivered to you with the door opening from the left side (hinge on right
side). The door of this appliance is capable of opening from either the left or right
side. To reverse the door hinge of your cooler please follow the instructions below:
NOTE: All parts removed must be saved to allow the door hinge to be reversed.
IMPORTANT: 2 ADULTS REQUIRED
1.Pry open the on the top hinge cover of the cabinet and the cap of the door spindle
carefully.
2. Open the door and whilst unscrewing all the reaming screws have the second person
hold the door steady, unscrew the remaining screws. Once released the door will
become free, lift door off bottom door hinge pin and remove safely.
3.Repeat the proceed of removing the bottom hinge. Then replace and screw the bottom
hinge into the pre-punched hole locations on the opposite side of the cabinet.
Before replacing the door you will need to replace the handle on the opposite side of the
door before reattaching the door to the cabinet:
4.Gently prise open the 2 hole locator covers on the door frame of the unit being careful
not to scratch the frame. Peel away the door gasket gently from behind the handle,here
2 screws will become exposed, undo these screws and the handle will be released.
Repeat this procedure on the opposite side of the door to fix the handle in the new
position. Replace the 2 locating hole covers to the door where the handle was originally
fixed to. Ensure the door gasket is firmly pushed back into position.
5.Again using 2 people locate the door onto the bottom hinge pin, align the door to the
cabinet edge and fix the top hinge pin in place. Ensure the door gasket is flat to the
cabinet all around the door.

15
5. Care and Maintenance
Cleaning Your Wine Cooler
Turn off the power, unplug the appliance.
Wash the inside surfaces with warm water
Wash the shelves with a mild detergent solution.
Wash the outside of the cabinet with warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
Power Failure
Most external power cuts are corrected within a few hours and will not affect the
temperature of your appliance if you minimize the number of times the door is
opened.
If the power is going to be off for a longer period of time, you need to take the
proper steps to protect your contents.
Moving Your Wine Cooler
Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Adjust the leveling feet.
Ensure the door is shut and secured.
Be sure the appliance stays secure in the upright position during transportation.
Also protect outside of appliance with a blanket, or similar item.
Energy saving Tips
The Wine Cooler should be located in the coolest area of the room, away from heat
producing appliances, and out of the direct sunlight.

16
6. Troubleshooting
.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Wine Cooler does not operate.
Not plugged in.
The appliance is turned off.
A blown fuse.
Wine Cooler is not cold enough.
Check the temperature control setting.
Ensure product is away from heat sources.
The door is opened too often.
The door is not closed properly.
The door gasket does not seal properly.
The Unit turns on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has recently been
added to the Wine Cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work.
Not plugged in.
The appliance is turned off
A blown fuse
The light button is “OFF”.
Vibrations.
The unit is not on a level surface

17
The Wine Cooler is noisy
It is normal for some noise to come from a
refrigerator. Any ratting noise may come from
the refrigerant flow in the wine Cooler.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your Wine Cooler.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
All the above should be at a minimum.
The Wine Cooler is not on level surface
The door will not close properly.
The Wine Cooler is not on level surface
The door gasket is dirty or damaged
The shelves are out of position.
