Introduction
Product description
The product is a floor saw for concrete. The engine has
an oil alert system that stops the engine if the oil level is
too low. The engine cannot be started unless the oil
level is above the prescribed limit.
The product has these additional features:
• Manual push style with manual controls for all
functions.
• Mechanical blade depth control.
• Non-marking and non-stick polyurethane wheels.
• High strength single piece frame.
• Folding handle.
• Distinctive roll cage style framework.
• Patented safety arbor.
• Retractable front guide system.
Special features on Soff-Cut 150
The patented Soff-Cut Ultra Early Entry dry cutting
system controls random cracking of concrete through
the early timing of the saw cutting usually within one to
two hours after the finishing process is completed.
The patented low noise and low dust blade block and
skid plate technology in conjunction with Husqvarna
Excel blades allows for Ultra Early Entry sawing the
same day while minimizing chipping and spalling.
Soff-Cut 150 has a retractable front guide system.
Special features on Soff-Cut 150 D
The saw is designed to be an economical and durable
light commercial decorative concrete cutting saw. It is
recommended for light to medium duty usage on
decorative cuts, driveways and parking lots.
Intended use
The product is used for sawing of contraction joints after
pouring concrete slabs. It is used for residential and light
commercial applications. Do not use the product for
other tasks.
2714 - 002 - 09.04.2018

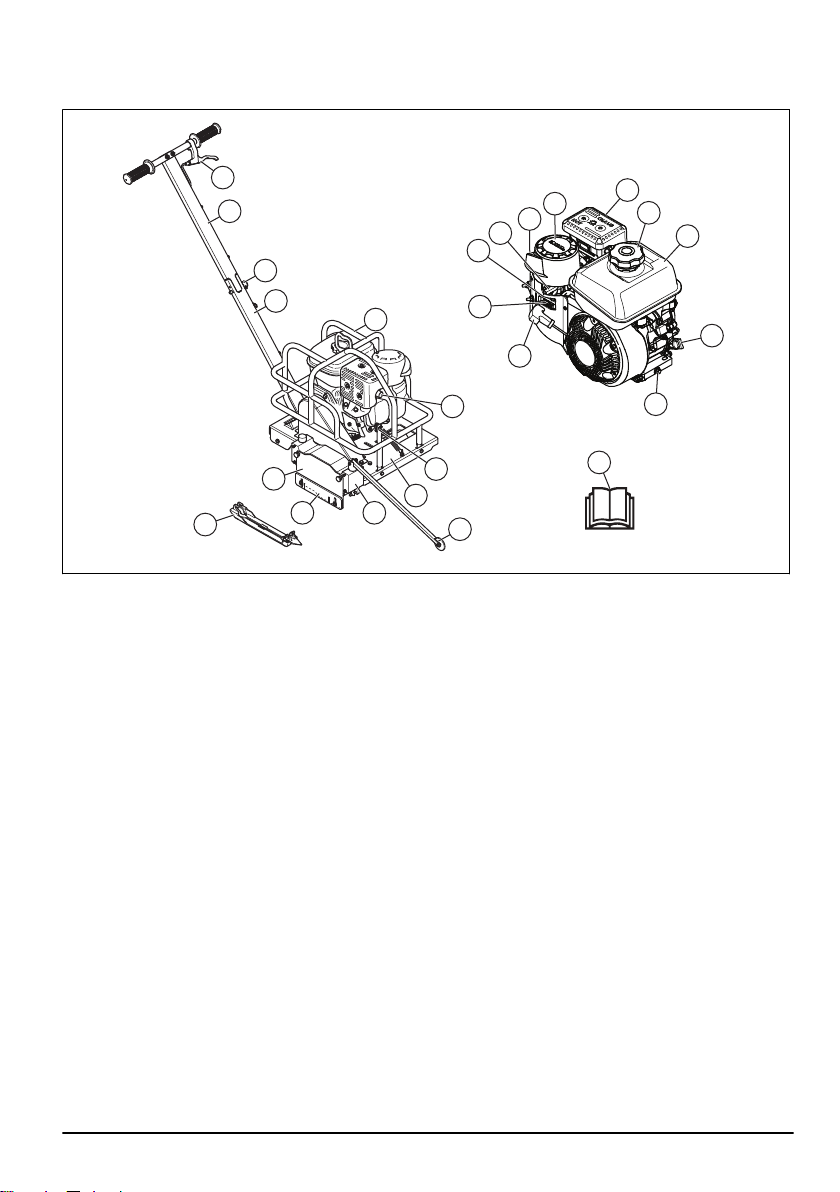

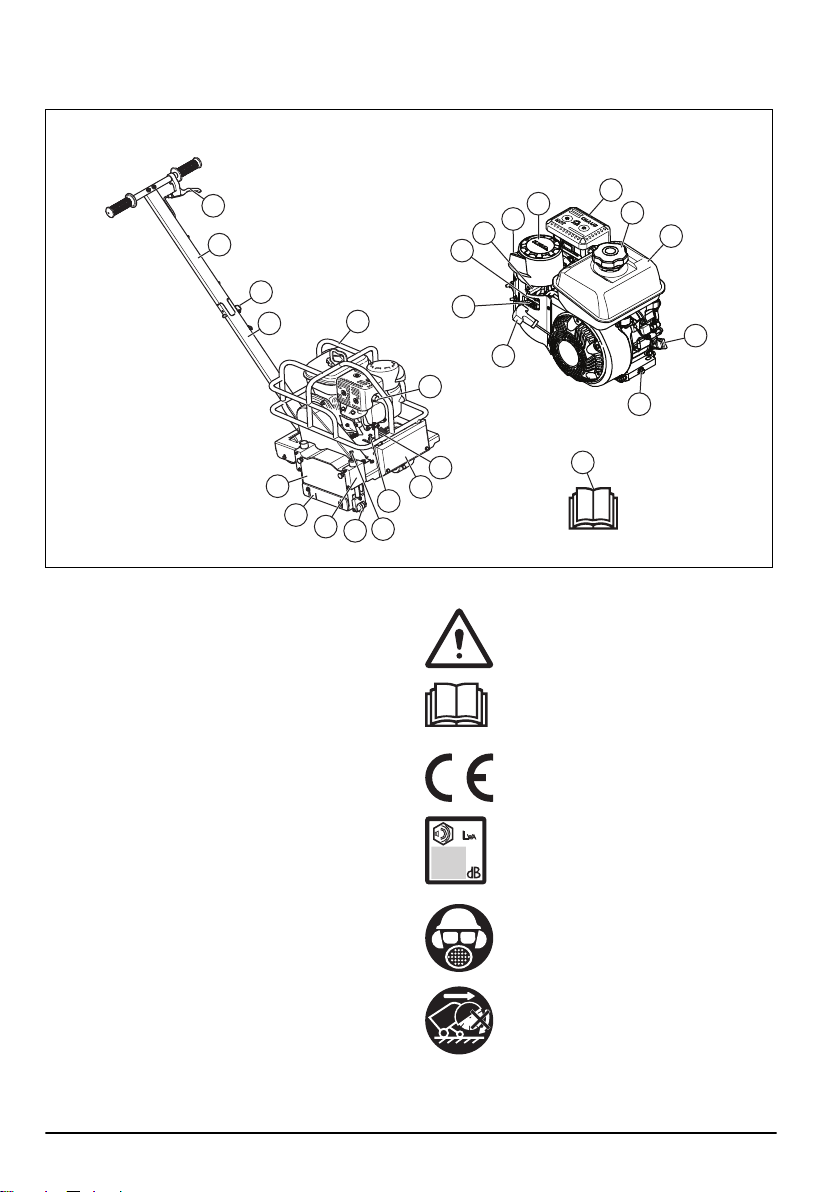

Product overview Soff-Cut 150
12
22
23
1
2
3
4
5
25
6
7
9
10
11
24 8
20
21
19
18
13
14
15
16
17
1. Blade release lever
2. Upper handle
3. Locking pin, handle
4. Lower handle
5. Roll cage
6. Depth stop adjustment
7. Saw frame
8. Front guide
9. Blade block
10. Lexan cover
11. Cover
12. Fuel tank filler cap
13. Fuel tank
14. Throttle trigger
15. Starter handle
16. Fuel valve / Engine ON/OFF switch
17. Choke control
18. Cyclonic air cleaner inlet
19. Exhaust outlet
20. Muffler cover
21. Air filter cover
22. Dipstick/oil filler
23. Oil drain plug
24. Skid plate (not included)
25. Operator′s manual
714 - 002 - 09.04.2018 3

Product overview Soff-Cut 150 D
1
2
3
45
6
7
8
9
10
11
12
13
21
14
24
25
26
22
23
20
15
16
17
18
19
1. Blade release lever
2. Upper handle
3. Locking pin, handle
4. Lower handle
5. Roll cage
6. Depth stop adjustment
7. Counter weight
8. Saw frame
9. Plunge adjustment screw
10. Front guide wheel
11. Blade block
12. Lexan cover
13. Cover
14. Fuel tank filler cap
15. Fuel tank
16. Throttle trigger
17. Starter handle
18. Fuel valve / Engine ON/OFF switch
19. Choke control
20. Cyclonic air cleaner inlet
21. Exhaust outlet
22. Muffler cover
23. Air filter cover
24. Dipstick/oil filler
25. Oil drain plug
26. Operator′s manual

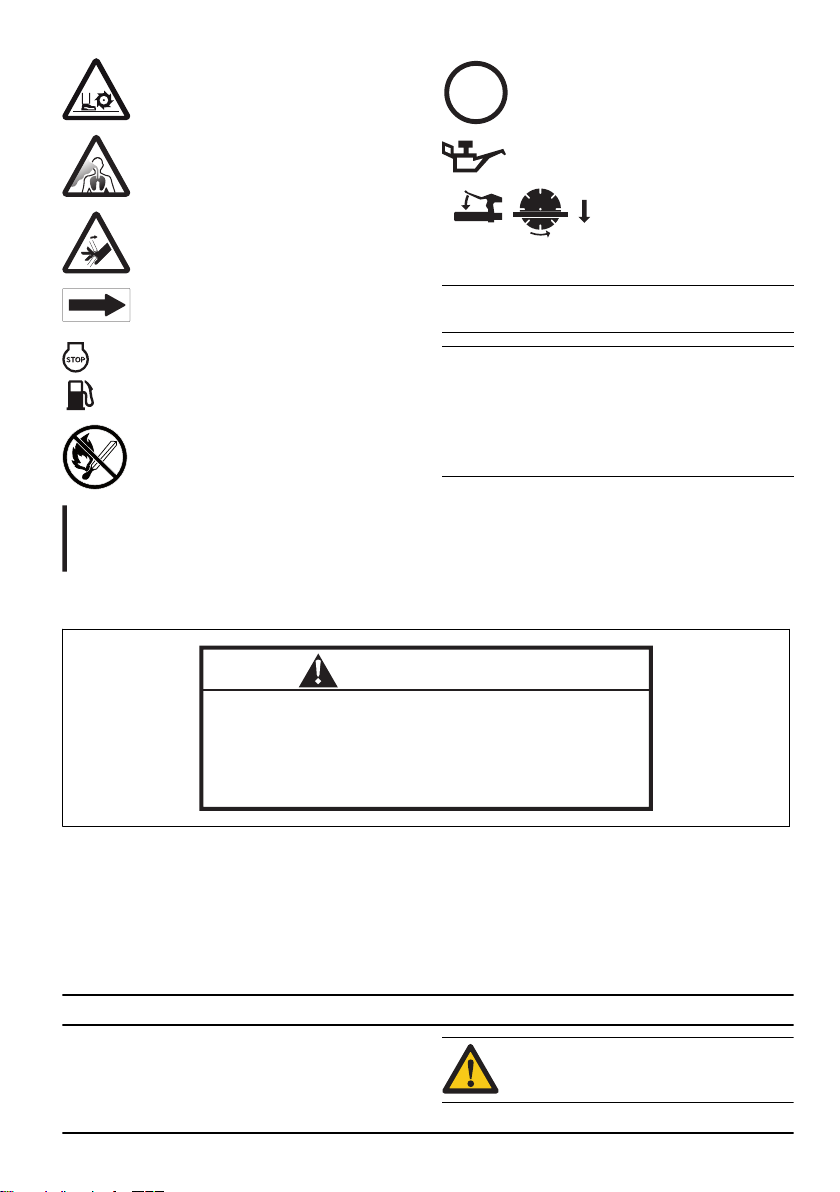

Symbols on the product
WARNING: Careless or incorrect use can
result in injury or death to the operator or
bystanders.
Read the operator's manual carefully and
make sure that you understand the
instructions before use.
This product agrees with applicable EC
Directives.
Noise emission to the environment agrees
with applicable EC Directives. See emission
specification in Technical data on page 21
and on the label.
Use personal protective equipment. Refer to
Personal protective equipment on page 7 .
All movement of the machine outside the
cutting area shall be carried out with the tool
not in rotation.
4714 - 002 - 09.04.2018

Risk of cut injury.
Do not inhale dust. Do not inhale exhaust
fumes. Keep a good airflow in the work area.
Risk of pinching. Keep body parts away from
moving parts.
Arrow on tool guard indicating the direction
of tool rotation.
Always stop the engine and let it become
cool before refueling.
Fire, open flame and smoking are
prohibited.
ON, start
Off, stop
Fill engine oil to correct level.
Operate the handle to un-
lock the stop mechanism
and to lower the blade into
the concrete for sawing.
Note: Other symbols/decals on the product refer to
certification requirements for other commercial areas.
Note: CALIFORNIA AIR RESOURCES BOARD (CARB):
This machine is considered a preempt Off-Road
Applicatoin as relating to CARB standards. The U.S.
EPA has sole authority to establish emission standards
for preempt construction equipment. For more
information see www.arb.ca.gov/msprog/offroad/
preempt.htm
Proposition 65
WARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not from
the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of injury or
death for the operator or bystanders if the
instructions in the manual are not obeyed.
714 - 002 - 09.04.2018 5

CAUTION: Used if there is a risk of damage
to the product, other materials or the
adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary in
a given situation.
Reservations of the manufacturer
Subsequent to publishing this manual Husqvarna may
issue additional information for safe operation of this
product. It is the owner’s obligation to keep up with the
safest methods of operation.
Husqvarna AB has a policy of continuous product
development and therefore reserves the right to modify
the design and appearance of products without prior
notice.
For customer information and assistance, contact us at
our website: www.husqvarna.com
General safety instructions
WARNING: Read the warning instructions
that follow before you use the product.
• This product is dangerous if used incorrectly or if you
are not careful. Injury or death can occur if you do
not obey the safety instructions.
• This product produces an electromagnetic field
during operation. This field may under some
circumstances interfere with active or passive
medical implants. To reduce the risk of serious or
fatal injury we recommend persons with medical
implants to consult their physician and the medical
implant manufacturer before operating this product.
• Always be careful and use your common sense. If
you are not sure how to operate the product in a
special situation, stop and speak to your Husqvarna
dealer before you continue.
• Keep in mind that the operator will be held
responsible for accidents that involve other persons
or their property.
• Keep the product clean. Make sure that you can
clearly read signs and decals.
• Do not let a person use the product unless you make
sure that they read and understand the contents of
the operator's manual.
• Do not let a child operate the product.
• Do not let a person, without knowledge of the
instructions, operate the product.
• Always monitor a person, with decreased physical
capacity or mental capacity, that uses the product. A
responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under
the influence of alcohol, drugs or medicine. This has
a negative effect on your vision, alertness,
coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible
that it has been changed by others.
Work area safety
WARNING: Keep unauthorized persons at a
distance. You are responsible to make sure
that animals and bystanders are not within
the working area.
• Keep work area clean and well lit. Cluttered or dark
areas increases the risk of accidents.
• People and animals can distract you causing you to
lose control of the product. For this reason, always
remain concentrated and focused on the task.
• Do not use the product in bad weather, such as
dense fog, heavy rain, strong wind, intense cold, etc.
• Never start to work with the product before the
working area is clear and you have a firm foothold.
Personal safety
WARNING: Cutting, especially when DRY
cutting, generates dust that comes from the
material being cut, which frequently contains
silica. Silica is a basic component of sand,
quartz, brick clay, granite and numerous
other minerals and rocks. Exposure to
excessive amount of such dust can cause
these health risks:
• Respiratory disease (affecting your
ability to breath), including chronic
bronchitis, silicosis and pulmonary
fibrosis from exposure to silica. These
diseases may be fatal.
• Skin irritation and rash.
• Cancer according to NTP (National
Toxicology Program) and IARC
(International Agency for Research on
Cancer).
To prevent these health risks, do these
precautionary steps:
• Avoid inhalation of and skin contact with
dust, mist and fumes.
• Wear and ensure that all bystanders
wear appropriate respiratory protection
such as dust masks designed to filter out
microscopic particles. (See OSHA 29
CFR Part 1910.1200)
• Wet cut when feasible, to minimize dust.
• Do not use the product unless you are able to call for
help in the event of an accident.
• Listen out for warning signals or shouts when you
are wearing hearing protection. Always remove your
hearing protection as soon as the engine stops.
6714 - 002 - 09.04.2018

• Prevent unintentional start. Make sure that the
switch is in the OFF position.
• Check that no tools or other objects are placed on
the product.
• Always shut off the product during longer work
breaks.
• Never work alone, always ensure there is another
person close at hand.
• Learn how to use the product and its controls safely
and learn how to stop quickly. Also learn to
recognize the safety decals.
• Do not overreach. Keep proper footing and balance
at all times.
Safety instructions for operation
Personal protective equipment
WARNING: Read the warning instructions
that follow before you use the product.
• Always use correct personal protective equipment
when you operate the product. The personal
protective equipment does not erase the risk of
injury. The personal protective equipment decreases
the grade of injury if an accident occurs. Let your
dealer help you select the right equipment.
• Use approved eye protection while you operate the
product.
• Use heavy-duty slip-resistant boots with steel toe-
caps.
• Use tight-fitting, heavy-duty and comfortable clothing
that permits full freedom of movement.
• Use approved heavy-duty protective gloves with a
firm grip.
• Use rubber protective gloves to prevent skin irritation
from wet concrete.
• Use an approved protective helmet.
• Always use approved hearing protection while you
operate the product. Noise for a long period can
cause noise-induced hearing loss.
• The product generates dust and fumes that contain
dangerous chemicals. Use an approved breathing
mask.
• Make sure that you have a first aid kit near.
• Sparks can occur when you operate the product.
Make sure that you have a fire extinguisher near.
• Do not use loose clothes, jewelry or other items that
can get caught in moving parts. Put your hair up
safely above shoulder level.
Use and care
WARNING: Read the warning instructions
that follow before you use the product.
• The product is intended for use in industrial
applications by experienced operators.
• Experience is very important when operating the
product. A skilled worker is highly recommended.
• Local regulations could restict the use of this
machine. Find out what regulations are applicable
where you work before you start using the machine.
• Running an engine in a confined or badly ventilated
area can result in death due to asphyxiation or
carbon monoxide poisoning. Use fans to ensure
proper air circulation when working in trenches or
ditches deeper than 1 m (3 ft).
• The exhaust fumes from the engine are hot and may
contain sparks which can start a fire. Never start the
machine indoors or near combustible material.
• Only operate the product from behind with both
hands on the handle.
• Use caution when loading, unloading and when
manoeuvring the product on ramps.
• Do not use the product as vehicle for transporting
personnel or equipment.
• Keep tools sharp and clean in order to enable safer
work.
• Never leave the machine unsupervised with the
motor running.
• Avoid getting in direct line with the blade or
contacting the blade while it is rotating.
• Never stand on the product.
CAUTION: Read the caution instructions
that follow before you use the product.
• Always perform daily maintenance before starting
the engine. Refer to
Maintenance schedule on page
14 .
• Do not overload the product. Overloading can
damage the product.
• Keep all parts in good working order and ensure that
all fixtures are properly tightened.
• Make sure the blade does not make contact with the
ground or any other surface when manoeuvring the
product.
Safety devices on the product
WARNING: Read the warning instructions
that follow before you use the product.
• Do not use a product with defective safety devices.
Do a check of the safety devices regularly. If the
safety devices are defective, speak to your
Husqvarna service agent.
• Do not make modifications on safety devices. Do not
use the product if protective plates, protective
covers, safety switches or other protective devices
are not attached or are defective.
714 - 002 - 09.04.2018 7

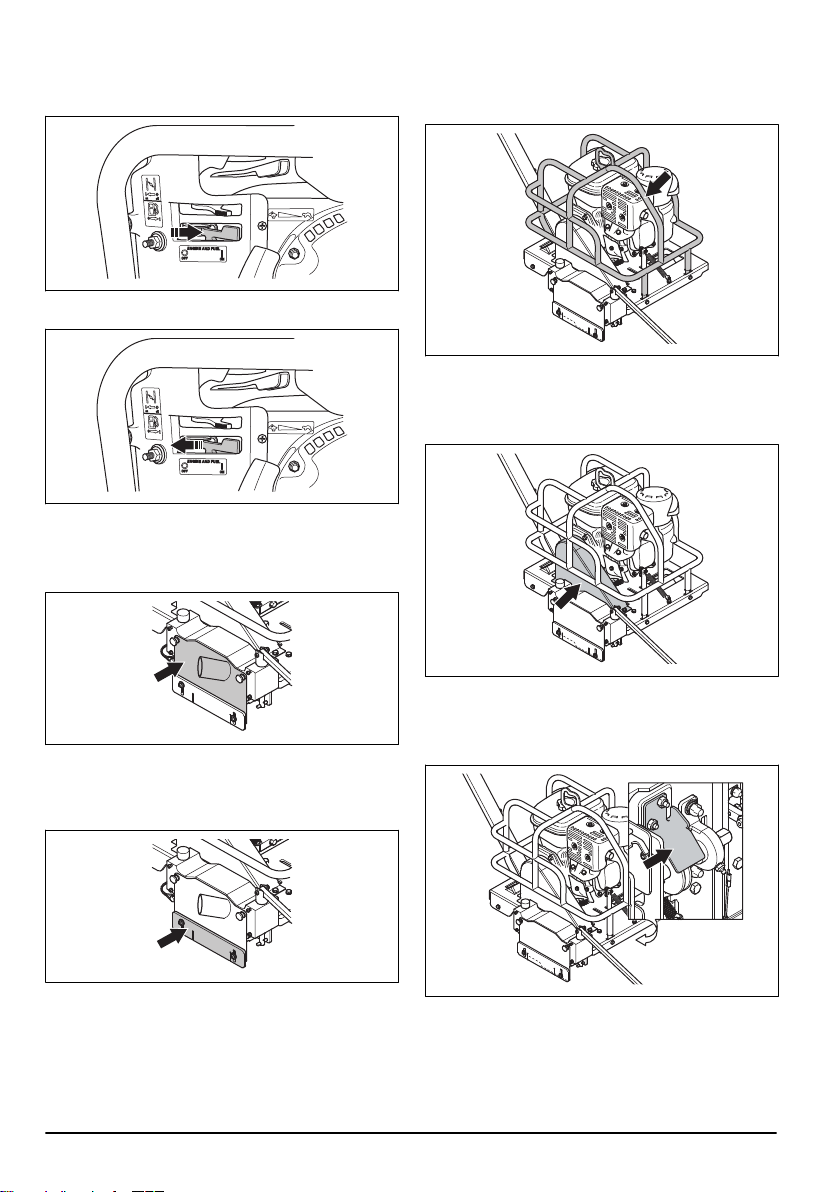

To do a check of the ON/OFF switch
• Make sure that the engine starts and the blade starts
to rotate when you put the switch in the ON position.
• Make sure that the engine stops immediately when
you put the switch in the OFF position.
Blade block guard and lexan cover
The blade block guard gives protection from the rotating
blade and keeps dust away from the operator.
The primary function of the lexan cover is to keep dust
away from the operator, but it also prevents particle
ejection. Make sure that the lexan cover moves freely up
and down.
Roll cage
The roll cage prevents damage to the equipment and
the engine, and prevents injury to the operator.
Belt guard
The belt guard protects the operator from the rotating
sheaves and the belt.
Sheave guard
The sheave guard protects the operator from rotating
bladeshaft sheave.
8714 - 002 - 09.04.2018

Muffler guard
The muffler guard prevents burn injury from the hot
muffler.
To do a check of the protective guards
The blade block guard, the lexan cover, the roll cage,
the belt guard, the sheave guard and the muffler must
be examined before you operate the product.
• Make sure that the guard is undamaged and not
cracked. Replace the guard if it has been exposed to
impact or is cracked.
• Make sure that the guard is correctly attached before
you start the product.
Fuel safety
WARNING: Read the warning instructions
that follow before you use the product.
• Do not start the product if there is fuel or engine oil
on the product. Remove the unwanted fuel/oil and let
the product dry.
• If you spill fuel on your clothing, change clothing
immediately.
• Do not get fuel on your body, it can cause injury. If
you get fuel on your body, use soap and water to
remove the fuel.
• Do not start the product if the engine has a leak.
Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes
are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury.
Make sure that there is a sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
• Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and
release the pressure carefully.
• Do not add fuel to the engine in an indoor area. Not
sufficient airflow can cause injury or death because
of asphyxiation or carbon monoxide.
• Tighten the fuel tank cap fully. If the fuel tank cap is
not tightened, there is a risk of fire.
• Move the product a minimum of 3 m (10 ft) from the
position where you filled the tank before a start.
• Do not put too much fuel in the fuel tank.
Safety instructions for maintenance
WARNING: Read the warning instructions
that follow before you use the product.
• The exhaust fumes from the engine contain carbon
monoxide, an odourless, poisonous and very
dangerous gas. Do not start the engine indoors or in
closed spaces.
• Before you do the maintenance on the product, stop
the engine and remove the ignition cable from the
spark plug.
• Use protective gloves when you do maintenance on
the cutting equipment. The blade is very sharp and
cuts can easily occur.
• Accessories and changes to the product that are not
approved by the manufacturer, can cause serious
injury or death. Do not change the product. Always
use accessories that are approved by the
manufacturer.
• If the maintenance is not done correctly and
regularly, the risk of injury and damage to the
product increases.
• Only do the maintenance as given in this owner's
manual. All other servicing must be done by an
approved Husqvarna service agent.
• Let an approved Husqvarna service agent do
servicing on the product regularly.
• Replace damaged, worn or broken parts.
Assembly
Introduction
WARNING: Before you assemble the
product, you must read and understand the
safety chapter.
WARNING: Remove the spark plug cable
from the spark plug before you assemble the
product.
714 - 002 - 09.04.2018 9

To unpack the product
1. Remove the product from the package. Lift the
product from the center handle on the roll cage.
2. Obey the local recycling requirements and applicable
regulations for the packing material.
3. Soff-Cut 150: No diamond cutting blade or skid is
included with the saw. Purchase the appropriate
blade and skid plate from your local Husqvarna
Construction Product dealer.
4. Soff-Cut 150 D: No radius or bevel blade is included
with the saw. Purchase the appropriate blade from
your local Husqvarna Construction Product dealer.
To attach the blade
Use only Husqvarna specific Soff-cut blades for best
performance.
CAUTION: Inspect the blade for damage,
cracks, loss of segments, warping,
overheating, excessive wear or a damaged
tri-arbor hole. If the blade shows any of
these problems, discard the blade.
Make sure the blade is marked with a
maximum operating speed greater than
4450 rpm.
Inspect blade flanges for damage, excessive
wear and cleanliness. The blade should fit
snugly on clean, undamaged, tri-arbor shaft.
1. Fold the handle to its full upright position.
2. Insert the locking pin.
3. Raise the blade by pushing down on the handle bar
with both hands to the full and locked position.
4. Remove the blade block cover.
5. Insert the two wrenches supplied, one in the slot at
the front of the engine and one on the blade shaft
bolt.
6. Turn the blade shaft counterclockwise with the
wrench on the blade shaft bolt until the second
wrench engages the flats on the other end of the
shaft.
7. Continue to turn the blade shaft bolt
counterclockwise to remove the blade shaft bolt.
8. Remove the outer blade flange.
9. Model Soff-Cut 150: Discard the old skid plate.
Note: The patented skid plate is the most important
part of the Soff-Cut Ultra Early Entry system. If it is
bent, twisted or damaged, spalling and raveling of a
cut may result. Store skid plates carefully and install
them properly. Install a new skid plate with each new
blade. Never re-use skid plates.
10. Thoroughly clean the concrete from the shaft, blade
block and blade block cover.
11. Mount the clean blade on the blade shaft.
X 150 X 150 D
10 714 - 002 - 09.04.2018

12. Mount the outer blade flange. Tighten the bolt firmly.
13. Model Soff-Cut 150: Install a new skid plate.
a) Hook the front of the skid plate on the front blade
block shaft pin.
b) Connect the rear blade block shaft and the rear
of the skid plate by pushing it until you hear a
click.
14. Mount the blade block guard. Tighten until fully
seated against the blade block.
15. Model Soff-Cut 150: Lift the front and rear of the skid
plate to ensure the blade slides freely through the
skid plate.
16. Make sure that the lexan cover moves freely up and
down.

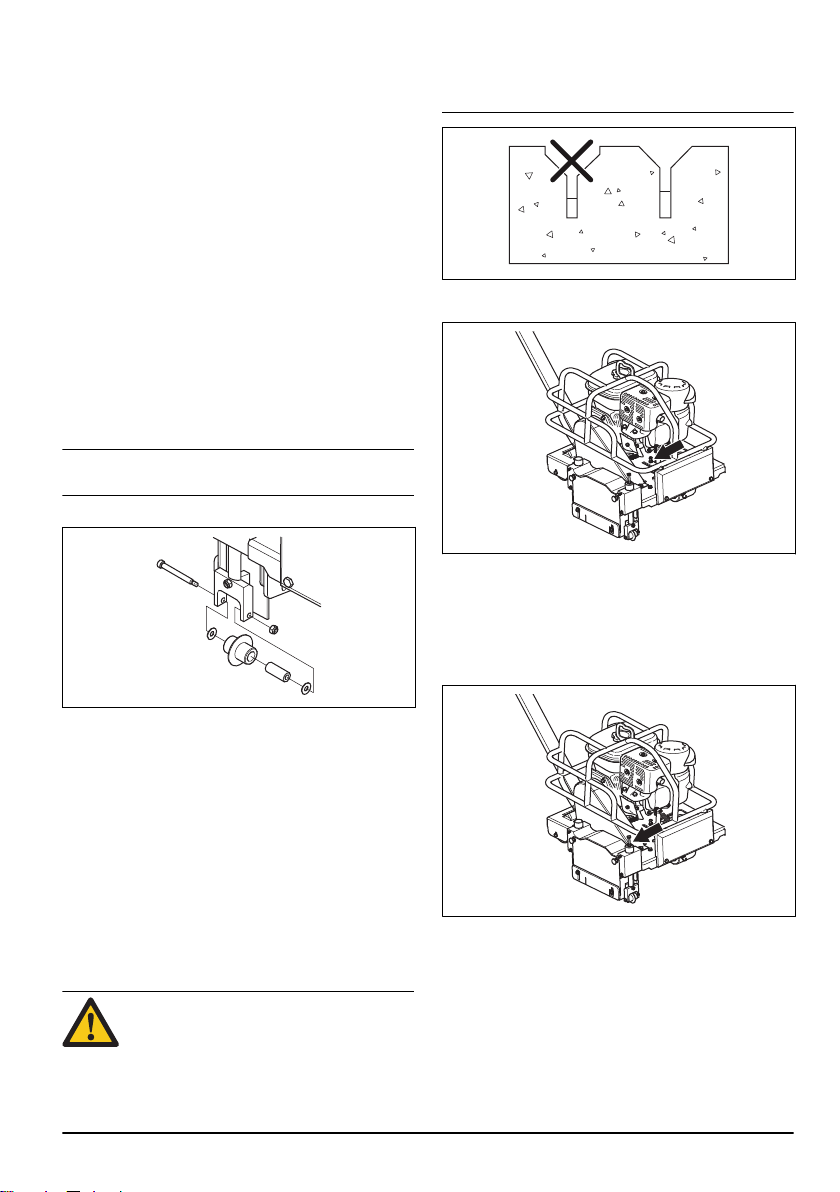

To replace the guide wheels (Soff-
Cut 150 D)
Use the ¼ʺ wide guide wheels when chasing ¼ʺ saw
cuts with the XL6- V25-D blade. Front and rear guide
wheels are included with the saw.
Note: Both front and rear guide wheels must be
replaced; do not mix different width guide wheels.
1. Remove lock nut and slide out the shoulder bolt.
2. Make a note of the washers and other parts removed
and the order of assembly.
3. Slide the bronze bushing from inside the old front
guide wheel and insert into the new one.
4. Slide the bronze bushing from inside the old rear
guide wheel and insert into the new one.
5. Install the new guide wheels using the same
shoulder bolts, lock nuts and plastic washers.
Half-inch wide guide wheels, not included with the saw,
are also available for use with ProEdge Blade XL6-
V500-D, when chasing ½ʺ wide saw cuts.
To adjust the blade depth (Soff-
Cut 150 D)
CAUTION: The radius and V-blade depth of
cut is preset at maximum depth at the
factory for optimum performance. Do not
adjust unless necessary. Adjust only for
shallower cuts with narrower width. Do not
adjust for more depth. Doing so will produce
an undesirable beveled cut as shown in the
figure.
1. Loosen the jam nut for the depth stop adjustment
counterclockwise.
2. Turn the depth adjustment bolt clockwise. Each full
revolution of the depth adjustment bolt will reduce
the beveled or radius cut width by ⅛".
3. Loosen the jam nut for the plunge adjustment
counterclockwise. Make sure that the rear wheels
are flat on the ground by pushing down on the rear
of the mainframe.
4. Turn the plunge adjustment screw clockwise by hand
until it touches the guide wheel shaft.
5. Back off a quarter turn counterclockwise and lock in
place by tightening the jam nut for the plunge
adjustment.
6. Chase an existing saw joint for approximately one
foot to verify that the correct decorative cut is
achieved.
714 - 002 - 09.04.2018 11

Operation
Introduction
WARNING: Before you operate the product,
you must read and understand the safety
chapter.
Basic working techniques
Contraction joints and joint spacing
As concrete hydrates or cures and begins to set, it
develops internal stresses which may cause random
cracks.
Random cracks cast doubt on the quality and
workmanship of the concrete. Contraction joints are cut
in concrete to relieve these stresses before they seek
their own relief in the form of random crack.
The Soff-Cut Ultra Early Entry system controls random
cracking through the early timing of a saw cut at
predetermined locations to create weakened planes in
the concrete that subsequently crack at the bottom of
the cut to relieve stress.
Sawed contraction joints must be a minimum of ⅛ of the
concrete depth and a minimum of 25 mm (1ʺ) deep.
Saw contraction joints when the concrete holds the
weight of the product and the operator. Make sure that
the product does not make marks on or cause damage
to the concrete.
There are many possibilities for joint layout. Joint layout
should be provided, the saw contractor should submit a
detailed joint layout for approval prior to cutting.
There are many conditions that have an effect on joint
spacing.
• Concrete thickness.
• Type, amount and location of reinforcement.
• Shrinkage potential of concrete-cement (type,
quantity), aggregate (size, quantity, quality), water to
cement ratio, admixtures, concrete temperature.
• Base friction.
• Slab restraints.
• Layout of foundations, racks, pits, equipment pad,
trenches, etc.
• Environmental factors - temperature, wind, humidity.
• Methods and quality of concrete curing.
Generally, contraction joint patterns should divide slabs
into approximate square panels per the recommended
spacing shown in the table.
Concrete thickness, mm
(in.)
Maximum spacing, m (ft.)
90 (3.5) 2.4 (8)
Concrete thickness, mm
(in.)
Maximum spacing, m (ft.)
100, 114 (4, 4.5) 3.0 (10)
125, 140 (5, 5.5) 3.6 (12)
150 (6) or greater 4.5 (15)
At all intersecting cross cuts, install Husqvarna joint
protectors at each joint to prevent joint damage. Install
an additional joint protector where the right wheel will
cross the joint to prevent concrete damage.
Maximizing the Soff-Cut system
"The timing of concrete operations - especially finishing
and jointing - is critical... Failure to address this issue
can contribute to undesirable characteristics in the
wearing surface as cracking..." (Extract from the
foreword of the American Concrete Institute (ACI) 302.1
R-96.)
The patented Soff-Cut Ultra Early Entry system has
revolutionized the method used to control random
cracking.
In order for an operator to do a satisfactory job using the
Soff- Cut system, the following criteria must be met:
• A Soff-Cut Ultra Early Entry dry up-cut saw.
• A Husqvarna Excel Series dry-cutting diamond
blade.
• A Husqvarna anti-ravel skid plate installed with every
new diamond blade.
• An operator skilled in using the Soff-Cut Ultra Early
Entry cutting system.
Without this, joints can not be cut clearly enough to
control random cracking before it starts, which is what
the building owner is paying for.
The ACI Spec 302.1R-96 says it best:
"Early-entry dry-cut saws use diamond-impregnated
blades and a skid plate that helps prevent spalling.
Timely changing of skid plates is necessary to effectively
control spalling. It is best to change skid plates in
accordance with manufacturer’s recommendations...The
goal of saw-cutting is to create a weakened plane as
soon as the joint can be cut...The timing of the early-
entry process allows joints to be in place prior to
development of significant tensile stress in the
concrete..."
The Portland Cement Association (PCA) engineering
bulletin, Concrete Floors on the ground, also states:
"Proper jointing can eliminate unsightly random cracks.
Aspects of joining that lead to a good job are choosing
the correct type of joint for each location, establishing a
good joint pattern and layout, and installing the joint at
12 714 - 002 - 09.04.2018

the correct time... Timing of joint sawing is
critical...Lightweight, high-speed, early-cut saws have
been developed to permit the joint sawing very soon
after floor finishing, sometimes within 0 to 2 hours...if the
cut is sawn within a few hours after the final finishing,
random cracking can be controlled..."
Husqvarna has the only Ultra Early Entry dry-cutting
system (Soff-Cut) which controls random cracking
through the early timing of the cut. With the patented
Soff-Cut method, control joints are usually cut within 2
hours after the finishing process.
Joint cutting should begin as soon as the concrete will
support the weight of the saw and the operator at each
joint location and before final set.
If the joints are not being cut within this time frame then
the Soff-Cut Ultra Early Entry method is not being
followed.
Before you operate the product
1. Do daily maintenance. Refer to
Maintenance
schedule on page 14
.
2. Make sure that the handle is in full upright position
and that the locking pin is installed.
3. Make sure that the front guide is turned to the
forward position.
4. Fill the oil tank. Refer to
Technical data on page 21
for information about recommended engine oil.
5. Do a check of the oil level. Refer to To do a check of
the oil level on page 15
.
To fill fuel
Use unleaded gasoline with octane number not less
than 90 RON (87 AKI).
CAUTION: Do not use gasoline with an
octane number less than 90 RON (87 AKI).
This can cause damage to the product.
CAUTION: Do not use unleaded gasoline
with more than 10% ethanol. This can cause
starting and performance problems.
Gasoline with more than 10% ethanol can
also damage metal, rubber, and plastic parts
of the fuel system, and pose a fire hazard.
CAUTION: Do not use gasoline that
contains methanol.
CAUTION: Do not use fuel that is older than
30 days. Old fuel can cause running
problems and damage to the fuel system.
1. Remove the product from the transportation vehicle
and put it on the ground. If this is not possible, refuel
the product with a portable container and not from a
gasoline dispenser nozzle.
WARNING: Use only approved gasoline
containers. Do not fill containers inside a
vehicle. Put the container on the ground
away from your vehicle.
2. Open the fuel tank cap slowly to release the
pressure.
3. Make sure that the nozzle touches the rim of the fuel
tank or container opening at all times until fuelling is
complete. Do not use a nozzle lock-open device.
4. Clean the area around the fuel tank cap.
5. Tighten the fuel tank cap fully. If the fuel tank cap is
not tightened, there is a risk of fire.
6. Move the product a minimum of 3 m (10 ft) from the
position where you filled the tank before a start.
To start the engine
1. Raise the blade by pushing down on the handle bar
with both hands to the full and locked position.
2. Turn the switch to the ON position (I) to start the
engine. It the ON position the fuel valve is also open.
The blade starts to rotate when the engine is turned
on.
3. Move the speed lever ⅓ of the way to the open
position.
714 - 002 - 09.04.2018 13

4. Close the engine choke lever.
Note: The closed choke position enriches the fuel
mixture for starting a cold engine. The open choke
position provides the correct fuel mixture for
operation after the engine starts and for restarting a
warm engine.
5. Pull the starter handle.
6. After the engine starts, slowly open the choke. Allow
the engine to warm for a few minutes.
To operate the product, Soff-Cut 150
1. Open the engine throttle lever to full open position
for maximum engine speed.
2. Line up the saw with the cut line using the white
wheel on the front guide and the triangle pointer on
the back of the blade block.
3. Push down on the saw handle and pull the blade
release lever to lower the blade in the concrete
slowly.
4. Push the saw forward to cut keeping the front guide
wheel in the cut line.
5. Push the saw at about half speed for the first 50 feet
to allow the blade to develop good diamond
exposure.
6. Increase the forward speed of the saw until the blade
and engine are working at maximum efficiency. Do
not force the saw.
7. When approaching a wall, raise the front guide and
use the triangle guide at the back of the blade block
to cut the last few feet.
CAUTION: Do not hit the blade block
assembly against any object. Damage
may result.
To operate the product, Soff-Cut 150 D
1. Open the engine throttle lever to full open position
for maximum engine speed.
2. Line up the rear guide wheel with the pre-existing
saw cut.
3. Push down on the saw handle and pull the blade
release lever to slowly lower the saw and drop the
rear guide wheel, then the front guide wheel, into the
saw cut.
Note: Do not completely lower the saw and the blade
into the concrete until the front and rear guide
wheels are positively aligned in the saw cut.
4. Once the guide wheels are in the saw cut, lower the
saw completely to start chasing the joint.
5. Chase an existing saw joint for approximately one
foot and verify blade/guide wheel alignment and that
the proper decorative cut is achieved.
6. Increase the forward speed of the saw until the blade
and engine are working at maximum efficiency. Do
not force the saw.
7. Maintain an even speed; pushing the saw too fast
will cause the blade to ride up out of the saw joint
causing uneven beveling.
CAUTION: Do not hit the blade block
assembly against any object. Damage
may result.
To stop the engine
1. Raise the blade by pushing down on the handle bar
with both hands to the full and locked position.
2. Move the engine throttle lever to the full closed
position.
3. Turn the switch to the OFF position (O). This also
closes the fuel valve.
Note: Clean the product after finished operation.
Maintenance
Introduction
WARNING: Before you do any maintenance
work you must read and understand the
safety chapter.
Maintenance schedule
The maintenance intervals are calculated from daily use
of the product. The intervals change if the product is not
used daily.
For maintenance identified with * refer to the instructions
in
Safety devices on the product on page 7 .
14 714 - 002 - 09.04.2018

Maintenance Daily Weekly (40 h) Monthly (200
h)
Do a general inspection X
Examine the oil level X
Clean the product X
Examine the skid plate (Soff-Cut 150) X
Examine the lexan cover* X
Examine the blade block guard* X
Examine the blade X
Examine the fuel level X
Clean the spark plug X
Examine the air filter and replace if needed X
Examine the drive belt X
Replace the oil (after the first 20 h, then every 100 h) X
Lubricate the blade shaft bearings X
Replace the air filter X
Examine the fuel cup X
Examine the spark plug and electrode gap X
To clean the product externally
• Clean the product daily with water after work is
finished.
• Make sure that the handles are clean and dry.
• Clean the blade block of any excess concrete build
up after each use. Use a heavy-duty handheld brush
or a large paint brush.
• Keep all openings and slots on the product clean to
make sure that air flows freely through the engine
compartment to ensure proper cooling.
Air filter
The air cleaner assembly is a cyclone type op the
engine at the front of the saw. Replace the air cleaner
element according to the maintenance schedule or
earlier if necessary. Refer to
Maintenance schedule on
page 14 .
Refer to the operator's manual for the engine for
additional information.
Spark plug
CAUTION: Always use the recommended
spark plug type. Use of the incorrect spark
plug can cause damage to the piston/
cylinder.
• See Maintenance schedule on page 14 for
information about when to replace the spark plug.
• For the correct spark plug type and gap setting, see
the engine manufacturer's manual for more
information.
To do a general inspection
• Make sure that the nuts and screws on the product
are tightened.
• Make sure that there are no fuel or oil leaks.
• Soff-Cut 150 D: Make sure that the wheels for the
front guide and the rear guide turn freely.
To do a check of the skid plate, Soff-
Cut 150
• Check for damage and excessive wear in the blade
slot.
• Check for burrs on the concrete surface side and
twisting.
• Install a new skid plate with each new blade. Never
re-use skid plates.
• Lift the front and rear of the skid plate to ensure the
blade slides freely through the skid plate.
To do a check of the oil level
1. Stop the engine.
714 - 002 - 09.04.2018 15

2. Put the product on level ground.
3. Remove the oil tank cap with the attached dipstick.
4. Clean the oil from the dipstick.
5. Put the dipstick back in. Do not tighten it.
6. Pull the dipstick out and read the oil level.
7. Examine the oil level on the dipstick.
8. If the oil level is low, fill with engine oil and do a
check of the oil level again. Refer to Technical data
on page 21 for correct oil type.
9. Tighten the oil tank cap correctly before you start the
engine.
Note: The engine has an oil alert system that stops the
engine if the oil level is too low. The engine cannot be
started unless the oil level is above the prescribed limit.
To do a check of the drive belt
• Make sure that the drive belt does not have
damages and that you cannot see that it is defective.
• The belt tension is controlled by the belt tensioner
and is not necessary to adjust.
• Make sure that the belt tensioner moves freely up
and down.
• Make sure that the belt tensioner bearings move
freely.
To lubricate the blade shaft bearings
• Lubricate the blade shaft bearings with 3 pumps of
Lithium 12 based grease.
To replace the engine oil
Refer to Maintenance schedule on page 14 for intervals.
WARNING: Engine oil is very hot directly
after the engine stops. Let the engine
become cool before you drain the engine oil.
If you spill engine oil on your skin, clean with
soap and water.
1. Put a container below the drain plug for the engine
oil.
2. Remove the drain plug.
3. Let the oil run out into the container.
4. Attach the drain plug and tighten it.
5. Fill with new oil according to recommendation. Refer
to
Technical data on page 21 .
6. Refer to To do a check of the oil level on page 15 for
instructions how to fill oil.
Maintenance of the engine
Refer to the operator's manual for the engine for
additional information about servicing of the engine. The
operator's manual for the engine also has information
about specifications, tune-up parts, engine warranty,
emission compliance, etc.
16 714 - 002 - 09.04.2018

Troubleshooting
Troubleshooting schedule
WARNING: Troubleshooting causes risk of
injury because personnel does work in the
risk areas of the product. Be careful, prepare
the work and use common sense.
If you cannot find a solution to your problems in this
owner's manual, speak to your Husqvarna service
agent.
Problem Solution
The product is spalling and
ravelling cut (Soff-Cut 150)
Check to see if the diamond blade is worn out, glazed, warped or damaged.
Ensure skid plate moves freely up and down the entire shaft length without contacting
the diamond blade.
Check skid plate for excessive wear or gap around the diamond blade.
Check bottom of skid plate for metal burrs or irregularities.
Ensure skid plate is not twisted or bent.
Check lexan covers for free movement up and down.
Ensure there is spring down pressure at each end of the skid plate.
Do not twist or move the product sideways while cutting. Make gradual changes in
pressure on the handlebar to control the saw in the cut.
Check that the engine is running properly and at full throttle.
Check belt and belt idler for proper tension.
Ensure the diamond blade is properly mounted and secured with clean flanges.
Ensure that the diamond blade is the correct specification for your area.
Ensure the slab is in clean with no debris that could raise the skid plate or product
while cutting.
Use Husqvarna joint protectors at all cut intersections.
Clean excess concrete debris from the blade block assembly.
Check that the scrapers in the blade block are not bent or binding.
Ensure that the blade block shafts are not bent or damaged.
714 - 002 - 09.04.2018 17

Problem Solution
Bevel or radius cut incon-
sistent (Soff-Cut 150 D)
Check to see if the diamond blade is worn out, glazed, warped or damaged.
Ensure front and rear guide wheels can move freely up and down without binding.
Ensure front and rear guide wheels can spin freely.
Do not push the product too fast. Sawing too fast will cause the blade to ride up out of
the concrete.
Make sure the guide wheels are aligned in the pre-existing saw cut before starting.
Make sure the existing saw cuts are clean and free of debris.
Check lexan covers for free movement up and down.
Ensure there is spring down pressure at each end of the skid plate.
Do not twist or move the product sideways while cutting. Make gradual changes in
pressure on the handlebar to control the saw in the cut.
Check that the engine is running properly and at full throttle.
Check belt and belt idler for proper tension.
Ensure the diamond blade is properly mounted and secured with clean flanges.
Ensure the slab is in clean with no debris that could raise the saw while cutting.
Clean excess concrete debris from the blade block assembly.
Check that the scrapers in the blade block are not bent or binding.
Ensure that the blade block shafts are not bent or damaged.
Re-cut the joint in the opposite direction.
The product pulls to one
side while sawing, Soff-
Cut 150
Check that the front guide is properly aligned with the center of the diamond blade
Check the skid plate for damage or burrs.
The product pulls to one
side while sawing, Soff-
Cut 150 D
Check front and rear guide is properly aligned with the center of the diamond blade.
Check to see if the diamond blade is worn out, glazed, warped or damaged.
Do not twist or move the saw sideways while cutting. Make gradual changes in pres-
sure on the handlebar to control the saw in the cut.
Ensure that all wheels rolls freely and smoothly.
Do not force the saw. Allow the diamond blade to cut at its own rate of speed.
18 714 - 002 - 09.04.2018

Problem Solution
The engine does not start Check if there is fuel in the tank and it is the correct fuel. Make sure there is no water
in the fuel.
Check if the fuel valve is turned to the ON position.
Check if the ON/OFF switch is in the ON position.
Check that the spark plug wire is connected to the spark plug.
Engine is flooded. Adjust the choke per the engine owner’s manual.
Check the choke is in the ON position for cold starts. Adjust the choke per the engine
owner’s manual.
Oil level is too low. Engine is equipped with an oil alert system that will not let the en-
gine start unless the engine oil level is within the correct range.
Check that air cleaner is not dirty or plugged.
Check that the blade shaft rotates freely and no concrete has built up in the blade
block.
The engine runs rough,
backfires or cannot reach
full speed.
Check if there is fuel in the tank and it is the correct fuel. Make sure there is no water
in the fuel.
Oil level is too low. Engine is equipped with an oil alert system that will not let the en-
gine start unless the engine oil level is within the correct range.
Check that air cleaner is not dirty or plugged.
Check that spark plug is clean and properly gapped.
Check that throttle lever is properly set.
Check the choke is in the ON position for cold starts. Adjust the choke per the engine
owner’s manual.
Transportation, storage and disposal
Transportation and storage
• For storage and transportation of the product and
fuel, make sure that there are no leaks or fumes.
Sparks or open flames, for example from electrical
devices or boilers, can start a fire.
• Always use approved containers for storage and
transportation of fuel.
• Remove the blade before transportation or storage
of the product.
• To prepare for transport, remove the locking pin, fold
the handle forward and fold the guide arm back.
• Lift the product from the lifting hook on the roll cage.
• If two persons lift the product, use the roll cage bar
on each side of the product and lift with two hands.
• Safely attach the product during transportation to
prevent damage and accidents.
714 - 002 - 09.04.2018 19

• Empty the fuel tank before you put the product in
storage for a long period of time. Discard the fuel at
an applicable disposal location
• Close the fuel valve.
• Keep the product in a completely lowered position
and secured from moving.
• Keep the product in a locked area to prevent access
for children or persons that are not approved.
• Keep the product and blade in a dry and frost free
area.
Disposal
• Obey the local recycling requirements and applicable
regulations.
• Discard all chemicals, such as engine oil or fuel, at a
service center or at an applicable disposal location.
• When the product is no longer in use, send it to a
Husqvarna dealer or discard it at a recycling
location.
20 714 - 002 - 09.04.2018
