Husqvarna PP518 User manual

GG
GGBB BB FF FFRR RR NN NNLL LL DD DDEE EE
PP518
Oper ator v s manual Manuel d’utilisa tion
Gebruiksaanwijzing Bedienungsanweisung
Please r ead the operator’s manual carefully and make sure you understand the instructions before using the machine.
Lire attentivement et bien assimiler le manuel d’utilisation avant d’utiliser la machine.
Neem de gebruiksaanwijzing grondig door en gebruik de machine niet voor u alles duidelijk heeft begrepen.
Lesen Sie die Bedienungsanweisung sorgfältig durch und machen. Sie sich mit dem Inhalt vertraut, bevor Sie das Gerät benutzen
.

2 – English
KEY T O SYMBOLS
Symbols on the mac hine
W ARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or
fatal injury to the operator or others.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Always wear:
• Approved hearing protection
This product is in accordance with
applicable EC directives.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in the Technical data chapter and
on the label.
The muffler is hot. Can result in burns and/
or ignite materials. Keep all parts of your
body away from hot surfaces.
Hydraulic oil tank
Ignition lock
Stop position, Operating
position, Start position
Choke.
Fuel tank
WARNING!
Fuel and fuel vapour are highly flammable. Take care when
handling fuel and oil. Bear in mind the risk of fire, explosion
and inhaling fumes. Do not fill with fuel in the vicinity of sparks
or naked flames.
Other symbols/decals on the mac hine refer to special
certification requirements for certain markets.
Explanation of warning le vels
The w arnings are graded in three levels.
W ARNING!
CAUTION!
NOTICE!
!
W ARNING! Used if there is a risk of serious
injury or death for the operator or damage to
the surroundings if the instructions in the
manual are not followed.
!
CA UTION! Used if there is a risk of injury to
the operator or damage to the surroundings
if the instructions in the manual are not
followed.
NO TICE! Used if there is a risk of damage to materials or
the machine if the instructions in the manual are not
followed.

English – 3
CONTENTS
Contents
KEY TO SYMBOLS
Symbols on the machine .............................................. 2
Explanation of warning levels ....................................... 2
CONTENTS
Contents ....................................................................... 3
PRESENT ATION
Dear Customer , ............................................................. 4
Design and features ...................................................... 4
WHA T IS WHAT?
What is what on the h ydraulic unit? .............................. 5
ASSEMBLING AND ADJUSTMENTS
Gener al ......................................................................... 6

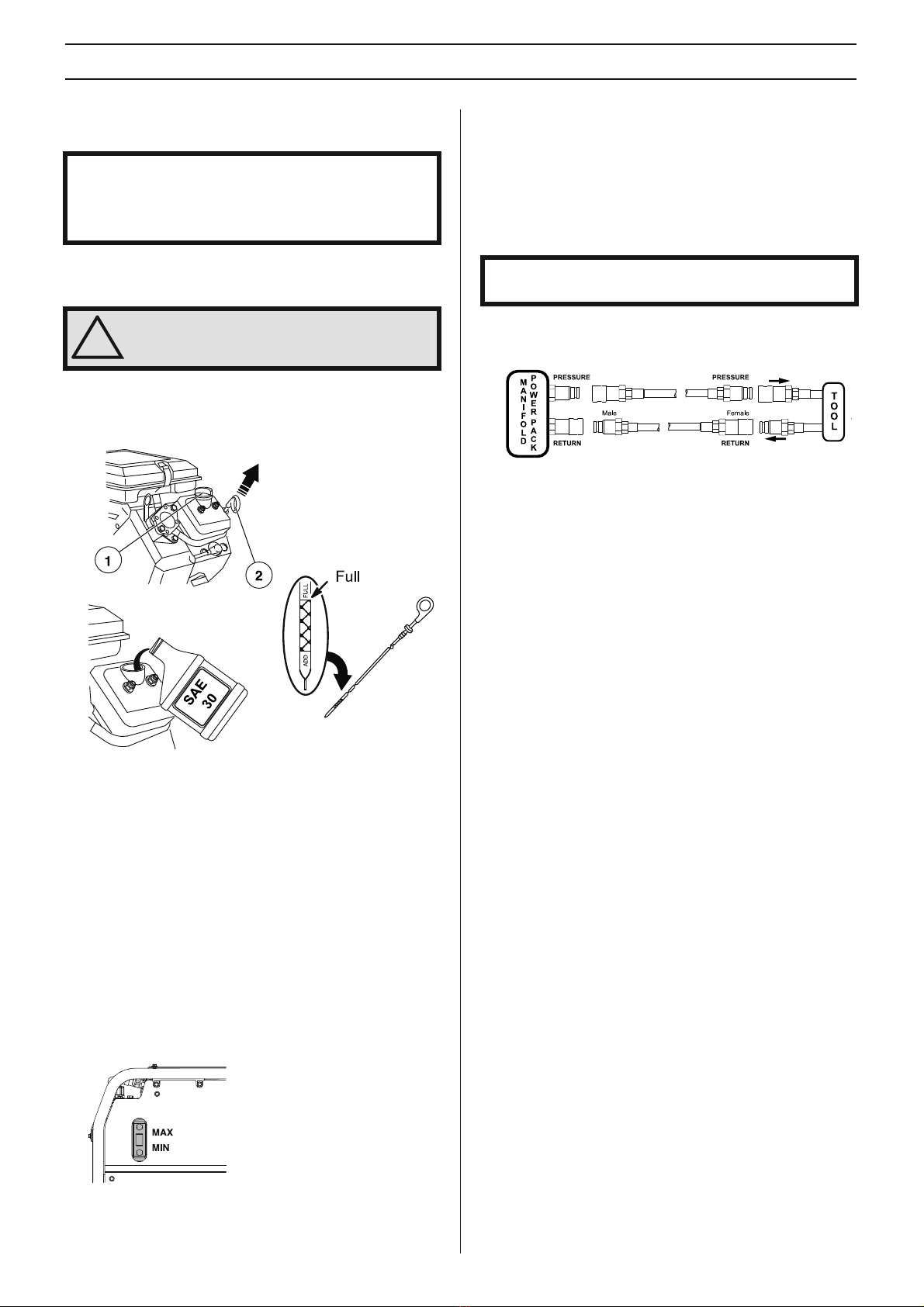

Filling engine oil ............................................................ 6
Filling hydraulic oil ......................................................... 6
Connecting the hydraulic hoses .................................... 6
Checking the tyre pressure ........................................... 6
Connecting the battery .................................................. 7
FUEL/OIL HANDLING
Gener al ......................................................................... 8
Fuel ............................................................................... 8
Engine oil ...................................................................... 8
Hydraulic oil .................................................................. 8
OPERA TING
Protectiv e equipment .................................................... 9
General safety precautions ........................................... 9
Work safety ................................................................... 10
Control functions ........................................................... 11
The automatic throttle ................................................... 11
Hydraulic hoses and couplings ..................................... 12
ST ARTING AND STOPPING
Bef ore starting .............................................................. 13
Starting for the first time ................................................ 13
Check before starting .................................................... 13
Starting ......................................................................... 13
Stopping ........................................................................ 14
MAINTENANCE
Gener al ......................................................................... 15
Daily maintenance ........................................................ 15
Engine ........................................................................... 15
Hydraulic System .......................................................... 16
Battery .......................................................................... 17
Service .......................................................................... 17
TECHNICAL D ATA
PP518 ........................................................................... 18
EC Declaration of Conformity ....................................... 19

4 – English
PRESENT A TION
Dear Customer ,
Thank y ou for choosing a Husqvarna product!
It is our wish that you will be satisfied with your product and
that it will be your companion for a long time. A purchase of
one of our products gives you access to professional help with
repairs and services. If the retailer who sells your machine is
not one of our authorised dealers, ask him for the address of
your nearest service workshop.
This operator’s manual is a valuable document. Make sure it
is always at hand at the work place. By following its content
(using, service, maintenance etc.) the life span and the
second-hand value of the machine can be extended. If you
will sell this machine, make sure that the buyer will get the
operator´s manual.
More than 300 y ears of innovation
Husqv arna AB is a Swedish company based on a tradition
that dates back to 1689, when the Swedish King Charles XI
ordered the construction of a factory for production of
muskets. At that time, the foundation was already laid for the
engineering skills behind the development of some of the
world's leading products in areas such as hunting weapons,
bicycles, motorcycles, domestic appliances, sewing
machines and outdoor products.
Husqvarna is the global leader in outdoor power products for
forestry, park maintenance and lawn and garden care, as well
as cutting equipment and diamond tools for the construction
and stone industries.
Owner responsibility
It is the o wner’s/employer’s responsibility that the operator
has sufficient knowledge about how to use the machine
safely. Supervisors and operators must have read and
understood the Operator’s Manual. They must be aware of:
• The machine’s safety instructions.
• The machine’s range of applications and limitations.
• How the machine is to be used and maintained.
National legislation could regulate the use of this machine.
Find out what legislation is applicable in the place where you
work before you start using the machine.
The man ufacturer’s reservation
Subsequent to pub lishing this manual Husqvarna may issue
additional information for safe operation of this product. It is
the owner’s obligation to keep up with the safest methods of
operation.
Husqvarna AB has a policy of continuous product
development and therefore reserves the right to modify the
design and appearance of products without prior notice.
For customer information and assistance, contact us at our
website: www.husqvarna.com
Design and f eatures
V alues such as high performance, reliability, innovative
technology, advanced technical solutions and environmental
considerations distinguish Husqvarna's products. Safe
operation of this product requires the operator to read this
manual carefully. Ask your dealer or Husqvarna should you
need more information.
Some of the unique features of your product are described
below.
Hydraulic unit
The PP518 h ydraulic unit is fitted with a flow-adjustable
hydraulic pump, which generates hydraulic power in a more
efficient manner compared to more standard cogwheel
pumps with fixed displacement that are available.
The PP518 hydraulic unit can be suitably used to operate
hydraulic tools with the following specifications:
Examples of Husqvarna hydraulic tools which can be used
together with the PP518 without any modifications:
• Power cutters K2500 K3600
• Drill motor DM 406 H
• Wall saw WS 325
Other popular tools are:
• Hydraulic chainsaw
• Hydraulic water pump
Hydraulic valve: ”Open centre”
Flow
requirements
20, 30 or 40 l/min
(5, 8 or 10 gal/min)
Max. pressure: 140 bar (2,000 psi) or more
!
CA UTION! If a tool requires a flow of 20 l/min
(5 gal/min), it is NOT permitted to operate it
at a higher setting, for instance 30 or 40 l/
min (8 or 10 gal/min). This may lead to
serious damage to the tool or even personal
injury.
Always seek the advice of the tool
manufacturer before connecting it to the
power unit.
NO TICE! Not to be used with hydraulic hammers, hydraulic
breakers or equipment with hydraulic cylinders.

English – 5
WHA T IS WHA T?
What is what on the h ydraulic unit?
1 Lifting eye
2 Brackets for hydraulic hoses
3 Fuel cap
4 Choke control
5 Handle lock
6 Transport handle
7 Battery
8 Engine oil filter
9 Ignition lock
10 Throttle switch
11 Counter
12 Pressure connection
13 Return connection
14 Flow regulation (oil)
15 Oil level gauge
16 Electric fuse, 10A
17 Large hydraulic oil filter
18 Small hydraulic oil filter
19 Adjustable pressure sensor valve for full throttle or idling
20 Hydraulic oil cover
21 Oil plug for hydraulic oil
22 Oil plug for engine oil
23 Operator
′ s manual
