ILLUSTRATED PARTS LIST
MODEL NUMBER MRT6
PRODUCT NUMBER 960 91 00-21
MFG. ID NO. 96091002104
581 81 83-27 Rev. 4 08.14.13 BY

2
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
6
11
14
11
10
12 13
15
2
19
31
17
16
21
27
42
44 43
42
42
18
20
handle_assy_107
1
45
19 819 13 16-11 Washer 13/32 x 1 x 11 Gauge
20 532 10 92-28 Lever, Lock, Handle
21 581 96 94-01 Handle
27 873 90 04-00 Nut, Hex, Flanged 1/4-20UNC
31 532 15 06-96 Bolt, Pivot
42 532 41 63-58 Screw #10 x 3/4
43 532 43 87-95 Cable, Handle, Tine Control
44 532 43 87-82 Control, Handle, Two Function
45 532 42 17-56 Screw #10 x 1/2
1 532 18 94-82 Control, Throttle
2 532 42 76-43 Grip, Handle
6 532 44 60-77 Panel, Control
10 532 00 82-06 Grip, Handle
11 532 12 47-88 Clip, Hairpin
12 532 08 13-28 Bolt, Shoulder
13 581 85 12-01 Handle, Shift
14 532 10 93-13 Grommet, Rubber
15 532 13 84-00 Rod, Shift
16 872 11 06-08 Bolt, Carriage, Grade 5 3/8-16 x 1
17 532 10 92-29 Lock, Handle
18 873 68 06-00 Nut, Crownlock 3/8-16UNC

3
KEY PART
NO. NO. DESCRIPTION
3 873 93 06-00 Nut, Hex 3/8-16
4 583 87 77-01 Shield, Inner Belt Guard, R.H.
5 532 16 43-29 Pin, Spiral Flared
6 532 11 01-11 Lever, Shift
7 872 11 04-04 Bolt, Carriage, Grade 5
1/4-20 x 1/2
8 581 84 50-01 Plate, Shift Indicator
9 532 08 67-77 Screw, Hex Washer Head, Slotted
#10-24 x 1/2
10 532 44 60-45 Clip
12 873 51 04-00 Nut, Keps, Hex 1/4-20 UNC
13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8
14 532 15 61-17 Spacer, Split
15 819 11 11-16 Washer 11/32 x 11/16 x 16 Gauge
16 532 14 51-02 Sheave, Transmission
19 812 00 00-28 Retainer, Ring
21 532 13 16-91 Spacer, Split 0.327 x 0.42 x 2.09
22 874 77 05-08 Bolt, Hex Head 5/16-24 UNF x 1/2
23 583 87 74-02 Wheel & Tire Assembly
24 532 12 68-75 Rivet, Drilled
25 532 12 47-88 Clip, Hairpin
26 532 40 72-86 Guard, Belt
27 532 13 28-01 Belt, V
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
MAINFRAME, LEFT SIDE
KEY PART
NO. NO. DESCRIPTION
28 532 10 46-79 Pulley, Idler
29 812 00 00-32 Ring, Klip
30 580 94 91-02 Bracket, Idler
31 581 74 72-01 Bolt, Hex Head 3/8-16 UNC x 12
32 532 10 21-41 Shaft, Idler Arm
33 874 76 06-16 Bolt, Hex Head 3/8-16 x 1
34 581 01 06-01 Counterweight, L.H.
36 581 86 48-01 Bracket, Reinforcement, L.H.
37 532 13 08-12 Sheave, Engine
38 874 76 05-44 Bolt, Hex Head 5/16-18 x 2-3/4
39 532 14 00-62 Cap, Plunger, Black
40 532 17 04-88 Screw, Hex Washer Head, Slotted
#10-24 x 1/2
44 873 80 05-00 Locknut, Hex, with Washer Insert,
Plated 5/16-18 UNC
65 873 97 05-00 Locknut, Hex, Flanged
66 819 13 13-16 Washer, Flat, 3/8 SAE
67 874 76 05-28 Bolt, Hex Head 5/16-18 x 1-1/2
68 873 51 06-00 Nut, Hex, Keps 3/8-16 UNC
69 532 16 41-73 Keeper, Belt, Engine
70 532 05 92-89 Washer, Flat
73 819 13 13-12 Washer 13/32 x 13/16 x 12 Gauge
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
70
15
15
68
65
68
65
67 34
31
30
28 3
40
26
15
66
44
40
27
19
16
38
4
21
14
69
33
36
13
37
39
6
5
8
12
79
10
29
22
mainframe_left_24pita3
24
23
25
73
32

4
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
MAINFRAME, RIGHT SIDE
2 873 97 05-00 Locknut, Hex, Flanged 5/16-18
5 581 86 47-01 Bracket, Reinforcement
7 581 01 04-01 Counter Weight, R.H.
10 874 76 05-24 Bolt, Hex Head 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 583 87 74-01 Wheel & Tire Assembly
15 - - - Engine, Briggs & Stratton
Model Number 121002-3423-H8
(Order parts from B&S)
44 873 51 06-00 Nut, Hex, Keps 3/8-16 UNC










MAINFRAME?RIGHT??R
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 532 18 85-54 Transmission Assembly
(Includes Key Numbers 2–53)
2 532 18 84-82 Gearcase, L.H., with Bearing
(Includes Key Number 4)
3 532 43 10-22 Gasket, Gearcase
4 532 00 50-20 Bearing, Needle
5 532 00 13-70 Washer, Thrust 5/8 x 1.10 x 1/32
6 532 13 73-35 Pinion, Input
7 532 14 51-01 Shaft, Input
8 532 12 47-92 Bearing, Needle
9 532 15 44-67 Washer, Seal
10 532 12 46-97 Ball, Steel
11 532 10 03-71 Spring, Shift, Fork
12 532 10 61-60 O-Ring
13 532 14 21-45 Arm, Shift
14 532 00 83-53 Fork, Shift
15 812 00 00-39 Ring, Klip
16 532 15 44-66 Shaft, Shift
18 532 00 43-58 Washer
19 812 00 00-40 Ring, Klip
20 532 10 21-14 Gear, Assembly, Reverse Idler
(Includes Key Numbers 21 and 22)
21 532 10 21-15 Gear, Reverse Idler
22 532 00 68-03 Bearing, Needle
23 532 10 21-11 Shaft, Reverse Idler
24 810 04 07-00 Washer, Lock 7/16
25 873 61 07-00 Nut, Hex 7/16-20
27 532 43 12-19 Bearing, Shaft, Ground Drive, L.H.
29 532 10 21-34 Chain #35-50 Pitch

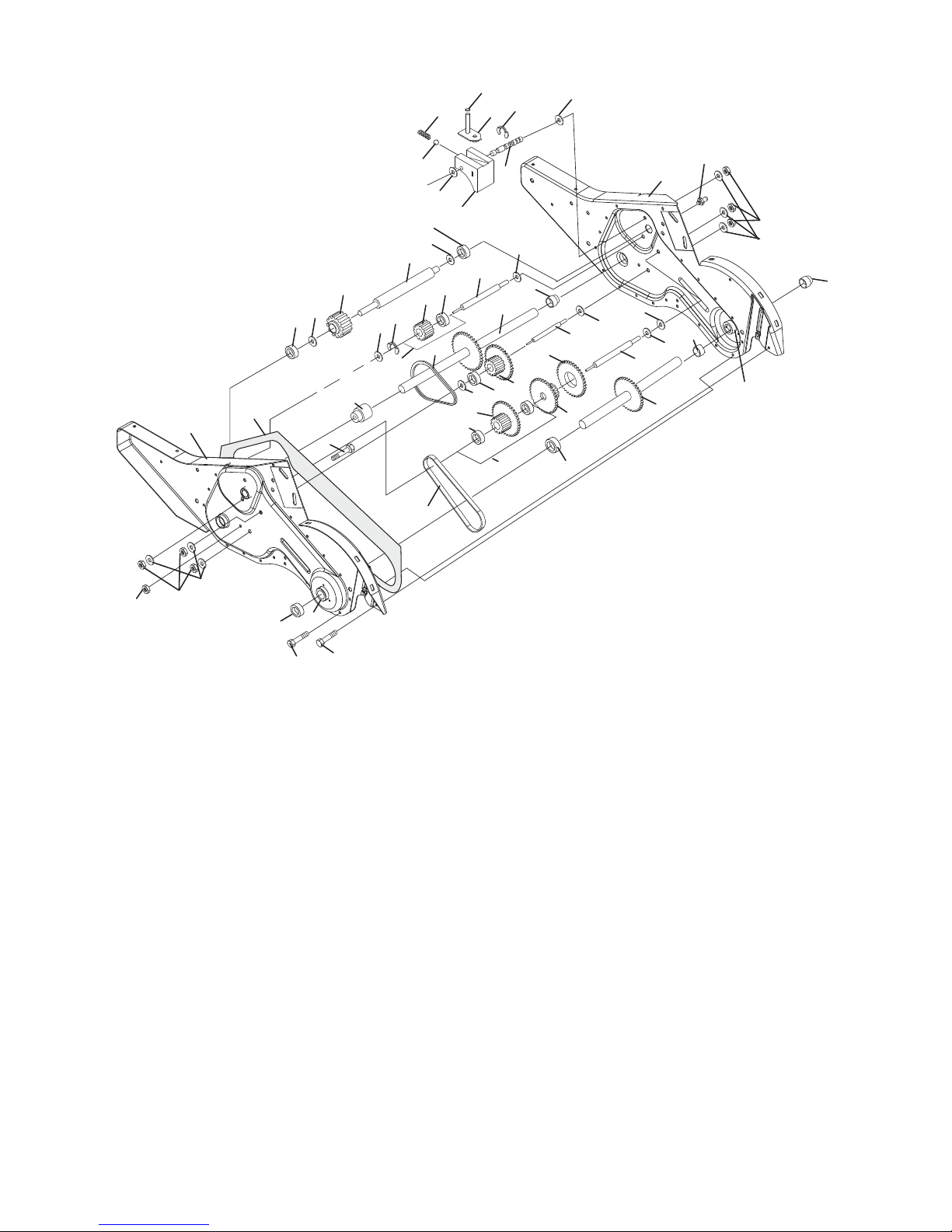

HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
TRANSMISSION
KEY PART
NO. NO. DESCRIPTION
30 532 15 07-37 Ground Shaft Assembly
31 532 14 30-08 Bearing, Shaft, Ground Drive, R.H.
32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150
33 532 10 21-21 Sprocket and Gear Assembly
34 532 10 21-12 Shaft, Reduction, 2nd
35 532 10 21-01 Screw, Whiz-Lock 5/16-18 x 3-1/2
36 532 15 43-55 Sprocket Assembly w/Bearing
(Includes Key Numbers 37 and 38)
37 532 12 47-91 Bearing, Needle
38 532 15 43-56 Sprocket, Tine
39 532 10 53-45 Gear, Cluster, Red, 1st & 2nd
40 532 10 53-46 Gear, Reverse
41 532 00 83-58 Shaft, Reduction, 1st
42 532 00 42-20 Washer, Thrust
43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760
44 532 15 52-36 Seal Assembly, Oil
48 532 18 84-85 Gearcase, R.H., with Bearing
(Includes Key Number 8)
49 532 43 14-85 Shaft, Tine
50 532 10 61-47 Chain, Roller #50-50 Pitch
51 817 72 04-08 Screw 1/4-20 x 1/2
52 873 22 05-00 Nut, Hex 5/16-18
53 532 16 51-40 Kit, Bearing
58 532 17 95-20 Bolt Shoulder 1/4-20 UNC x 7/8
60 532 18 32-26 Fitting, Grease
62 532 43 10-15 Spacer 1.015 x 1.50 x .650

 























  







 













 

 



TRANSMISSION?

6
23 532 00 44-40 Hinge
24 872 14 04-04 Bolt, Carriage, Grade 5 1/4-20 x 1/2
25 532 12 47-17 Cap, Vinyl
26 532 10 92-27 Pad, Idler
27 532 19 57-94 Shield, Leveling
28 532 12 05-88 Pin, Hinge
29 581 81 27-03 Shield, Side
30 873 97 05-00 Locknut, Hex, Flanged
32 873 22 04-00 Nut, Hex 1/4-20 UNC
33 810 04 04-00 Washer, Lock, Heavy Helical Spring
1/4
35 872 11 05-05 Bolt, Carriage 5/16-18 x 5/8
37 873 80 05-00 Locknut, Hex, with Washer Insert
5/16-18 UNC
38 873 51 05-00 Nut, Hex, Keps 5/16-18 UNC
39 532 42 88-67 Bolt, Hex Head
40 532 18 11-56 Nut, Hex
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 15 53-77 Locknut, Hex, Flanged 5/16-18
2 532 19 57-97 Shield, Side, Outer, L.H.
3 532 00 83-93 Pin, Stake, Depth
4 812 00 00-35 Ring, Klip
5 532 18 08-47 Bolt, Carriage 5/16-18 x 3/4
6 532 00 83-94 Spring
7 581 85 08-01 Bracket, Latch
8 532 10 92-30 Spring, Depth Stake
9 532 19 58-10 Shield, Tine
13 872 11 05-10 Bolt, Carriage, Grade 5
5/16-18 x 1-1/4
14 581 81 35-01 Bracket, Shield Tine
15 532 19 57-96 Shield, Side, Outer, R.H.
16 873 90 04-00 Nut, Hex, Flanged 1/4-20 UNC
18 872 04 04-10 Bolt, Carriage, Grade 5
1/4-20 x 1-1/4
19 532 10 27-01 Grip
20 873 22 06-00 Nut, Hex 3/8-16
21 532 12 50-00 Stake, Depth
22 874 93 06-32 Bolt, Hex Head 3/8-16 x 2
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
TINE SHIELD
5
24
23
24
26
27 38
16
25
33
32
16
9
5
23
23
28 24
5
22
21 20
19
tine_shield-rear_17_pita2
38
38
13
14
14
38 37
34
7
8
65
2
29
39
29
15
1
1
1
40
40
18
39
35
35
35
35

7
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 00 44-59 Tine, Outer, L.H.
2 532 13 26-73 Clevis Pin
3 532 00 65-54 Tine, Inner, L.H.
4 532 12 46-60 Retainer, Spring, Zinc-Plated
5 581 85 30-01 Assembly, Hub and Plate, L.H.
8 874 61 06-16 Bolt, Hex Head 3/8-24 x 1
9 532 00 44-60 Tine, Outer, R.H.
10 581 81 37-01 Assembly, Hub and Plate, R.H.
11 532 00 65-55 Tine, Inner, R.H.
34 873 54 06-00 Nut, Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
TINE ASSEMBLY
2
11
11
10
9
9
4
4
5
34
3
3
1
2
1
1
1
9
9
8
tine_ipb_1

8
5 532 15 98-77 Decal, Hand Placement
6 532 10 21-80 Decal, Shift Indicator
7 532 14 54-37 Decal, Euro, C.E.
8 532 43 53-35 Decal, Engine, B&S
9 532 17 65-57 Decal, Warning, Rotating Tines
13 532 43 72-17 Decal, Belt Guard
- - 580 42 71-40 Manual, Operator's, European
- - 580 42 71-50 Manual, Operator's, Scandinavian
- - 580 42 71-20 Manual, Operator's, East Bloc
- - 580 42 71-30 Manual, Operator's, Baltic
KEY PART
NO. NO. DESCRIPTION
HUSQVARNA REAR TINE TILLER - MODEL NO. MRT6 (MFG. ID. NO. 96091002104)
DECALS
6
9
5
7
8
13
