ILLUSTRATED PARTS LIST
MFG. ID NO. 96091001706
CATALOG NUMBER TR530
PRODUCT NUMBER 960 91 00-17
586 05 86-01 12.03.13 BY

2
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
1 532 43 18-53 Control, Throttle
2 532 42 76-43 Grip, Handle
6 581 14 47-01 Panel, Control
10 532 12 47-97 Grip, Handle
11 532 12 47-88 Retainer, Spring
12 532 08 13-28 Bolt, Shoulder
13 581 96 06-01 Handle, Shift
14 532 10 93-13 Grommet, Rubber
15 532 13 84-00 Rod, Shift
16 872 11 06-08 Bolt, Carriage, Grade 5, 3/8-16 x 1
17 532 10 92-29 Lock, Handle
18 873 68 06-00 Nut, Crownlock 3/8-16 UNC
19 819 13 16-11 Washer 13/32 x 1 x 11 Gauge
20 532 10 92-28 Lever, Lock, Handle
21 532 44 61-56 Handle Assembly
23 532 08 67-77 Screw, Slotted, Hex Washer Head
#10-24 x 1/2
24 532 44 60-45 Clip
27 873 90 04-00 Nut, Hex, Flanged 1/4-20 UNC
31 532 15 06-96 Bolt, Pivot
42 532 41 63-58 Screw, BOS Thread, #10 x 3/4
43 532 43 94-57 Cable, Handle, Tine Control
45 532 42 17-56 Screw, BOS Thread, #10 x 1/2
44 532 43 87-82 Control Handle, Two Function
46 532 13 82-83 Lock, Handle
6
11
14
11
10
12 13
15
2
19
31
46
17
16
21
27
24
23
44 43
42
18
20
handle_assy_107pita2
1
45

3
13
37
62
3
2
15
15
15
54
24
28
67
3
64
15
15
25
63
4
26
65
17
19
16
27
23
17
14
18
18
18
32
30
6
5
8
12
7
29
mainframe_left_29pita2
66
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
MAINFRAME, LEFT SIDE
KEY PART
NO. NO. DESCRIPTION
25 532 12 49-61 Clip, Hairpin
26 532 44 29-60 Guard, Belt
27 532 13 83-99 Belt, V
28 532 10 46-79 Pulley, Idler
29 812 00 00-32 Ring, Klip
30 584 28 94-01 Bracket, Idler
32 532 13 94-01 Shaft, Idler Arm
37 532 42 96-95 Sheave, Engine
54 532 10 42-14 Nut, Hex 5/16-18
62 874 93 05-72 Bolt, Hex Head 5/16-18 x 4-1/2
63 581 85 03-01 Bracket Assembly, Guard
64 874 77 05-08 Bolt 5/16-24 UNF x 1/2
65 873 51 06-00 Nut, Hex
66 581 98 13-02 Belt Guide
67 819 13 13-16 Washer, Flat, 3/8
KEY PART
NO. NO. DESCRIPTION
2 810 04 06-00 Washer, Lock 3/8
3 873 93 06-00 Nut, Hex 3/8-16
4 581 85 04-01 Shield, Inner Belt Guard, RH
5 532 16 43-29 Pin, Spiral, Flared
6 532 11 01-11 Lever, Shift
7 872 11 04-04 Bolt, Carriage, Grade 5
1/4-20 x 1/2
8 581 84 50-01 Plate, Shift Indicator
12 873 51 04-00 Nut, Hex, Keps 1/4-20 UNC
13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8
14 532 15 61-17 Spacer, Split 0.327 x 0.42 x 1.220
15 819 11 11-16 Washer 11/32 x 11/16 x 16 Gauge
16 532 14 51-02 Sheave, Transmission
17 873 22 05-00 Nut, Hex 5/16-18
18 532 13 16-91 Spacer, Split
19 812 00 00-28 Ring, Retainer
23 581 57 66-02 Wheel & Tire Assembly
24 532 00 49-29 Rivet, Drilled
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm

4
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
MAINFRAME, RIGHT SIDE
17 872 14 06-08 Bolt, Hex Head 5/16-18 x 1-1/2
18 872 47 06-36 Bolt, Carriage 3/8-16 x 4-1/2
19 874 76 06-72 Bolt, Hex Head 3/8-16 x 4-1/2
20 581 84 49-01 Base, Engine
21 874 76 05-24 Bolt, Hex Head 5/16-18 x 1
22 874 76 05-28 Bolt, Hex Head 5/16-18 x 1-1/2
1 581 84 48-01 Bumper
7 532 18 02-75 Counter Weight, R.H.
8 810 04 06-00 Washer, Lock 3/8
9 873 22 06-00 Nut, Hex 3/8-16
10 873 51 06-00 Nut, Hex, Jam 3/8-16
11 532 12 49-61 Clip, Hairpin
12 532 00 49-29 Rivet, Drilled
13 581 57 66-01 Wheel & Tire Assembly
14 873 97 05-00 Locknut, Hex, Flanged
15 - - - Engine, Subaru,
Model Number EX210DM2162
(Order parts from Subaru)
21
9
11
12
13
17
10
22
8
14 18
19
89
9
8
9
7
7
21
20
15
1
8
8
9
8
mainframe_right_Subaru_6
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

5
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

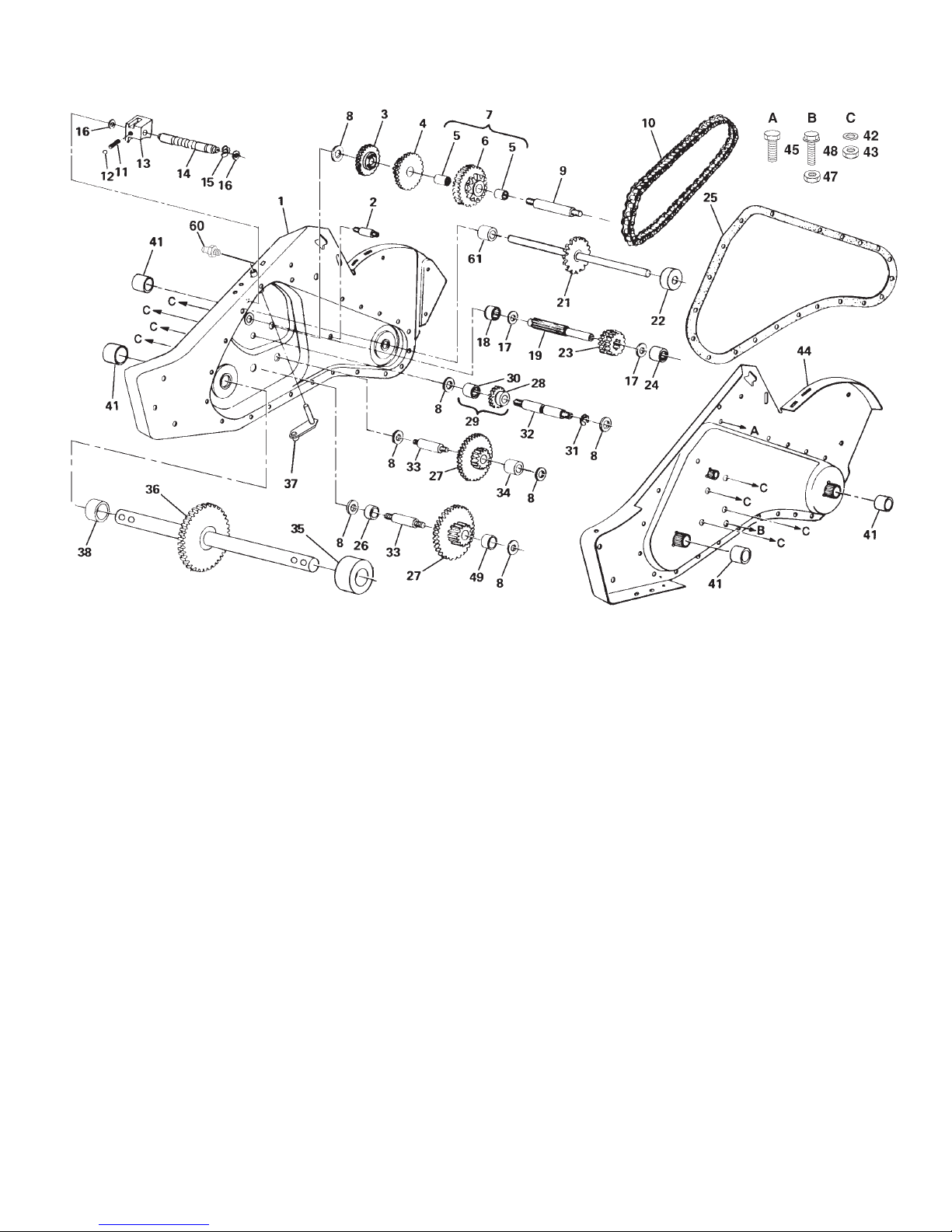

TRANSMISSION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
28 532 00 83-57 Gear, Reverse Idler
29 532 14 45-62 Gear Assembly, Reverse Idler
(Includes Key Numbers 28 & 30)
30 532 00 68-03 Bearing, Needle
31 812 00 00-40 Ring, Klip
32 532 00 83-56 Shaft, Reverse Idler
33 532 10 00-16 Shaft, Reduction (2nd)
34 532 10 63-92 Spacer 0.765 I.D. x 1-1/8 x 1-3/8
35 532 10 63-94 Spacer, L.H.
36 532 10 04-36 Shaft Assembly
37 532 14 21-45 Bracket Assembly
38 532 10 63-93 Spacer, R.H.
41 532 15 52-36 Oil Seal Assembly
42 810 04 07-00 Push Nut 7/16
43 873 61 07-00 Nut, Hex 7/16-20
44 532 18 13-23 Gearcase, L.H., with Bearing
(Includes Key Number 24)
45 817 00 05-10 Screw, Thread Cutting
5/16-18 x 5/8
47 873 22 05-00 Nut, Hex 5/16-18
48 532 10 01-07 Screw 5/16-18 x 4
49 532 10 63-91 Spacer 0.765 ID x 1.12 x 3/4
60 532 18 32-26 Fitting, Grease
61 532 43 15-01 Spacer 1.015 x 1.50 x .765
- - 532 16 21-70 Gearcase Halves, with Bearings
- - 532 18 13-37 Transmission Assembly
1 532 18 13-32 Gearcase, R.H., with Bearing
(Includes Key Number 18)
2 532 18 13-62 Spacer, Gearcase
3 532 17 50-35 Gear, Reverse
4 532 10 53-45 Gear, Cluster, Red, 1st & 2nd
5 532 10 04-13 Bearing, Needle
6 532 14 45-64 Sprocket and Tine Assembly
7 532 14 45-63 Sprocket Assembly with Bearing
(Includes Key Number 5)
8 532 00 43-58 Washer
9 532 00 83-58 Shaft, Reduction (1st)
10 532 00 83-71 Chain, Roller
11 532 10 03-71 Spring, Shift, Fork
12 532 12 46-97 Ball, Steel
13 532 00 83-53 Fork, Shift
14 532 17 53-72 Shaft, Reduction
15 812 00 00-39 Ring, Klip
16 532 15 44-67 Washer, Seal
17 532 00 13-70 Washer, Thrust 5/8 I.D.
18 532 12 47-92 Bearing, Needle
19 532 15 06-95 Shaft Input
21 532 43 15-19 Tine Shaft Assembly
22 532 10 61-81 Spacer 1.008 x 1-3/4 x 0.645
23 532 17 50-31 Pinion, Input
24 532 00 50-20 Bearing, Needle
25 532 43 10-23 Gasket, Gearcase
26 532 10 63-89 Spacer 0.765 I.D. x 1.12 x 5/8
27 532 10 04-33 Gear, Cluster

6
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
TINE SHIELD
tine_shield_12teen
2
29
39
29
15
1
1
1
24
23
24
26
27 38
40
40 16
14
14
30
34
11 11
11
25
33
32
16
9
5
23
23
28 24
18
5
5
5
22
21 20
19
39
35
35
35
35
34
7
8
610
KEY PART
NO. NO. DESCRIPTION
23 532 00 44-40 Hinge
24 872 14 04-04 Bolt, Carriage, Grade 5
1/4-20 x 1/2
25 532 12 47-17 Cap, Vinyl
26 532 10 92-27 Pad, Idler
27 532 44 29-90 Shield, Leveling
28 532 13 86-09 Pin, Hinge
29 581 85 09-02 Shield, Side
30 873 97 05-00 Locknut, Hex, Flanged
32 873 22 04-00 Nut, Hex 1/4-20 UNF
33 810 04 04-00 Washer, Lock, Heavy Helical 1/4
34 872 01 05-20 Bolt, Hex Head, Flanged
5/16-18 x 2-1/4
35 872 11 05-05 Bolt, Carriage
38 873 51 05-00 Nut, Keps 5/16-18 UNC
39 532 42 88-67 Bolt, Hex Head
40 532 18 11-56 Nut, Speed
KEY PART
NO. NO. DESCRIPTION
1 532 15 53-77 Locknut, Hex, Flanged 5/16-18
2 532 44 29-66 Shield, Side, Outer, L.H.
3 532 00 83-93 Pin, Stake, Depth
4 812 00 00-35 Ring, Klip
5 532 18 08-47 Bolt 5/16-18 x 3/4
6 532 00 83-94 Spring
7 581 85 08-01 Bracket, Latch
8 532 10 92-30 Spring, Depth Stake
9 532 44 29-61 Shield, Tine
10 872 14 05-08 Bolt, Carriage 5/16-18 x 1
11 873 51 05-00 Nut, Hex 5/16-18
14 581 84 88-01 Bracket, Shield, Tine
15 532 44 29-65 Shield, Side, Outer, R.H.
16 873 90 04-00 Nut, Hex, Flanged 1/4-20 UNC
18 872 04 04-10 Bolt, Carriage, Grade 5
1/4-20 x 1-1/4
19 532 10 27-01 Grip
20 873 22 06-00 Nut, Hex 3/8-16
21 581 85 07-01 Stake, Depth
22 874 93 06-32 Bolt, Hex Head 3/8-16 x 2 NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm

7
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
TINE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 00 65-56 Tine, Outer, L.H.
3 532 10 11-94 Tine, Inner, L.H.
4 532 12 46-60 Retainer Spring, Zinc
5 581 85 06-01 Assembly, Hub and Plate
6 873 54 06-00 Nut, Hex 3/8-24
(12 per side)
7 810 04 06-00 Washer, Lock 3/8
( 16 per side)
KEY PART
NO. NO. DESCRIPTION
8 874 61 06-16 Bolt, Hex Head 3/8-24 x 1
(4 per side)
9 532 00 65-57 Tine, Outer, R.H.
12 874 61 06-24 Bolt Hex Head 3/8-24 x 1-1/2
(8 per side)
13 532 44 60-59 Clevis Pin
15 532 10 11-93 Tine, Inner, R.H.
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
6
6
6
6
6
6
5
5
5
5
12
12
12
15
13
13
12
8
9
LH
RH
9
8
7
7
7
7
3
1
1
1
1
9
9
4
4
tine_ipb_6

8
HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)
DECALS
3 532 14 54-37 Decal, European Standard, C.E.
5 532 15 98-77 Decal, Hand Placement
6 532 13 85-46 Decal, Shift Indicator
7 532 17 65-57 Decal, Warning, 4-Symbol
- - 532 43 87-84 Manual, Operator's, European
- - 532 43 87-85 Manual, Operator's, Scandinavian
- - 532 43 87-87 Manual, Operator's, East Bloc
- - 532 43 87-89 Manual, Operator's, Baltic
KEY PART
NO. NO. DESCRIPTION
5
3
7
6
