Huvema HU W1300X4,5 User manual

ELECTRIC SLIP ROLL MACHINE
Model: HU W1300X4,5
Operation manual

1
Table of contents
I MAIN SPECIFICATION 2
II SAFETY INSTRUCTIONS 2
III OPERATION INSTRUCTIONS 4
IV ELECTRIC SYSTEM 8
V PARTS DRAWING AND PARTS LIST 10

2
I MAIN SPECIFICATION
MODEL
HU W1300X4,5
Max rolling width
1300mm
Max rolling thickness
4.5mm
Rolling diameter
120mm
Rotate speed
22rpm
Motor Power
2.2kW
Overall dimension
181x64x105cm
Weight
660kg
II SAFETY INSTRUCTIONS
Save this manual:You will need the manual for the safety warnings and precautions,
assembly instructions, operating and maintenance procedures, parts list and diagram.
Keep your invoice with this manual. Keep the manual and invoice in a safe and dry
place for future reference.
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS
PERSONAL INJURY As with all machinery there are certain hazards involved with
operation and use of the machine. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety
precautions are overlooked or ignored, personal injury to the operator may result.
This machine was designed and constructed for roll forming metal plate and some
similar material. We strongly recommend that this machine SHOULD NOT be modified
and/or used for any application other than for which it was designed. If you have any
questions about its application, do not use the machine until you contact with us and we
have advised you.
Read all instructions before using this tool!
1. MACHINERY GENERAL SAFETY WARNINGS
1) Misuse of this machine can cause serious injury. For safety, machine must be set
up, used and serviced properly. Read, understand and follow instructions in the
operator’s and parts manual which was shipped with your machine.
2) Wear proper apparel. No loose clothing or jewelry which can get caught in moving
parts. Gloves and rubber soled footwear is recommended for best footing.
3) Do not overreach. Failure to maintain proper working position can cause you to fall
into the machine or cause your clothing to get caught —pulling you into the

3
machine.
4) Keep guards in place and in proper working order. Do not operate the machine with
guards removed.
5) Avoid dangerous working environments. Do not use stationary machine tools in wet
or damp locations. Keep work areas clean and well lighted
6) Avoid accidental starting. Make sure switch is in “OFF” position before plugging in
power cord
7) Never leave the machine running while unattended. Machine shall be shut off
whenever it is not in operation.
8) Disconnect electrical power before servicing. Whenever changing accessories or
general maintenance is done on the machine, electrical power to the machine must
be disconnected before work is done.
9) Machinery must be anchored to the floor.
10) Use the right tool. Know the tool you are using —its application, limitations, and
potential hazards. Don’t force a tool or attachment to do a job it was not designed
for.
11) Stay alert Watch what you are doing; use common sense. Do not operate any tool
when you are tried. Keep hands in sight and clear of all moving parts and rolling
surfaces.
12) Keep children away. Children must never be allowed in the work area. Do not let
them handle machines, tools, or extension cords.
13) All visitors should be kept at a safe distance from the work area. Make workshop
completely safe by using padlocks, master switches, or by removing starter keys.
14) Store idle equipment. When not in use, tools must be stored in a dry location to
inhibit rust. Always lock up tools and keep out of reach of children.
15) General Electrical Cautions :This machine should be grounded in accordance with
the National Electrical Code and local codes and ordinances. This work should be
done by a qualified electrician. The machine should be grounded to protect the user
from electrical shock.
2. TRANSPORTATION (CRANE OR FORKLIFT ID RECOMMEND)
·Transportation before un-packing
1. The steel wire of crane should be capable of lifting weight over 2000 kgs.
2. The steel wire must be arranged properly as per cavity center of wooden box.
3. The crane ( or forklift) operator should be a qualified & trained person.
4. Machine should be loaded at the cavity center of truck to avoid any sliding.
5. After loading onto truck, use steel wire to fix the machine body on truck and
ensure to fasten it firmly before transportation.
3. POSITIONING & CLEANING
·Site : When select site, ensure there is free space for material handing around the
machine.
·Foundation: The machine requires a plane & stable ground to have an excellent
bending performance. It is better to fixed on 150mm reinforced concrete ground.
·Leveling: Four sheet shims are placed under the adjusting bolt of foot plate, the

4
machine is leveled by level gauge.
·Cleaning: Use a liquid solvent such as kerosene or white spirit to remove the
protective coating and any dirt from the up-painted surface of the machine. Don’t
disturb any moving parts until all surface has been cleaned.
4. ELECTRIC CONNECTION
·Before connecting machine into local 3-phase ac source at your plant, please
double check same voltage and phase.
·Connect the ac source with machine cable which has 4 wires, correctly, the ground
wire must to be connected with ground.
·After connecting ac source to shaft motor rotation is in the correct rotation direction
as per the arrow on the motor.
·If wrong direction, please immediately stop motor to avoid motor damage. Please
correct your connecting at ac source until motor rotation direction is in correct
direction.
IIIOPERATION INSTRUCTIONS
1. HOW TO ROLL FORMING CIRCLE
1) Length of material –necessary to form the designed size circles is the 1st
consideration in circle forming. Decide approximate length of material need. Use
the formulary “C=πx ID”(C is Circumference;πis 3.1416; ID is Internal Diameter).
Sample:ID=200mm, operator need to prepare material length approximate
630.32mm or approximate length of material which need.
2) Cut a few pieces of material to the measured length for testing by roll forming. The
material might need to be lengthened or shortened depending upon the testing
result.
3) Loosen the clamping screws to the right position which operator can insert the
material between upper roll and bottom roller, then fasten the clamping screws to
ensure upper roller and bottom roller clamp in proper pressure.
4) Set the idle roller to same height of bottom roller.
5) Power on the foot switch to move the material between upper roller and bottom
roller forwardly to ensure the front-side material of measured length to pass through
the idle roller. (Drawing No.01)
6) Ensure the rear end-side material to reach between the upper roller and bottom
roller. (Drawing No.02)
7) Raise the idle roller bend forming the end-side material to designed angle to
complete the pre-bending at the rear end-side of measured length. (Drawing
No.03 &04).
8) Remove the material which has seen completed pre-bending at rear end-side to be
the expected diameter.
9) Repeat same step of No.3-7 (Drawing No.5-6) but pre-bend at the frontal end-side
material.

5
10) Down the idle roller as soon as the material has been pre-bend at the end side of
frontal and rear to be the expected diameter.(Drawing No.7)
11) Raise the idle roller step by step when the upper roller and bottom roller to form the
material to be circular between frontal and rear end-side.(Drawing No.8 & 9)
12) If the finished sample is not long enough or if the formed part is not the proper
diameter, additional samples will have to be made. Thousands of identical parts can
be precisely duplicated when proper adjustments of the roller have been made.
13) Get the correct modifying and forming after testing the few pieces to file your record
for official forming.
14) The same diameter as the diameter of the rolls and slightly larger can be formed.
To make the adjustment for the material thickness and to determine the material
length needed and the illustration given under above-mentioned step No.1～9.
2. PROCESS DRAWING OF ROLL FORMING

6
3. ADJUSTING THE CLAMPING (BOTTOM) ROLLER & PINCHING(IDLE) ROLLER
1) The adjusting hand wheel mounted on the right-hand side frame of the machine
construction can adjust the bottom roller to clamp material tightly.
2) The hand wheel is mounted on right-hand side frame of machine construction
enable the operator to raise or lower the idle (pinch) roll, so the correct gap between
the upper and idle (pinch) rolls may be obtained to feed the designed stock into the
machine.
4. REMOVE THE FORMED MATERIAL
Lift clamp handle and slide the support lever handle to the right. The pinch roll will
rise. Slide the finished sample off the roll.

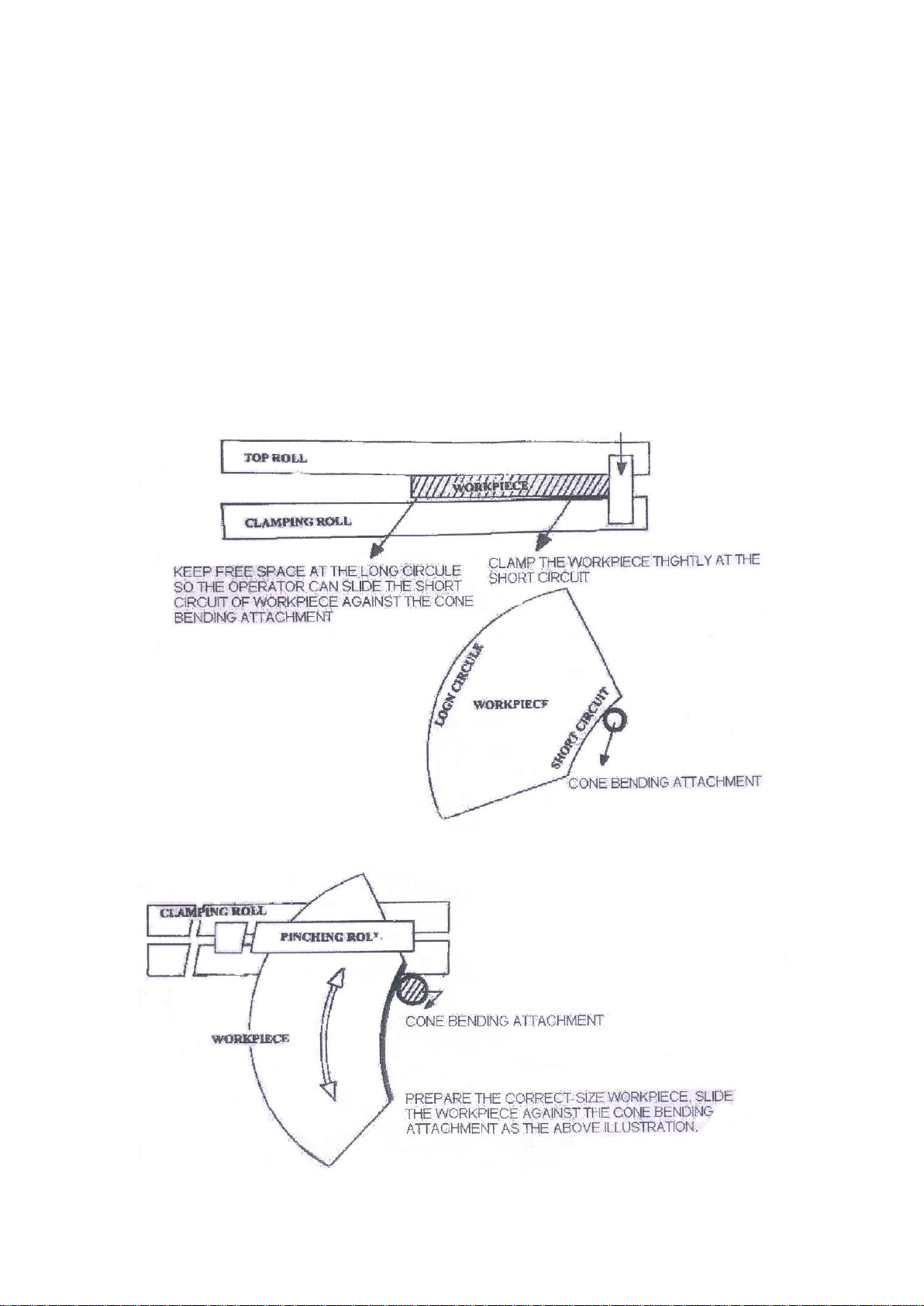

5. ILLUSTRATION / OPERATION OF CONE BENDING ATTACHMENT

7

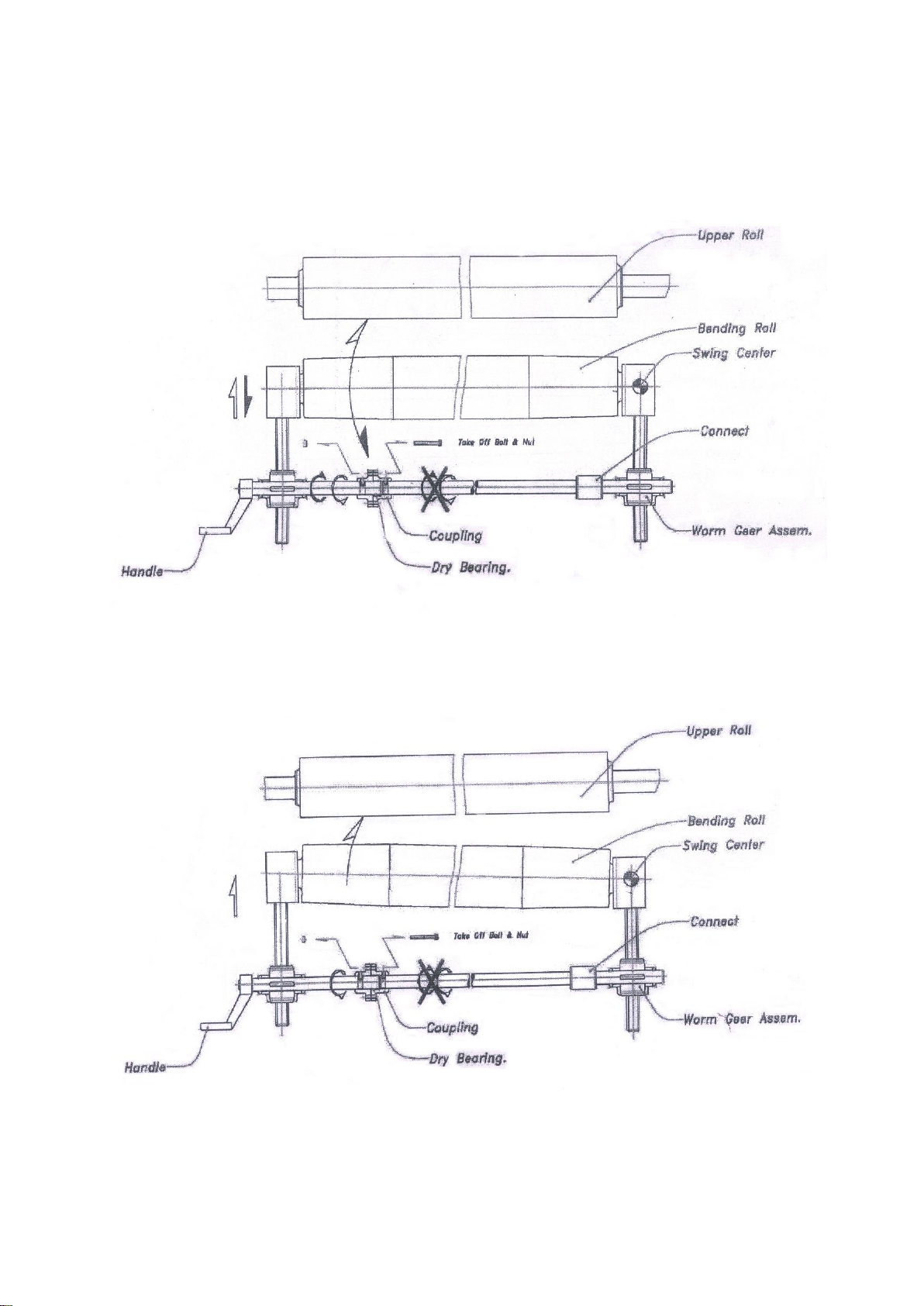

6. ILLUSTRATION / OPERATION OF SIMULTANEOUS CLAMPING ROLLER

8
IV ELECTRIC SYSTEM
1, Preparation :The consumer should prepare a 10A power switch. Connect 3x4 mm2+
1x4mm2 yellow/green with the power switch. The earth-line should be connected with
the earth-plate.
2, Operation of the machine
Combine the breaker in the electric appliance box and turn right the power switch. At
this time the indicator lighted, which means the machine had been connected with
power correctly. Pedal down the right starting pedal, the machine rolls clockwise
continuously until loosen the pedal. Pedal down the left starting pedal, the machine rolls
on the contrary of the above direction. If there is some wrong with the machine, push
the emergency switch on the handle to stop the machine. After the trouble is solved,
turn off the switch to work.
3, Maintenance of the machine
The machine has a compact structure. It is easy to be operated and maintained. Some
problems maybe exist as follows:
1) The indicator lights, the machine can’t work when pedal down the starting pedal,
then turn off the emergency switch on the handle.
2) The indicator doesn’t light, then combine the breaker in the electric appliance box.
3) The indicator lights and the spindle works, but motor doesn’t work, that means the
connecting wire is loose or disconnected.
4, Electric principle drawing (refer to the attached drawing)
5, Main electric appliance list

9
Symbol
Name
Symbol
Name
LW
Power switch
EL
Indicator light
QF
Breaker
TA
Lash-up switch
TC
Transformer
M
Motor
KM
Alternating contactor

10
V PARTS DRAWING AND PARTS LIST

11
Part #
Description
Q’ty
Part #
Description
Q’ty
1
Protecting Cover
1
40
Fixed Shaft
1
2
Hex Bolt M6X10
5
41
Right frame
1
3
Bolt M12X30
3
42
Pitch (idle) roller
1
4
Mat
3
43
Sleeve
2
5
Big gear
1
44
Adjusting block
2
6
Small gear
2
45
Oli cup
1
7
Bushing
1
46
Bolt
1
8
Washer
1
47
Nut M20
1
9
Shaft
1
48
Left frame
1
10
Block plate
1
49
Supporting plate
1
11
Hex Bolt M6X16
28
50
Hex Bolt M8X25
4
12
fixed plate
1
51
Shaft
1
13
Spring pin
2
52
Washer
1
14
Bushing
8
53
Bushing
2
15
Supporting bushing
3
54
Chain wheel
1
16
Worm wheel
3
55
Connecting plate
1
17
Bearing
2
56
Bolt M6X12
4
18
Screw rod
2
57
Bolt M8X16
8
19
Locking bolt M6X25
4
58
Cover plate
1
20
Adjusting block
2
59
Small screw rod
1
21
Washer
8
60
Connecting shaft
1
22
Washer
1
61
Block plate
2
23
Worm shaft
4
62
Connecting bushing
2
24
Block Plate
2
63
Bushing
1
25
Locking bolt M6X30
20
64
Locking bolt M10X30
1
26
Connecting shaft
2
65
Hex bolt M16X30
1
27
Upper roller
1
66
Handle
1
28
Hex Bolt M6X30
8
67
Connecting bushing
1
29
Connecting bushing
2
68
Bushing
2
30
Connecting bushing
2
69
Swivel handle
1
31
Nut M6
8
70
Pole of Handle
1
32
Bushing
1
71
Locking Nut M8
1
33
Connecting bushing
3
72
Hex bolt M8X45
1
34
Hex Bolt M8X20
2
73
Shaft
1
35
Sleeve
2
74
Locking bushing
1
36
Handle wheel
2
75
Hex bolt M12X50
1
37
Block plate
1
76
Bearing
2
38
Key 8x25
2
77
Hex bolt M10X16
1
39
Key 8x45
2
78
Sliding block
1

12
79
Limited block
1
89
motor
1
80
Sliding sleeve
1
90
Hex bolt M16X35
4
81
Lower (clamping)roller
1
91
Spring washer 16
4
82
Adjusting block
1
92
Bolt M16X40
4
83
Sleeve
1
93
Washer 16
8
84
Mat
1
94
Plate for motor
1
85
stand
1
95
Small chain wheel
1
86
Nut M12
8
96
Locking Bolt M8X16
2
87
Bolt M12X30
8
97
Key
1
88
Block plate
1
98
Nut M16
4

13
CE DECLARATION OF CONFORMITY
(in accordance with supplement II, section 1A of the Machinery Directive)
Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466AAVeghel, the Netherlands,
in the capacity of importer, is to be held responsible for declaring that the Huvema machine:
Roller HU W 1300x4,5
which this declaration relates to, is conform the following norms:
NEN-EN ISO 12100:2010, NEN-EN IEC 60204-1:2006/C11:2010, NEN-EN IEC 61000-6-1:2007,
NEN-EN IEC 61000-6-3:2007/A1:2011/C11:2012
and meets the basic requirements of the:
Machinery Directive 2006/42/EC
Low Voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2004/108/EC
Person responsible for compiling the technical file:
L. Verberkt
Kennedylaan 14, 5466 AA Veghel, Nederland
Veghel, the Netherlands, June 2015
L. Verberkt
Director
