Huvema TL-500-AA User manual

Aluminium saw
TL - 500 - AA

TL - 500 -AA
2
INSTRUCTION MANUAL
1.-Introduction.
2.- General data.
Brand name and machine type.
Set of standards applicable to the project and machine design.
3.- Technical data.
4.- Instructions concerning transport, maintenance and storage.
5- Installation and commissioning instructions.
- Installation instructions.
- Connection to power supply.
- Instructions regarding saw blade assembly.
- Cooling agent for sawing.
- Hydraulic oil.
6.- Operation Instructions.
-Proper and improper use.
- Function of the controls.
- Operating mode. Sequence of operation.
- Potential problems. Potential solutions.
- General operating standards and safety inspections.
7.- Recommendations and maintenance.
- Type and periodic overhaul intervals.
- Recommendations of the manufacturer.
8.- Drawings and diagrams.
-General diagram.
- Electric diagram.
- Pneumatic diagram.
- Disassembly and nomenclature.

TL - 500 -AA
3
1.- INTRODUCTION.
The current instruction manual has been realised in accordance with the requirements of
the set of standards in compliance with the Machines 89/392/EEC guideline and the
consecutive modifications.
The instruction manual constitutes an integral part of the machine and should be
consulted before, during and after commissioning of the machine as well as every time
you consider it necessary, honouring its contents concerning each and all the
corresponding parts.
This is the exclusive way to obtain the fundamental objectives, which are laid down in the
basis of this manual, such as avoiding accident risks and optimising the performance
of the machine as much as possible.
This manual concentrates thoroughly on various aspects regarding safety and prevention
of accidents at work while operating the machine, thereby emphasising the information
that is of major importance to the user.
ATTENTION: READ THIS MANUAL CAREFULLY BEFORE INSTALLING THE
MACHINE.
2.- GENERAL DATA
Brand name and machine type.
Model : ------------------------------------- TL- 500 - AA
Serial number :---------------------------
Year of fabrication :-----------------------

TL - 500 -AA
4
3 .- TECHNICAL DATA.
-Diameter of the saw blade 500 mm.
-Rotation setting of the table at 60º right and left-hand side.
-Pneumatic pressure cylinders.
-Working pressure 6 atm.
-Clamping pieces for rapid security by means of a handle.
-Motor III 220/380V II 220V of 4 HP.
-Sawing speed 52 m/sec.
-Built-in lubricating system.
-Maximum sawing height 180 mm.
-Maximum feeding length 500 mm.
-Dimensions.
Length --------------------------------------- 2200 mm
Width ------------------------------------------- 1100 mm
Height----------------------------------------- 1500 mm
Weight------------------------------------------- 500 Kg.
4.- INSTRUCTIONS REGARDING TRANSPORT AND STORAGE.
- In order to guarantee a safe movement and transport it is recommended to use a lift
truck for internal transportation or a mobile crane.
Store in vertical position.
Do not stack up.
In case the machine is kept in storage for a long period, it should be greased
periodically.
Do not store machine outdoors.

TL - 500 -AA
5
5.- INSTRUCTIONS FOR INSTALLATION AND COMMISSIONING.
- Installation instructions.
Prior to installation, initially check that no damage was inflicted to the machine during
transportation. In the event of any damage, however, it must be brought to the manufacturer’s
notice immediately.
The machine must be set up on a stable foundation and as much as possible on a horizontally flat
surface in order to reduce the vibrations during operation and functions as per the parameters
adjusted beforehand.
- Connection to the power supply.
Determine if the voltage supply corresponds to
the designation on the motor plate. Connect the
cable to the line by means of a plug adapted to
the characteristics, take into consideration the
colour codes of each of the cables, pay special
attention to the grounding of the cable.
Once the machine has been connected, please
check that the direction of rotation of the saw
blade corresponds to the direction of the arrow
situated on the left-hand side of the machine.
Check that the air pressure is appropriate ( 6 atm. ) for which purpose the pressure gauge of the
machine may be used.
- Instructions concerning the saw blade assembly.
In order to mount the saw blade, the
operating switch should be turned off, access
the inner part of the machine through the front
door, fix it on the shaft of the tipping gear
(nº2), place the washer nº18 and centre it by
means of a rod, press the nut (nº 19) as
indicated on the drawing. Make sure that the
direction of the teeth of the saw coincide with
the direction of rotation of the motor. Bear in
mind that the maximum diameter of the saw
blade is 500 mm.

TL - 500 -AA
6
- Cooling agent for sawing.
In order to fill the cooling agent for sawing purposes, you should turn off the operating switch
and fill with PURE CUTTING OIL NOT EMULSIFIABLE IN WATER WITH VISCOSITY OF ISO
VG 10-16.

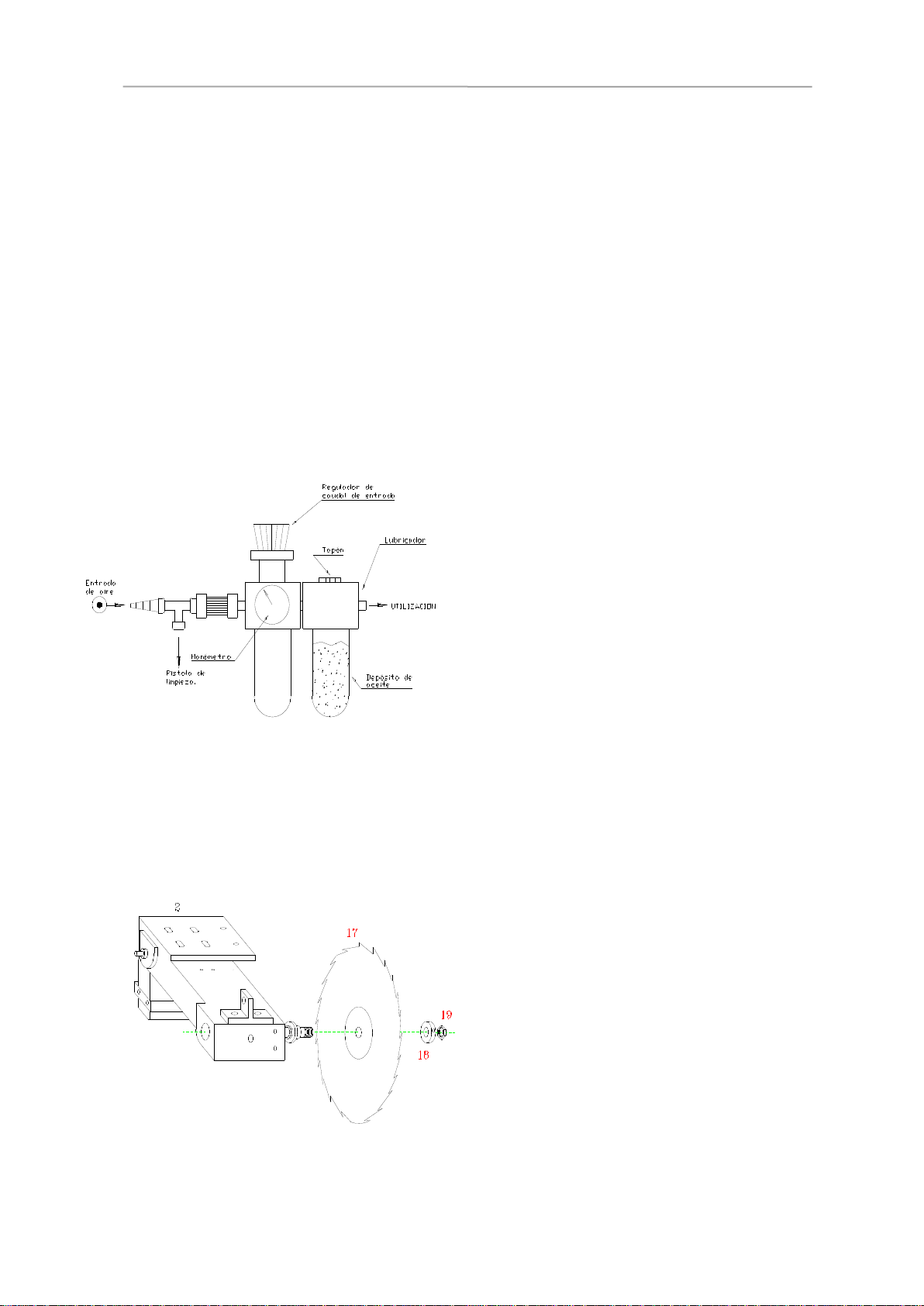

- Oil atomiser for pneumatic components and filter.
The pneumatic oil tank should be filled by means of a lateral screw on the tank and fill it
with PNEUMATIC OIL OF A VISCOSITY OF ISO VG 16 or similar. Use the same oil for the
lubricating device situated in the group of pneumatic components.
6.- OPERATION INSTRUCTIONS.
- Proper and improper use.
Manual cross-cut saw for cutting aluminium, brass, copper, bronze, etc.
It is prohibited to saw other materials with this machine; if this is done regardless, it may
cause damage to the machine and jeopardise the safety and health of the operator.
We cannot be held liable for damages or accidents associated with improper use of the
machine.
-

TL - 500 -AA
7

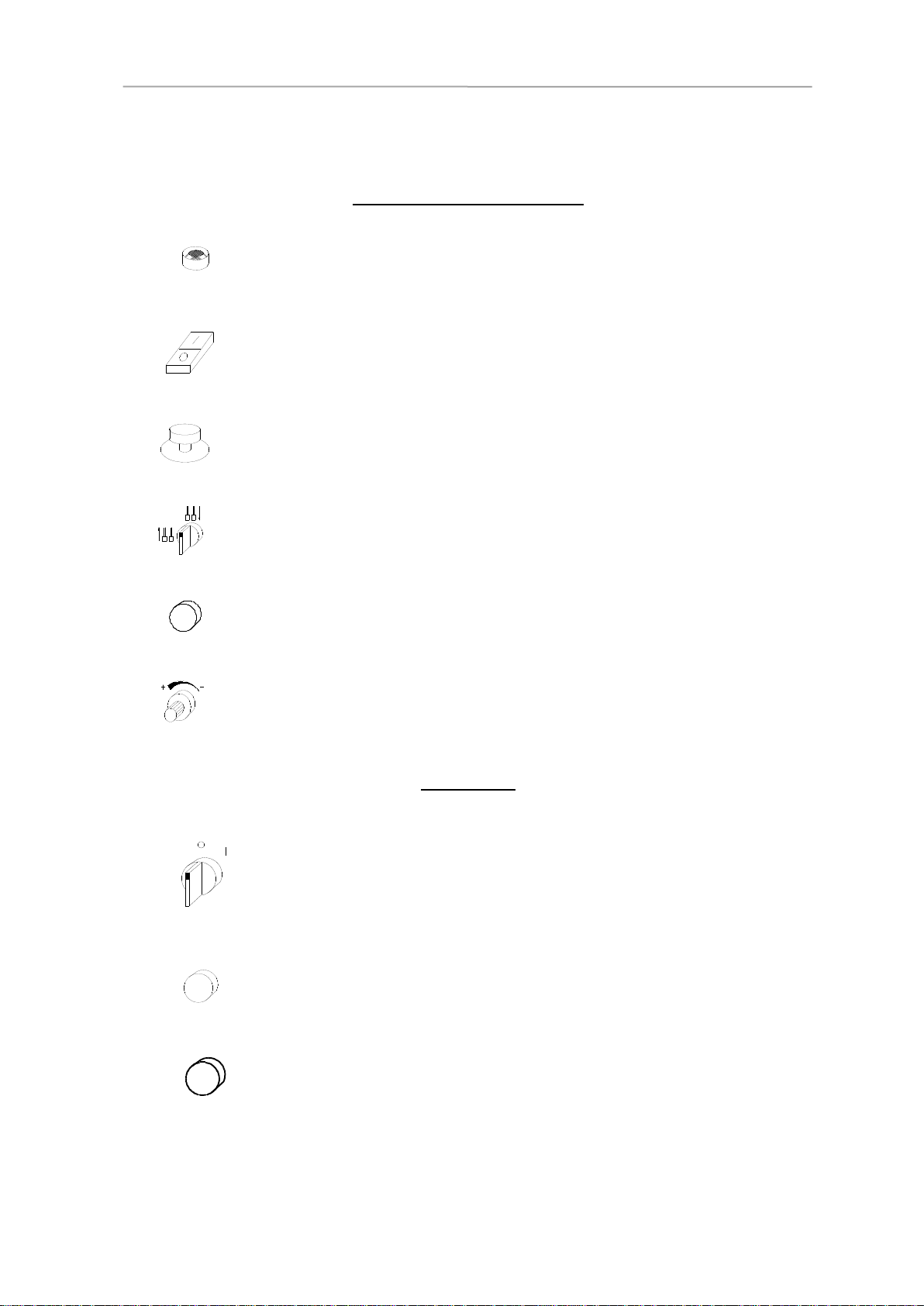

Function of the controls.
FRONT SIDE OF THE MACHINE
Pilot lamp of the main switch. Green colour.
Push button switch to start/stop the saw blade. Start, green colour symbol
“I” button; stop, red colour “O” button.
Self-blocking emergency stop. Stops the machine completely, keeping
the material clamped by the pressing cylinders.
Drive of pressing cylinders. Only MANUALLY.
Two green push buttons to raise the saw blade. Only MANUALLY, and with
the pressing cylinders lowered
Speed regulator for raising saw blade.
FEED GUIDE
Selector switch for mode of operation:
O -MANUALLY
I -AUTOMATIC
Green push button to start the material feed.
Red push button to stop material feed.

TL - 500 -AA
8
Material parts counter with pre-selection.
Reset button to return to the chosen number of cuts.
In order to change the selection it is necessary to keep the
reset button pressed and at the same time press the push button of
the desired digit.
- Operating mode. Sequence of operation.
With the switch of the operation modes in MANUAL POSITION, the pressing cylinders and
the saw blade may be operated by means of the push buttons at the front side of the machine. It is
recommended not to use materials with a too high feeding speed of the saw blade, because this
reduces the longevity of the saw blade and the cutting quality enormously. The machine in
MANUAL POSITION also counts the number of cuts, although it does not stop the saw blade
when reaching the zero digit.
In order to operate the feeder, the following procedures must be complied with:
1. Adjust the desired sawing height by means of the limit switch located in the inner part of the
machine, always with the operating switch turned off.
2. Adjust the feeding length with the guiding wheel of the feeder. The read-out appears on the
counter located in the spindle.
3. Adjust the pressing cylinders of the machine and those of the clamping device of the feeder
to the material, so that a space of no more than 5 mm is realised. It is important that the
microswitch of the present material (placed in the clamping device of the feeder) is
pressed, and that the piece counter does not indicate zero. In contrast, it will
not be possible to either have the saw blade turn or to put the feeder in
operation.
4. Place the rod on the feeder, so that it passes at a distance of approximately 10 mm from
the groove of the saw blade.
5. Assemble the operating switch.
6. Start operating the saw blade.
7. Choose the operating procedure, AUTOMATIC.
8. Start the operating cycle by pressing the start button of the feeder.

TL - 500 -AA
9
The machine will stop automatically when the material is finished when pressing the stop
button, the emergency stop, the piece counter reaching the number zero, changing to
MANUAL PROCEDURE, or raising the protection hood.
When working with the feeder it is very important to regulate the operating speed in
order to avoid shocks at the end of the operating procedure, and that no sliding of the material will
occur, due to brusque movements. For this it is necessary to get access to the electric valves
through the backdoor of the feeder, and adjust the connecting pieces of the electric valve nº4 . By
setting the nearest connecting piece at the electric connector, the advancing speed of the material
is reduced, and by setting the other one, the reversing speed is reduced.
While the feeder is in operation, always keep the protection hood lowered
- Potential problems. Potential solutions.
PROBLEM
POTENTIAL SOLUTION
The machine does not
function at all.
Check that there is tension at the inlet and outlet of
the operating switch
Check the fuse of the electrical circuit 2A
Check the condition of transformer and automation
switch and feeding 24Vdc
The feeder does not
operate properly.
Check the condition of all the end switches, and
position of said switches
Status of the electric valves
Status of the feeder encasing and tension on the line
of said feeder encasing ( 24 V dc)
Pressure on the regulator ( 6 ato ) air leaks
The disc does not rise
properly.
Oil level in the hydraulic-pneumatic converter
Pressure on the filter - regulator
Advancement too high
Rising push buttons
The feeder operates
occasionally.
Pressure on the filter - regulator
Feeder levelling. It has two intermediate supports for
its adjustment
Status of the advancing cylinder. Release it from the
cart and check if it operates smoothly.

TL - 500 -AA
10
- General operating standards and safety checks.
Prior to using the machine, check that all the safety devices function properly and check that
the movable parts of the machine are free to move, that there are no damaged parts and
that all the parts of the machine are properly secured enabling the machine to function
perfectly.
Do not leave the keys of the doors in the machine.
The use of gloves and protective goggles is recommended.
Use appropriate working clothes, which is fully buttoned.
Before starting operation, the operator must make sure that he has removed the tools or
keys used for maintenance or adjustment.
In case of fire, the power supply should be switched off immediately and a dry chemical fire
extinguisher should be used.
NOTE : OPENING OR LEAVING THE PROTECTION HOOD OPEN WHILE
OPERATING THE MACHINE IS STRICTLY PROHIBITED AS WELL AS
DEACTIVATING THE SAFETY SYSTEMS.
7.- RECOMMENDATIONS AND MAINTENANCE.
- Type and periodical overhaul.
- A thorough acquaintance with the machine by the operator ensures the best possible
inspection of the machine. If any problem or defect is discovered, the work should be stopped and
the problem must be brought to the immediate attention of and solved by qualified personnel.

TL - 500 -AA
11
LUBRICATION CHART
LUBRICATION POINTS
TYPE OF GREASE/ OIL
INTERVAL
Slide guides
OIL SAE 30
WEEKLY
Rotary disc nº 16 Fig (8.4)
OIL SAE 30
WEEKLY
Bearings nº 14 Fig (8.5)
BEARINGS GREASE
YEARLY
Feeder rods movement
OIL SAE 30
WEEKLY
- Recommendations of the manufacturer.
Clean the machine periodically, and especially the feeder. It is the only way to ensure a
proper operation of the machine .
Before carrying out any intervention on the electric equipment, disconnect the feeding
plug.
When using extension cords, make sure that the used cable is from the appropriate
section ( 4 x 1´5 ).
Whenever you need to change any parts, use original ones and try to use the oil
recommended by the manufacturer.
In the event of questions or any doubts, do not hesitate to consult the
manufacturer

TL - 500 -AA
12
8.0 PNEUMATIC DIAGRAM

TL - 500 -AA
13
8.1 –Electrical diagram.
THREE-PHASE
2
CONTACTOR
M
U V W
3
PARO
EMERGENCIA
7
I
14
8A2
O
7
5
FUSIBLE 2A
MS325
1
380-220 / 24V
R S
TRIFASICO
PE ALIMENTACION
T
FINAL PANTALLA
6
PILOTO
9
4
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
1
MOTOR SAFETY SWITCH 16A
E0000005
6
HOOD LIMIT SWITCH
E0000025
2
TRANSFORMER 40 VA 24V
E0000014
7
EMERGENCY STOP
E0000010
3
RELAY SWITCH 24 V 50/60 HZ
E0000034
8
STOP-START PUSH BUTTON
E0000011
4
TRI-PHASE MOTOR 4 HP 220V/380V
20500022
9
GREEN PILOT LAMP 380 V
E0000017
5
FUSE 2A
E0000024

TL - 500 -AA
14
8.2 ELECTRIC DIAGRAM

TL - 500 -AA
15
8.3 –DISASSEMBLING CLAMPING DEVICES.
16
23
28
27
26
24
30
22
12 12
14
15
29
20
5
19
21
9
13
11
10
867
25 4
17
24
3
38 4039
32 33
31
34
42
243
37 36
1
39
41
35
3940 40
18
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
1
PROTECTION HOOD
20500412
16
CAST-IRON DISC
31
COLUMN
2
METACRYLATE SCREW
550x230x3
20500362
17
CAST-IRON PANEL
32
DAMPER
20600191
3
SCREW M-4x10 DIN 912
18
ZERO POSITION
33
SUPPORT LIMIT SWITCH
4
HANDLE 12 x 70
B0000008x
70
19
STEERING WHEEL Ø100
20400202
34
SCREW M-8x15 DIN 912
5
RING
20
SUPPORT DISC BRAKE
35
SCREW M-10x40 DIN 912
6
ALUMINUNIUM BAR Ø45
20500052
21
NYLON PLUG
36
RING Ø10
7
HANDLE M10x70
B0000006x
60
22
MARKING STRIP
37
NUT M-10
8
PRESS CYLIND. ØEXT = 45
20500202
23
MARKING BELT
38
SCREW M-8x30 DIN 912
9
NYLON BUSHING
20500172
24
SCREW M10x60 DIN912
39
RING Ø8
10
HANDLE M10x40
B0000006x
40
25
SAFETY VALVE
N0000015
40
NUT M-8
11
SCREWS M8x20 DIN912
26
BLOCKAGE
41
SCREW M-8x50 DIN 912
12
ALUMINIUM PLATE
20500102
27
SCREW M8x20 DIN7991
42
SEPARATOR Ø20-10-28
13
FOUNDATION GUIDE
20500192
28
GRIP M8
B0000014
43
GRIP M-6
B0000017
14
GUIDING DEVICE
20400402
15
BLOCKAGE SET-LINE
20400392
30
SCREW M.6x20 DIN 7984

TL - 500 -AA
16
8.4 –Disassembling the tilting mechanism ( 1 ).
21
20 14
25
212
23
22
24
5
3
15 1
11
7
6
8
4
14
13 16
18
9
10
17
19
27
26
28
29
29
30
31
32
32
31
30
33
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
1
MOTOR 4 CV III I
20500022
12
SEPARATOR Ø 60
23
BELT POLY V 965 J12
2050001
2
2
TILTING DEVICE
13
SEPARATOR Ø 36
24
SCREWS M12x50 DIN912
3
TILTING SUPPORT
14
BEARING 4206
2050016
2
25
LUBRICATION NIPPPLE 1/8 ”
4
SCREW 10x50 DIN931
15
MOTOR PIN
26
SCREW M8x12 DIN 912
5
BOLT 30x139
20500062
16
SHAFT Ø 30
2050009
2
27
TAP BOLT M8x15 DIN 913
6
BELT TENSIONER
17
SAW BLADE A Ø 500
28
SCREW M6x10 DIN 912
7
SCREW TENSIONER
18
SAW BLADE RING
2050003
2
29
SCREW M8x25 DIN 933
8
SCREW M8x30 DIN 912
19
SAW BLADE NUT
2040023
2
30
SCREW M12x25 DIN912
9
SAW BLADE
PROTECTOR
20500152
20
SHAFT PULLEY
2050013
2
31
BOLT RING Ø12
10
ATOMIZER VENTURI
N0000036
21
PIN 8x7x40
32
RING Ø8
11
FASTENING CYLINDER
22
MOTOR PULLEY
2050014
2
33
INDICATOR VENTURI

TL - 500 -AA
17
8.4 –Disassembling the tilting device ( 2 ).
Nº
DESCRIPTION
CODE
Nº
DESCRIPTION
CODE
1
COLUMN
9
HANDLE SUPPORT
2
CYLINDER 50x225
N0000026
10
TILTLING DEVICE
3
CYLINDRICAL FORK ISO 50/63
11
ELBOW MALE SCREW
THREAD
4
FEMAL HINGE ISO 50
12
ELBOW SIMPLE MALE
SCREW THREAD
5
FASTENING CYLINDER
13
CAST-IRON DISC
6
RISING BUFFER
14
BELT V 965 J12
20500012
7
SCREW M8x15 DIN912
15
SHAFT PULLEY
20500132
8
HANDLE M8x20
B0000014x20
1
7
86
9
4
3
12
11
2
10
5
15
14
13

TL - 500 -AA
18
Page 5 - Translation of Spanish terms into English
Figure of connection to the power supply
Regulador de caudal de entrada –Water flow entry control
Lubricador –Grease nipple
Tapon - Plug
Entrada de aire –Air intake
UTILIZACION –USE
Manometro –Pressure gauge
Pistola de limpieza –Blow pistol
Deposito de aceite –Oil tank
Page 12 –Translation of Spanish terms into English
Circuito neumatico –pneumatic diagram

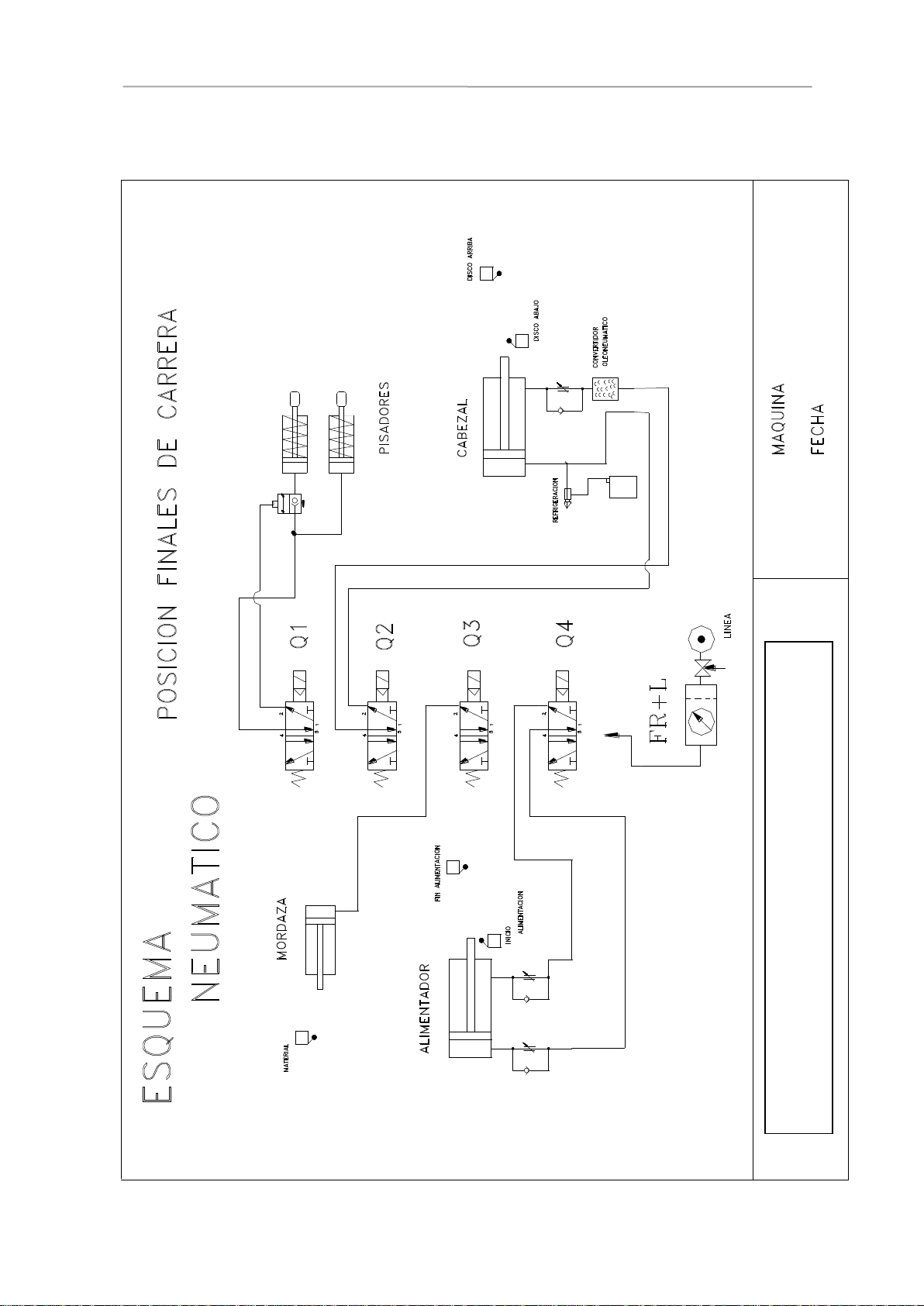

ESQUEMA NEUMATICO - PNEUMATIC DIAGRAM
POSICION FINALES DE CARRERA –POSITION OF LIMIT SWITCHES
material –material
MORDAZA –CLAMPING DEVICE
PISADORES –PRESSING DEVICE
ALIMENTADOR –FEEDER
fin alimentacion –end feeding
inicio alimentacion –feeding start
CABEZAL –HEAD
disco arriba –saw blade up
disco abajo –saw blade down
refrigeracion –cooling agent
convertidor oleoneumatico –hydraulic-pneumatic converter
linea –line
MAQUINA –MACHINE
FECHA –DATE

TL - 500 -AA
19
Page 14 - Translation of Spanish terms into English
Circuito de mando –electric diagram
RECTIFICADOR –RECTIFIER
ESTABILIZADO –STABILIZED
ALIMENTACION –FEEDING
MARCHA –START
PANTALIA –SCREEN (HOOD)
EMERGENCIA –EMERGENCY
PARO –STOP
MATERIAL –MATERIAL
DISCO ABAJO –SAW BLADE DOWN
DISCO ARRIBA –SAW BLADE UP
FIN ALIMENT. –END FEEDING
INICIA ALIM. –START
AUTOMATICO –AUTOMATIC
PISADORES –PRESSING CYLINDERS
SUBIDA SIERRA –RAISE SAW
MARCHA GIRO –START OPERATION
PARO GIRO –STOP OPERATION
CONTADOR –COUNTER
PISADORES –PRESSING CYLINDERS
DISCO –DISC (SAW BLADE)
MORDAZA –CLAMPING DEVICE
ALIMENTADOR –FEEDER
MOTOR DISCO –MOTOR DISC
MAQUINA –MACHINE
FECHA –DATE
