HYDRA-PULL Pik Rite HP 380 Guide

Pik Rite Inc. Phone [phone]
60 Pik Rite Lane Fax [phone]
Lewisburg, PA 17837 SEPTEMBER 2020 www.pikrite.com
OPERATION AND PARTS MANUAL

2
| HP380 Manure Spreader 2020 | Pik Rite Inc.
Some illustrations may not represent the spreader model you have; however, the
principles of operation and maintenance are the same. If you have questions specific to
your spreader please contact your dealer.
SPECIFICATIONS AND DESIGN SUBJECT TO CHANGE WITHOUT NOTICE

Pik Rite Inc. | HP380 Manure Spreader 2020 |
3

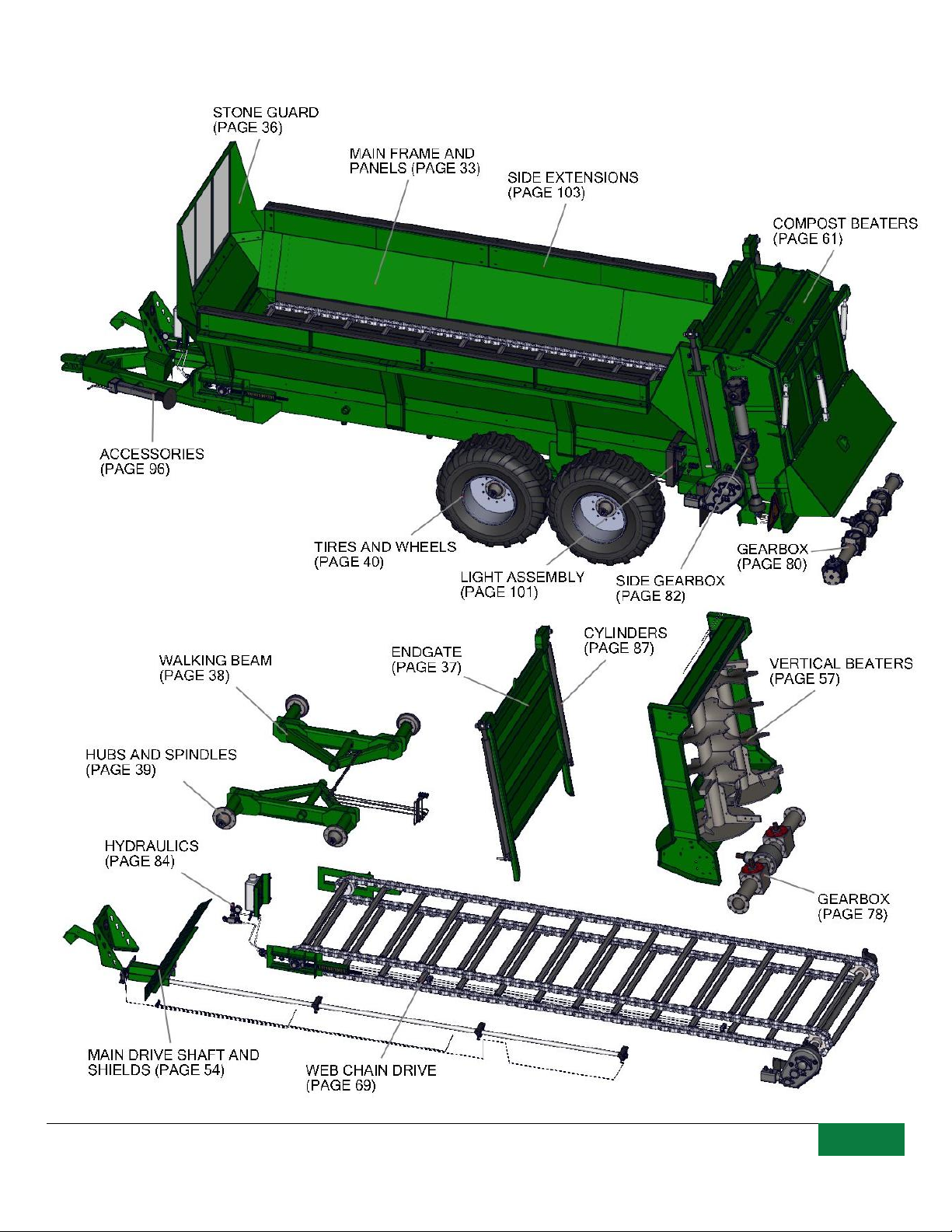

TABLE OF CONTENTS
OPERATION MANUAL
7
INTRODUCTION
7
SAFETY
8
PREPARING THE TRACTOR
14
PREPARING THE SPREADER
16
CONTROLS
17
ATTACHING THE SPREADER
18
DETACHING THE SPREADER
19
TRANSPORT
20
OPERATING THE SPEADER
22
LUBRICATION AND MAINTENANCE
25
SPECIFICATIONS
30
PARTS MANUAL
31
74419-1-01
MAIN FRAME AND PANELS
33
74418-1-02
STONE GUARD
36
74419-1-03
GUILLOTINE ENDGATE
37
74418-1-04
WALKING BEAM
38
74418-1-05
HUBS AND SPINDLES
39
74418-1-06
TIRES AND WHEELS, 425/65R22.5 TRUCK TIRES
40
74418-1-06A
OPT. TIRES AND WHEELS, 500/50R22.5
40
74418-1-06B
OPT. TIRES AND WHEELS, 16.5-16.1 IMPLEMENT TIRES
41
74418-1-07
OPT. WEIGHT SCALE SYSTEM, NT460
42
74419-1-07
OPT. WEIGHT SCALE SYSTEM, DG400
43
74419-1-08
MAIN FRAME BELTING
45
74418-2-01
FRONT DRIVELINE, 1-3/8”
46
74418-2-01A
OPT. FRONT DRIVELINE, 1-3/4”
48
74418-2-01B
OPT. FRONT DRIVELINE, COMPOST, 1-3/8”
50
74418-2-01C
OPT. FRONT DRIVELINE, COMPOST, 1-3/4”
52
74418-2-02
MAIN DRIVE SHAFT
54
74418-2-03
VERTICAL BEATERS
57
74420-2-03A
OPT. COMPOST BEATERS, HYDRAULIC PANELS
61
74420-2-03B
OPT. COMPOST BEATERS WITHOUT TRIM PANEL
65

4
| HP380 Manure Spreader 2020 | Pik Rite Inc.
TABLE OF CONTENTS
74418-2-04
WEB CHAIN DRIVE
69
74418-2-05
WEB CHAIN GEARBOX AND MOTOR
72
74418-2-06
REAR DRIVELINE WITH CLUTCH
74
74418-2-06A
OPT. REAR DRIVELINE, COMPOST
76
74418-2-07
GEARBOX, VERTICAL BEATERS
78
74418-2-08
GEARBOX, COMPOST BEATERS
80
74418-2-09
GEARBOX, COMPOST BEATERS, SIDE
82
74419-3-01
WEB DRIVE HYDRAULICS
84
74419-3-02
ENDGATE HYDRAULICS
86
74419-3-03
ENDGATE CYLINDERS
87
74419-3-04
OPT. WEB DRIVE HYDRAULICS, CONTROL VALVE
89
74419-3-05
OPT. WEB DRIVE HYDRAULICS, REMOTE CONTROL VALVE
90
74419-3-06
OPT. COMPOST HYDRAULICS WITH TRIM PANEL
92
74419-3-07
OPT. COMOPST HYDRAULICS WITHOUT TRIM PANEL
93
74418-4-01
OPT. SAFETY CHAIN
94
74418-4-02
ACCESSORIES
96
74418-4-03
DECALS ON FRONT OF SPREADER
98
74418-4-04
DECALS ON SIDES OF SPREADER
99
74420-4-04A
DECALS ON COMPOST
100
74418-5-01
OPT. ELECTRICAL AND LIGHTING
101
74420-5-02
OPT. SIDE EXTENSIONS
103
WARRANTY
105

Pik Rite Inc. | HP380 Manure Spreader 2020 |
5
TABLE OF CONTENTS

6
| HP380 Manure Spreader 2020 | Pik Rite Inc.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
7
OPERATION MANUAL INTRODUCTION
TO THE NEW OPERATOR OR OWNER
Since 1986 Pik Rite equipment has been developed by people who work as hard as you do in the
fields, on the farm and on site. Our goal is to deliver products that get the job done with the most
efficient results. If you want tough, dependable people and products you can count on, we’ve got
your back.
This manual is provided to all our customers of newly manufactured manure spreaders to create
an awareness of all maintenance expectations and dangers that may be encountered when
owning this equipment. This manual should be kept for all future references. Please review these
operating instructions carefully, then sign and date the last page of this document and return it to
Pik Rite Inc. for processing. This will activate your warranty and verify that you have read and
understand the following operating instructions and warnings. In the event you have questions
or encounter other applications not discussed in this manual, please call before proceeding.
Congratulations and Thank You for choosing a quality manure spreader manufactured by Pik
Rite Inc. We believe you’ll be very satisfied with the purchase, and we appreciate your patronage.
PRINCIPLES OF OPERATION
The Hydra-Pull series features heavy duty components throughout the entire spreader. With a
pintle chain breaking strength of 60,000 lbs, a rugged steal box design, and poly board flooring
for maximum strength and durability, this machine is designed to efficiently and uniformly
spread manure.
Spring Tension Rollers –The spring loaded front idler rollers keep the chain secure and
provides better chain tracking.
Two Piece Drive Sprocket –The pintle chain sprocket allows for service removal without
completely disassembling the drive system.
Precision Application –Optional load cells in the spreader body allow the hydraulic drive to
adjust speed for consistent output.

8
| HP380 Manure Spreader 2020 | Pik Rite Inc.
OPERATION MANUAL SAFETY
RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this symbol on your
machine or in this manual be alert to the potential of physical injury.
Obey all safety messages that follow this symbol to avoid possibly
injury or death.
UNDERSTAND SIGNAL WORDS
A signal word –DANGER, WARNING, or CAUTION –is used with the
safety-alert symbol. DANGER identifies the most serious hazards.
DANGER indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE is used to address practices not related to physical injury.
SAFETY INSTRUCTIONS are used to indicate specific safety-related
instructions or procedures.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual and on your machine
safety labels.
Learn how to operate the machine and how to use controls properly. Do
not let anyone operate without instruction.
Keep your machine in proper working condition. Unauthorized
modifications to the machine may impair the function and/or safety and
affect machine life.
If you do not understand any part of this manual and need assistance,
contact your Pik Rite dealer.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
9
SAFETY
REPLACE SAFETY LABELS
Keep safety labels in good condition. Replace missing or damaged safety labels. Be sure new equipment
components and repair parts include the current safety labels. Replacement safety labels are available from your
Pik Rite dealer (See “Front Decals” and “Side Decals” in the Parts Manual for part numbers.)

10
| HP380 Manure Spreader 2020 | Pik Rite Inc.
SAFETY

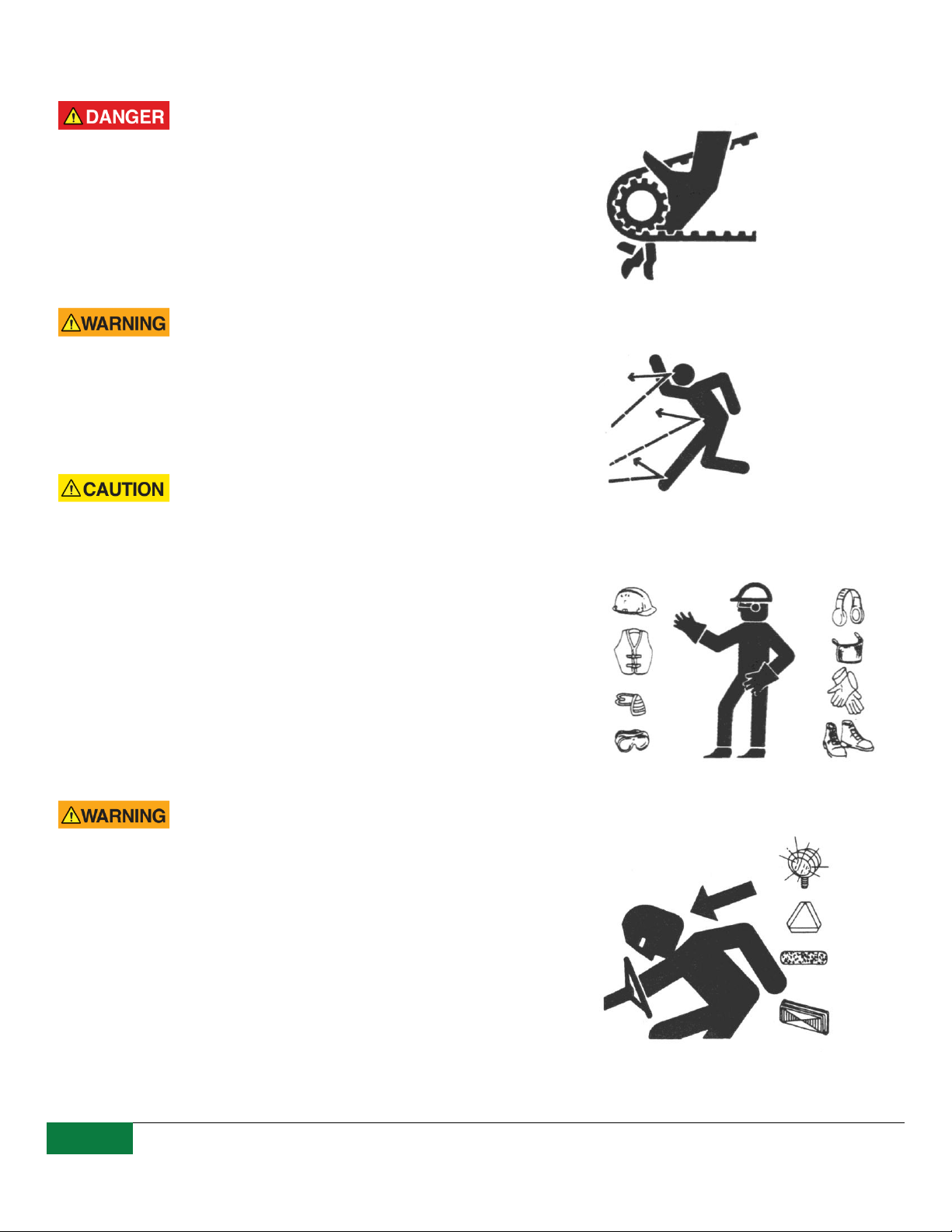

KEEP SHIELDS IN PLACE
Do not operate spreader without safety shields in place.
Rotating parts can crush or dismember causing death or personal injury.
Disconnect PTO driveline and hydraulic lines from tractor before
removing shields for adjustment or service.
PROTECT BYSTANDERS
Never operate the spreader near people.
Do not place rocks, timbers or other solid objects in the spreader.
Objects can be thrown great distances causing injury to people.
WEAR PROTECTIVE CLOTHING
Wear close fitting clothing and safety equipment
appropriate to the job.
Prolonged exposure to loud noise can cause impairment or loss of
hearing.
Wear a suitable hearing protective device such as earmuffs or earplugs to
protect against objectionable or uncomfortable loud noises.
Operating equipment safely requires the full attention of the operator.
Do not wear radio or music headphones while operating machine.
USE SAFETY LIGHTS AND DEVICES
Slow moving tractors, self-propelled equipment and towed implements or
attachments can create a hazard when driven on public roads. They are
difficult to see, especially at night. Avoid personal injury or death
resulting from collision with a vehicle.
Flashing warning lights and turn signals are recommended whenever
driving on public roads. To increase visibility, use the devices provided
with your machine. For some equipment, install extra flashing warning
lights.
Keep safety items in good condition. Replace missing or damaged items.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
11
SAFETY

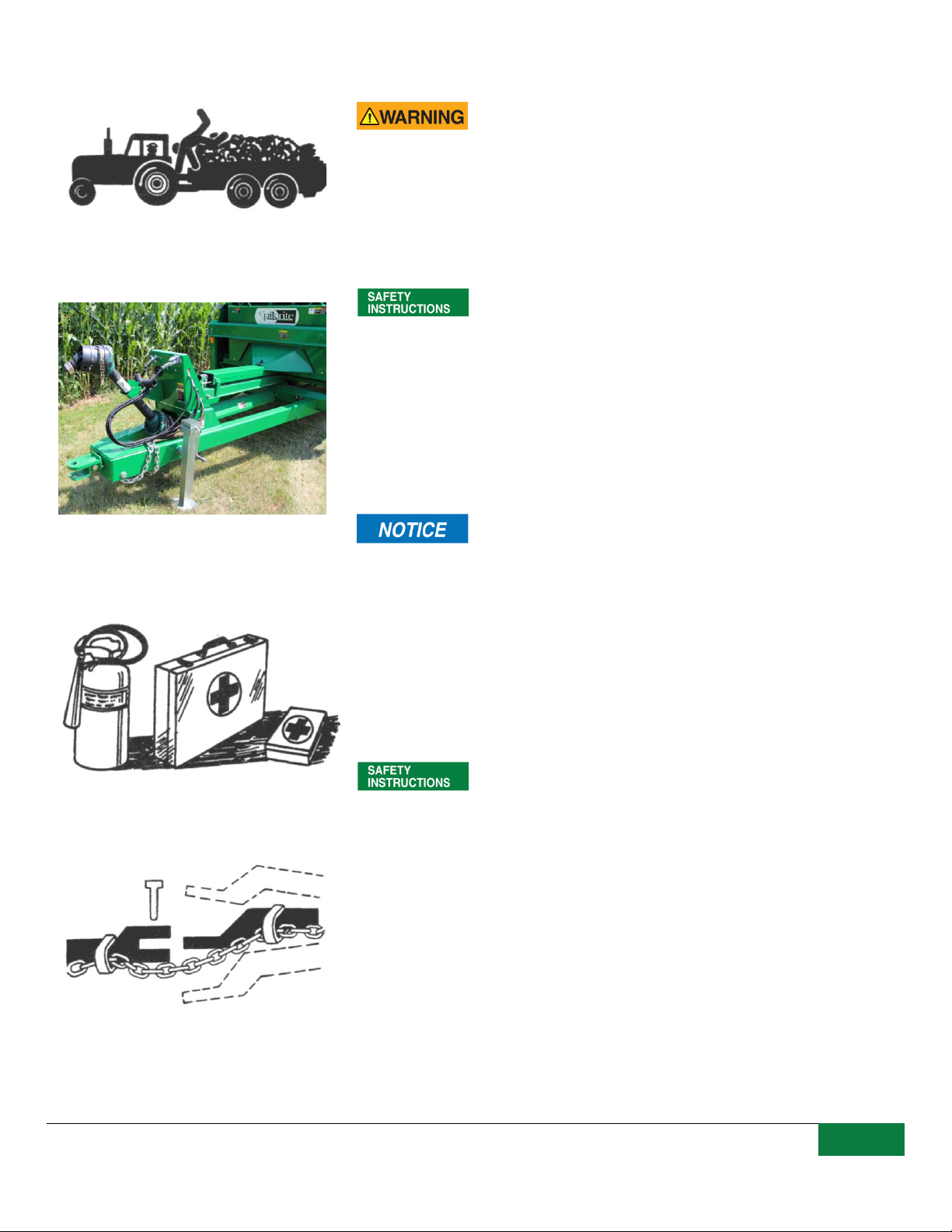

KEEP RIDERS OFF MACHINE
Riders are subject to injury such as being struck by foreign objects and
being thrown off the machine. Riders also obstruct the operator’s view
resulting in the machine being operated in an unsafe manner
PARK SPREADER SAFELY
Park spreader on a level surface and block wheels.
Close endgate.
Secure jackstand with pin.
PREPARE FOR EMERGENCIES
Be prepared if a fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance service, hospital, and
fire department near your telephone.
USE A SAFETY CHAIN
A safety chain will help control drawn equipment should it accidentally
separate from the drawbar.
Using the appropriate adapter parts, attach the chain to the tractor
drawbar support or other specified anchor location. Provide only enough
slack in the chain to permit turning.
See your Pik Rite dealer for a chain with a strength rating equal to or
greater than the gross weight of the towed machine. Do not use safety
chain for towing.

12
| HP380 Manure Spreader 2020 | Pik Rite Inc.
SAFETY
OPERATE SPREADER SAFELY
Rotating parts can entangle or strike people, resulting in death or
personal injury.
Never enter a spreader while in operation.
Operate the spreader from the tractor seat only.
Do not exceed load capacity of the spreader. (See Transport section)
Reduce speed when turning or traveling on rough terrain. Avoid traveling
over loose fill, rocks, ditches or holes.
When working on inclines or slopes, travel uphill or downhill. Keep
tractor in gear when traveling downhill.

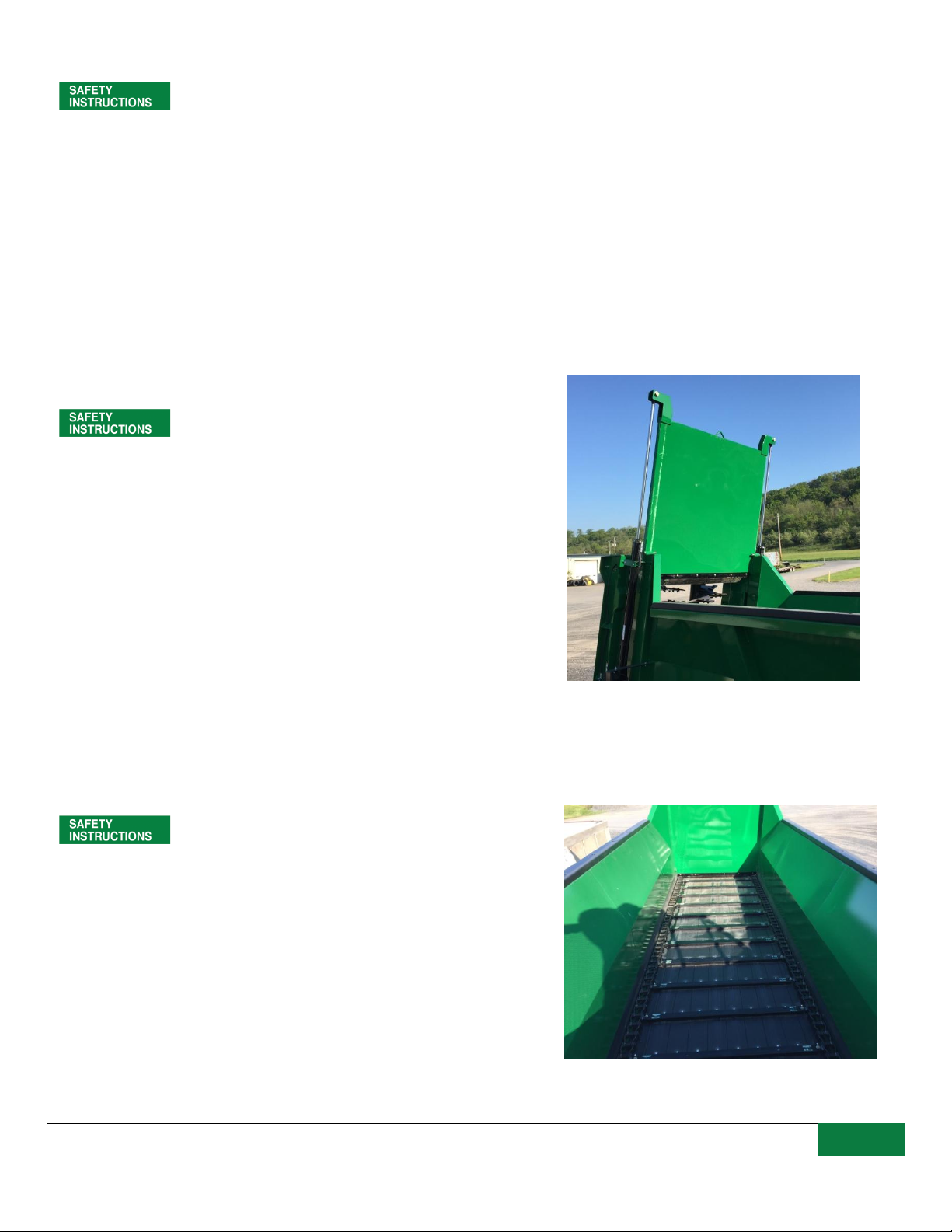

STAY CLEAR OF RAISED ENDGATE
Contact with a lowering endgate can cause death or personal injury.
Lower endgate and disconnect hydraulic lines before
servicing or adjusting.
STAY CLEAR OF ROTATING DRIVELINES
Entanglement in rotating driveline can cause serious
injury or death.
Keep tractor master shield and driveline shields in place at all times. Make
sure rotating shields turn freely.
Wear close fitting clothing. Stop the engine and be sure PTO driveline is
stopped before making adjustments, connections, or cleaning out PTO
driven equipment.
STAY CLEAR OF ROTATING BEATER
Rotating beater can entangle or strike causing death or personal injury.
Do not clean out or service spreader while beater is
rotating.
Disconnect PTO driveline and make sure all parts have stopped rotating
before cleaning or servicing.
Do not cut or weld on vertical beater attachment.
Serious injury or death could occur when operating.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
13
SAFETY
AVOID HIGH-PRESSURE FLUIDS
Escaping fluid under pressure can penetrate the skin causing serious
injury.
Avoid the hazard by relieving pressure before disconnecting hydraulic or
other lines. Tighten all connections before applying pressure.
Search for leaks with a piece of cardboard. Protect hands and body from
high pressure fluids.
If an accident occurs, see a doctor immediately. Any fluid injected into the
skin must be surgically removed within a few hours or gangrene may
result. Doctors unfamiliar with this type of injury should reference a
knowledgeable medical source.
SERVICE SPREADER SAFELY
To help prevent personal injury caused by unexpected movement, be sure
to service spreader on level surface.
If spreader is connected to tractor, disengage PTO, engage parking brake
and/or place transmission in “PARK,” shut off engine and remove key.
If spreader is detached from tractor, block wheels and use safety stands to
prevent movement.
Replace all shields after lubricating or servicing.
REDUCE SPEED WHEN TOWING LOADS
Braking to stop towed loads from transport speeds can cause the towed
load to swerve and upset. Reduce speed if towed load weighs more than
the tractor and is not equipped with brakes.
Follow recommended speed-weight ratio guidelines:
•Maximum speed is 20 mph (32 km/h) when towing loads equal to or
less than the tractor.
• Reduce speed to 10 mph (16 km/h) when towing loads more than equal
and up to double the tractor weight.
• Do not tow loads exceeding double the tractor weight.
• Use additional caution when towing loads under adverse surface
conditions, when turning, and on inclines

14
| HP380 Manure Spreader 2020 | Pik Rite Inc.
PREPARING THE TRACTOR
APPROVED TRACTORS, MODEL HP380
Row Crop Tractors with 100 HP PTO rating or larger are approved for operation with the HP380 Spreader.
Utility Tractors are NOT APPROVED because of drawbar weight limitations and the inability to ballast the tractor
enough to meet requirements for towing.
A drawbar support is required on any tractor with a drawbar size of no less than 1-1/2 x 3 in.
Tractor hydraulic oil reservoir must have capacity for 3.7 U.S. gal. net draw for a spreader with an endgate or 3.1
U.S. gal. without an endgate.
Tractor standby hydraulic pressure must be 1500 psi minimum.
Two selective control valves are required to operate the spreader.
CHOOSING CORRECT PTO SPEED
MODEL –HP380 –1000 RPM ONLY
Drive components can be damaged.
Under no circumstances should a machine equipped for 540 rpm
PTO be operated by a tractor equipped with 1000 rpm PTO.
Nor should a 1000 rpm PTO machine be operated with a
tractor equipped with 540 rpm PTO.
BALLASTING THE TRACTOR
Do not tow loads that weigh more than twice the
tractor weight.
(See Recommended Maximum Towing Speed in Transport section.)
To ensure proper stability, adjust ballast and wheel
spacing according to tractor operator’s manual.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
15
PREPARING THE TRACTOR
PTO Speed Dimension (A)
1000 rpm x 1-3/8 406 mm (16in.)
1000 rpm x 1-3/4 508 mm (20in.)
POSITIONING DRAWBAR
Tractor PTO and machine driveline can be damaged. Be sure
drawbar length is properly set. If equipped with clevis, remove it.
Lock drawbar along tractor centerline with offset down.
Remove clevis if equipped.
Adjust drawbar length (A) to help prevent driveline damage.
A tractor drawbar support is required on tractors with a drawbar size
of 1-1/2 x 3 in. minimum
USING SELECTIVE CONTROL LEVERS TO CONTROL CHAIN SPEED
Floor and moving panel speed can be controlled by using tractor selective control lever to extend and retract
cylinders.
Adjust selective control valve lever to provide the slowest operating speed. (See your tractor operator’s manual).
Maximum hydraulic oil flow through the spreader control valve is 15 gpm. Trying to force through more oil than
this, may create a pressure drop.
SETTING HYDRAULIC SPEED ENDGATE OPERATION
Excessive operating speed may cause machine damage. Adjust selective control valve lever to provide
correct operating speed.
Adjust selective control valve lever, it should take two to three seconds to fully extend or retract the cylinder. (See
your tractor operator’s manual).
CHECKING TRANSMISSION/HYDRAULIC OIL LEVEL
Cycle all hydraulic cylinders fully two or three times.
Fully retract all cylinders.
Check transmission/hydraulic oil level. (See your tractor’s Operator’s Manual)

16
| HP380 Manure Spreader 2020 | Pik Rite Inc.
PREPARING THE SPREADER
LUBRICATING THE MACHINE
Be sure the machine has been adequately lubricated.
(See Lubrication and Maintenance page.)
BRAKE ADJUSTMENT (HYDRAULIC)
(Contact your Hydra-Pull Dealer for available brake kit)
TIGHTENING WHEEL HARDWARE
Operating the spreader with loose wheel hardware will
damage the hub or wheel. Tighten hardware after initial
transport, after one hour of operation and every fifty hours
thereafter.
Tighten to 240 lb-ft of dry torque (180 lb-ft wet)
in the sequence shown.
Tire Size Wheel Size Tire Pressure
500/50-22.5 Implement 22.5 x 16 40 psi
425/65R22.5 Truck Tires 22.5 x 11.75 115 psi
16.5 x 16.1 14 ply 14.00 x 16.1 48 psi
(Additional options may be available, please contact your
dealer for more information)
CHECKING TIRES
1. Check tires daily for damage or noticeably low pressure.
2. Repair any cuts or breaks as soon as possible.
3. Protect tires from exposure to sunlight and petroleum
products or chemicals.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
17
CONTROLS
OPERATING THE BEATER
To start beater, engage PTO lever slowly, at low engine rpm.
To stop beater, disengage PTO. (See your tractor’s Operator’s Manual)
For best spreading results, operate the tractor engine at “PTO RATED” speed.
Do not operate the apron chain without running the beaters as this may damage the spreader.
OPERATING THE ENDGATE
Contact of apron chain running with endgate
closed will cause damage. To avoid contact with
apron chain, endgate must be raised when running.
Operate the endgate with the second auxiliary
control valve lever.
OPERATING APRON CHAIN
To run apron chain lock hydraulic control lever in operating
position on tractor.
See your tractor’s operating manual for information on how to
control flow rates of your hydraulic system.
Maximum hydraulic oil flow through the spreader apron chain
motor is 15 gpm. Trying to force through more oil than this may
cause serious damage to motor (relief factory set at 1250 psi)

18
| HP380 Manure Spreader 2020 | Pik Rite Inc.
ATTACHING THE SPREADER

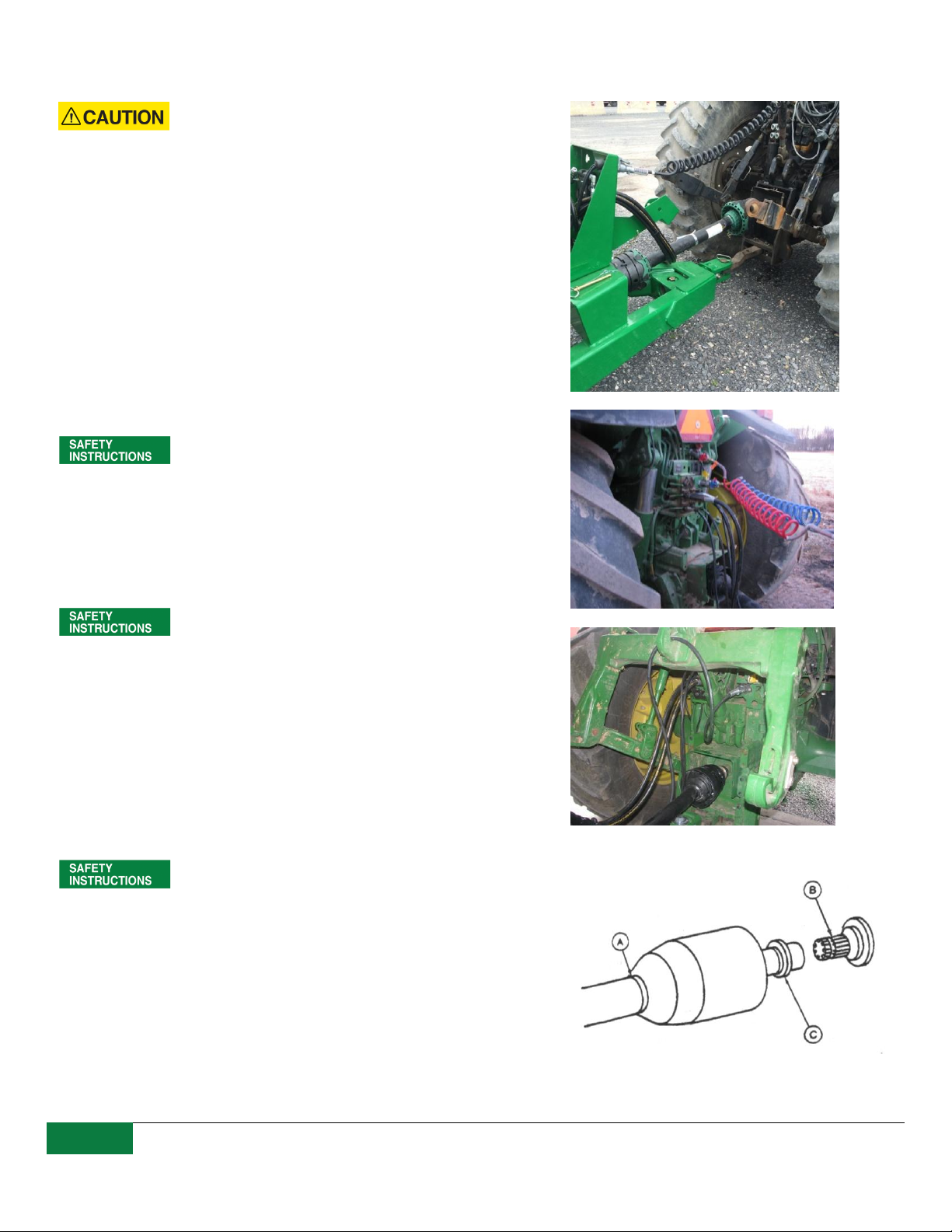

ATTACHING THE SPREADER
Help prevent personal injury caused by unexpected
movement of the machine. Engage parking brake
and/or place transmission in “PARK”, shut off engine,
and remove key before working around hitch.
1. Attach with a 1-1/2 in. pin and secure.
Shorten safety chain to allow only
enough slack required for turning.
2. Lock safety hook onto chain.
CONNECTING AIR HOSES
(AIR ASSIST BRAKES)
1. Connect red line to supply port.
2. Connect blue line to service/control port.
CONNECTING HOSES
(HYDRAULIC BRAKES)
1. Connect pressure hoses to pressure ports of hydraulic
remote coupler.
2. Connect return hoses to return ports of hydraulic remote
coupler.
(Relief factory set 1000psi)
ATTACHING DRIVELINE
Avoid causing damage to shielding,
DO NOT use bell on driveline to lift driveline into position.
1. Support driveline, cradling it in your hand.
2. Rotate driveline (C) or tractor PTO (B) to align splines.
3. Pull collar (C) rearward and push forward on bell (A)
to engage driveline yoke with tractor PTO (B).
4. Pull back on PTO driveline shielding to be sure driveline
is locked. DO NOT pull on collar, this will release latch.

Pik Rite Inc. | HP380 Manure Spreader 2020 |
19
DETACHING THE SPREADER
DETACHING SPREADER
1. Secure jack stand in lift position
2. Detach safety chain
3. Remove hitch pin
4. Disconnect hoses. Store on spreader
DETACHING DRIVELINE
1. Support driveline (A) and pull rearward on collar (C) to
release driveline from tractor PTO (B).
2. When possible store driveline in driveline cradle
provided with machine.
3. Replace tractor PTO shields.

20
| HP380 Manure Spreader 2020 | Pik Rite Inc.
TRANSPORT

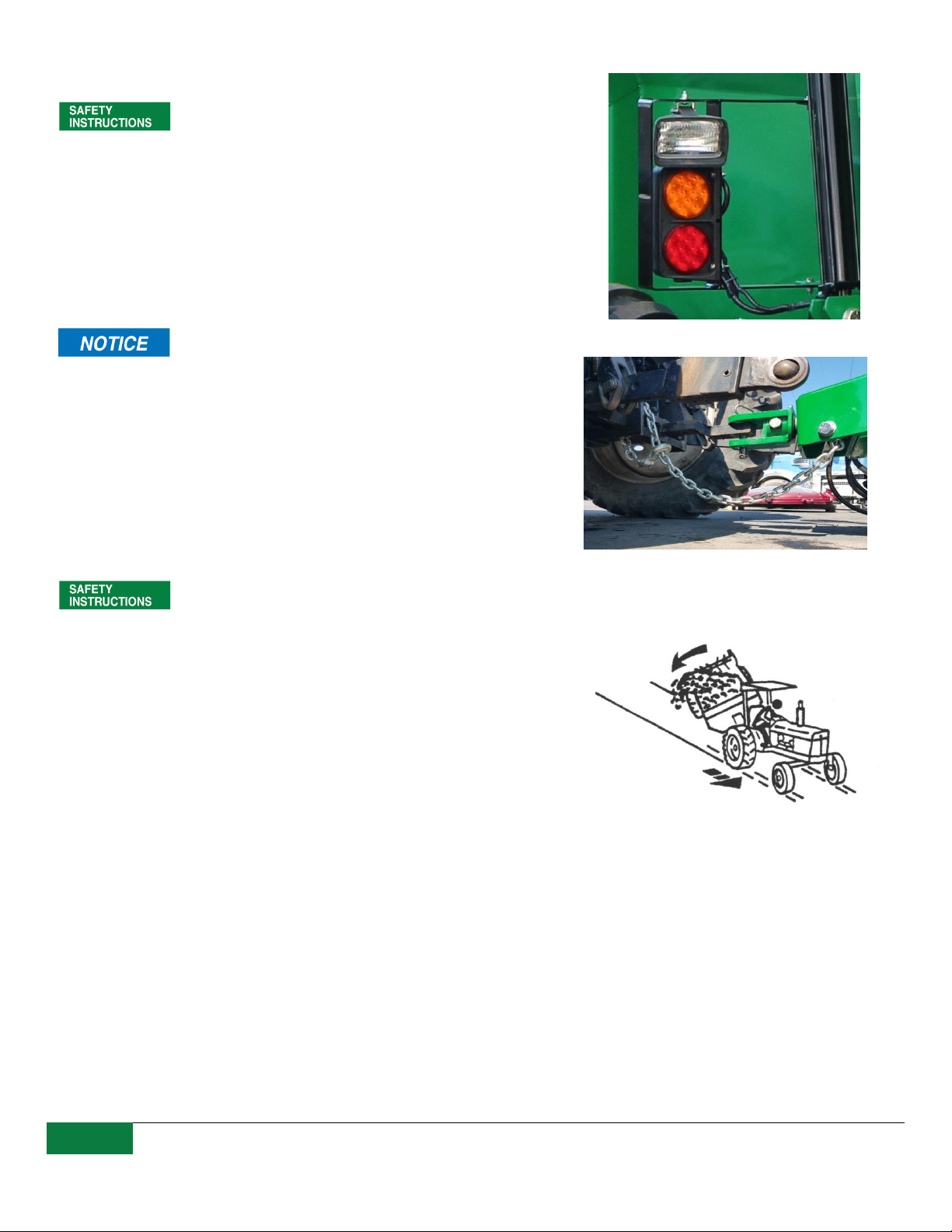

USING A SAFETY CHAIN
A safety chain will help control drawn equipment should it accidentally
separate from the drawbar while transporting. Using the appropriate
adapter parts, attach the chain to the tractor drawbar support or other
specified anchor location. Provide only enough slack in the chain to
permit turning. See your Pik Rite dealer for a chain with a strength rating
equal to or greater than the gross weight of the towed machine.
LIGHTING
When transporting the machine on a road or highway at night or
during the day, use accessory lights and devices for adequate warning
to operators of other vehicles. Check local governmental regulations.
Keep safety items in good condition. Replace missing or damaged
items.
(Contact your Hydra-Pull Dealer for available lighting kit)
TOWING LOADS
Braking to stop towed loads from transport speeds can cause the
towed load to swerve and upset. Reduce speed if towed load is not
equipped with brakes and weighs more than the tractor.
Follow recommended speed-weight ratio guidelines:
Maximum speed is 20 mph (32 km/h) when towing loads equal to
or less than the weight of the tractor.
Reduce speed to 10 mph (16 km/h) when towing loads more than
or up to double the tractor weight.
DO NOT tow loads that exceed double the tractor weight.
Use additional caution when towing loads under adverse road
surface conditions (i.e. slippery or rough), when turning and/or
on inclines.
For proper tractor size and towing speed see the following
“Recommended Maximum Towing Speed” chart.
If necessary, add ballast as described in your tractor’s Operator’s
Manual.
