HYDROO VKDROO Series User manual

VKF
VKX
VKN
Immersion type
multistage centrifugal
pump
Operation
Manual
HYDROO Pump Industries SL
VDROO SERIES

2 3
I. INTRODUCTION 4
II. APPLICATIONS 4
III. OPERATING CONDITIONS 4
IV. DEFINITION OF MODEL 6
V. STRUCTURE 7
VI. INSTALLATION 7
VII. OPERATION 7
VIII. ASSEMBLE AND DISASSEMBLE 8
IX. FAULT FINDING AND SOLUTION CHART 9
X. DIMENSIONS 10
XI. STRUCTURE DRAWING 22
XII. WARNING 25
XIII. IMPORTANT NOTICE 26
CONTENTS
DECLARATION OF CONFORMITY
Name of manufacturer or supplier
HYDROO PUMP INDUSTRIES, S.L.
Full postal address including country of origin
C/ La Banyeta Nova, 11 - P.I. La Banyeta, 17843 Palol de Revardit (Girona) - Catalonia - Spain
Description of product
VKDROO series are the immersion type mult multistage centrifugal pump with standard motor. Two
pumpheads are available, Cast iron type (HT200) and Stainless steel type. Other wet parts are all
made of stainless steel (SS304 or SS316) by punching and welding.
Name, type or model, batch or serial number
Name: VKDROO Immersion type multistage centrifugal pump
Model: VKF, VKX, VKN Series
Standards used, including number, title, issue date and other relative documents
Machinery directive 98/37/EC
Machinery directive 2006/42/EC
- Standard: EN809:1998 + A1:2009
Place of Issue
Palol de Revardit, Spain
Name of authorlsed representative
Miquel Coma
Position of authorlsed representative
General manager
Declaration
I declare that as the authorised representative, the above information in relation to the supply /
manufacture of this product, is in conformity with the provisions of the above Dlrectlves. For the most
specific risks of this machine, safety and compliance with the essential requirements of the Directive
has been based on elements of the above standards.
Authorized representative
Miquel Coma
CEO
Ecodesign Directive 2009/125/EC
- Commission Regulation 547/2012
- Commission Regulation 640/2009
EMC Directive 2014/30/EU
- Standard: 60034-1:2010

4 5
Read t his manual carefully before install, start the pump
I. GENERAL
VKDROO Series are the immersion type multisatge centrifugal pump with standard
motor. It adopts the most advanced structure in the world.
Pump head has two types, cast iron type (HT200) and stainless steel tyoe. Other wet
parts are all made of stainless steel (SS304 or SS316) by punching and welding. The
character is low noise, anti-little-corrosion, good appearance, small volume, running
steaadily, easy to install, long service life.
II. APPLICATIONS
VKDROO Series are used for conveying condensate liquid of machines, lubricating
liquid and conveying condensation water. And they are used for industrial cleaning
equipment or other applications that immersion pump are suitable for.
typical applications:
· Electric spark, lathe, grinding machine, processing center;
· Cooling devices;
· Industrial cleaning equipment;
· Filthering system;
· Farmland irrigation and dehydration;
· Vehicles cleaning, etc.
III. OPERATING CONDITIONS
· Cool, warm, clean, non-fammable, non-explosive liquid without solid grains and
fibers;
· Liquid temperature:
Normal temperature type: -15ºC~+70ºC
Hot water type: -15ºC~+120ºC
· Max. ambient temperature: + 40ºC
· Installation of pump:
The drawing below is the minimum installation depth.
VKF,VKX,VKN 1,2,3,4
VKF,VKX,VKN 8,16,20
VKF,VKX,VKN 32,42

6 7
IV. DEFINITION OF MODEL
Hydraulic part description Motor description
VKF,VKX,VKN 1,2,3,4,8,16,20,32,42
V. STRUCTURE
VKDROO Series are vertical multi-stage, segmental type, centrifugal pump. Motor is
directly connected with pump shaft by coupling of pump head. Inlet is at the bottom of
pump and outlet is at the bottom of motor.
Pump operating chamber is composed of suction head, inducer, support diffuser,
diffuser. Ans it is fixed by 4 straps. Rotating part is composed of impellers, shaft
sleeves, circlip cover, mechanical seal, impeller sleeves, nuts which fixed on pump
shaft. Impellers, diffusers are made by new stainless steel stamping and welding
technology. Bearing, mechanical seal is amde by cemented carbides.
Motor rotating directive is counter.clockwise from the motor end.
VI. INSTALLATION
1. The pump should be sited in a well ventilated but frost-free position.
2. The immersion depth should be as deep as possible to prevent from air locks.
3. When installing drainage pipe, do not let the weight of pipe concentrate on the pump
to prevent it from twisting.
4. Motor should be earthed effectively. Electrical device should guarantee pump not be
damage by phase lack, instable power, overload.
5. Install a pressure meter on outlet in order to observe and control pump running.
VII. OPERATION
1. Preparation before start.
1) Check fool bolt if it is loose or not, check cutting ferrule bolt if it is loose or not.
2) It is prohibited to run pump without medium or run pump before venting air. which
will lead to the damage of sliding bearing and mechanical seal.
2. Startup & Circulate.
1) Start motor, check the motor turning, open the outlet valve, adjust it to yhe
required working condition. Suggestion: The flow sholud be kept at the scope of
0.5~1.3 times of the rated flow.
2) Check the fluctuation of manometer and vibration of pump. When assure there is
air in liquid, loose bolts of cutting ferrule in time and vent air.
3) Notice the noises while it’s operating, if there is any abnormal noises stop and
check immediately.
3. Stop.
1) Close valve slowly and close other meters.
2) Switch off the power.
4. Others.
1) Pump should not be started too frequently. Pump shall not be started more than
100 times per hour if the motor power is less or equal to 4 kw, when motor power is
more tah 4 kw, pump shall not be more than 20 times in one hour.
2) According to pump operation and time, check pump, pump pressure, leakage,
motor temperature rising, etc. regurlarly.
10 2100F32 – –/VK
Motor efficiency
(according
IEC60034)
Number of poles
5: 50 Hz / 6: 60 Hz
Rated voltage (x10)
(V)
S: one phase / T:
three phase
Power P2 (kW)
Normal temperature
omitted
R: High
temperature
Number of small
impeller (only if
applicable)
Number of impeller
Number of stage
x10
Rated flow (m3/h)
F: cast iron version
/ X: SS304 wet
parts / N: SS316
wet parts
Immersion
type multistage
centrifugal pump
62244 IE330 T 2

8 9
VIII. ASSEBLE AND DISASSEMBLE
1. VKDROO 1,2,3,4,8,16,20
1) Put the circlip cover on the shaft.
2) Fit the impeller, impeller sleeve, diffuser, support diffuser, etc. Continue the
assemble order until the last impeller is fitted. Then fit the impeller cover, washer,
screw the nut. Note the position of the support diffuser. For pump with less stages,
the last one is support diffuser. For pump with more stages, support diffuser should
be increased accordingly. The distance of each support diffuser should be even, and
it should fit support sleeve anb bearing.
3) Fit inducer and inlet&outlet chamber.
4) Press stationary part of mechanical seal to pump head.
5) Put the pump head with O ring on the above parts. Screw four straps into suction
head, fasten four nuts of pumps head. Do not tighten one nut completely at one
time, but tighten them symmetrically in turn.
6) Install motor and coupling, screw the bolts in coupling (but not tighly), press the
coupling aand shaft down to the direction of inlet, then lift it about 1mm in reverse
direction, tighten the screws. Note that the space between the two couplings should
be equal.
7) Rotate the coupling to ensure taht the shaft can rotate freely and not be choked.
2. VKDROO 32,42
1) Put the bottom bearing on suction head, fit washer and tighten all the nuts, then fit
inducer.
2) Fit the bottom sleeve and cover on the shaft. Put the first impeller on the shaft,
tighten the nuts and put the impeller on the neck ring base of inducer, then put on
the diffuser, impeller, support diffuser, until the top diffuser.
3) Fit pump head ans straps, tighten the screws.
4) Fit the mechanical seal on the pump head, then fit the seal cover, tghten the
screws, and tighten the screws in the mechanical seal. Lift the shaft and insert the
adjusting slice, the fit coupling.
5) Fit motor which is coupled wth transformer flange to pump head, fasten screws.
6) Fit the coupling, tihten screws, and take out the adjusting slice. Rotate the
coupling to ensure taht the shaft can rotate freely and not be choked and loose.
Reverse the above process to disassemble the pump.
Fault Cause Solution
Motor can’t be started
1. Power supply fails
2. Motor overload
3. Something wrong with circuit
1. Check power supply
2. Check system
3. Check circuit
Pump no water
1. Run reversely
2. Immersion not enough
3. Not enough water in pump, there is
air in suction head or in pump
1. Adjusting motor connection
2. Lower motor installation position
3. Increase water, vent air
Insufficient flow
1. Pipes jammed
2. Neck ring wears out
3. Not correct model
1. Clean pump and pipelines
2. Replace neck ring
3. Re-selct model
Pump coonsumes
too big power
1. Too big flow
2. Motor bearing wears out
1. Make flow smaller
2. Replace motor
Abnormal noise
and pumps no water
1. Water level is too low
2. The temperature of pumped liquid
is too high
1. Check pump suction and liquid level
2. Low pump suction height or
decrease liquid temperature
Too big noise 1. Motor bearing or pump spare parts
broken
1. Replace motor bearing or pumps
parts
IX. FAULT FINDING AND SOLUTION CHART

10 11

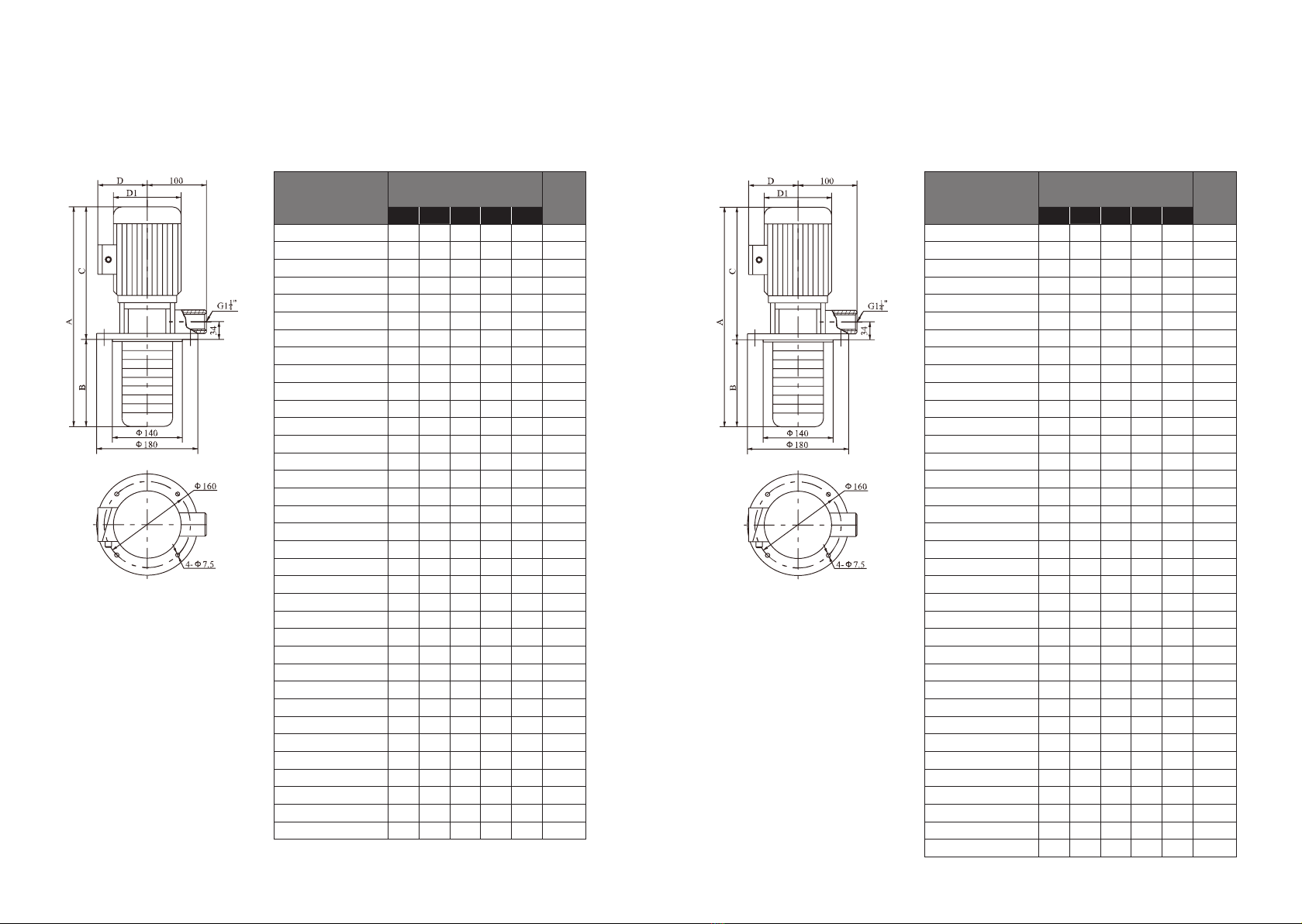

X. DIMENSION VKDROO 1,2 50Hz
Size of single phase motor, anti-explosive motor will be different,
please check with us
VKDROO 3,4 50Hz
Installation Sketch Installation Sketch
Size and weight Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 1-20/2 453 123 330 117 148 15
VKDROO 1-30/3 471 141 330 117 148 15
VKDROO 1-40/4 489 159 330 117 148 15
VKDROO 1-50/5 507 177 330 117 148 16
VKDROO 1-60/6 525 195 330 117 148 16
VKDROO 1-70/7 543 213 330 117 148 16
VKDROO 1-80/8 561 231 330 117 148 17
VKDROO 1-90/9 579 249 330 117 148 17
VKDROO 1-100/10 597 267 330 117 148 17
VKDROO 1-110/11 615 285 330 117 148 17
VKDROO 1-120/12 661 303 358 142 170 20
VKDROO 1-130/13 679 321 358 142 170 20
VKDROO 1-150/15 715 357 358 142 170 20
VKDROO 1-170/17 751 393 358 142 170 22
VKDROO 1-190/19 787 429 358 142 170 22
VKDROO 1-210/21 823 465 358 142 170 23
VKDROO 1-230/23 859 501 358 142 170 23
VKDROO 1-250/25 950 537 413 155 190 30
VKDROO 1-270/27 986 573 413 155 190 30
VKDROO 1-300/30 1040 573 413 155 190 31
VKDROO 1-330/33 1094 681 413 155 190 34
VKDROO 1-360/36 1148 735 413 155 190 35
VKDROO 2-20/2 453 123 330 117 148 15
VKDROO 2-30/3 471 141 330 117 148 15
VKDROO 2-40/4 489 159 330 117 148 17
VKDROO 2-50/5 507 177 330 117 148 17
VKDROO 2-60/6 553 195 358 142 170 20
VKDROO 2-70/7 571 213 358 142 170 20
VKDROO 2-90/9 607 249 358 142 170 22
VKDROO 2-110/11 643 285 358 142 170 22
VKDROO 2-130/13 734 321 413 155 190 29
VKDROO 2-150/15 770 357 413 155 190 29
VKDROO 2-180/18 824 411 413 155 190 33
VKDROO 2-220/22 896 483 413 155 190 33
VKDROO 2-260/26 1033 555 478 165 197 41
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 3-20/2 453 123 330 117 148 15
VKDROO 3-30/3 471 141 330 117 148 15
VKDROO 3-40/4 489 159 330 117 148 15
VKDROO 3-50/5 507 177 330 117 148 16
VKDROO 3-60/6 525 195 330 117 148 17
VKDROO 3-70/7 543 213 330 117 148 17
VKDROO 3-80/8 589 231 358 142 170 19
VKDROO 3-90/9 607 249 358 142 170 20
VKDROO 3-100/10 625 267 358 142 170 20
VKDROO 3-110/11 643 285 358 142 170 21
VKDROO 3-120/12 661 303 358 142 170 21
VKDROO 3-130/13 679 321 358 142 170 22
VKDROO 3-150/15 715 357 358 142 170 22
VKDROO 3-170/17 806 393 413 155 190 28
VKDROO 3-190/19 842 429 413 155 190 29
VKDROO 3-210/21 878 465 413 155 190 32
VKDROO 3-230/23 914 501 413 155 190 32
VKDROO 3-250/25 950 537 413 155 190 33
VKDROO 3-270/27 986 573 413 155 190 33
VKDROO 3-290/29 1022 609 413 155 190 33
VKDROO 3-310/31 1123 645 478 165 197 40
VKDROO 3-330/33 1159 681 478 165 197 41
VKDROO 3-360/36 1213 735 478 165 197 41
VKDROO 4-20/2 478 148 330 117 148 15
VKDROO 4-30/3 505 175 330 117 148 15
VKDROO 4-40/4 560 202 358 142 170 18
VKDROO 4-50/5 587 229 358 142 170 20
VKDROO 4-60/6 614 256 358 142 170 21
VKDROO 4-70/7 696 283 413 155 190 27
VKDROO 4-100/10 723 310 413 155 190 28
VKDROO 4-110/11 777 364 413 155 190 30
VKDROO 4-120/12 831 418 413 155 190 30
VKDROO 4-140/14 950 472 478 165 197 35
VKDROO 4-160/16 1004 526 478 165 197 35
VKDROO 4-190/19 1095 607 488 185 230 40
VKDROO 4-220/22 1276 688 488 185 230 41

12 13
VKDROO 8,16 50Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 8-20/2 516 150 366 142 170 22
VKDROO 8-30/3 546 180 366 142 170 27
VKDROO 8-40/4 629 210 419 155 190 27
VKDROO 8-50/5 659 240 419 155 190 36
VKDROO 8-60/6 689 270 419 155 190 37
VKDROO 8-80/8 814 330 484 165 197 42
VKDROO 8-100/10 884 390 494 185 230 52
VKDROO 8-120/12 944 450 494 185 230 53
VKDROO 8-140/14 1059 510 549 210 260 75
VKDROO 8-160/16 1119 570 549 210 260 77
VKDROO 8-180/18 1179 630 549 210 260 85
VKDROO 8-200/20 1239 690 549 210 260 87
VKDROO 16-20/2 599 180 419 155 190 37
VKDROO 16-30/3 709 225 484 165 197 47
VKDROO 16-40/4 764 270 494 185 230 52
VKDROO 16-50/5 864 315 549 210 260 67
VKDROO 16-60/6 909 360 549 210 260 72
VKDROO 16-70/7 954 405 549 210 260 77
VKDROO 16-80/8 999 450 549 210 260 78
VKDROO 16-100/10 1240 540 700 255 330 135
VKDROO 16-120/12 1330 630 700 255 330 140
VKDROO 16-140/14 1420 720 700 255 330 155
VKDROO 16-160/16 1510 810 700 255 330 162
VKDROO 20 50Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 20-20/2 599 180 419 155 190 37
VKDROO 20-30/3 719 225 494 185 230 50
VKDROO 20-40/4 819 270 594 210 260 65
VKDROO 20-50/5 864 315 594 210 260 67
VKDROO 20-60/6 909 360 594 210 260 75
VKDROO 20-70/7 954 405 594 210 260 77
VKDROO 20-80/8 1150 450 700 255 330 131
VKDROO 20-100/10 1240 540 700 255 330 135
VKDROO 20-120/12 1330 630 700 255 330 151
VKDROO 20-140/14 1420 720 700 255 330 155
VKDROO 20-170/17 1605 855 750 255 330 181

14 15
VKDROO 32 50Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 32-10-1/1
VKDROO 32-10-1 621 186 435 155 190 49/ 51
VKDROO 32-20-2/2
VKDROO 32-20-2
746/
756 256 490/ 500
165/
185
197/
230
57/
62
VKDROO 32-30-3/2
VKDROO 32-30-3 881 326 555 210 260 70
VKDROO 32-40-4/2
VKDROO 32-40-4 951 396 555 210 260 77
VKDROO 32-50-5/2
VKDROO 32-50-5 1184 466 718 255 330 148
VKDROO 32-60-6/2
VKDROO 32-60-6 1254 536 718 255 330 150
VKDROO 32-70-7/2
VKDROO 32-70-7 1324 606 718 255 330 162
VKDROO 32-80-8/2
VKDROO 32-80-8 1394 676 718 255 330 165
VKDROO 32-90-9/2
VKDROO 32-90-9 1514 746 768 255 330 191
VKDROO 32-100-10/2
VKDROO 32-100-10 1584 816 768 255 330 194
VKDROO 32-110-11/2
VKDROO 32-110-11 1679 886 793 285 360 230
VKDROO 32-120-12/2
VKDROO 32-120-12 1749 956 793 285 360 234
VKDROO 32-130-13/2
VKDROO 32-130-13 1894 1026 868 310 400 297
VKDROO 32-140-14/2
VKDROO 32-140-10 1964 1096 868 310 400 300
VKDROO 42 50Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 42-10-1/1
VKDROO 42-10-1
702/
712 198 504/ 514
165/
185
197/
230
60/
65
VKDROO 42-20-2/2
VKDROO 42-20-2 847 278 569 210 260 77/ 84
VKDROO 42-30-3/2
VKDROO 42-30-3 1090 358 732 255 330 150
VKDROO 42-40-4/2
VKDROO 42-40-4 1170 438 732 255 330 162
VKDROO 42-50-5/2
VKDROO 42-50-5 1300 518 782 255 330 182
VKDROO 42-60-6/2
VKDROO 42-60-6 1405 598 807 285 360 225
VKDROO 42-70-7/2
VKDROO 42-70-7 1560 678 882 310 400 288
VKDROO 42-80-8/2
VKDROO 42-80-8 1640 758 882 310 400 292
VKDROO 42-90-9/2
VKDROO 42-90-9 1720 838 882 310 400 296/ 315
VKDROO 42-100-10/2
VKDROO 32-100-10 1800 918 882 310 400 320
VKDROO 42-110-11/2
VKDROO 42-110-11 1915 998 917 345 450 385
VKDROO 42-120-12/2
VKDROO 42-120-12 1995 1078 917 345 450 390
VKDROO 32-130-13/2 2075 1158 917 345 450 394

16 17
VKDROO 1,2 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 1-20/2 453 123 330 117 148 15
VKDROO 1-30/3 471 141 330 117 148 15
VKDROO 1-40/4 489 159 330 117 148 15
VKDROO 1-50/5 507 177 330 117 148 16
VKDROO 1-60/6 525 195 330 117 148 16
VKDROO 1-70/7 571 213 358 142 170 19
VKDROO 1-80/8 589 231 358 142 170 19
VKDROO 1-90/9 607 249 358 142 170 20
VKDROO 1-100/10 625 267 358 142 170 22
VKDROO 1-110/11 643 285 358 142 170 22
VKDROO 1-120/12 661 303 358 142 170 24
VKDROO 1-130/13 679 321 358 142 170 24
VKDROO 1-150/15 770 357 413 155 190 29
VKDROO 1-170/17 806 393 413 155 190 29
VKDROO 1-190/19 842 429 413 155 190 33
VKDROO 1-210/21 878 465 413 155 190 33
VKDROO 1-230/23 914 501 413 155 190 33
VKDROO 1-250/25 1015 537 478 165 197 40
VKDROO 2-20/2 453 123 330 117 148 15
VKDROO 2-30/3 499 141 358 142 170 18
VKDROO 2-40/4 517 159 358 142 170 20
VKDROO 2-50/5 535 177 358 142 170 20
VKDROO 2-60/6 553 195 358 142 170 22
VKDROO 2-70/7 626 213 413 155 190 27
VKDROO 2-90/9 662 249 413 155 190 31
VKDROO 2-110/11 698 285 413 155 190 31
VKDROO 2-130/13 799 321 478 165 197 37
VKDROO 2-150/15 835 357 478 165 197 37
VKDROO 2-180/18 899 411 478 165 230 42
VKDROO 3,4 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 3-20/2 453 123 330 117 148 15
VKDROO 3-30/3 471 141 330 117 148 15
VKDROO 3-40/4 489 159 330 117 148 15
VKDROO 3-50/5 535 177 358 142 170 19
VKDROO 3-60/6 553 195 358 142 170 21
VKDROO 3-70/7 571 213 358 142 170 22
VKDROO 3-80/8 589 231 358 142 170 22
VKDROO 3-90/9 662 249 413 155 190 27
VKDROO 3-100/10 680 267 413 155 190 28
VKDROO 3-110/11 698 285 413 155 190 28
VKDROO 3-120/12 716 303 413 155 190 31
VKDROO 3-130/13 734 321 413 155 190 31
VKDROO 3-150/15 770 357 413 155 190 32
VKDROO 3-170/17 806 393 413 155 190 32
VKDROO 3-190/19 907 429 478 165 197 37
VKDROO 3-210/21 943 465 478 165 197 38
VKDROO 3-230/23 979 501 478 165 197 38
VKDROO 3-250/25 1025 537 488 185 230 44
VKDROO 4-20/2 506 148 358 142 170 15
VKDROO 4-30/3 533 175 358 142 170 18
VKDROO 4-40/4 615 202 413 155 190 23
VKDROO 4-50/5 642 229 413 155 190 27
VKDROO 4-60/6 669 256 413 155 190 27
VKDROO 4-70/7 761 283 478 165 197 33
VKDROO 4-80/8 788 310 478 165 197 33
VKDROO 4-100/10 852 364 488 185 230 38
VKDROO 4-120/12 906 418 488 185 230 38
VKDROO 4-140/14 1015 472 543 210 260 63
VKDROO 4-160/16 1069 526 543 210 260 65

18 19
VKDROO 8,16 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 8-20/2 569 150 419 155 190 32
VKDROO 8-30/3 599 180 419 155 190 37
VKDROO 8-40/4 694 210 484 165 197 45
VKDROO 8-50/5 724 240 484 165 197 47
VKDROO 8-60/6 764 270 494 185 230 52
VKDROO 8-80/8 879 330 549 210 260 72
VKDROO 8-100/10 939 390 549 210 260 78
VKDROO 8-120/12 999 450 549 210 260 80
VKDROO 8-140/14 1210 510 700 255 330 135
VKDROO 16-20/2 674 180 494 185 230 50
VKDROO 16-30/3 774 225 549 210 260 65
VKDROO 16-40/4 819 270 549 210 260 75
VKDROO 16-50/5 1015 315 700 255 330 130
VKDROO 16-60/6 1060 360 700 255 330 132
VKDROO 16-70/7 1150 405 700 255 330 140
VKDROO 16-80/8 1150 450 700 255 330 140
VKDROO 16-100/10 1290 540 750 255 330 150
VKDROO 20 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 20-20/2 674 180 494 185 230 50
VKDROO 20-30/3 774 225 549 210 260 65
VKDROO 20-40/4 819 270 549 210 260 75
VKDROO 20-50/5 1015 315 700 255 330 130
VKDROO 20-60/6 1060 360 700 255 330 132
VKDROO 20-70/7 1105 405 700 255 330 140
VKDROO 20-80/8 1150 450 700 255 330 140
VKDROO 20-100/10 1290 540 750 255 330 150

20 21
VKDROO 32 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 32-10-1/1 676 186 490 165 197 65
VKDROO 32-10-1 686 186 500 185 230 75
VKDROO 32-20-2/2 811 256 555 210 260 85
VKDROO 32-20-2 811 256 555 210 260 95
VKDROO 32-30-3/2 881 326 555 210 260 100
VKDROO 32-30-3 1044 326 718 255 330 150
VKDROO 32-40-4/2 1114 396 718 255 330 155
VKDROO 32-40-4 1114 396 718 255 330 185
VKDROO 32-50-5/2 1184 466 718 255 330 195
VKDROO 32-50-5 1174 466 768 255 330 215
VKDROO 32-60-6/2 1304 536 768 255 330 225
VKDROO 32-60-6 1304 536 768 255 330 225
VKDROO 32-70-7/2 1399 606 793 285 360 260
VKDROO 32-70-7 1399 606 793 285 360 260
VKDROO 32-80-8/2 1469 676 793 285 360 265
VKDROO 32-80-8 1544 676 868 310 400 305
VKDROO 32-90-9/2 1614 746 868 310 400 315
VKDROO 32-90-9 1614 746 868 310 400 315
VKDROO 32-100-10/2 1684 816 868 310 400 325
VKDROO 42 60Hz
Installation Sketch Size and weight
Model Pump and motor
dimensions
Weight
(kg)
A B C D D1
VKDROO 42-10-1/1 767 198 569 210 260 83
VKDROO 42-10-1 767 198 569 210 260 88
VKDROO 42-20-2/2 1010 278 732 255 330 129
VKDROO 42-20-2 1010 278 732 255 330 162
VKDROO 42-30-3/2 1140 358 782 255 330 175
VKDROO 42-30-3 1140 358 782 255 330 175
VKDROO 42-40-4/2 1245 438 807 285 360 232
VKDROO 42-40-4 1320 438 882 310 400 310
VKDROO 42-50-5/2 1400 518 882 310 400 315
VKDROO 42-50-5 1400 518 882 310 400 315
VKDROO 42-60-6/2 1480 598 882 310 400 338
VKDROO 42-60-6 1480 598 882 310 400 338
VKDROO 42-70-7/2 1595 678 917 345 450 408
VKDROO 42-70-7 1595 678 917 345 450 408

22 23
XI. DRAWING
1. Motor
2. Coupling
3. Pump head
4. Coupling guard
5. Mechanical seal
6. Straps
7. Shaft
8. Inducer
9. Suction head
10. Impeller
11. Diffuser
11a. Neck ring cover
11b. Neck ring
12. Impeller sleeve
13. Bearing
14. Support diffuser
15. Strainer
16. Shaft pin
17. Circlip cover
18. Impeller sleeve(s)
18a. Adjusting sleeve
19. Screw
19a. Washer
20. Nut
21. Washer
22. Hexagon socket
head screw
23. Screw
23a. Screw
24. First impeller cover
25. Washer
26. Nut
27. Air vent gag
(optional)
28. Strainer retainer
29. O ring
VKDROO 1,2,3,4—111102
1. Motor
2. Coupling
3. Pump head
4. Coupling guard
5. Mechanical seal
6. Straps
7. Shaft
8. Inducer
9. Suction head
10. Impeller
11. Diffuser
11a. Neck ring cover
11b. Neck ring
11c. Last diffuser
12. Impeller sleeve
13. Bearing
14. Support diffuser
15. Strainer
16. Shaft pin
17. Circlip cover
18. Support for suction
19. Screw
19a. Washer
20. Nut
21. Washer
22. Hexagon socket
head screw
23. Screw
23a. Screw
24. First impeller cover
25. Washer
26. Nut
27. Air vent gag
(optional)
28. Impeller sleeve (L)
29. Impeller sleeve (S)
31. Crossover flange
32. Screw
(Part 31, 32 are only for
VKDROO that power is
bigger than 4kW, 5.5kW
or 7.5kW)
VKDROO 8,16,20—090902

24 25
XII. WARNING
A. Before opening the terminal box, please shut off the power supply
to prevent from electric shock
B. Before opening the coupling guard, please stop
pump fistly to prevent from hurt.
C. When installing the pump, please fix the foundation
bolts vertically to prevent from pump falling to hurt people.
D. Please fill grease to the pump when it requires.
For motor power less than 5.5kW, it is free of filling
grease. For motor power equal or higher than 5.5kW,
please fill grease every 5000 running hours.
E. Recommendation for Electrical Connection and Safty Devices
Motor parameter (380V 50Hz/60Hz)
1. Motor
2. Coupling
3. Pump head
4. Coupling guard
4a. Coupling guard
for crossover
flange (Not this
part for pumps
power less than
11kW)
5. Mechanical seal
6. Straps
7. Shaft
8. Inducer
8a. Neck ring base
assembly
9. Suction head
10. Small impeller
10a. Impeller
11. Diffuser
13. Bearing
(Not for 1 to 3
stages pump)
14. Support diffuser
(Not for 1 to 3
stages pump)
15. Strainer
16. Cone
18. Cover
18. Casing nut &
washer
19. Hexagon socket
head screw
19a. Washer
19b. Hexagon nut
20. Hexagon nut
21. Washer
22. Hexagon socket
head screw
23. Screw
23a. Screw
27. Air vent gag
(optional)
31. Crossover flange
(Not this part for
pumps power
less than 5.5kW)
32. Hexagon socket
head screw
44. Washer
45. Screw
47. Bottom bearing
47a. Bottom sleeve
49a. Ring for neck ring
50a. Top diffuser
51. Hexagon socket
head screw
52. Seal cover
53. Washer
54. Flange
55. Circlip
56. Impeller nut
56a. Impeller nut for
support diffuser
(Not for 1 to 3
stages pump)
57. Hexagon socket
head screw
58. Ring for strainer
VKDROO 32,42—090101
No. Motor power
(kW)
Cable
connection
Current (A) Weight (kg)
YE2/IE2 YE3/IE3
1 0.37 Y 1.0 1.0 0.75
2 0.55 Y 1.4 1.4 0.75
3 0.75 Y 1.8 1.7 0.75
4 1.1 Y 2.5 2.4 1
5 1.5 Y 3.3 3.2 1
6 2.2 Y 4.7 4.6 1.5
7 3 Y 6.2 6.0 1.5
8 4 Y 8.0 7.8 2.5
9 5.5 ∆ 10.9 10.6 2.5
10 7.5 ∆ 14.5 14.4 4
11 11 ∆ 21.0 20.6 4
12 15 ∆ 28.4 27.9 6
13 18.5 ∆ 34.7 34.2 10
14 22 ∆ 41.1 40.5 16
15 30 ∆ 55.7 54.9 16
16 37 ∆ 68.3 67.4 25
17 45 ∆ 82.7 80.8 35

26 27
XII. IMPORTANT NOTICE
1. Customers will not be advised if this manual is updated.
2. Pump will be guaranteed for one year under normal operation with the correct
model. Wearing part is not included.
3. Users shall be responsible for the damage if they dissemble the pumps by
themselves in guaranteed period.
Notes

28 29

30
Be pumping partners
201913-IOM-VKDROO-EN
subject to amendments
HYDROO Pump Industries SL
Ctra. Girona-Banyoles, km. 10
17843 Palol de Revardit
Catalonia. Spain
Tel. [phone]
E-mail: [e-mail]
www.hydroo.com
