1. Introduction
Dear customer,
thank you very much for choosing a HygroMatik cabinet ion
exchanger device (softener device).
In order to operate your HygroMatik softener device safely, prop-
erly and economically please carefully study this operation man-
ual.
Only use your HygroMatik softener device when in flawless con-
dition as well as according to its intended use, safety and hazard
conscious and in compliance with all hints and restriction given
in this operation manual.
For any further questions please contact HygroMatik as follows:
Tel.: [phone] (Main office)
Tel.: [phone] (Technical Hotline)
Fax: [phone]
e-mail: [email protected]
For any queries or ordering of spare parts please have your
device data ready!
1.1 Intended Use
The HygroMatik cabinet ion exchanger device (softener device)
is ment for the production of soft water. It may only be used
according to its intended use.
Caution: Proper use includes fulfilment of the assembly, disas-
sembly, reassembly, start-up, operating and maintenance condi-
tions specified by us as well as disposal measures.
Only appointed qualified staff may work on or with the system.
Persons transporting or working on or with the system must
have read and understood the relevant parts of this operating
manual, particularly the 'Safety instructions' section. Staff must
also be informed of possible hazards by the operating company.
Please keep a copy of the operating manual at the location
where the device is being used.
Any additional equipment may only be built into any parts of
the softener device with the written permission of the HygroMatik
GmbH.
WaterLine softener device utilization
• The intended case of application is the operation within the
area of drinking water supply.
• All TVO (Trinkwasserverordnung = Drinking Water Ordi-
nance) limit and guide values must be respected. The

Page 6
iron (Fe) content limit is 0.2 mg/l, max. manganese (Mn) is
0.05 mg/l
• For use with raw water with a iron and/or manganese
content exceeding these limits, only HygroMatik WaterLine
softeners of the WL-DP family type are suited
• The softener device must not be operated outside in the
exterior
•Frost protection and humidity protection must be ensu-
red
• Allowable environmental temperature is 5 - 40 °C with a
max. r.h. of 60 percent
• Use of a system separator according to EN 1717 (former
DIN 1998, part 4) is obligatory
• Optimum flow pressure of teh device is 4.0 bar
Please note: For protection of the softener device, a water fil-
ter according to DIN 13443-1 implemented in front of the water
intake is obligatory. Without such a filter the ion exchanger resin
might silt-up within short periods of time. Also, the control valve
might get damaged by dirt ingress.
1.2 Typographic markings
•lists with items beginning with bullets: general lists
» lists with items beginning with arrows: work or operating
steps which should or must be carried out in the speci-
fied order
installation steps which must be checked
italics figure and plan names
1.3 Documentation
Storage
Please keep this operating manual in a safe place where it is
accessible at all times. If you sell the product, be sure to include
this manual. Please contact HygroMatik if the documentation is
lost.
Language versions
This operating manual is available in different languages. Please
contact your HygroMatik dealer or HygroMatik for details.

Page 7
2. Safety instructions
2.1 General information
The safety instructions are prescribed by law. They are intended
to ensure health and safety at work and accident prevention.
Warnings and safety symbols
The following safety symbols are used in this manual to indicate
hazard and risk warnings. Please familiarise yourself with these
symbols
Caution: Failure to heed this warning may result in injury or dan-
ger to life and limb and/or damage to the device.
.
Caution:Voltage: Dangerous electrical voltage! Failure to heed
this warning may result in injury or danger to life and limb.
Indicates materials and consumables which must be handled
and/or disposed of in accordance with statutory requirements.
Please note: precedes explanations for or cross-references to
other places in the text. Also, information is marked in this way
that requires particular observance.
General safety instructions for working on the HY-EKB20
softener device
Caution: Prior to working on the softener device water supply
must be cut
Caution: The device may be under pressure. Prior to working
on the device pressure must be released.
2.2 Safety instructions for the installation and
start-up of the softener device
• Integration of the softener device into the house water
installation scenario must only be carried out by an expert
company for drinking water treatment. Local and regional
regulations must by obeyed without exemption
• The electrical connection and programming of the softener
device may only be made by trained personnel

Page 8
• Please also consider water flow pressure in your supply
situation. The allowable pressure range is 2.5 to 7.0 bar. If
pressure lies above that, a pressure reducer must be
installed
•Asaprotection against water damage, a gully is recom-
mended. If not available, alternatively a water-stop may
be used
• The installation ground must be imperatively level and dry.
The device is to be placed in a way that tilting by acciden-
tal impact is not possible
• Please consider adequate distance to heat sources
• We recommend the sole use of pipes made from plastic
or stainless steel. Zinc plated water pipes are note suited
for use with zero hardness water
2.3 Safety regulations for the operation of the
softener device
General
• Any form of using the device that impaires the safety of
the device must be refrained from
• Please observe all safety and hazard signs on the device
• On functional failures switch-off the device immediately
and secure against switching on again. Clear any faults on
the spot
• After repair work operational safety must be assured by
expert staff
• Only use orignal spare parts
• All other national regulations beyond the a.m. coverage
apply without restriction for operating the device
Use by persons not entitled
This device is not intended for the use by persons (including chil-
dren) with limited physical, sensoric or mental capabilities or
lacking experience and/or non-existing knowledge unless super-
vised by a person responsable for the user‘s safety or prior
instructions given in the use of the device. Children should be
kept an eye on to make sure that no playing with the device
happens.
Operational safety
• For your own safety regularly inspect connecting pipes
and hoses to minimize the risk of flooding
• Check the brine tank in a regular time frame to make sure
that regeneration salt is always available in sufficient
volume in order not to limit the functional capability of the
device

Page 9
• To avoid contamination by dust or pest, the brine tank
should always be closed with the appropriate cover
• Even when not in use for a longer period of time, the
device should remain switched on since hygienic regene-
rations are run in stand-by also
2.4 Safety instructions for working on electri-
cal equipment
Warning: Only expert personnel is permitted to work on the
electrical system and the control cabinet (if applicable).
Risk of electrical shock! Prior to working on the electrical
equipment of the softener device always cut the mains connec-
tion by unplugging the power adaptor. Make sure never to touch
electrical components with wet hands.
Switch off the system immediately if faults in the electrical
energy supply occur.
Only use original fuses with the specified amperage.
Inspect the system's electrical equipment at regular intervals.
Promptly eliminate deficiencies, such as loose connections or
melted cables. After carrying out the corresponding electrical
assembly or maintenance work, test all protective measures
used (e.g. earth resistance).
Accident prevention regulations
Caution: Heed the HSW (Health and Safety at Work) regulations
for electrical installations and equipment (VBG4/BGVA3).
By doing so you protect yourself and others from harm.
2.5 Disposal upon disassembly
The operating company is responsible for disposal of the system
parts in accordance with statutory requirements.

Page 10
3. Transport
3.1 General Information
Please note: Take care when transporting the HygroMatik sof-
tener device to prevent the device and packaging from being
damaged.
Warning: Pressure tanks are very impact sensitive und must not
be rolled.
3.2 Temporary storage
Store the device in a dry and frost-free place.
3.3 Inspecting for correctness and complete-
ness
When you receive the goods, ensure that the equipment is com-
plete and all parts are in perfect condition.
Please note: Any transport damages and/or missing parts must
be reported immediately to the shipper or supplier.
The periods in which notification of the transport company must
occur for the purposes of identifying the damage are as follows*:
* Periods are subject to change without notice.
3.4 Scope of delivery
The following items are included in the delivery:
•Softener device (in case od a device featuring two pres-
sure tanks, the second tank is separately packaged)
•Operating manual(s)
•Accessories ordered
3.5 Packaging and return consignement
Should return consignment be necessary, please consider the
following:
• Preferably use euro pallet for packaging
• Ensure frost and humidity protection during transport
• Take care when handling pressure tanks
Transport company Time after receipt of
goods
Post no later than 24 hours
Rail 7 days at the latest
Rail and road transport
companies
4 days at the latest
Parcel services immediately

Page 11
4. Functionality and device composition
4.1 Principle of operation
The HygroMatik softener device makes use of the ion exchange
method for replacing magnesium and calcium as well as stron-
tium and barium by natrium, thus producing so called soft water.
The device works using the concurrent process and was
designed for normal salting.
The raw water fed to the softener must be iron- and maganine-
free. For use with raw water not complying to this prerequisite,
the WaterLine double softener device family WL-DP featuring a
special compatible resin filling may be used .
After the production of a set volume of soft water, regeneration
occurs on a regular base. For that purpose brine water is sucked
from the brine tank into the exchanger (pressure tank). Because
of the extremely high concentration of natrium in the brine the
hardness components bound are exchanged again with natrium.
The regeneration waste water is drained to a canal. On finishing
the regeneration cycle, the brine tank is filled-up again with
water to allow for the production of new brine.
Besides the volume based regeneration, forced regeneration is
carried out on a regular base to ensure proper hygienic condi-
tions. Otherwise, the softener may be prone to microbial con-
tamination if no water flow exists due to longer periods of non-
usage (e.g. during holiday periods) Pre-setting for forced regen-
eration is 3 days. This setting may be changed by the operator.
Since the WaterLine WL-S softener device features only one
pressure tank, the device is not available for soft water produc-
tion during regeneration. In contrast to this, the WaterLine sof-
tener devices WL-D and WL-DP are equipped with two pressure
tanks each, allowing for soft water production in the one tank
while - in parallel - the resin in the other tank is regenerated.
Because of this mechanism, these devices are designated as
„pendulum systems“. When the resin in the active pressure tank
is dead, the control valve switches to the other pressure tank
holding freshly regenerated resin of full capacity.
4.2 WL-S and WL-D/DP device composition
The systems are composed of a brine tank and one or two
exchangers. The resin-filled exchangers are pressure tanks
made from GRP. On top of the pressure tank (or one of the pres-
sure tanks in case of the WaterLine WL-D/DP systems) sits the
control valve. The control valve holds a displaceable piston for
supporting all of the steps of the ion exchanger and regeneration
processes and the microprocessor-based control logic.

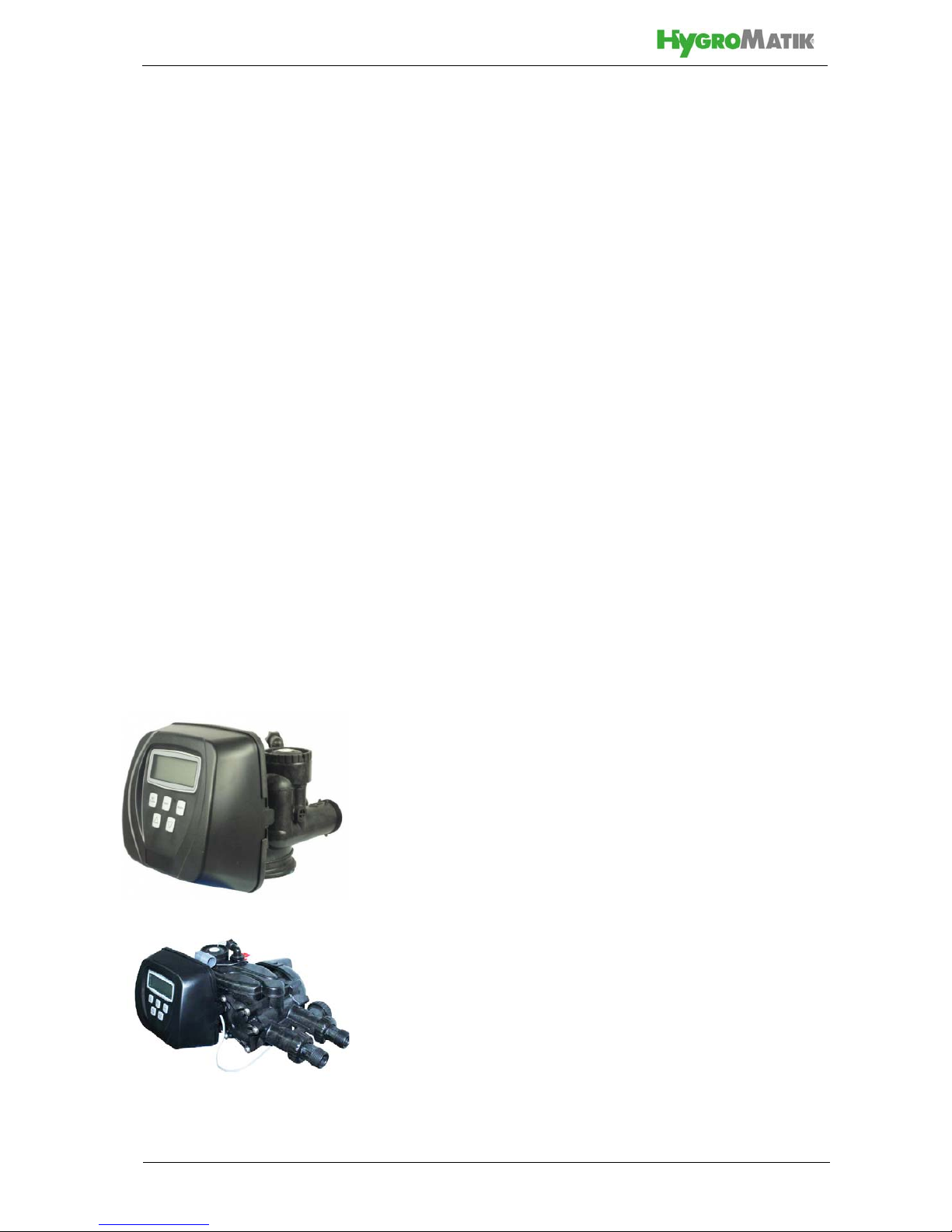

Control valve for WL-S, view
Control valve for WL-D/DP,
view

Page 12
Arranged in the brine tank is a stand pipe holding a riser pipe for
brine sucking. The bottom end of the riser pipe features a ball
valve that blocks sucking when the brine level has sunk accord-
ingly. The riser pipe top end is connected to the control valve
through a brine tube.
The control valve is connected to the house water installation
either directly or via a (optionally available) mounting block
through hoses for water inlet and water outlet (optionally avail-
able water connection set including titration kit may be used).
Hose connections make use of the provided BSPT adaptors
(BSPT = British Standard Pipe Thread).
Pendulum systems feature a single control valve with the
Principle design of WaterLine softener device WL-S
Control valve
Regenerations waste water connection
Soft water
connection
Brine tank
Brine tube
Raw water
connection
Resin filling
Riser pipe
Overflow
Floor drain
Riser pipe
w. ball valve
Pressure tank
Inserted
Riser pipe
Top nozzle
Bottom nozzle
*) Inserted floor screen only when resin capacity is 100 m3x °dH or higher
floor screen *)
Brine
filling
Waste water
hose
Principle design of WaterLine softener device WL-D/DP
Brine tank
Brine tube
Raw water
connection
Resin filling
Riser pipes
Overflow
Floor drain
2nd pressure
Control valve
Riser pipe
w. ball valve
Soft water
connection
Pressure tank
Tubing
Top nozzles
Bottom nozzles
Stand pipe
Regeneration waste water connection
*) Inserted floor screen only when resin capacity is 100 m3x °dH or higher
Inserted
floor screen *)
tank Brine
filling
Waste water
hose
connection
Water inlet
and outlet
Wastewater
Brine tube
Blending
valve
Electronic control
with Display and
Control valve for WL-S,
connections
control panel
connection

Page 13
expanded functionality for automatic switching between pres-
sure tanks. The tank without a control valve is connected to the
control valve on the other pressure tank via tubings for raw and
soft water.
The waste water hose is connected to a 3/4 inch elbow on the
control valve. Draining must feature an open outlet in order to
prevent microbiological contamination.
The control logic comprises a display for time-of-the-day presen-
tation as well as the preset and programmable parameters of the
ion changer process. Operating and programming is accom-
plished by use of the 5 keys designated „SET CLOCK“, „NEXT“,
„REGEN“as well as „Δ“ und „∇“ (up/down-arrows for increasing/
decreasing settings).

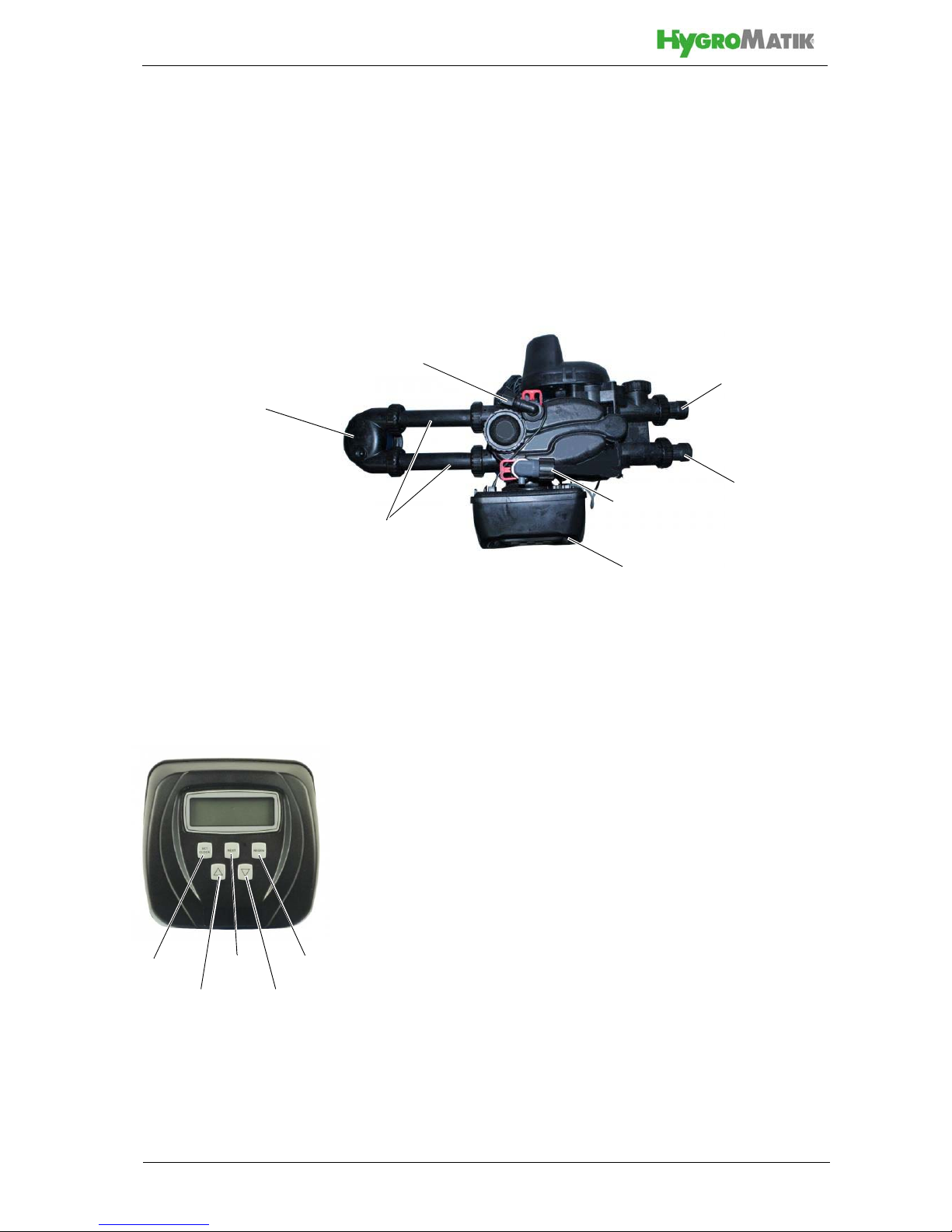

Control valve for WL- D/DP, connections
Brine tube
connection
Waste water
Connection head for
2nd pressure tank
Soft water
Raw water
Tubing for 2nd
pressure tank
outlet
connection
Electronic control with
display and control panel
inlet
SET
CLOCK
NEXT REGEN
Δ∇
(Up) (Down)
Display and control panel
of control valve for WL-S
and WL-D/P

Page 14
4.3 Use of optional chlorine cell
Periodical chlorination of the raw water feed to a softener device
is meaningful in order to fight microbiological contamination in
the exchangers and pipes by chemical means. For this purpose,
a chlorine cell may be inserted in the brine tube by use of a t-
piece connector that produces active chlorine. Any excessive
chlorin is washed out with the regeneration waste water. How to
use the chlorine cell is described in a chapter of its own.
4.4 Operating cycles
Normal operation mode of the WaterLine softener devices is
„softening“ . Alternating to this (in case of single systems) or in
parallel (with double systems), then in the currently not active
exchanger, „regenerating“ is carried out. The following operating
cycles can be distinguished in detail:
Normal operation
• Softening
Regeneration
• Backwash
• Brine and Slow wash
•Rinse
• Fill (brine tank)

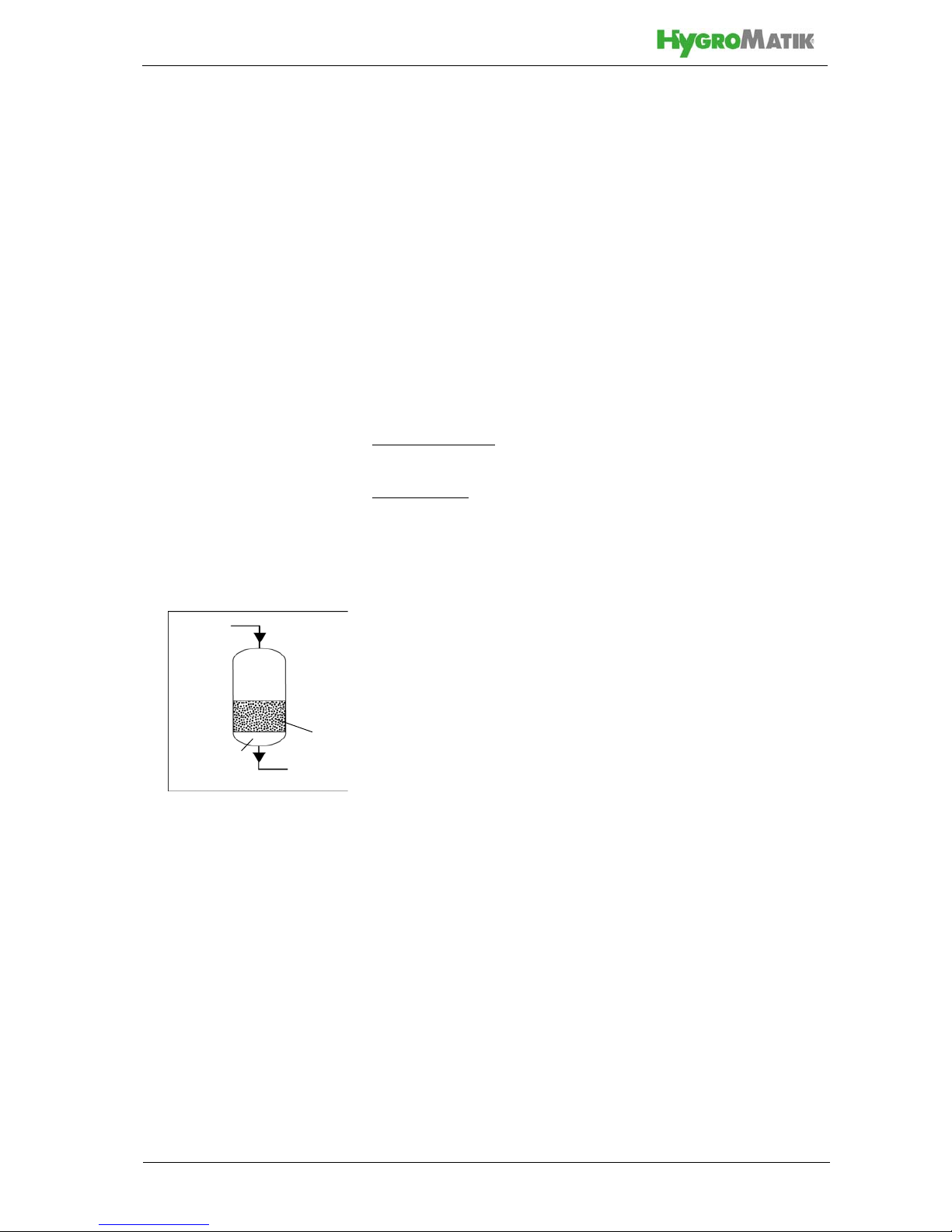

4.4.1 Softening
This is the normal operation mode of the WaterLine softener
device. The control valve guides raw water into the pressure
tank filled with exchanger resin. Raw water flows top down
through the resin while the resin absorbes magnesium and cal-
cium ions, exchanging them with sodium ions. By this mecha-
nism, softened water is generated. The product water enters the
rise pipe in the pressure tank through the bottom nozzle and is
subsequently propagated to the control valve and, finally, to the
consumer through the product water pipe.
4.4.2 Regenerate
Since the exchange capacity of the resin is exhausted after a
certain volume of soft water produced, regeneration is required
on a regular time frame. For this purpose, NaCl brine is used
that is produced by dissolving salt tablets in the brine tank.
Regeneration point of time is determined by the control valve. To
enable this, „soft water capacity“ with respect to the Waterline
device capacity and local raw water hardness must be pro-
grammed into the the control valve logic. On reaching the
threshold set, automatic regeneration will result. The number of
regeneration occurences is only restricted by resin life time.
Softening
Soft water
Raw water
resin
Exchanger

Page 15
Please note: The dimensioning of the WaterLine softener
device must be such that soft water demand does not exceed
the soft water capacity between any two regenerations.
The regeneration process is separated in the partial steps „back-
wash“, „brine/slow wash“, „rinse “ and „fill“.
4.4.2.1 Backwash
Under control valve regime raw water is fed bottom up through
the exchanger resin in the pressure tank, thus causing disaggre-
gation of the resin.
4.4.2.2 Brine and slow wash
In the brine tank, a 25 percent brine is prepared from raw water
and NaCl.
Please note: Building up the required brine concentration takes
6 hours of time minimum. Such, any two regenerations should
be separated by at least this time interval.
Brine is sucked up by the control valve injector and blended with
raw water to a 10 to 12 percent concentration, which is the opti-
mum concentration for the regeneration process. The diluted
brine is fed through the resin top down. Now ion exchange takes
place in the inverted direction as compared to softening, setting
free and draining calcium- and magnesium ions bonded by the
resin. Following brining, slow wash is carried out in the follow-
ing way: When no more brine is sucked by the injector, only raw
water flows through the resin bed in the pressure tank. Any brine
left in the pressure tank is swamped out by and by.
4.4.2.3 Rinse
Following slow wash, rinse is carried out with raw water guided
through the pressure tank top down at a rate of approx. 8 - 12 m/
h. After a flushed water volume corresponding to 3 to 4 times the
resin filling volume, proper soft water may again be produced.
4.4.2.4 Fill
The brine tank is filled-up automatically with a defined volume of
watert. After filling the regeneration prozess is terminated and
the control valve sets the WaterLine softener device back to nor-
mal operation.
Backwash
Raw water
Brine and
slow wash
Brine
Raw water
Rinse
Raw water

Page 16
4.4.2.5 Duration of the regeneration steps
Duration of the individual regeneration steps may be pro-
grammed by the operator (s. chapter 7 for details). Typical rec-
ommended settings are as such:
Backwash: 3 - 5 mins.
Brine/Slow wash: total time 45 mins. (brine is fully sucked-up in
approx. half of the time)
Rinse: 5 - 8 mins.
Fill: this „time“ is not set in minutes but is expressed by the salt
volume (in kg) needed per regeneration event. The individual
WaterLine softener models require the following settings:
*) Factory settings
In practise filling times lie betwwen1:30 mins. und 4:30 mins.
(depending on device capacity).
Brining is described in more detail in the following chapter.
Model Resin
volume[l]
Amount of salt [kg]*)
Full brining Partial brining
WL-S-20 5 1.1 0.8
WL-S-40 10 2.2 1.6
WL-S-60 15 3.3 2.4
WL-S-80 20 4.4 3.2
WL-D-20 5 1.1 0.8
WL-D-40 10 2.2 1.6
WL-D-60 15 3.3 2.4
WL-D-80 20 4.4 3.2
WL-D-100 25 5.5 4
WL-D-160 40 8.8 6.4
WL-D-200 50 11 8
WL-D-240 60 13.2 9.6
WL-D-300 75 16.5 12
WL-D-400 100 22 16
WL-D-500 125 27.5 20
WL-DP-30 12 1.2 not possible
WL-DP-62 25 2.5 not possible
WL-DP-92 37 3.7 not possible
WL-DP-124 50 5 not possible
WL-DP-150 62 6.2 not possible
WL-DP-187 75 7.5 not possible
WL-DP-250 100 10 not possible
WL-DP-310 125 12.5 not possible
WL-DP-370 150 15.5 not possible

Page 17
4.5 Brine
The capacity of a WaterLine softener device is not a constant but
is determined by the following factors:
• Raw water quality (drinking water quality required)
• Raw water hardness
• Raw water hardness variations (require regular checks)
• Raw water flow pressure
• Resin quality
• Resin volume
• Method of brining
These influencing variables must be considered when program-
ming the control valven. Below, particular attention is directed on
the method of brining.
Depending on the amount of NaCl consumed during regenera-
tion, full or partial brining is refered to. For a residual hardness of
soft water below 0.1 °dH, only full brining is adequate. Full brin-
ing requires the use of 220g of salt per liter of resin.
Please note: When working with zero hardness water, zinc-
coated pipes must not be used. Only pipes made from plastic or
stainless steel are adequate.
In case of a lower requirement concerning the residual hard-
ness, partial brining (i.e. 160g of salt per liter of resin) is allow-
able.
Please note: When using partial brining, a certain „slip of hard-
ness“ may occur, i.e. following a regeneration soft water hard-
ness may be increased by 2°dH (with respect to the set value)
for a certain amount of time.

Page 18
5. Installation
5.1 Basic prequisites for operating the Water-
Line softener device
The following requirements must be met for operating the Water-
Line softener device:
• Electrical connection requires on-site fusing and must not
be interrupted at any time (connection to branch circuit not
permissable)
• Minimum flow pressure must be 2.5 bar
• Maximum flow pressure must not exceed 7.0 bar. Opti-
mum is 4.0 bar
• Temperatur in operating room must be between 5 °C and
40 °C
• R.h. in operating room must not exceed 60 percent
• The drain provided by customer must be a free outlet
according to EN DIN 1717
• The operating room must be sufficiently ventilated, must
allow for the floor loading introduced by the WaterLine
softener device and feature a floor gully.
5.2 Selecting the correct installation location of
the Waterline softener device within the
house installation scenario
• If no mounting block is used, the house installation tubing
must be cut at a suitable spot (downstream of the pressure
reducer, if applicable) and the Waterline softener device
must be inserted
• For insertion of a mounting block approx. 300 mm of free
tubing is required
• Should a water filter not be installed yet, another 300 to
400 mm of free tubing for installation of a filter must be
considered
Water filter
Pressure
reducer
Consumer
soft water
By-pass
Flush tap
(optional)
Mounting block
Sampling tap
(optional)
Fine-dosing for
soft water blending
softener device
to from
System separator
Principle connection of HygroMatik WaterLine softener devices by means of the
optional mounting block
Raw water

Page 19
5.3 Requirements on the installation site of the
WaterLine softener device
• The floor must be even and dry and have a load capacity
that reflects the operating weight of the softener device as
given in the technical specifications. An even floor is man-
datory in order to allow for a tensionless arranging of the
tubing for the device
• The WaterLine softener device must be levelled on-site.
For securing the system against tilting by inadvertant
impacting, a wall mounting set is available as an option
(Article no. B-5000105)
• The floor must be clean and free of pointed objects,
stones, construction waste etc. in order not to pose any
damaging hazard to the brine tank.
• If required set-up a fundament
• A sewer junction must be in close proximity
• For safety reasons the installation location should feature
a floor gully. If no gully exists, a water stop may alterna-
tively be used.
5.4 Set-up of the WaterLine pendulum devices
WL-D/DP
The HygroMatik softener devices WL-D and W-DP are only par-
tially preconfigured when delivered. For transportation safety
reasons the second pressure tank is separatly packed. Before
operating the system, the tubing between the corresponding
connections on the control valve on top of the one pressure tank
and the connecting head on the other pressure tank must be put
in place. The connecting tube coupling nuts must only be
secured hand-tight.
5.5 Attaching the tubing for raw water and soft
water
5.5.1 Prerequisites for the correct connection of the
tubing on the softener device
• Raw water flow pressure must be 2.5 bar minimum. If not
the case, proper functioning of the WaterLine softener
device may be impaired by air cushions that may built up.
For monitoring flow pressure, it makes sense to integrate a
manometer into to the raw water pipe, if not already pre-
sent.
• Any installations (such as elbows etc.) upstream of the sof-
tener device that may reduce flow pressure are not allo-
wable
• Max. flow pressure must never exceed 7.0 bar. If a pres-
sure situation, pressure peaks or hydraulic shocks beyond
7.0 bar may be encountered, a pressure reducer must be
implemented upstream of the softener device.
Securing the WaterLine softener
device by means of the optionally
Tension belt
availabe wall attachment set
Bracket
Tubing of WL-D/DP

Page 20
• Raw water supply must always be secured by use of a
system separator according to EN DIN 1717
• A filter in the raw water pipe is indispensable in order to
prevent foreign matter to be washed into the control valve
possibly causing misfunctioning
• A rinsing valve just shortly upstream of the softener is
recommended. Rinsing the pipe after installing armatures
prevents debris such as pieces of kindling or impermeable
material to enter der WaterLine softener device
• On-site tubings must be supported by adequate means in
order to avoid tensions in the tubing system
• We recommend the use of pipes made from plastic or
stainles steel.. Zinc-plated pipes are not suitable for use
with zero hardness water.
5.5.2 Connecting the control valve to the house water
installation
» Use adequate hoses incl. flat gaskets to connect water
inlet and water outlet of the control valve to the house
water installation. Make sure to pay attention to the flow
direction arrows on the control valve indicating water
inlet and water outlet
» Check all connections for leakiness
For connecting, the optionally available „Water connection set
comprising 2 hoses and titration kit, art. no. B-5000103“ may be
used.
Water inlet Water outlet
WL-S control valve,
connections for water, waste
Waste water connection
Brine tube
water and brine
onnection
Water inlet
Water
outlet
Waste water
Brine tube
WL-D/DP control valve,
connections for water, waste
water and brine
