BEFORE YOU BEGIN
Thank you for selecting the 50036 HOME GYM by HYPER-EXTENSION. For
your safety and benefit, read this manual carefully before using the machine.
As a manufacturer, we are committed to provide you complete customer
satisfaction. If you have any questions, or find there are missing or damaged
parts, we guarantee you complete satisfaction through direct assistance from
our factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide
immediate assistance to you.
Toll-Free Customer Service Number
1-800-632-792
Mon. - Fri. 9 a.m. - 5 p.m. AEST
- 2 -

- 3 -
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions
apply whenever you operate a piece of exercise equipment. Be sure to read the
entire manual before you assemble or operate your machine. In particular, note the
following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. HYPER-EXTENSION
LIMITED ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR
PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS
PRODUCT.
SAVE THESE INSTRUCTIONS.

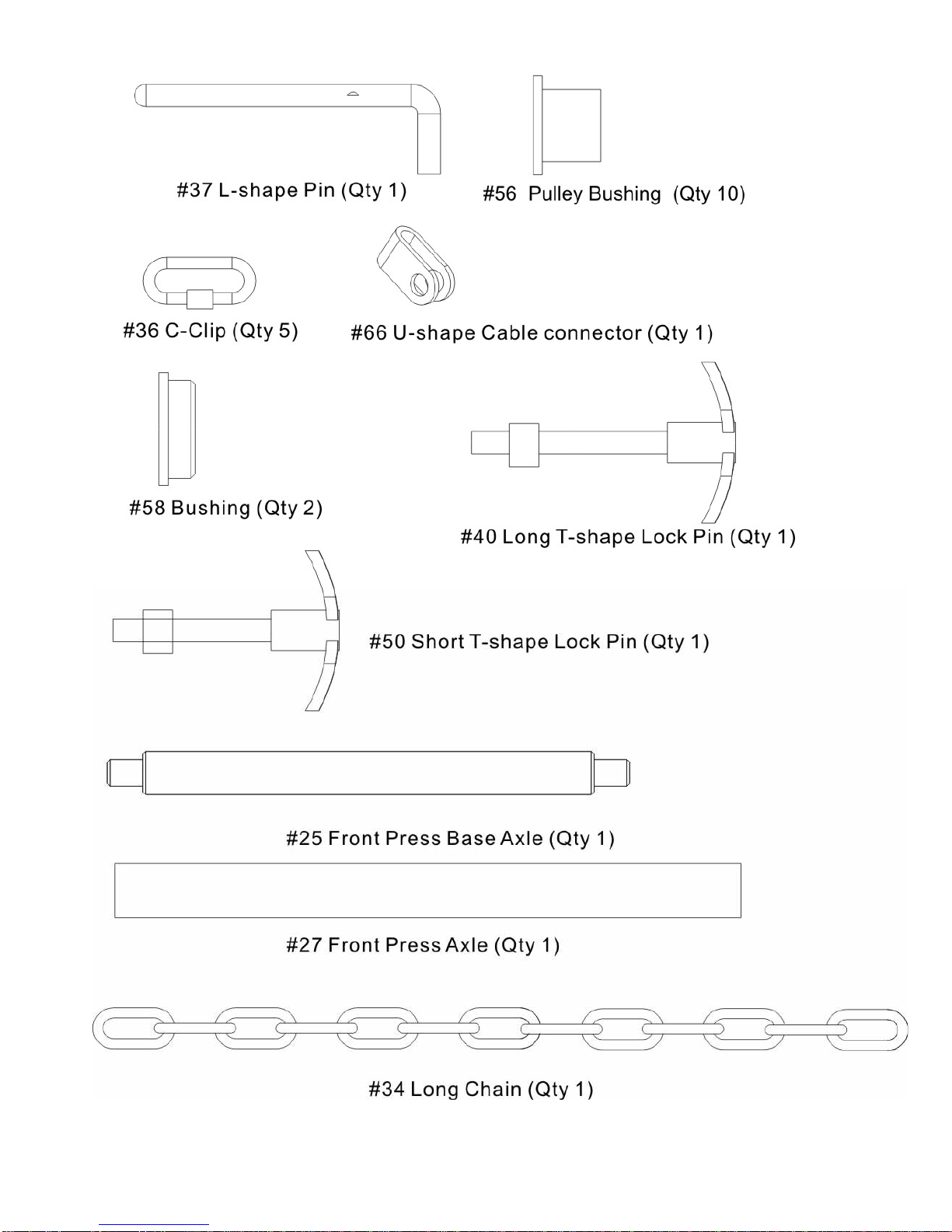

HARDWARE PACK
- 4 -

HARDWARE PACK
- 5 -

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended this machine be assembled by two or more people
to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Base Frame (#1) to the Rear Base Frame (#3). Secure them with two M10 x
70mm Carriage Bolts (#73), two ∅10mm Washers (#87), and two M10 Nylon Nuts (#88).
B.) Attach the Foot Plate (#15) to the Base Frame (#1). Align the holes of the foot plate with
the hole in the Base Frame. Insert the Foot Plate Axle (#2) through the holes. Place Flat
End Cap (#55) in each end of foot plate (#15).
C.) Attach one bar protector (#68) to each side of the bar protector joint on Base Frame (#1)
D.) Attach the Vertical Frame (#5) to the Base Frame (#1). Secure it with two M10 x 70mm
Carriage Bolts (#73), ∅10mm Washers (#87), and M10 Nylon Nuts (#88). DO NOT tighten
the Nuts and Bolts yet.
E.) Attach Butterfly Pulley Bracket (#17) to the Base Frame (#1). Secure it with two M10 x
70mm Carriage Bolts (#73), ∅10mm Washers (#87), and M10 Nylon Nuts (#88).
F.) Slide Shiver Bar Frame (#29), Sleeve (#51) and Handle Grip (#48) onto Shiver Bar (#30)

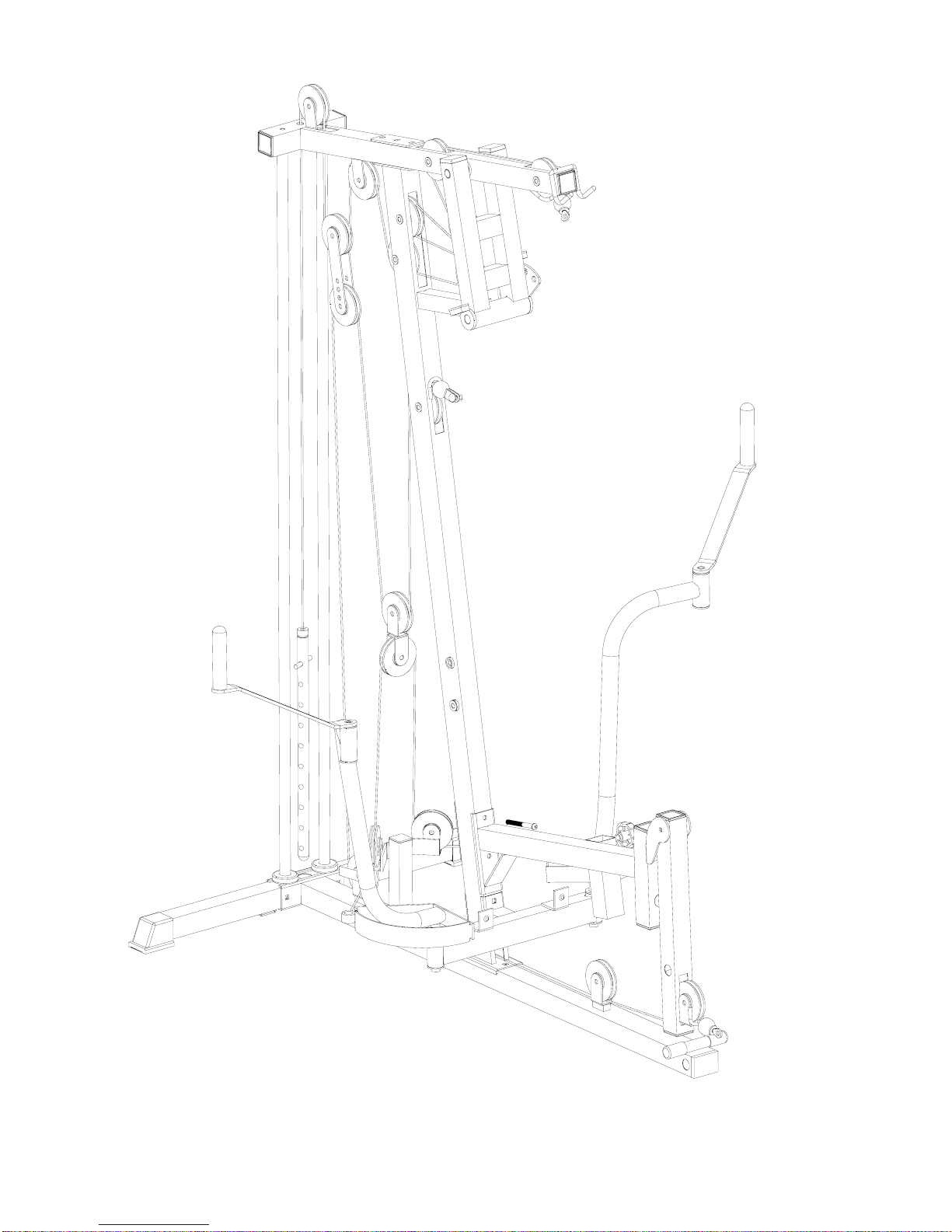

DIAGRAM 1
65
83
- 6 -

- 7 -
STEP 2 (See Diagram 2)
A.) Place two ∅60x25mm Rubber Bumpers (#60) on the Rear Base Frame (#3). Align the
holes and insert Two Guide Rods (#18) through the holes into the Rear Base Frame.
Secure each Guide Rod with one M10 x 25mm Allen Bolt (#75) and ∅10mm Washer (#87)
from the bottom of Rear Base Frame.
B.) Slide 14 Weight Plates (#46) onto the Guide Rods. Make sure all Plates are facing the
same direction. Insert the Selector Rod (#38) through the center hole on the Weight Plates.
Slide the Weight Selector Stem (#45) onto the Guide Rods.
C.) Use the L-shape Pin (#37) to select desired number of Weight Plates to Exercise. NOTE:
Each Plate weights 10 lbs. Please refer to the Weight Resistance Chart on page 24.

DIAGRAM 2
- 8 -

STEP 3 (See Diagram 3)
A.) Attach the Upper Frame (#4) onto the two Guide Rods (#18). Secure each Guide Rod to
the Upper Frame with on M10 x 25mm Allen Bolt (#75) and ∅10mm Washer (#87). DO
NOT tighten the Nuts and Bolts yet.
B.) Place the Upper Frame (#4) onto the top of the Vertical Frame (#5). Secure it with one
140x50mm Bracket (#89), two M10 x 70mm Carriage Bolts (#73), two ∅10mm
Washers (#87), and two M10 Nylon Nuts (#88).
C.) Securely tighten all Nuts and Bolts previously installed.
D.) Attach the Backrest Pad (#22) to the Backrest Support Frame (#12). Secure it with two
M8 x 40mm Allen Bolts (#77) and ∅8mm Washers (#86).
E.) Attach the Backrest Support Frame (#12) to the Vertical Frame (#5). Secure it with one
M10 x 90mm Allen Bolt (#76), two ∅10mm Washers (#87), and one M10 Nylon Nut
(#88).
F.) Thread the Long T-shape Lock Pin (#40) into the hole on the Vertical Frame (#5). Insert
the Pin into selected hole on the Backrest Support Frame to obtain the desired Backrest
position.
G.)Attach the Seat Support Frame (#6) to the Vertical Frame (#5). Secure it with two M10
x 90mm Carriage Bolts (#74), ∅10mm Washers (#87), and M10 Nylon Nuts (#88).
DIAGRAM 3
4
5
40
6
12 22
76
87 88
74 88
87
88
73
75
87
77 52
53
53
86
89
26
58
- 9 -

STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#7) to the Seat Support Frame (#6). Align the holes and
insert the Axle (#42) into the Leg Developer (#7) . Secure it with two M10 x 16mm Allen
Bolt (#78), two ∅10mm Washers (#87). Do not over tighten the Bolts, ensure the Leg
Developer is able to swivel.
B.) Attach the Front Press Base (#10) to the Upper Frame (#4). Align the holes and insert
the Front Press Base Axle (#25). Secure it with two M10 Nylon Nuts (#88) and 10mm
Washers (#87). DIAGRAM 4
- 10 -

STEP 5 (See Diagram 5)
A.) Attach the Front Press (#11) to the pivot on the Front Press Base (#10). Align the holes and
insert the Front Press Axle (#27) through the holes.
B.) Secure each end of the Axle with one M10 x 20mm Allen Bolt (#79) and 10x33 Washer
(#61).
C.) Thread a Short T-shape Lock Pin (#50) into the hole on the Front Press. Use the Lock Pin
to secure the desired Front Press exercise position.
DIAGRAM 5
50
11
10
27
70
48
49
79
61
61
62
52
- 11 -

STEP 6 (See Diagram 6)
A.) Attach the Butterfly Base (#14) to the Vertical Frame (#5). Secure it with one 120 x 50mm
Bracket (#26), two M10 x 90mm Carriage Bolts (#74), two ∅10mm Washers (#87), and
two M10 Nylon Nuts (#88).
B.) Insert the Right Butterfly (#20) into the right pivot on Butterfly Base. Secure it with one M10
x 20mm Allen Bolt (#79) and ∅10mm Washer (#87) from the bottom.
C.) Insert the Butterfly Handle (#13) into the pivot on the Right Butterfly. Secure it with one M10
x 20mm Allen Bolt (#79) and ∅10x33mm Washer (#61).
D.) Repeat Procedures B and C above to install the other side.
DIAGRAM 6
- 12 -

STEP 7 (See Diagram 7)
A.) Place the Seat Pad (#21) onto the Seat Post (#9). Secure it with two M8 x 40mm Allen Bolts
(#77) and ∅8mm Washers (#86).
B.) Insert the Seat Post (#9) into the opening on the Seat Support Frame (#6). Use a Lock Knob
(#41) to obtain the desired height of Seat.
C.) Insert two Foam Roll Tubes (#28) halfway through the holes on Seat Post and Leg
Developer. Push four Foam Rolls (#59) onto the Tubes from both ends. Plug four Foam Roll
End Caps (#54) onto the ends of the Tubes.
DIAGRAM 7
- 13 -

- 14 -
CABLE LOOP DIAGRAM

STEP 8 (See Diagram 8 & Upper Cable Loop Diagram)
- 15 -

- 16 -
A.) Attach the 3980 Upper Cable (#31) to the opening on the front Upper Frame (#4). Make
sure the ball stopper is underneath the Frame. Attach a Pulley (#43) to the Cable.
Secure the Pulley with one M10 x 65mm Allen Bolt (#80), two Pulley Bushings (#56),
and one M10 Nylon Nut (#88).
B.) Draw the Cable over the Pulley along the Upper Frame towards the back of the
machine to the opening in the middle of Upper Frame. Repeat Procedure B above to
install a Pulley.
C.) Draw the Cable around the Pulley then back to the upper open bracket on the back of
Front Press Base (#10). Attach a Pulley to the bracket. Secure it with one M10 x 45mm
Allen Bolt (#81), two ∅10mm Washers (#87), and one M10 Nylon Nut (#88).
D.) Draw the Cable around the Pulley then towards the upper opening on the Vertical
Frame (#5). Repeat Procedure B above to install a Pulley.
E.) Draw the Cable around the Pulley and back to the lower open bracket on the back of
Front Press Base (#10). Repeat Procedure C above to install a Pulley.
F.) Draw the Cable around the Pulley then to the lower opening on the Upper Frame.
Repeat Procedure B above to install a Pulley.
G.) Draw the Cable underneath the Pulley then pull upward to the open bracket underneath
the Upper Frame. Repeat Procedure C above to install a Pulley.
H.) Draw the Cable around the Pulley then downward. Attach a Pulley to the two Double
Floating Pulley Brackets (#24). Repeat Procedure C above to install a Pulley. Let the
Bracket hanging for now.
I.) Draw the Cable around the Pulley then upward to the opening on the back of Upper
Frame. Repeat the Procedure C above to install a Pulley.
J.) Draw the Cable around the Pulley then downward to the Selector Rod (#41). Thread the
Head Bolt at end of the Cable into the Selector Rod.
DIAGRAM 8

Upper Cable Loop Diagram
- 17 -

- 18 -

- 19 -

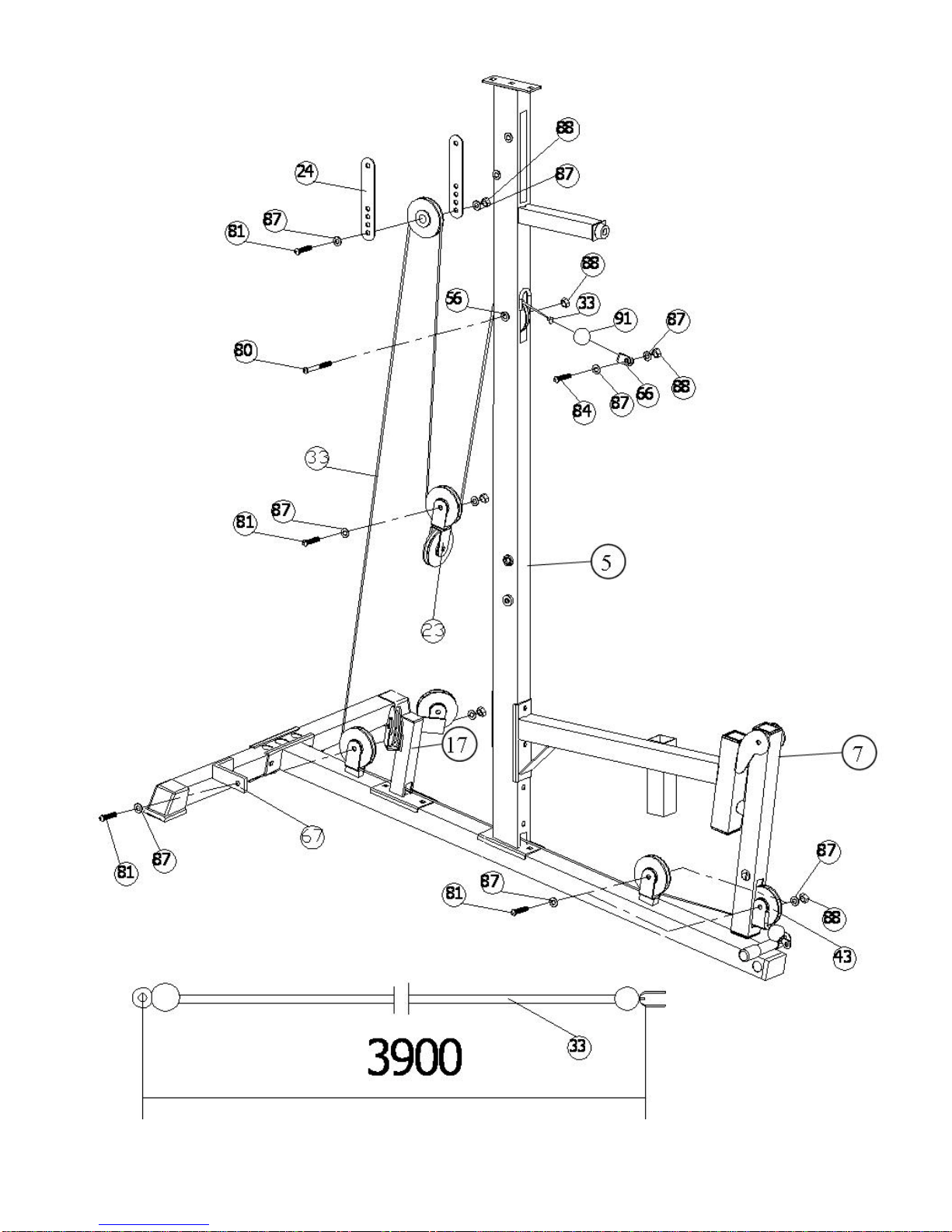

STEP 9 (See Diagram 9 & Lower Cable Loop Diagram)
A.) Attach the 3900mm Lower Cable (#33) to the opening on the Leg Developer (#7).
Attach a Pulley to the opening. Secure it with one M10 x 45mm Allen Bolt (#81),two
10mm Washers (#87) and one M10 Nylon Nut (#88).
B.) Draw the Cable underneath the Pulley to the open bracket on the Base Frame (#1).
Attach a Pulley to the bracket. Secure it with one M10 x 45mm Allen Bolt (#81), two ∅
10mm Washers (#87), and one M10 Nylon Nut (#88).
C.) Draw the Cable underneath the Pulley towards back of the machine through the
bottom openings on the Vertical Frame (#5) and Butterfly Pulley Bracket (#17) to the
open bracket on the Base Frame (#1). Repeat Procedure B above to install a Pulley
with a L-shape Cable Bracket (#67).
D.) Draw the Cable underneath the Pulley then pull upward to the Double Floating Pulley
Bracket (#24) previously installed in STEP-8. Repeat the Procedure B above to install
a Pulley. After completing the entire cable system, come back to the Double Floating
Pulley Bracket and adjust the height of the lower Pulley to adjust the tightness of the
Cables.
E.) Draw the Cable around the Pulley then downward. Attach the Cable to an Angled
Double Floating Pulley Bracket (#23). Repeat Procedure B above to install a Pulley.
Let the Bracket hanging for now.
F.) Draw the Cable around the Pulley then upward to the opening on the Vertical Frame
(#5). Attach a Pulley to the opening. Secure it with one M10 x 65mm Allen Bolt (#80),
two Pulley Bushings (#56), and one M10 Nylon Nut (#88).
G.)Insert the Cable through a Nylon Ball Stopper (#91). Attach the Cable to a U-shape
Cable Connector (#66). Secure it with one M10 x 35 Allen Screw (#84), two ∅10mm
Washers (#87), and one M10 Nylon Nut (#88).
DIAGRAM 9

- 20 -
